2003 MERCEDES-BENZ SL55AMG Owner's Manual

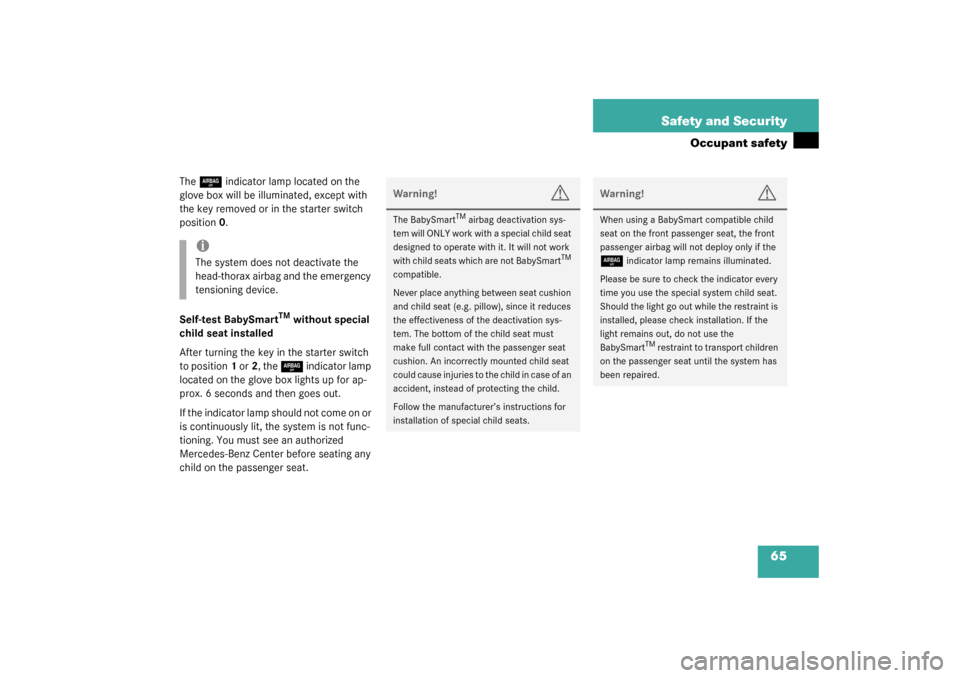

65 Safety and Security
Occupant safety
The
7
indicator lamp located on the
glove box will be illuminated, except with
the key removed or in the starter switch
position0.
Self-test BabySmart
TM
without special
child seat installed
After turning the key in the starter switch
to position1 or2, the 7
indicator lamp
located on the glove box lights up for ap-
prox. 6 seconds and then goes out.
If the indicator lamp should not come on or
is continuously lit, the system is not func-
tioning. You must see an authorized
Mercedes-Benz Center before seating any
child on the passenger seat.
iThe system does not deactivate the
head-thorax airbag and the emergency
tensioning device.
Warning!
G
The BabySmart
TM airbag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
Warning!
G
When using a BabySmart compatible child
seat on the front passenger seat, the front
passenger airbag will not deploy only if the 7
indicator lamp remains illuminated.
Please be sure to check the indicator every
time you use the special system child seat.
Should the light go out while the restraint is
installed, please check installation. If the
light remains out, do not use the
BabySmart
TM restraint to transport children
on the passenger seat until the system has
been repaired.

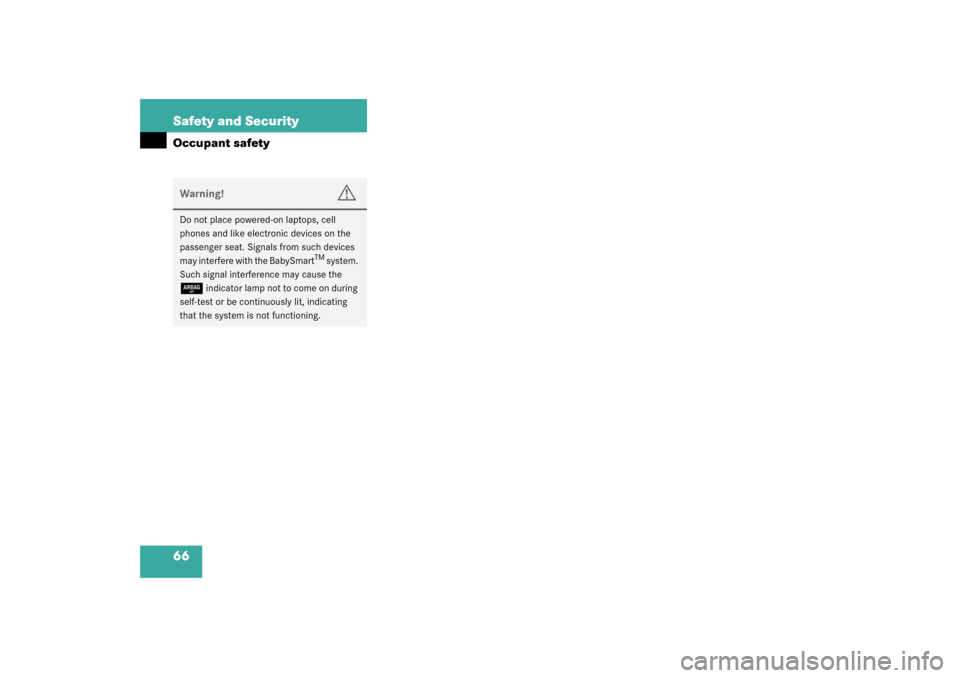

66 Safety and SecurityOccupant safetyWarning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
passenger seat. Signals from such devices
may interfere with the BabySmart
TM system.
Such signal interference may cause the
7
indicator lamp not to come on during
self-test or be continuously lit, indicating
that the system is not functioning.

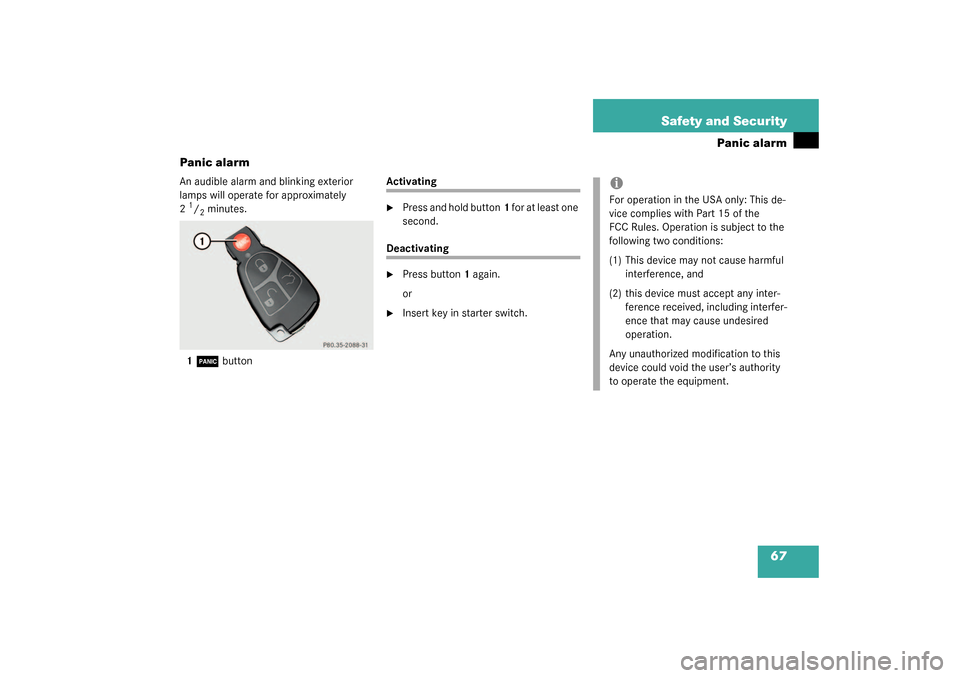

67 Safety and Security
Panic alarm
Panic alarm
An audible alarm and blinking exterior
lamps will operate for approximately
21/2minutes.
1
Â
button
Activating
Press and hold button1 for at least one
second.
Deactivating
Press button1 again.
or

Insert key in starter switch.
iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

68 Safety and SecurityDriving safety systems
Driving safety systemsIn this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)


SBC brake system (S
ensotronic B
rake
C
ontrol)
ABS
The ABS regulates the brake pressure so
that the wheels do not lock during braking.
This allows you to maintain the ability to
steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even with light brake pressure.
If the ABS activates during braking, the
ABS/ESP warning lamp
v
in the speed-
ometer dial flashes. Because of the SBC
brake system, you will not feel any pulsa-
tion in the brake pedal.
iIn winter operation, the maximum ef-
fectiveness of the ABS, the BAS, the
ESP, and SBC is only achieved with win-
ter tires (M + S tires), or snow chains as
required.
Warning!
G
The following factors increase the risk of ac-
cidents:

excessive speed, especially in turns


wet and slippery road surfaces


following another vehicle too closely
ABS, BAS, ESP and SBC cannot reduce this
risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal, rather use
firm, steady brake pedal pressure. Pumping
the brake pedal defeats the purpose for ABS
and significantly reduces braking effective-
ness.

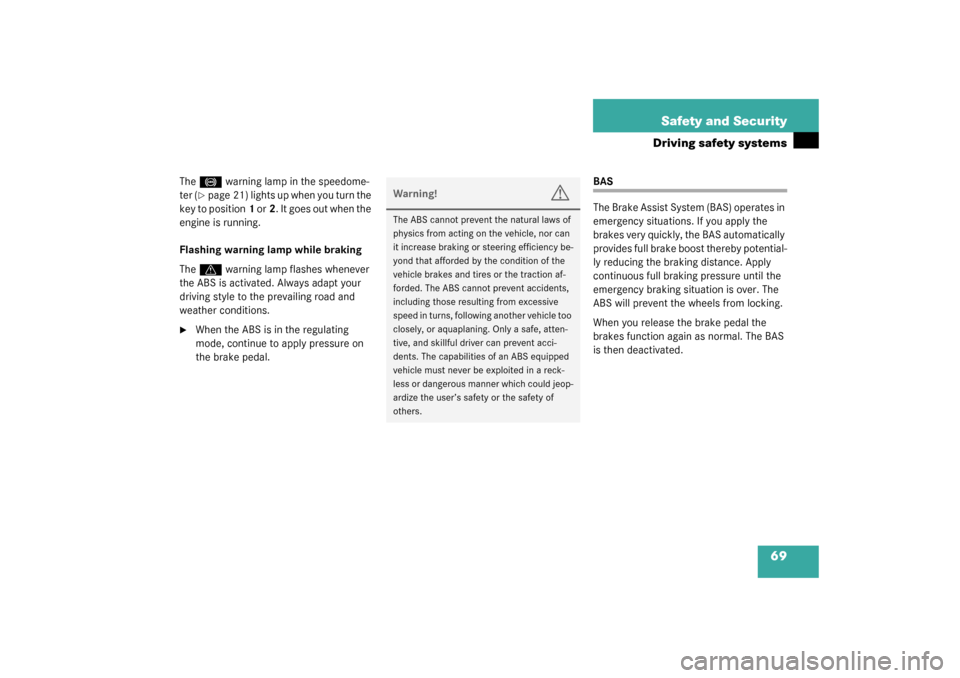

69 Safety and Security
Driving safety systems
The
-
warning lamp in the speedome-
ter (
page 21) lights up when you turn the
key to position1 or2. It goes out when the
engine is running.
Flashing warning lamp while braking
The v
warning lamp flashes whenever
the ABS is activated. Always adapt your
driving style to the prevailing road and
weather conditions.

When the ABS is in the regulating
mode, continue to apply pressure on
the brake pedal.
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost thereby potential-
ly reducing the braking distance. Apply
continuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal the
brakes function again as normal. The BAS
is then deactivated.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction af-
forded. The ABS cannot prevent accidents,
including those resulting from excessive
speed in turns, following another vehicle too
closely, or aquaplaning. Only a safe, atten-
tive, and skillful driver can prevent acci-
dents. The capabilities of an ABS equipped
vehicle must never be exploited in a reck-
less or dangerous manner which could jeop-
ardize the user’s safety or the safety of
others.

70 Safety and SecurityDriving safety systems
ESP
The Electronic Stability Program (ESP)
monitors the vehicle's traction (force of
adhesive friction between the tires and the
road surface) and handling.
The ESP recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying brakes to the appropriate wheel and
by limiting engine output, the ESP works to
stabilize the vehicle. The ESP is especially
useful while driving off and on wet or slip-
pery road surfaces.
The ABS/ESP warning lamp
v
in the
speedometer dial flashes when the ESP is
engaged.
The warning lamp
v
in the speedome-
ter dial (
page 21) lights up when you
turn the key to position1 or2. It goes out
when you start the engine
Warning!
G
BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction. The BAS cannot
prevent accidents, including those resulting
from excessive speed in turns, following an-
other vehicle too closely, or hydroplaning.
Only a safe, attentive, and skillful driver can
prevent accidents. The capabilities of a BAS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.
Warning!
G
Never switch off the ESP when you see the
ABS/ESP-warning lamp
v
flashing in
the speedometer dial. In this case proceed
as follows:


While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.

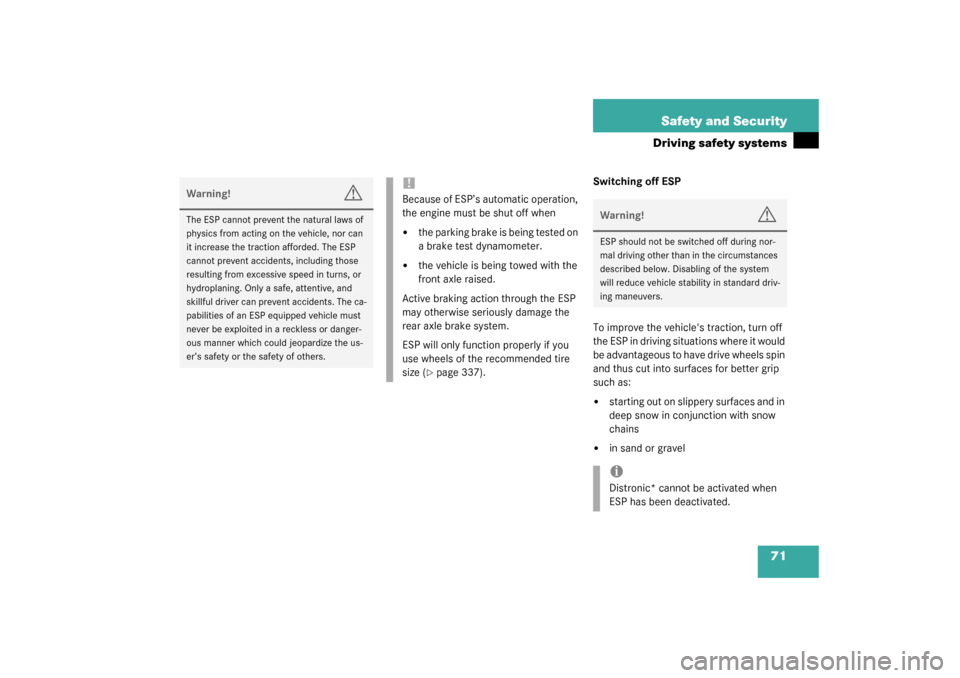

71 Safety and Security
Driving safety systems
Switching off ESP
To improve the vehicle's traction, turn off
the ESP in driving situations where it would
be advantageous to have drive wheels spin
and thus cut into surfaces for better grip
such as:

starting out on slippery surfaces and in
deep snow in conjunction with snow
chains


in sand or gravel
Warning!
G
The ESP cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.
!Because of ESP’s automatic operation,
the engine must be shut off when

the parking brake is being tested on
a brake test dynamometer.


the vehicle is being towed with the
front axle raised.
Active braking action through the ESP
may otherwise seriously damage the
rear axle brake system.
ESP will only function properly if you
use wheels of the recommended tire
size (page 337).
Warning!
G
ESP should not be switched off during nor-
mal driving other than in the circumstances
described below. Disabling of the system
will reduce vehicle stability in standard driv-
ing maneuvers.iDistronic* cannot be activated when
ESP has been deactivated.

72 Safety and SecurityDriving safety systemsThe button is located in the lower part of
the center console.
1ESP on/off
Press ESP button1 until the ESP warn-
ing lamp
v
in the speedometer
lights up.
ESP is deactivated.
If one or more wheels are spinning, the
ESP warning lamp v
in the speedome-
ter flashes, regardless of the speed.
Traction control brakes a spinning wheel
even when ESP is deactivated.
ESP always operates when you are brak-
ing, even when it has been deactivated.Switching on ESP

Press button1.
The ESP warning lamp
v
in the
speedometer goes out. You are now
again in normal driving mode.
SBC brake system
The SBC brake system combines a hydrau-
lic brake circuit with electronically con-
trolled brake servo assistance. You have
increased braking safety and improved
braking comfort.
!Avoid spinning of a drive wheel for an
extended period with the ESP switched
off. This may cause serious damage to
the drive train which is not covered by
the Mercedes-Benz Limited Warranty.Warning!
G
When the ESP warning lamp
v
is
illuminated continuously, ESP is switched
off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP.
Warning!
G
Never ignore a brake malfunction indicated
in the speedometer display, for example by
the
;
(USA only) or
3
(Canada only)
indicator lamp. Refer to the “Practical hints”
section (
page 253). Also read and ob-
serve the messages in the instrument clus-
ter display (page 257).
