2003 MERCEDES-BENZ SL55AMG Owner's Manual

225 Operation
At the gas station
At the gas station
The fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the remote control or the KEYLESS-GO*
card automatically locks/unlocks the fuel
filler flap.

Remove the key from the starter
switch.

Open the fuel filler flap by pushing at
the point indicated by the arrow.
The fuel filler flap springs open.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in the recess
on the fuel filler flap.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or over-
fill.

Replace the fuel cap by turning it to the
right.
You will hear when the fuel cap is tight-
ened.

Close the fuel filler flap.
You should hear the latch close shut.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
iOnly use premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the “Technical data” section
(page 344).
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
More information can be found in the
“Practical hints” section (
page 256).

226 OperationAt the gas stationCheck regularly and before a long trip
1Windshield washer and headlamp
cleaning system
More information on refilling the reser-
voir can be found in the “Operation”
section on (
page 233).
2Brake fluid
More information on brake fluid can be
found in the “Technical data” section
(
page 342).
3Coolant level
More information on coolant can be
found in the “Coolant” section on
(page 230).Engine oil level
More information on engine oil can be
found in the Checking engine oil level sec-
tion on (
page 228).
Opening hood see (
page 227).
Vehicle lighting
Check function and cleanliness.More infor-
mation on replacing light bulbs can be
found in the “Practical hints” section
(
page 295).
Exterior lamp switch see “Switching on
headlamps” (
page 43).
Tire inflation pressure
More information on tire inflation pressure
can be found in the “Tires and wheels” sec-
tion (
page 234).

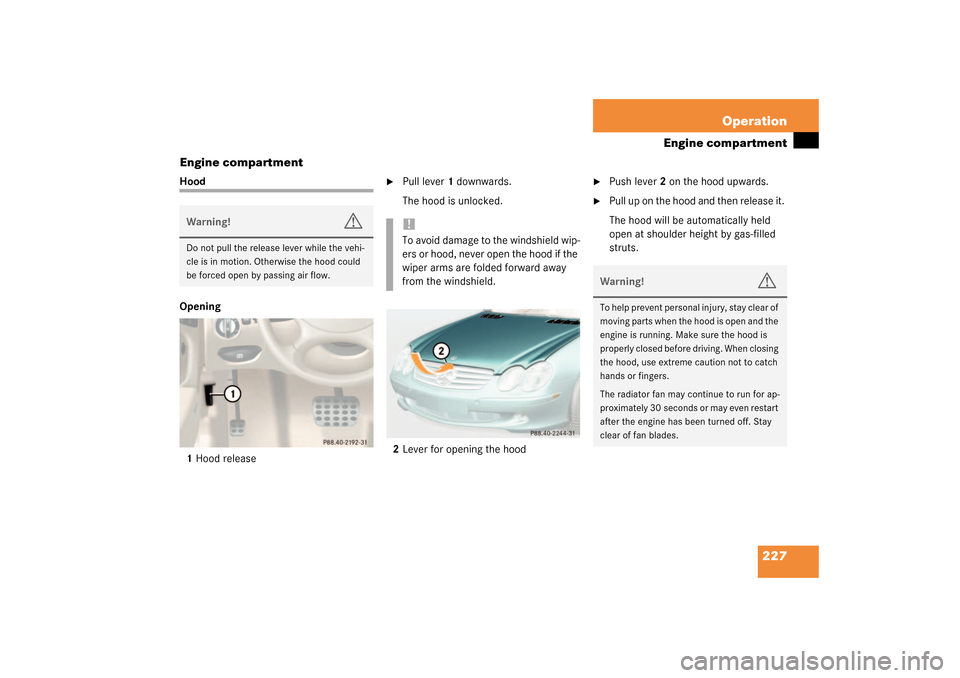

227 Operation
Engine compartment
Engine compartment
Hood
Opening
1Hood release

Pull lever1 downwards.
The hood is unlocked.
2Lever for opening the hood

Push lever2 on the hood upwards.

Pull up on the hood and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or may even restart
after the engine has been turned off. Stay
clear of fan blades.

228 OperationEngine compartment
Closing
Let the hood drop from a height of ap-
proximately 1
1/2ft (50 cm).
The hood will lock audibly.

Check to make sure that the hood is
fully closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at high-
er engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Checking engine oil level
When checking the oil level the vehicle
must


be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from the vehicle and do not open the
hood until the engine has cooled. If neces-
sary, call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.

229 Operation
Engine compartment
You can check the engine oil level on the
multifunction display.
Turn the key in the starter switch to
position2.
The standard display (
page 110) should
appear in the multifunction display fields.

Press button
k
or
j
on the
steering wheel until the following mes-
sage is seen in the right display field:
Measurement correct only if veh.
levelAfter about three seconds this mes-
sage is displayed:
Engine oil level –
Measuring now!
One of the following messages will sub-
sequently appear in the indicator:

Engine oil level OK



Engine oil add 1.0 qt (1.0 li-
ter)!


Engine oil add 1.5 qt (1.5 li-
ters)!



Engine oil add 2.0 qt (2.0 li-
ters)!
Adding engine oil
1Filler neck

Unscrew the cap from the filler neck1.
Be careful not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw the cap back on the filler neck. !Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

230 OperationEngine compartmentOther display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear: Engine oil level – Reduce oil level!
Have excess oil siphoned.
If the key is not turned to position2 in the
starter switch:
Engine oil level – Switch on ignition!
Switch on the ignition.
If you see the message:
Observe waiting time
Wait five minutes before repeating
check procedure. If you see the message:
Engine oil level – Not while engine on
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.
More information on engine oil can be
found in the “Technical data” section
(
page 343).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.
Oil level in the ABC system
The oil level in the ABC system does not
need to be checked. If there is visible oil
loss or if malfunction messages appear in
the display, have an authorized
Mercedes-Benz Center check the ABC
system.Coolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.

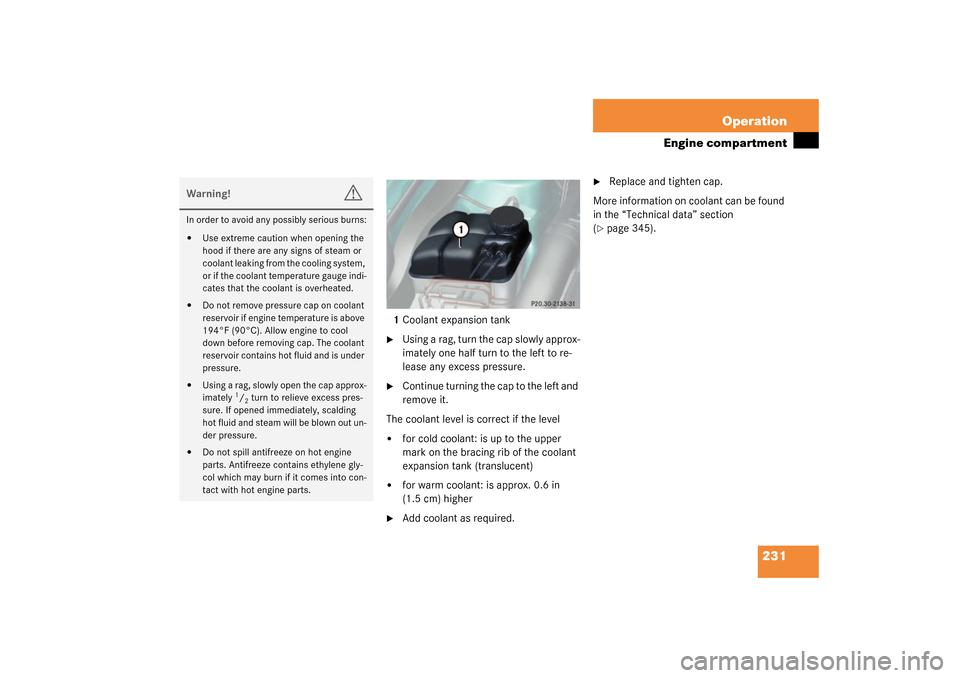

231 Operation
Engine compartment
1Coolant expansion tank
Using a rag, turn the cap slowly approx-
imately one half turn to the left to re-
lease any excess pressure.

Continue turning the cap to the left and
remove it.
The coolant level is correct if the level


for cold coolant: is up to the upper
mark on the bracing rib of the coolant
expansion tank (translucent)


for warm coolant: is approx. 0.6 in
(1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
More information on coolant can be found
in the “Technical data” section
(
page 345).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if engine temperature is above
194°F (90°C). Allow engine to cool
down before removing cap. The coolant
reservoir contains hot fluid and is under
pressure.


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

232 OperationEngine compartmentBattery
Your vehicle is equipped with two batter-
ies:

The starter battery (located in the en-
gine compartment)


The battery for electrical consumers
(located in the trunk)
These batteries should always be suffi-
ciently charged in order to achieve their
rated service life.
If you use your vehicle mostly for short dis-
tance trips, you will need to have the bat-
tery charge checked more frequently.
When replacing batteries, always use bat-
teries approved by Mercedes-Benz. If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
G
Observe all safety instructions
and precautions when han-
dling automotive batteries.
A
Risk of explosion
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clear
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator's Manual.
