2003 MERCEDES-BENZ SL55AMG Owner's Manual

153 Controls in detail
Automatic climate control
Rear window defroster
The rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, switch off the defrost-
er as soon as the rear window is clear. The
defroster is automatically deactivated af-
ter approximately 6 to 17 minutes of oper-
ation depending on the outside
temperature.
Activating
Press button
F
(page 148).
The indicator lamp on the button lights
up.Deactivating

Press button
F
(page 148) again.
The indicator lamp on the button goes
out.
Warning!
G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!The rear window defroster cannot be
switched on when the retractable hard-
top is open. The indicator lamp will
start blinking if the hardtop is open.

Close the retractable hardtop.
The rear window defroster can again be
turned on.
!If the rear window defroster switches
off too soon and the indicator lamp
starts blinking, this means that too
many electrical consumers are operat-
ing simultaneously and there is insuffi-
cient voltage in the battery. The system
responds automatically by deactivating
the rear window defroster.
As soon as the battery has sufficient
voltage, the rear window defroster au-
tomatically turns itself back on.

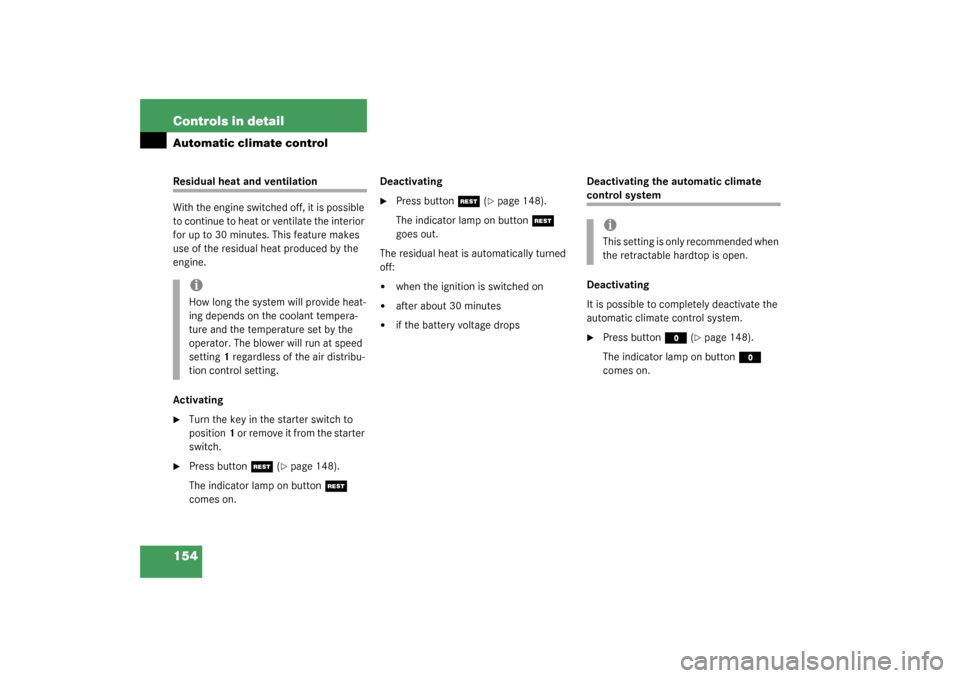

154 Controls in detailAutomatic climate controlResidual heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Turn the key in the starter switch to
position1 o r r e m ov e i t f r o m t h e s t a r t e r
switch.

Press button
T
(page 148).
The indicator lamp on button
T

comes on.Deactivating

Press button
T
(page 148).
The indicator lamp on button
T

goes out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage dropsDeactivating the automatic climate
control system
Deactivating
It is possible to completely deactivate the
automatic climate control system.
Press button
M
(page 148).
The indicator lamp on button
M

comes on.
iHow long the system will provide heat-
ing depends on the coolant tempera-
ture and the temperature set by the
operator. The blower will run at speed
setting1 regardless of the air distribu-
tion control setting.
iThis setting is only recommended when
the retractable hardtop is open.

155 Controls in detail
Automatic climate control
Reactivating
There are several ways to reactivate the
automatic climate control system:
Press any button on the automatic cli-
mate control panel (
page 148).
The indicator lamp on button
M

switches off.
or

Turn one of the control knobs on the
automatic climate control.
The indicator lamp on button
M

switches off.
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.
Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.
Press button AC
OFF
(page 148).
The indicator lamp on the
buttonAC
OFF
lights up.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

Press AC
OFF
again (
page 148).
The indicator lamp on the
buttonAC
OFF
goes out.
The air conditioning uses the refrigerant
R134A. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
!If the AC
OFF
button on the automatic
climate control panel starts to blink,
this indicates that the air conditioning
is losing refrigerant. The compressor
has turned itself off. The air condition-
ing cannot be turned on again.


Have the air conditioner checked at
the nearest authorized
Mercedes-Benz Center.

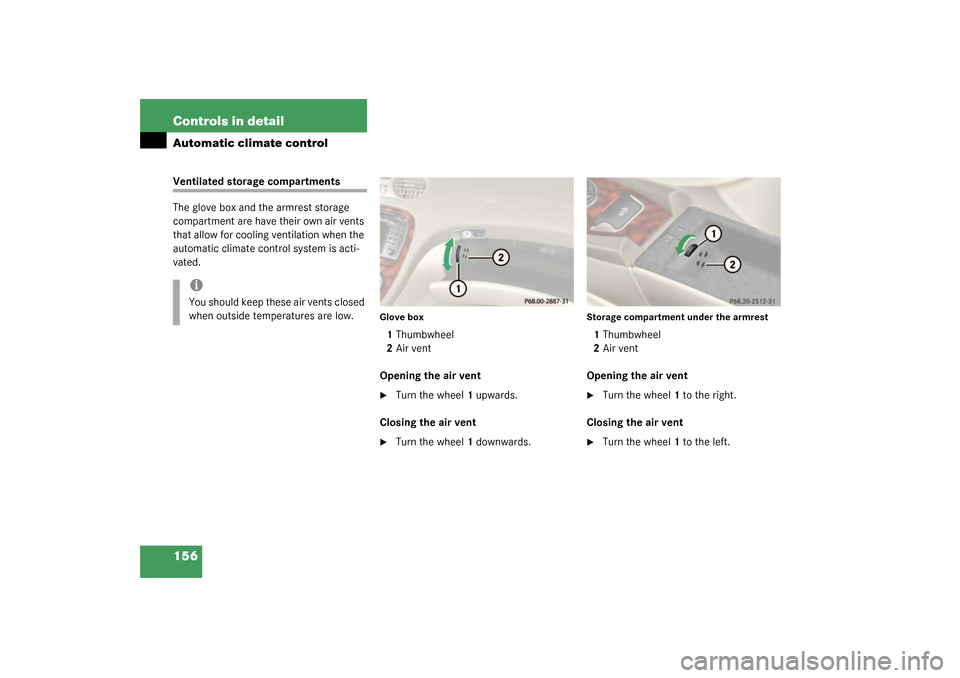

156 Controls in detailAutomatic climate controlVentilated storage compartments
The glove box and the armrest storage
compartment are have their own air vents
that allow for cooling ventilation when the
automatic climate control system is acti-
vated.
Glove box1Thumbwheel
2Air vent
Opening the air vent
Turn the wheel1 upwards.
Closing the air vent

Turn the wheel1 downwards.
Storage compartment under the armrest1Thumbwheel
2Air vent
Opening the air vent
Turn the wheel1 to the right.
Closing the air vent

Turn the wheel1 to the left.
iYou should keep these air vents closed
when outside temperatures are low.

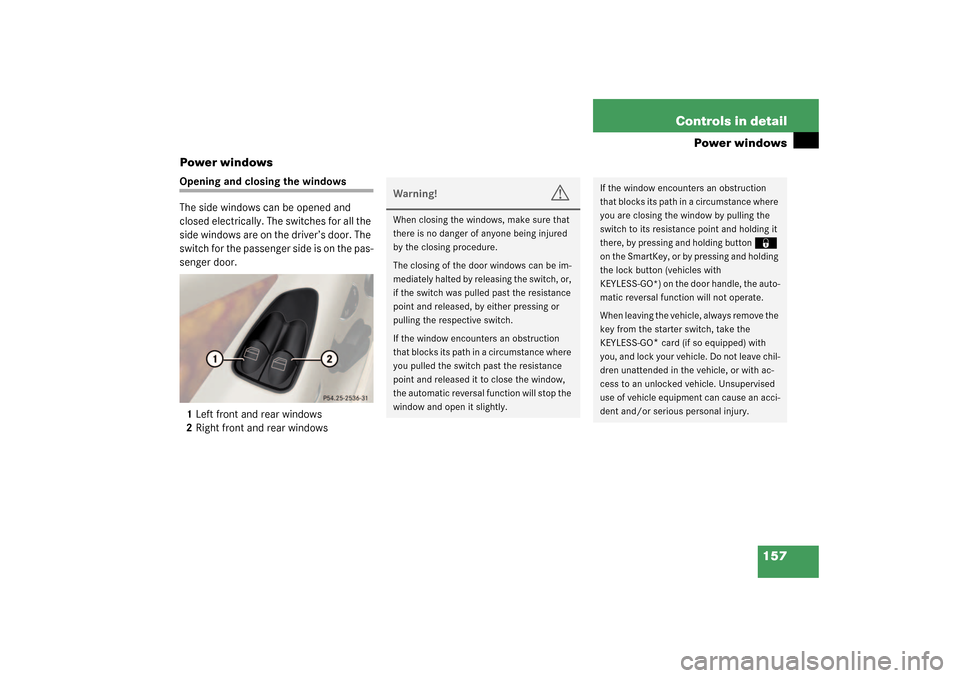

157 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows can be opened and
closed electrically. The switches for all the
side windows are on the driver’s door. The
switch for the passenger side is on the pas-
senger door.
1Left front and rear windows
2Right front and rear windows
Warning!
G
When closing the windows, make sure that
there is no danger of anyone being injured
by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch, or,
if the switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
t h a t b l o c k s i t s p a t h i n a c i r c u m s t a n c e w h e r e
you are closing the window by pulling the
switch to its resistance point and holding it
there, by pressing and holding button
‹
on the SmartKey, or by pressing and holding
the lock button (vehicles with
KEYLESS-GO*) on the door handle, the auto-
matic reversal function will not operate.
When leaving the vehicle, always remove the
key from the starter switch, take the
KEYLESS-GO
* card (if so equipped) with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.

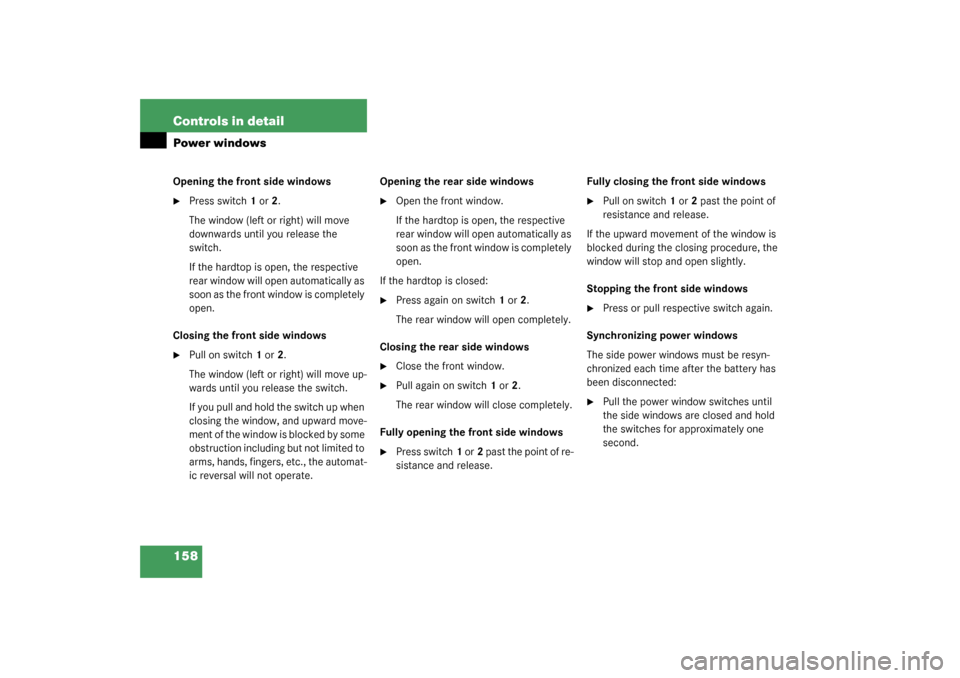

158 Controls in detailPower windowsOpening the front side windows
Press switch1 or2.
The window (left or right) will move
downwards until you release the
switch.
If the hardtop is open, the respective
rear window will open automatically as
soon as the front window is completely
open.
Closing the front side windows

Pull on switch1 or2.
The window (left or right) will move up-
wards until you release the switch.
If you pull and hold the switch up when
closing the window, and upward move-
ment of the window is blocked by some
obstruction including but not limited to
arms, hands, fingers, etc., the automat-
ic reversal will not operate.Opening the rear side windows

Open the front window.
If the hardtop is open, the respective
rear window will open automatically as
soon as the front window is completely
open.
If the hardtop is closed:

Press again on switch1 or2.
The rear window will open completely.
Closing the rear side windows

Close the front window.

Pull again on switch1 or2.
The rear window will close completely.
Fully opening the front side windows

Press switch1 or2 past the point of re-
sistance and release.Fully closing the front side windows

Pull on switch1 or2 past the point of
resistance and release.
If the upward movement of the window is
blocked during the closing procedure, the
window will stop and open slightly.
Stopping the front side windows

Press or pull respective switch again.
Synchronizing power windows
The side power windows must be resyn-
chronized each time after the battery has
been disconnected:

Pull the power window switches until
the side windows are closed and hold
the switches for approximately one
second.

159 Controls in detail
Retractable hardtop
Retractable hardtop
Opening and closing the retractable hardtop
For safety reasons, the retractable hardtop
can only be opened and closed when the
vehicle is standing still.Warning!
G
Before operating the switch for the retract-
able hardtop, make sure that no persons are
injured by the moving parts (retractable
roof, roof frame, and trunk lid) due to inat-
tention.
Hands must never be placed near the roof
frame, upper windshield area, hardtop, shelf
behind roll bars, or trunk lid while the re-
tractable hardtop is being raised or lowered.
Serious personal injury may occur.
If potential danger exists, release the re-
tractable hardtop switch. This immediately
interrupts the raising or lowering procedure.
You then can operate the hardtop switch to
raise or lower the hardtop away from the
danger zone.
Warning!
G
When leaving the vehicle, always remove the
key from starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you,
and lock your vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment can cause an accident
and/or serious personal injury.
!Never sit or place heavy objects on the
rear shelf. Doing so could cause dam-
age to the retractable hardtop and the
rear shelf.
!When opening and closing the retract-
able roof, make sure that

there is sufficient clearance for the
hardtop to move up and the trunk
lid to move back


the luggage cover is extended and
closed


the trunk lid is closed


no roof luggage carrier is installed


the outside temperature is above
+5°F (–15°C)
Otherwise the roof and trunk of the ve-
hicle could be damaged.

160 Controls in detailRetractable hardtopLuggage cover
The luggage cover is located in the trunk.
1Handle
2Holders
Closing luggage cover
Pull out the luggage cover using the
handle1.

Hook the luggage cover into the left
and right side holders2.Opening luggage cover

Unhook luggage cover from side hold-
ers.

While holding onto the handle1, guide
luggage cover back into its storage
compartment. Opening the retractable hardtop with
the switch
Hardtop switchBefore pulling on the hardtop switch, you
must make sure that:

the parking brake is engaged
(page 41)


the luggage cover is closed, see Lug-
gage cover


the trunk lid is closed


the ignition is switched on (key in start-
er switch position2)
!To prevent damage to the hardtop or
luggage/cargo when lowering the roof:

load trunk only to the height of the
luggage cover


do not permit luggage/cargo to
push up the closed luggage cover


do not load anything on top of or in
front of the luggage cover


do not place anything on the shelf
behind the roll bar
