2003 MERCEDES-BENZ SL55AMG Owner's Manual

297 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:


the additional turn signals in the exteri-
or rear view mirrors


the high mounted brake lamp


the brake lamps


the parking lamps and the side marker
lamps in the tail lamp assemblies


the rear fog lamps


the low beam (Xenon or Bi-Xenon*)
lamps


the front fog lamps
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot,


drop the bulb,


scratch the bulb.
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

298 Practical hintsReplacing bulbsReplacing bulbs for front lamps
1Bulb socket for turn signal lamp
2Low beam lamp cover (Xenon or
Bi-Xenon* lamp). Do not remove.
3High beam lamp coverReplacing front turn signal bulb

Switch off the lights.

Open the hood (
page 227).

Twist bulb socket 1 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push and
twist clockwise.

Reinsert bulb socket in lamp and twist
clockwise.Replacing high beam bulbs
1High beam bulbs
2Locking mechanism
3Parking and standing lamps

Switch off the lights.

Open the hood (
page 227).

Press ends of headlamp cover tab to-
gether and remove cover.

Pull electrical connector off.

Turn the locking mechanism 2 counter-
clockwise and take out the bulb.

Insert the new bulb so that the base lo-
cates in the recess on the holder.
Warning!
G
Do not remove the cover for the Xenon or
Bi-Xenon*headlamp. Because of high volt-
age in Xenon and Bi-Xenon* lamps, it is dan-
gerous to replace the bulb or repair the lamp
and its components. We recommend that
you have such work done by a qualified
technician.

299 Practical hints
Replacing bulbs

Turn the locking mechanism 2 clock-
wise.

Plug the connector onto the bulb.

Align headlamp cover and click into
place.
Replacing parking and standing lamp
bulbs

Switch off the lights.

Open the hood (
page 227).

Press ends of headlamp cover tab to-
gether and remove cover.

Pull out the bulb socket with the bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Align headlamp cover and click into
place.Replacing side marker lamp

Switch off the lights.

Carefully slide lamp towards rear.

Remove front end first.

Twist bulb socket counterclockwise
and pull out.

Pull bulb out of the bulb socket.

Insert new bulb in socket.

Reinstall bulb socket, push in, and twist
clockwise.

To reinstall lamp, set rear end in
bumper and let front end snap into
place.
Replacing bulbs for rear lamps
Tail lamp assemblies
1Backup lamp
2Turn signal lamp
3Driver’s side: Rear fog lamp
Passenger’s side: Substitute lamp
Switch off the lights.

Open the trunk lid (
page 83).

Fold trim to side and remove.

Twist bulb socket counterclockwise
and pull out.
iHave the headlamp adjustment
checked regularly.

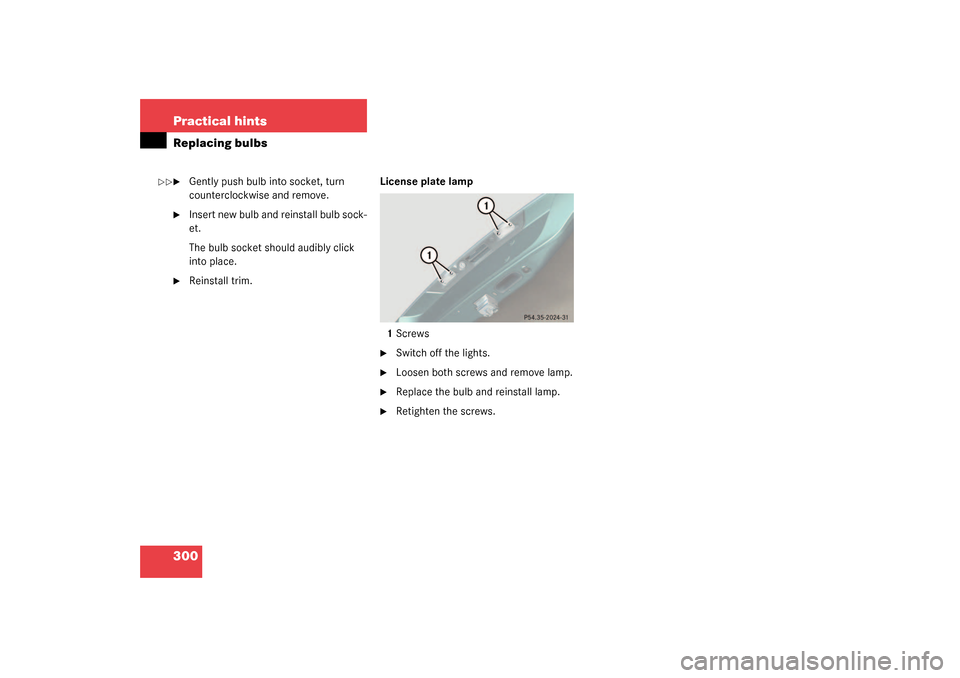

300 Practical hintsReplacing bulbs
Gently push bulb into socket, turn
counterclockwise and remove.

Insert new bulb and reinstall bulb sock-
et.
The bulb socket should audibly click
into place.

Reinstall trim.License plate lamp
1Screws

Switch off the lights.

Loosen both screws and remove lamp.

Replace the bulb and reinstall lamp.

Retighten the screws.

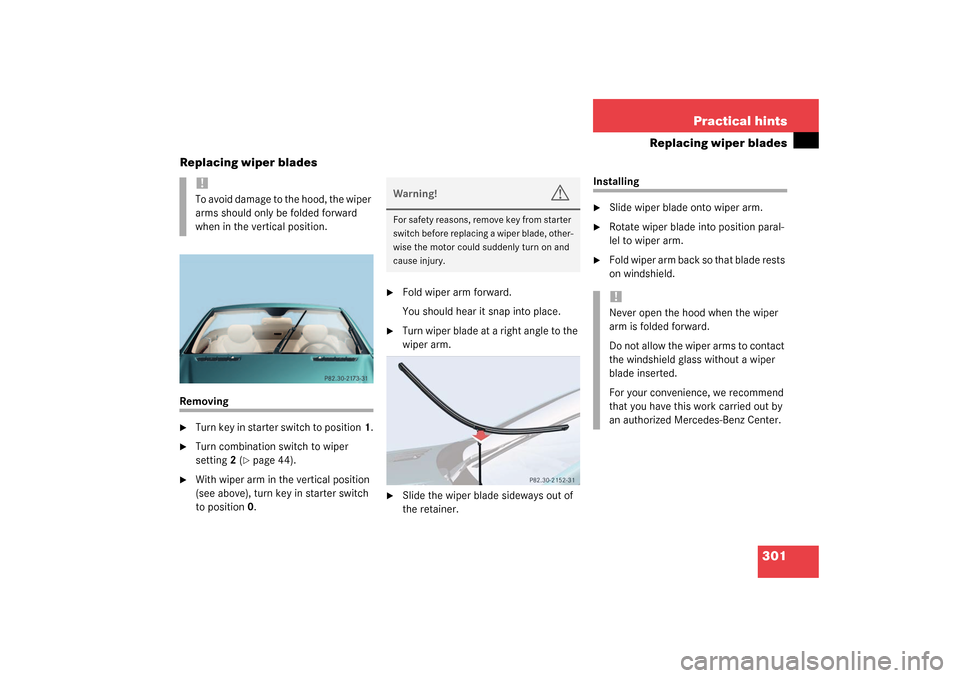

301 Practical hints
Replacing wiper blades
Replacing wiper blades
Removing
Turn key in starter switch to position1.

Turn combination switch to wiper
setting2 (
page 44).

With wiper arm in the vertical position
(see above), turn key in starter switch
to position0.

Fold wiper arm forward.
You should hear it snap into place.

Turn wiper blade at a right angle to the
wiper arm.

Slide the wiper blade sideways out of
the retainer.
Installing
Slide wiper blade onto wiper arm.

Rotate wiper blade into position paral-
lel to wiper arm.

Fold wiper arm back so that blade rests
on windshield.
!To avoid damage to the hood, the wiper
arms should only be folded forward
when in the vertical position.
Warning!
G
For safety reasons, remove key from starter
switch before replacing a wiper blade, other-
wise the motor could suddenly turn on and
cause injury.
!Never open the hood when the wiper
arm is folded forward.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.

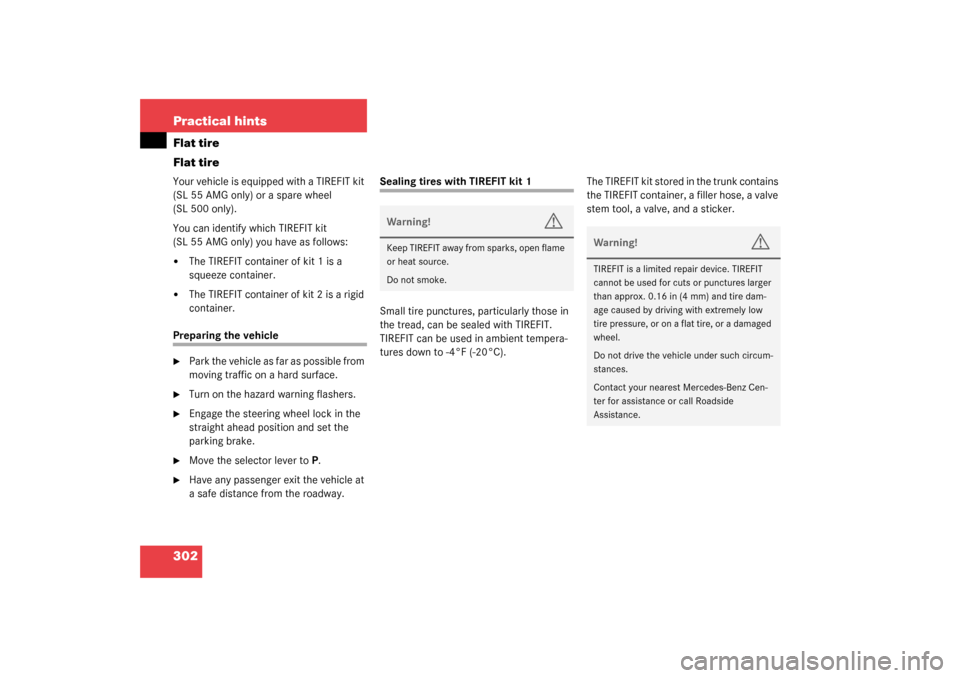

302 Practical hintsFlat tire
Flat tireYour vehicle is equipped with a TIREFIT kit
(SL 55 AMG only) or a spare wheel
(SL 500 only).
You can identify which TIREFIT kit
(SL 55 AMG only) you have as follows:

The TIREFIT container of kit 1 is a
squeeze container.


The TIREFIT container of kit 2 is a rigid
container.
Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering wheel lock in the
straight ahead position and set the
parking brake.

Move the selector lever to P.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Sealing tires with TIREFIT kit 1
Small tire punctures, particularly those in
the tread, can be sealed with TIREFIT.
TIREFIT can be used in ambient tempera-
tures down to -4°F (-20°C).The TIREFIT kit stored in the trunk contains
the TIREFIT container, a filler hose, a valve
stem tool, a valve, and a sticker.Warning!
G
Keep TIREFIT away from sparks, open flame
or heat source.
Do not smoke.
Warning!
G
TIREFIT is a limited repair device. TIREFIT
cannot be used for cuts or punctures larger
than approx. 0.16 in (4 mm) and tire dam-
age caused by driving with extremely low
tire pressure, or on a flat tire, or a damaged
wheel.
Do not drive the vehicle under such circum-
stances.
Contact your nearest Mercedes-Benz Cen-
ter for assistance or call Roadside
Assistance.

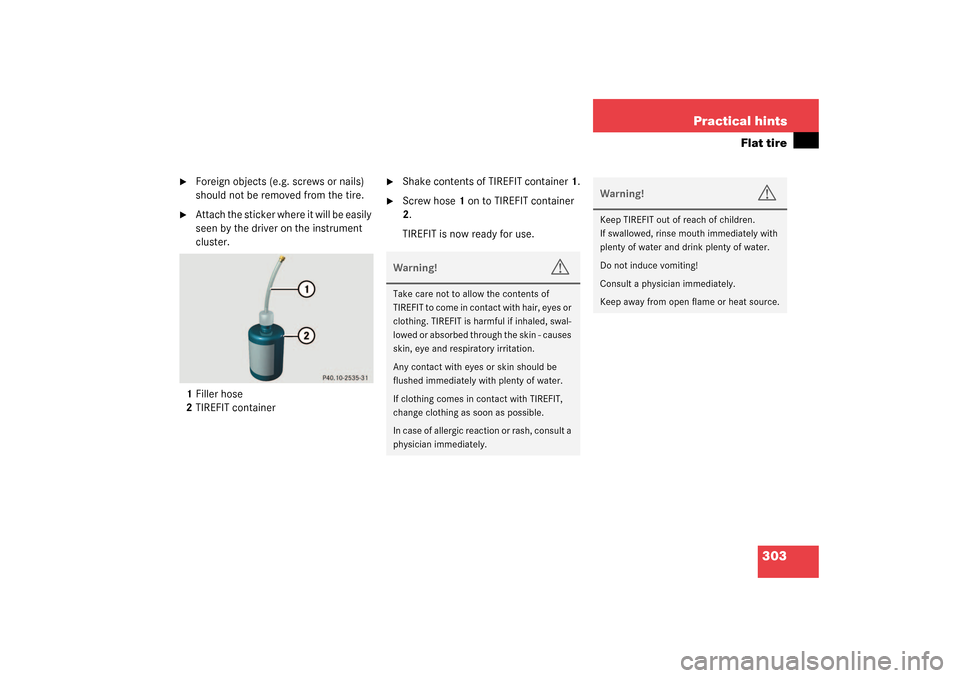

303 Practical hints
Flat tire

Foreign objects (e.g. screws or nails)
should not be removed from the tire.

Attach the sticker where it will be easily
seen by the driver on the instrument
cluster.
1Filler hose
2TIREFIT container

Shake contents of TIREFIT container1.

Screw hose1 on to TIREFIT container
2.
TIREFIT is now ready for use.Warning!
G
Take care not to allow the contents of
T I R E F I T t o c o m e i n c o n t a c t w i t h h a i r , e y e s o r
clothing. TIREFIT is harmful if inhaled, swal-
lowed or absorbed through the skin - causes
skin, eye and respiratory irritation.
Any contact with eyes or skin should be
flushed immediately with plenty of water.
If clothing comes in contact with TIREFIT,
change clothing as soon as possible.
In case of allergic reaction or rash, consult a
physician immediately.
Warning!
G
Keep TIREFIT out of reach of children.
If swallowed, rinse mouth immediately with
plenty of water and drink plenty of water.
Do not induce vomiting!
Consult a physician immediately.
Keep away from open flame or heat source.

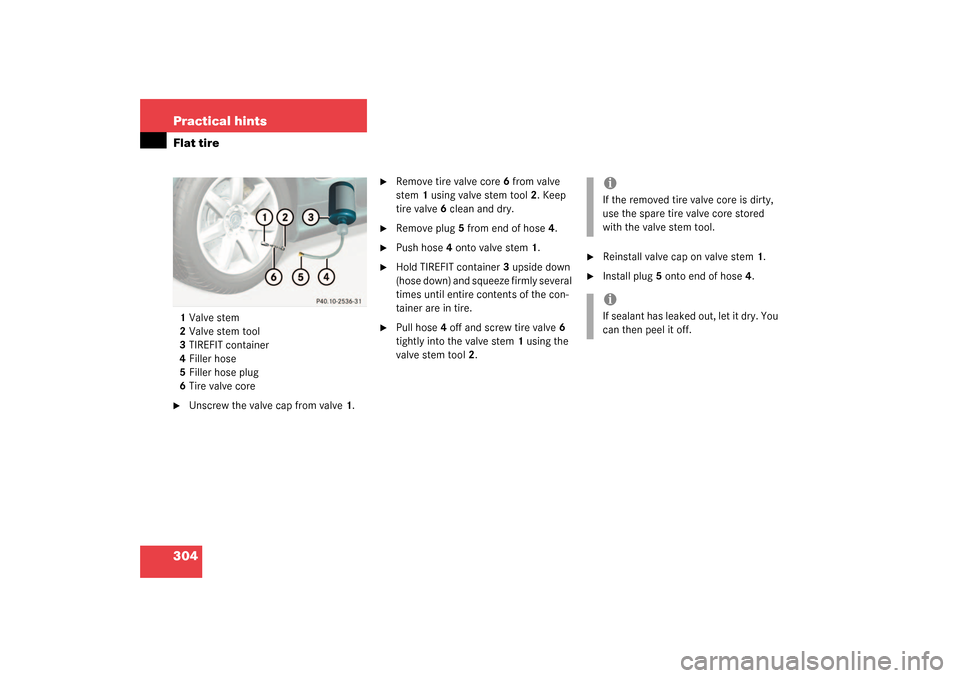

304 Practical hintsFlat tire1Valve stem
2Valve stem tool
3TIREFIT container
4Filler hose
5Filler hose plug
6Tire valve core
Unscrew the valve cap from valve1.

Remove tire valve core6 from valve
stem 1 using valve stem tool 2. Keep
tire valve6 clean and dry.

Remove plug 5 from end of hose4.

Push hose 4 onto valve stem 1.

Hold TIREFIT container 3 upside down
(hose down) and squeeze firmly several
times until entire contents of the con-
tainer are in tire.

Pull hose 4 off and screw tire valve 6
tightly into the valve stem 1 using the
valve stem tool 2.

Reinstall valve cap on valve stem 1.

Install plug 5 onto end of hose 4.iIf the removed tire valve core is dirty,
use the spare tire valve core stored
with the valve stem tool.iIf sealant has leaked out, let it dry. You
can then peel it off.
