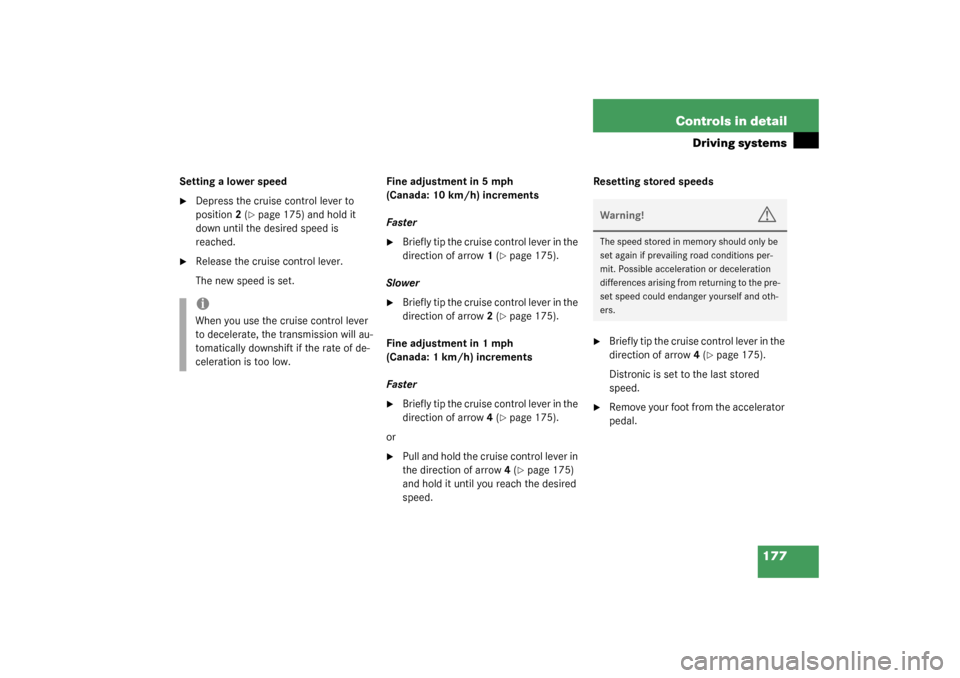

2003 MERCEDES-BENZ SL55AMG Owner's Manual

177 Controls in detail
Driving systems
Setting a lower speed
Depress the cruise control lever to
position2 (
page 175) and hold it
down until the desired speed is
reached.

Release the cruise control lever.
The new speed is set.Fine adjustment in 5 mph
(Canada: 10 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow1 (
page 175).
Slower

Briefly tip the cruise control lever in the
direction of arrow2 (
page 175).
Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in the
direction of arrow4 (
page 175).
or

Pull and hold the cruise control lever in
the direction of arrow4 (
page 175)
and hold it until you reach the desired
speed.Resetting stored speeds

Briefly tip the cruise control lever in the
direction of arrow4 (
page 175).
Distronic is set to the last stored
speed.

Remove your foot from the accelerator
pedal.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the rate of de-
celeration is too low.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could endanger yourself and oth-
ers.

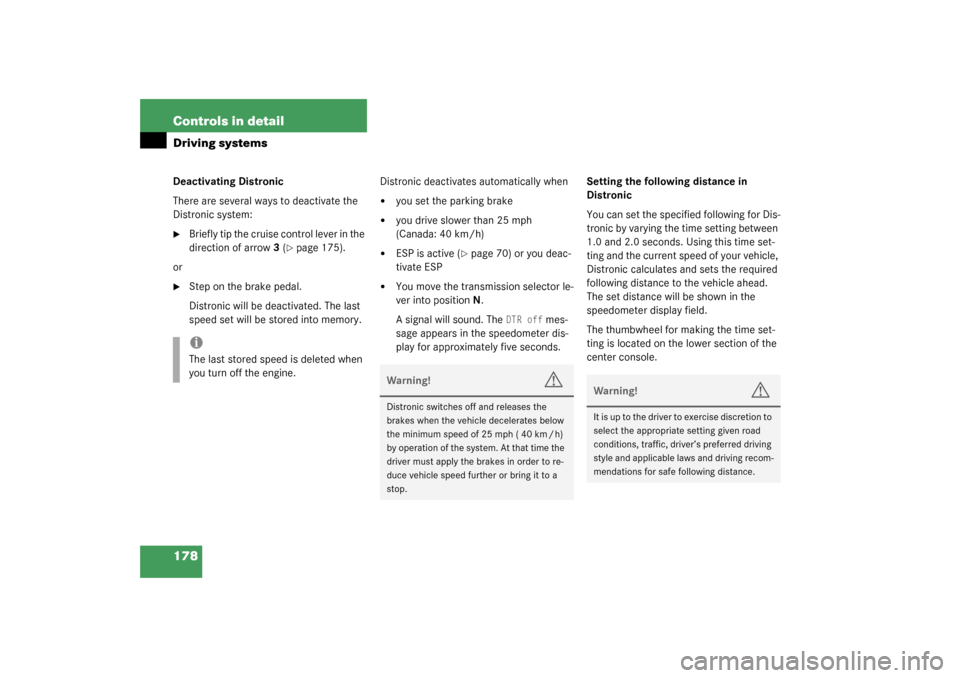

178 Controls in detailDriving systemsDeactivating Distronic
There are several ways to deactivate the
Distronic system:
Briefly tip the cruise control lever in the
direction of arrow3 (
page 175).
or

Step on the brake pedal.
Distronic will be deactivated. The last
speed set will be stored into memory.Distronic deactivates automatically when


you set the parking brake


you drive slower than 25 mph
(Canada: 40 km/h)


ESP is active (
page 70) or you deac-
tivate ESP


You move the transmission selector le-
ver into positionN.
A signal will sound. The
DTR off
mes-
sage appears in the speedometer dis-
play for approximately five seconds.Setting the following distance in
Distronic
You can set the specified following for Dis-
tronic by varying the time setting between
1.0 and 2.0 seconds. Using this time set-
ting and the current speed of your vehicle,
Distronic calculates and sets the required
following distance to the vehicle ahead.
The set distance will be shown in the
speedometer display field.
The thumbwheel for making the time set-
ting is located on the lower section of the
center console.
iThe last stored speed is deleted when
you turn off the engine.
Warning!
G
Distronic switches off and releases the
brakes when the vehicle decelerates below
the minimum speed of 25 mph ( 40 km / h)
by operation of the system. At that time the
driver must apply the brakes in order to re-
duce vehicle speed further or bring it to a
stop.
Warning!
G
It is up to the driver to exercise discretion to
select the appropriate setting given road
conditions, traffic, driver’s preferred driving
style and applicable laws and driving recom-
mendations for safe following distance.

179 Controls in detail
Driving systems
1Distance warning function on/off
switch
2Thumbwheel for setting distance
Increasing distance
Increasing the distance setting tells Dis-
tronic to maintain a greater following dis-
tance to the vehicle ahead.
Turn thumbwheel2 towards
¯
.Decreasing distance
Decreasing the distance setting tells Dis-
tronic to maintain a smaller following dis-
tance to the vehicle ahead.

Turn thumbwheel2 towards
®
.Distance warning function
When Distronic is deactivated, this func-
tion will continue to warn you if you are fol-
lowing too close to the vehicle ahead:


The DTR warning lamp
E
lights up
red.


An intermittent warning will sound if
necessary.
If these warnings are issued, you must
brake manually to maintain a safe distance
and avoid a collision with the vehicle
ahead.

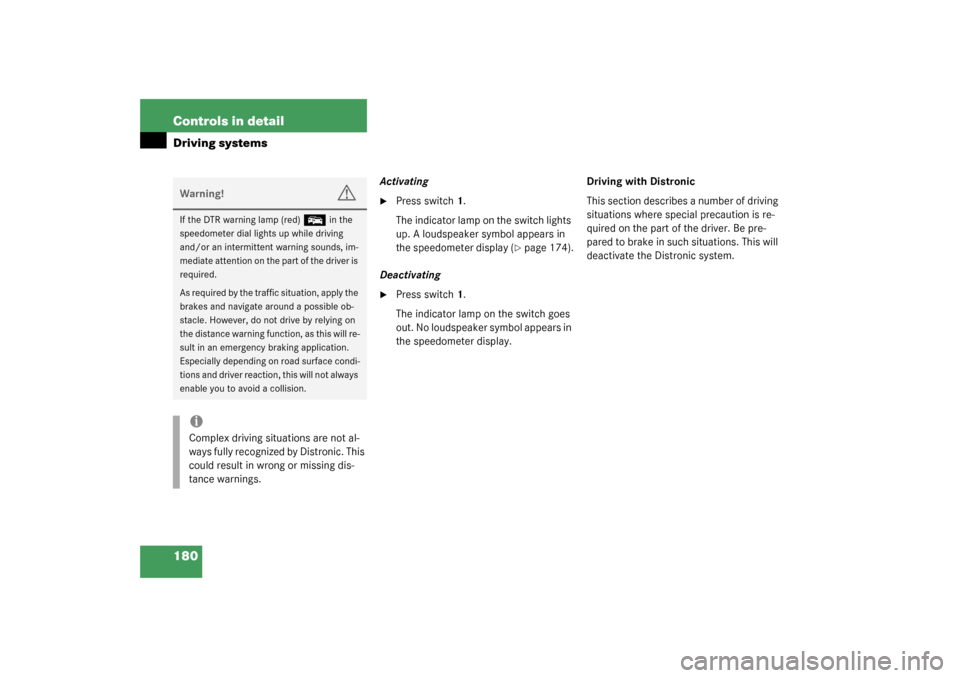

180 Controls in detailDriving systems
Activating
Press switch1.
The indicator lamp on the switch lights
up. A loudspeaker symbol appears in
the speedometer display (
page 174).
Deactivating

Press switch1.
The indicator lamp on the switch goes
out. No loudspeaker symbol appears in
the speedometer display.Driving with Distronic
This section describes a number of driving
situations where special precaution is re-
quired on the part of the driver. Be pre-
pared to brake in such situations. This will
deactivate the Distronic system.
Warning!
G
If the DTR warning lamp (red)
E
in the
speedometer dial lights up while driving
and/or an intermittent warning sounds, im-
mediate attention on the part of the driver is
required.
As required by the traffic situation, apply the
brakes and navigate around a possible ob-
stacle. However, do not drive by relying on
the distance warning function, as this will re-
sult in an emergency braking application.
Especially depending on road surface condi-
tions and driver reaction, this will not always
enable you to avoid a collision.
iComplex driving situations are not al-
ways fully recognized by Distronic. This
could result in wrong or missing dis-
tance warnings.

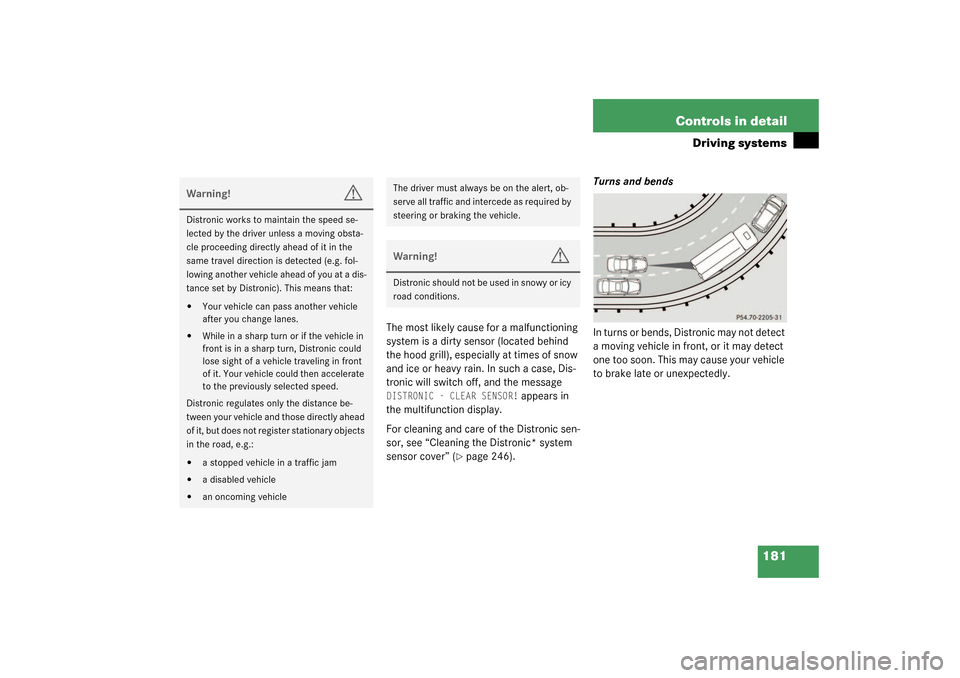

181 Controls in detail
Driving systems
The most likely cause for a malfunctioning
system is a dirty sensor (located behind
the hood grill), especially at times of snow
and ice or heavy rain. In such a case, Dis-
tronic will switch off, and the message DISTRONIC - CLEAR SENSOR!
appears in
the multifunction display.
For cleaning and care of the Distronic sen-
sor, see “Cleaning the Distronic* system
sensor cover” (
page 246).Turns and bends
In turns or bends, Distronic may not detect
a moving vehicle in front, or it may detect
one too soon. This may cause your vehicle
to brake late or unexpectedly.
Warning!
G
Distronic works to maintain the speed se-
lected by the driver unless a moving obsta-
cle proceeding directly ahead of it in the
same travel direction is detected (e.g. fol-
lowing another vehicle ahead of you at a dis-
tance set by Distronic). This means that:

Your vehicle can pass another vehicle
after you change lanes.


While in a sharp turn or if the vehicle in
front is in a sharp turn, Distronic could
lose sight of a vehicle traveling in front
of it. Your vehicle could then accelerate
to the previously selected speed.
Distronic regulates only the distance be-
tween your vehicle and those directly ahead
of it, but does not register stationary objects
in the road, e.g.:


a stopped vehicle in a traffic jam


a disabled vehicle


an oncoming vehicle
The driver must always be on the alert, ob-
serve all traffic and intercede as required by
steering or braking the vehicle.Warning!
G
Distronic should not be used in snowy or icy
road conditions.

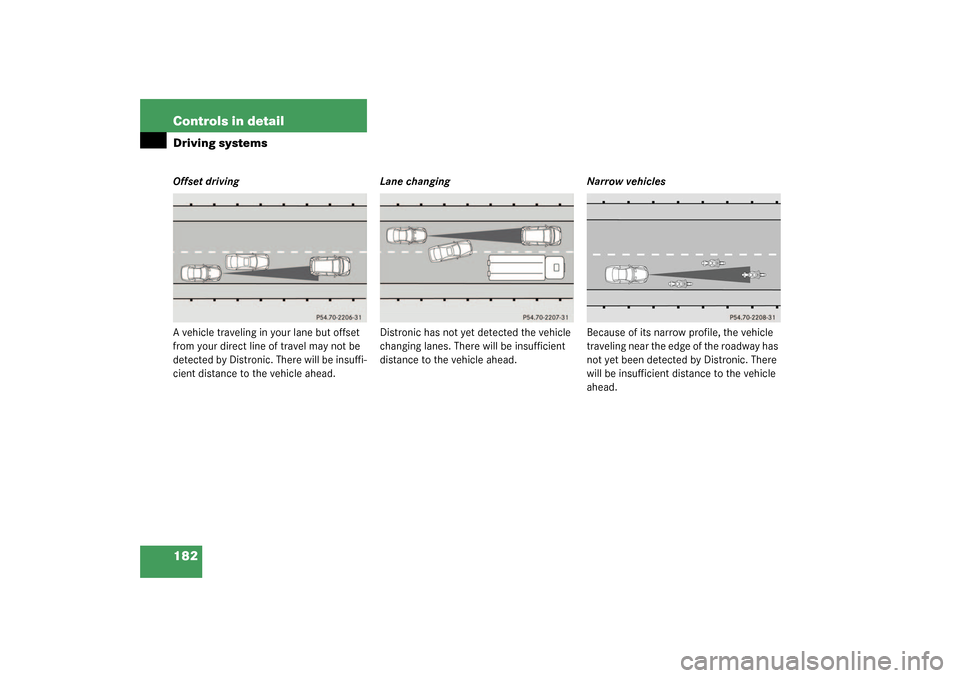

182 Controls in detailDriving systemsOffset driving
A vehicle traveling in your lane but offset
from your direct line of travel may not be
detected by Distronic. There will be insuffi-
cient distance to the vehicle ahead.Lane changing
Distronic has not yet detected the vehicle
changing lanes. There will be insufficient
distance to the vehicle ahead.Narrow vehicles
Because of its narrow profile, the vehicle
traveling near the edge of the roadway has
not yet been detected by Distronic. There
will be insufficient distance to the vehicle
ahead.

183 Controls in detail
Driving systems
Active Body Control (ABC)
The ABC system automatically selects the
optimum suspension tuning and ride
height for your vehicle.
Suspension tuning
The suspension tuning is set according to:

Your driving style


Road surface conditions


The vehicle loading


Your choice of suspension style,
“sporty” or “regular”, which you select
using the ABC switch.
The selected suspension style is stored
in memory, even after the key is re-
moved from the starter switch.The ABC switch with the indicator lamp is
located in the lower section of the center
console.
1ABC switch
2Indicator lamp

Start the engine.Suspension for sporty driving style
The setting for sporty driving is selected
when the indicator lamp2 is illuminated.

Press switch1.
The indicator lamp2 comes on.
Suspension for regular driving style
The setting for regular driving is selected
when the indicator lamp2 is off.

Press switch1.
The indicator lamp2 goes out.

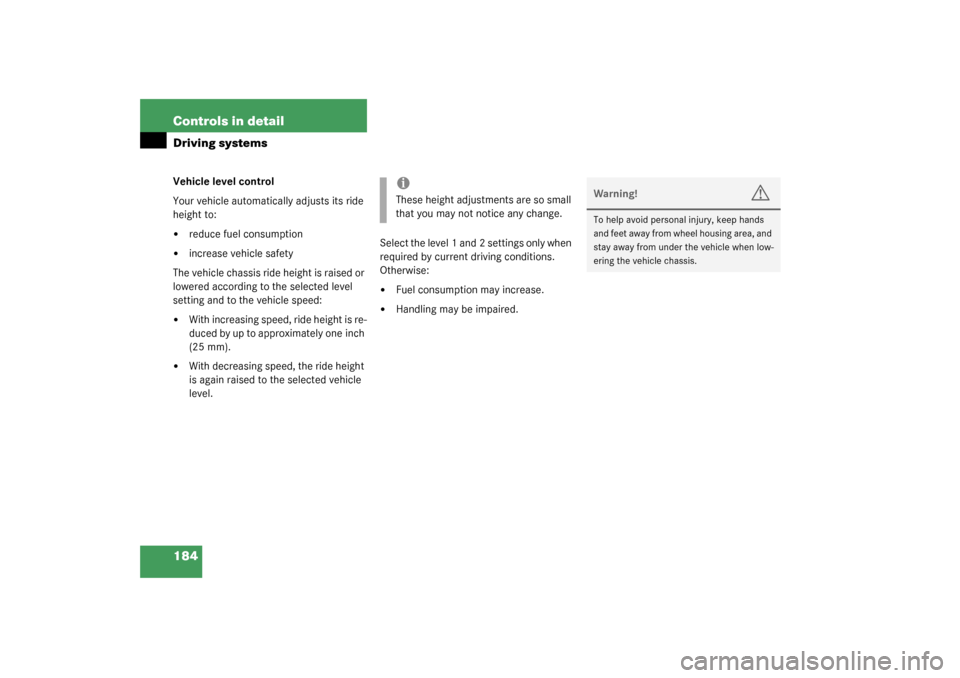

184 Controls in detailDriving systemsVehicle level control
Your vehicle automatically adjusts its ride
height to:

reduce fuel consumption


increase vehicle safety
The vehicle chassis ride height is raised or
lowered according to the selected level
setting and to the vehicle speed:


With increasing speed, ride height is re-
duced by up to approximately one inch
(25 mm).


With decreasing speed, the ride height
is again raised to the selected vehicle
level.Select the level 1 and 2 settings only when
required by current driving conditions.
Otherwise:


Fuel consumption may increase.


Handling may be impaired.iThese height adjustments are so small
that you may not notice any change.
Warning!
G
To help avoid personal injury, keep hands
and feet away from wheel housing area, and
stay away from under the vehicle when low-
ering the vehicle chassis.
