2003 MERCEDES-BENZ SL55AMG Owner's Manual

81 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press button
Œ
.
All turn signals blink once. The locking
knobs in the doors move up.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor trunk is opened.
Global locking

Press button
‹
.
All turn signals blink three times. The lock-
ing knobs in the doors move down.Individual setting
If you frequently travel alone, you may wish
to reprogram the key so that
pressing
Œ
only unlocks the driver’s
door, interior lockable storage compart-
ments and the fuel filler flap.

Press and hold buttons
Œ
and
‹

simultaneously for about six seconds
until the battery check lamp5 blinks
twice.
The key will then function as follows:
Unlocking driver’s door

Press button
Œ
once.
Global unlocking

Press button
Œ
twice.
Global locking

Press button
‹
.Restoring to factory setting

Press and hold buttons
Œ
and
‹

simultaneously for about six seconds
until the battery check lamp5 blinks
twice.
!To prevent possible malfunction, avoid
exposing the key to high levels of elec-
tromagnetic radiation.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. It is possible for chil-
dren to open a locked door from the inside,
which could result in an accident or serious
injury.

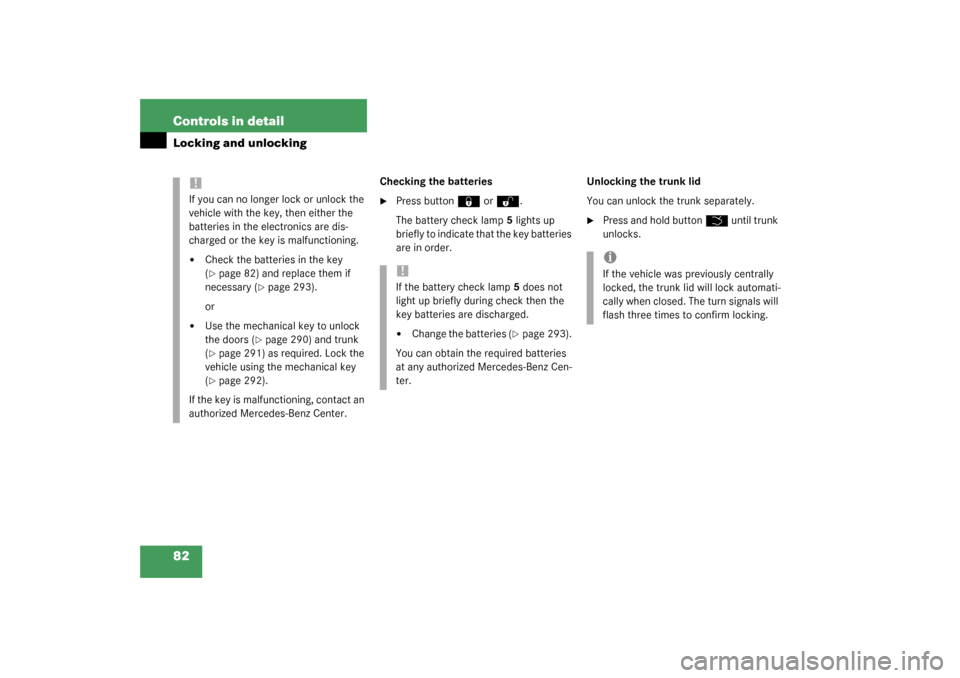

82 Controls in detailLocking and unlocking
Checking the batteries
Press button
‹
or
Œ
.
The battery check lamp5 lights up
briefly to indicate that the key batteries
are in order.Unlocking the trunk lid
You can unlock the trunk separately.

Press and hold button
Š
until trunk
unlocks.
!If you can no longer lock or unlock the
vehicle with the key, then either the
batteries in the electronics are dis-
charged or the key is malfunctioning.

Check the batteries in the key
(page 82) and replace them if
necessary (
page 293).
or


Use the mechanical key to unlock
the doors (
page 290) and trunk
(
page 291) as required. Lock the
vehicle using the mechanical key
(page 292).
If the key is malfunctioning, contact an
authorized Mercedes-Benz Center.
!If the battery check lamp5 does not
light up briefly during check then the
key batteries are discharged.

Change the batteries (
page 293).
You can obtain the required batteries
at any authorized Mercedes-Benz Cen-
ter.
iIf the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally when closed. The turn signals will
flash three times to confirm locking.

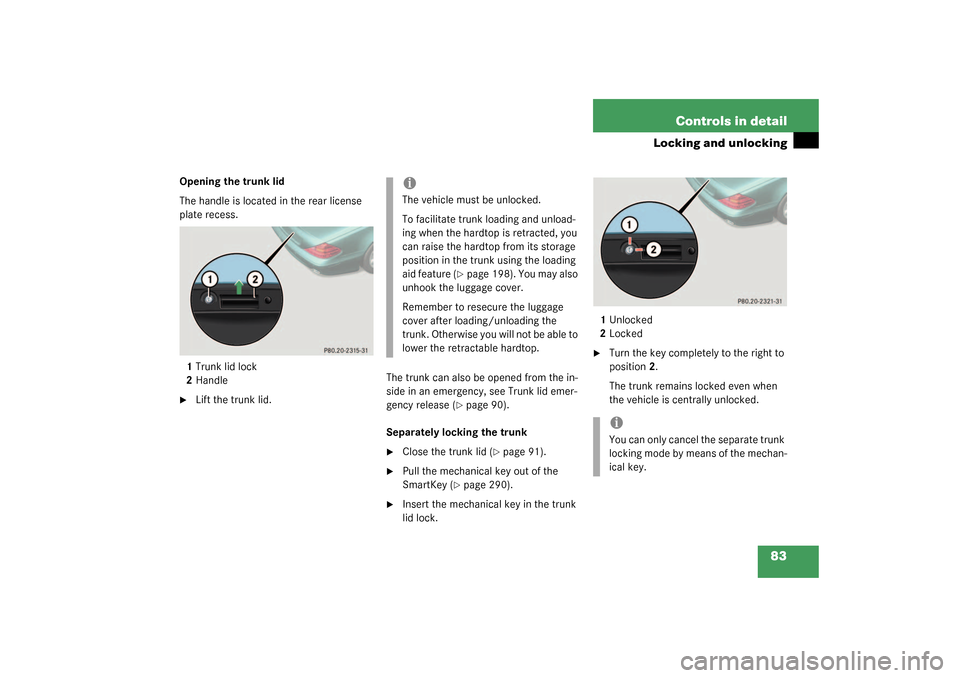

83 Controls in detail
Locking and unlocking
Opening the trunk lid
The handle is located in the rear license
plate recess.
1Trunk lid lock
2Handle
Lift the trunk lid.The trunk can also be opened from the in-
side in an emergency, see Trunk lid emer-
gency release (
page 90).
Separately locking the trunk

Close the trunk lid (
page 91).

Pull the mechanical key out of the
SmartKey (
page 290).

Insert the mechanical key in the trunk
lid lock.1Unlocked
2Locked

Turn the key completely to the right to
position2.
The trunk remains locked even when
the vehicle is centrally unlocked.
iThe vehicle must be unlocked.
To facilitate trunk loading and unload-
ing when the hardtop is retracted, you
can raise the hardtop from its storage
position in the trunk using the loading
aid feature (
page 198). You may also
unhook the luggage cover.
Remember to resecure the luggage
cover after loading/unloading the
trunk. Otherwise you will not be able to
lower the retractable hardtop.
iYou can only cancel the separate trunk
locking mode by means of the mechan-
ical key.

84 Controls in detailLocking and unlockingSeparately unlocking the trunk
Turn the key completely to the left to
position1.
You can now open the trunk.
Loss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:

Have the SmartKey deactivated by an
authorized Mercedes-Benz Center.

Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.

If necessary have the mechanical lock
replaced.
Your authorized Mercedes-Benz Center
will be glad to supply you with a replace-
ment.
KEYLESS-GO card*
Specially equipped vehicles come with two
KEYLESS-GO cards. On these vehicles, the
validity of the KEYLESS-GO card is
checked every time you grasp a door
handle.
If the card is valid, your vehicle unlocks

the doors


the trunk lid


the glove box


the storage space under the armrest


the storage compartment in the rear


the fuel filler flap
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, take the KEY-
LESS-GO
* card (if so equipped) with you
and lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. Unsupervised use of
vehicle equipment may cause an accident
and/or serious personal injury.
!To prevent possible malfunction, avoid
exposing the KEYLESS-GO* card to
high levels of electromagnetic radia-
tion.

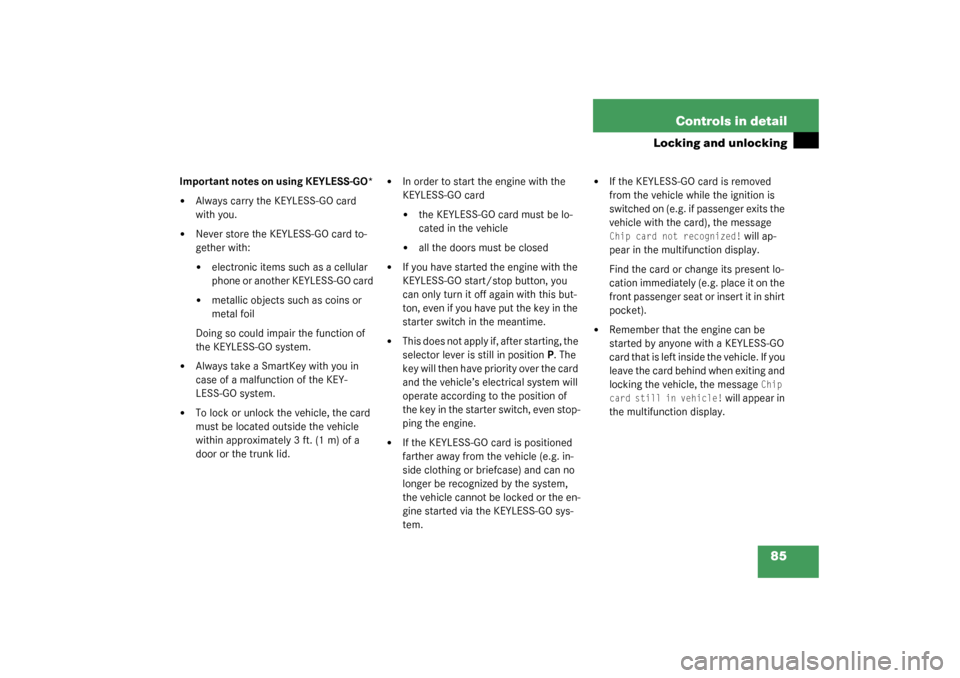

85 Controls in detail
Locking and unlocking
Important notes on using KEYLESS-GO*

Always carry the KEYLESS-GO card
with you.


Never store the KEYLESS-GO card to-
gether with:

electronic items such as a cellular
phone or another KEYLESS-GO card


metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.


Always take a SmartKey with you in
case of a malfunction of the KEY-
LESS-GO system.


To lock or unlock the vehicle, the card
must be located outside the vehicle
within approximately 3 ft. (1 m) of a
door or the trunk lid.


In order to start the engine with the
KEYLESS-GO card

the KEYLESS-GO card must be lo-
cated in the vehicle


all the doors must be closed


If you have started the engine with the
KEYLESS-GO start/stop button, you
can only turn it off again with this but-
ton, even if you have put the key in the
starter switch in the meantime.


This does not apply if, after starting, the
selector lever is still in positionP. The
key will then have priority over the card
and the vehicle’s electrical system will
operate according to the position of
the key in the starter switch, even stop-
ping the engine.


If the KEYLESS-GO card is positioned
farther away from the vehicle (e.g. in-
side clothing or briefcase) and can no
longer be recognized by the system,
the vehicle cannot be locked or the en-
gine started via the KEYLESS-GO sys-
tem.


If the KEYLESS-GO card is removed
from the vehicle while the ignition is
switched on (e.g. if passenger exits the
vehicle with the card), the message Chip card not recognized!
will ap-
pear in the multifunction display.
Find the card or change its present lo-
cation immediately (e.g. place it on the
front passenger seat or insert it in shirt
pocket).


Remember that the engine can be
started by anyone with a KEYLESS-GO
card that is left inside the vehicle. If you
leave the card behind when exiting and
locking the vehicle, the message
Chip
card still in vehicle!
will appear in
the multifunction display.

86 Controls in detailLocking and unlockingFactory setting
Global unlocking
Grasp the door handle.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor trunk is opened.
Global locking

Press lock button at door handle
(page 50) or trunk (
page 88).Individual setting
If you frequently travel alone, you may wish
t o r e p r o g r a m t h e K E Y L E S S - G O c a r d s o t h a t
grasping a door handle only unlocks the
driver’s door, interior lockable storage
compartments and the fuel filler flap.
1Programming button
2“Driver’s door” symbol
3“Global unlock” symbol

Press and hold the programming
button1 until the “Driver’s door”
symbol2 lights up.
The KEYLESS-GO card will then func-
tion as follows:Unlocking the driver’s door

Grasp the driver’s handle.
Global unlocking

Grasp the door handle on the pas-
senger side.
Global locking

Press lock button at door handle or
trunk.
iThe vehicle could inadvertently unlock
if the KEYLESS-GO card is within 3 ft.
(1 m) of the vehicle and

the door handle is splashed with
water, or


you attempt to clean the door
handle.

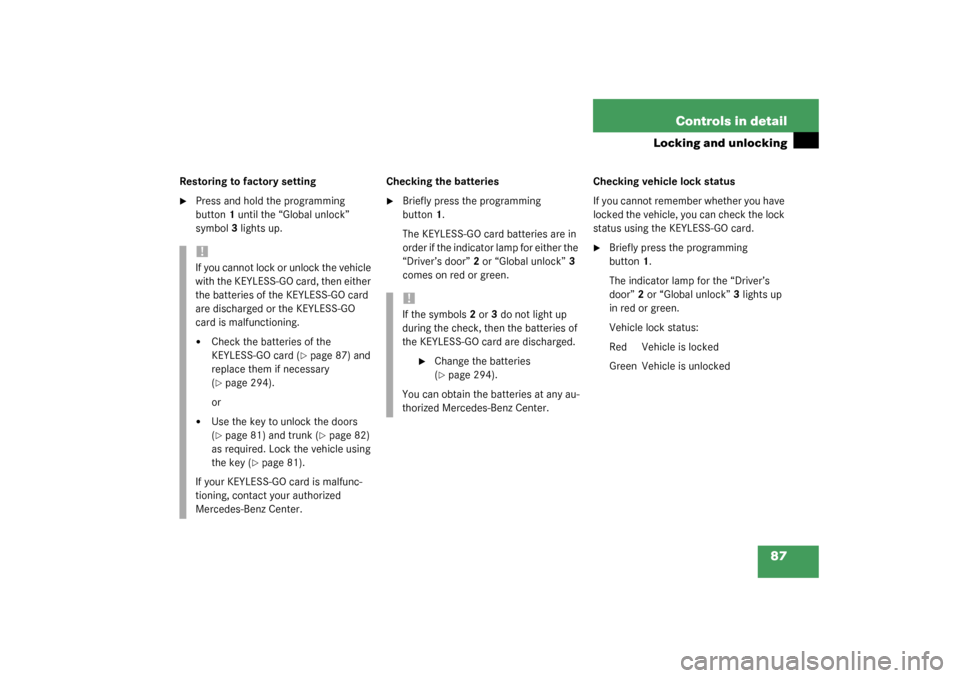

87 Controls in detail
Locking and unlocking
Restoring to factory setting
Press and hold the programming
button1 until the “Global unlock”
symbol3 lights up.Checking the batteries

Briefly press the programming
button1.
The KEYLESS-GO card batteries are in
order if the indicator lamp for either the
“Driver’s door”2 or “Global unlock”3
comes on red or green.Checking vehicle lock status
If you cannot remember whether you have
locked the vehicle, you can check the lock
status using the KEYLESS-GO card.

Briefly press the programming
button1.
The indicator lamp for the “Driver’s
door”2 or “Global unlock”3 lights up
in red or green.
Vehicle lock status:
Red Vehicle is locked
Green Vehicle is unlocked
!If you cannot lock or unlock the vehicle
with the KEYLESS-GO card, then either
the batteries of the KEYLESS-GO card
are discharged or the KEYLESS-GO
card is malfunctioning.

Check the batteries of the
KEYLESS-GO card (
page 87) and
replace them if necessary
(
page 294).
or


Use the key to unlock the doors
(page 81) and trunk (
page 82)
as required. Lock the vehicle using
the key (
page 81).
If your KEYLESS-GO card is malfunc-
tioning, contact your authorized
Mercedes-Benz Center.
!If the symbols2 or3 do not light up
during the check, then the batteries of
the KEYLESS-GO card are discharged.

Change the batteries
(page 294).
You can obtain the batteries at any au-
thorized Mercedes-Benz Center.

88 Controls in detailLocking and unlockingUnlocking the trunk lid
The handle is located in the rear license
plate recess.
Pull on the handle and lift up the trunk
lid.
The vehicle unlocks the trunk lid only.Locking the vehicle
1Trunk lock button

Press the lock button at door
(page 49) or trunk.Closing the side windows

Press and hold lock button at door
(page 49) until the side windows are
closed.
iIf the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally when closed. The turn signals will
flash three times to confirm locking.
To prevent a possible inadvertent lock-
out, the trunk lid will open automatical-
ly if a KEYLESS-GO card is recognized
inside the trunk.
Warning!
G
When closing the windows, be sure that
there is no danger of anyone being harmed
by the closing procedure.
If potential danger exists, proceed as fol-
lows:

Release the lock button.


Pull on the door handle and hold firmly.
The side windows will open for as long
as the door handle is held but the door
is not opened.
