2003 MERCEDES-BENZ SL55AMG Owner's Manual

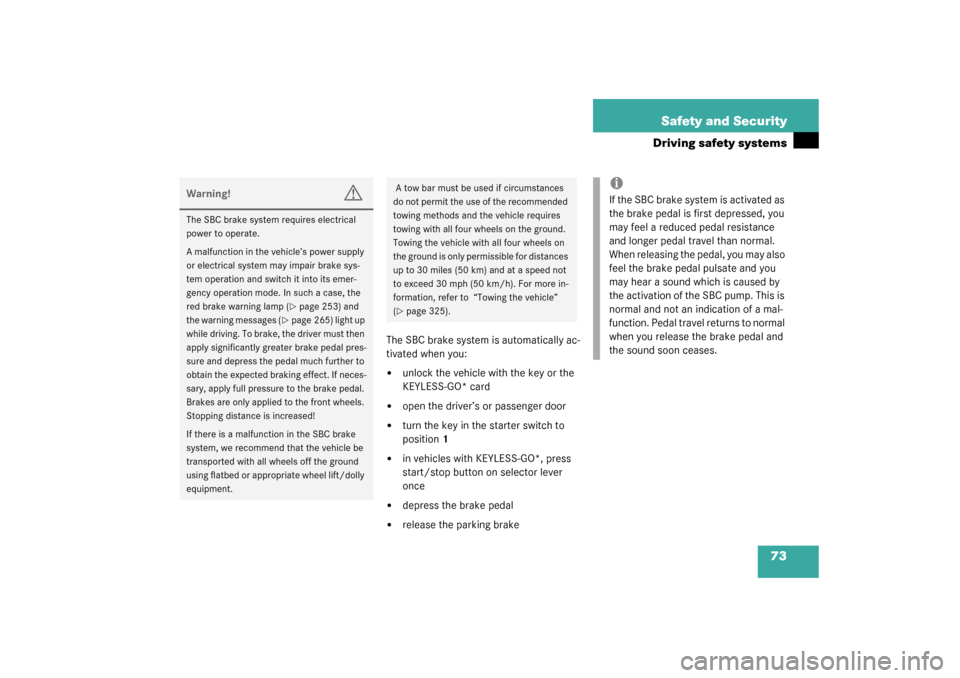

73 Safety and Security
Driving safety systems
The SBC brake system is automatically ac-
tivated when you:

unlock the vehicle with the key or the
KEYLESS-GO* card


open the driver’s or passenger door


turn the key in the starter switch to
position1


in vehicles with KEYLESS-GO*, press
start/stop button on selector lever
once


depress the brake pedal


release the parking brake
Warning!
G
The SBC brake system requires electrical
power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. In such a case, the
red brake warning lamp (
page 253) and
the warning messages (
page 265) light up
while driving. To brake, the driver must then
apply significantly greater brake pedal pres-
sure and depress the pedal much further to
obtain the expected braking effect. If neces-
sary, apply full pressure to the brake pedal.
Brakes are only applied to the front wheels.
Stopping distance is increased!
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift/dolly
equipment.
A tow bar must be used if circumstances
do not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not
to exceed 30 mph (50 km/h). For more in-
formation, refer to “Towing the vehicle”
(page 325).
iIf the SBC brake system is activated as
the brake pedal is first depressed, you
may feel a reduced pedal resistance
and longer pedal travel than normal.
When releasing the pedal, you may also
feel the brake pedal pulsate and you
may hear a sound which is caused by
the activation of the SBC pump. This is
normal and not an indication of a mal-
function. Pedal travel returns to normal
when you release the brake pedal and
the sound soon ceases.

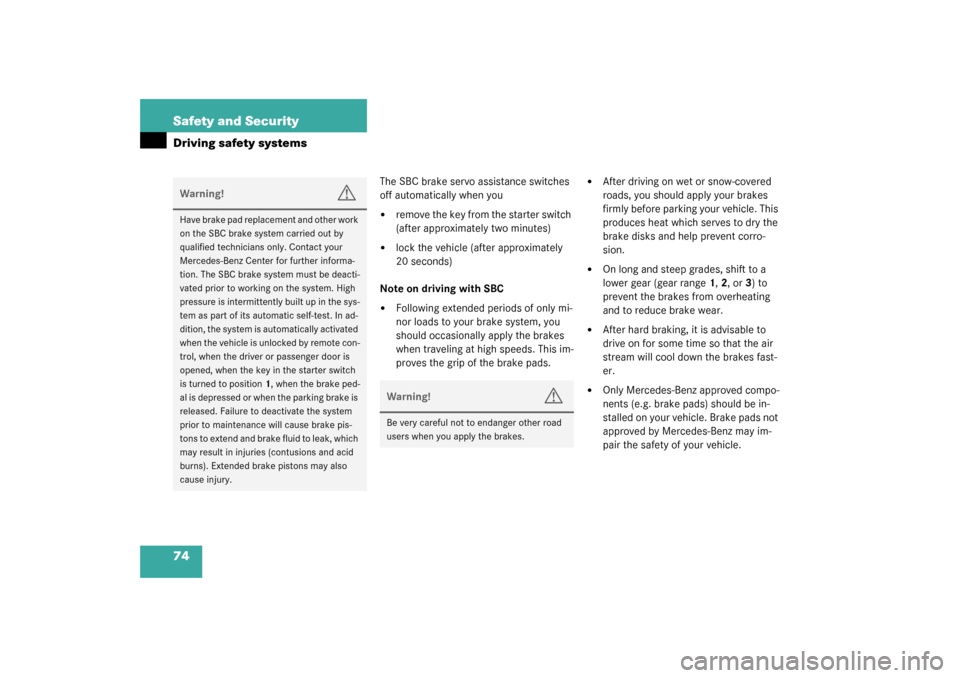

74 Safety and SecurityDriving safety systems
The SBC brake servo assistance switches
off automatically when you

remove the key from the starter switch
(after approximately two minutes)


lock the vehicle (after approximately
20 seconds)
Note on driving with SBC


Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads.


After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be in-
stalled on your vehicle. Brake pads not
approved by Mercedes-Benz may im-
pair the safety of your vehicle.
Warning!
G
Have brake pad replacement and other work
on the SBC brake system carried out by
qualified technicians only. Contact your
Mercedes-Benz Center for further informa-
tion. The SBC brake system must be deacti-
vated prior to working on the system. High
pressure is intermittently built up in the sys-
tem as part of its automatic self-test. In ad-
dition, the system is automatically activated
when the vehicle is unlocked by remote con-
trol, when the driver or passenger door is
opened, when the key in the starter switch
is turned to position1, when the brake ped-
al is depressed or when the parking brake is
released. Failure to deactivate the system
prior to maintenance will cause brake pis-
tons to extend and brake fluid to leak, which
may result in injuries (contusions and acid
burns). Extended brake pistons may also
cause injury.
Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.

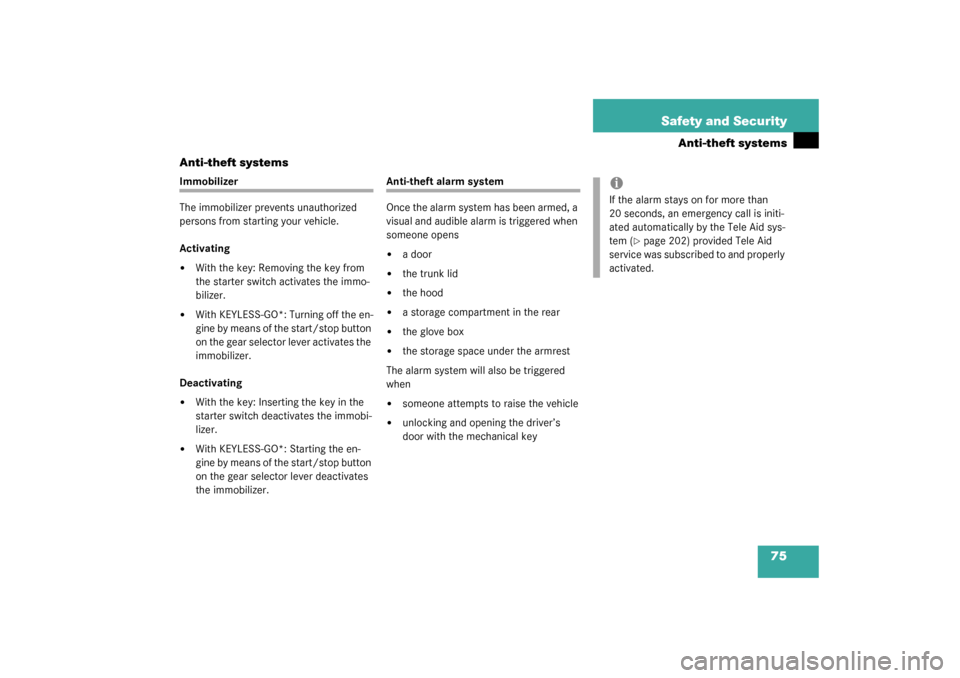

75 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

With the key: Removing the key from
the starter switch activates the immo-
bilizer.


With KEYLESS-GO*: Turning off the en-
gine by means of the start/stop button
on the gear selector lever activates the
immobilizer.
Deactivating


With the key: Inserting the key in the
starter switch deactivates the immobi-
lizer.


With KEYLESS-GO*: Starting the en-
gine by means of the start/stop button
on the gear selector lever deactivates
the immobilizer.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk lid


the hood


a storage compartment in the rear


the glove box


the storage space under the armrest
The alarm system will also be triggered
when


someone attempts to raise the vehicle


unlocking and opening the driver’s
door with the mechanical key
iIf the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem (
page 202) provided Tele Aid
service was subscribed to and properly
activated.

76 Safety and SecurityAnti-theft systemsArming the alarm system
The alarm system is armed after locking
the vehicle with the remote control. The
turn signal lamps blink three times to indi-
cate that the alarm system is activated.
The
‹
indicator lamp in the central
locking switch (
page 23) will blink after
approximately 10 seconds when the alarm
system is completely armed.Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote con-
trol. The turn signal lamps blink once to in-
dicate that the alarm system is
deactivated.
Canceling the alarm
To cancel the alarm:
With the key

Insert the key in the starter switch.
or

Press the
Œ
or
‹
button.
The alarm is canceled.With KEYLESS-GO*

Grasp the outside door handle.
or

Press the KEYLESS-GO start/stop but-
ton.
The alarm is canceled.
iIf the turn signal lamps do not blink
three times, a door or the hood may not
be closed properly.
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally again after aprroximately 40 sec-
onds if no door was opened.

77 Safety and Security
Anti-theft systems
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms automatical-
ly.Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.
The switch is on the center console be-
tween the driver’s seat and the passenger
seat.
1Tow-away alarm off switch
2Indicator lamp

Turn off the ignition and remove the
key.

Press switch1.
The indicator lamp2 in the switch
lights up briefly.

Lock your vehicle with the key or (vehi-
cles with KEYLESS-GO*) the lock but-
ton at each door handle.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid sys-
tem (
page 202) provided Tele Aid
service was subscribed to and properly
activated.
iYou cannot disarm the tow-away alarm
if the ignition is turned on.

78

79 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Automatic climate control
Power windows
Retractable hardtop
Driving systems
Useful features

80 Controls in detailLocking and unlockingIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. if you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.
Locking and unlockingKeys
Your vehicle comes supplied with two
SmartKeys with remote controls and a re-
movable mechanical key. The locking tabs
for the mechanical key portion of the two
keys are a different color to help distin-
guish each key unit.
The remote control key provides an ex-
tended operating range. To prevent theft,
however, it is advisable to only unlock the
vehicle when you are in close proximity to
it.
The key centrally locks and unlocks:

the doors


the trunk lid


the glove box


the storage space under the armrest


the storage compartment in the rear


the fuel filler flap
SmartKey with remote controls1‹
Lock button
2
Š
Unlock button for the trunk lid
3Mechanical key locking tab
4
Œ
Unlock button
5Battery check lamp
6
Â
Panic button (
page 67)
iYou can also open and close the re-
tractable hardtop using the key
(page 163).
