2003 LEXUS LS430 park

Fig. 183: Installing Parking Brake Cable Assy No.3 To Rear Axle Carrier With Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.INSTALL PARKING BRAKE SHOE LEVER SUB-ASSY LH
a. Apply high temperature grease to the parking brake shoe lever LH.
b. Install parking brake shoe lever to the parking brake cable assy No.3.

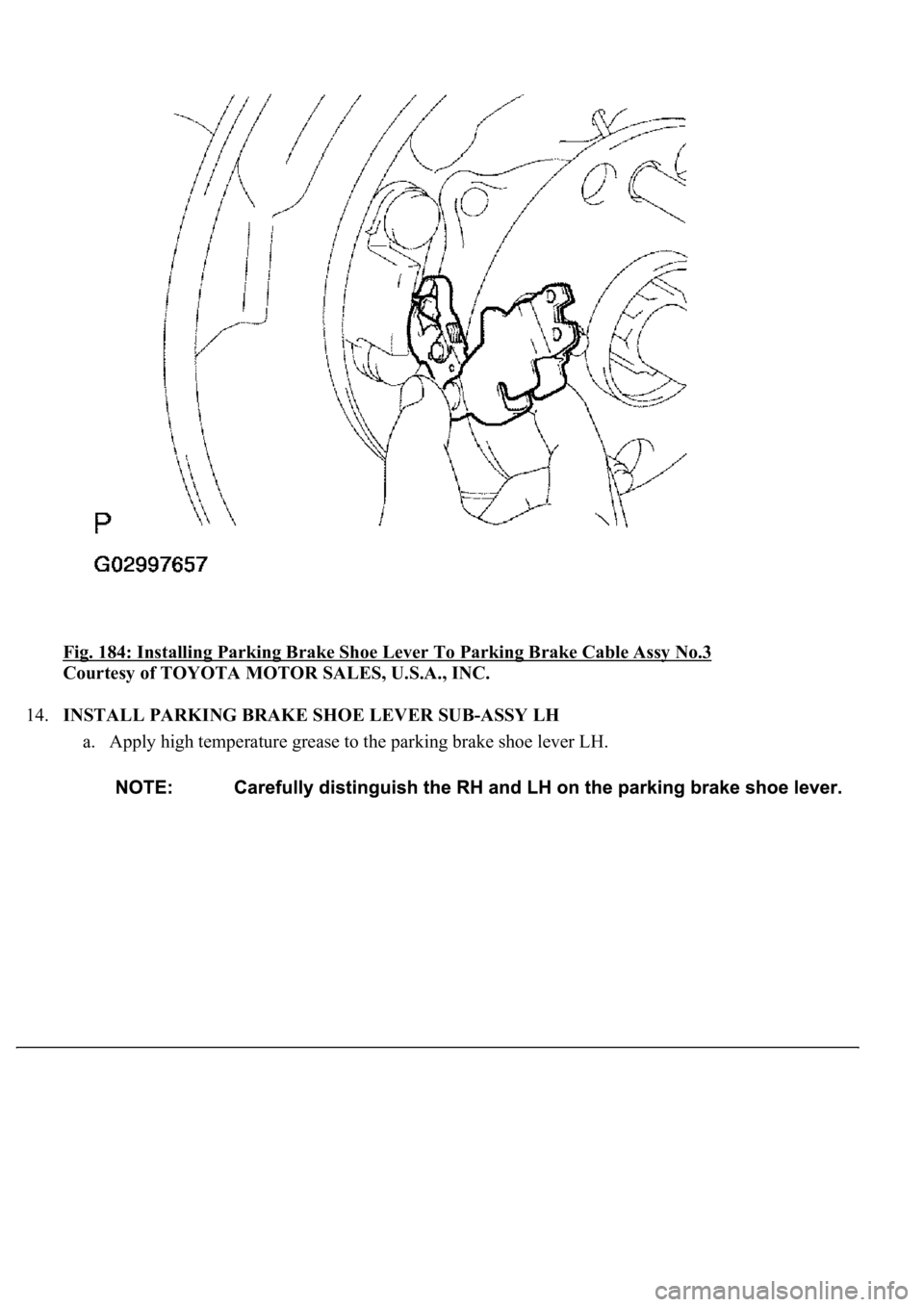

Fig. 184: Installing Parking Brake Shoe Lever To Parking Brake Cable Assy No.3
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.INSTALL PARKING BRAKE SHOE LEVER SUB-ASSY LH
a. Apply high temperature grease to the parking brake shoe lever LH.

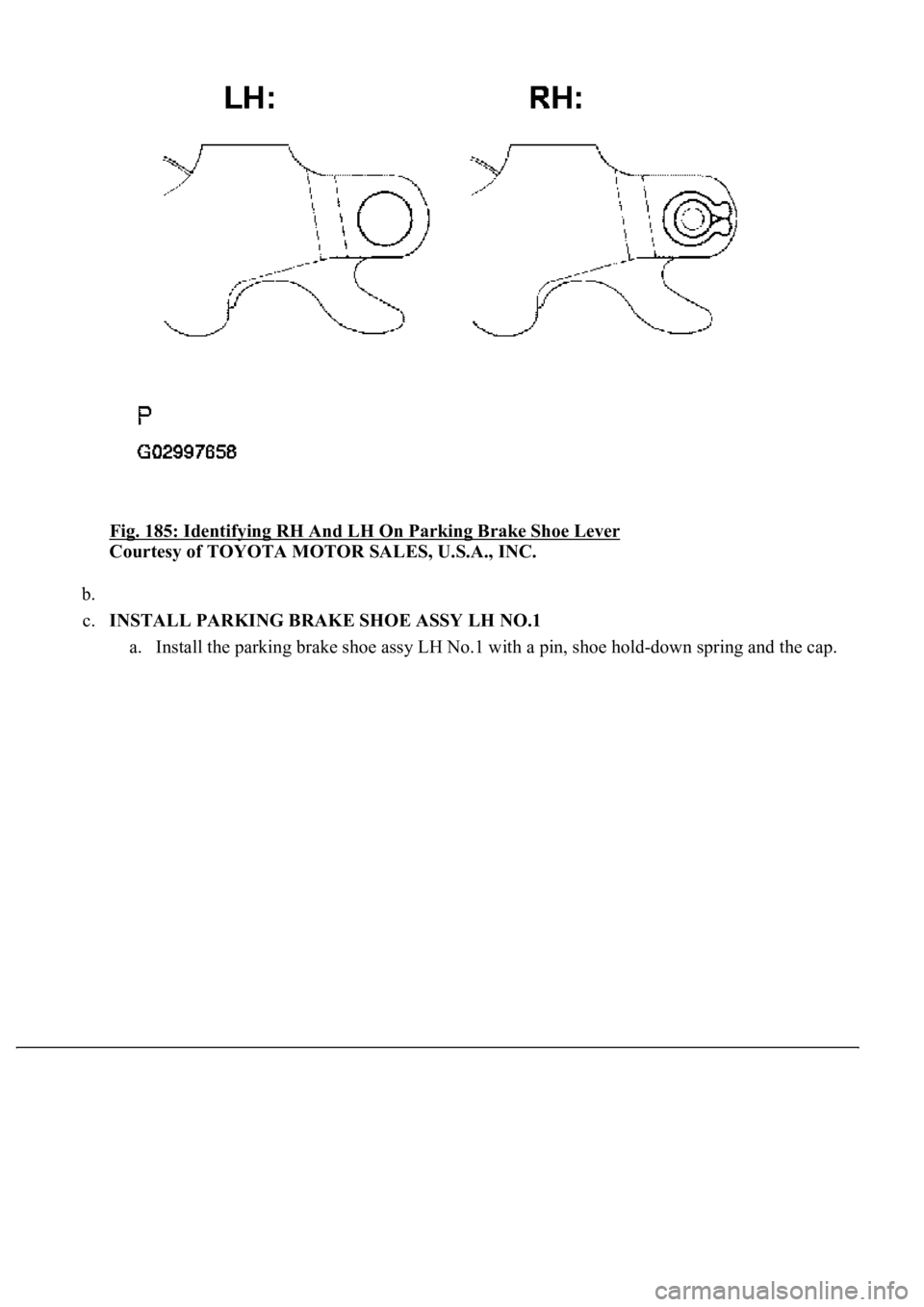

<0029004c004a001100030014001b0018001d0003002c0047004800510057004c0049005c004c0051004a00030035002b00030024005100470003002f002b0003003200510003003300440055004e004c0051004a0003002500550044004e00480003003600
4b005200480003002f0048005900480055[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b.
c.INSTALL PARKING BRAKE SHOE ASSY LH NO.1
a. Install the parkin
g brake shoe assy LH No.1 with a pin, shoe hold-down spring and the cap.

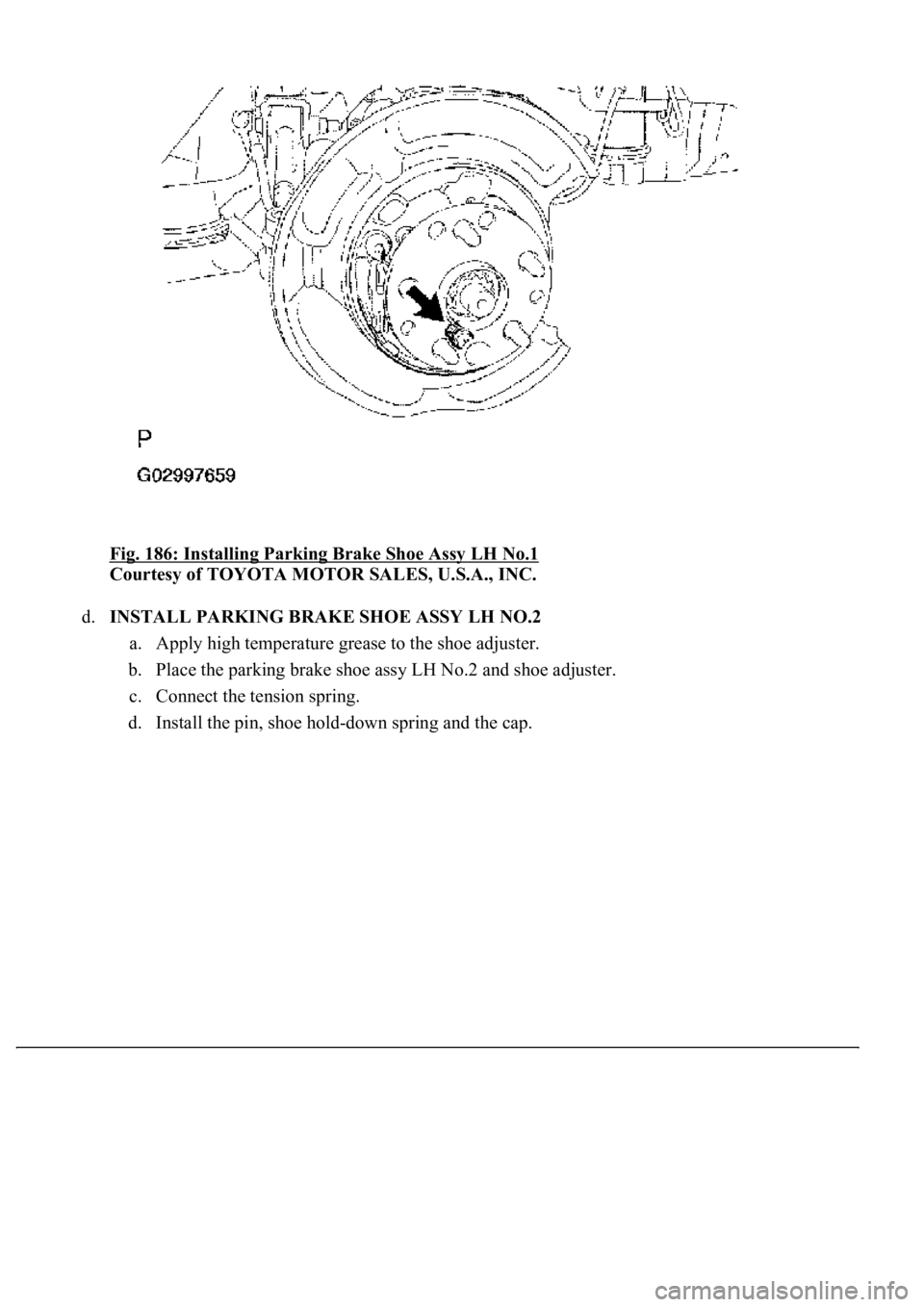

Fig. 186: Installing Parking Brake Shoe Assy LH No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d.INSTALL PARKING BRAKE SHOE ASSY LH NO.2
a. Apply high temperature grease to the shoe adjuster.
b. Place the parking brake shoe assy LH No.2 and shoe adjuster.
c. Connect the tension spring.
d. Install the pin, shoe hol
d-down spring and the cap.

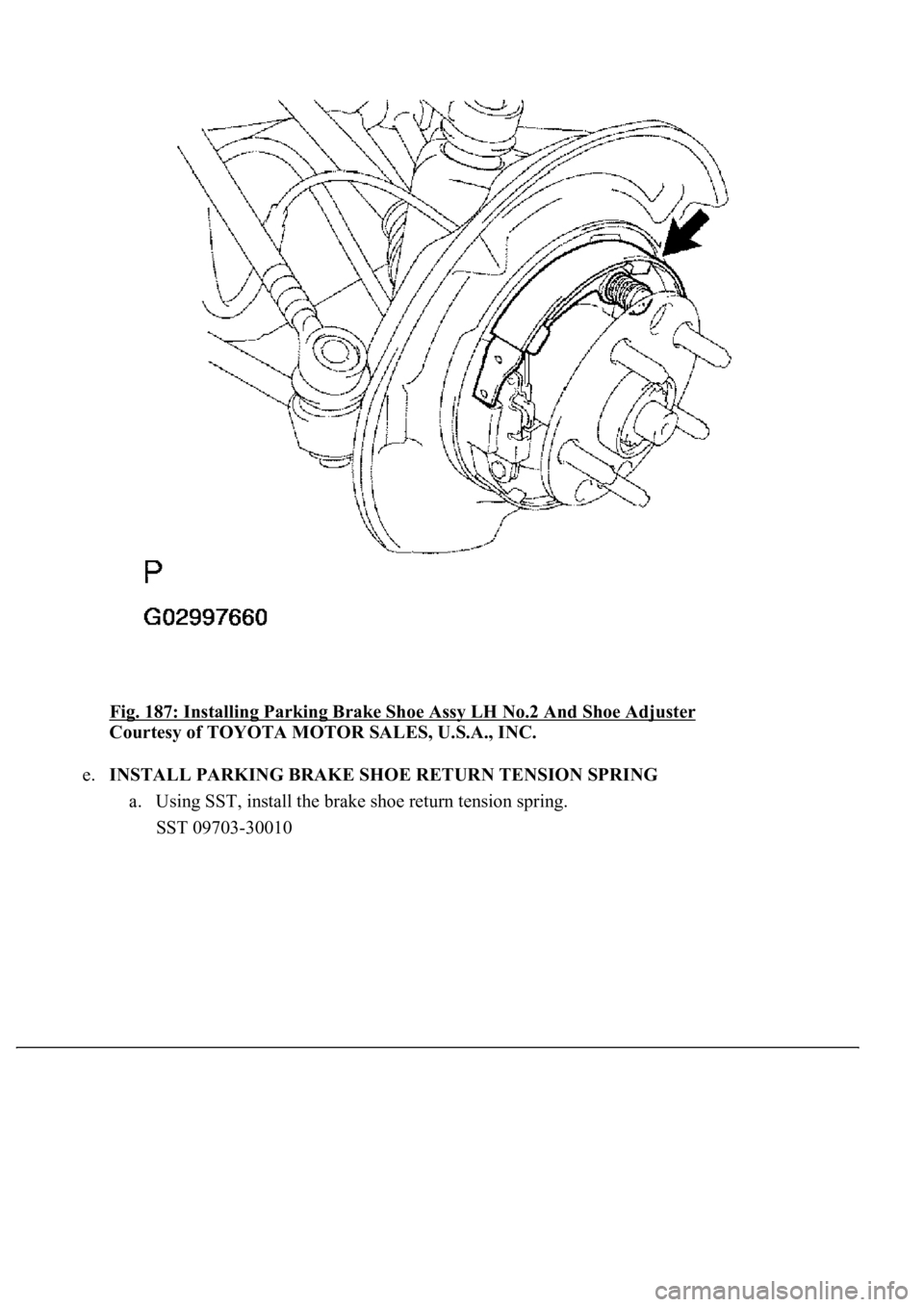

Fig. 187: Installing Parking Brake Shoe Assy LH No.2 And Shoe Adjuster
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e.INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING
a. Using SST, install the brake shoe return tension spring.
SST 09703-30010

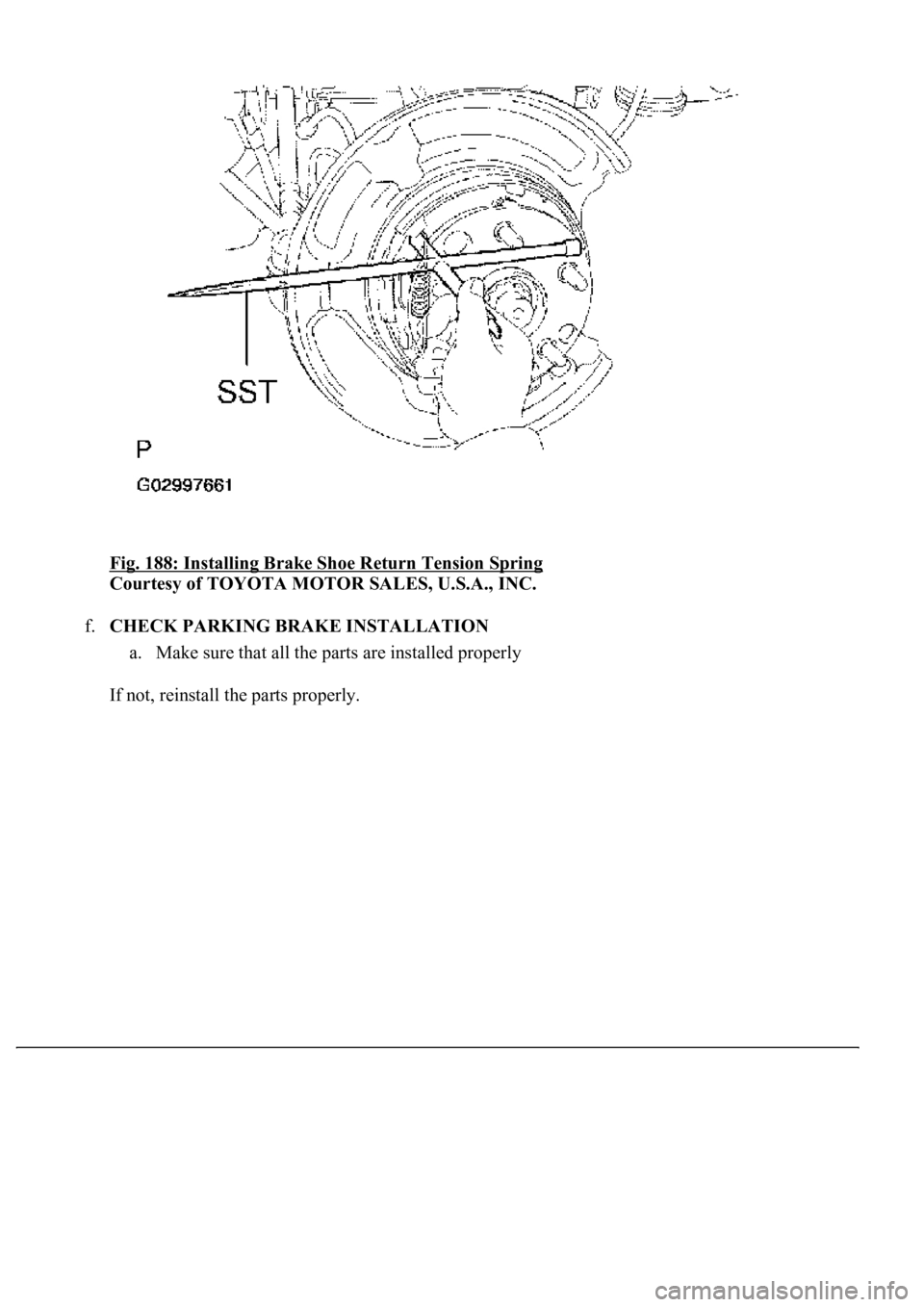

Fig. 188: Installing Brake Shoe Return Tension Spring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f.CHECK PARKING BRAKE INSTALLATION
a. Make sure that all the parts are installed properly
If not, reinstall the parts properly.

Fig. 189: Checking Parking Brake Installation
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
g.INSTALL REAR DISC
a. Ali
gn the matchmarks on the disc and rear axle hub.

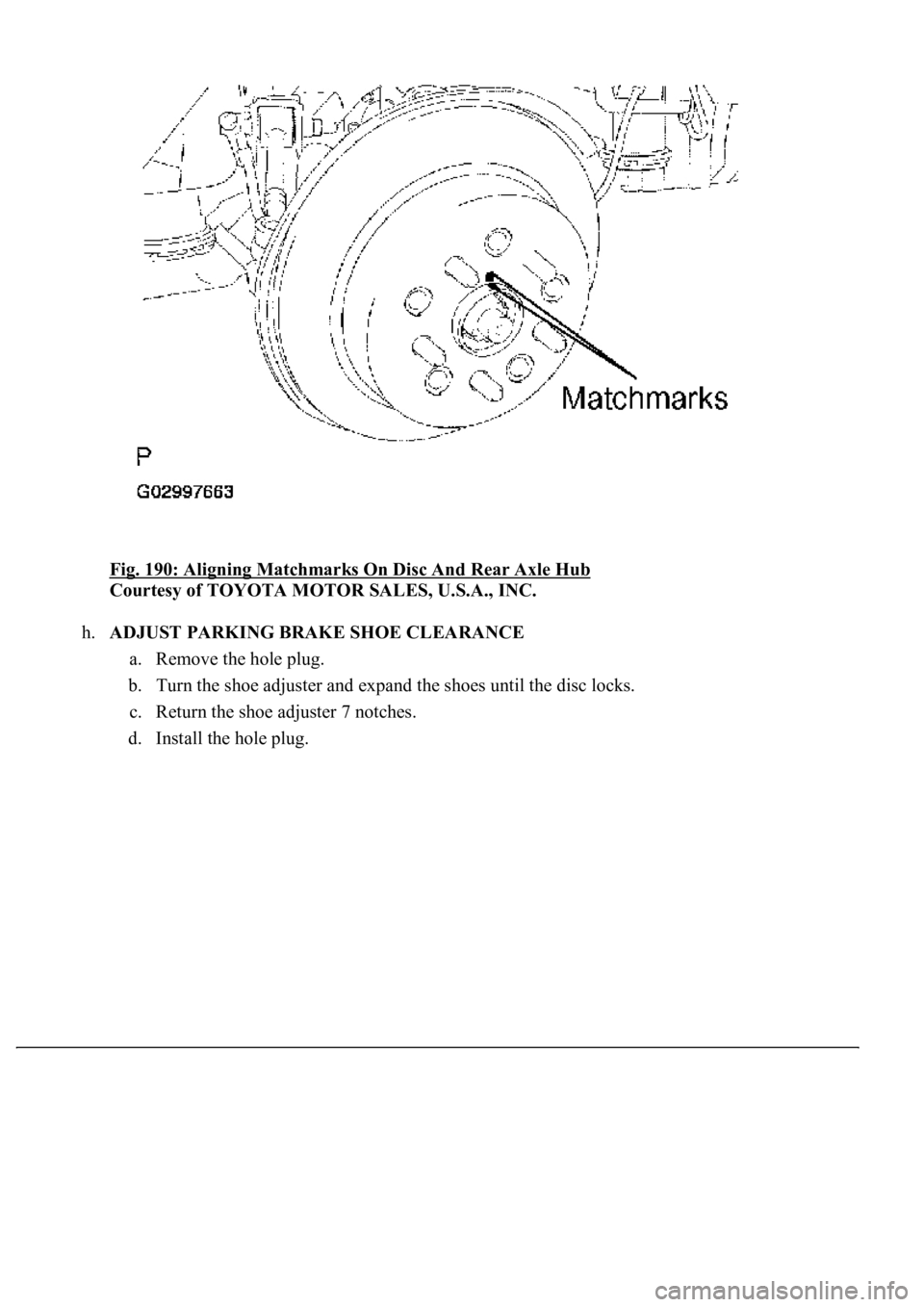

Fig. 190: Aligning Matchmarks On Disc And Rear Axle Hub
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
h.ADJUST PARKING BRAKE SHOE CLEARANCE
a. Remove the hole plug.
b. Turn the shoe adjuster and expand the shoes until the disc locks.
c. Return the shoe adjuster 7 notches.
d. Install the hole plug.
