Fig. 201: Inspecting Brake Disc And Parking Brake Shoe Lining For Proper Contact
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
10.REMOVE PARKING BRAKE SHOE LEVER SUB-ASSY LH
a. Disconnect the parkin
g brake cable assy No.3 from the parking brake shoe lever.

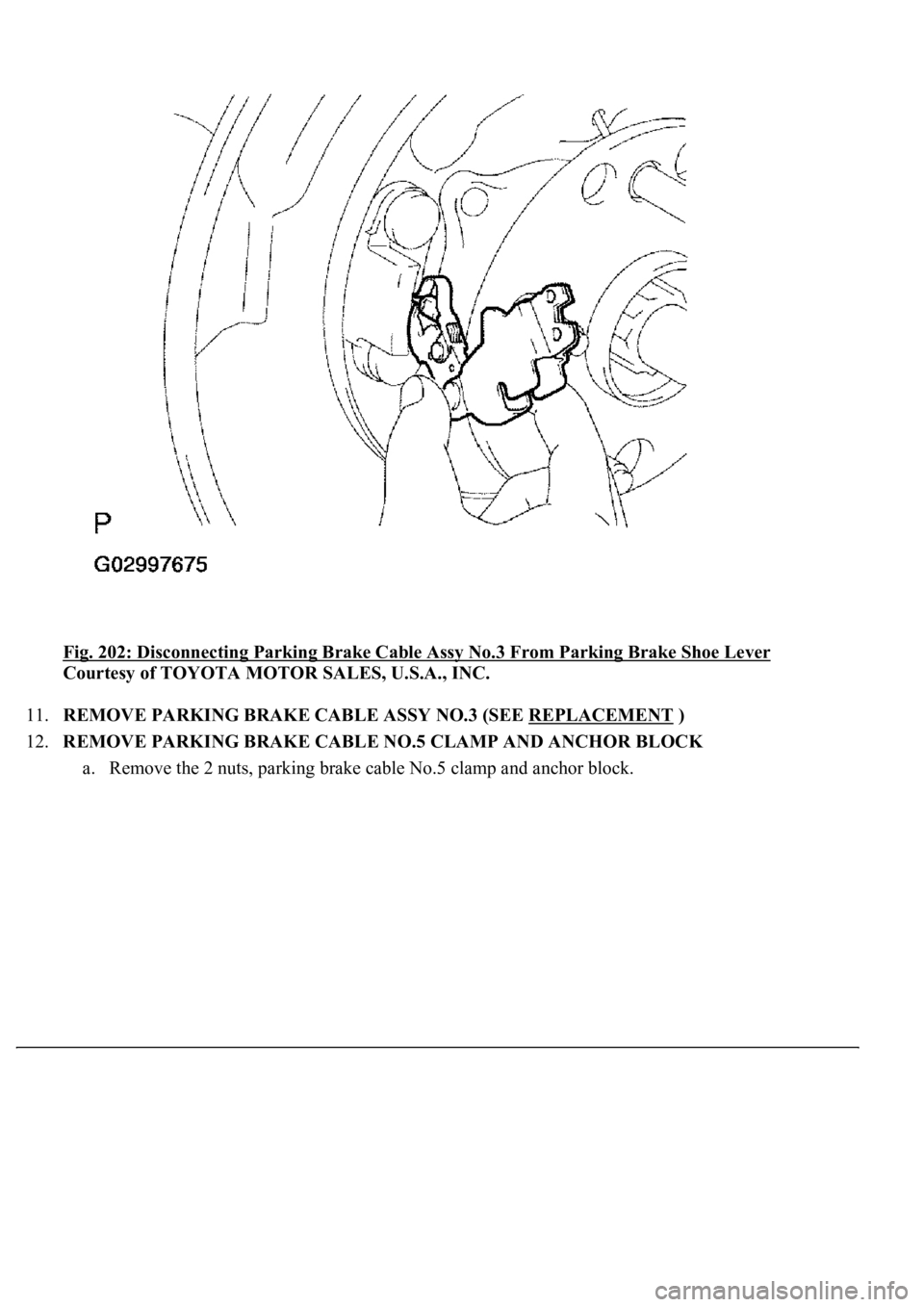

Fig. 202: Disconnecting Parking Brake Cable Assy No.3 From Parking Brake Shoe Lever
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
11.REMOVE PARKING BRAKE CABLE ASSY NO.3 (SEE REPLACEMENT
)
12.REMOVE PARKING BRAKE CABLE NO.5 CLAMP AND ANCHOR BLOCK
a. Remove the 2 nuts, parking brake cable No.5 clamp and anchor block.

Fig. 203: Removing Nuts, Parking Brake Cable No.5 Clamp And Anchor Block
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.REMOVE PARKING BRAKE CABLE NO.5 CLAMP AND ANCHOR BLOCK
a. Install the anchor block and parking brake cable No.5 clamp with 2 nuts.
Torque: 75 N.m (765 kgf.cm, 55 in. lbf)

Fig. 204: Installing Anchor Block And Parking Brake Cable No.5 Clamp With Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.INSTALL PARKING BRAKE CABLE ASSY NO.3 (SEE REPLACEMENT
)
15.INSTALL PARKING BRAKE SHOE LEVER SUB-ASSY LH
a. Apply high temperature grease to the parking brake shoe lever LH.
b. Install parking brake shoe lever to the parking brake cable assy No.3.

Fig. 205: Installing Parking Brake Shoe Lever To Parking Brake Cable Assy No.3
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

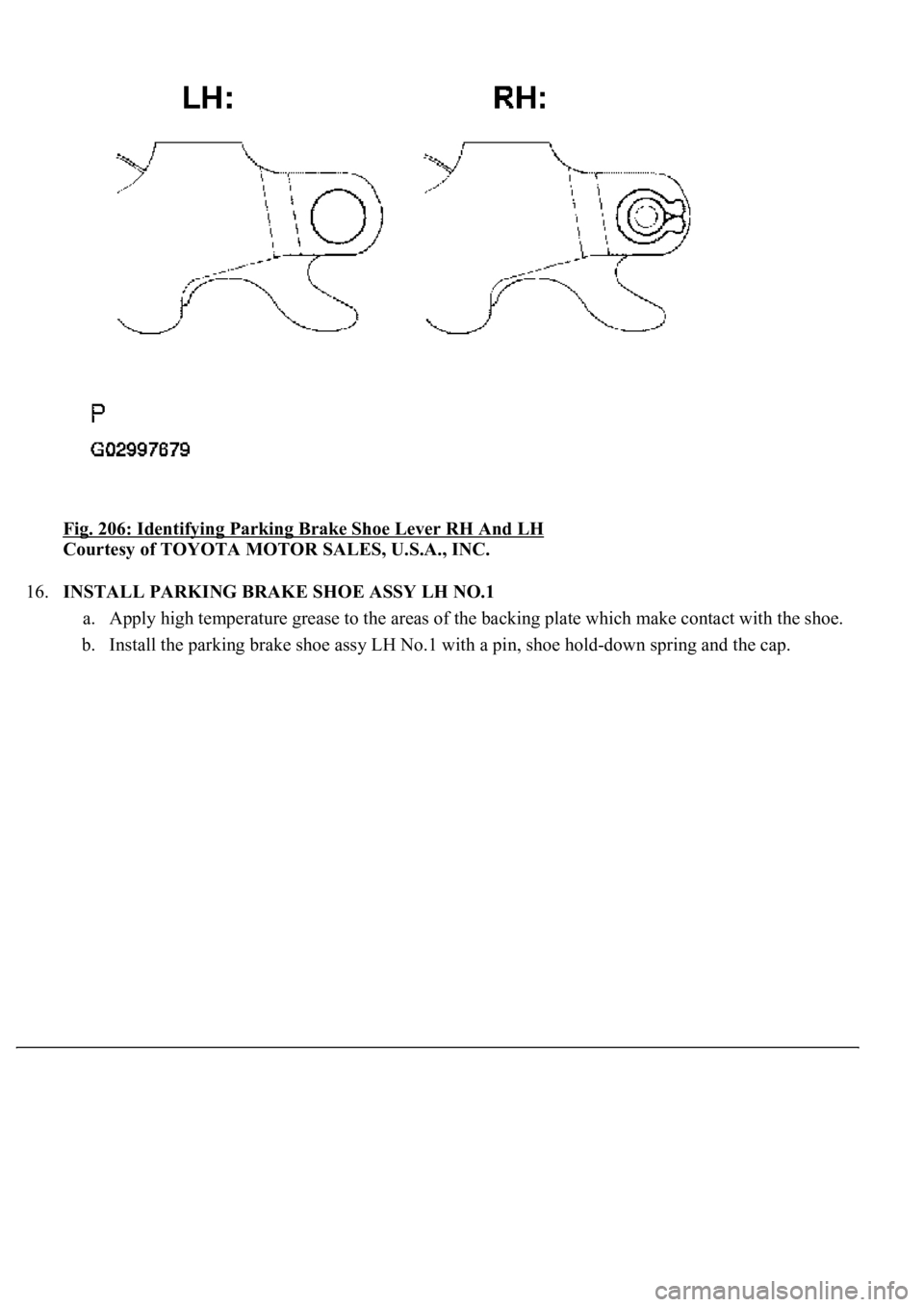

Fig. 206: Identifying Parking Brake Shoe Lever RH And LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
16.INSTALL PARKING BRAKE SHOE ASSY LH NO.1
a. Apply high temperature grease to the areas of the backing plate which make contact with the shoe.
b. Install the parking brake shoe assy LH No.1 with a pin, shoe hold-down spring and the cap.

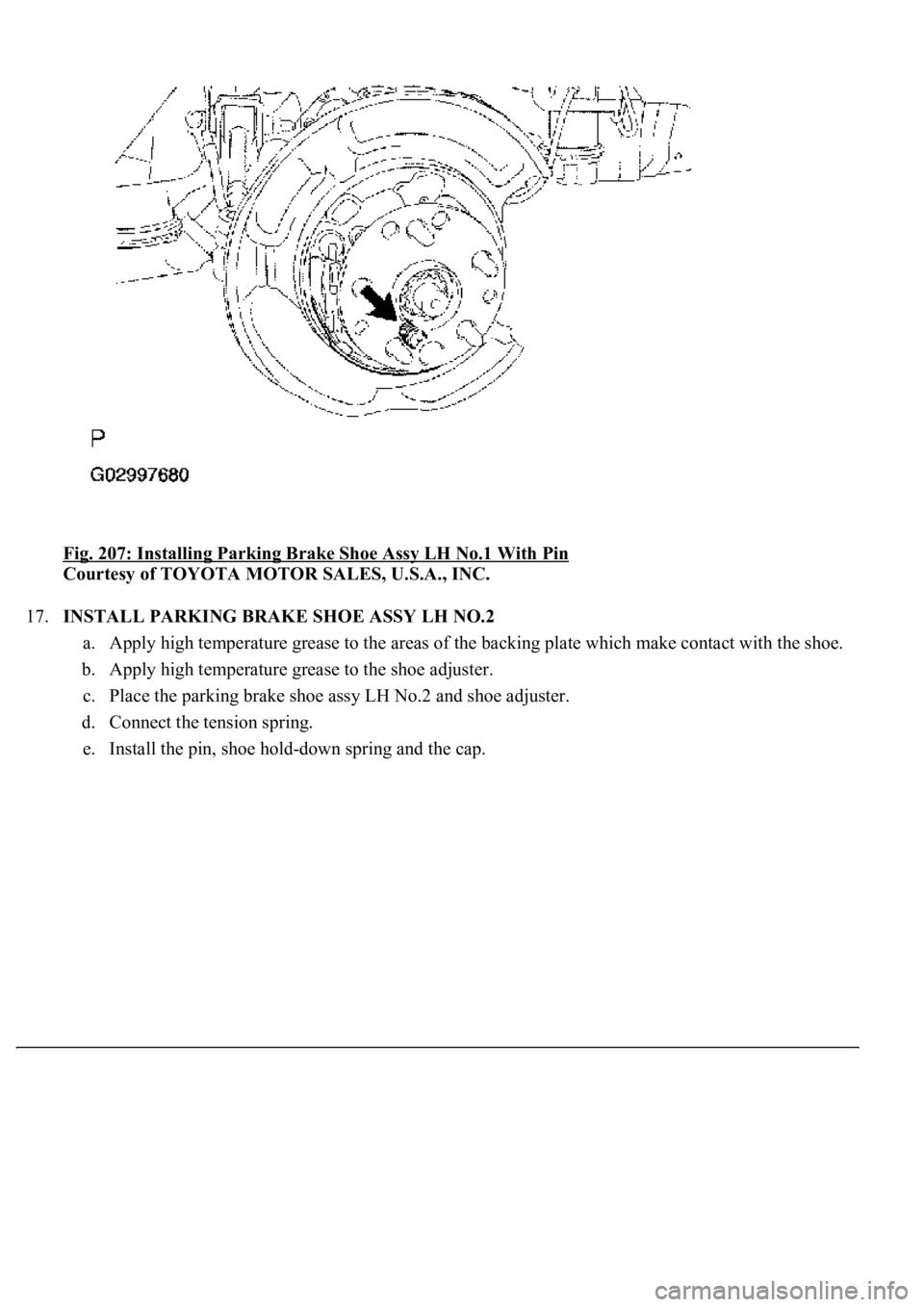

Fig. 207: Installing Parking Brake Shoe Assy LH No.1 With Pin
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
17.INSTALL PARKING BRAKE SHOE ASSY LH NO.2
a. Apply high temperature grease to the areas of the backing plate which make contact with the shoe.
b. Apply high temperature grease to the shoe adjuster.
c. Place the parking brake shoe assy LH No.2 and shoe adjuster.
d. Connect the tension spring.
e. Install the pin, shoe hol
d-down spring and the cap.

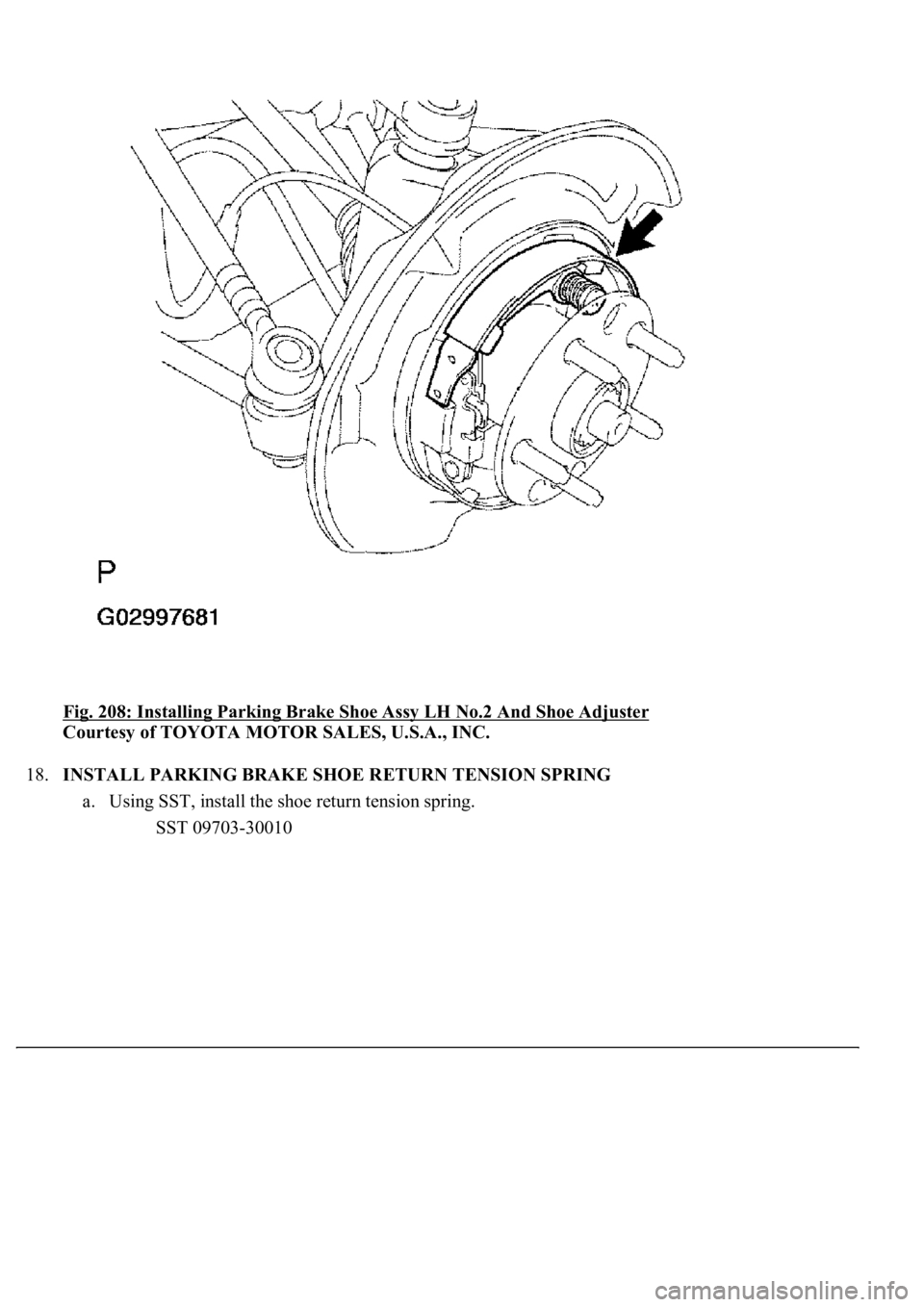

Fig. 208: Installing Parking Brake Shoe Assy LH No.2 And Shoe Adjuster
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
18.INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING
a. Using SST, install the shoe return tension spring.
SST 09703-30010
