Fleetwood (1981-88)Enter Diagnostic Mode By Pressing OFF & WARMER
Buttons On Instrument Panel
Fleetwood BroughamOn Bottom Center Of Dash, Near Ashtray
Impala (1982-88)Under Center Of Instrument Panel
LeMansECM Connector On Right Kick Panel Or Under Left Side Of
Dash
LeSabre (1980-81)ECU Connector On Upper Right Kick Panel
LeSabre Wagon (1982-88)Under Center Of Instrument Panel
MonzaUnder Right Side Of Dash
Ninety-Eight (1980-81)ECU Connector On Upper Right Kick Pane
NovaBehind Right Strut Tower
ParisienneUnder Center Of Instrument Panel
Reatta
1988-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
1991-93Above Parking Brake Pedal
Riviera
1980-85 (Carbureted)Under Left Or Center Of Dash
1986-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
SafariUnder Center Of Instrument Panel
Seville (1981-88)Enter Diagnostic Mode By Pressing OFF & WARMER
Buttons On Instrument Panel
SkyhawkUnder Right Side Of Dash
StarfireUnder Right Side Of Dash
SunbirdOn Side Of Fuse Block, Under Right Side Of Dash
Toronado
1980-85 (Carbureted)Under Left Or Center Of Dash
1986-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
Trofeo
1988-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
1991-93Above Parking Brake Pedal
2000On Side Of Fuse Block

AUDI
AUDI - IMPORTED CARS & TRUCKS
SLXBehind Lower Left Corner Of Dash, Behind
Cover
Vigor
1992-93Under Right Side Of Dash, Near Center
Console
1994Behind Glove Compartment
2.2CL & 2.3CLIn Front Of Shift Lever, Behind Ashtray
2.5TLIn Front Of Shift Lever, Behind Ashtray
3.0CLIn Front Of Shift Lever, Behind Ashtray
3.2TL & 3.5RLIn Front Of Shift Lever, Behind Ashtray
ApplicationConnector Location
A4
1996Next To Rear Ashtray
1997-01 (1.8L Turbo)Behind Cover, Under Left Side Of Steering
Column
1997-99 (2.8L V6)Under Cover, Next To Rear Ashtray
1997-Under Left Side Of Dash, Behind Cover
A6
1995Under Ashtray, In Front Storage
Compartment Of Center Console
1996-97Under Cover, Next To Parking Brake
Handle
Cabriolet
1994-96In Fuse/Relay Block, On Left Side Of Dash
1997-98Under Ashtray, At Rear Of Center Console
Coupe GT, 4000S & 4000S QuattroIn Fuse Socket, On Fuel Pump Relay
80In Fuse Socket, On Fuel Pump Relay
90
1988-92In Fuse Socket, On Fuel Pump Relay
1993In Main Fuse/Relay Block, On Plenum
Tray
1994-95In Fuse/Relay Block, On Left Side Of Dash
100
1989-91Under Left Side Of Dash
1992-94In Auxiliary Relay Station No. 1, On Left

PEUGEOT
PEUGEOT - IMPORTED CARS & TRUCKS
PORSCHE
PORSCHE - IMPORTED CARS & TRUCKS
Maxima
1989-94Under Left Side Of Dash
1995-96Below Fuse Box
NX & SentraUnder Left Side Of Dash, Near Fuse Block
Pulsar NX
1986Above Right Side Of Dash, Below Wiper
Motor
1987Above Steering Column
Quest (1993-95)
CONSULT Tester ConnectorOn Driver-Side Of Center Console, Above
Accelerator Pedal
Self-Test ConnectorLocated Near Starter
StanzaBelow Center Of Dash, Near Center Console
VanOn Right Side Of Engine Compartment,
Behind Fuel Filter
200SX (1995-96)Below Fuse Box
240SX
1991-94Under Left Side Of Dash, Below Fuse
Block
1995-96In Glove Box
300ZX (1990)Near Parking Brake
ApplicationConnector Location
505 SeriesOn Lower Left Side Of Engine Connector
ApplicationConnector Location
911 Series
1992-95In Passenger's Footwell
1996Left Side Of Center Console

Pickup
1984-86Near Ignition Coil, Near Master Cylinder (2-
Pin Connector)
1987-90Right Front Inner Fender Panel, Near Relay
Block
1992-94On Side Of Engine Compartment Fuse/Relay
Block No. 2, Near Battery
Previa
1992-93Under Front Of Driver's Seat
1994
Except SuperchargedUnder Center Console, Near Parking Brake
Lever
SuperchargedUnder Cover, On Top Center Of
Instrument Panel
1995-97On Top Center Of Instrument Panel
RAV4Under Dash, Near Center Console
Starlet
1981-82On Instrument Panel Fuse Block, On Top Of
Dash
1983-84Right Rear Of Engine Compartment
Supra
1986-90Rear Of Battery, Near Relay Panel
1991-92On Left Front Shock Tower
1993-94
DLC No. 1On Right Side Of Firewall
DLC No. 2Under Left Side Of Dash, Near Kick Panel
Tacoma & T100
1993On Side Of Engine Compartment Fuse/Relay
Block No. 2, Near Battery
1994-95
Except OBD-II DLCOn Side Of Engine Compartment
Fuse/Relay Block No. 2, Near Battery
OBD-II DLCUnder Left Side Of Dash
Tercel
1987-90In Engine Compartment, Next To Master
Cylinder
1991-94On Side Of Engine Compartment Fuse/Relay
Block No. 2, Near Battery
1995-98Near Steering Column
VanNear Airflow Meter
4Runner
1985-86Near Ignition Coil, Next To Master Cylinder
(2-Pin Connector)

VOLVO
VOLVO - IMPORTED CARS & TRUCKS
Passat
1992-94Under Center Console, Forward Of Shift
Lever
1995-97On Center Dash, Behind Panel Near
Ashtray
ApplicationConnector Location
C30Under Left Center Of Dash
C70Behind Cover, Below Parking Brake Lever
S40Under Left Center Of Dash
S70Behind Cover, Below Parking Brake Lever
S90Behind Cover, Below Parking Brake Lever
V40Under Left Center Of Dash
V70 (1997-00)Behind Cover Below Parking Brake Lever
V90Behind Cover, Below Parking Brake Lever
240
1986-92Left Rear Corner Of Engine Compartment
1993Behind Left Front Strut Tower
740 & 760
1986-92
Ignition SystemOn Left Front Fender Apron
Fuel Injection (1990-92 Only)Left Rear Corner Of Engine Compartment
780On Left Front Fender, Behind Air Cleaner
Housing
850
1993On Center Console, Forward Of Shift Lever &
Near ECM
1994-95
Non-TurboOn Right Front Strut Tower
TurboBehind Cover, Forward Of Shift Lever
1996-97Behind Cover, Forward Of Shift Lever
940
1991-93
Ignition SystemOn Left Front Fender Apron
Fuel InjectionLeft Rear Corner Of Engine Compartment

1994-95Behind Left Front Strut Tower
960
1992-95On Left Front Strut Tower
1996In Center Console, To Right Of Parking Brake
Lever
1997Behind Cover, Forward Of Shift Lever

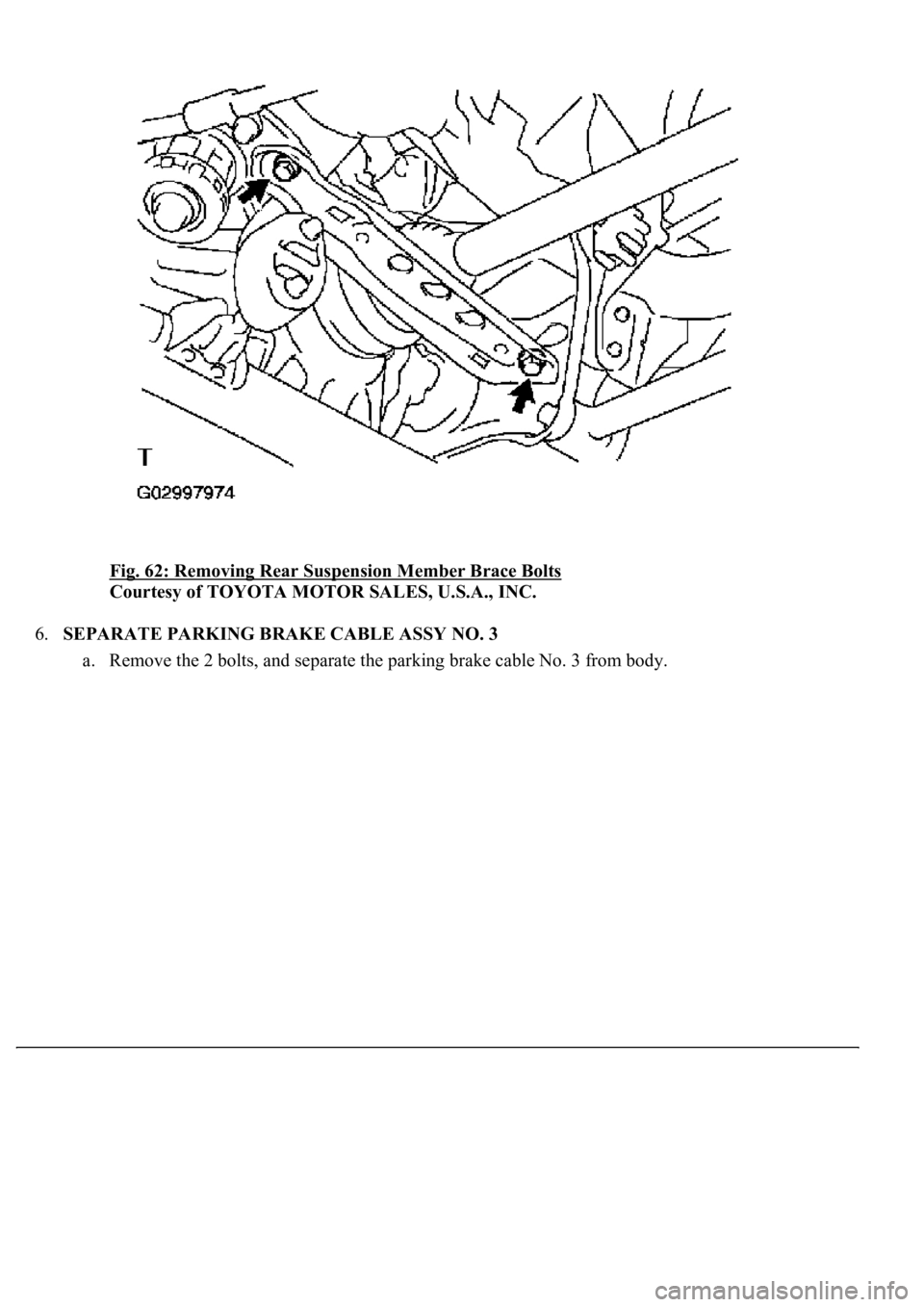

Fig. 62: Removing Rear Suspension Member Brace Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.SEPARATE PARKING BRAKE CABLE ASSY NO. 3
a. Remove the 2 bolts, and separate the parking brake cable No. 3 from body.

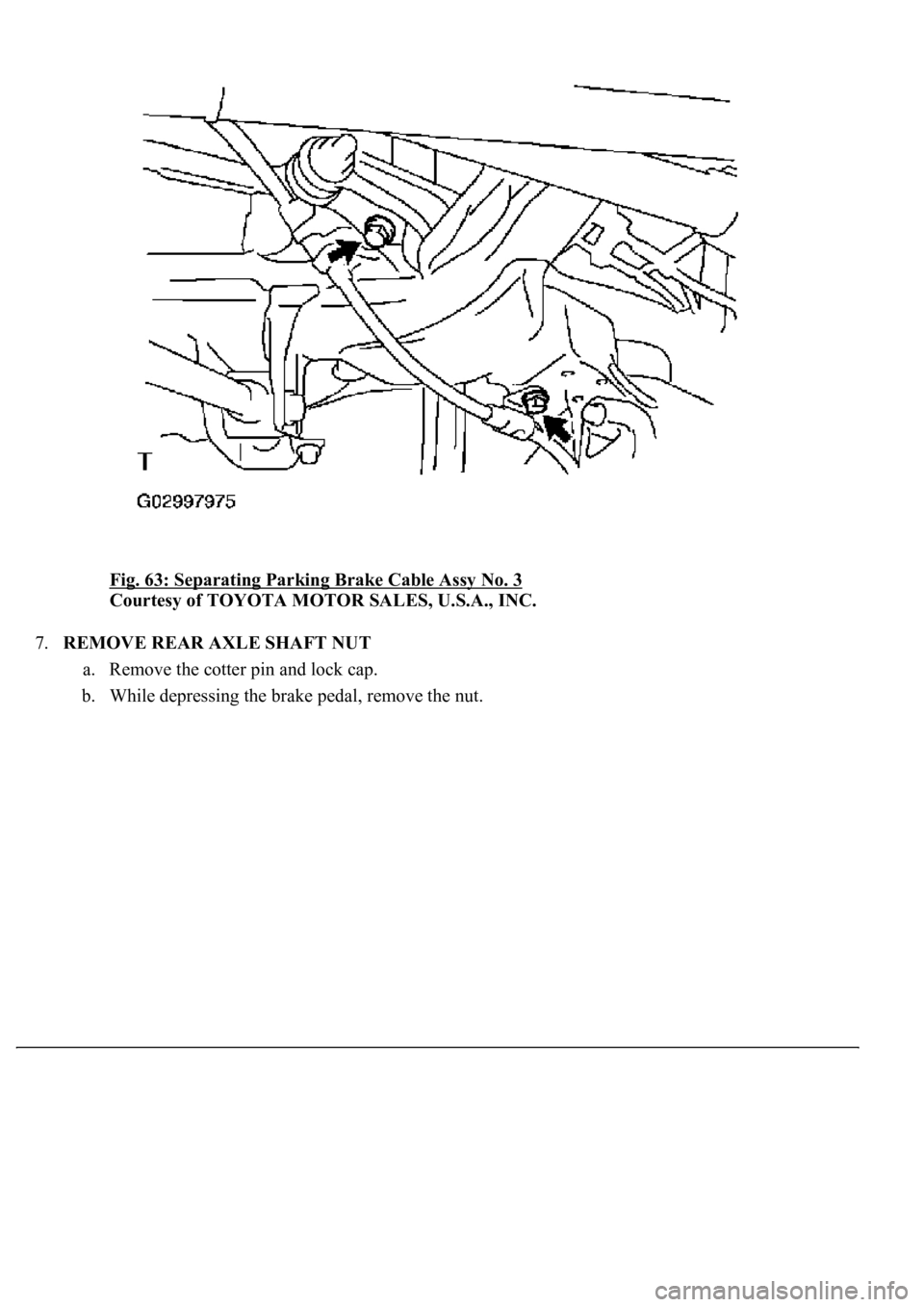

Fig. 63: Separating Parking Brake Cable Assy No. 3
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE REAR AXLE SHAFT NUT
a. Remove the cotter pin and lock cap.
b. While depressing the brake pedal, remove the nut.
