2003 LEXUS LS430 park

30.INSPECT SRS WARNING LIGHT (SEE DIAGNOSIS SYSTEM )
31.PERFORM INITIALIZATION (SEE INITIALIZATION
)
COMPONENTS
Fig. 156: Exploded View Of Parking Brake Cable Assy No.1

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 158: Removing Nuts And Yawrate Sensor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.REMOVE CONSOLE BOX DUCT NO.1 (SEE REPLACEMENT
)
34.REMOVE OXYGEN SENSOR (SEE REPLACEMENT
)
35.REMOVE EXHAUST PIPE ASSY (SEE REPLACEMENT
)
36.REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (SEE REPLACEMENT
)
37.REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY (SEE OVERHAUL
)
38.REMOVE FLOOR SHIFT ASSY (SEE OVERHAUL
)
39.REMOVE PARKING BRAKE CABLE ASSY NO.1
a. Release the parking brake pedal.
b. Remove the return spring.
c. Remove the 2 bolts and separate the parking brake intermediate lever sub-assy from the floor panel.
d. Remove the clip and pin, and separate the parking brake cable assy No.1 from the parking brake
intermediate lever sub-assy.
e. Remove the 2 bolts and disconnect the parking brake cable No.2 and No.3 from the parking brake
intermediate lever sub-ass
y.

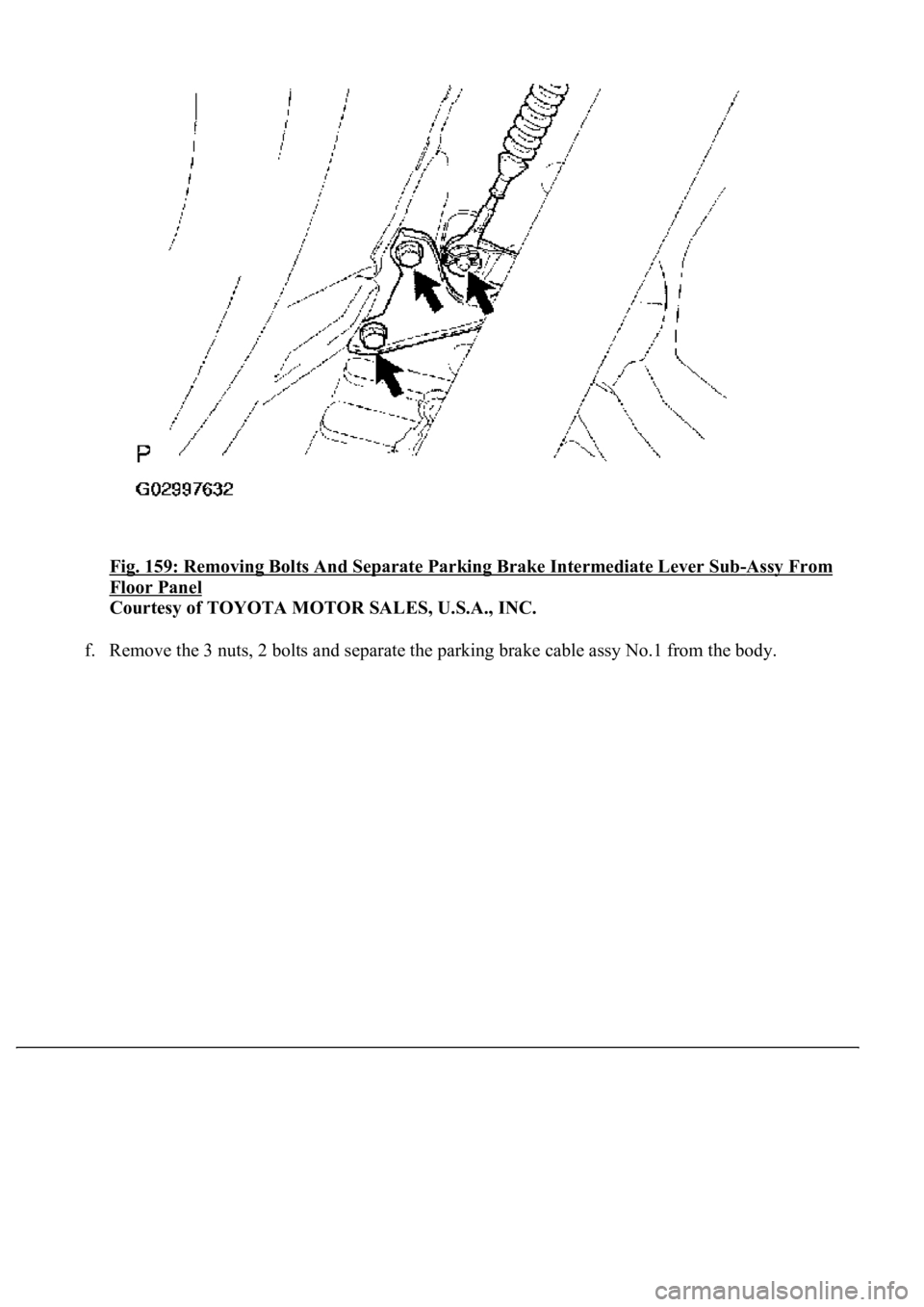

Fig. 159: Removing Bolts And Separate Parking Brake Intermediate Lever Sub-Assy From
Floor Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
f. Remove the 3 nuts, 2 bolts and separate the parking brake cable assy No.1 from the body.

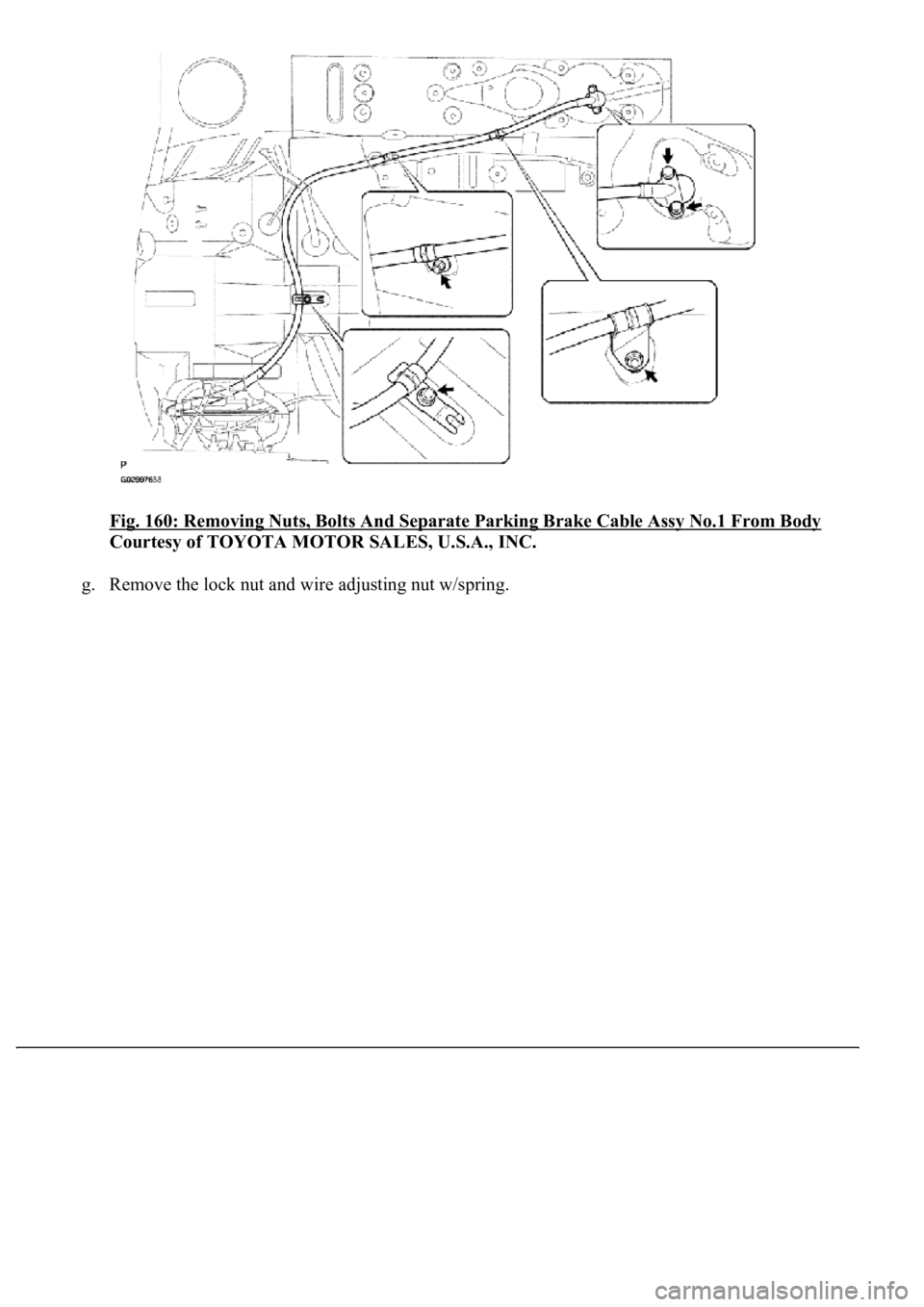

Fig. 160: Removing Nuts, Bolts And Separate Parking Brake Cable Assy No.1 From Body
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
g. Remove the lock nut and wire adjusting nut w/spring.

Fig. 161: Removing Lock Nut And Wire Adjusting Nut W/Spring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
h. Remove the clip from the parkin
g brake pedal assy.

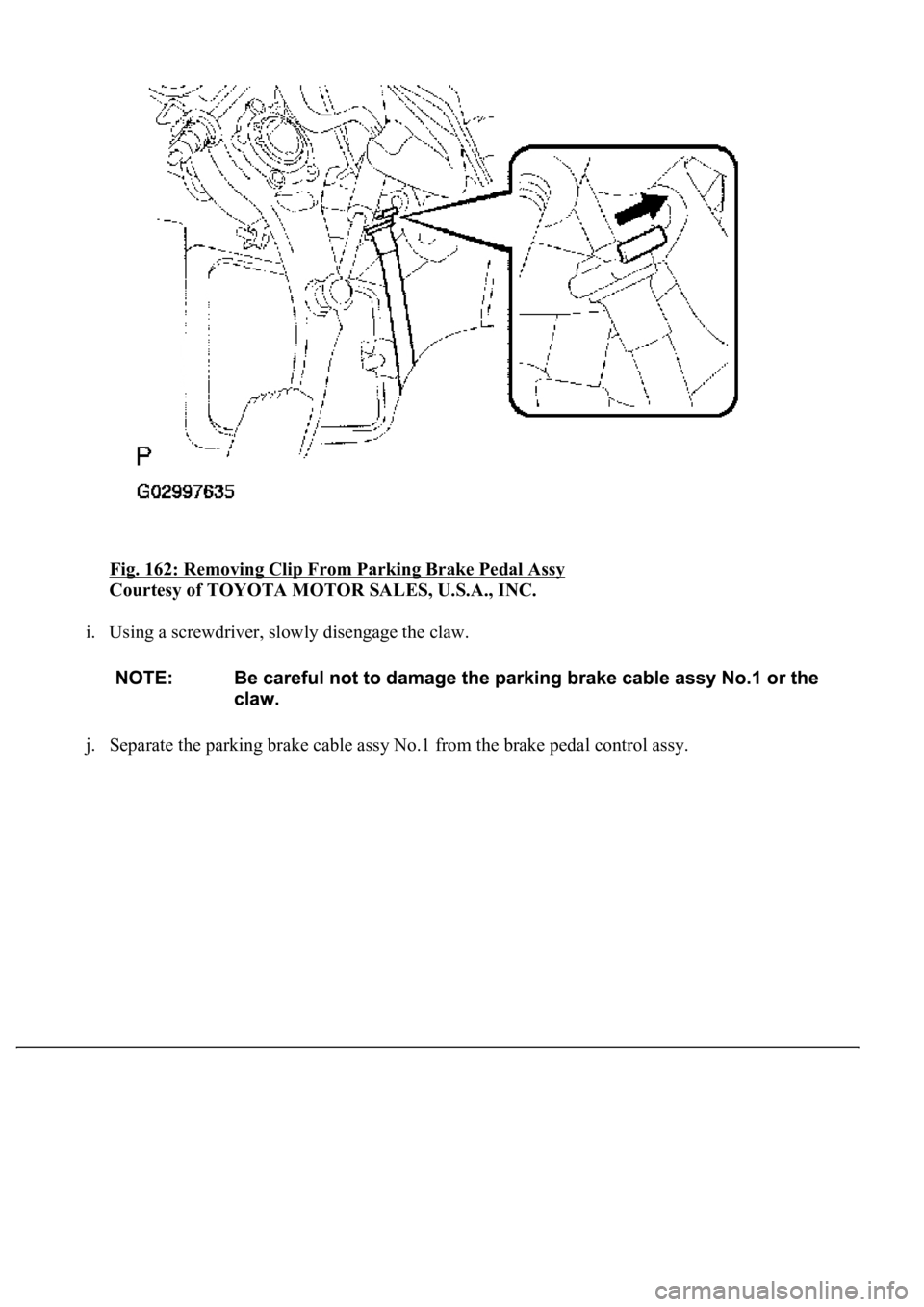

Fig. 162: Removing Clip From Parking Brake Pedal Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
i. Using a screwdriver, slowly disengage the claw.
j. Separate the parking brake cable assy No.1 from the brake pedal control assy.

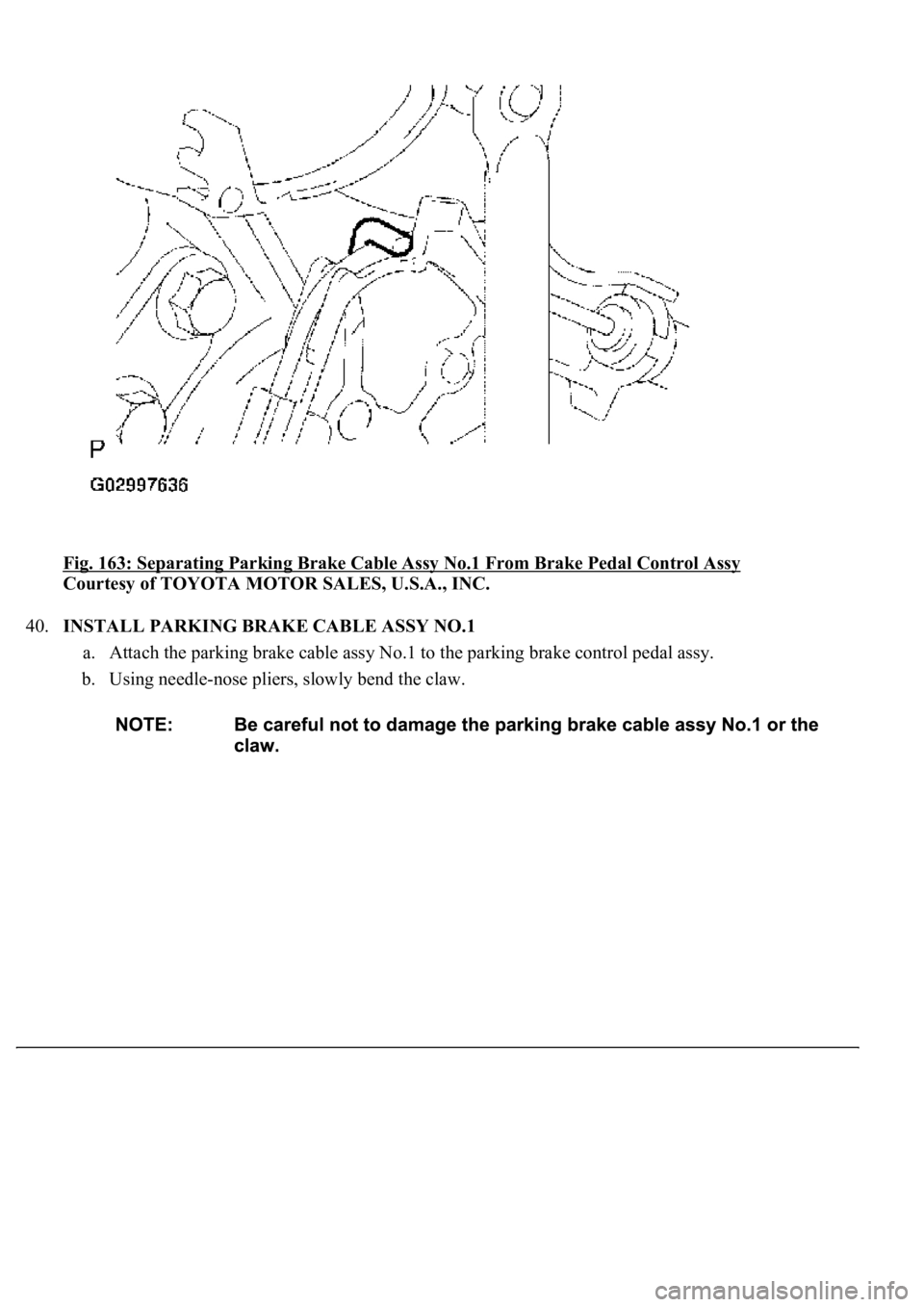

Fig. 163: Separating Parking Brake Cable Assy No.1 From Brake Pedal Control Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
40.INSTALL PARKING BRAKE CABLE ASSY NO.1
a. Attach the parking brake cable assy No.1 to the parking brake control pedal assy.
b. Using needle-nose pliers, slowly bend the claw.

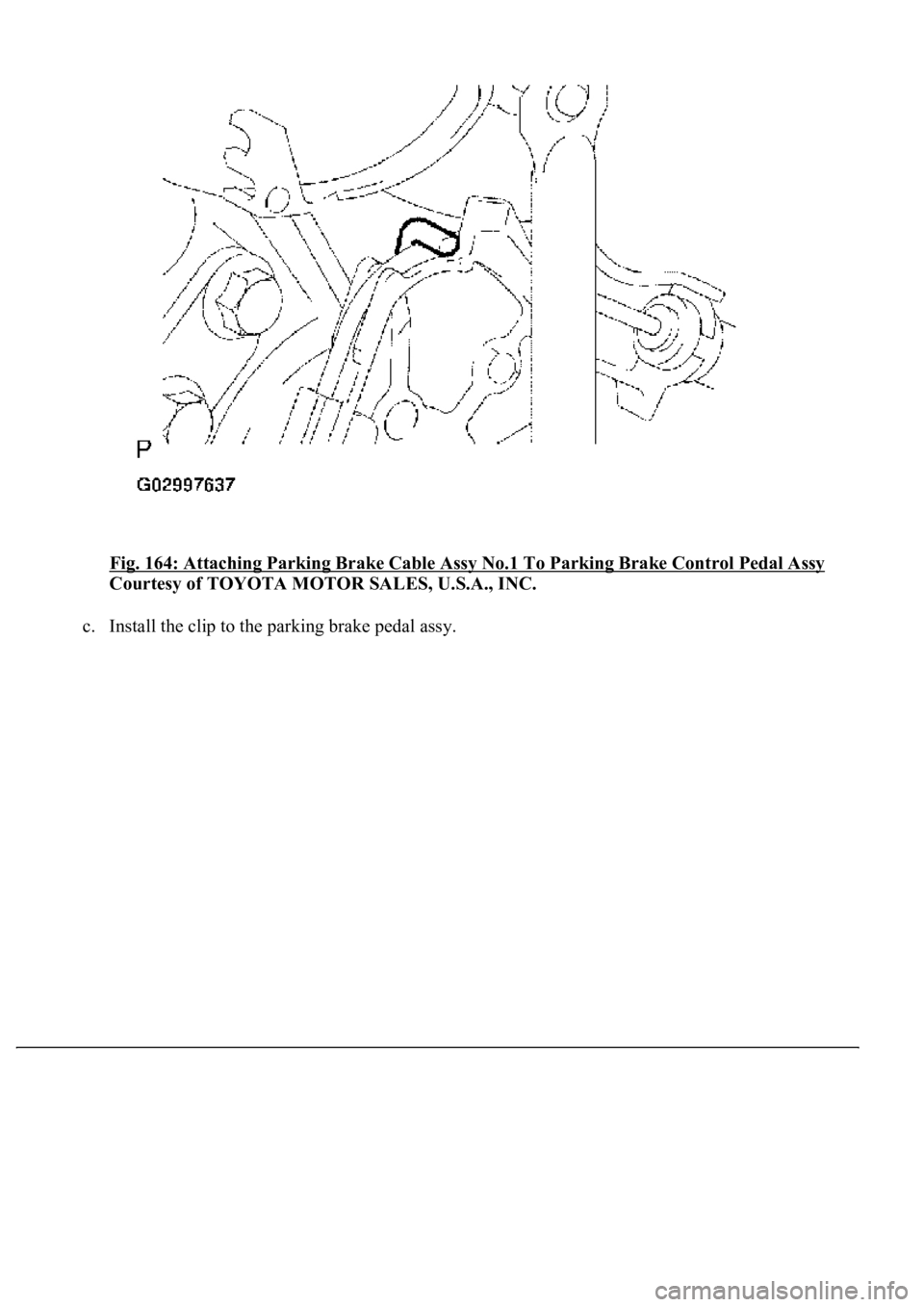

Fig. 164: Attaching Parking Brake Cable Assy No.1 To Parking Brake Control Pedal Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Install the clip to the parking brake pedal assy.
