2003 LEXUS LS430 park

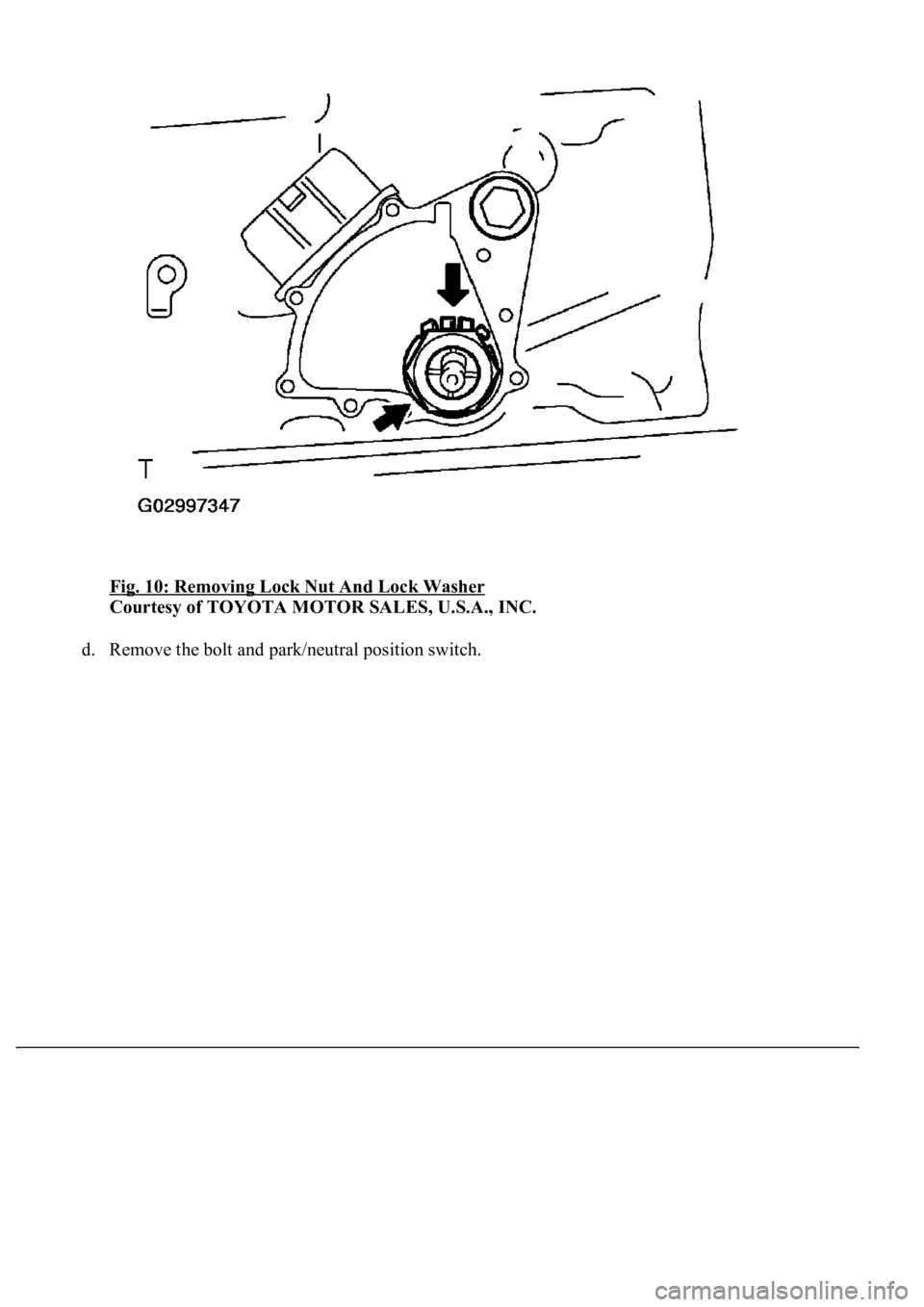

Fig. 10: Removing Lock Nut And Lock Washer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Remove the bolt and park/neutral position switch.

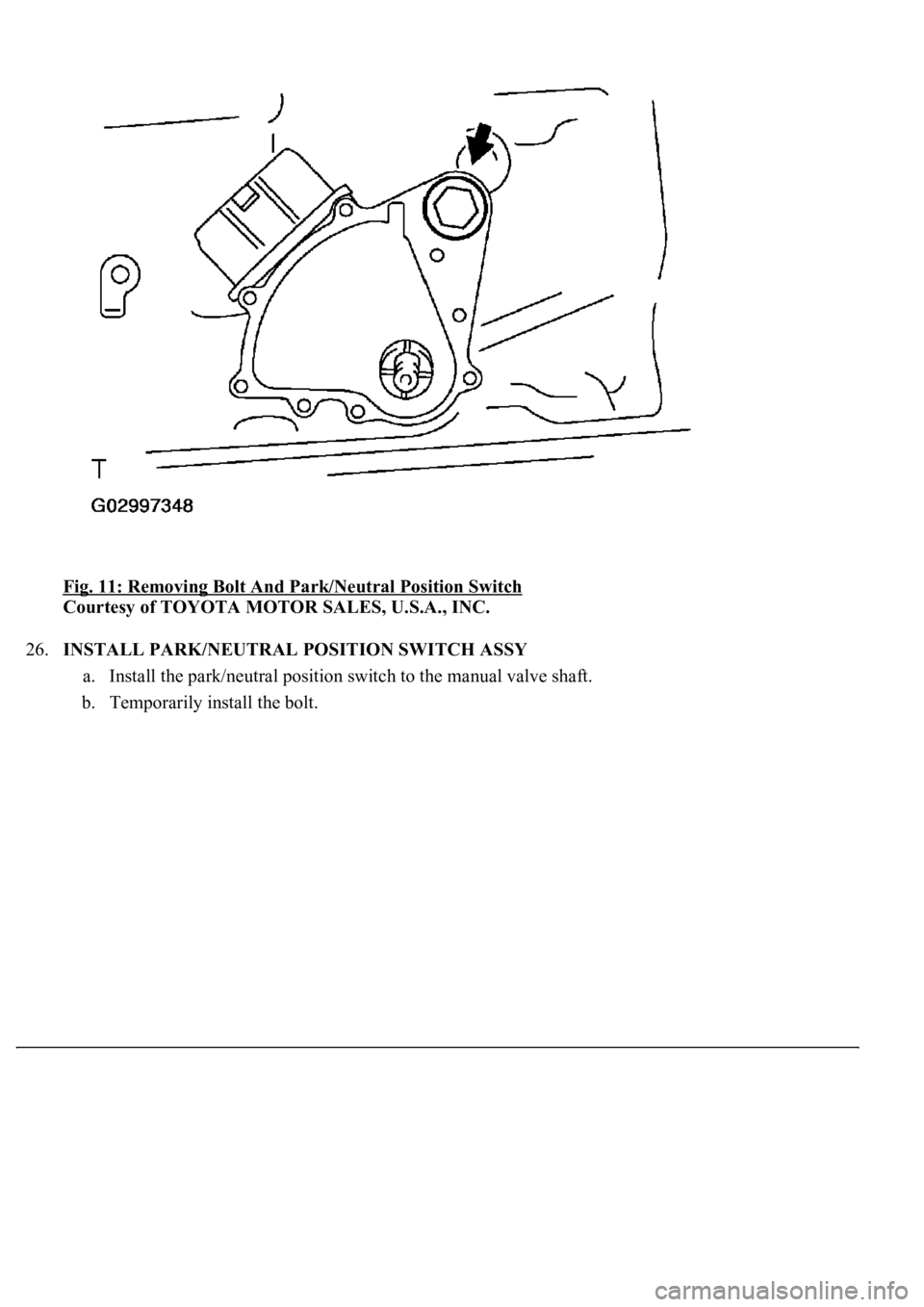

Fig. 11: Removing Bolt And Park/Neutral Position Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
26.INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
a. Install the park/neutral position switch to the manual valve shaft.
b. Temporarily install the bolt.

Fig. 17: Installing Transmission Control Shaft Lever RH With Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Connect the park/neutral position switch connector.
28.INSTALL ENGINE REAR MOUNTING MEMBER
a. Install the engine rear mounting member with the 4 bolts.
Torque: 26 N.m (270 kgf.cm, 20 ft.lbf)

<0029004c004a001100030014001c001d00030026005200510051004800460057004c0051004a00030029004f00520052005500030036004b004c004900570003002a00480044005500030036004b004c00490057004c0051004a0003003500520047000300
3600580045[-Assy With Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.CONNECT BATTERY NEGATIVE TERMINAL
31.ADJUST SHIFT LEVER POSITION (SEE ADJUSTMENT
)
32.INSPECT SHIFT LEVER POSITION (SEE ADJUSTMENT

33.INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (SEE ADJUSTMENT
)
34.INSTALL PROPELLER W/CENTER BEARING SHAFT ASSY (SEE OVERHAUL
)
35.INSTALL EXHAUST PIPE ASSY (SEE REPLACEMENT
)
36.PERFORM INITIALIZATION (SEE INITIALIZATION
)
ADJUSTMENT
1.INSPECT PARK/NEUTRAL POSITION SWITCH ASSY
a. Apply the parking brake and turn the ignition switch to the ON position.
b. Depress the brake pedal and check that the engine starts when the shift lever is set in the N or P
position, but does not start in other positions.
c. Check that the back-up light comes on and the reverse warning buzzer sounds when the shift lever
is set in the R position, but do not function in other positions.

If a failure is found, check the park/neutral position switch for continuity.
2.ADJUST PARK/NEUTRAL POSITION SWITCH ASSY
a. Loosen the bolt of the park/neutral position switch and move the shift lever to the N position.
b. Align the groove and the neutral basic line.
c. Hold the switch in position and tighten the bolt.
Torque: 13.0 N.m (130 kgf.cm, 9 ft.lbf)
d. After adjustment, perform the inspection described in step 1.
Fig. 20: Aligning Groove And Neutral Basic Line

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REPLACEMENT
1.REMOVE TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
a. Disconnect the transmission revolution sensor connector.
b. Remove the bolt and transmission revolution sensor.

Fig. 30: Removing 4 Nuts And Engine Rear Mounting Member
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
30.DISCONNECT CONNECTOR
a. Tilt down the automatic transmission.
b. Disconnect the park/neutral position switch connector.
c. Disconnect the transmission wire connector.
d. Disconnect the 2 speed sensor connectors.
31.DISCONNECT WIRE HARNESS
a. Remove the 5 bolts and wire harness clamps.
b. Separate the wire harness from the automatic transmission assy.
HINT:
Bolt (a) is ti
ghtened to the transmission housing.

Fig. 135: Installing Floor Shift Gear Shifting Rod Sub-Assy With Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
51.CONNECT BATTERY NEGATIVE TERMINAL
52.ADJUST SHIFT LEVER POSITION (SEE ADJUSTMENT
)
53.INSPECT SHIFT LEVER POSITION (SEE ADJUSTMENT
)
54.PERFORM INITIALIZATION (SEE INITIALIZATION
)
ADJUSTMENT
1.INSPECT SHIFT LEVER POSITION
a. When shifting from the P to R position with the ignition switch on and brake pedal depressed, make
sure that the shift lever moves smoothly and moves correctly into position.
b. Start the engine and make sure that the vehicle moves forward when shifting from the N to D
position and moves rearward when shifting to the R position.
If operation cannot be done as specified, inspect the park/neutral position switch assy and check the shift
lever assy installation condition.
2.ADJUST SHIFT LEVER POSITION
a. Remove the nut and disconnect the shiftin
g rod from the connecting rod swivel.

a. Release the parking brake pedal.
b. With the engine running, depress the pedal and measure the pedal reserve distance, as shown in the
illustration.
Pedal reserve distance from asphalt sheet at 490 N (50 kgf, 110.2 lbf): More than 105 mm (4.13 in.)
If incorrect, troubleshoot the brake system.
Fig. 19: Checking Pedal Reserve Distance

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
19.INSTALL FLOOR CARPET ASSY FRONT
20.INSTALL FR DOOR SCUFF PLATE LH (SEE REPLACEMENT
)
21.INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2 (SEE REPLACEMENT
)
22.INSTALL INSTRUMENT PANEL UNDER SAFETY PAD SUB-ASSY NO.1 (SEE
REPLACEMENT
)
