2003 LEXUS LS430 window

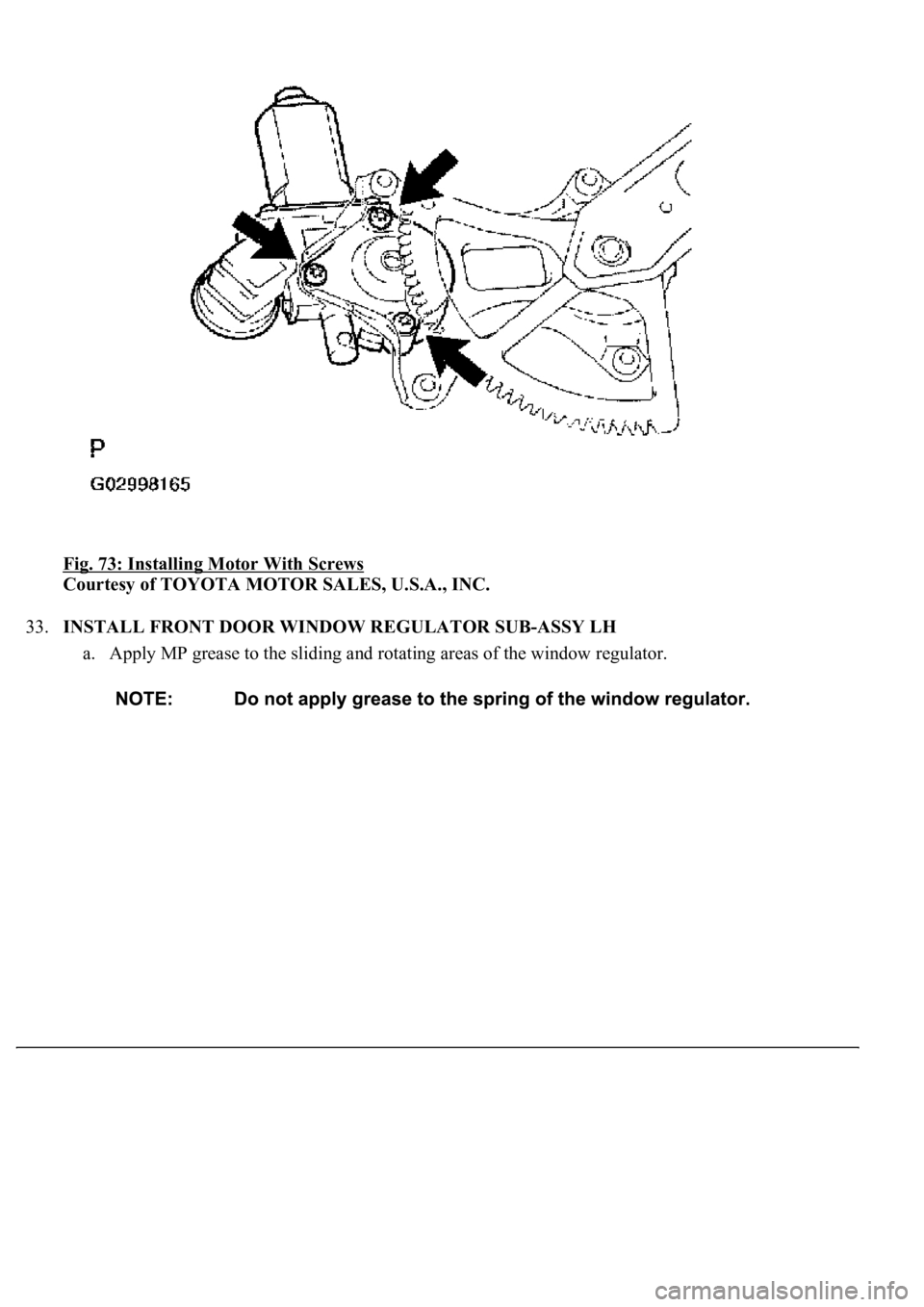

Fig. 73: Installing Motor With Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.INSTALL FRONT DOOR WINDOW REGULATOR SUB-ASSY LH
a. Apply MP grease to the sliding and rotating areas of the window regulator.

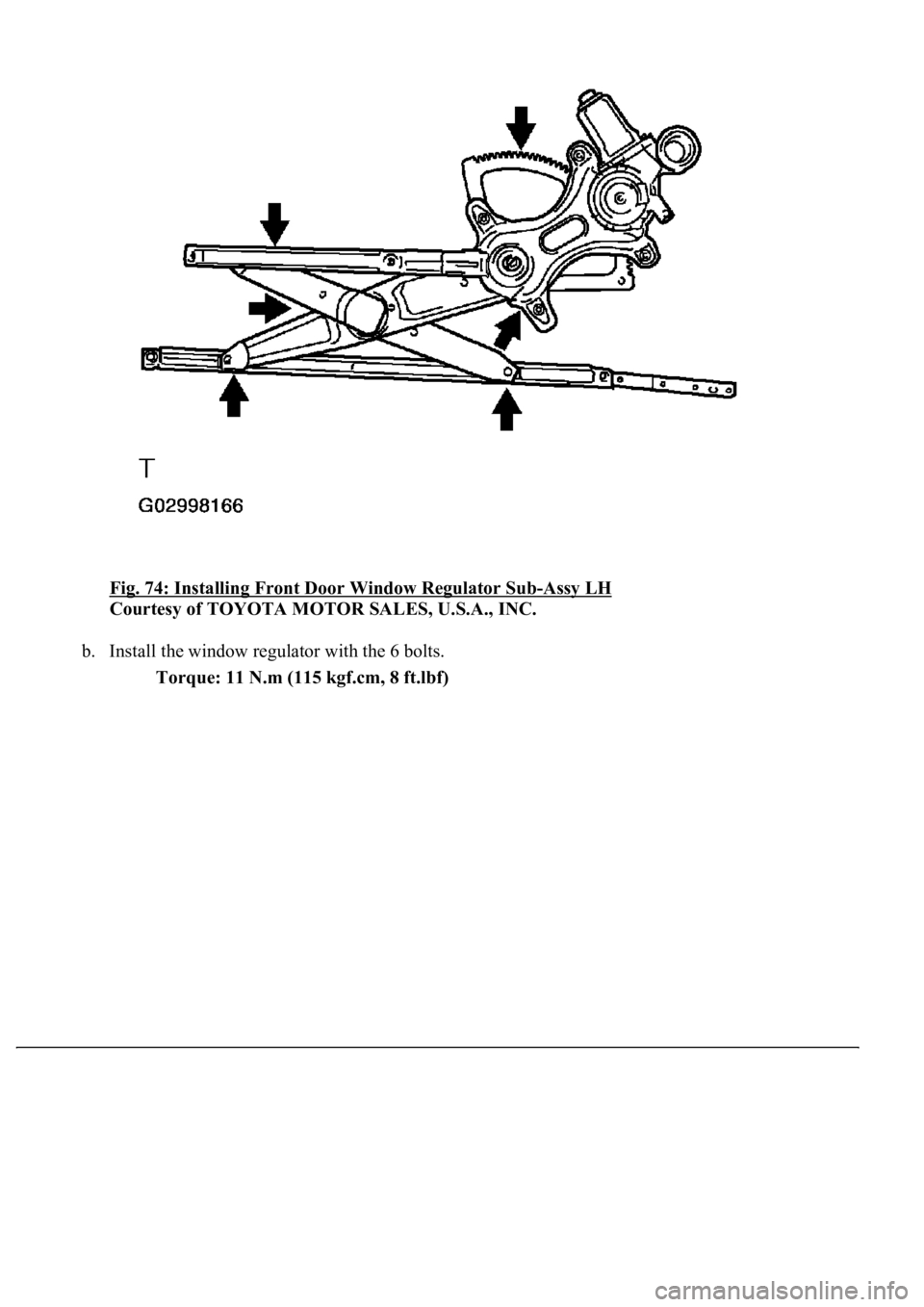

Fig. 74: Installing Front Door Window Regulator Sub-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the window regulator with the 6 bolts.
Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

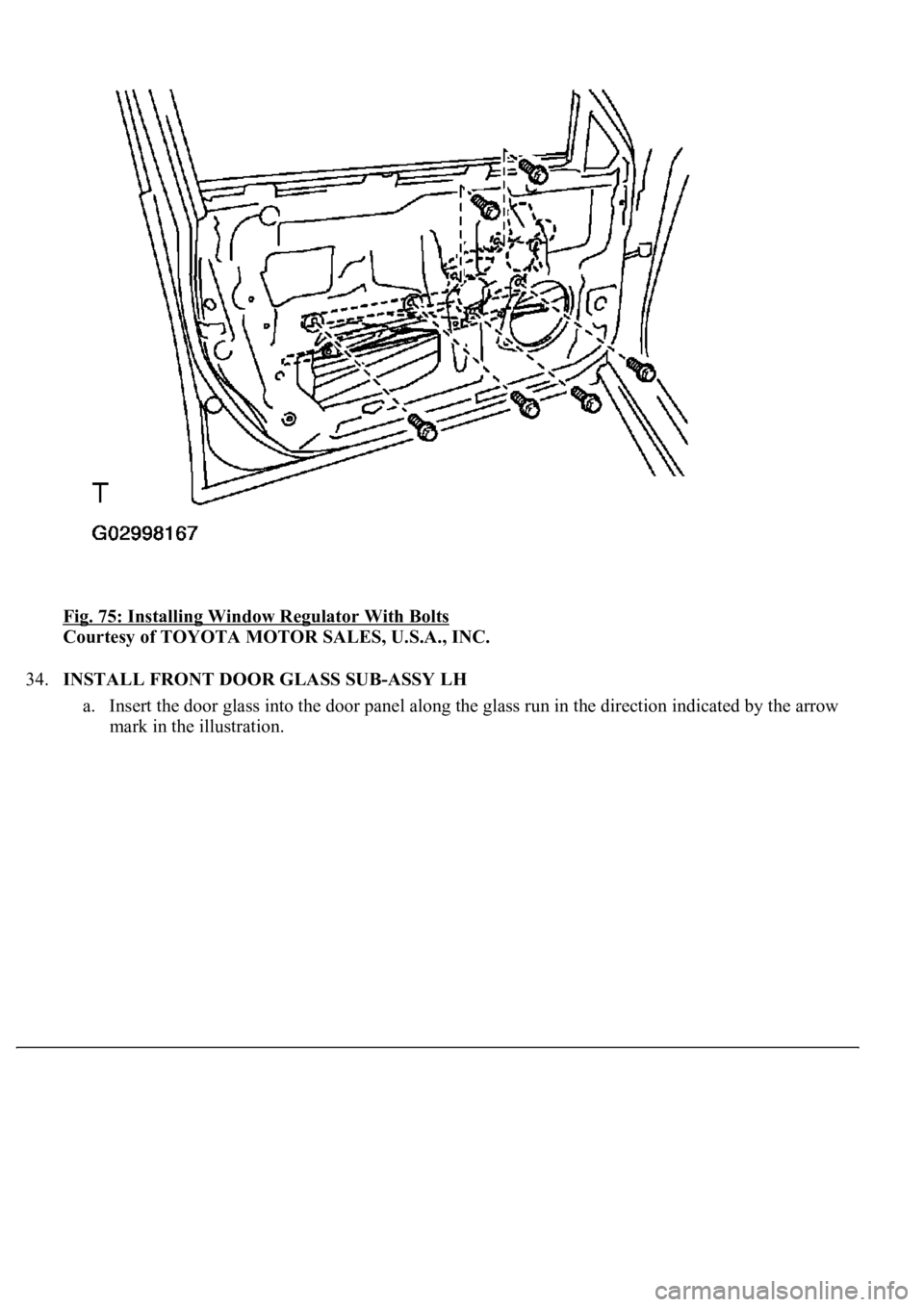

Fig. 75: Installing Window Regulator With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
34.INSTALL FRONT DOOR GLASS SUB-ASSY LH
a. Insert the door glass into the door panel along the glass run in the direction indicated by the arrow
mark in the illustration.

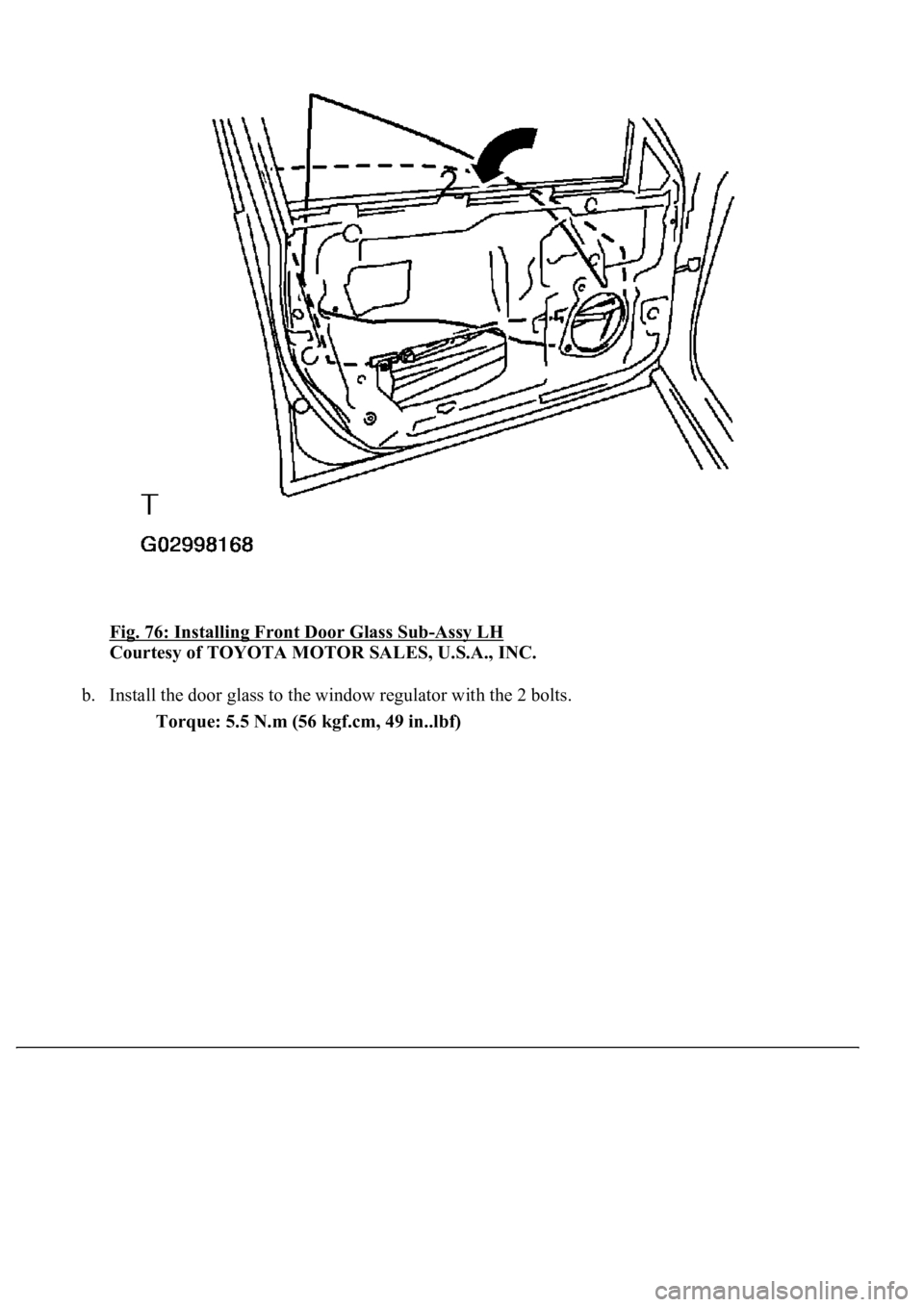

Fig. 76: Installing Front Door Glass Sub-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the door glass to the window regulator with the 2 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

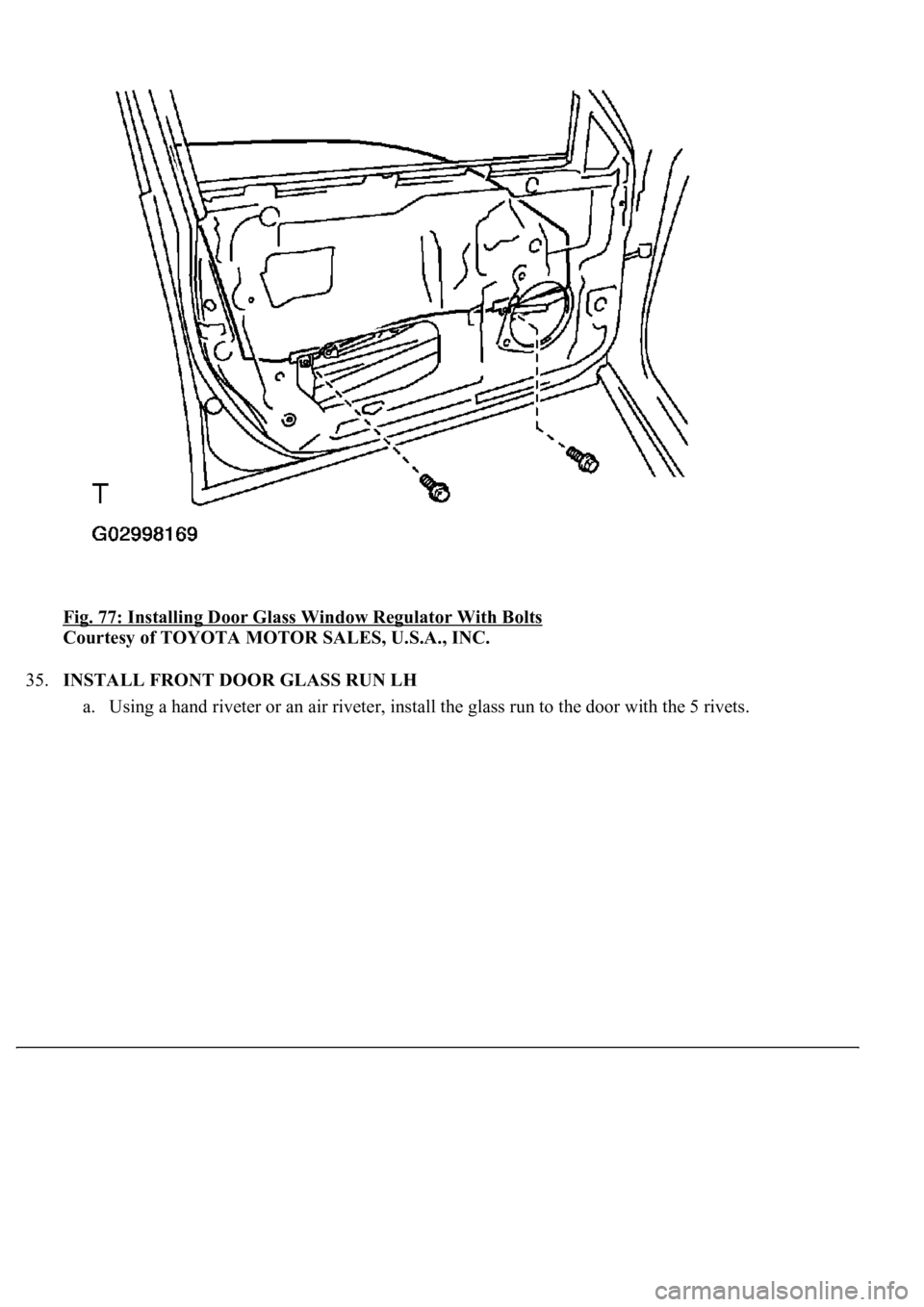

Fig. 77: Installing Door Glass Window Regulator With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
35.INSTALL FRONT DOOR GLASS RUN LH
a. Usin
g a hand riveter or an air riveter, install the glass run to the door with the 5 rivets.

Fig. 82: Connecting Mirror Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
37.INSTALL FRONT DOOR SERVICE HOLE COVER LH
a. Apply butyl tape to the door as shown in the illustration.
b. Install a new service hole cover.
HINT:
When installing the service hole cover, pull out the links and connectors through the service
hole cover.
There should be no wrinkles or folds after attaching the service hole cover.
After attaching the service hole cover, check the sealing quality.
c. Connect the 2 connectors and install the wire.
d. Install the door electrical key oscillator with the 2 screws.
38.INITIALIZE POWER WINDOW SYSTEM (See INITIALIZATION
)

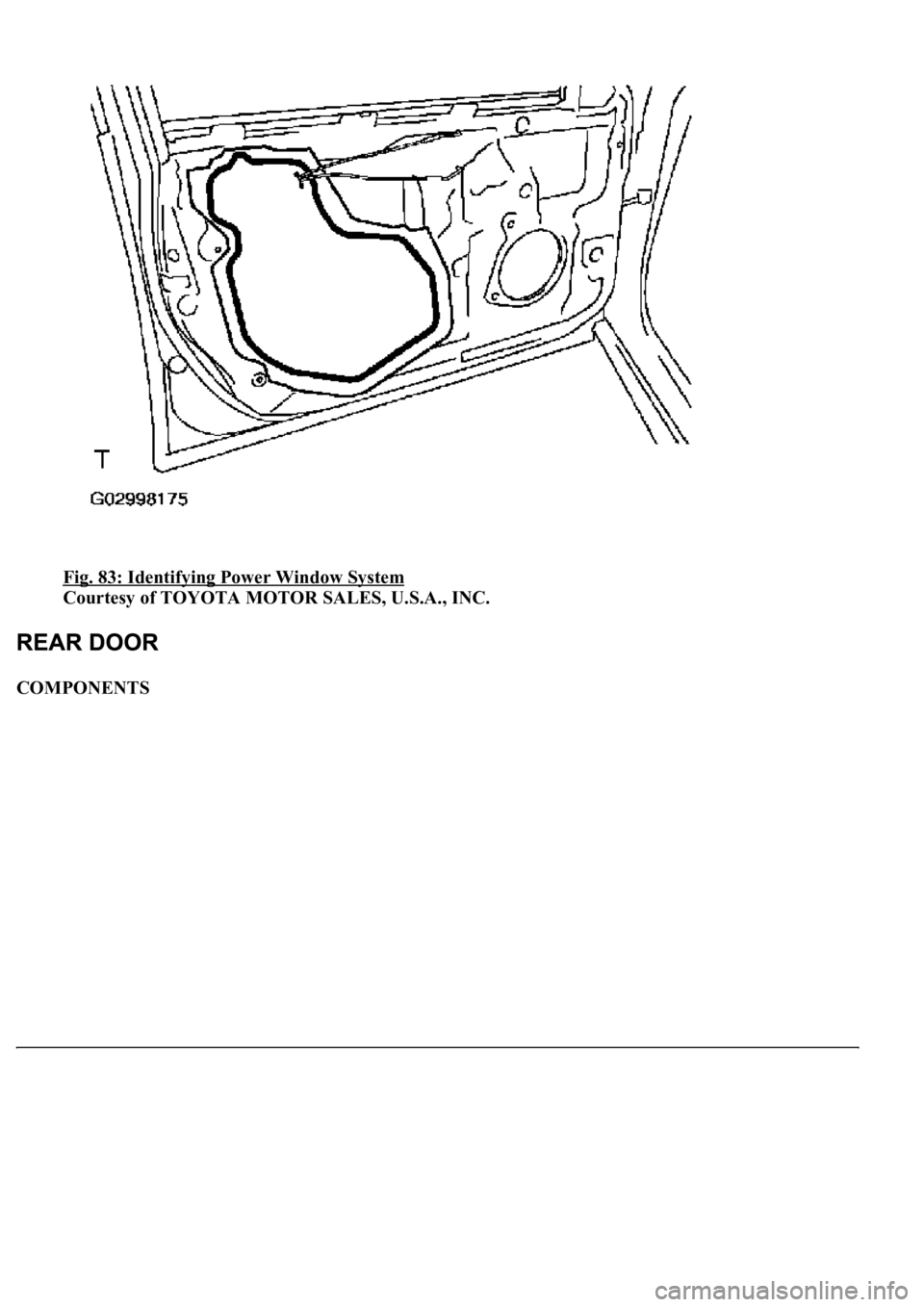

Fig. 83: Identifying Power Window System
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
COMPONENTS

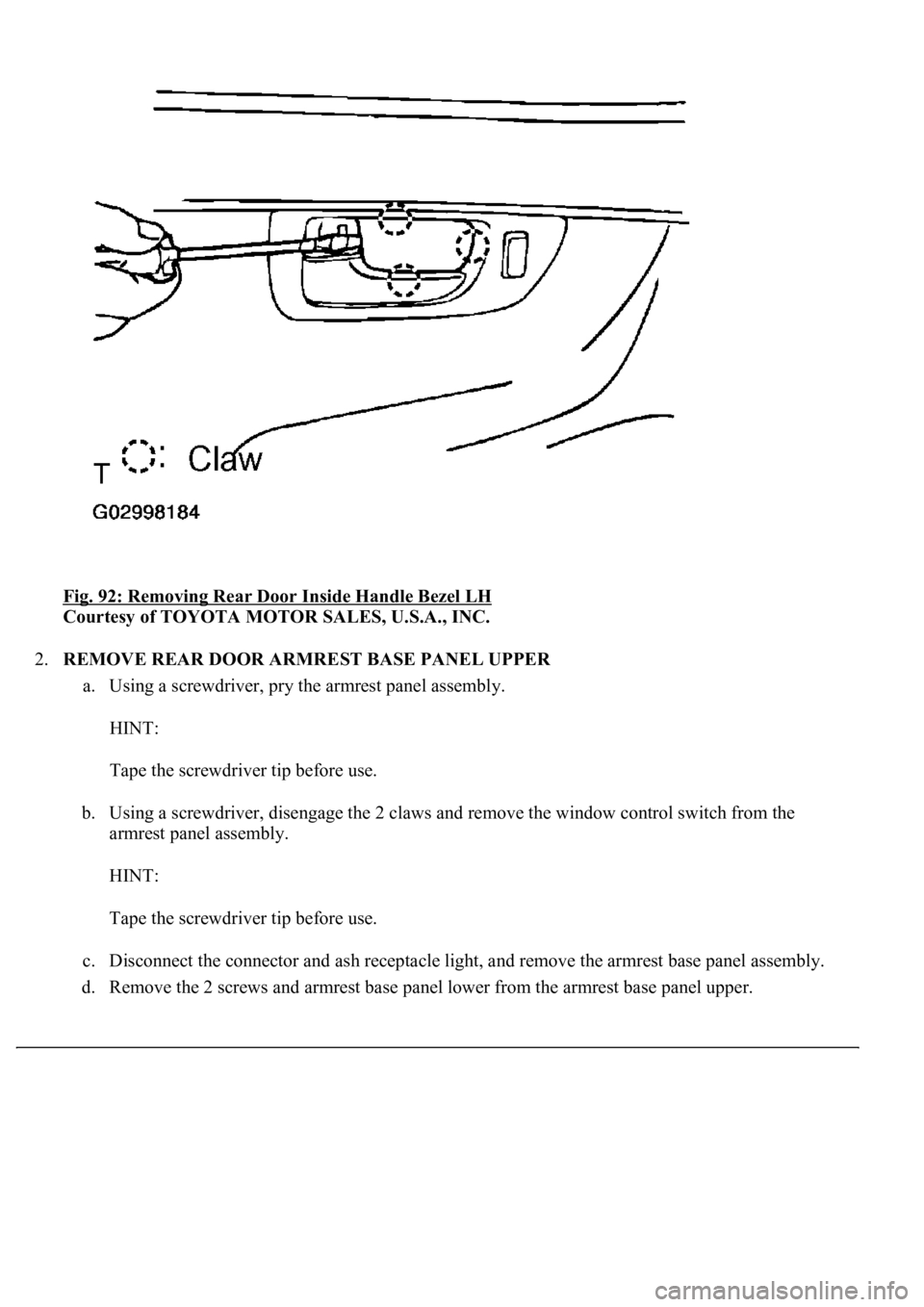

Fig. 92: Removing Rear Door Inside Handle Bezel LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
2.REMOVE REAR DOOR ARMREST BASE PANEL UPPER
a. Using a screwdriver, pry the armrest panel assembly.
HINT:
Tape the screwdriver tip before use.
b. Using a screwdriver, disengage the 2 claws and remove the window control switch from the
armrest panel assembly.
HINT:
Tape the screwdriver tip before use.
c. Disconnect the connector and ash receptacle light, and remove the armrest base panel assembly.
d. Remove the 2 screws and armrest base panel lower from the armrest base panel upper.
