Fig. 39: Disengaging Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Driver's side:
2.REMOVE FRONT DOOR ARMREST BASE PANEL UPPER
a. Using a screwdriver, pry the armrest panel assembly.
HINT:
Tape the screwdriver tip before use.
b. Remove the 3 screws and power window regulator master switch.
c. Remove the 2 screws and armrest base panel lower from the armrest base panel upper.

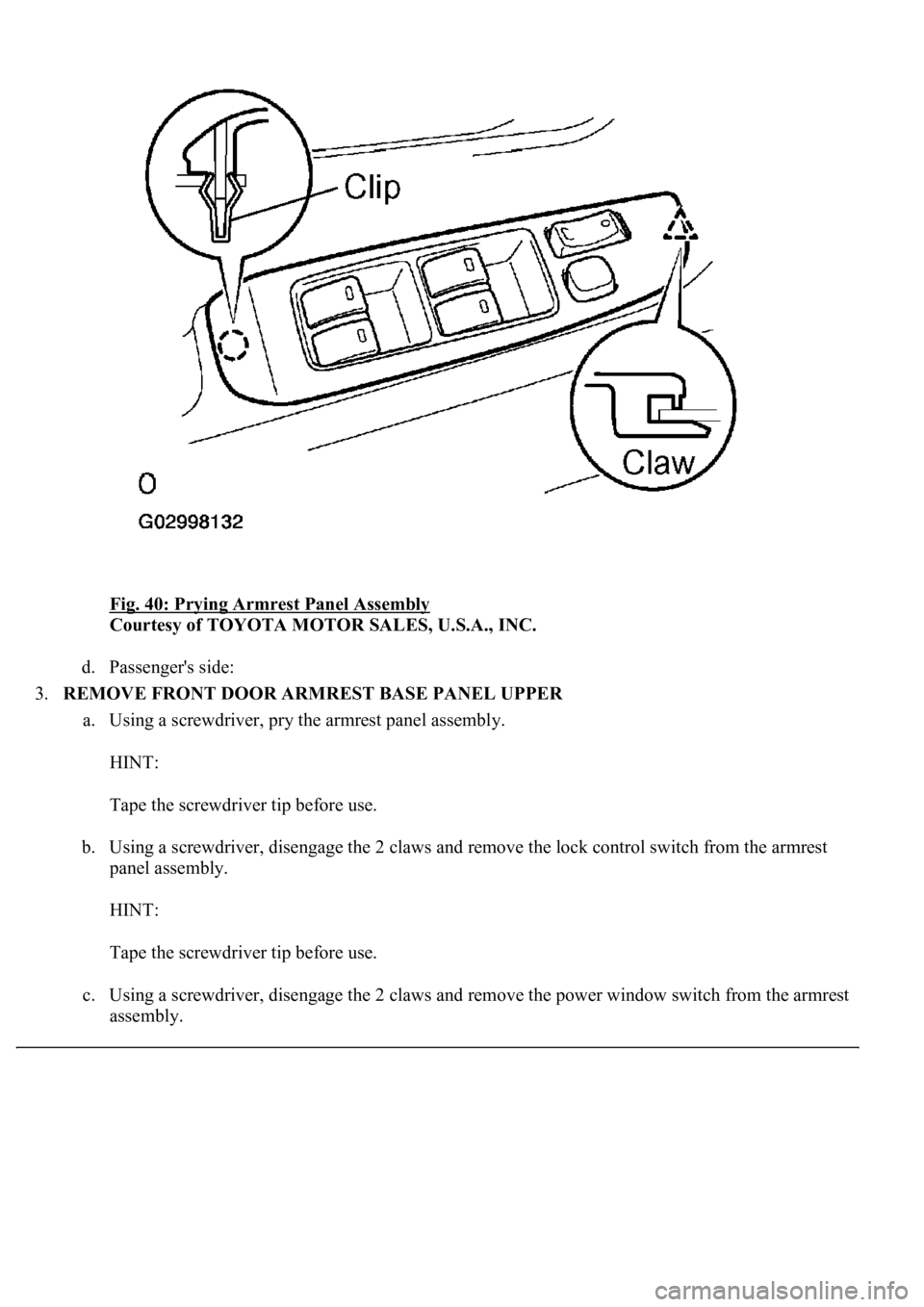

Fig. 40: Prying Armrest Panel Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Passenger's side:
3.REMOVE FRONT DOOR ARMREST BASE PANEL UPPER
a. Using a screwdriver, pry the armrest panel assembly.
HINT:
Tape the screwdriver tip before use.
b. Using a screwdriver, disengage the 2 claws and remove the lock control switch from the armrest
panel assembly.
HINT:
Tape the screwdriver tip before use.
c. Using a screwdriver, disengage the 2 claws and remove the power window switch from the armrest
assembl
y.

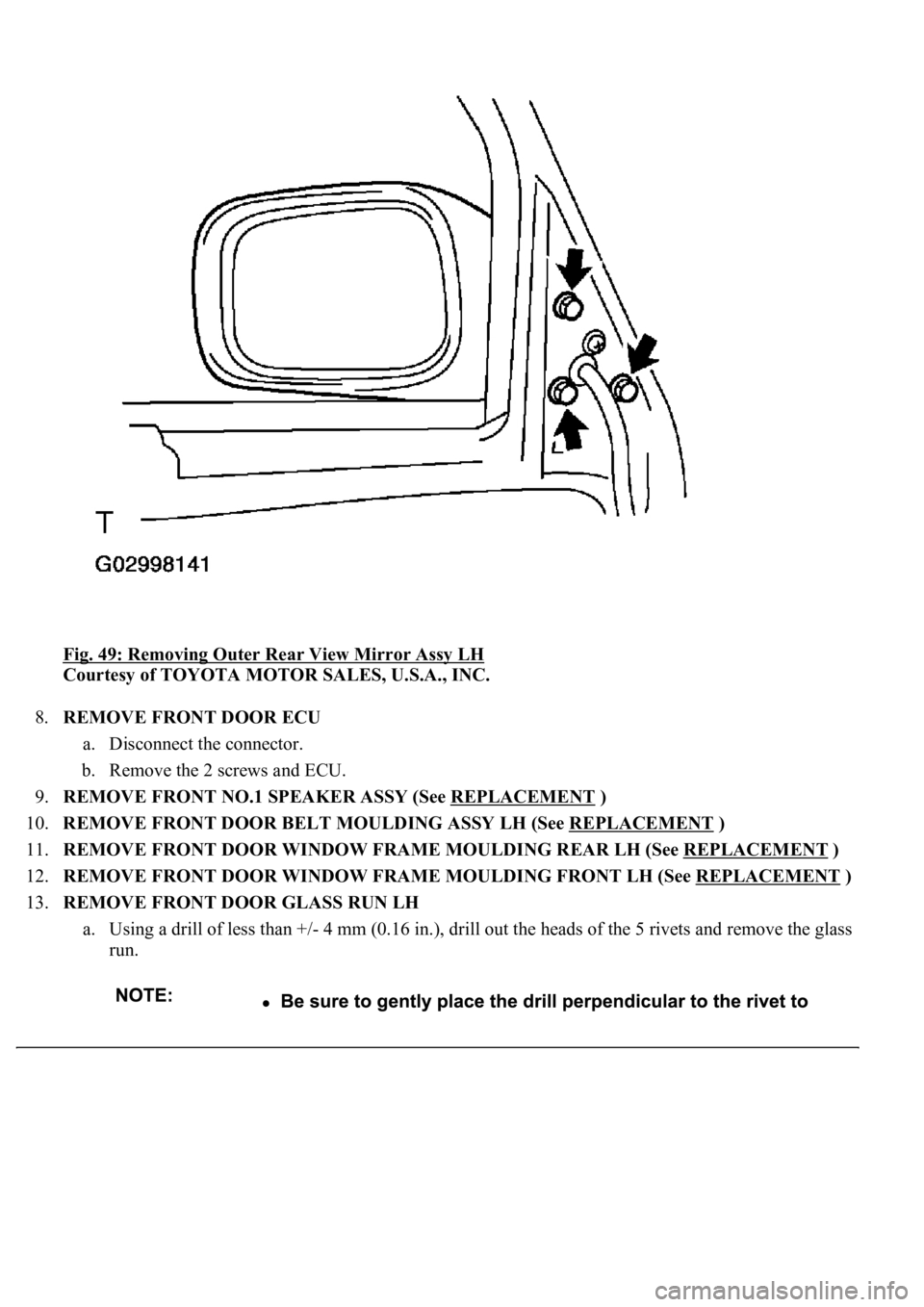

Fig. 49: Removing Outer Rear View Mirror Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE FRONT DOOR ECU
a. Disconnect the connector.
b. Remove the 2 screws and ECU.
9.REMOVE FRONT NO.1 SPEAKER ASSY (See REPLACEMENT
)
10.REMOVE FRONT DOOR BELT MOULDING ASSY LH (See REPLACEMENT
)
11.REMOVE FRONT DOOR WINDOW FRAME MOULDING REAR LH (See REPLACEMENT
)
12.REMOVE FRONT DOOR WINDOW FRAME MOULDING FRONT LH (See REPLACEMENT
)
13.REMOVE FRONT DOOR GLASS RUN LH
a. Using a drill of less than +/- 4 mm (0.16 in.), drill out the heads of the 5 rivets and remove the glass
run.

b. Even if the flange is taken off, continue drilling and push out the remaining fragments using the
drill.
c. Using a vacuum cleaner, remove the drilled rivets and dust from the inside of the door.

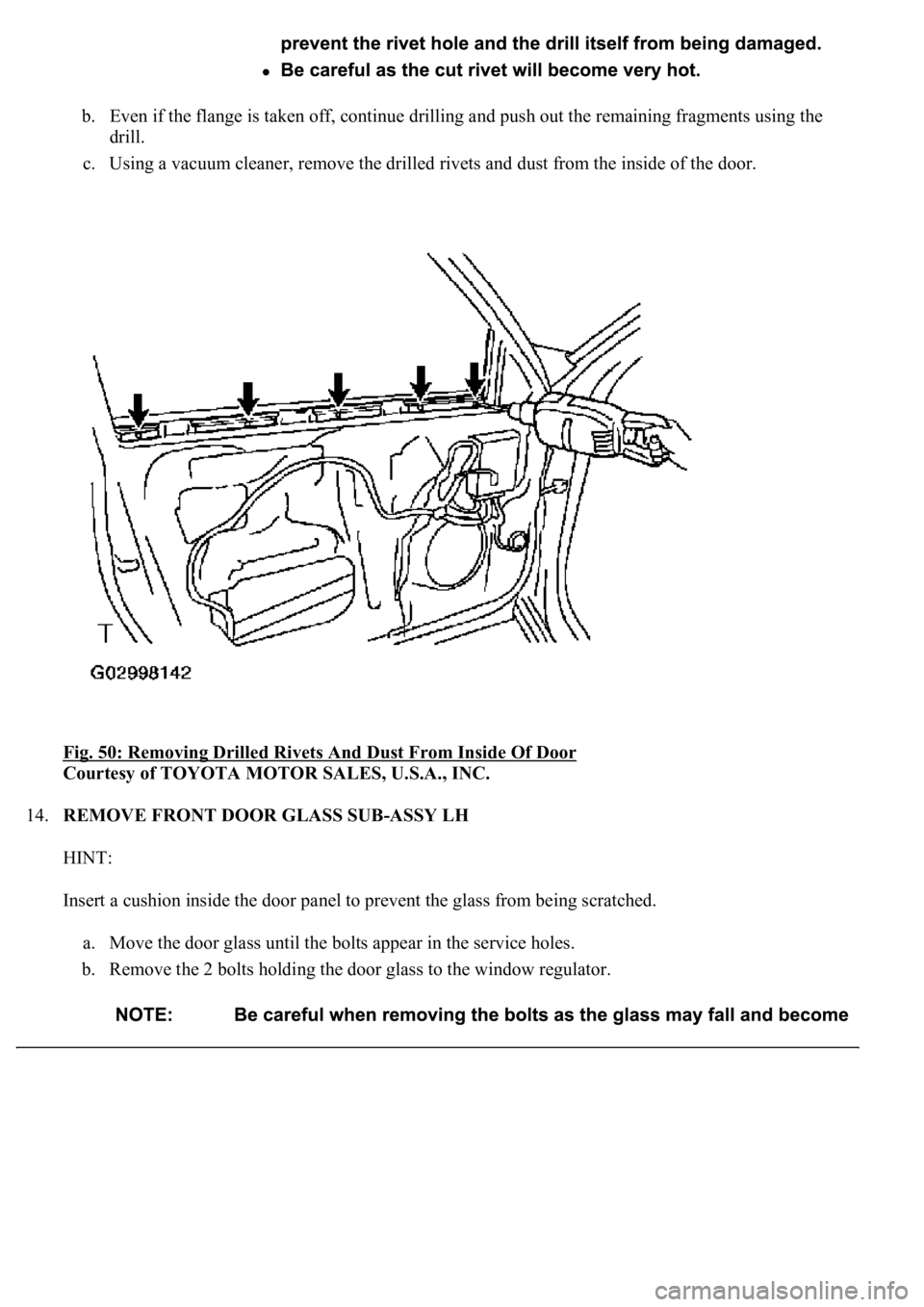

Fig. 50: Removing Drilled Rivets And Dust From Inside Of Door

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
14.REMOVE FRONT DOOR GLASS SUB-ASSY LH
HINT:
Insert a cushion inside the door panel to prevent the glass from being scratched.
a. Move the door glass until the bolts appear in the service holes.
b. Remove the 2 bolts holding the door glass to the window regulator.

Fig. 52: Moving Glass
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
15.REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSY LH
a. Disconnect the window regulator connector.
b. Remove the 6 bolts and window regulator.
HINT:
Remove the window regulator through the service hole.

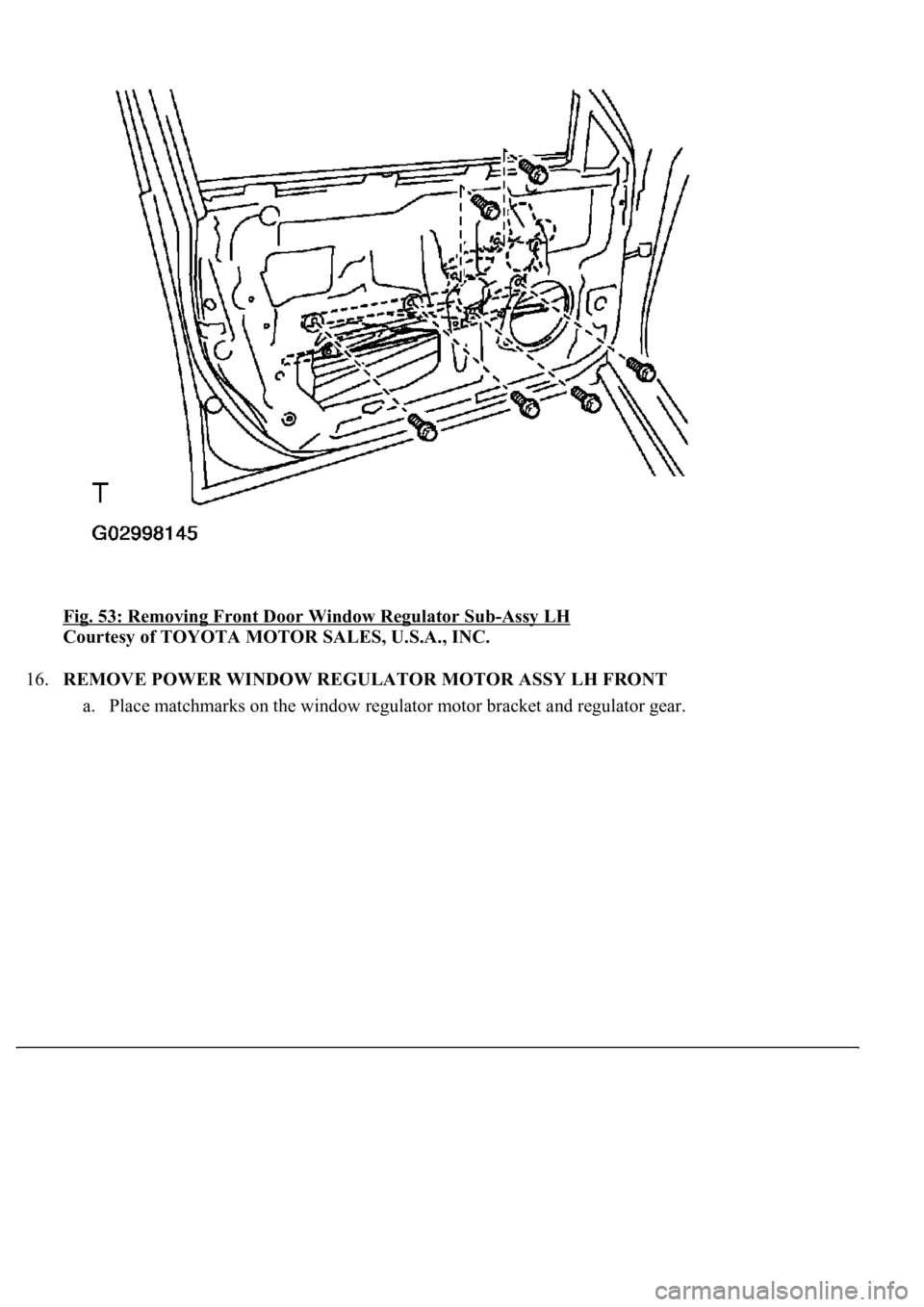

Fig. 53: Removing Front Door Window Regulator Sub-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
16.REMOVE POWER WINDOW REGULATOR MOTOR ASSY LH FRONT
a. Place matchmarks on the window re
gulator motor bracket and regulator gear.

Fig. 71: Installing Front Door Frame Sub-Assy Rear Lower LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.INSTALL POWER WINDOW REGULATOR MOTOR ASSY LH FRONT
a. Ali
gn the matchmarks. Keep them aligned until the window glass installation is complete.

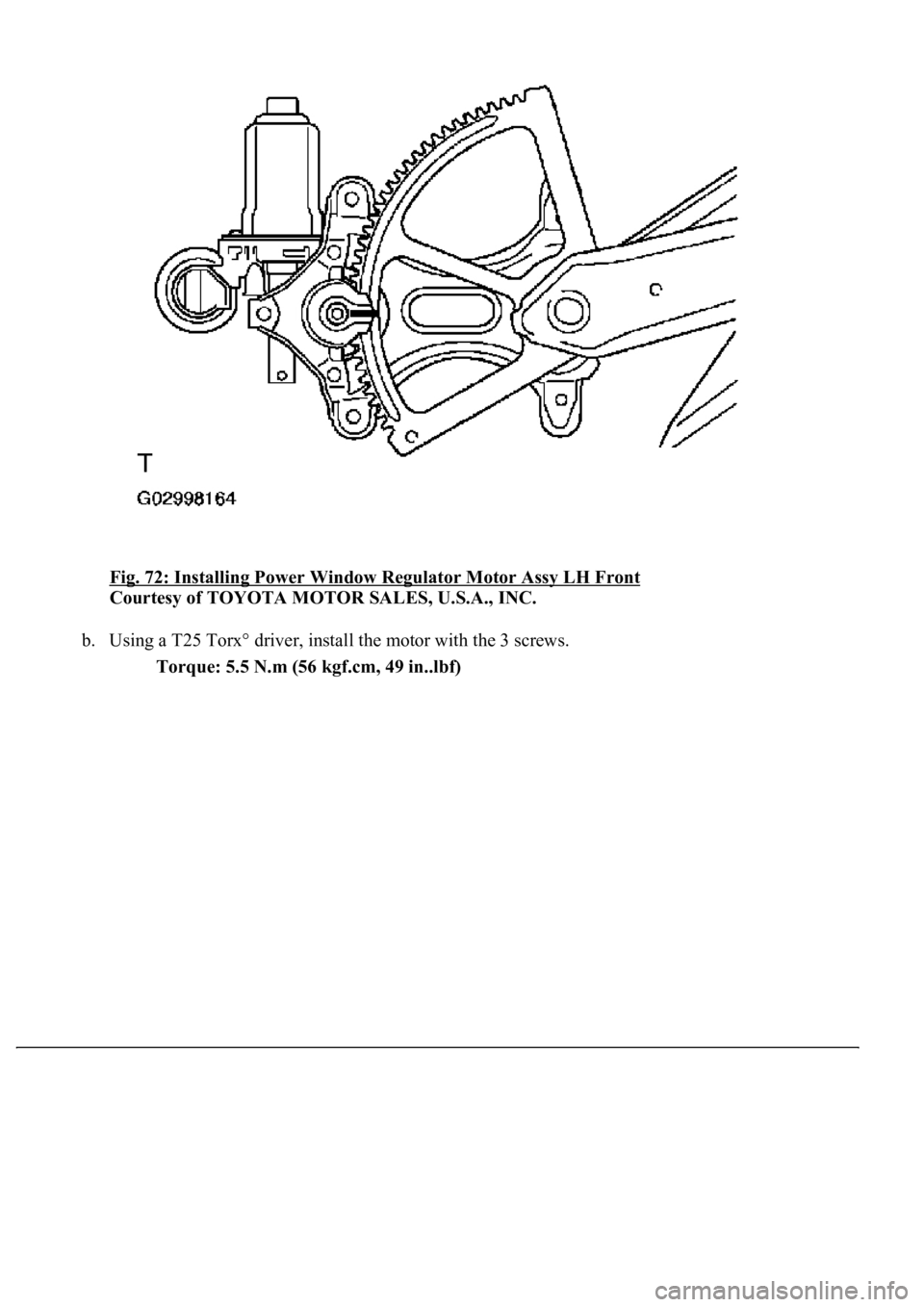

Fig. 72: Installing Power Window Regulator Motor Assy LH Front
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a T25 Torx° driver, install the motor with the 3 screws.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
