2003 LEXUS LS430 window

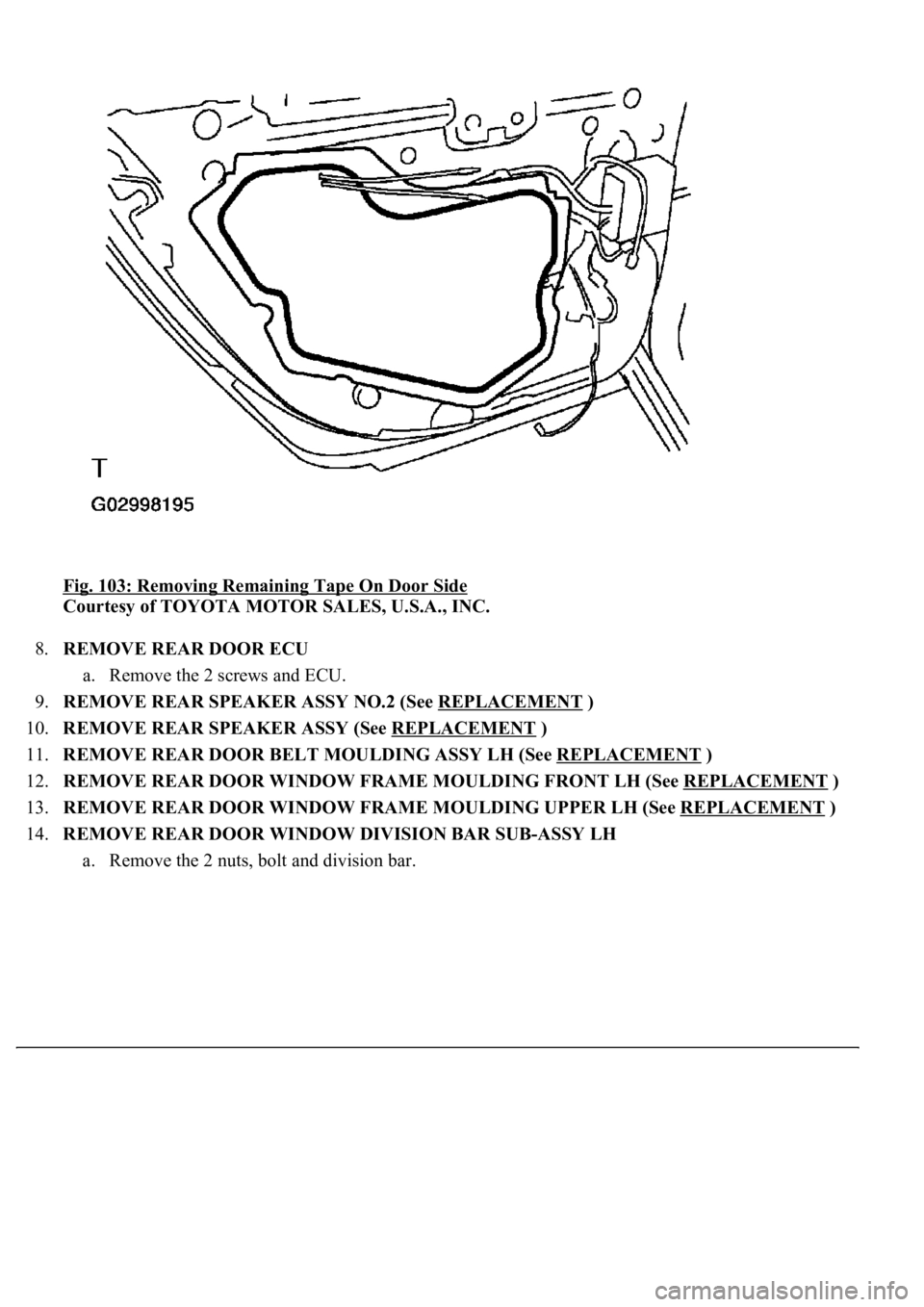

Fig. 103: Removing Remaining Tape On Door Side
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE REAR DOOR ECU
a. Remove the 2 screws and ECU.
9.REMOVE REAR SPEAKER ASSY NO.2 (See REPLACEMENT
)
10.REMOVE REAR SPEAKER ASSY (See REPLACEMENT
)
11.REMOVE REAR DOOR BELT MOULDING ASSY LH (See REPLACEMENT
)
12.REMOVE REAR DOOR WINDOW FRAME MOULDING FRONT LH (See REPLACEMENT
)
13.REMOVE REAR DOOR WINDOW FRAME MOULDING UPPER LH (See REPLACEMENT
)
14.REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSY LH
a. Remove the 2 nuts, bolt and division bar.

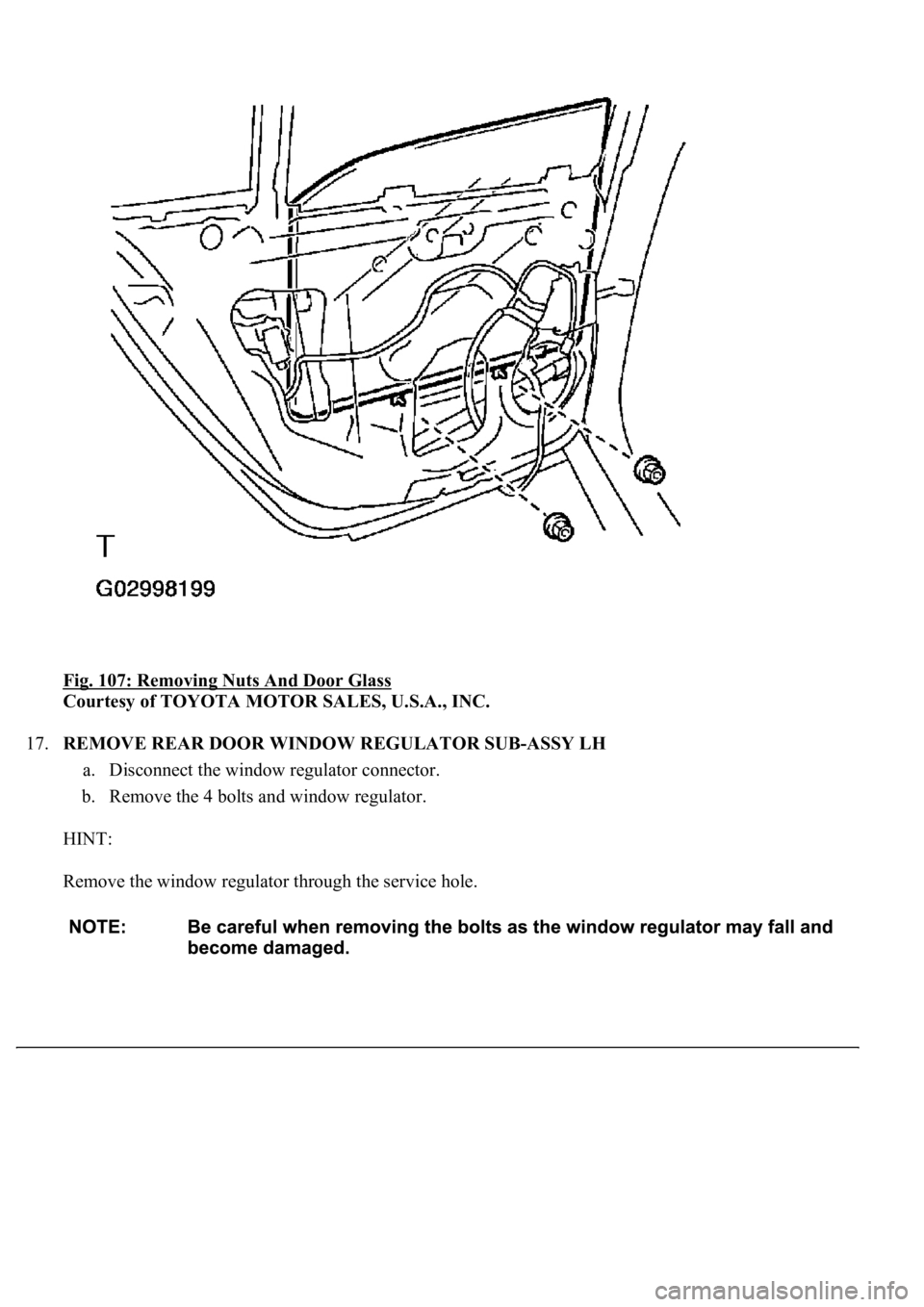

Fig. 107: Removing Nuts And Door Glass
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
17.REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSY LH
a. Disconnect the window regulator connector.
b. Remove the 4 bolts and window regulator.
HINT:
Remove the window regulator through the service hole.

<0029004c004a0011000300140013001b001d000300350048005000520059004c0051004a0003003a004c005100470052005a000300350048004a0058004f004400570052005500030037004b005500520058004a004b00030036004800550059004c004600
480003002b0052004f0048[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
18.REMOVE POWER WINDOW REGULATOR MOTOR ASSY LH REAR
a. Place the matchmarks on the window re
gulator motor bracket and regulator gear.

Fig. 109: Removing Power Window Regulator Motor Assy LH Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b.Using a T25 Torx° driver, remove the 3 screws and motor.

Fig. 110: Removing Screws And Motor
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
19.REMOVE REAR DOOR WINDOW GUIDE SUB-ASSY FRONT LH
a. Remove the 2 bolts and guide.
HINT:
Remove the guide through the service hole.

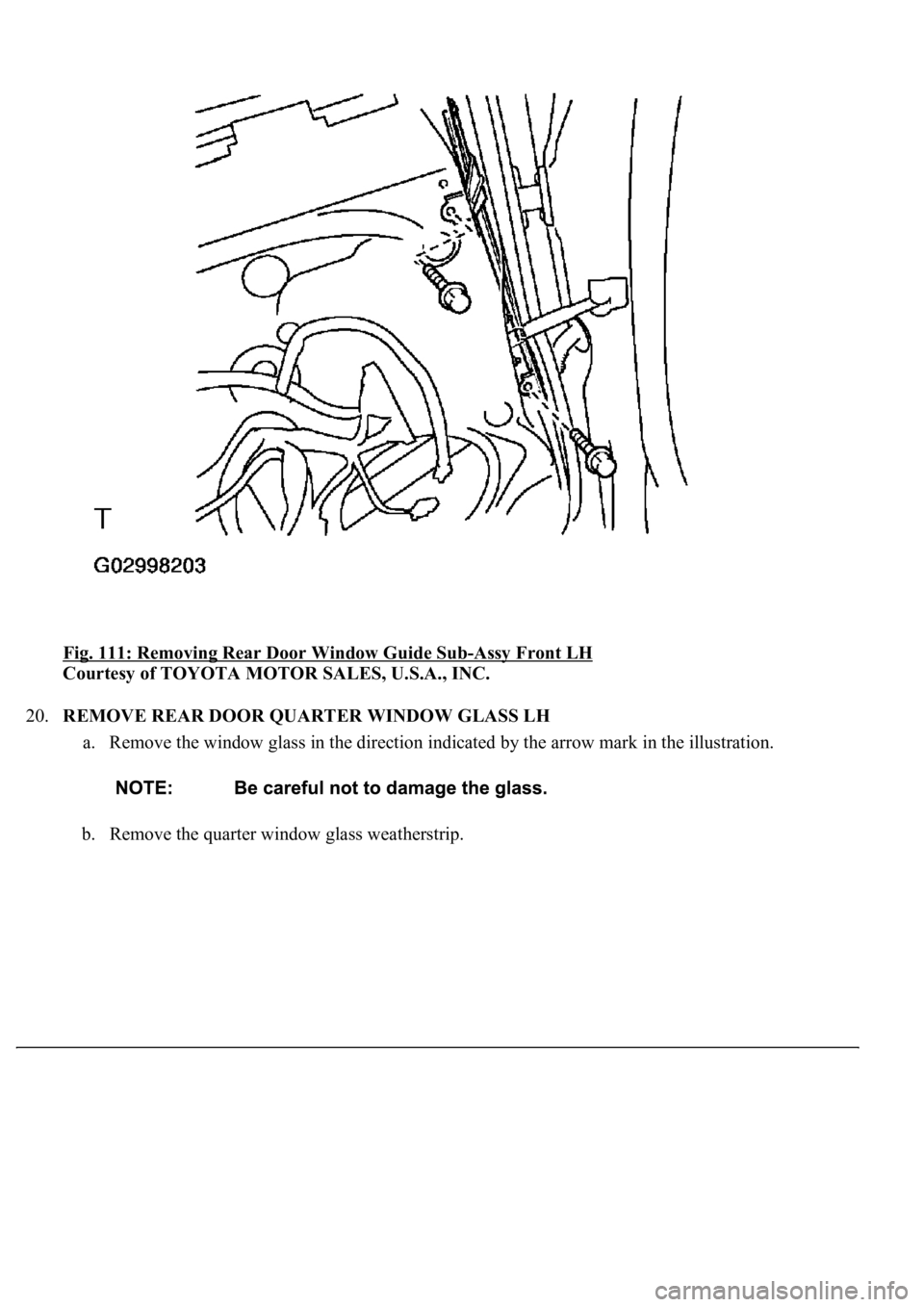

Fig. 111: Removing Rear Door Window Guide Sub-Assy Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
20.REMOVE REAR DOOR QUARTER WINDOW GLASS LH
a. Remove the window glass in the direction indicated by the arrow mark in the illustration.
b. Remove the quarter window glass weatherstrip.

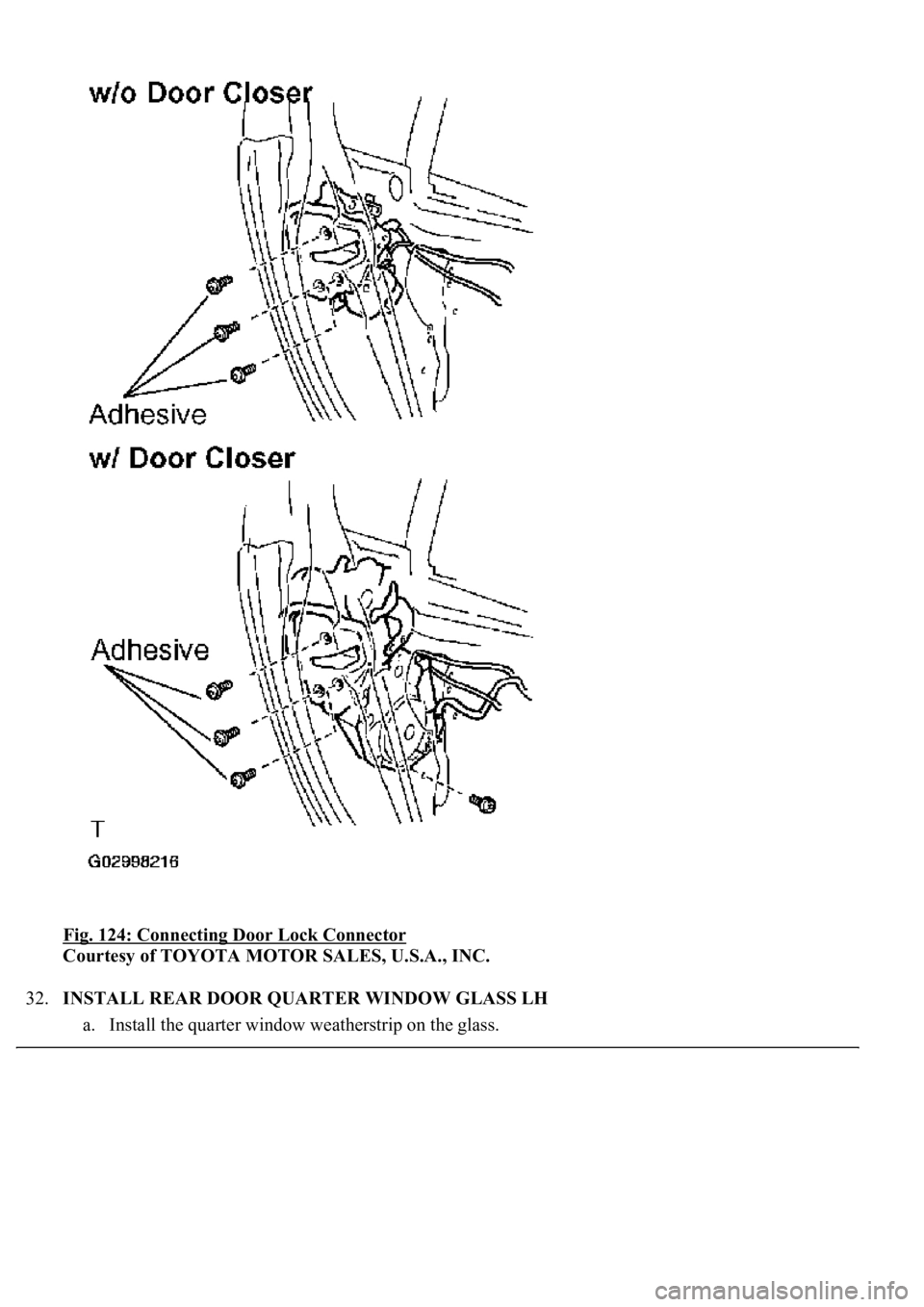

Fig. 124: Connecting Door Lock Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
32.INSTALL REAR DOOR QUARTER WINDOW GLASS LH
a. Install the quarter window weatherstrip on the
glass.

b. Install the quarter window glass in the direction indicated by the arrow mark in the illustration.

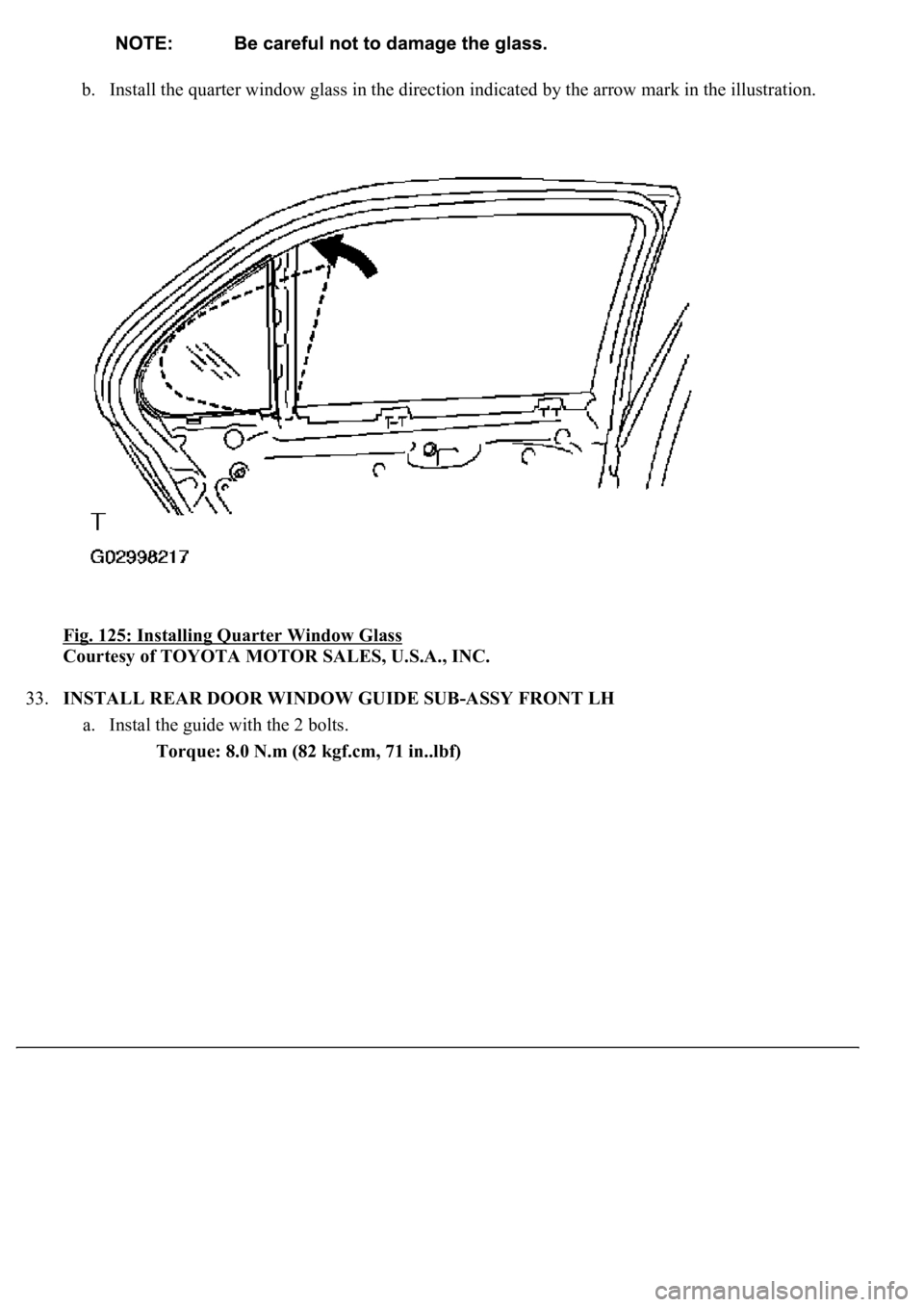

Fig. 125: Installing Quarter Window Glass

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
33.INSTALL REAR DOOR WINDOW GUIDE SUB-ASSY FRONT LH
a. Instal the guide with the 2 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
