2003 LEXUS LS430 window

REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE FRONT DOOR BELT MOLDING ASSY LH (See REPLACEMENT
)
2.REMOVE FRONT DOOR GLASS RUN LH
a. Remove the glass run from the front door window frame.
3.REMOVE FRONT DOOR WINDOW FRAME MOLDING REAR LH
a. Remove the 3 screws and molding.

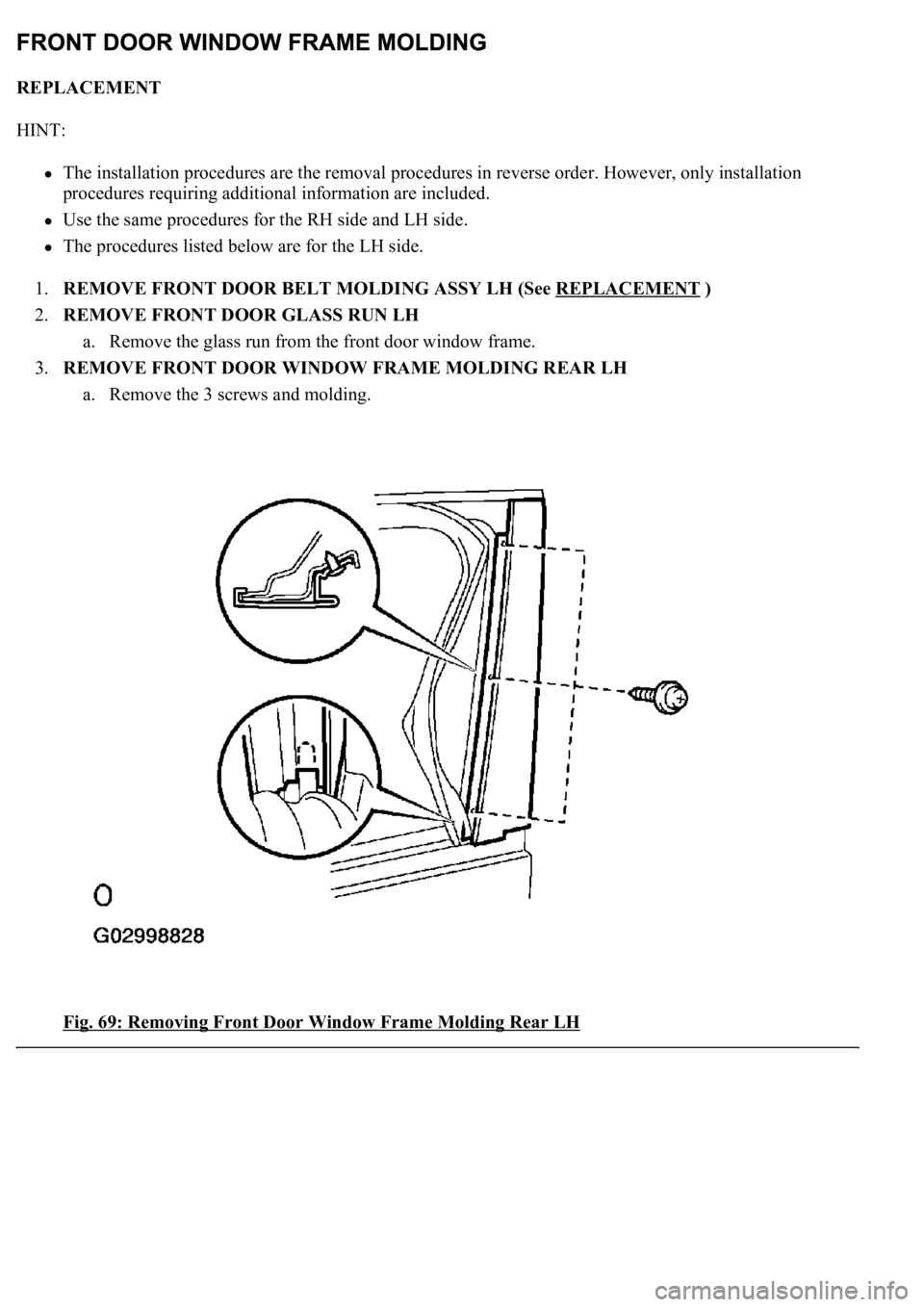

Fig. 69: Removing Front Door Window Frame Molding Rear LH

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.REMOVE FRONT DOOR WINDOW FRAME MOLDING JOINT COVER FRONT
5.REMOVE FRONT DOOR WEATHERSTRIP UPPER
a. Using a clip remover, remove the 3 clips and weatherstrip.
Fig. 70: Removing Front Door Weatherstrip Upper

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE FRONT DOOR WINDOW FRAME MOLDING FRONT LH
a. Using a drill of less than phis 4 mm (0.16 in.), gently and perpendicularly place the drill tip onto the
rivet and cut the rivet flanges.
HINT:
Wind tape around the drill bit approximately 5 mm (0.20 in.) from the tip of the drill, as shown in
Fig. 71
.

Fig. 71: Removing Front Door Window Frame molding Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7.INSTALL FRONT DOOR WINDOW FRAME MOLDING FRONT LH
a. Using an air riveter or hand riveter with nose piece, strike the 6 rivets into the door window frame
garnish to install the molding to the door frame garnish.

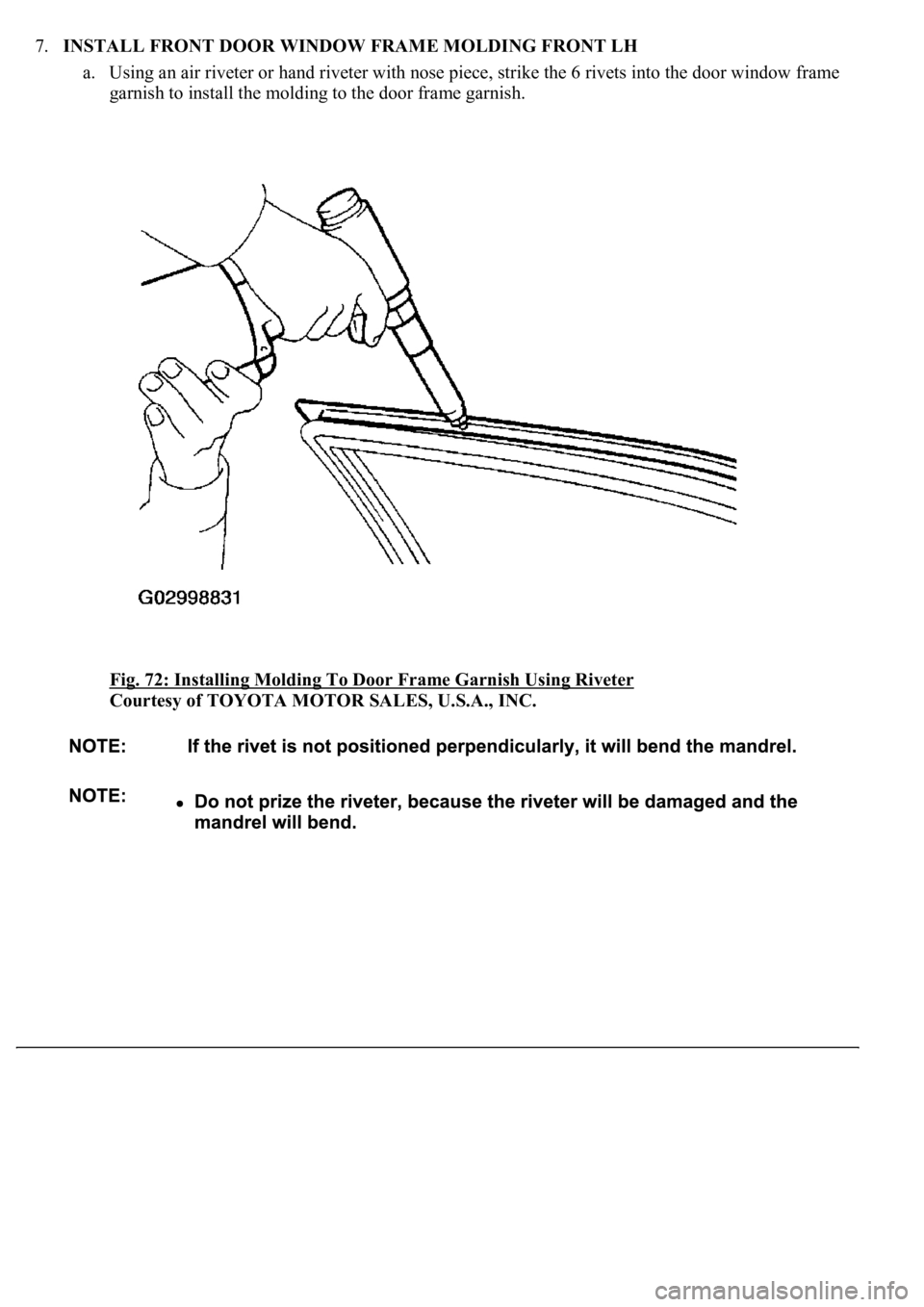

Fig. 72: Installing Molding To Door Frame Garnish Using Riveter

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

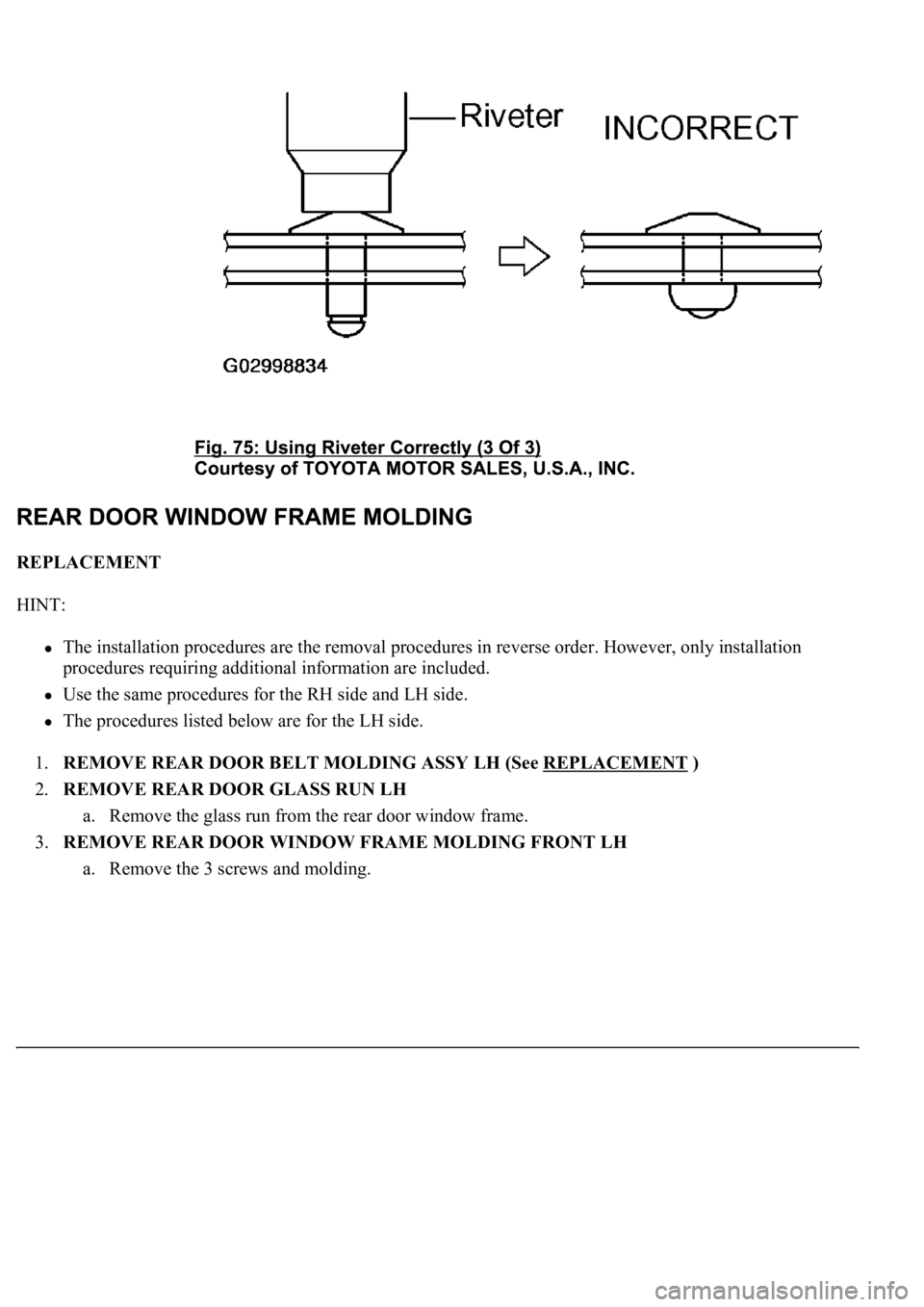

REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE REAR DOOR BELT MOLDING ASSY LH (See REPLACEMENT
)
2.REMOVE REAR DOOR GLASS RUN LH
a. Remove the glass run from the rear door window frame.
3.REMOVE REAR DOOR WINDOW FRAME MOLDING FRONT LH
a. Remove the 3 screws and moldin
g.

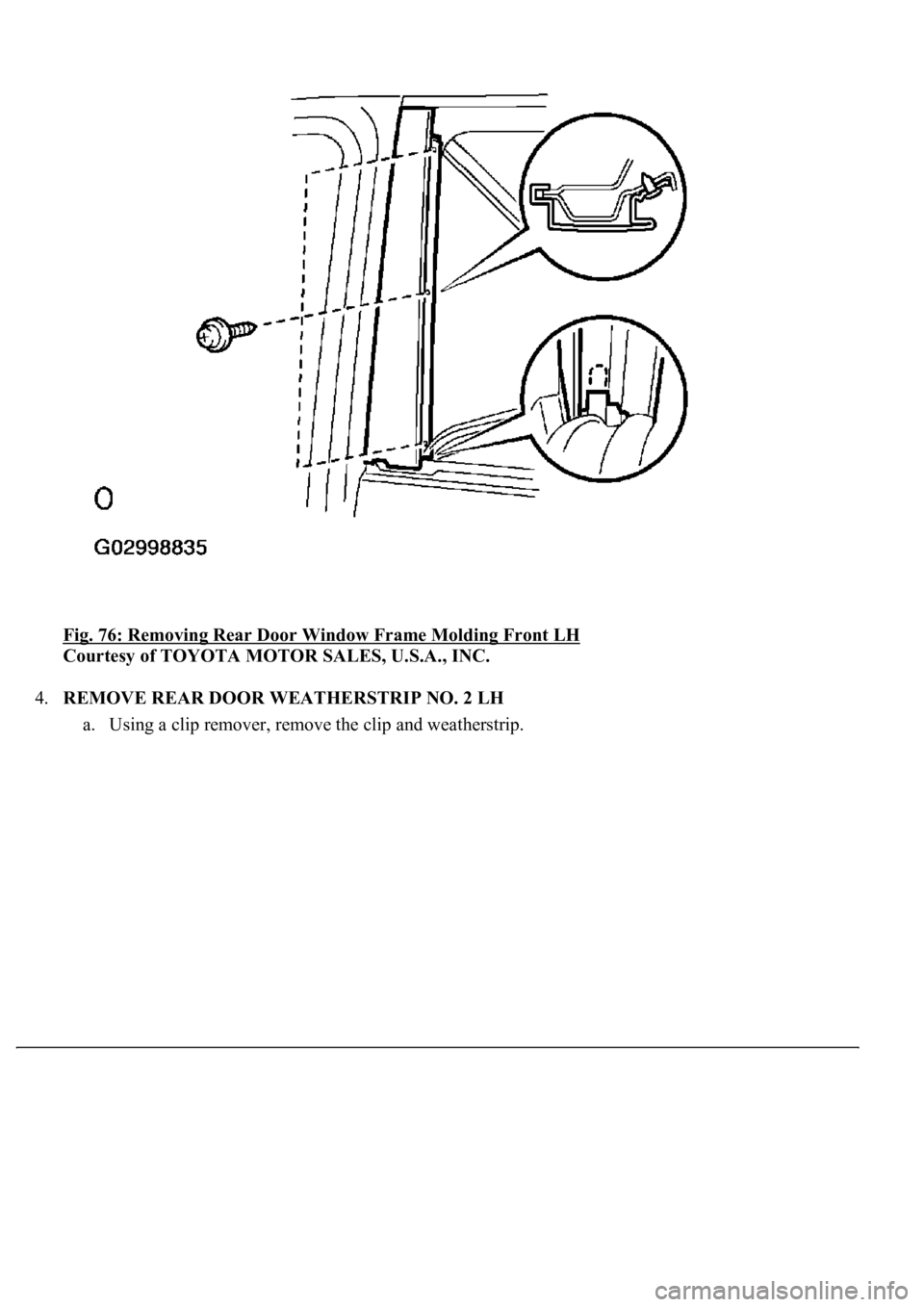

Fig. 76: Removing Rear Door Window Frame Molding Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4.REMOVE REAR DOOR WEATHERSTRIP NO. 2 LH
a. Using a clip remover, remove the clip and weatherstrip.

Fig. 77: Removing Rear Door Weatherstrip No. 2 LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
5.REMOVE REAR DOOR WINDOW FRAME MOLDING UPPER LH
a. Using a drill of less than phis 4 mm (0.16 in.), gently and perpendicularly place the drill tip onto the
rivet and cut the rivet flanges.
HINT:
Wind tape around the drill bit approximately 5 mm (0.20 in.) from the tip of the drill, as shown in
Fig. 78
.
b. Do not prize the riveter. The riveter will be damaged and the mandrel will bend.
c. Usin
g a clip remover, remove the clip and molding from the door frame garnish.

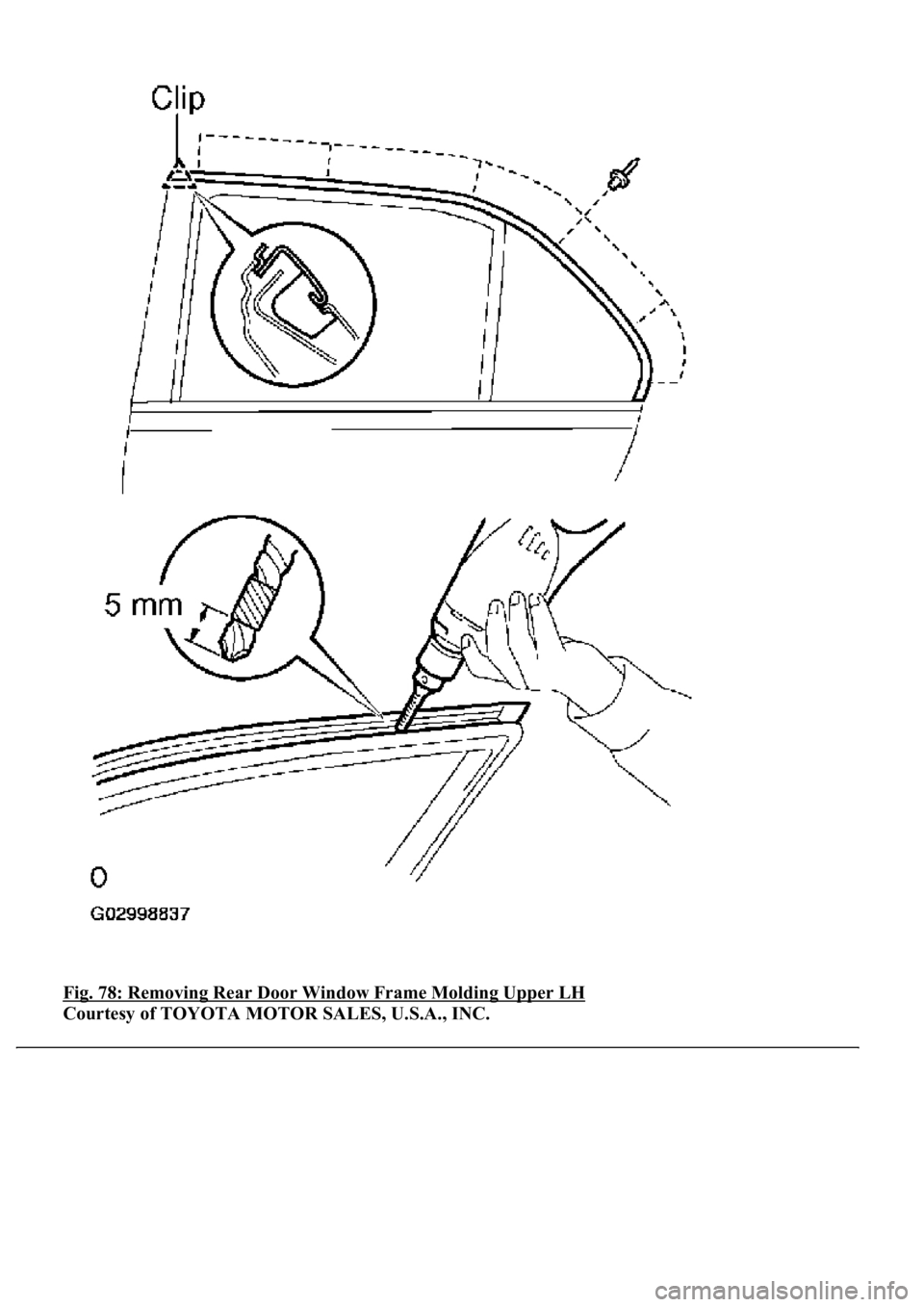

Fig. 78: Removing Rear Door Window Frame Molding Upper LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
