2003 LEXUS LS430 window

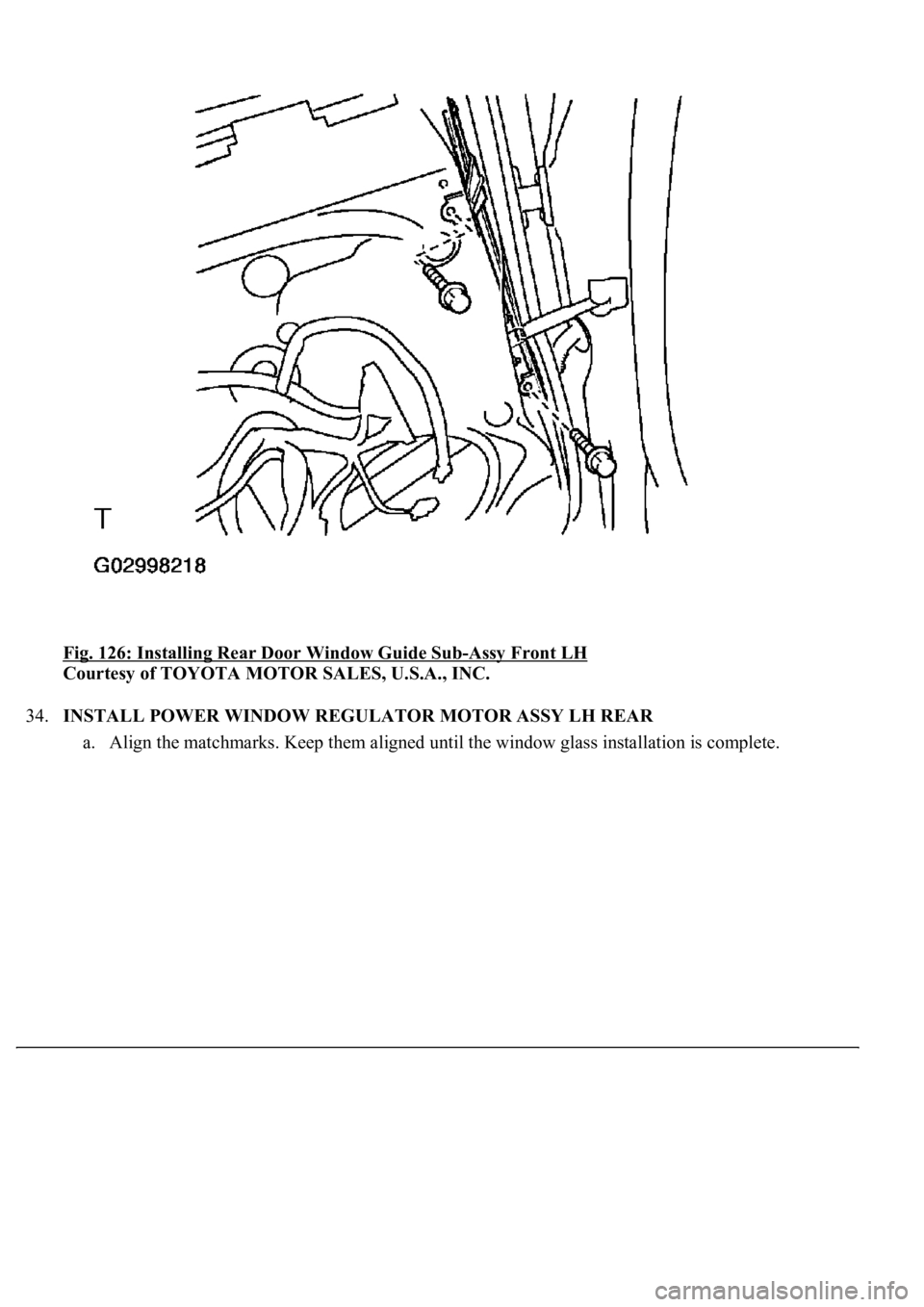

Fig. 126: Installing Rear Door Window Guide Sub-Assy Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
34.INSTALL POWER WINDOW REGULATOR MOTOR ASSY LH REAR
a. Ali
gn the matchmarks. Keep them aligned until the window glass installation is complete.

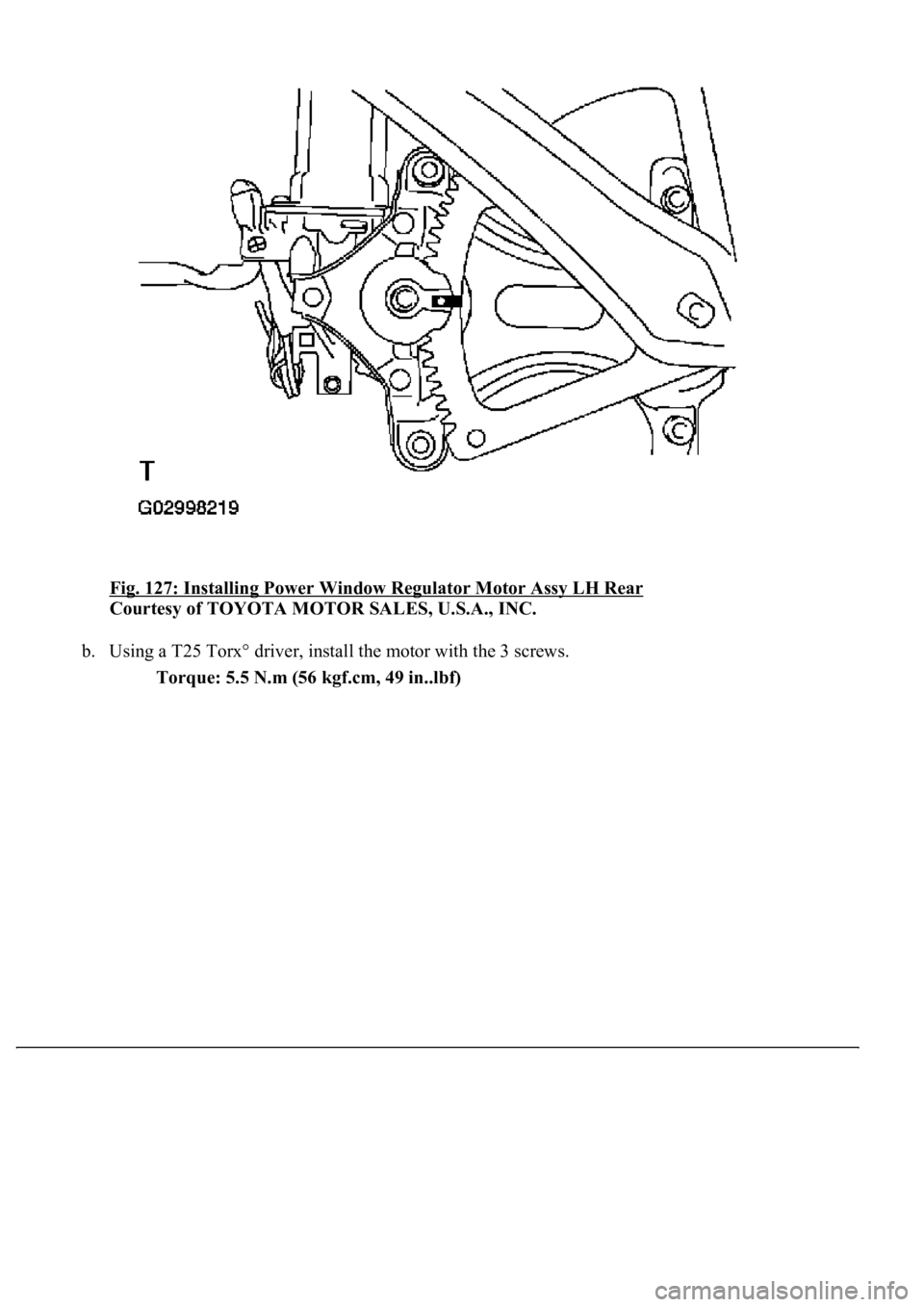

Fig. 127: Installing Power Window Regulator Motor Assy LH Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using a T25 Torx° driver, install the motor with the 3 screws.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

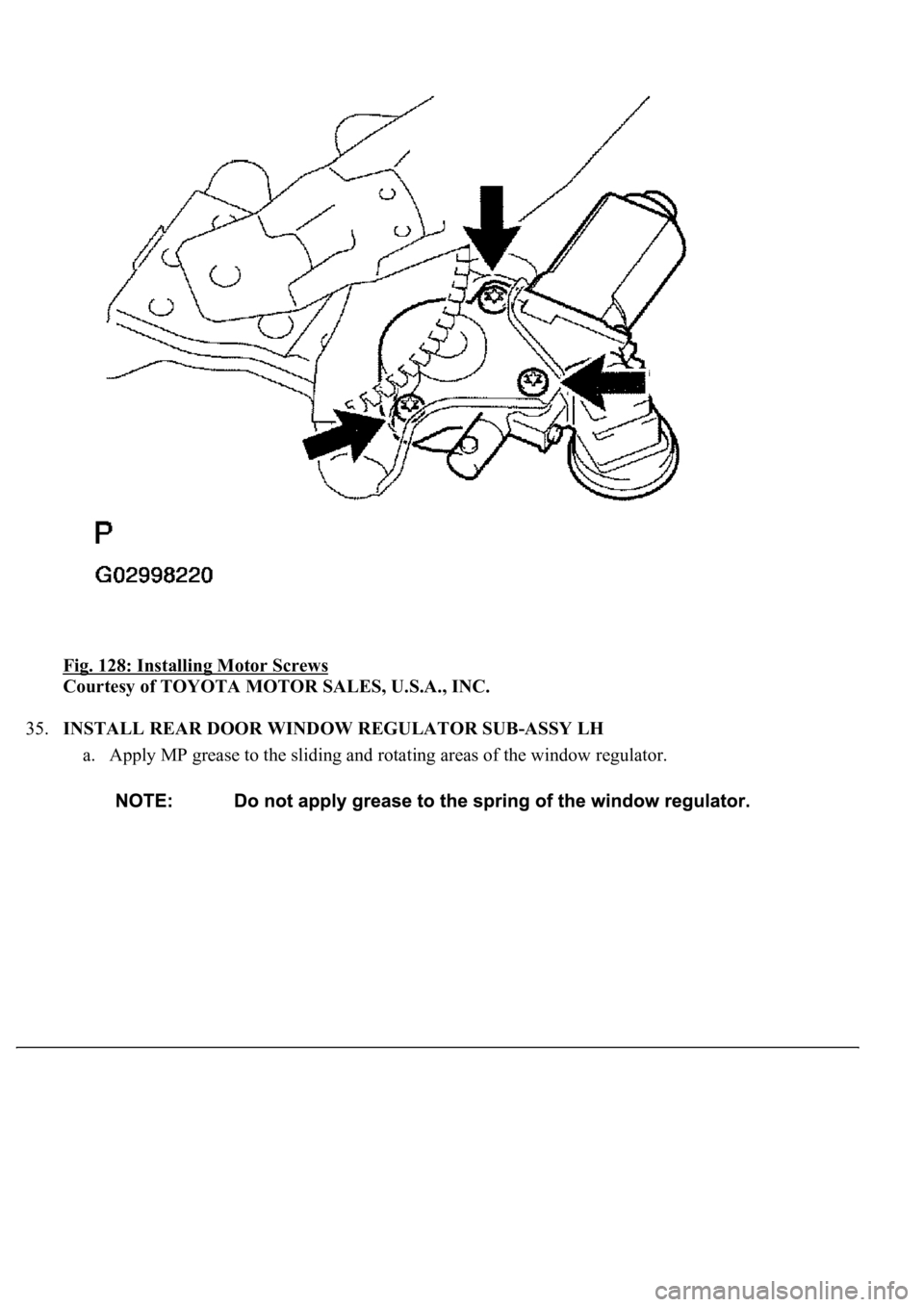

Fig. 128: Installing Motor Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
35.INSTALL REAR DOOR WINDOW REGULATOR SUB-ASSY LH
a. Apply MP grease to the sliding and rotating areas of the window regulator.

<0029004c004a0011000300140015001c001d0003002c0051005600570044004f004f004c0051004a00030035004800440055000300270052005200550003003a004c005100470052005a000300350048004a0058004f004400570052005500030036005800

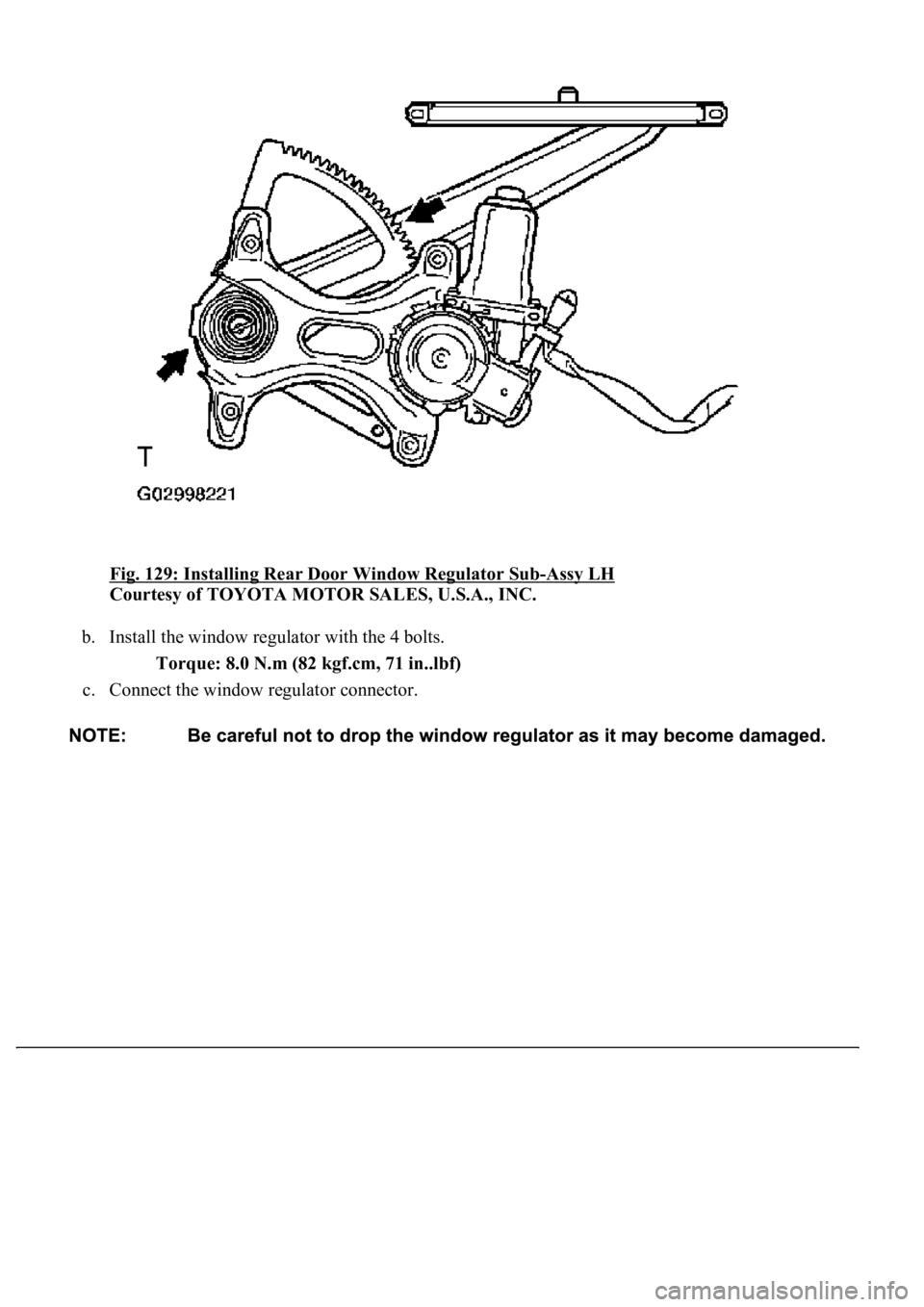

45[-Assy LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Install the window regulator with the 4 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)
c. Connect the window regulator connector.

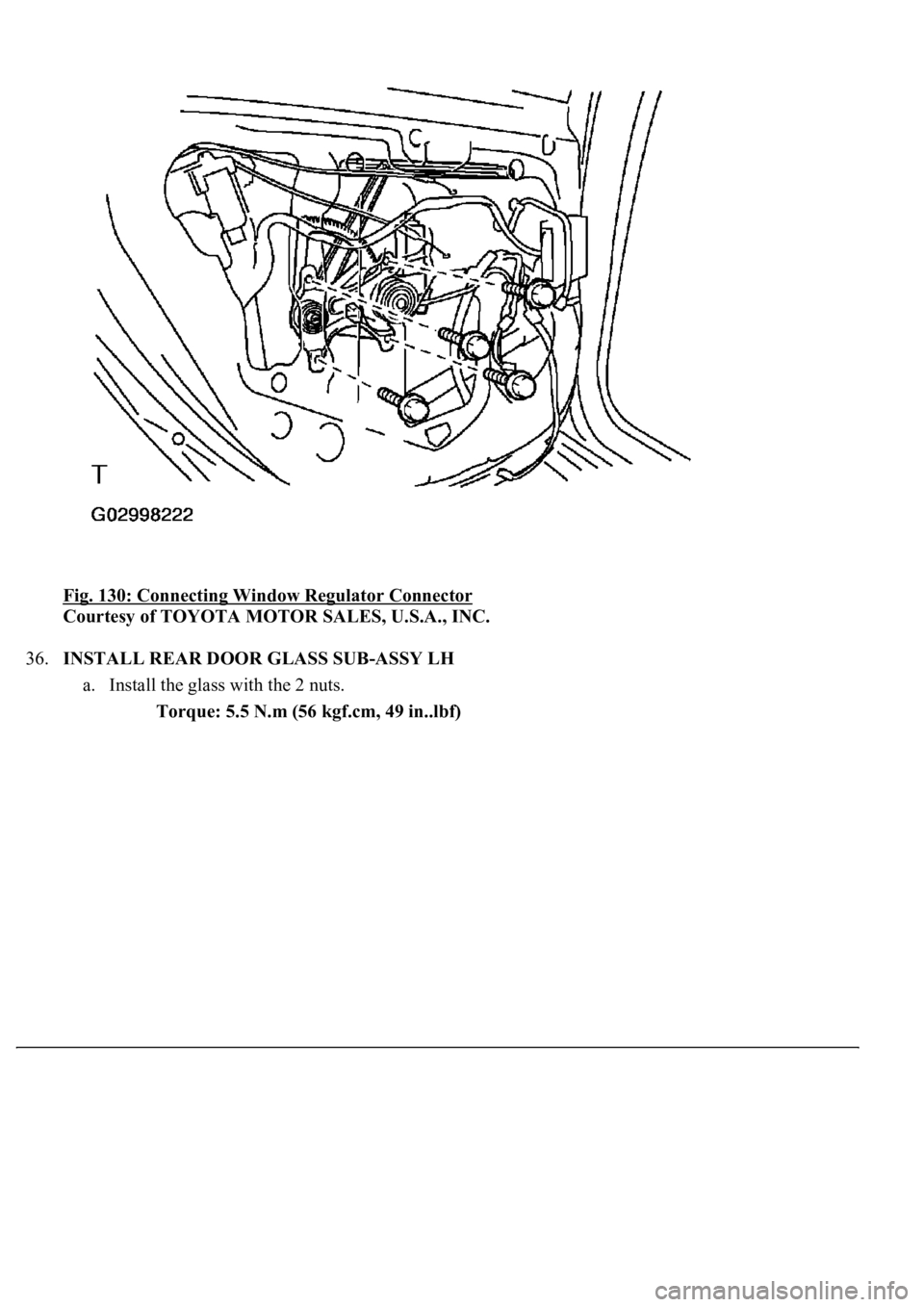

Fig. 130: Connecting Window Regulator Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
36.INSTALL REAR DOOR GLASS SUB-ASSY LH
a. Install the glass with the 2 nuts.
Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

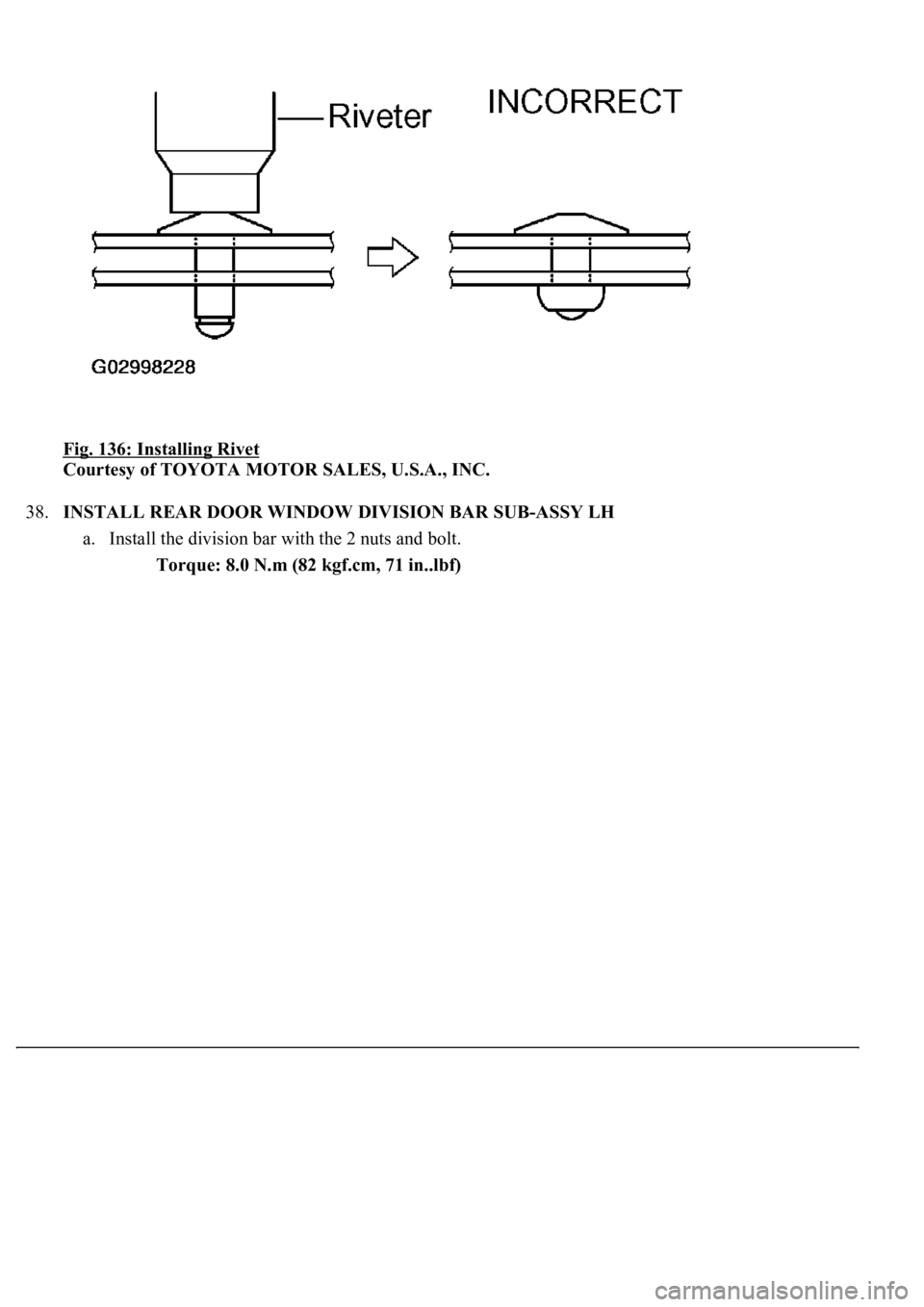

Fig. 136: Installing Rivet
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
38.INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSY LH
a. Install the division bar with the 2 nuts and bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

40.INITIALIZE POWER WINDOW SYSTEM (See INITIALIZATION )
Fig. 138: Identifying Power Window System

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
COMPONENTS

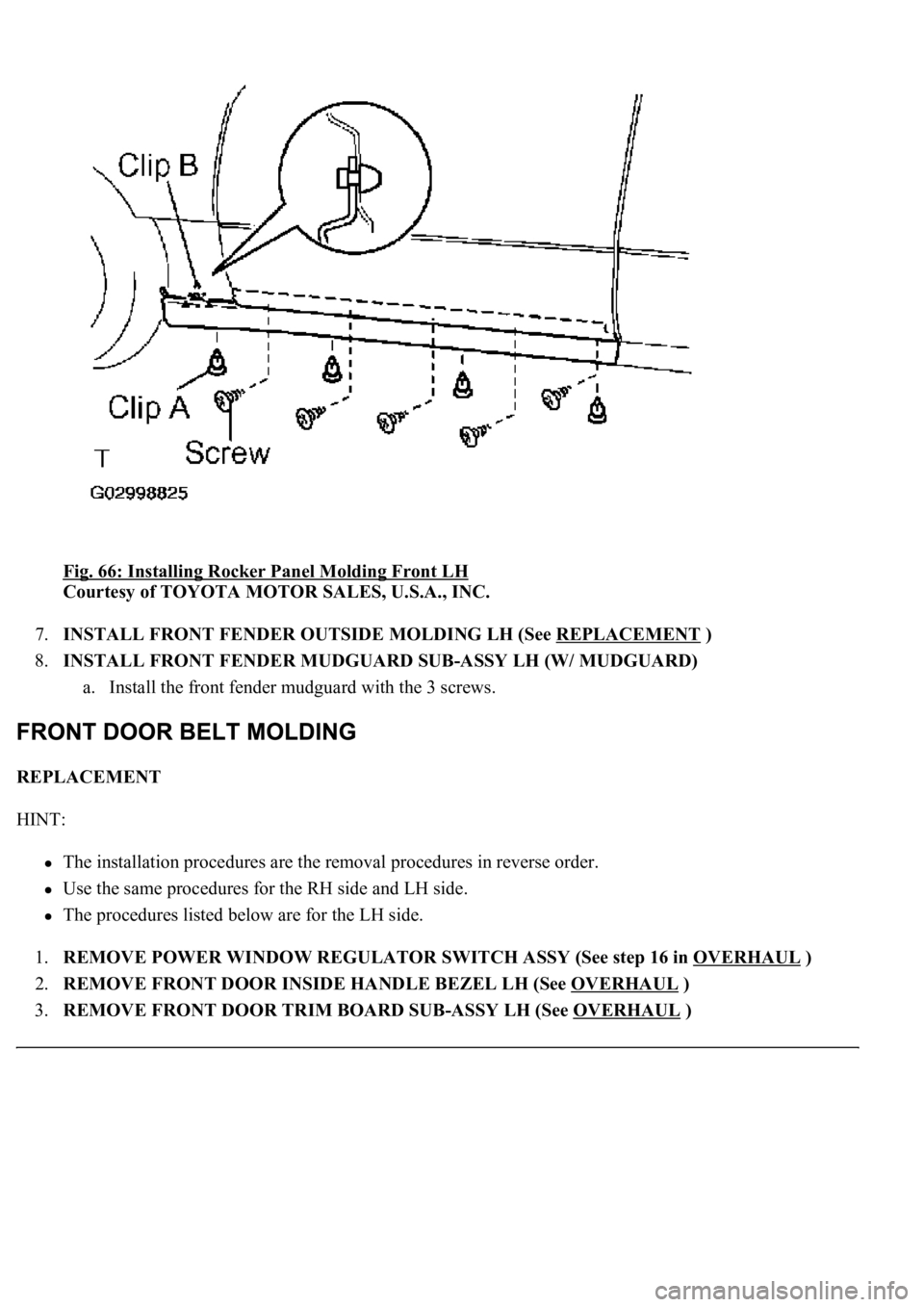

Fig. 66: Installing Rocker Panel Molding Front LH
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL FRONT FENDER OUTSIDE MOLDING LH (See REPLACEMENT
)
8.INSTALL FRONT FENDER MUDGUARD SUB-ASSY LH (W/ MUDGUARD)
a. Install the front fender mudguard with the 3 screws.
REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order.
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
1.REMOVE POWER WINDOW REGULATOR SWITCH ASSY (See step 16 in OVERHAUL
)
2.REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH (See OVERHAUL
)
3.REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (See OVERHAUL
)
