2003 INFINITI G35 Owners Manual

1. Press the switch to the CLOSE/UP side to
tilt up the sunroof.
2. Press and hold the switch to the
CLOSE/UP side for approximately 3 sec-
onds while the sunroof is tilted up.
3. Release the switch once, then press and
hold the switch to the CLOSE/UP side
again for approximately 10 seconds until
the sunroof moves automatically.
4. The sunroof will automatically open and
then close all the way.
If you failed at procedure 3. repeat all the
procedures from No. 1.
Have your INFINITI retailer check and repair
the sunroof.
INTERIOR LIGHT The interior light has a two-position switch.
When the switch is in the door position, the
light will illuminate when a door is opened.
The light will stay on for about 30 seconds
when:
O The doors are unlocked by the keyfob, a
key or the power door lock switch while all
doors are closed.
O The driver's door is opened and then closed
while the key is removed from the ignition
switch. O The key is removed from the ignition switch
while all doors are closed.
The light will turn off while the 30 second timer
is activated, when:
O The driver's door is locked either with the
keyfob, a key or the power door lock switch.
O The ignition switch is turned ON.
MAP LIGHT When the switch is pushed in, the light will turn
on. When the switch is pushed again, the light
will turn off.
When the map light switch is in the ON
position, it will automatically turn off 30
minutes after the ignition switch has been
turned to the OFF position. To turn on the
light again, turn the ignition switch to the
ON position.
The map, personal, and vanity mirror lights will
automatically turn off 30 minutes after the
latest operation of the following with the igni-
tion switch in the ACC or OFF position:
O Opening or closing any door
O Locking or unlocking with the keyfob, a key
or the power door lock switch.
O Inserting or removing a key from the ignition
switch SIC1857
INTERIOR LIGHT
Instruments and controls
2-35
Z 02.7.29/V35-D/V5.0
X

These lights will turn on again when any of the
above operations is performed after the lights
have turned off automatically. (The lights will
turn off 30 minutes after the latest operation of
the above as well.)
CAUTIONO Turn off the map, personal and vanity
mirror lights when you leave the ve-
hicle.
O Do not use for extended periods of
time with the engine stopped. This
could result in a discharged battery.
REAR PERSONAL LIGHT The rear personal light has a three-position
switch.
When the switch is in the door position, the
light will illuminate when the door is opened.
When the personal light switch is in the ON
position, it will automatically turn off 30
minutes after the ignition switch has been
turned to the OFF position. To turn on the
light again, turn the ignition switch to the
ON position. The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the vanity mirror light stays on, it will
automatically turn off 30 minutes after the
ignition switch has been turned to the OFF
position. To turn on the light again, turn the
ignition switch to the ON position. SIC1858 SIC1859
VANITY MIRROR LIGHT (if so
equipped)
2-36 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

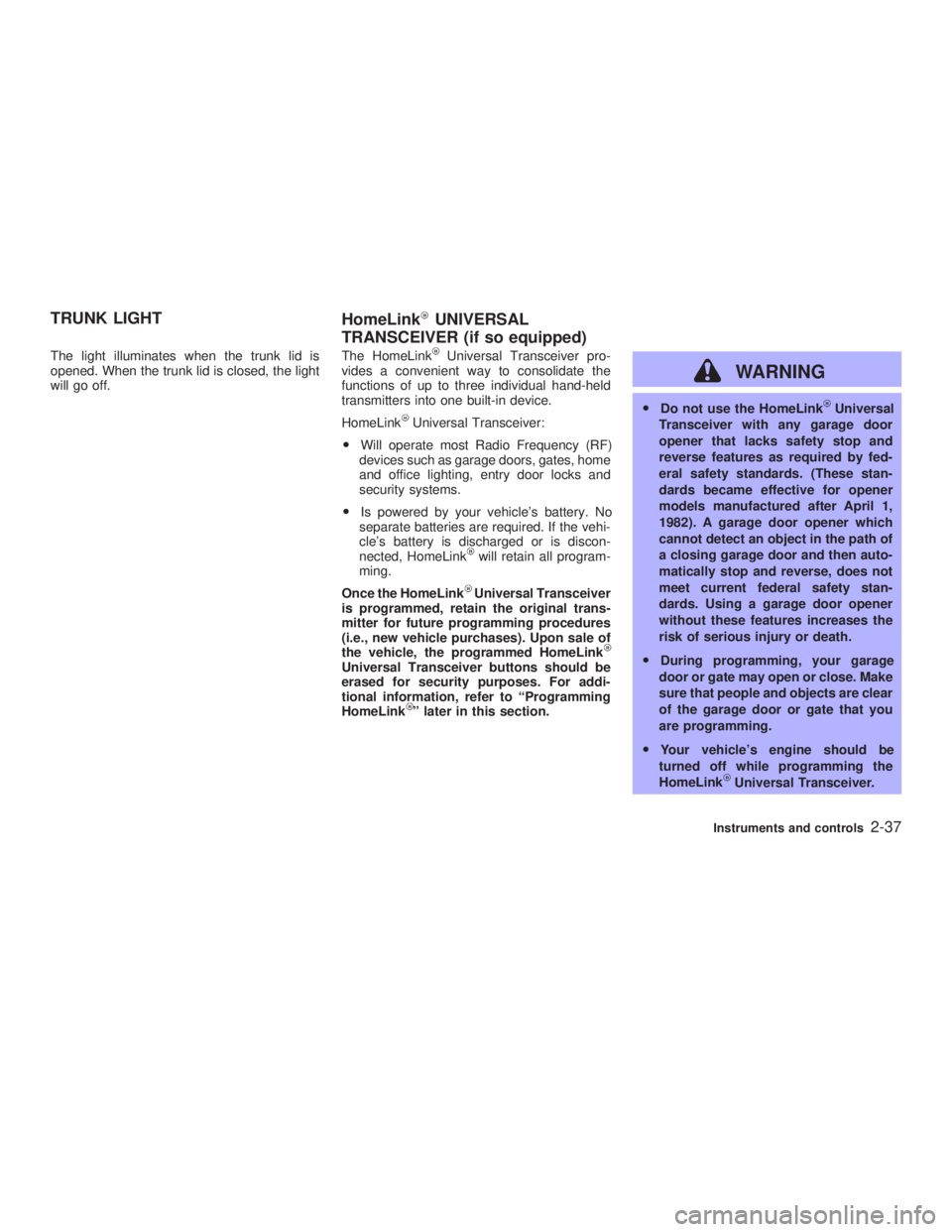

The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
will go off. The HomeLink Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink Universal Transceiver:
O Will operate most Radio Frequency (RF)
devices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
O Is powered by your vehicle's battery. No
separate batteries are required. If the vehi-
cle's battery is discharged or is discon-
nected, HomeLink will retain all program-
ming.
Once the HomeLink Universal Transceiver
is programmed, retain the original trans-
mitter for future programming procedures
(i.e., new vehicle purchases). Upon sale of
the vehicle, the programmed HomeLink
Universal Transceiver buttons should be
erased for security purposes. For addi-
tional information, refer to ªProgramming
HomeLink º later in this section. WARNING O Do not use the HomeLink Universal
Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by fed-
eral safety standards. (These stan-
dards became effective for opener
models manufactured after April 1,
1982). A garage door opener which
cannot detect an object in the path of
a closing garage door and then auto-
matically stop and reverse, does not
meet current federal safety stan-
dards. Using a garage door opener
without these features increases the
risk of serious injury or death.
O During programming, your garage
door or gate may open or close. Make
sure that people and objects are clear
of the garage door or gate that you
are programming.
O Your vehicle's engine should be
turned off while programming the
HomeLink
Universal Transceiver.TRUNK LIGHT
HomeLink UNIVERSAL
TRANSCEIVER (if so equipped)
Instruments and controls
2-37
Z 02.7.29/V35-D/V5.0
X

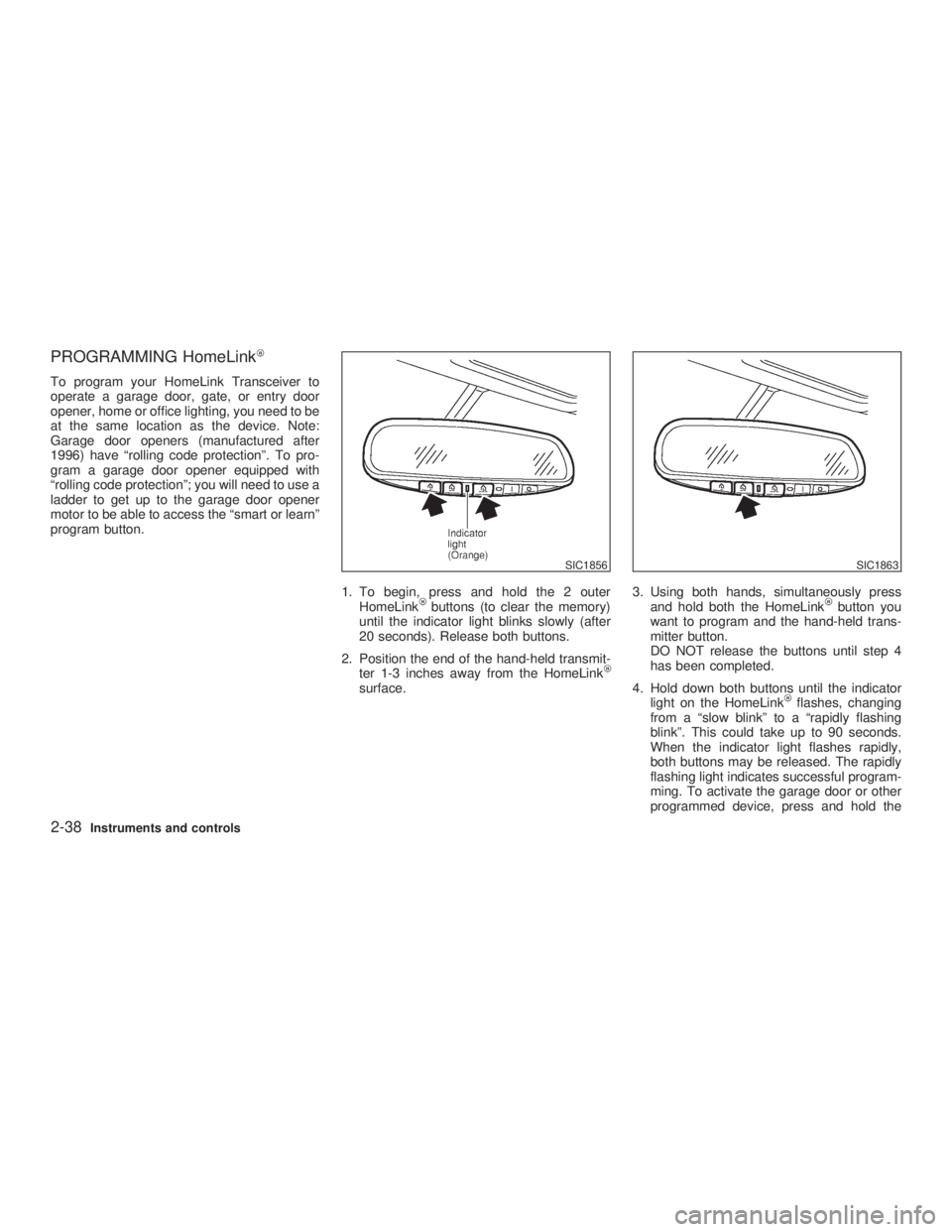

PROGRAMMING HomeLink To program your HomeLink Transceiver to
operate a garage door, gate, or entry door
opener, home or office lighting, you need to be
at the same location as the device. Note:
Garage door openers (manufactured after
1996) have ªrolling code protectionº. To pro-
gram a garage door opener equipped with
ªrolling code protectionº; you will need to use a
ladder to get up to the garage door opener
motor to be able to access the ªsmart or learnº
program button.
1. To begin, press and hold the 2 outer
HomeLink buttons (to clear the memory)
until the indicator light blinks slowly (after
20 seconds). Release both buttons.
2. Position the end of the hand-held transmit-
ter 1-3 inches away from the HomeLink
surface. 3. Using both hands, simultaneously press
and hold both the HomeLink button you
want to program and the hand-held trans-
mitter button.
DO NOT release the buttons until step 4
has been completed.
4. Hold down both buttons until the indicator
light on the HomeLink flashes, changing
from a ªslow blinkº to a ªrapidly flashing
blinkº. This could take up to 90 seconds.
When the indicator light flashes rapidly,
both buttons may be released. The rapidly
flashing light indicates successful program-
ming. To activate the garage door or other
programmed device, press and hold the SIC1856 SIC1863
2-38 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

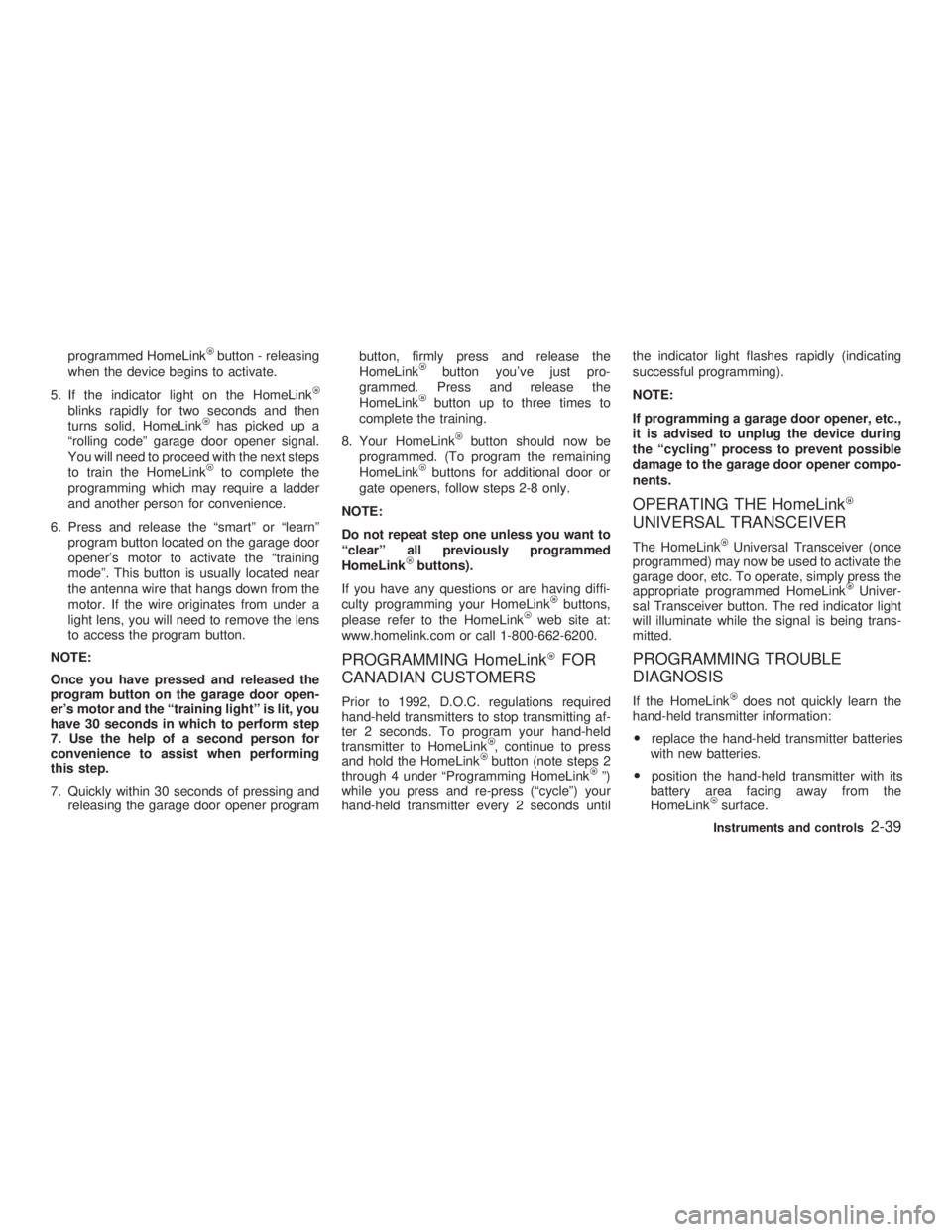

programmed HomeLink button - releasing
when the device begins to activate.
5. If the indicator light on the HomeLink
blinks rapidly for two seconds and then
turns solid, HomeLink has picked up a
ªrolling codeº garage door opener signal.
You will need to proceed with the next steps
to train the HomeLink to complete the
programming which may require a ladder
and another person for convenience.
6. Press and release the ªsmartº or ªlearnº
program button located on the garage door
opener's motor to activate the ªtraining
modeº. This button is usually located near
the antenna wire that hangs down from the
motor. If the wire originates from under a
light lens, you will need to remove the lens
to access the program button.
NOTE:
Once you have pressed and released the
program button on the garage door open-
er's motor and the ªtraining lightº is lit, you
have 30 seconds in which to perform step
7. Use the help of a second person for
convenience to assist when performing
this step.
7. Quickly within 30 seconds of pressing and
releasing the garage door opener program button, firmly press and release the
HomeLink button you've just pro-
grammed. Press and release the
HomeLink button up to three times to
complete the training.
8. Your HomeLink button should now be
programmed. (To program the remaining
HomeLink buttons for additional door or
gate openers, follow steps 2-8 only.
NOTE:
Do not repeat step one unless you want to
ªclearº all previously programmed
HomeLink buttons).
If you have any questions or are having diffi-
culty programming your HomeLink buttons,
please refer to the HomeLink web site at:
www.homelink.com or call 1-800-662-6200.
PROGRAMMING HomeLink FOR
CANADIAN CUSTOMERS Prior to 1992, D.O.C. regulations required
hand-held transmitters to stop transmitting af-
ter 2 seconds. To program your hand-held
transmitter to HomeLink , continue to press
and hold the HomeLink button (note steps 2
through 4 under ªProgramming HomeLink º)
while you press and re-press (ªcycleº) your
hand-held transmitter every 2 seconds until the indicator light flashes rapidly (indicating
successful programming).
NOTE:
If programming a garage door opener, etc.,
it is advised to unplug the device during
the ªcyclingº process to prevent possible
damage to the garage door opener compo-
nents.
OPERATING THE HomeLink
UNIVERSAL TRANSCEIVER The HomeLink Universal Transceiver (once
programmed) may now be used to activate the
garage door, etc. To operate, simply press the
appropriate programmed HomeLink Univer-
sal Transceiver button. The red indicator light
will illuminate while the signal is being trans-
mitted.
PROGRAMMING TROUBLE
DIAGNOSIS If the HomeLink does not quickly learn the
hand-held transmitter information:
O replace the hand-held transmitter batteries
with new batteries.
O position the hand-held transmitter with its
battery area facing away from the
HomeLink surface. Instruments and controls
2-39
Z 02.7.29/V35-D/V5.0
X

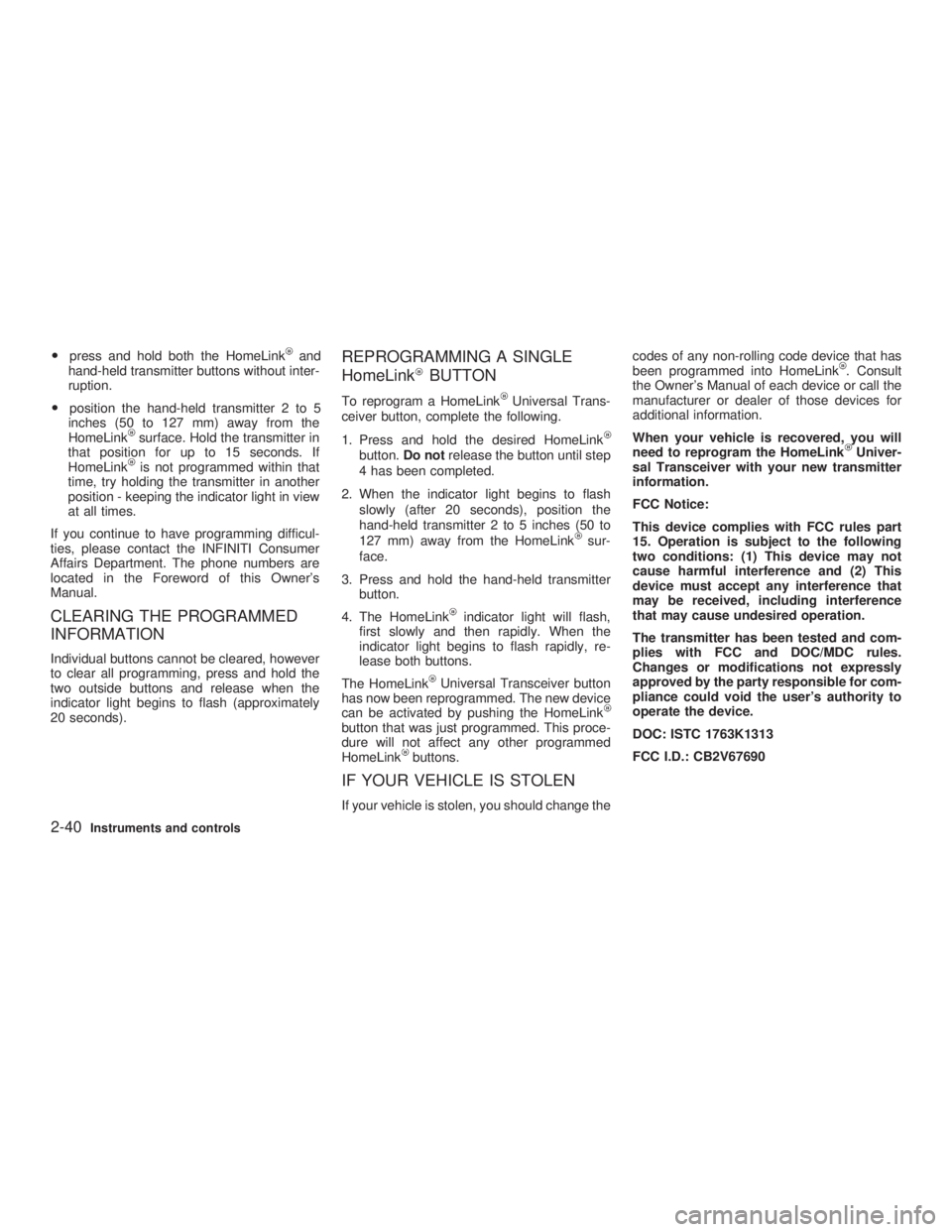

O press and hold both the HomeLink and
hand-held transmitter buttons without inter-
ruption.
O position the hand-held transmitter 2 to 5
inches (50 to 127 mm) away from the
HomeLink surface. Hold the transmitter in
that position for up to 15 seconds. If
HomeLink is not programmed within that
time, try holding the transmitter in another
position - keeping the indicator light in view
at all times.
If you continue to have programming difficul-
ties, please contact the INFINITI Consumer
Affairs Department. The phone numbers are
located in the Foreword of this Owner's
Manual.
CLEARING THE PROGRAMMED
INFORMATION Individual buttons cannot be cleared, however
to clear all programming, press and hold the
two outside buttons and release when the
indicator light begins to flash (approximately
20 seconds). REPROGRAMMING A SINGLE
HomeLink BUTTONTo reprogram a HomeLink Universal Trans-
ceiver button, complete the following.
1. Press and hold the desired HomeLink
button. Do not release the button until step
4 has been completed.
2. When the indicator light begins to flash
slowly (after 20 seconds), position the
hand-held transmitter 2 to 5 inches (50 to
127 mm) away from the HomeLink sur-
face.
3. Press and hold the hand-held transmitter
button.
4. The HomeLink indicator light will flash,
first slowly and then rapidly. When the
indicator light begins to flash rapidly, re-
lease both buttons.
The HomeLink Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink
button that was just programmed. This proce-
dure will not affect any other programmed
HomeLink buttons.
IF YOUR VEHICLE IS STOLEN If your vehicle is stolen, you should change the codes of any non-rolling code device that has
been programmed into HomeLink . Consult
the Owner's Manual of each device or call the
manufacturer or dealer of those devices for
additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
This device complies with FCC rules part
15. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference and (2) This
device must accept any interference that
may be received, including interference
that may cause undesired operation.
The transmitter has been tested and com-
plies with FCC and DOC/MDC rules.
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user's authority to
operate the device.
DOC: ISTC 1763K1313
FCC I.D.: CB2V67690
2-40 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

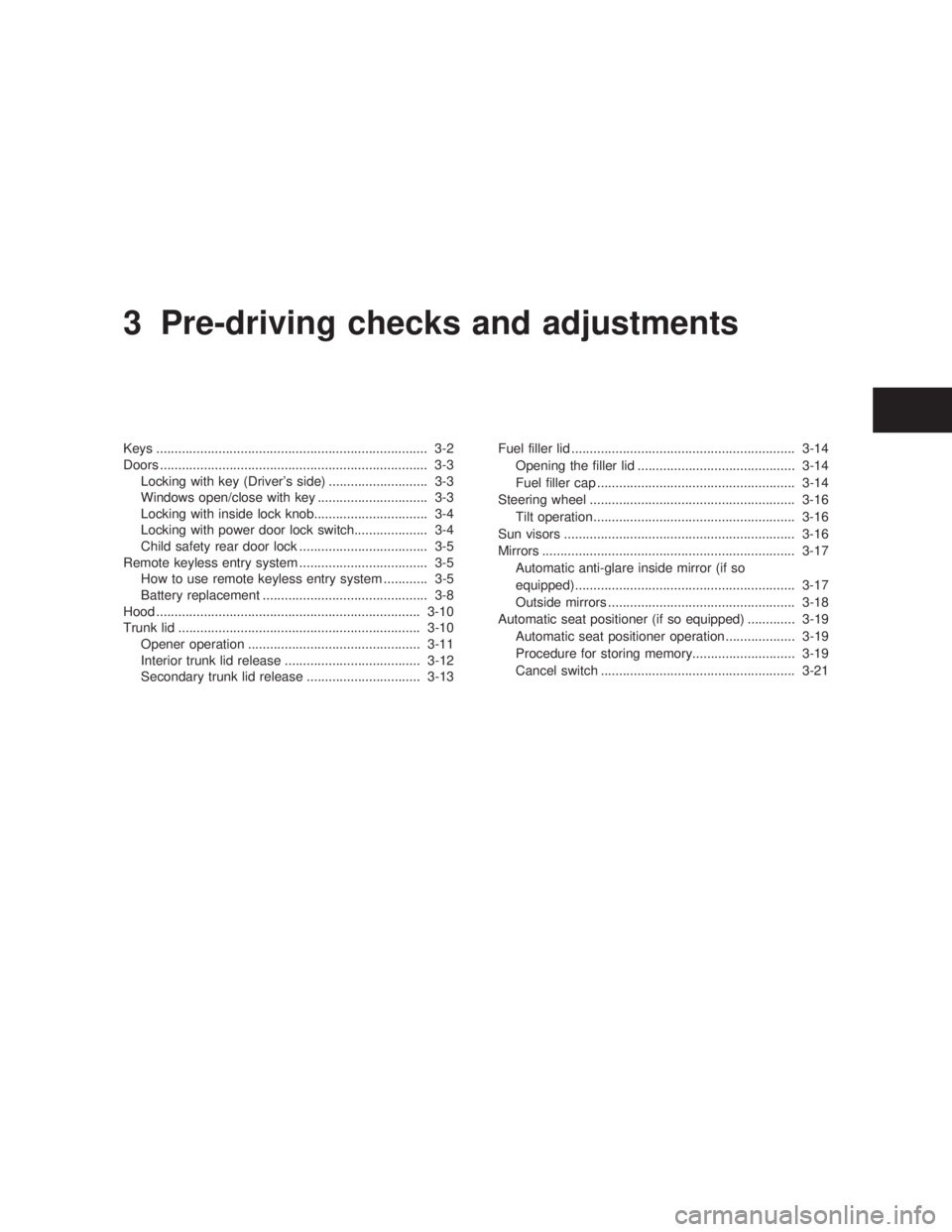

3 Pre-driving checks and adjustments Keys .......................................................................... 3-2
Doors ......................................................................... 3-3
Locking with key (Driver's side) ........................... 3-3
Windows open/close with key .............................. 3-3
Locking with inside lock knob............................... 3-4
Locking with power door lock switch.................... 3-4
Child safety rear door lock ................................... 3-5
Remote keyless entry system ................................... 3-5
How to use remote keyless entry system ............ 3-5
Battery replacement ............................................. 3-8
Hood ........................................................................ 3-10
Trunk lid .................................................................. 3-10
Opener operation ............................................... 3-11
Interior trunk lid release ..................................... 3-12
Secondary trunk lid release ............................... 3-13 Fuel filler lid ............................................................. 3-14
Opening the filler lid ........................................... 3-14
Fuel filler cap ...................................................... 3-14
Steering wheel ........................................................ 3-16
Tilt operation....................................................... 3-16
Sun visors ............................................................... 3-16
Mirrors ..................................................................... 3-17
Automatic anti-glare inside mirror (if so
equipped)............................................................ 3-17
Outside mirrors ................................................... 3-18
Automatic seat positioner (if so equipped) ............. 3-19
Automatic seat positioner operation ................... 3-19
Procedure for storing memory............................ 3-19
Cancel switch ..................................................... 3-21
Z 02.7.29/V35-D/V5.0
X

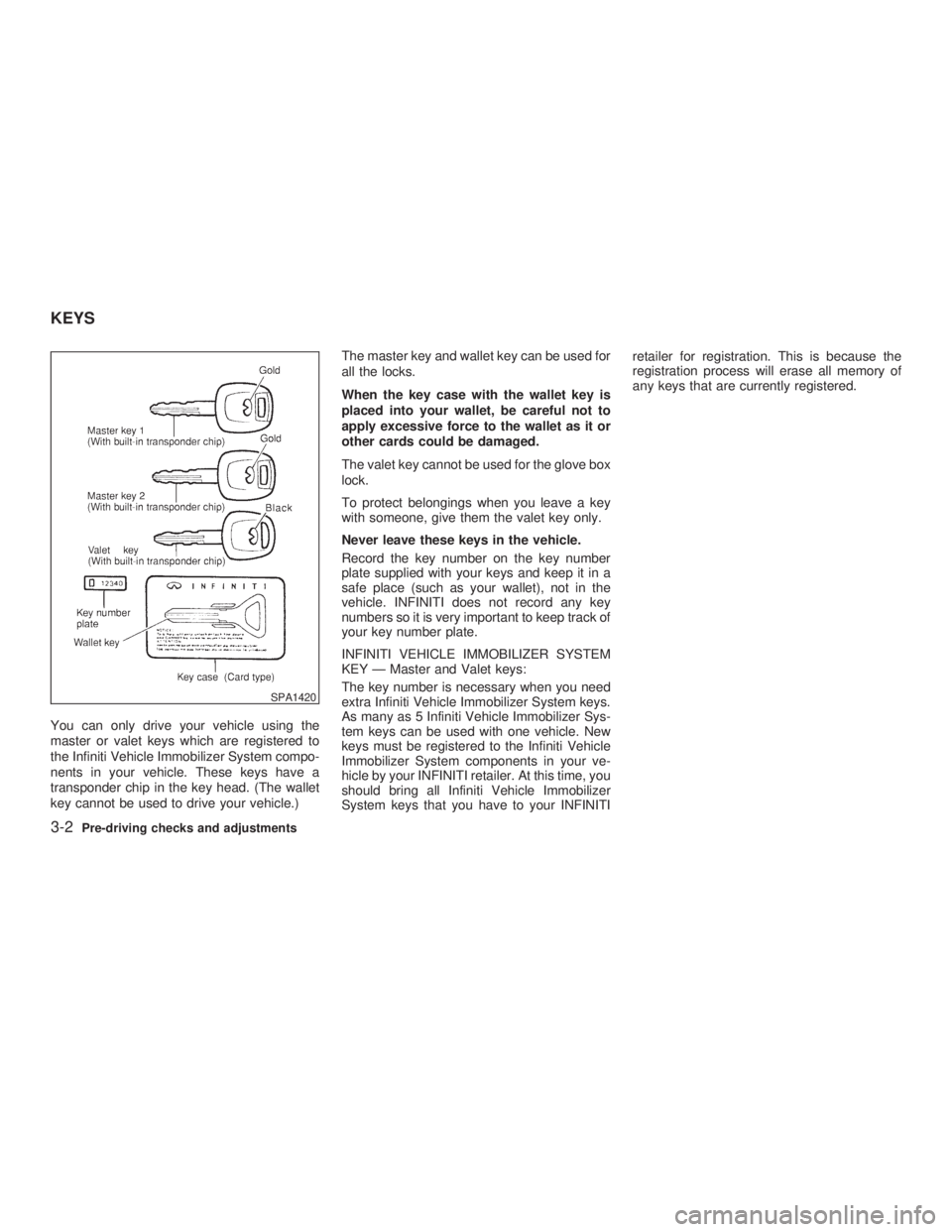

You can only drive your vehicle using the
master or valet keys which are registered to
the Infiniti Vehicle Immobilizer System compo-
nents in your vehicle. These keys have a
transponder chip in the key head. (The wallet
key cannot be used to drive your vehicle.) The master key and wallet key can be used for
all the locks.
When the key case with the wallet key is
placed into your wallet, be careful not to
apply excessive force to the wallet as it or
other cards could be damaged.
The valet key cannot be used for the glove box
lock.
To protect belongings when you leave a key
with someone, give them the valet key only.
Never leave these keys in the vehicle.
Record the key number on the key number
plate supplied with your keys and keep it in a
safe place (such as your wallet), not in the
vehicle. INFINITI does not record any key
numbers so it is very important to keep track of
your key number plate.
INFINITI VEHICLE IMMOBILIZER SYSTEM
KEY Ð Master and Valet keys:
The key number is necessary when you need
extra Infiniti Vehicle Immobilizer System keys.
As many as 5 Infiniti Vehicle Immobilizer Sys-
tem keys can be used with one vehicle. New
keys must be registered to the Infiniti Vehicle
Immobilizer System components in your ve-
hicle by your INFINITI retailer. At this time, you
should bring all Infiniti Vehicle Immobilizer
System keys that you have to your INFINITI retailer for registration. This is because the
registration process will erase all memory of
any keys that are currently registered.
SPA1420KEYS
3-2 Pre-driving checks and adjustments
Z 02.7.29/V35-D/V5.0
X
