2003 INFINITI G35 Owners Manual

When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instruc-
tions are available from an authorized INFINITI
retailer. Local service operators are generally
familiar with the applicable laws and proce-
dures for towing. To assure proper towing and
to prevent accidental damage to your vehicle,
INFINITI recommends having a service opera-
tor tow your vehicle. It is advisable to have the
service operator carefully read the following
precautions.
WARNINGO Never ride in a vehicle that is being
towed.
O Never get under your vehicle after it
has been lifted by a tow truck.
CAUTIONO When towing, make sure that the
transmission, axles, steering system and powertrain are in working condi-
tion. If any unit is damaged, dollies
must be used.
O Always attach safety chains before
towing.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-
free number to call (U.S.) or Warranty & Road-
side assistance information booklet (Canada).
TOWING RECOMMENDED BY
INFINITI INFINITI recommends that your vehicle be
towed with the driving (rear) wheels off the
ground or place the vehicle on a flat bed truck
as illustrated. SCE0386TOWING YOUR VEHICLE
In case of emergency
6-11
Z 02.7.29/V35-D/V5.0
X

CAUTIONO Never tow automatic transmission
models with the rear wheels on the ground or four wheels on the ground
(forward or backward) as this may
cause serious and expensive damage
to the transmission.
If it is necessary to tow the vehicle
with the front wheels raised, always
use towing dollies under the rear
wheels.
O When towing rear wheel drive models
with the front wheels on the ground
or on towing dollies:
Turn the ignition key to the OFF posi-
tion, and secure the steering wheel in
a straight ahead position with a rope
or similar device. Never secure the
steering wheel by turning the ignition
key to the LOCK position. This may
damage the steering lock mecha-
nism.
O If you have to tow manual transmis-
sion models with the rear wheels on
the ground or four wheels on the
ground (if you do not use towing
dollies): O Always release the parking brake.
O Move the transmission shift lever
to the N (Neutral) position.
O Observe the following restricted tow-
ing speeds and distances for manual
transmission models only:
O Speed: Below 60 MPH (95 km/h)
O Distance: Less than 500 miles (800
km)
If the speed or distance must necessarily be
greater, remove the propeller shaft before tow-
ing to prevent damage to the transmission.SCE0387
6-12 In case of emergency
Z 02.7.29/V35-D/V5.0
X

VEHICLE RECOVERY (Freeing a
stuck vehicle) After removing the front license plate (or the
bumper cover), securely install the towing
hook
j 1
. (Located with jacking tools.)
Reinstall the license plate on the lower fitting
point.
WARNING O Stand clear of a stuck vehicle.
O Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat and
be damaged. CAUTION O Tow chains or cables must be at-
tached only to the main structural
members of the vehicle.
O Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
O Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
O Pulling devices such as ropes or can-
vas straps are not recommended for
use in vehicle towing or recovery.SCE0396A SCE0427
In case of emergency
6-13
Z 02.7.29/V35-D/V5.0
X

MEMO
6-14 In case of emergency
Z 02.7.29/V35-D/V5.0
X

7 Appearance and care Cleaning exterior ....................................................... 7-2
Washing................................................................ 7-2
Waxing.................................................................. 7-2
Removing spots.................................................... 7-3
Underbody ............................................................ 7-3
Glass .................................................................... 7-3
Aluminum alloy wheels ......................................... 7-3
Chrome parts........................................................ 7-3
Cleaning interior ........................................................ 7-3 Floor mats ............................................................ 7-4
Seat belts ............................................................. 7-4
Corrosion protection .................................................. 7-5
Most common factors contributing to vehicle
corrosion ............................................................... 7-5
Environmental factors influence the rate of
corrosion ............................................................... 7-5
To protect your vehicle from corrosion ................ 7-5
Z 02.7.29/V35-D/V5.0
X

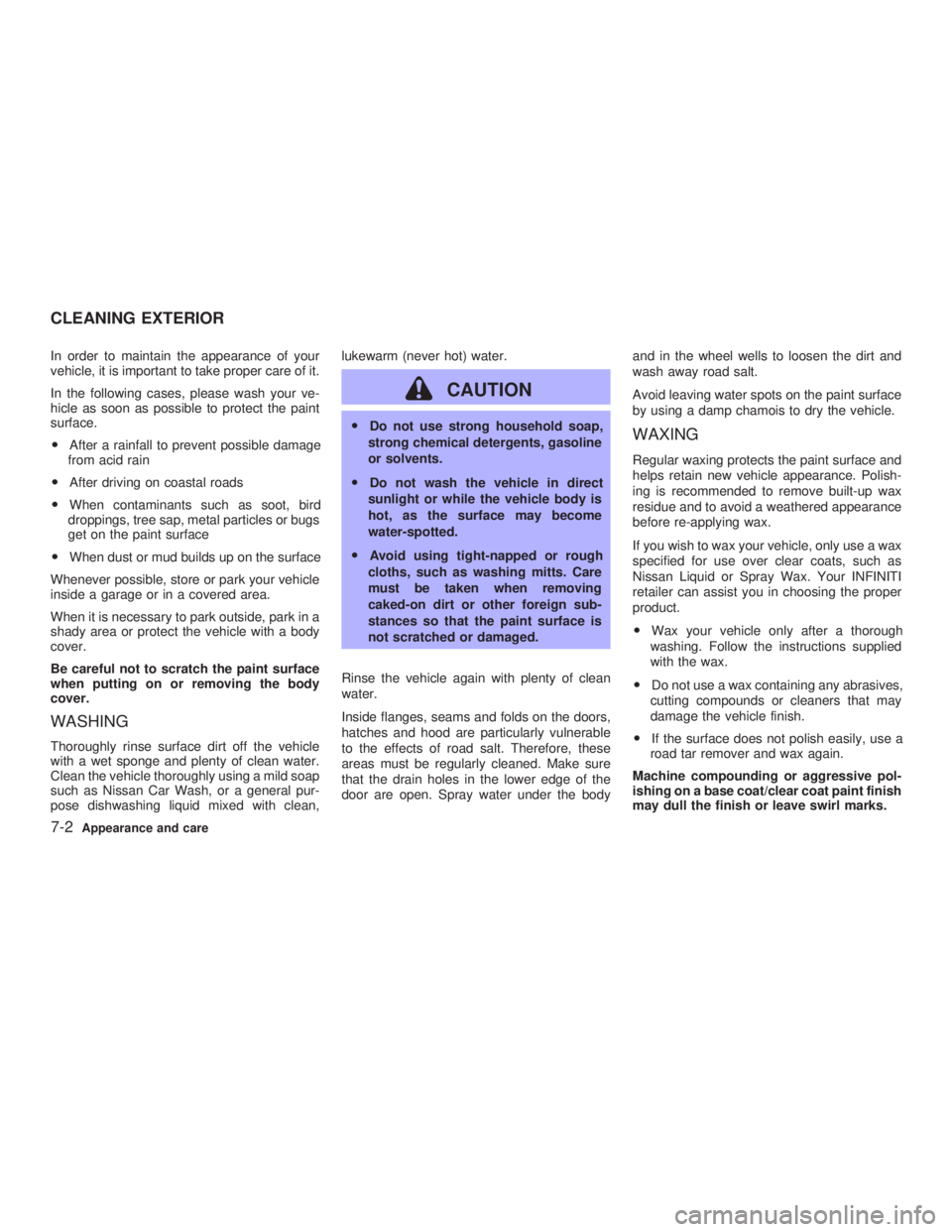

In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
In the following cases, please wash your ve-
hicle as soon as possible to protect the paint
surface.
O After a rainfall to prevent possible damage
from acid rain
O After driving on coastal roads
O When contaminants such as soot, bird
droppings, tree sap, metal particles or bugs
get on the paint surface
O When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.
WASHING Thoroughly rinse surface dirt off the vehicle
with a wet sponge and plenty of clean water.
Clean the vehicle thoroughly using a mild soap
such as Nissan Car Wash, or a general pur-
pose dishwashing liquid mixed with clean, lukewarm (never hot) water.
CAUTION O Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.
O Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.
O Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so that the paint surface is
not scratched or damaged.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable
to the effects of road salt. Therefore, these
areas must be regularly cleaned. Make sure
that the drain holes in the lower edge of the
door are open. Spray water under the body and in the wheel wells to loosen the dirt and
wash away road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
WAXING Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polish-
ing is recommended to remove built-up wax
residue and to avoid a weathered appearance
before re-applying wax.
If you wish to wax your vehicle, only use a wax
specified for use over clear coats, such as
Nissan Liquid or Spray Wax. Your INFINITI
retailer can assist you in choosing the proper
product.
O Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
O Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
O If the surface does not polish easily, use a
road tar remover and wax again.
Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint finish
may dull the finish or leave swirl marks.CLEANING EXTERIOR
7-2 Appearance and care
Z 02.7.29/V35-D/V5.0
X

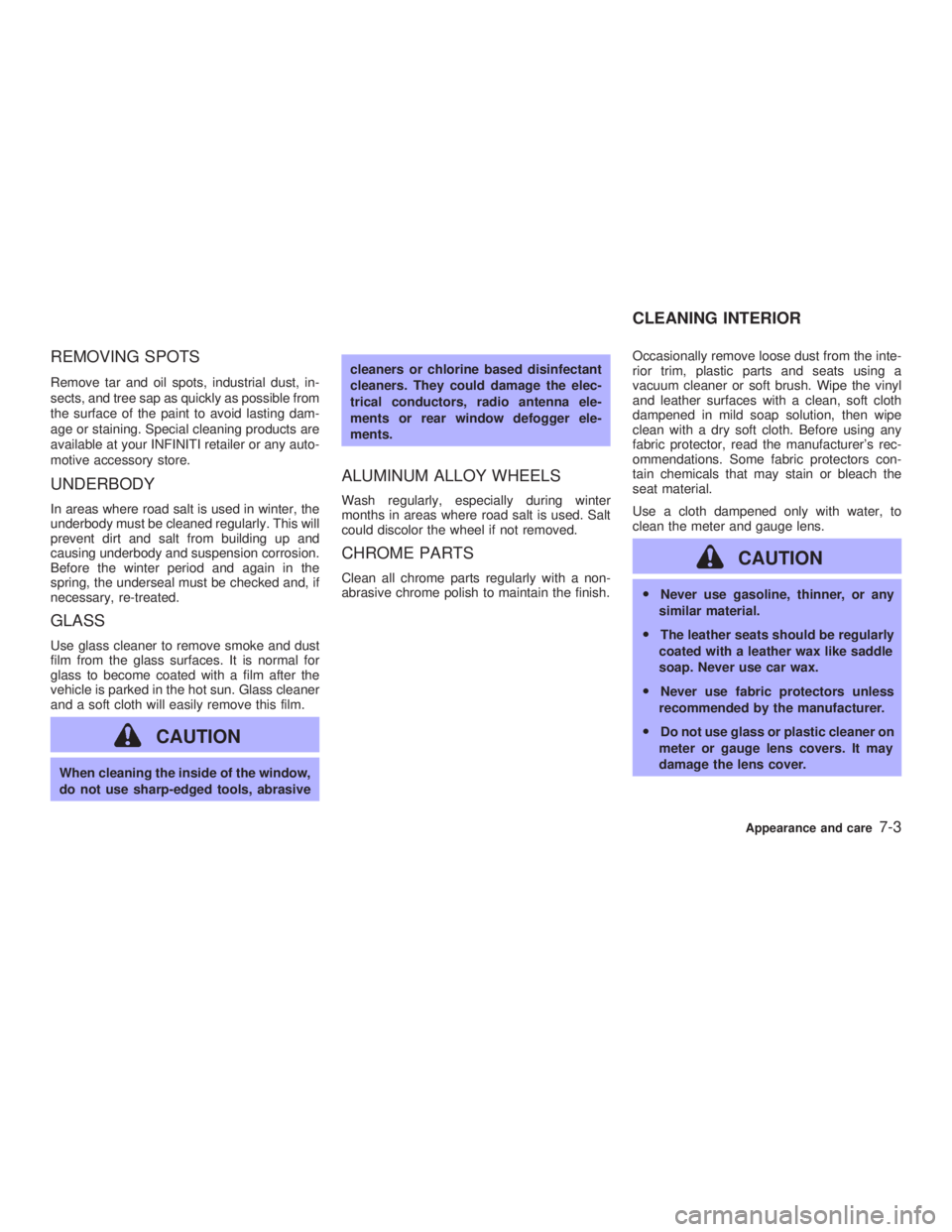

REMOVING SPOTS Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the surface of the paint to avoid lasting dam-
age or staining. Special cleaning products are
available at your INFINITI retailer or any auto-
motive accessory store.
UNDERBODY In areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing underbody and suspension corrosion.
Before the winter period and again in the
spring, the underseal must be checked and, if
necessary, re-treated.
GLASS Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.
CAUTIONWhen cleaning the inside of the window,
do not use sharp-edged tools, abrasive cleaners or chlorine based disinfectant
cleaners. They could damage the elec-
trical conductors, radio antenna ele-
ments or rear window defogger ele-
ments.
ALUMINUM ALLOY WHEELS Wash regularly, especially during winter
months in areas where road salt is used. Salt
could discolor the wheel if not removed.
CHROME PARTS Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish. Occasionally remove loose dust from the inte-
rior trim, plastic parts and seats using a
vacuum cleaner or soft brush. Wipe the vinyl
and leather surfaces with a clean, soft cloth
dampened in mild soap solution, then wipe
clean with a dry soft cloth. Before using any
fabric protector, read the manufacturer's rec-
ommendations. Some fabric protectors con-
tain chemicals that may stain or bleach the
seat material.
Use a cloth dampened only with water, to
clean the meter and gauge lens.
CAUTION O Never use gasoline, thinner, or any
similar material.
O The leather seats should be regularly
coated with a leather wax like saddle
soap. Never use car wax.
O Never use fabric protectors unless
recommended by the manufacturer.
O Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.CLEANING INTERIOR
Appearance and care
7-3
Z 02.7.29/V35-D/V5.0
X

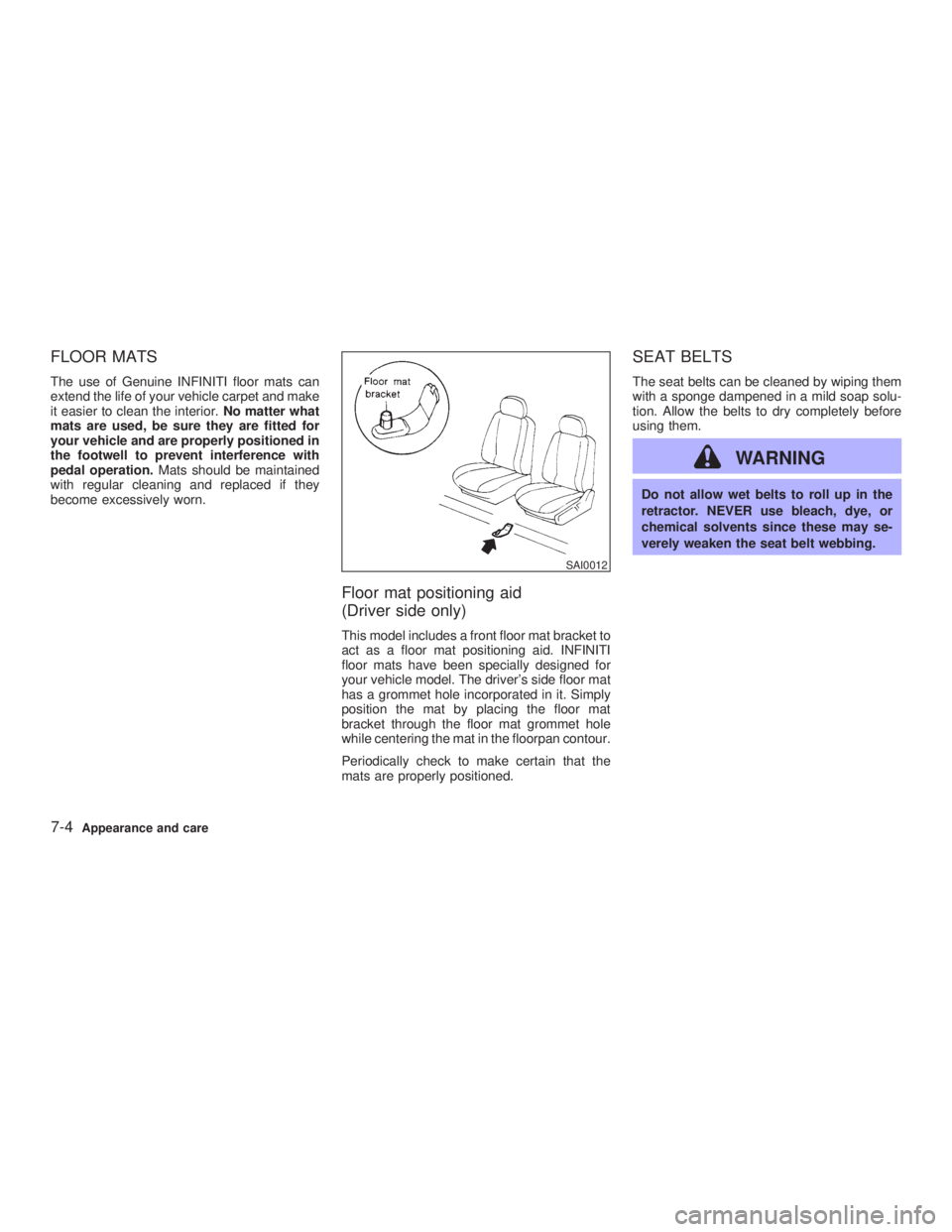

FLOOR MATS The use of Genuine INFINITI floor mats can
extend the life of your vehicle carpet and make
it easier to clean the interior. No matter what
mats are used, be sure they are fitted for
your vehicle and are properly positioned in
the footwell to prevent interference with
pedal operation. Mats should be maintained
with regular cleaning and replaced if they
become excessively worn.
Floor mat positioning aid
(Driver side only) This model includes a front floor mat bracket to
act as a floor mat positioning aid. INFINITI
floor mats have been specially designed for
your vehicle model. The driver's side floor mat
has a grommet hole incorporated in it. Simply
position the mat by placing the floor mat
bracket through the floor mat grommet hole
while centering the mat in the floorpan contour.
Periodically check to make certain that the
mats are properly positioned. SEAT BELTS The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solu-
tion. Allow the belts to dry completely before
using them.
WARNING Do not allow wet belts to roll up in the
retractor. NEVER use bleach, dye, or
chemical solvents since these may se-
verely weaken the seat belt webbing. SAI0012
7-4 Appearance and care
Z 02.7.29/V35-D/V5.0
X
