2003 INFINITI G35 Owners Manual

Forward and backward Pull the lever up while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining To recline the seatback, pull the lever up and
lean back. To bring the seatback forward
again, pull the lever and move your body
forward. The seatback will move forward.
Seat lifter (if so equipped for driver's
seat) Turn either dial to adjust the angle and height
of the seat cushion to the desired position. SSS0169 SSS0168
Seats, restraints and supplemental air bag systems
1-3
Z 02.7.29/V35-D/V5.0
X

FRONT POWER SEAT
ADJUSTMENT (if so equipped)
WARNINGO Do not adjust the driver's seat while
driving so full attention may be given
to vehicle operation.
O Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls.
Unattended children could become
involved in serious accidents.
Operating tips O The seat motor has an auto-reset overload
protection circuit. If the motor stops during
operation, wait 30 seconds, then reactivate
the switch.
O Do not operate the power seat for a long
period of time when the engine is off. This
will discharge the battery.
See ªAutomatic seat positionerº in the ª3.
Pre-driving checks and adjustmentsº for auto-
matic seat positioner operation. Forward and backward (Sedan) Moving the switch forward or backward will
slide the seat forward or backward to the
desired position.
Reclining (Sedan) Move the recline switch backward until the
desired angle is obtained. To bring the seat-
back forward again, move the switch forward
and move your body forward. The seatback
will move forward. SSS0182
1-4 Seats, restraints and supplemental air bag systems
Z 02.7.29/V35-D/V5.0
X

Forward and backward (Coupe) Moving the switch forward or backward will
slide the seat forward or backward to the
desired position.
Reclining (Coupe) To recline the seatback, pull the lever up and
lean back. To bring the seatback forward
again, pull the lever up and move your body
forward. The seatback will move forward.
Seatback lever (Coupe, front
passenger side) The seatback lever can be used in the same
way as the reclining lever on the side of the
seat from the driver's seat.
Walk-in mechanism (Coupe) O When the seatback lever or the reclining
lever on the side of the seat is pulled
upward, the seatback of the front passen-
ger seat will tilt down moving the seat
forward. This makes it easier to get in and
out of the rear seat. SSS0217 SSS0218
Seats, restraints and supplemental air bag systems
1-5
Z 02.7.29/V35-D/V5.0
X

O To return the seat to its original position,
raise the seatback and lock the seat. The
seat will return to its original position.
O The front passenger seat will stop at 7 in
(175 mm) from its frontmost position to
retain space for the rear passenger.
CAUTIONO When returning the seat to its original
position, confirm the seat and seat-
back are locked properly.
O Be careful not to pinch your hand or
foot or bump your head when operat-
ing the walk-in seat. The seatback will
fold down rapidly.
O Do not put any objects in front or rear
of the seat. They may be pinched and
damaged.
The automatic forwarding and reversing will
not work or stop under the following condi-
tions:
O When the vehicle speed is above 4 MPH (7
km/h).
O When the seat belt is fastened. O When the selector lever is not in the P
(Park) position (Automatic transmission
model's driver's seat) or the parking brake
is not applied (Manual transmission mod-
el's driver's seat)
O When the door is closed.
O When the slide adjusting switch is oper-
ated.
Seat lifter (Driver's seat) Pull the switch up or push it down to adjust the
angle and height of the seat cushion. SSS0183
1-6 Seats, restraints and supplemental air bag systems
Z 02.7.29/V35-D/V5.0
X

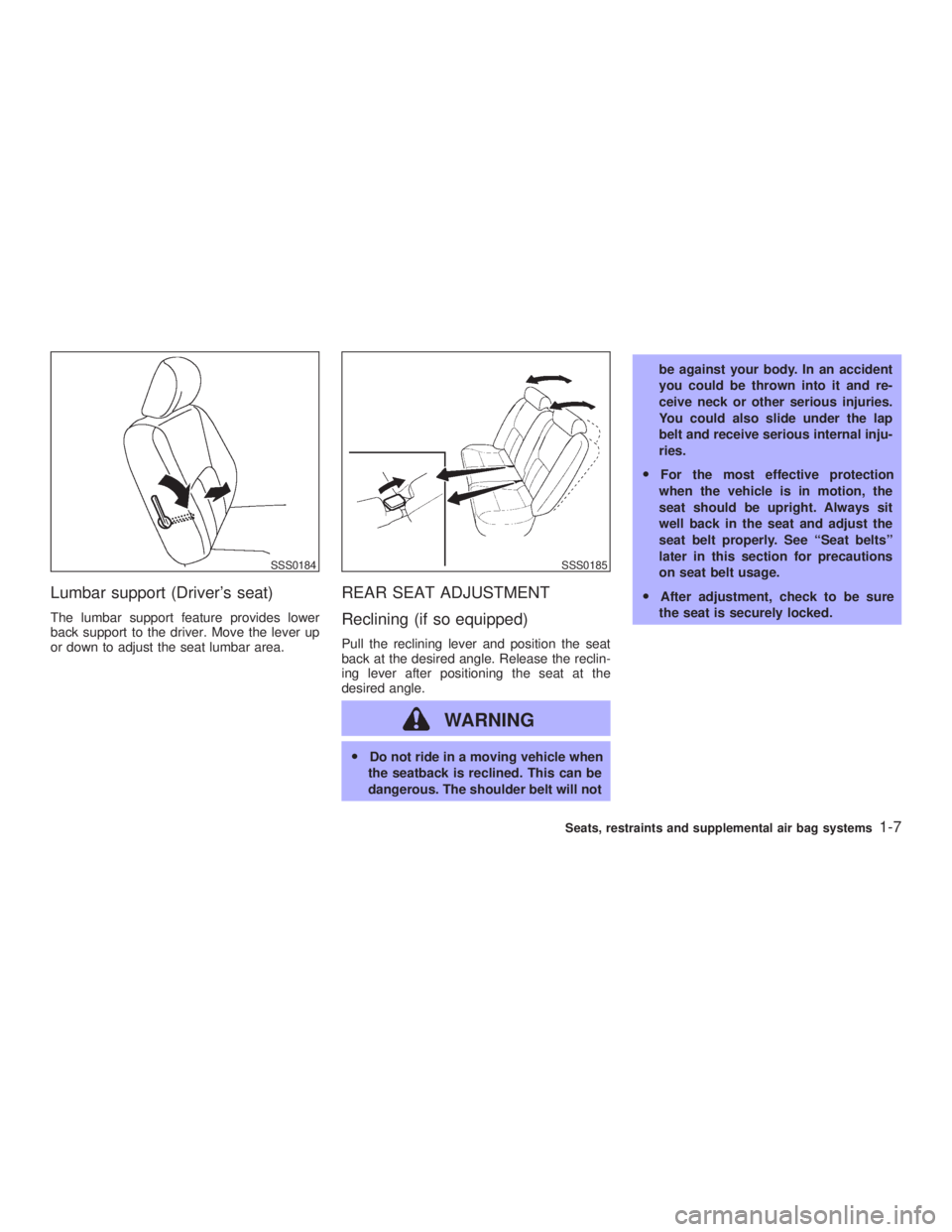

Lumbar support (Driver's seat) The lumbar support feature provides lower
back support to the driver. Move the lever up
or down to adjust the seat lumbar area.
REAR SEAT ADJUSTMENT
Reclining (if so equipped) Pull the reclining lever and position the seat
back at the desired angle. Release the reclin-
ing lever after positioning the seat at the
desired angle.
WARNING O Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not be against your body. In an accident
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal inju-
ries.
O For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat and adjust the
seat belt properly. See ªSeat beltsº
later in this section for precautions
on seat belt usage.
O After adjustment, check to be sure
the seat is securely locked.SSS0184 SSS0185
Seats, restraints and supplemental air bag systems
1-7
Z 02.7.29/V35-D/V5.0
X

Armrest (if so equipped) Pull the armrest forward until it is horizontal. Interior trunk access Sedan:
Pull the partition down to access the trunk from
the rear seat.
The partition can be locked using the mas-
ter key to prevent unauthorized access.
Remove the key while opening or closing the
partition. Otherwise, the partition may be dam-
aged. Coupe:
Pull the handle on the left side of the trunk and
push the seatback forward to access the trunk
from the rear seat.
WARNING Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury.SSS0186 SSS0187 SSS0219
1-8 Seats, restraints and supplemental air bag systems
Z 02.7.29/V35-D/V5.0
X

When raising the seatback, make sure to lock
the seatback. The pop up knob on the seat-
back will latch in when the seatback is locked.
HEAD RESTRAINT ADJUSTMENT To raise the head restraint, just pull it up. To
lower, push the lock knob and push the head
restraint down.SSS0220 SSS0236 SSS0125
Seats, restraints and supplemental air bag systems
1-9
Z 02.7.29/V35-D/V5.0
X

Adjust the head restraints so the center is level
with the center of your ears.
WARNINGHead restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust-
ment after someone else uses the seat. ACTIVE HEAD RESTRAINT (front
seats)
WARNING O Always adjust the head restraints
properly as specified in the previous
section. Failure to do so can reduce
the effectiveness of the active head
restraint. O Active head restraints are designed
to supplement other safety systems.
Always wear seat belts. No system
can prevent all injuries in any acci-
dent.
O Do not attach anything to the head
restraint stalks. Doing so could im-
pair active head restraint function.
The head restraint moves forward utilizing the
force that the seatback receives from the oc-
cupant in a rear-end collision. The movement
of the head restraint helps support the occu-
pant's head by reducing its backward move-
ment and helping absorb some of the forces
that may lead to whiplash type injuries.
Active head restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash injury occurs most.
Active head restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.
Properly adjust the active head restraints as
described in the previous section.SSS0178 SPA1025
1-10 Seats, restraints and supplemental air bag systems
Z 02.7.29/V35-D/V5.0
X
