2003 INFINITI G35 Owners Manual

CAUTIONO Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your pas-
senger.
O Use only soft cups in the cup holder.
Hard objects can injure you in an
accident. Soft bottle holder
CAUTION The bottle holder should not be used
while driving so full attention may be
given to vehicle operation.
GLOVE BOX When locking or unlocking the glove box, use
the master key.
The glove box may be opened by pulling the
handle.
WARNING Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.SIC1846 SIC2028 SIC1849
Instruments and controls
2-27
Z 02.7.29/V35-D/V5.0
X

UPPER GLOVE BOX (Except for
Navigation system equipped
models)
WARNINGKeep upper glove box lid closed while
driving to help prevent injury in an acci-
dent or a sudden stop. CONSOLE BOX
WARNING The center console box should not be
used while driving so full attention may
be given to vehicle operation.SIC1848 SIC1847A SIC2027
2-28 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

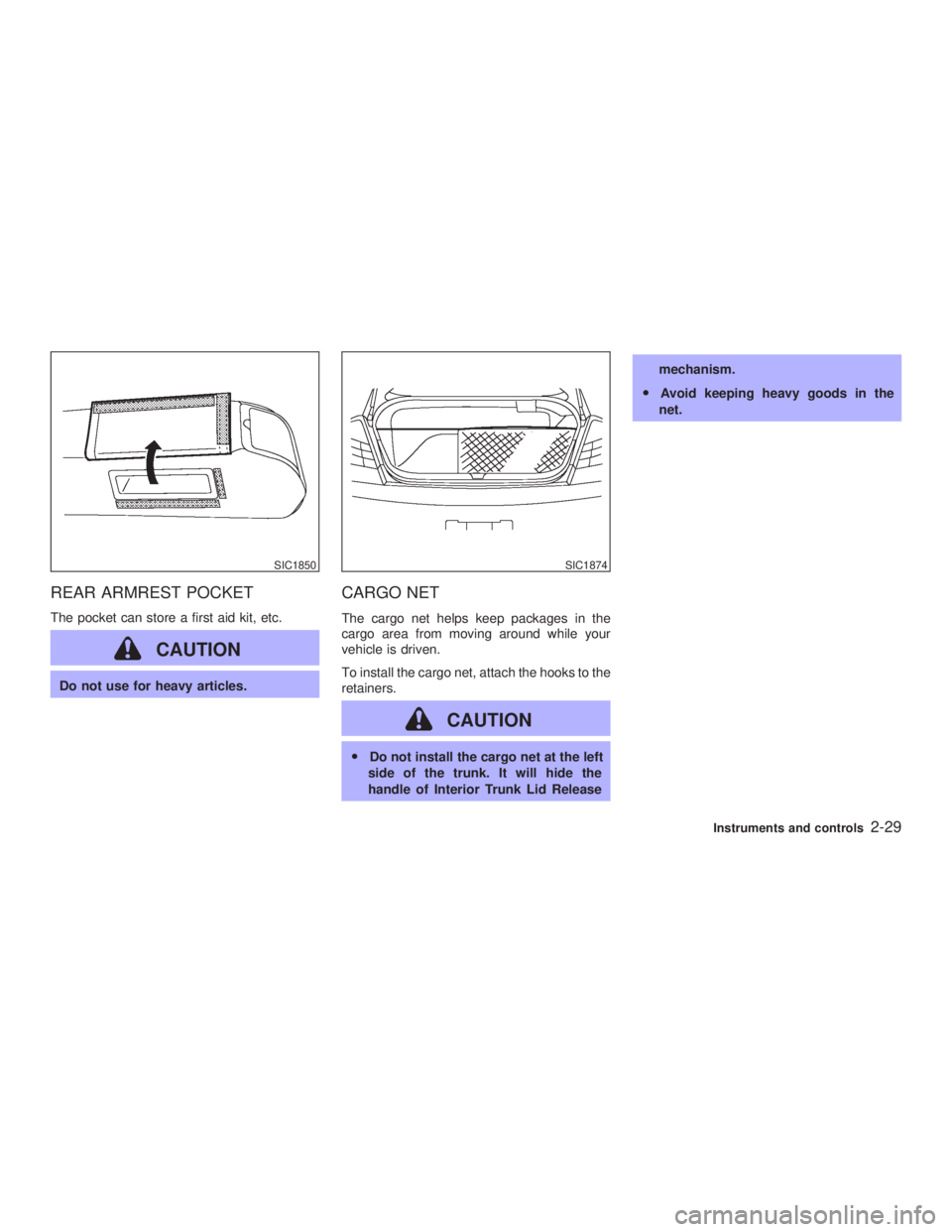

REAR ARMREST POCKET The pocket can store a first aid kit, etc.
CAUTIONDo not use for heavy articles.
CARGO NET The cargo net helps keep packages in the
cargo area from moving around while your
vehicle is driven.
To install the cargo net, attach the hooks to the
retainers.
CAUTION O Do not install the cargo net at the left
side of the trunk. It will hide the
handle of Interior Trunk Lid Release mechanism.
O Avoid keeping heavy goods in the
net.
SIC1850 SIC1874
Instruments and controls
2-29
Z 02.7.29/V35-D/V5.0
X

Small cargo net (Sedan for Canada) COAT HOOK (Coupe)
CAUTION Avoid hanging heavy goods on the
hook.
STOWING GOLF BAGS Normally, two standard golf bags can be
stowed in the trunk. Insert the top of the golf
bag into left side of the trunk room
j 1
then put
the bag forward
j 2
. Insert the top of the 2nd
golf bag into right side of the trunk room
j 3
and
pull it in all the way
j 4
.
Depending on their sizes, in some cases it
may not be possible to store two golf bags.SIC2078 SIC2077 SIC2031
2-30 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

POWER WINDOWS
WARNINGO Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before clos-
ing the windows. Use the window
lock switch to prevent unexpected
use of the power windows. O Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
and become trapped in a window.
Unattended children could become
involved in serious accidents.
The power windows operate when the ignition
key is in the ON position and for about 45
seconds, after the ignition key is turned to the
OFF position. If the driver's door or the front
passenger's door is opened during this period
of about 45 seconds, power to the windows is
canceled. To open or close the window, push down or
pull up the switch and hold it. The main switch
(driver side switches) will open or close all the
windows.
SIC1851A SIC1978A
WINDOWS
Instruments and controls
2-31
Z 02.7.29/V35-D/V5.0
X

The passenger side switch will open or close
only the corresponding window. To open or
close the window, hold the switch down or up.
Locking passenger's windows When the lock button is pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Automatic operation (For all door
windows or front door windows, if so
equipped) To fully open or close the window, completely
press or lift the switch and release it; it need
not be held. The window will automatically
open or close all the way. To stop the window,
just press or lift the switch in the opposite
direction.
Auto reverse function If the control unit detects something caught in
a window as it moves up, the window will be
immediately lowered.SIC1852A SIC1892B SIC1853A
2-32 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

The auto reverse function can be activated
when a window is closed by automatic opera-
tion when the ignition key is in the ON position,
or for about 45 seconds after the ignition key is
turned to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs. WARNING There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the win-
dow.
AUTOMATIC ADJUSTING
FUNCTION (Coupe)
CAUTION When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work,
and the side roof panel may be dam-
aged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to
avoid contact between the window and the
side roof panel. When the door is closed, the
window is automatically raised slightly. AUTOMATIC SUNROOF The sunroof will only operate when the ignition
key is in the ON position.
The automatic sunroof is operational for about
45 seconds, even if the ignition key is turned to
the OFF position. If the driver's door or the
front passenger's door is opened during this
period of about 45 seconds, power to the
sunroof is canceled.
Sliding the sunroof To fully open or close the sunroof, press the
switch to the CLOSE or OPEN side for less
than 1 second and release it; it need not beSIC1979A SIC1854
SUNROOF (if so equipped)
Instruments and controls
2-33
Z 02.7.29/V35-D/V5.0
X

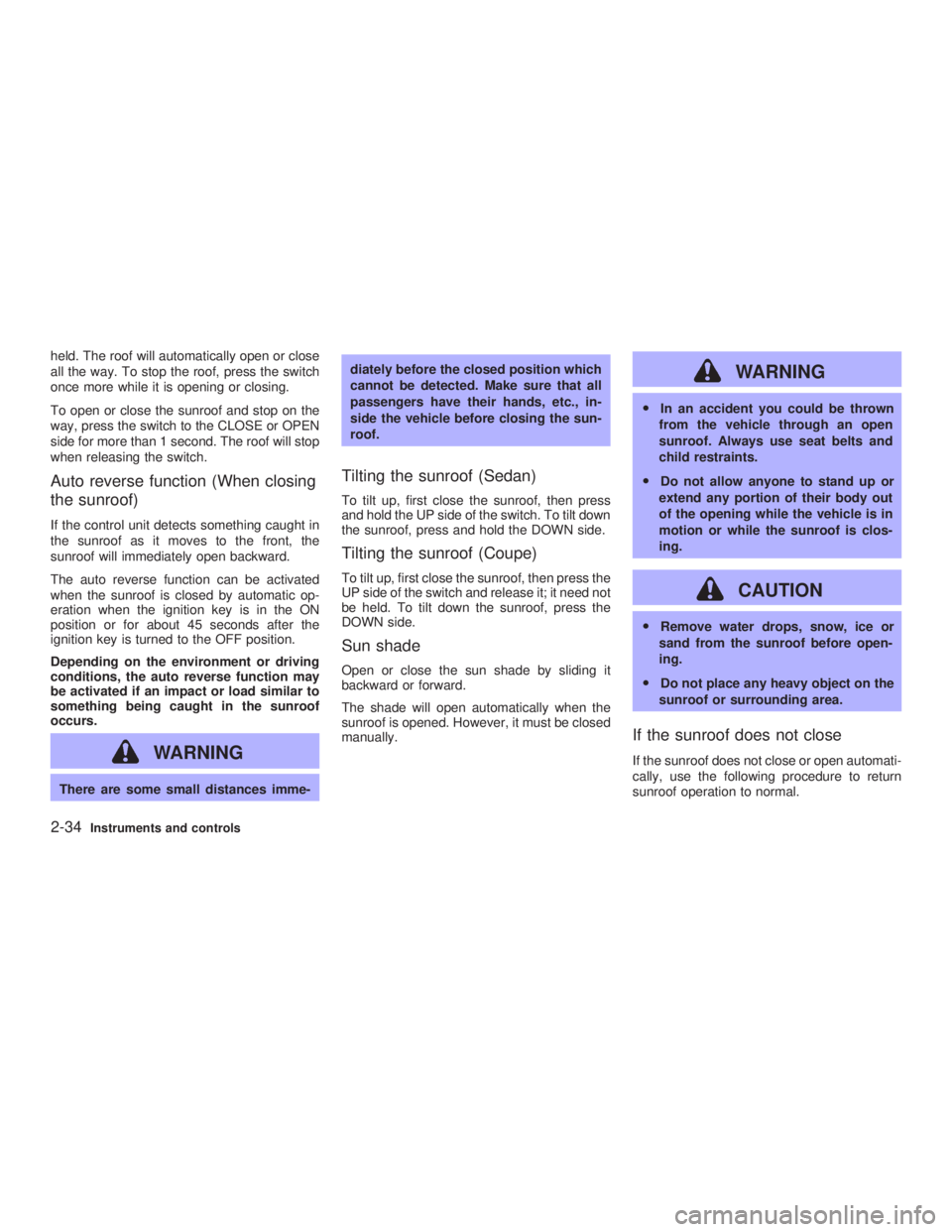

held. The roof will automatically open or close
all the way. To stop the roof, press the switch
once more while it is opening or closing.
To open or close the sunroof and stop on the
way, press the switch to the CLOSE or OPEN
side for more than 1 second. The roof will stop
when releasing the switch.
Auto reverse function (When closing
the sunroof) If the control unit detects something caught in
the sunroof as it moves to the front, the
sunroof will immediately open backward.
The auto reverse function can be activated
when the sunroof is closed by automatic op-
eration when the ignition key is in the ON
position or for about 45 seconds after the
ignition key is turned to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the sunroof
occurs.
WARNINGThere are some small distances imme- diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the sun-
roof.
Tilting the sunroof (Sedan) To tilt up, first close the sunroof, then press
and hold the UP side of the switch. To tilt down
the sunroof, press and hold the DOWN side.
Tilting the sunroof (Coupe) To tilt up, first close the sunroof, then press the
UP side of the switch and release it; it need not
be held. To tilt down the sunroof, press the
DOWN side.
Sun shade Open or close the sun shade by sliding it
backward or forward.
The shade will open automatically when the
sunroof is opened. However, it must be closed
manually. WARNING O In an accident you could be thrown
from the vehicle through an open
sunroof. Always use seat belts and
child restraints.
O Do not allow anyone to stand up or
extend any portion of their body out
of the opening while the vehicle is in
motion or while the sunroof is clos-
ing.
CAUTION O Remove water drops, snow, ice or
sand from the sunroof before open-
ing.
O Do not place any heavy object on the
sunroof or surrounding area.
If the sunroof does not close If the sunroof does not close or open automati-
cally, use the following procedure to return
sunroof operation to normal.
2-34 Instruments and controls
Z 02.7.29/V35-D/V5.0
X
