ing condition should get fresh air promptly.
Supplemental front air bags, along with the
use of seat belts, helps to cushion the impact
force on the face and chest of the front occu-
pants. They can help save lives and reduce
serious injuries. However, an inflating front air
bag may cause facial abrasions or other inju-
ries. Front air bags do not provide restraint to
the lower body.
The seat belts should be correctly worn and
the driver and passenger seated upright as far
as practical away from the steering wheel or
instrument panel. The supplemental front air
bags inflates quickly in order to help protect
the front occupants. Because of this, the force
of the front air bag inflating can increase the
risk of injury if the occupant is too close to, or
is against, the air bag module during inflation.
The air bag will deflate quickly after the colli-
sion is over.
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational. WARNING O Do not place any objects on the steer-
ing wheel pad or on the instrument
panel. Also, do not place any objects
between any occupant and the steer-
ing wheel or instrument panel. Such
objects may become dangerous pro-
jectiles and cause injury if the supple-
mental front air bag inflates.
O Right after inflation, several air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.
O No unauthorized changes should be
made to any components or wiring of
the supplemental front air bag sys-
tem. This is to prevent accidental
inflation of the air bag or damage to
the air bag system.
O Do not make unauthorized changes
to your vehicle's electrical system,
suspension system or front end
structure. This could affect proper operation of the supplemental air bag
system.
O Tampering with the supplemental
front air bag system may result in
serious personal injury. Tampering
includes changes to the steering
wheel and the instrument panel as-
sembly by placing material over the
steering wheel pad, above the dash-
board, or by installing additional trim
material around the air bag system.
O Work around and on the supplemen-
tal front air bag system should be
done by an authorized INFINITI re-
tailer. Installation of electrical equip-
ment should also be done by an au-
thorized INFINITI retailer. The yellow
and orange Supplemental Restraint
System (SRS) wiring and connectors
should not be modified or discon-
nected. Unauthorized electrical test
equipment and probing devices
should not be used on the air bag
system.
Seats, restraints and supplemental air bag systems
1-19
Z 02.7.29/V35-D/V5.0
X

O A cracked windshield should be re-
placed immediately by a qualified re-
pair facility. A cracked windshield
could affect inflation of the supple-
mental air bag system.
O The SRS wiring harness connectors
are yellow and orange for easy iden-
tification.
When selling your vehicle, we request that you
inform the buyer about the supplemental front
air bag system and guide the buyer to the
appropriate sections in this Owner's Manual.
Supplemental side air bag and
curtain side-impact air bag systems The supplemental side air bags are located in
the outside of the seatback of the front seats.
The supplemental curtain side-impact air bags
are located in the side roof rails. These sys-
tems are designed to meet voluntary guide-
lines to help reduce the risk of injury to out-of-
position occupants. However, all of the
information, cautions and warnings in this
manual still apply and must be followed.
The supplemental side air bags and curtain
side-impact air bags are designed to inflate in
higher severity side collisions on the side of the vehicle impacted, although they may in-
flate if the forces in another type of collision are
similar to those of a higher severity side im-
pact. They are designed to inflate on the side
where the vehicle is impacted. They may not
inflate in certain side collisions. Vehicle dam-
age (or lack of it) is not always an indication of
proper supplemental side air bag and curtain
side-impact air bag operation.
When the supplemental side air bag and cur-
tain side-impact air bag inflate, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken not to
inhale it, as it may cause irritation and choking.
Those with a history of a breathing condition
should get fresh air promptly.
Supplemental side air bags, along with the use
of seat belts, help to cushion the impact force
on the chest of the front occupants. Curtain
side-impact air bags help to cushion the im-
pact force to the head of occupants in the front
and rear outboard seating positions. They can
help save lives and reduce serious injuries.
However, an inflating side air bag and curtain
side-impact air bag may cause abrasions or
other injuries. Supplemental side air bags and
curtain side-impact air bags do not provide
restraint to the lower body.
The seat belts should be correctly worn and SSS0190
1-20 Seats, restraints and supplemental air bag systems
Z 02.7.29/V35-D/V5.0
X

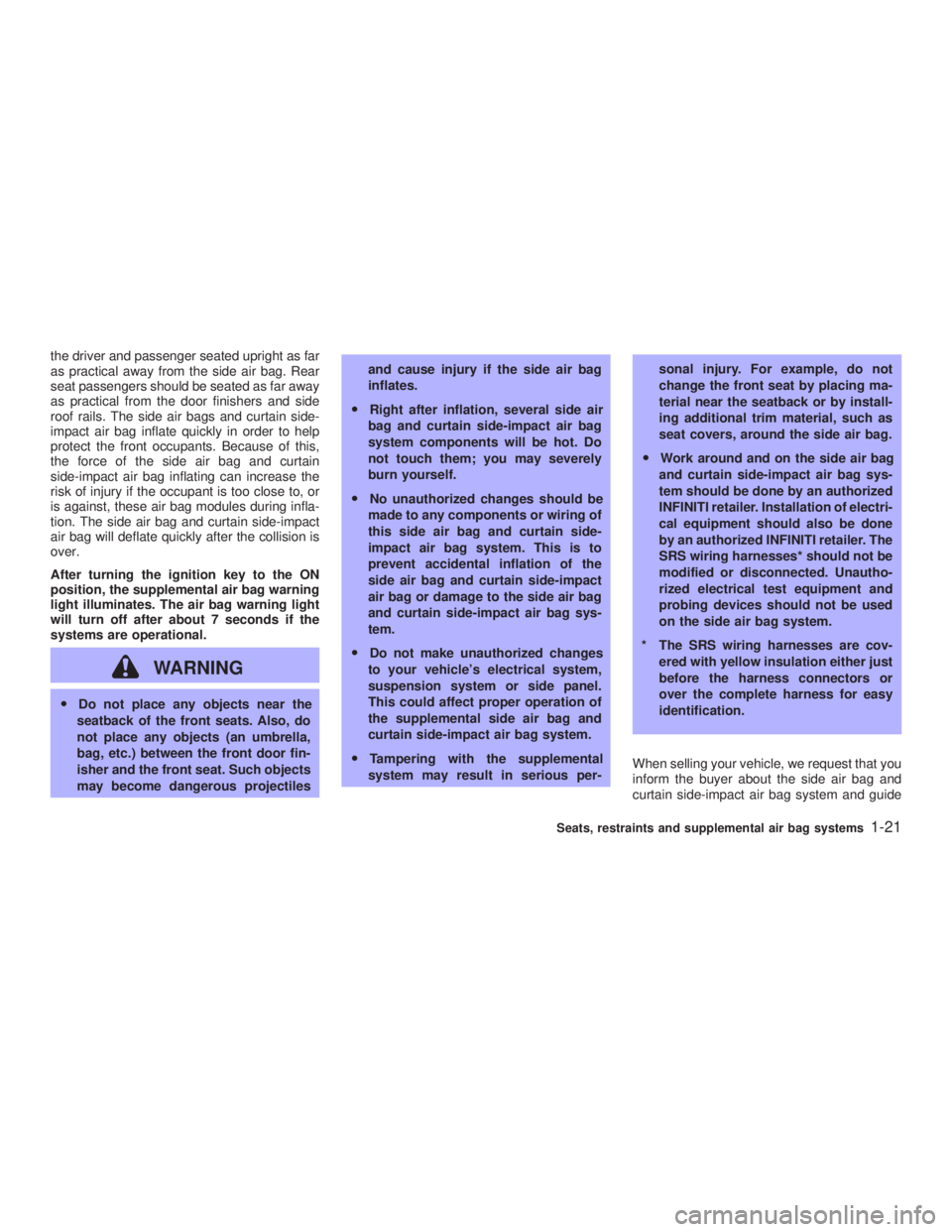

the driver and passenger seated upright as far
as practical away from the side air bag. Rear
seat passengers should be seated as far away
as practical from the door finishers and side
roof rails. The side air bags and curtain side-
impact air bag inflate quickly in order to help
protect the front occupants. Because of this,
the force of the side air bag and curtain
side-impact air bag inflating can increase the
risk of injury if the occupant is too close to, or
is against, these air bag modules during infla-
tion. The side air bag and curtain side-impact
air bag will deflate quickly after the collision is
over.
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.
WARNINGO Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles and cause injury if the side air bag
inflates.
O Right after inflation, several side air
bag and curtain side-impact air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.
O No unauthorized changes should be
made to any components or wiring of
this side air bag and curtain side-
impact air bag system. This is to
prevent accidental inflation of the
side air bag and curtain side-impact
air bag or damage to the side air bag
and curtain side-impact air bag sys-
tem.
O Do not make unauthorized changes
to your vehicle's electrical system,
suspension system or side panel.
This could affect proper operation of
the supplemental side air bag and
curtain side-impact air bag system.
O Tampering with the supplemental
system may result in serious per- sonal injury. For example, do not
change the front seat by placing ma-
terial near the seatback or by install-
ing additional trim material, such as
seat covers, around the side air bag.
O Work around and on the side air bag
and curtain side-impact air bag sys-
tem should be done by an authorized
INFINITI retailer. Installation of electri-
cal equipment should also be done
by an authorized INFINITI retailer. The
SRS wiring harnesses* should not be
modified or disconnected. Unautho-
rized electrical test equipment and
probing devices should not be used
on the side air bag system.
* The SRS wiring harnesses are cov-
ered with yellow insulation either just
before the harness connectors or
over the complete harness for easy
identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain side-impact air bag system and guide
Seats, restraints and supplemental air bag systems
1-21
Z 02.7.29/V35-D/V5.0
X

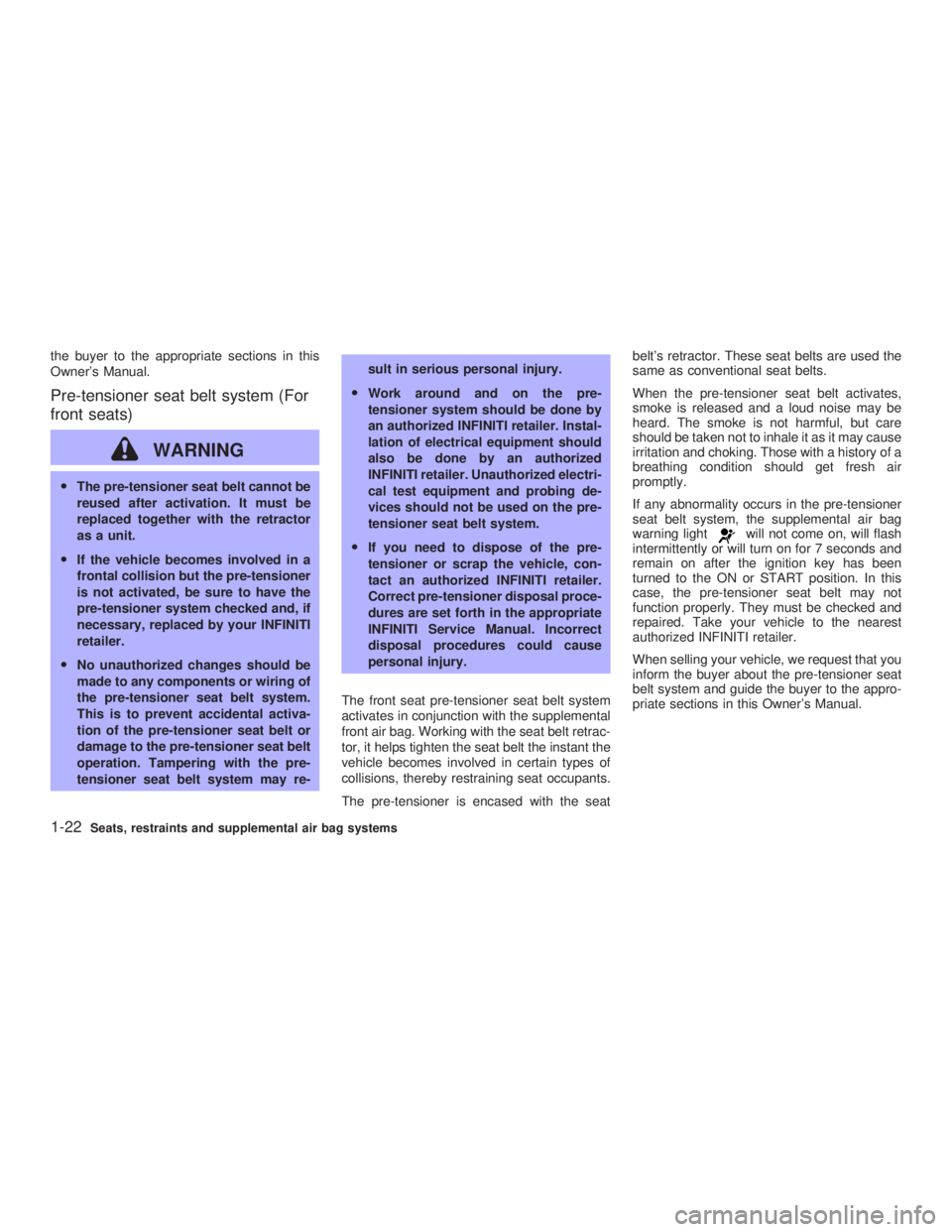

the buyer to the appropriate sections in this
Owner's Manual.
Pre-tensioner seat belt system (For
front seats)
WARNINGO The pre-tensioner seat belt cannot be
reused after activation. It must be
replaced together with the retractor
as a unit.
O If the vehicle becomes involved in a
frontal collision but the pre-tensioner
is not activated, be sure to have the
pre-tensioner system checked and, if
necessary, replaced by your INFINITI
retailer.
O No unauthorized changes should be
made to any components or wiring of
the pre-tensioner seat belt system.
This is to prevent accidental activa-
tion of the pre-tensioner seat belt or
damage to the pre-tensioner seat belt
operation. Tampering with the pre-
tensioner seat belt system may re- sult in serious personal injury.
O Work around and on the pre-
tensioner system should be done by
an authorized INFINITI retailer. Instal-
lation of electrical equipment should
also be done by an authorized
INFINITI retailer. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the pre-
tensioner seat belt system.
O If you need to dispose of the pre-
tensioner or scrap the vehicle, con-
tact an authorized INFINITI retailer.
Correct pre-tensioner disposal proce-
dures are set forth in the appropriate
INFINITI Service Manual. Incorrect
disposal procedures could cause
personal injury.
The front seat pre-tensioner seat belt system
activates in conjunction with the supplemental
front air bag. Working with the seat belt retrac-
tor, it helps tighten the seat belt the instant the
vehicle becomes involved in certain types of
collisions, thereby restraining seat occupants.
The pre-tensioner is encased with the seat belt's retractor. These seat belts are used the
same as conventional seat belts.
When the pre-tensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful, but care
should be taken not to inhale it as it may cause
irritation and choking. Those with a history of a
breathing condition should get fresh air
promptly.
If any abnormality occurs in the pre-tensioner
seat belt system, the supplemental air bag
warning light
will not come on, will flash
intermittently or will turn on for 7 seconds and
remain on after the ignition key has been
turned to the ON or START position. In this
case, the pre-tensioner seat belt may not
function properly. They must be checked and
repaired. Take your vehicle to the nearest
authorized INFINITI retailer.
When selling your vehicle, we request that you
inform the buyer about the pre-tensioner seat
belt system and guide the buyer to the appro-
priate sections in this Owner's Manual.
1-22 Seats, restraints and supplemental air bag systems
Z 02.11.7/V35-D/V5.0
X

SUPPLEMENTAL AIR BAG
WARNING LABELS Warning labels about the supplemental air bag
system are placed in the vehicle as shown in
the illustration.
SUPPLEMENTAL AIR BAG
WARNING LIGHT The supplemental air bag warning light, dis-
playing in the instrument panel, monitors
the circuits of the supplemental front air bag,
supplemental side air bag and curtain side-
impact air bag systems, and pre-tensioner
seat belt. The circuits monitored by the air bag
warning light are the diagnosis sensor unit,
satellite sensors, front air bag modules, side
air bag modules, curtain side-impact air bag
modules, pre-tensioner seatbelt and all related
wiring.
After turning the ignition key to the ON posi- SPA0945B SPA1097
Seats, restraints and supplemental air bag systems
1-23
Z 02.7.29/V35-D/V5.0
X

tion, the supplemental air bag warning light
illuminates. The supplemental air bag warning
light will turn off after about 7 seconds if the
system is operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side
air bag and curtain side-impact air bag sys-
tems, and pre-tensioner seat belt need servic-
ing:
O The supplemental air bag warning light
remains on after approximately 7 seconds.
O The supplemental air bag warning light
flashes intermittently.
O The supplemental air bag warning light
does not come on at all.
Under these conditions, the supplemental front
air bags, supplemental side air bags, curtain
side-impact air bags and/or pre-tensioner seat
belt may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest authorized INFINITI retailer.
WARNINGIf the supplemental air bag warning light
is on, it could mean that the supplemen- tal front air bag, supplemental side air
bag, curtain side-impact air bag sys-
tems and/or pretensioner seat belt
will not operate in an accident.
Repair and replacement procedure The supplemental front air bags, supplemental
side air bags, curtain side-impact air bags and
pre-tensioner seat belts are designed to acti-
vate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light will remain illuminated after infla-
tion has occurred. Repair and replacement of
these systems should be done only by an
authorized INFINITI retailer.
When maintenance work is required on the
vehicle, the supplemental front air bags, side
air bags, curtain side-impact air bags, related
parts and pre-tensioner seat belt should be
pointed out to the person conducting the main-
tenance. The ignition key should always be in
the LOCK position when working under the
hood or inside the vehicle. WARNING O Once the supplemental front air bag,
side air bag or curtain side-impact air
bag has inflated, the air bag module
will not function again and must be
replaced. Additionally, if any of the
supplemental front air bags inflate,
the activated pre-tensioner seat belt
must also be replaced. The air bag
module and pre-tensioner seat belt
system should be replaced by an au-
thorized INFINITI retailer. The air bag
modules and pre-tensioner seat belt
system cannot be repaired.
O The supplemental front air bag and
side air bag, curtain side-impact air
bag systems and pre-tensioner seat
belt system should be inspected by
an authorized INFINITI retailer if there
is any damage to the front end or side
portion of the vehicle.
O If you need to dispose of these
supplemental systems or scrap the
vehicle, contact an authorized
INFINITI retailer.
1-24 Seats, restraints and supplemental air bag systems
Z 02.7.29/V35-D/V5.0
X

Correct disposal procedures are set
forth in the appropriate INFINITI Ser-
vice Manual. Incorrect disposal pro-
cedures could cause personal injury.
PRECAUTIONS ON SEAT BELT
USAGE Your chances of being injured or killed in an
accident and/or the severity of injury may be
greatly reduced if you are wearing your seat
belt and it is properly adjusted. INFINITI
strongly encourages you and all of your pas-
sengers to buckle up every time you drive,
even if your seating position includes a supple-
mental air bag.
Most states, provinces or territories require
that seat belts be worn at all times when a
vehicle is being driven.SEAT BELTS
Seats, restraints and supplemental air bag systems
1-25
Z 02.7.29/V35-D/V5.0
X

WARNINGO Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be properly
restrained and, if appropriate, in a
child restraint.
O The belt should be properly adjusted
to a snug fit. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the chance or severity of injury in an
accident. Serious injury or death can
occur if the seat belt is not worn
properly.
O Always route the shoulder belt over
your shoulder and across your chest.
Never run the belt behind your back
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder. O Position the lap belt as low and snug
as possible around the hips, not the
waist. A lap belt worn too high could
increase the risk of internal injuries in
an accident.
O Be sure the seat belt tongue is se-
curely fastened to the proper buckle.
O Do not wear the belt inside out or
twisted. Doing so may reduce its ef-
fectiveness.
O Do not allow more than one person to
use the same belt.
O Never carry more people in the ve-
hicle than there are seat belts.
O If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may indicate
a malfunction in the system. Have the
system checked by an authorized
INFINITI retailer.
O Once the pre-tensioner seat belt has
activated, it cannot be reused and
must be replaced together with the SSS0136
1-26 Seats, restraints and supplemental air bag systems
Z 02.7.29/V35-D/V5.0
X
