2003 INFINITI G35 Owners Manual

CAUTIONRunning the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as soon
as it is safe to do so.
Low washer fluid warning
lightThis light comes on when the washer tank fluid
is at a low level. Add washer fluid as neces-
sary. See ªWindow washer fluidº in the ª8.
Do-it-yourselfº section.
Seat belt warning light and
chimeThe light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion key is turned to ON, and will remain
illuminated until the driver's seat belt is fas-
tened.
See ªSeat beltsº in the ª1. Seats, restraints and
supplemental air bag systemsº section for pre-
cautions on seat belt usage. Supplemental air bag warning
light After turning the ignition key to the ON posi-
tion, the supplemental air bag warning light will
illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
system is operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side
air bag and curtain side-impact air bag sys-
tems, and pre-tensioner seat belt need servic-
ing and your vehicle must be taken to your
nearest authorized INFINITI retailer.
O The supplemental air bag warning light
remains on after approximately 7 seconds.
O The supplemental air bag warning light
flashes intermittently.
O The supplemental air bag warning light
does not come on at all.
Unless checked and repaired, the Supplemen-
tal Restraint System and/or the pre-tensioner
seat belt may not function properly. For addi-
tional information, see ªSupplemental restraint
systemº in the ª1. Seats, restraints and supple-
mental air bag systemsº section. WARNING If the supplemental air bag warning light
is on, it could mean that the supplemen-
tal front air bag, supplemental side air
bag and curtain side-impact air bag sys-
tems and/or pre-tensioner seat belt sys-
tem will not operate in an accident.
INDICATOR LIGHTS
or Automatic
transmission
position indicator
light When the ignition key is turned to the ON
position, the indicator in the tachometer shows
the automatic transmission selector lever po-
sition. See ªDriving with automatic transmis-
sionº in the ª5. Starting and drivingº section.
Cruise main switch indicator
light The light comes on when the cruise control
main switch is pushed. The light goes out
when the main switch is pushed again. When
the cruise main switch indicator light comes Instruments and controls
2-11
Z 02.7.29/V35-D/V5.0
X

on, the cruise control system is operational.
Cruise set switch indicator
lightThe light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by
your INFINITI retailer.
High beam indicator light
(Blue)This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator lamp
(MIL)If the malfunction indicator lamp comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator lamp may also come
on steady if the fuel filler cap is loose or
missing, or if the vehicle runs out of fuel.
Check to make sure the fuel filler cap is
installed and closed tightly, and that the ve- hicle has at least three gallons (14 liters) of fuel
in the fuel tank.
After a few driving trips, the lamp should
turn off if no other potential emission control
system malfunction exists.
Operation
The malfunction indicator lamp will come on in
one of two ways:
O Malfunction indicator lamp on steady Ð An
emission control system malfunction has
been detected. Check the fuel filler cap. If
the fuel filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The lamp should turn off after
a few driving trips. If the lamp does
not turn off after a few driving trips, have the
vehicle inspected by an authorized
INFINITI retailer. You do not need to have
your vehicle towed to the retailer.
O Malfunction indicator lamp blinking Ð An
engine misfire has been detected which
may damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades. d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by an autho-
rized INFINITI retailer. You do not need to
have your vehicle towed to the retailer.
CAUTION Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Slip indicator light This indicator will blink when the VDC system
or the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing
its traction limits.
Vehicle dynamics control off
indicator light The light comes on when the vehicle dynamics
2-12 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

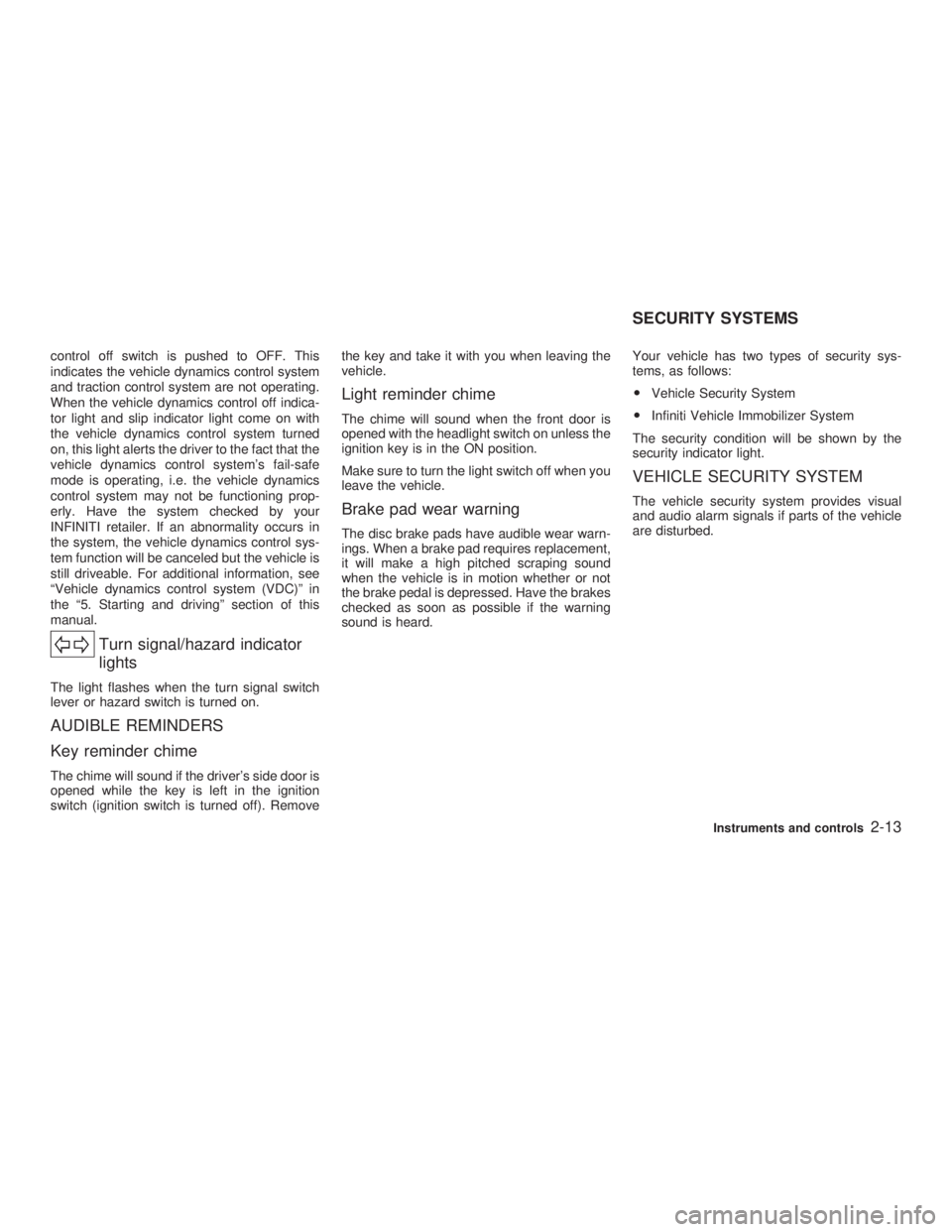

control off switch is pushed to OFF. This
indicates the vehicle dynamics control system
and traction control system are not operating.
When the vehicle dynamics control off indica-
tor light and slip indicator light come on with
the vehicle dynamics control system turned
on, this light alerts the driver to the fact that the
vehicle dynamics control system's fail-safe
mode is operating, i.e. the vehicle dynamics
control system may not be functioning prop-
erly. Have the system checked by your
INFINITI retailer. If an abnormality occurs in
the system, the vehicle dynamics control sys-
tem function will be canceled but the vehicle is
still driveable. For additional information, see
ªVehicle dynamics control system (VDC)º in
the ª5. Starting and drivingº section of this
manual.
Turn signal/hazard indicator
lightsThe light flashes when the turn signal switch
lever or hazard switch is turned on.
AUDIBLE REMINDERS
Key reminder chime The chime will sound if the driver's side door is
opened while the key is left in the ignition
switch (ignition switch is turned off). Remove the key and take it with you when leaving the
vehicle.
Light reminder chime The chime will sound when the front door is
opened with the headlight switch on unless the
ignition key is in the ON position.
Make sure to turn the light switch off when you
leave the vehicle.
Brake pad wear warning The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement,
it will make a high pitched scraping sound
when the vehicle is in motion whether or not
the brake pedal is depressed. Have the brakes
checked as soon as possible if the warning
sound is heard. Your vehicle has two types of security sys-
tems, as follows:
O Vehicle Security System
O Infiniti Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEM The vehicle security system provides visual
and audio alarm signals if parts of the vehicle
are disturbed.SECURITY SYSTEMS
Instruments and controls
2-13
Z 02.7.29/V35-D/V5.0
X

How to activate the vehicle security
system 1. Close all windows.
The system can be activated even if the
windows are open.
2. Remove the key from the ignition switch.
3. Close and lock all doors, hood and trunk lid.
Lock all doors by pressing the LOCK button
on the keyfob. When using the keyfob, the
hazard indicators flash twice to indicate all
doors are locked. 4. Confirm that the SECURITY indicator light
comes on. The SECURITY indicator light
glows for about 30 seconds and then blinks.
The system is now activated. If, during this
30 second time period, the door is unlocked
by the key or the keyfob, or the ignition key
is turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood and trunk lid locked
and ignition key off. Turn the ignition key to
ACC to turn off the system.
Vehicle security system operation The security system will give the following
alarm:
O The headlights blink and the horn sounds
intermittently.
O The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlock-
ing a door with the key, or by pressing the
UNLOCK button on the keyfob.
The alarm is activated by:
O Opening the door without using the key or
keyfob. O Opening the trunk lid without using the key
or keyfob.
O Opening the hood.
How to stop alarm The alarm will stop only by unlocking a door
with the key, or by pressing the UNLOCK
button on keyfob. The alarm will not stop if the
ignition switch is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by your
INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM The Infiniti Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Infiniti Vehicle Immobilizer System
key.
If the engine fails to start using the registered
Infiniti Vehicle Immobilizer System key, it may
be due to interference caused by another
Infiniti Vehicle Immobilizer System key, an
automated toll road device or automated pay-
ment device on the key ring. Restart the en-
gine using the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.SIC1442
2-14 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 sec-
onds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered Infiniti Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
INFINITI recommends placing the regis-
tered Infiniti Vehicle Immobilizer System
key on a separate key ring to avoid inter-
ference from other devices.
Statement related to section 15 of FCC
rules for Infiniti Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful
interference, and (2) this device must ac-
cept any interference received, including
interference that may cause undesired op-
eration of the device.
CHANGES OR MODIFICATIONS NOT EX- PRESSLY APPROVED BY THE MANUFAC-
TURE RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USER'S AUTHORITY TO
OPERATE THE EQUIPMENT.
Security indicator light If Infiniti Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
ignition key is in the ON position.
If the light still remains on and/or the en-
gine will not start, see your INFINITI retailer
for Infiniti Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
Infiniti Vehicle Immobilizer System keys
that you have when visiting your INFINITI
retailer for service. SIC1442
Instruments and controls
2-15
Z 02.7.29/V35-D/V5.0
X

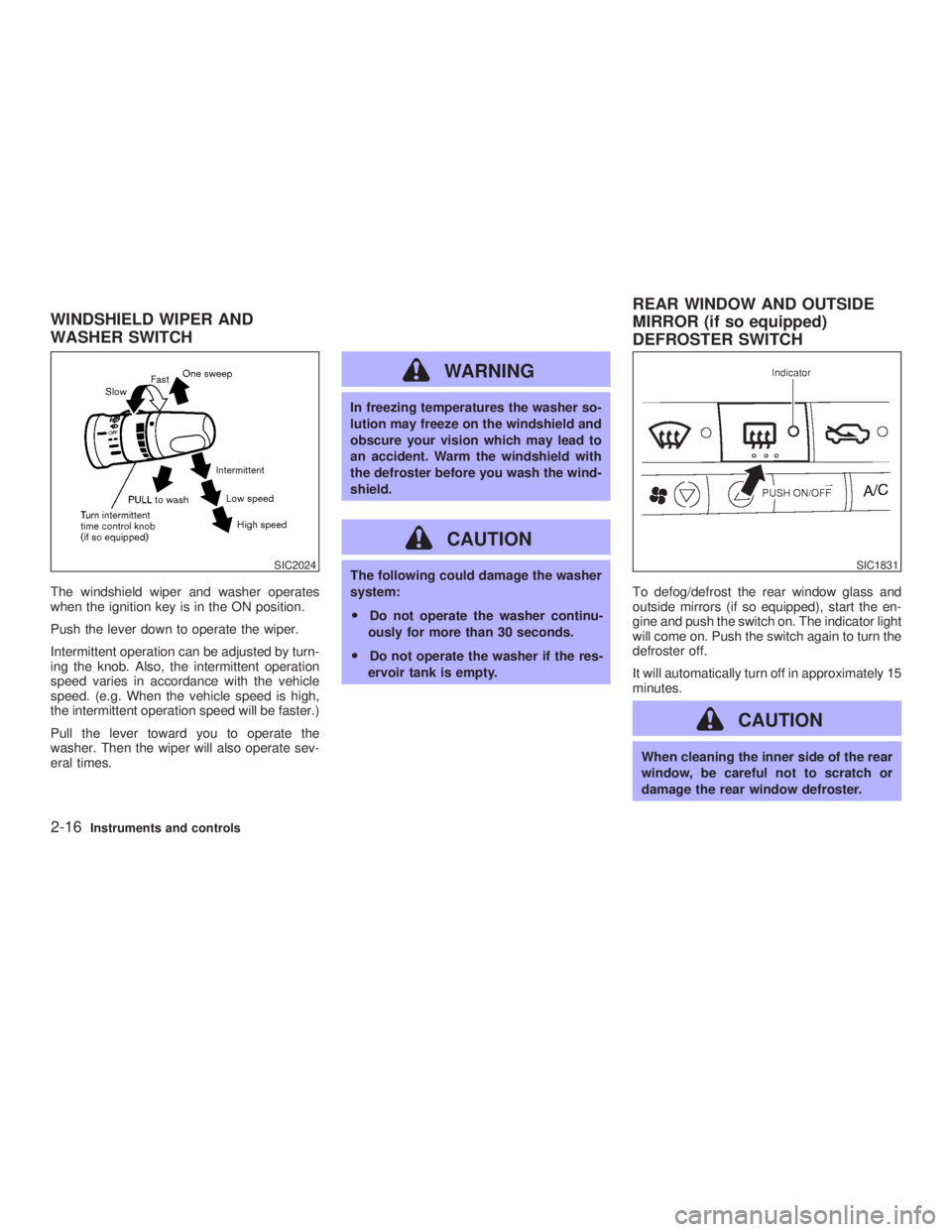

The windshield wiper and washer operates
when the ignition key is in the ON position.
Push the lever down to operate the wiper.
Intermittent operation can be adjusted by turn-
ing the knob. Also, the intermittent operation
speed varies in accordance with the vehicle
speed. (e.g. When the vehicle speed is high,
the intermittent operation speed will be faster.)
Pull the lever toward you to operate the
washer. Then the wiper will also operate sev-
eral times. WARNING In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION The following could damage the washer
system:
O Do not operate the washer continu-
ously for more than 30 seconds.
O Do not operate the washer if the res-
ervoir tank is empty. To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the en-
gine and push the switch on. The indicator light
will come on. Push the switch again to turn the
defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.SIC2024 SIC1831
WINDSHIELD WIPER AND
WASHER SWITCH REAR WINDOW AND OUTSIDE
MIRROR (if so equipped)
DEFROSTER SWITCH
2-16 Instruments and controls
Z 02.7.29/V35-D/V5.0
X

XENON HEADLIGHTS (if so
equipped)
WARNING HIGH VOLTAGE
O When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at an authorized INFINITI retailer.
O Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to an authorized INFINITI retailer
and have the headlights adjusted
correctly. When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
O The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.
O If a xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact an INFINITI re-
tailer.
HEADLIGHT SWITCH
Lighting Turn the switch to the AUTO position:
When the ignition key is in the ON position, the
tail lights, headlights, instrument lights and
other lights turn on automatically, depending
on the brightness of the surroundings. The SIC1834
HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls
2-17
Z 02.7.29/V35-D/V5.0
X

headlights will automatically turn off 5 minutes
after the ignition switch is turned to the OFF
position and the driver's or front passenger's
door is opened.
The headlight will also automatically turn off 45
seconds after a front door is opened and
closed.
When the light switch is turned to the po-
sition, the headlight low or high beam will turn
off.
Turn the switch to the position:
The front clearance, side marker, tail, license
plate and instrument lights will come on.
Turn the switch to the position:
Headlights will come on and all the other lights
remain on. Be sure not to put anything on top of the
photo sensor located on the top left-hand
side of the instrument panel. The photo
sensor controls the autolamp; if it is cov-
ered, the photo sensor reacts as if it is dark
and the headlights will illuminate.
Battery saver system O When the headlight switch is in the or
position while the ignition switch is in
the ON position, the lights (including the
front fog light) will automatically turn off 5
minutes after the ignition switch has been
turned to the OFF position. O When the headlight switch remains in the
or position after the lights auto-
matically turn off, the lights will turn on for 5
minutes when the headlight switch is turned
to the OFF position and turn to the or
position.
CAUTION O Be sure to turn the light switch to the
OFF position when you leave the ve-
hicle for extended periods of time,
otherwise the battery will go dead.
O Never leave the light switch on when
the engine is not running for ex-
tended periods of time even if the
headlights turn off automatically. SIC1230
2-18 Instruments and controls
Z 02.7.29/V35-D/V5.0
X
