2003 INFINITI G35 Owners Manual

Sedan 1. Front turn signal light
2. Front fog light/Headlight (high-beam) and
clearance light
3. Headlight (low-beam)
4. Map light
5. Rear personal light
6. Front side marker light
7. Step light
8. Trunk light
9. High-mounted stop light (if so equipped)
10. License plate light
11. Back-up light
12. Rear combination light
(Turn signal, Stop/Tail, Side marker)
SDI1509LIGHTS
Do-it-yourself
8-23
Z 02.7.29/V35-D/V5.0
X

Coupe 1. Front turn signal light, clearance light
2. Front fog light/Headlight (high-beam)
3. Headlight (low-beam)
4. Clearance light
5. Map light
6. Front side marker light
7. Step light
8. High-mounted stop light (if so equipped)
9. Trunk light
10. License plate light
11. Rear combination light
(Turn signal, Stop/Tail, Back-up, Side
marker)
SDI1486
8-24 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X

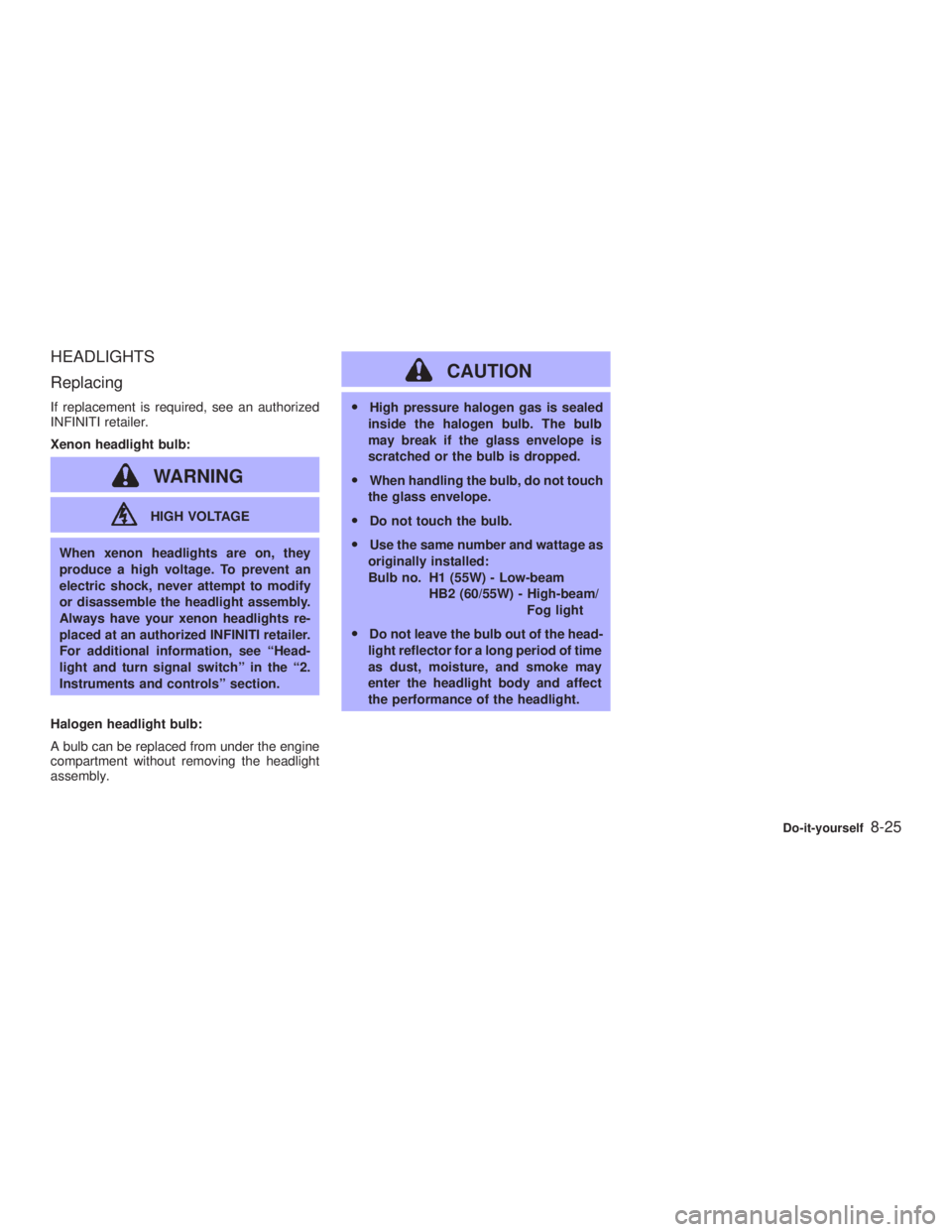

HEADLIGHTS
Replacing If replacement is required, see an authorized
INFINITI retailer.
Xenon headlight bulb:
WARNING HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble the headlight assembly.
Always have your xenon headlights re-
placed at an authorized INFINITI retailer.
For additional information, see ªHead-
light and turn signal switchº in the ª2.
Instruments and controlsº section.
Halogen headlight bulb:
A bulb can be replaced from under the engine
compartment without removing the headlight
assembly. CAUTION O High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
O When handling the bulb, do not touch
the glass envelope.
O Do not touch the bulb.
O Use the same number and wattage as
originally installed:
Bulb no. H1 (55W) - Low-beam
HB2 (60/55W) - High-beam/
Fog light
O Do not leave the bulb out of the head-
light reflector for a long period of time
as dust, moisture, and smoke may
enter the headlight body and affect
the performance of the headlight.
Do-it-yourself
8-25
Z 02.7.29/V35-D/V5.0
X

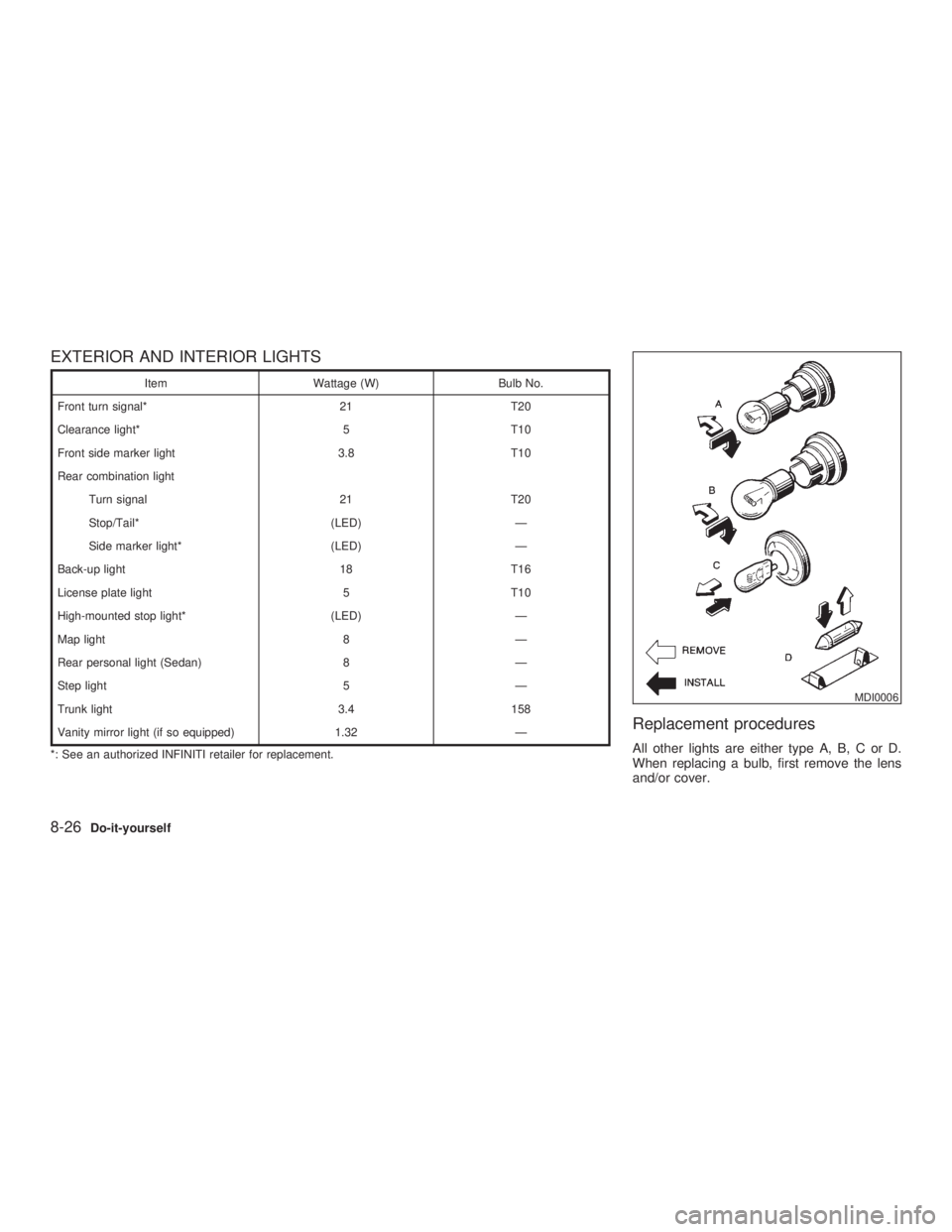

EXTERIOR AND INTERIOR LIGHTS Item Wattage (W) Bulb No.
Front turn signal* 21 T20
Clearance light* 5 T10
Front side marker light 3.8 T10
Rear combination light
Turn signal 21 T20
Stop/Tail* (LED) Ð
Side marker light* (LED) Ð
Back-up light 18 T16
License plate light 5 T10
High-mounted stop light* (LED) Ð
Map light 8 Ð
Rear personal light (Sedan) 8 Ð
Step light 5 Ð
Trunk light 3.4 158
Vanity mirror light (if so equipped) 1.32 Ð
*: See an authorized INFINITI retailer for replacement.
Replacement procedures All other lights are either type A, B, C or D.
When replacing a bulb, first remove the lens
and/or cover. MDI0006
8-26 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X

SDI1395 SDI1396A
Do-it-yourself
8-27
Z 02.7.29/V35-D/V5.0
X

SDI1510 SDI1398A
8-28 Do-it-yourself
Z 02.7.29/V35-D/V5.0
X

SDI1399A SDI1400
SDI1258 SDI1407
SDI1401
Do-it-yourself
8-29
Z 02.7.29/V35-D/V5.0
X

If you have a flat tire, see ªFlat tireº in the
ª6. In case of emergencyº section.
TIRE PRESSURE
Maximum inflation pressure Do not exceed the maximum inflation pres-
sures shown on the side wall of the tire.
Tire inflation pressure Check the tire pressure (including spare) at
least once a month and always prior to long
distance trips. Incorrect tire pressure may ad-
versely affect tire life and vehicle handling. Tire
pressure should be checked when tires are
COLD. Tires are considered COLD after the vehicle has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at moderate
speeds. COLD tire pressures are shown on
the tire placard affixed to the inside of the rear
left door opening (Sedan), the driver side
center pillar (Coupe).
WARNING O Improperly inflated tires can fail sud-
denly and cause an accident.
O The vehicle capacity weight is indi-
cated on the tire placard. Do not load
your vehicle beyond this capacity.
Overloading your vehicle may result
in reduced tire life, unsafe operating
conditions due to premature tire fail-
ure, or unfavorable handling charac-
teristics and could also lead to a
serious accident. Loading beyond the
specified capacity may also result in
failure of other vehicle components.
O Before taking a long trip, or whenever
you have loaded your vehicle heavily,
use a tire pressure gauge to ensure
that the tire pressure is at the speci- fied level.
O Do not drive your vehicle over 85
MPH (140 km/h) unless it is equipped
with high speed capability tires. Driv-
ing faster than 85 MPH (140 km/h)
may result in tire failure, loss of con-
trol and possible injury.
O For additional information regarding
tires, refer to ªImportant Tire Safety
Informationº (US) or ªTire Safety In-
formationº (Canada) in the INFINITI
Warranty Information Booklet.
TYPES OF TIRES
WARNING When changing or replacing tires, be
sure all four tires are of the same type
(i.e., summer, all season or snow) and
construction. Your INFINITI retailer may
be able to help you with information
about tire type, size, speed rating and
availability. Replacement tires may have
a lower speed rating than the factoryDI1033M
WHEELS AND TIRES
