AIR BAG SYSTEM 10B-43
DTC B1044 and B1048 :
Fig. for STEP 1 and 2NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
Step Action Yes No
1 1) With ignition switch OFF, remove center
pillar inner garnish of applicable side then
disconnect seat belt pretensioner connec-
tor.
2) Check proper connection to applicable
seat belt pretensioner at terminals in
“Q05” or “Q07” connector.
3) If OK then connect Special Tool (B) to
seat belt pretensioner connector discon-
nected at the step 1.
With ignition switch ON, is DTC B1044 or
B1048 still current?Go to step 2. Ignition switch OFF.
Replace seat belt preten-
sioner (Refer to Section 10).
2 1) With ignition switch OFF, disconnect Spe-
cial Tool (B) and SDM.
2) Measure voltage from “Q06-12” or “Q06-
5” terminal to body ground.
With ignition switch ON, is voltage 1 V or
less?Substitute a known-
good SDM and recheck.DTC B1044 :
Repair short “GRN/ORN” or
“GRN/YEL” wire circuit to
power circuit.
DTC B1048 :
Repair short from “BLU/YEL”
or “BLU/ORN” wire circuit to
power circuit.

10B-44 AIR BAG SYSTEM
Fig. for STEP 2
Special tool
(A) : 09932-76010
(B) : 09932-75010
DTC B1051 – FRONTAL CRASH DETECTED (SYSTEM ACTIVATION COM-
MAND OUTPUTTED)
DTC WILL SET WHEN
The SDM detects a frontal crash of sufficient force to warrant activation of the air bag system. (SDM outputs a
deployment command.)
TABLE TEST DESCRIPTION
STEP 1 : Check that DTC B1051 has been set although air bag has not been deployed.
STEP 2 : Check that DTC has been set due to failure of SDM.
[A] : For DTC B1044
[B] : For DTC B1048
NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Clear diagnostic trouble codes (Refer to DTC CLEARANCE), if any.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
NOTE:
Before executing items in this table, be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK.
Step Action Yes No
1 1) Ignition switch OFF.
Has air bag system deployed?Replace components and
perform inspections as
directed in “REPAIRS
AND INSPECTIONS
REQUIRED AFTER AN
ACCIDENT”.Go to step 2.

AIR BAG SYSTEM 10B-45
DTC B1071 - INTERNAL SDM FAULT
DTC WILL SET WHEN
An internal SDM fault is detected by SDM.
DTC B1013 – SYSTEM SPECIFICATIONS DIFFERENT FROM SDM SPECIFICA-
TIONS
DTC WILL SET WHEN
Specifications of the air bag system differ from those of SDM.2 1) Inspect front of vehicle and undercarriage
for signs of impact.
Are there signs of impact?Replace components and
perform inspections as
directed in “REPAIRS
AND INSPECTIONS
REQUIRED AFTER AN
ACCIDENT”.Substitute a known-good
SDM and recheck. Step Action Yes No
NOTE:
Upon completion of inspection and repair work, perform following items.
Reconnect all air bag system components, ensure all components are properly mounted.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK to confirm that the trouble has been corrected.
NOTE:
Before executing items below, be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK.
NOTE:
DTC B1071 can never be cleared once it has been set.
Ignition switch OFF.
Replace SDM.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK.
NOTE:
Before executing items below, be sure to perform AIR BAG DIAGNOSTIC SYSTEM CHECK.
Ignition switch OFF.
Replace SDM.
Repeat AIR BAG DIAGNOSTIC SYSTEM CHECK.

10B-46 AIR BAG SYSTEM
ON-VEHICLE SERVICE
SERVICE PRECAUTIONS
SERVICE AND DIAGNOSIS
WARNING/CAUTION labels are attached on each part of air bag system components (SDM, air bag (inflator)
modules and seat belt pretensioners). Be sure to follow the instructions.
Many of service procedures require disconnection of “AIR BAG” fuse and air bag (inflator) module(s) (driver
and passenger) from initiator circuit to avoid an accidental deployment.
Do not apply power to the air bag system unless all components are connected or a diagnostic chart
requests it, as this will set a diagnostic trouble code (DTC).
The “AIR BAG DIAGNOSTIC SYSTEM CHECK” must be the starting point of any air bag diagnostics. The
“AIR BAG DIAGNOSTIC SYSTEM CHECK” will verify proper “AIR BAG” warning lamp operation and will
lead you to the correct table to diagnose any air bag malfunctions. Bypassing these procedures may result
in extended diagnostic time, incorrect diagnosis, and incorrect parts replacements.
Never use air bag component parts from another vehicle.
If the vehicle will be exposed to temperatures over 93°C (200°F) (for example, during a paint baking pro-
cess), remove the air bag system components beforehand to avoid component damage or unintended sys-
tem activation.
When handling the air bag (inflator) modules (driver and passenger), seat belt pretensioners (driver and
passenger) or SDM, be careful not to drop it or apply an impact to it. If an excessive impact was applied
(e.g., SDM is dropped, air bag (inflator) module is dropped from a height of 90 cm (3 ft) or more, seat belt
pretensioner (retractor assembly) is dropped from a height of 30 cm (1 ft) or more), never attempt disassem-
bly or repair but replace it with a new one.
When using electric welding, be sure to disconnect air bag (inflator) module connectors (driver and passen-
ger) and seat belt pretensioner connectors (driver and passenger) respectively.
When applying paint around the air bag system related parts, use care so that the harness or connector will
not be exposed to the paint mist.
Never expose air bag system component parts directly to hot air (drying or baking the vehicle after painting)
or flames. WARNING:
If the air bag system and another vehicle system both need repair, Suzuki recommends that the air
bag system be repaired first, to help avoid unintended air bag system activation.
Do not modify the steering wheel, dashboard or any other on or around air bag system compo-
nents. Modifications can adversely affect air bag system performance and lead to injury.
Failure to follow procedures could result in possible air bag system activation, personal injury or
unneeded air bag system repairs.
WARNING:
When performing service on or around air bag system components or air bag wiring, follow the proce-
dures listed in the following pages to temporarily disable the air bag system.
Failure to follow procedures could result in possible air bag system activation, personal injury or
unneeded air bag system repairs.

AIR BAG SYSTEM 10B-47
DISABLING AIR BAG SYSTEM
1) Turn steering wheel so that vehicle's wheels (front tires) and
pointing straight ahead.
2) Turn ignition switch to “LOCK” position and remove key.
3) Remove “AIR BAG” fuse (2) from fuse box (1).
4) Disconnect Yellow connector (3) of contact coil and combi-
nation switch assembly.
a) Release locking of lock lever.
b) After unlocked, disconnect connector.
5) If equipped with passenger air bag (inflator) module, pull out
glove box while pushing its stopper from both right and left
sides and disconnect Yellow connector (4) of passenger air
bag (inflator) module.
a) Release locking of lock lever.
b) After unlocked, disconnect connector.
ENABLING AIR BAG SYSTEM
1) Turn ignition switch to “LOCK” position and remove key.
2) Connect Yellow connector (1) of contact coil and combina-
tion switch assembly, and be sure to lock connector with lock
lever.
a) Connect connector.
b) Lock connector with lock lever.NOTE:
With “AIR BAG” fuse removed and ignition switch ON,
“AIR BAG” warning lamp will be ON.
This is normal operation and does not indicate a air bag
system malfunction.

10B-48 AIR BAG SYSTEM
3) If equipped with passenger air bag (inflator) module, connect
Yellow connector (1) of passenger air bag (inflator) module,
and be sure to lock connector with lock lever.
a) Connect connector.
b) Lock connector with lock lever.
4) Install glove box.
5) Install “AIR BAG” fuse to fuse box.
6) Turn ignition switch to ON position and verify that “AIR BAG”
warning lamp flashes 6 times and then turns OFF.
If it does not operate as described, perform “AIR BAG DIAG-
NOSTIC SYSTEM CHECK”.
HANDLING AND STORAGE
SDM
Never attempt disassembly of SDM.
When storing SDM, select a place where neither high tem-
perature nor high humidity is anticipated and oil, water and
dust are kept off.
If SDM has been dropped, replace it with a new one.
If installation part of SDM was damaged, repair that part
completely before reinstallation.
All SDM and mounting bracket fasteners must be carefully
torqued and the arrow must be pointed toward the front of
the vehicle to ensure proper operation of the air bag system.
WARNING:
Never power up air bag system when SDM is not rigidly
attached to the vehicle. Otherwise, personal injury may
result.
CAUTION:
After detecting one time of such collision as to meet
deployment conditions, the SDM must not be used. Refer
to “AIR BAG DIAGNOSTIC SYSTEM CHECK” when
checking the SDM.

AIR BAG SYSTEM 10B-49
LIVE (UNDEPLOYED) AIR BAG (INFLATOR) MODULES
Special care is necessary when handling and storing a live (unde-
ployed) air bag (inflator) modules.
The rapid gas generation produced during deployment of the air
bag could cause the air bag (inflator) module, or an object in front
of the air bag (inflator) module, to be thrown through the air in the
unlikely event of an accidental deployment.
Never attempt disassembly of the air bag (inflator) modules.
If any abnormality is found, be sure to replace it with new
one as an assembly.
When an abnormality is noted as existing in the live (unde-
ployed) air bag (inflator) module, be sure to deploy it before
discarding it.
When grease, cleaning agent, oil, water, etc., got on the air
bag (inflator) modules (driver and passenger), wipe it off
immediately with a dry cloth.
If air bag (inflator) module was dropped from a height of 90
cm (3 ft) or more, it should be replaced with a new one as an
assembly. WARNING:
Never attempt to measure the resistance of the air bag
(inflator) modules (driver and passenger). It is very dan-
gerous as the electric current from the tester may deploy
the air bag.
WARNING:
For handling and storage of a live air bag (inflator)
module, select a place where the ambient temperature
below 65
°
°° °C (150
°
°° °F), without high humidity and away
from electric noise.
When carrying a live air bag (inflator) module, make
sure the bag opening is pointed away from you. In
case of an accidental deployment, the bag will then
deploy with minimal chance of injury. Never carry the
air bag (inflator) module by the wires or connector on
the underside of the module.
Otherwise, personal injury may result.

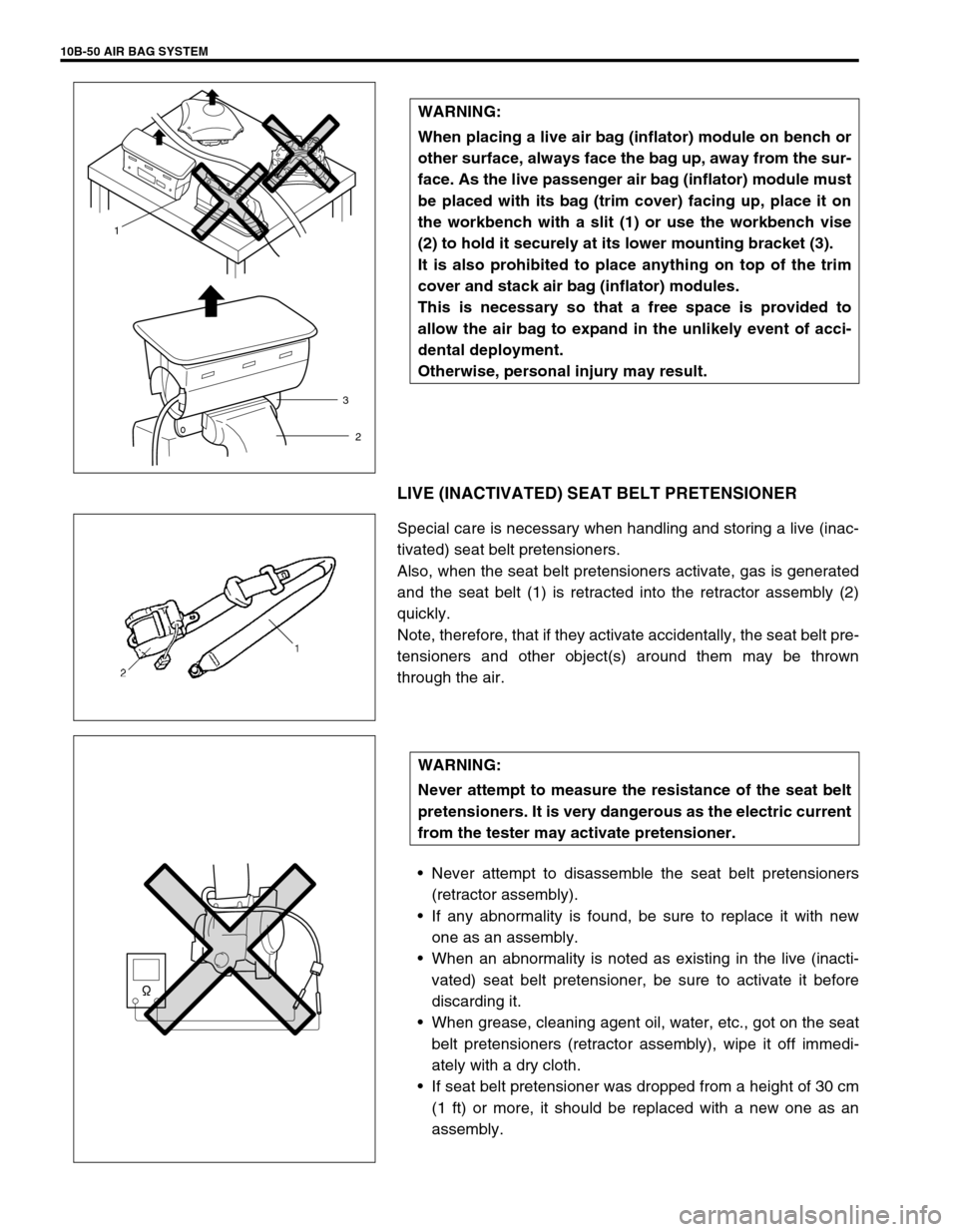

10B-50 AIR BAG SYSTEM
LIVE (INACTIVATED) SEAT BELT PRETENSIONER
Special care is necessary when handling and storing a live (inac-
tivated) seat belt pretensioners.
Also, when the seat belt pretensioners activate, gas is generated
and the seat belt (1) is retracted into the retractor assembly (2)
quickly.
Note, therefore, that if they activate accidentally, the seat belt pre-
tensioners and other object(s) around them may be thrown
through the air.
Never attempt to disassemble the seat belt pretensioners
(retractor assembly).
If any abnormality is found, be sure to replace it with new
one as an assembly.
When an abnormality is noted as existing in the live (inacti-
vated) seat belt pretensioner, be sure to activate it before
discarding it.
When grease, cleaning agent oil, water, etc., got on the seat
belt pretensioners (retractor assembly), wipe it off immedi-
ately with a dry cloth.
If seat belt pretensioner was dropped from a height of 30 cm
(1 ft) or more, it should be replaced with a new one as an
assembly. WARNING:
When placing a live air bag (inflator) module on bench or
other surface, always face the bag up, away from the sur-
face. As the live passenger air bag (inflator) module must
be placed with its bag (trim cover) facing up, place it on
the workbench with a slit (1) or use the workbench vise
(2) to hold it securely at its lower mounting bracket (3).
It is also prohibited to place anything on top of the trim
cover and stack air bag (inflator) modules.
This is necessary so that a free space is provided to
allow the air bag to expand in the unlikely event of acci-
dental deployment.
Otherwise, personal injury may result.
1
2 3
WARNING:
Never attempt to measure the resistance of the seat belt
pretensioners. It is very dangerous as the electric current
from the tester may activate pretensioner.
