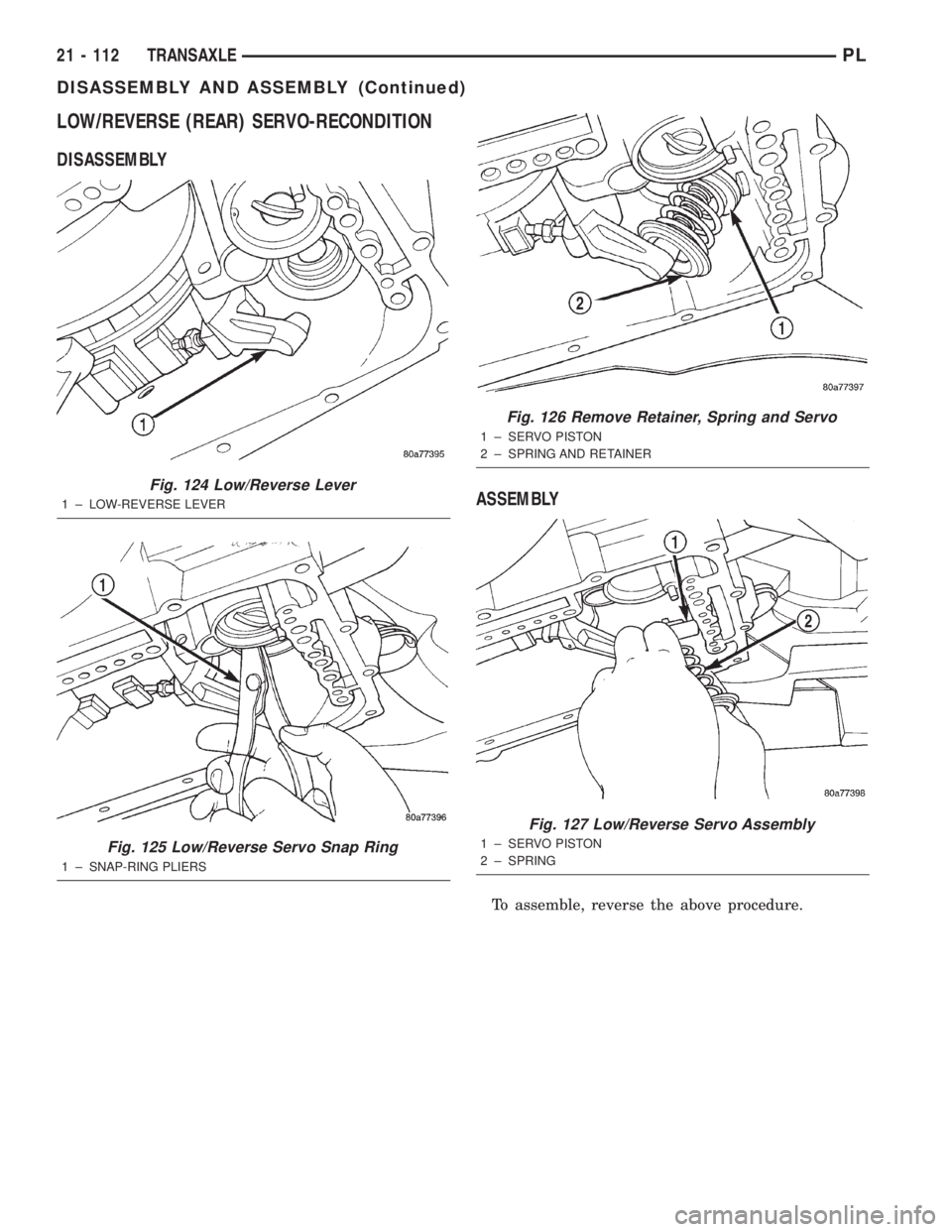

LOW/REVERSE (REAR) SERVO-RECONDITION
DISASSEMBLY
ASSEMBLY
To assemble, reverse the above procedure.
Fig. 124 Low/Reverse Lever
1 ± LOW-REVERSE LEVER
Fig. 125 Low/Reverse Servo Snap Ring
1 ± SNAP-RING PLIERS
Fig. 126 Remove Retainer, Spring and Servo
1 ± SERVO PISTON
2 ± SPRING AND RETAINER
Fig. 127 Low/Reverse Servo Assembly
1 ± SERVO PISTON
2 ± SPRING
21 - 112 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)
Page 1026 of 1285

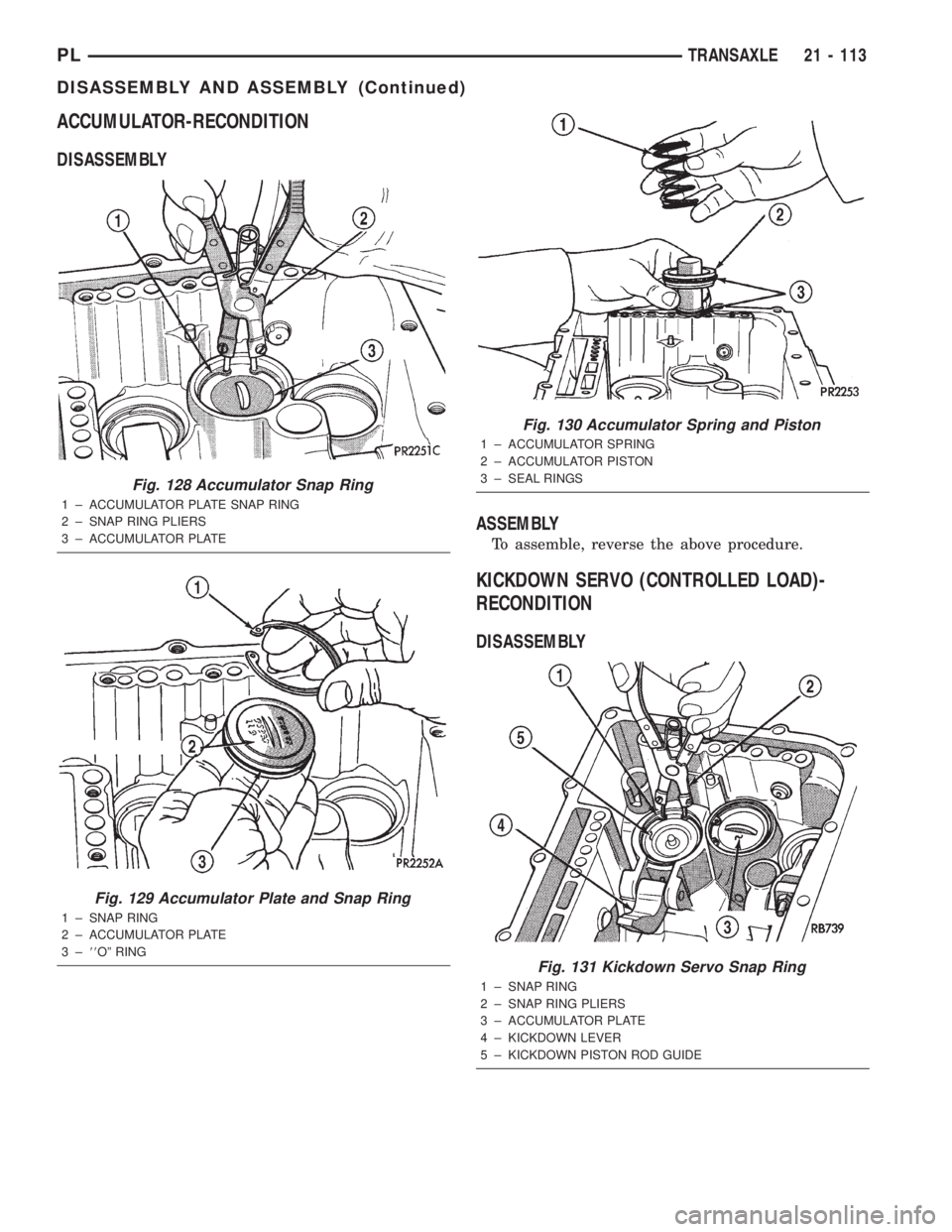

ACCUMULATOR-RECONDITION
DISASSEMBLY
ASSEMBLY
To assemble, reverse the above procedure.
KICKDOWN SERVO (CONTROLLED LOAD)-
RECONDITION
DISASSEMBLY
Fig. 128 Accumulator Snap Ring
1 ± ACCUMULATOR PLATE SNAP RING
2 ± SNAP RING PLIERS
3 ± ACCUMULATOR PLATE
Fig. 129 Accumulator Plate and Snap Ring
1 ± SNAP RING
2 ± ACCUMULATOR PLATE
3±88Oº RING
Fig. 130 Accumulator Spring and Piston
1 ± ACCUMULATOR SPRING
2 ± ACCUMULATOR PISTON
3 ± SEAL RINGS
Fig. 131 Kickdown Servo Snap Ring
1 ± SNAP RING
2 ± SNAP RING PLIERS
3 ± ACCUMULATOR PLATE
4 ± KICKDOWN LEVER
5 ± KICKDOWN PISTON ROD GUIDE
PLTRANSAXLE 21 - 113
DISASSEMBLY AND ASSEMBLY (Continued)
Page 1027 of 1285
ASSEMBLY
To assemble, reverse the above procedure.
TRANSFER SHAFT REPAIR
DISASSEMBLY

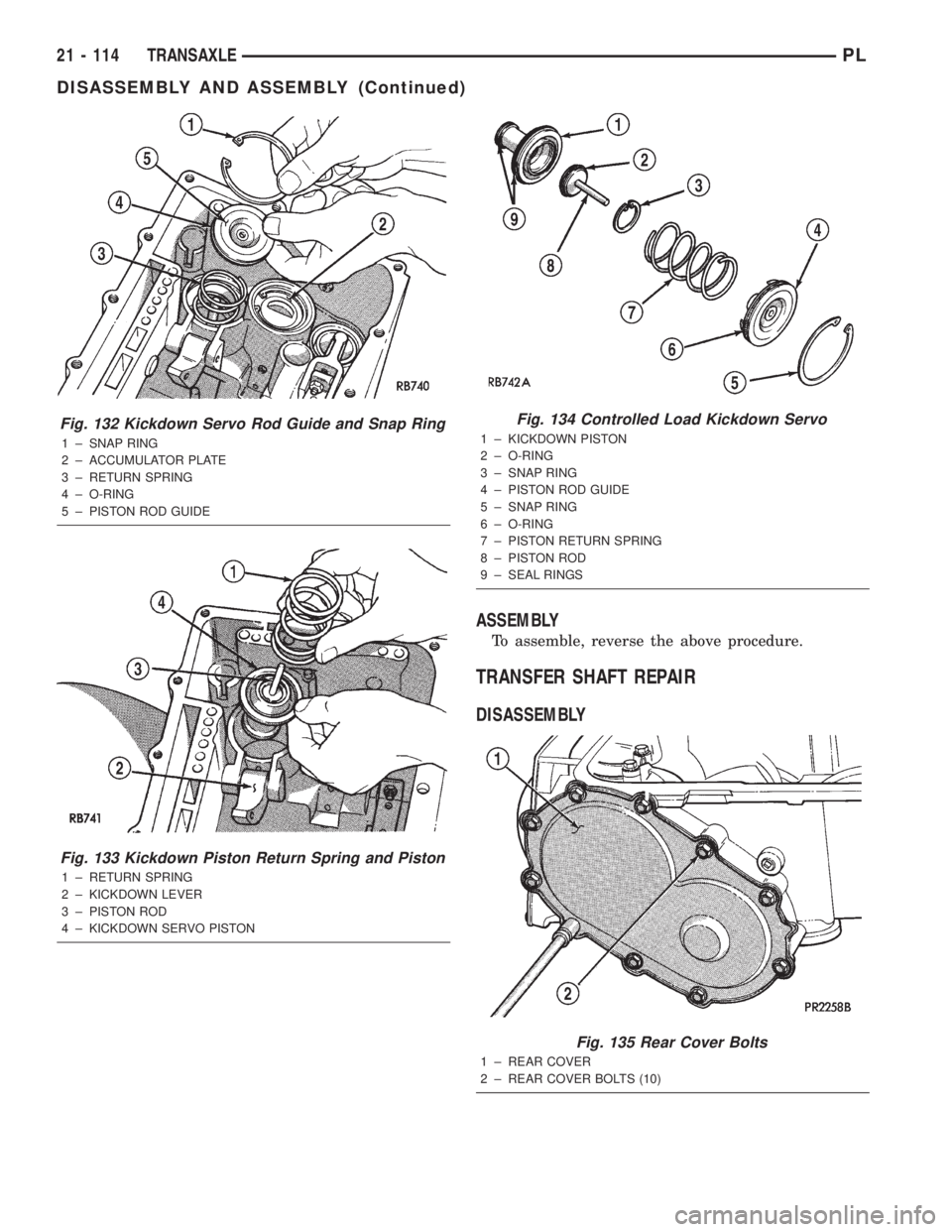

Fig. 132 Kickdown Servo Rod Guide and Snap Ring
1 ± SNAP RING
2 ± ACCUMULATOR PLATE
3 ± RETURN SPRING
4 ± O-RING
5 ± PISTON ROD GUIDE
Fig. 133 Kickdown Piston Return Spring and Piston
1 ± RETURN SPRING
2 ± KICKDOWN LEVER
3 ± PISTON ROD
4 ± KICKDOWN SERVO PISTON
Fig. 134 Controlled Load Kickdown Servo
1 ± KICKDOWN PISTON
2 ± O-RING
3 ± SNAP RING
4 ± PISTON ROD GUIDE
5 ± SNAP RING
6 ± O-RING
7 ± PISTON RETURN SPRING
8 ± PISTON ROD
9 ± SEAL RINGS
Fig. 135 Rear Cover Bolts
1 ± REAR COVER
2 ± REAR COVER BOLTS (10)
21 - 114 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)
Page 1028 of 1285

NOTE: Remove old sealant before applying new
sealant. Use MoparTRTV sealant, or equivalent,
when installing cover.
STIRRUP AND STRAP REMOVAL
NOTE: A stirrup and retaining strap is attached to
the transfer gear. The stirrup prevents the transfer
gear retaining nut from turning and backing off the
transfer shaft. The strap is used to hold the stirrup
to the transfer gear and prevent the stirrup retain-
ing bolts from backing out.
(1) Using a punch, bend tabs on strap flat against
transfer gear.
(2) Remove bolts holding retaining strap to stir-
rup.
(3) Remove strap from transfer gear and stirrup.
(4) Remove stirrup from transfer gear.
Fig. 136 Remove or Install Rear Cover
1 ± OUTPUT SHAFT GEAR
2 ± USE MOPAR SILICONE RUBBER ADHESIVE SEALER
3 ± REAR COVER
4 ± TRANSFER SHAFT GEAR
Fig. 137 Remove Transfer Shaft Gear Retaining Nut
1 ± TRANSFER SHAFT GEAR
2 ± SCREW (2)
3 ± OUTPUT SHAFT GEAR
4 ± SPECIAL TOOL L-4434
Fig. 138 Transfer Shaft Gear Nut and Washer
1 ± OUTPUT SHAFT GEAR
2 ± TRANSFER SHAFT GEAR
3 ± WASHER
4 ± NUT
PLTRANSAXLE 21 - 115
DISASSEMBLY AND ASSEMBLY (Continued)
Page 1029 of 1285
Fig. 139 Remove Transfer Shaft Gear using L-4407A
1 ± TRANSFER GEAR
2 ± TOOL L-4407A
Fig. 140 Transfer Shaft Gear and (Select) Shim
1 ± TRANSFER SHAFT GEAR
2 ± OUTPUT SHAFT GEAR
3 ± SHIM (SELECT)
4 ± BEARING CONE
Fig. 141 Using Tool L-4406-1 with Adapter L-4406-3,
Remove Transfer Shaft Gear Bearing Cone
1 ± SPECIAL TOOL L-4406-1
2 ± TRANSFER SHAFT GEAR
Fig. 142 Install Transfer Shaft Gear Bearing Cone
1 ± PRESS
2 ± HANDLE C-4171
3 ± SPECIAL TOOL L-4410
4 ± TRANSFER SHAFT GEAR
5 ± BEARING CONE
21 - 116 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)
Page 1030 of 1285

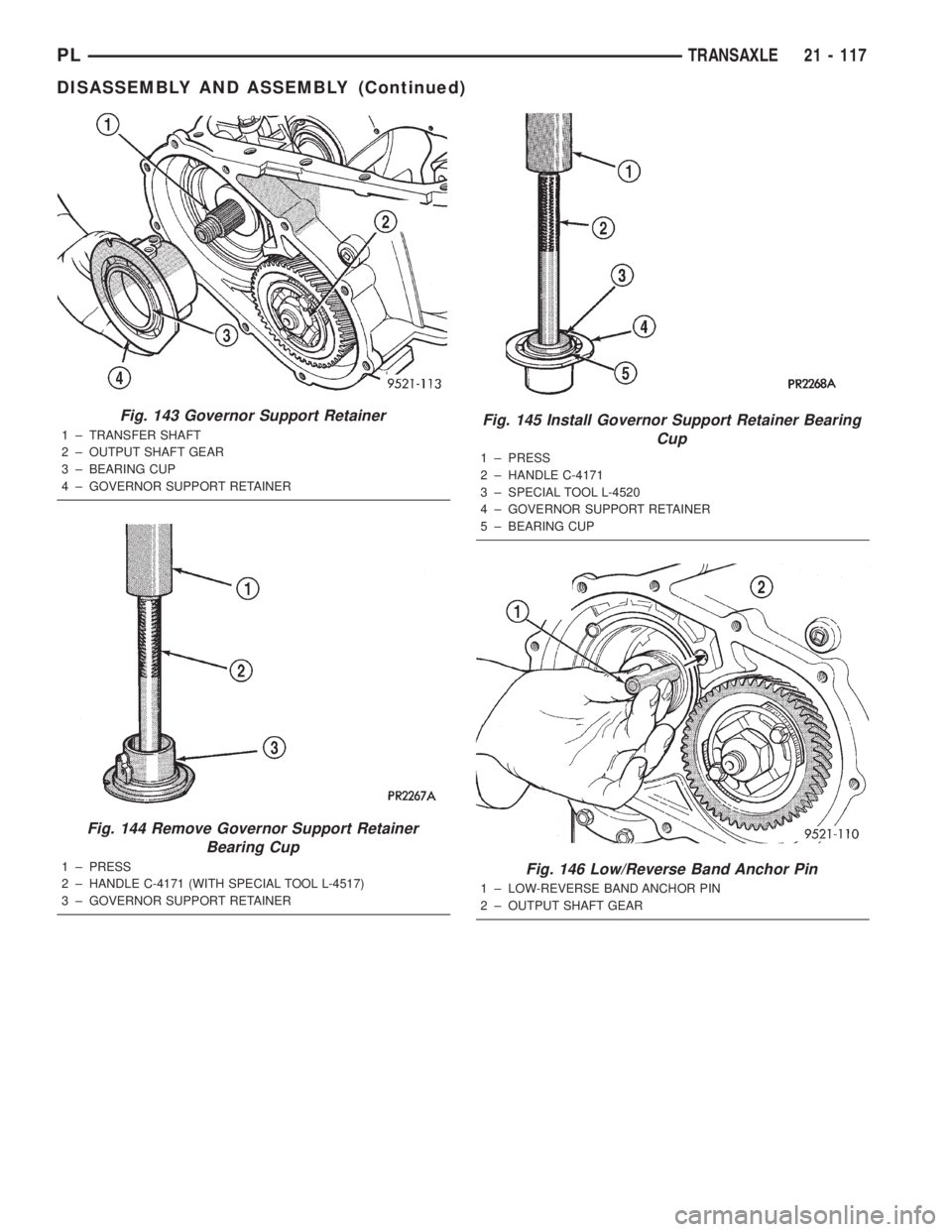

Fig. 143 Governor Support Retainer
1 ± TRANSFER SHAFT
2 ± OUTPUT SHAFT GEAR
3 ± BEARING CUP
4 ± GOVERNOR SUPPORT RETAINER
Fig. 144 Remove Governor Support Retainer
Bearing Cup
1 ± PRESS
2 ± HANDLE C-4171 (WITH SPECIAL TOOL L-4517)
3 ± GOVERNOR SUPPORT RETAINER
Fig. 145 Install Governor Support Retainer Bearing
Cup
1 ± PRESS
2 ± HANDLE C-4171
3 ± SPECIAL TOOL L-4520
4 ± GOVERNOR SUPPORT RETAINER
5 ± BEARING CUP
Fig. 146 Low/Reverse Band Anchor Pin
1 ± LOW-REVERSE BAND ANCHOR PIN
2 ± OUTPUT SHAFT GEAR
PLTRANSAXLE 21 - 117
DISASSEMBLY AND ASSEMBLY (Continued)
Page 1031 of 1285
NOTE: Remove or install both governor valves and
governor body.
Fig. 147 Governor Assembly
1 ± TRANSFER SHAFT
2 ± OUTPUT SHAFT GEAR
3 ± GOVERNOR ASSEMBLY
Fig. 148 Transfer Shaft Bearing Snap Ring
1 ± SNAP RING PLIERS
2 ± SNAP RING
3 ± OUTPUT SHAFT GEAR
4 ± TRANSFER SHAFT
Fig. 149 Remove Transfer Shaft and Bearing
Retainer Assembly
1 ± SPECIAL TOOL L-4512
2 ± SPECIAL TOOL L-4437
3 ± SPECIAL TOOL C-3752
Fig. 150 Remove or Install Transfer Shaft and
Bearing Retainer Assembly Using Tool L-4512
1 ± OUTPUT SHAFT GEAR
2 ± O-RING
3 ± SPECIAL TOOL L-4512
4 ± BEARING RETAINER ASSEMBLY
5 ± TRANSFER SHAFT
21 - 118 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)
Page 1032 of 1285

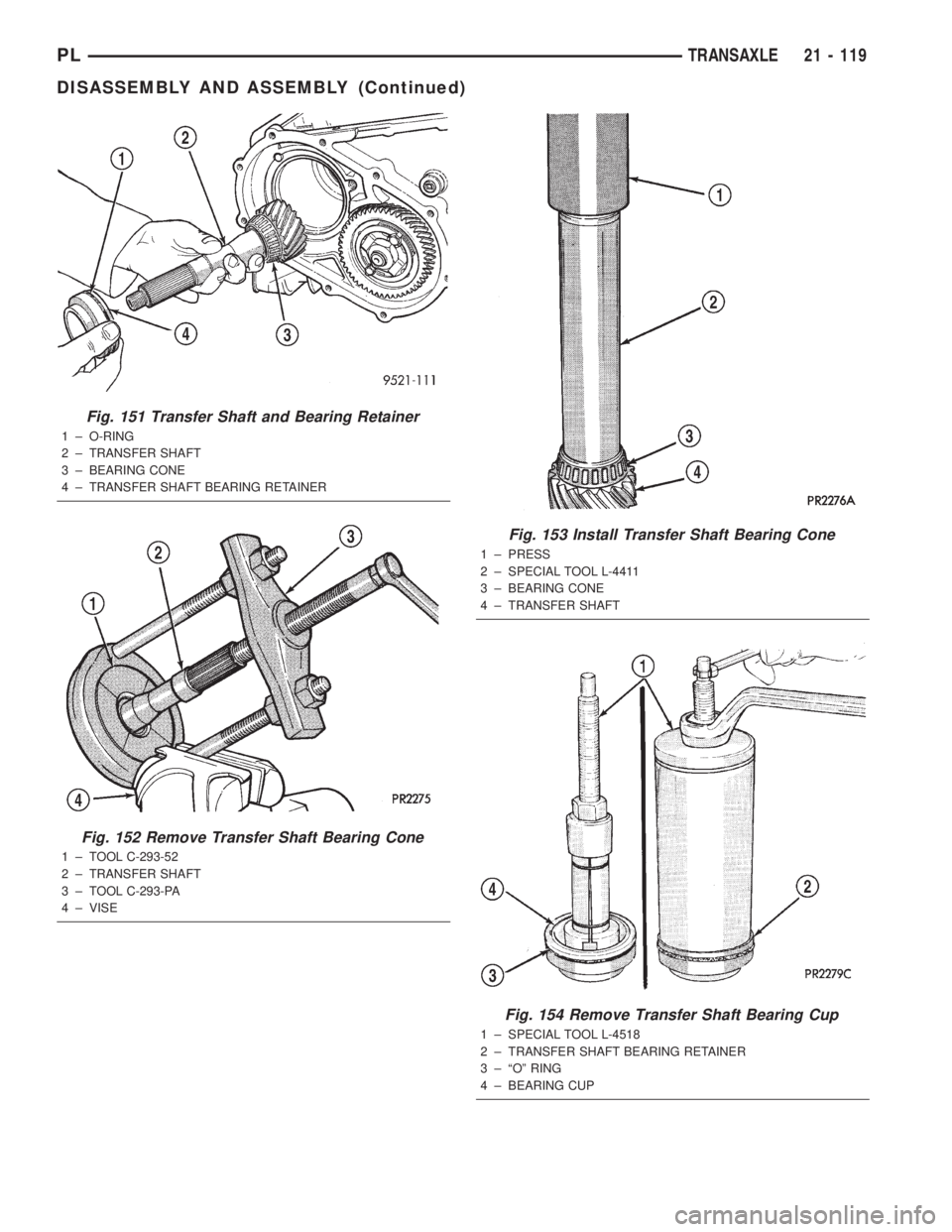

Fig. 151 Transfer Shaft and Bearing Retainer
1 ± O-RING
2 ± TRANSFER SHAFT
3 ± BEARING CONE
4 ± TRANSFER SHAFT BEARING RETAINER
Fig. 152 Remove Transfer Shaft Bearing Cone
1 ± TOOL C-293-52
2 ± TRANSFER SHAFT
3 ± TOOL C-293-PA
4 ± VISE
Fig. 153 Install Transfer Shaft Bearing Cone
1 ± PRESS
2 ± SPECIAL TOOL L-4411
3 ± BEARING CONE
4 ± TRANSFER SHAFT
Fig. 154 Remove Transfer Shaft Bearing Cup
1 ± SPECIAL TOOL L-4518
2 ± TRANSFER SHAFT BEARING RETAINER
3 ± ªOº RING
4 ± BEARING CUP
PLTRANSAXLE 21 - 119
DISASSEMBLY AND ASSEMBLY (Continued)
