2000 DODGE NEON Service Repair Manual

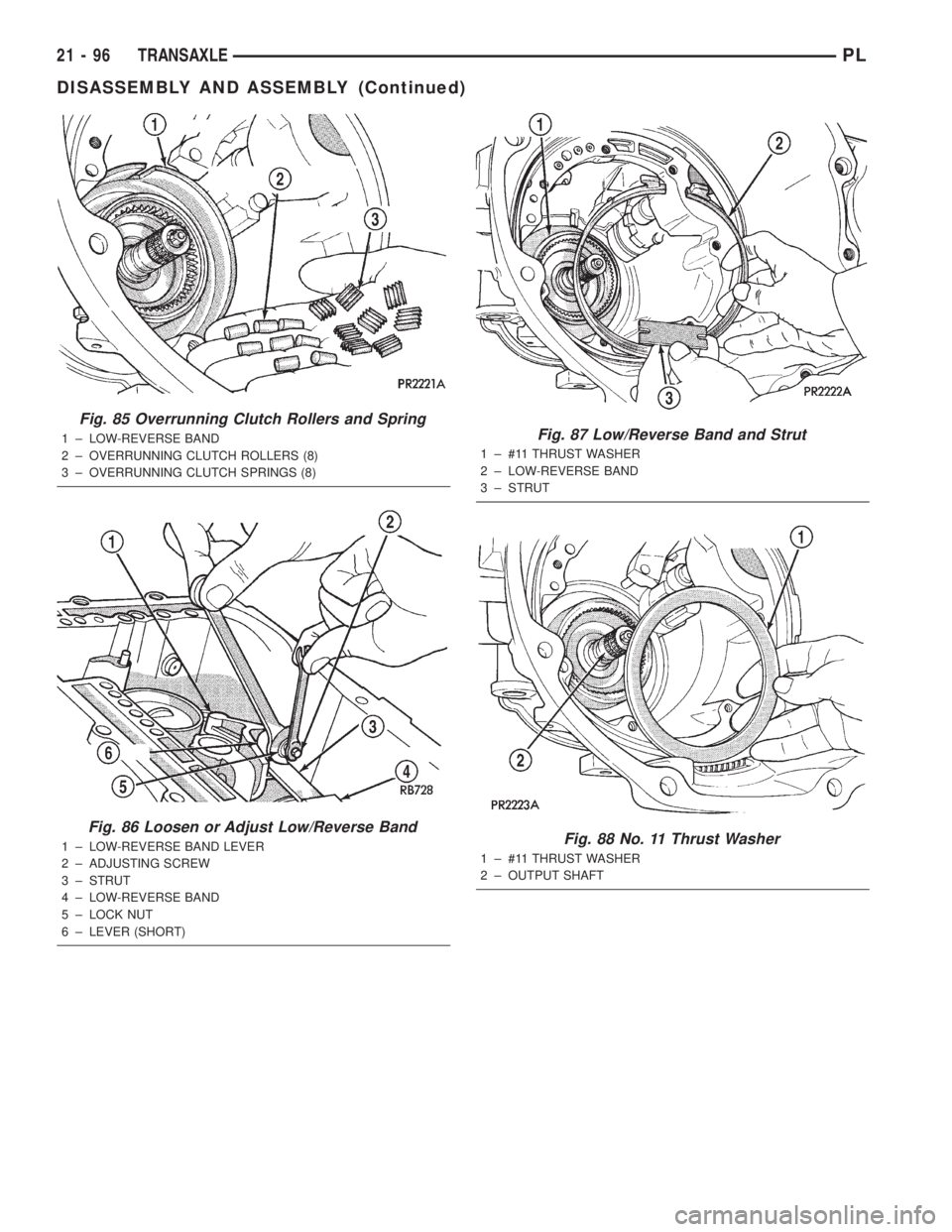

Fig. 85 Overrunning Clutch Rollers and Spring
1 ± LOW-REVERSE BAND
2 ± OVERRUNNING CLUTCH ROLLERS (8)
3 ± OVERRUNNING CLUTCH SPRINGS (8)
Fig. 86 Loosen or Adjust Low/Reverse Band
1 ± LOW-REVERSE BAND LEVER
2 ± ADJUSTING SCREW
3 ± STRUT
4 ± LOW-REVERSE BAND
5 ± LOCK NUT
6 ± LEVER (SHORT)
Fig. 87 Low/Reverse Band and Strut
1 ± #11 THRUST WASHER
2 ± LOW-REVERSE BAND
3 ± STRUT
Fig. 88 No. 11 Thrust Washer
1 ± #11 THRUST WASHER
2 ± OUTPUT SHAFT
21 - 96 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

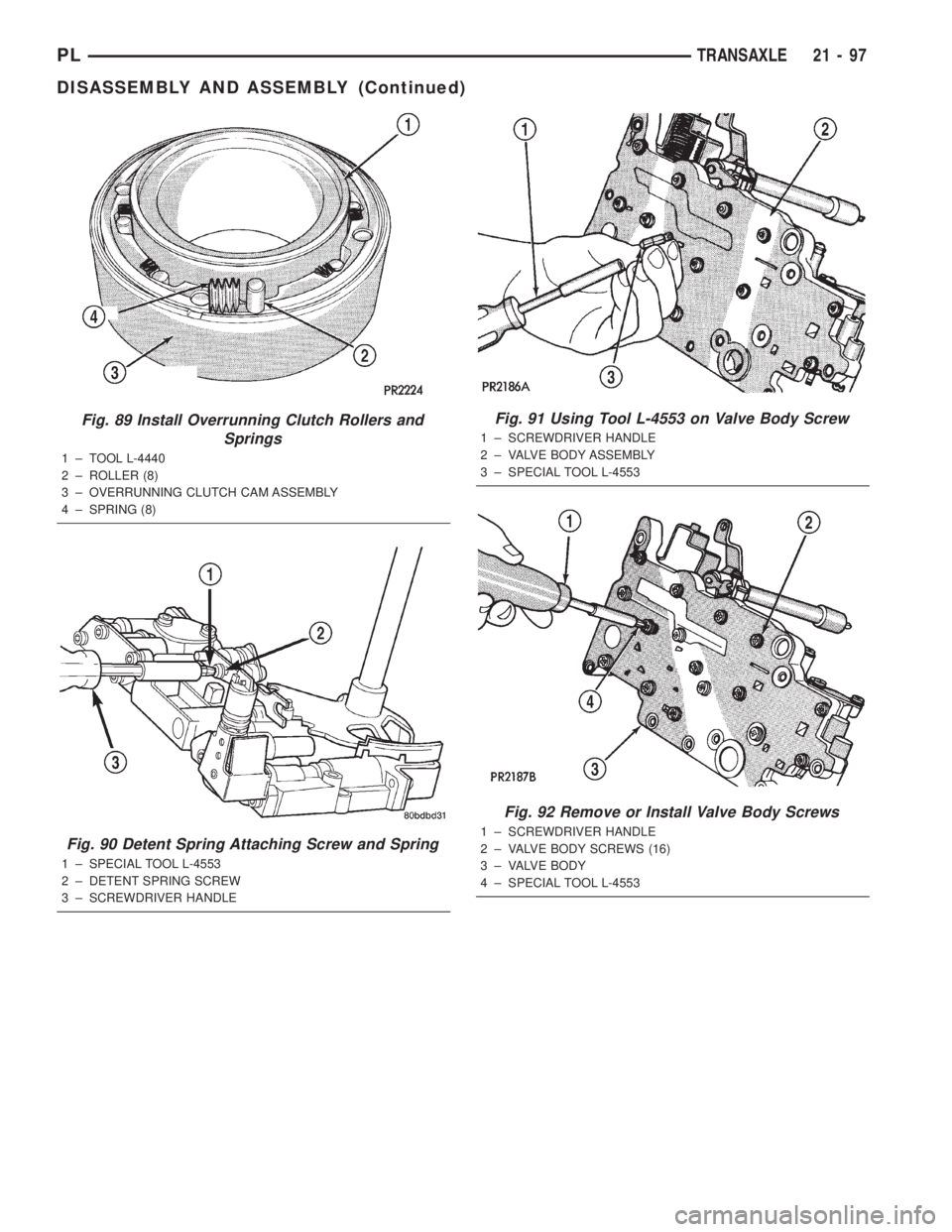

Fig. 89 Install Overrunning Clutch Rollers and
Springs
1 ± TOOL L-4440
2 ± ROLLER (8)
3 ± OVERRUNNING CLUTCH CAM ASSEMBLY
4 ± SPRING (8)
Fig. 90 Detent Spring Attaching Screw and Spring
1 ± SPECIAL TOOL L-4553
2 ± DETENT SPRING SCREW
3 ± SCREWDRIVER HANDLE
Fig. 91 Using Tool L-4553 on Valve Body Screw
1 ± SCREWDRIVER HANDLE
2 ± VALVE BODY ASSEMBLY
3 ± SPECIAL TOOL L-4553
Fig. 92 Remove or Install Valve Body Screws
1 ± SCREWDRIVER HANDLE
2 ± VALVE BODY SCREWS (16)
3 ± VALVE BODY
4 ± SPECIAL TOOL L-4553
PLTRANSAXLE 21 - 97
DISASSEMBLY AND ASSEMBLY (Continued)

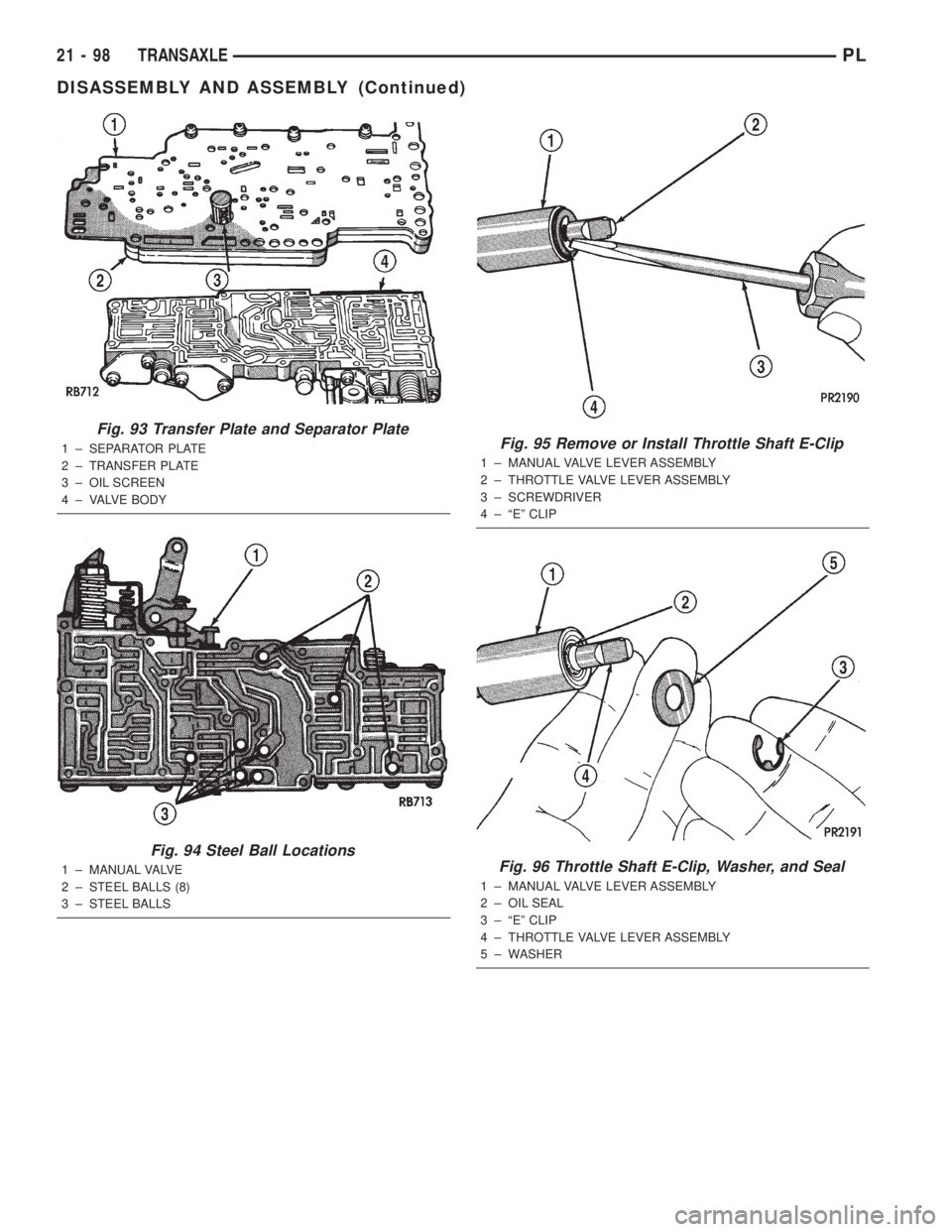

Fig. 93 Transfer Plate and Separator Plate
1 ± SEPARATOR PLATE
2 ± TRANSFER PLATE
3 ± OIL SCREEN
4 ± VALVE BODY
Fig. 94 Steel Ball Locations
1 ± MANUAL VALVE
2 ± STEEL BALLS (8)
3 ± STEEL BALLS
Fig. 95 Remove or Install Throttle Shaft E-Clip
1 ± MANUAL VALVE LEVER ASSEMBLY
2 ± THROTTLE VALVE LEVER ASSEMBLY
3 ± SCREWDRIVER
4 ± ªEº CLIP
Fig. 96 Throttle Shaft E-Clip, Washer, and Seal
1 ± MANUAL VALVE LEVER ASSEMBLY
2 ± OIL SEAL
3 ± ªEº CLIP
4 ± THROTTLE VALVE LEVER ASSEMBLY
5 ± WASHER
21 - 98 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

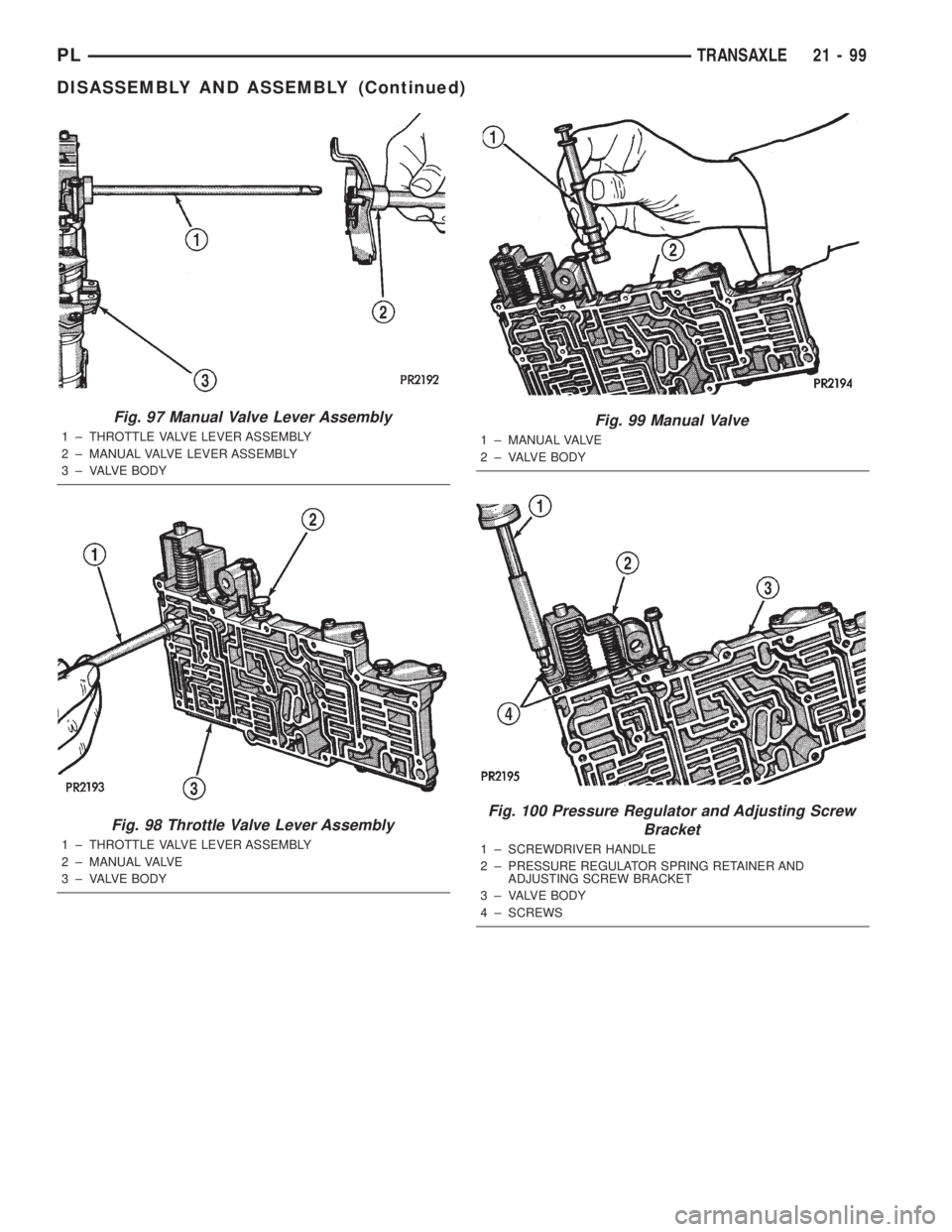

Fig. 97 Manual Valve Lever Assembly
1 ± THROTTLE VALVE LEVER ASSEMBLY
2 ± MANUAL VALVE LEVER ASSEMBLY
3 ± VALVE BODY
Fig. 98 Throttle Valve Lever Assembly
1 ± THROTTLE VALVE LEVER ASSEMBLY
2 ± MANUAL VALVE
3 ± VALVE BODY
Fig. 99 Manual Valve
1 ± MANUAL VALVE
2 ± VALVE BODY
Fig. 100 Pressure Regulator and Adjusting Screw
Bracket
1 ± SCREWDRIVER HANDLE
2 ± PRESSURE REGULATOR SPRING RETAINER AND
ADJUSTING SCREW BRACKET
3 ± VALVE BODY
4 ± SCREWS
PLTRANSAXLE 21 - 99
DISASSEMBLY AND ASSEMBLY (Continued)

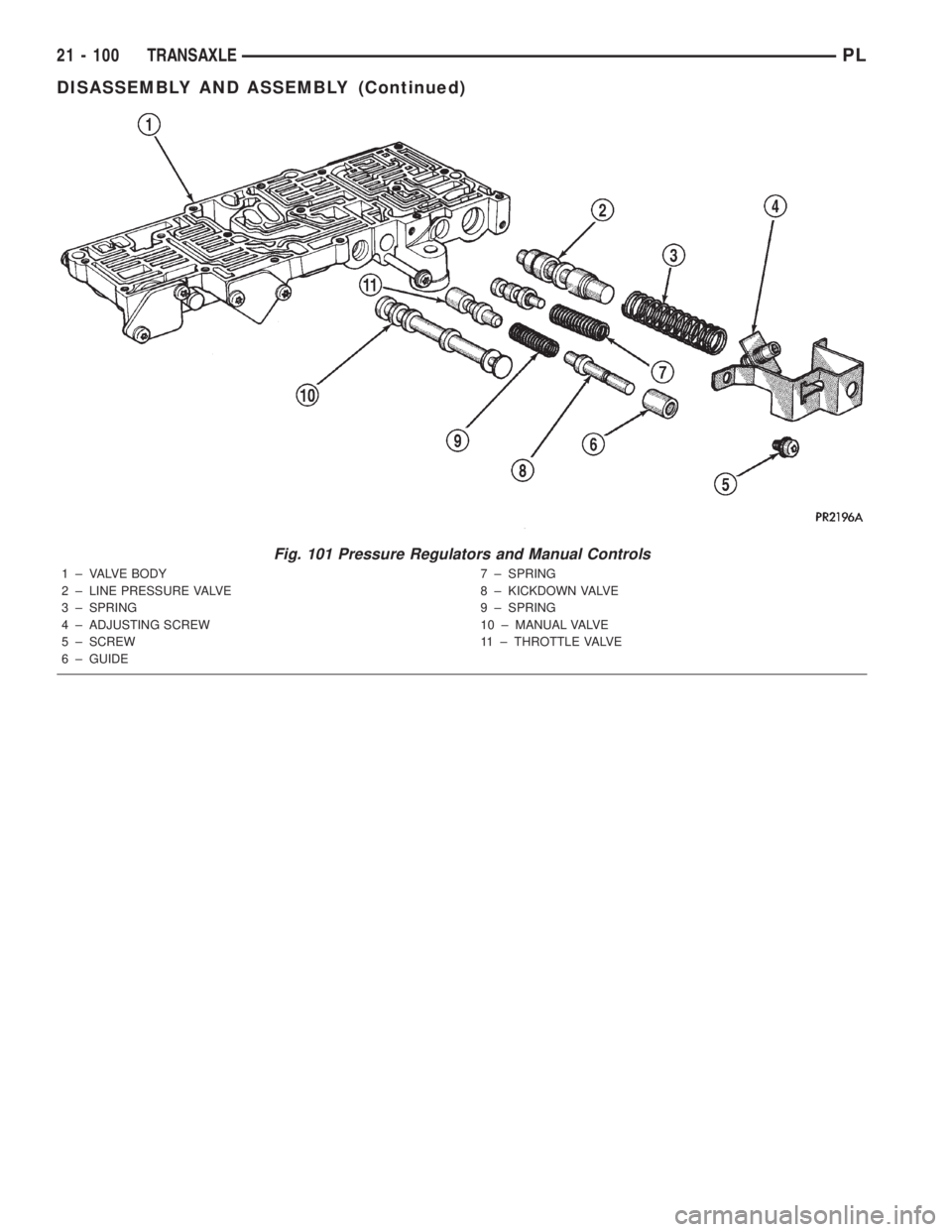

Fig. 101 Pressure Regulators and Manual Controls
1 ± VALVE BODY
2 ± LINE PRESSURE VALVE
3 ± SPRING
4 ± ADJUSTING SCREW
5 ± SCREW
6 ± GUIDE7 ± SPRING
8 ± KICKDOWN VALVE
9 ± SPRING
10 ± MANUAL VALVE
11 ± THROTTLE VALVE
21 - 100 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

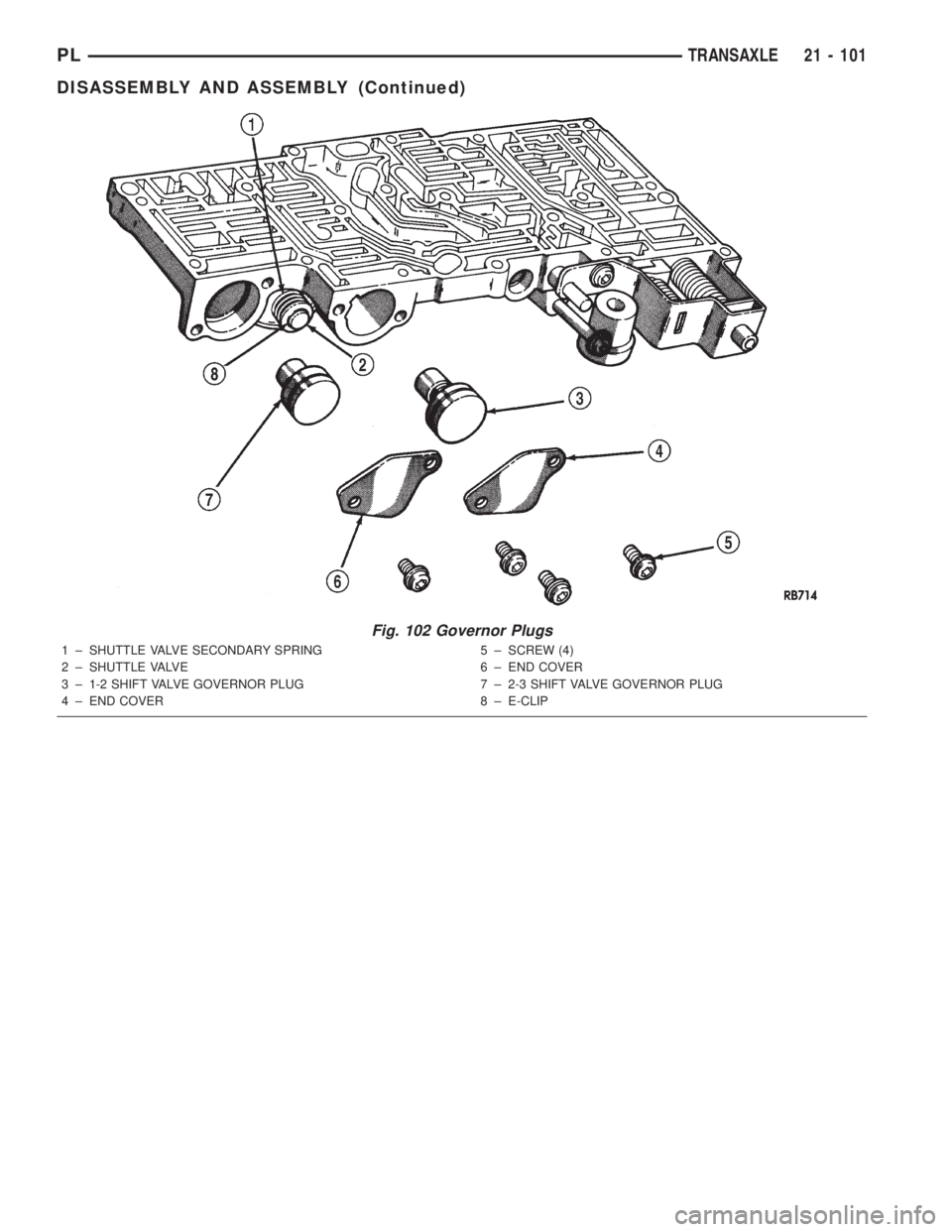

Fig. 102 Governor Plugs
1 ± SHUTTLE VALVE SECONDARY SPRING
2 ± SHUTTLE VALVE
3 ± 1-2 SHIFT VALVE GOVERNOR PLUG
4 ± END COVER5 ± SCREW (4)
6 ± END COVER
7 ± 2-3 SHIFT VALVE GOVERNOR PLUG
8 ± E-CLIP
PLTRANSAXLE 21 - 101
DISASSEMBLY AND ASSEMBLY (Continued)

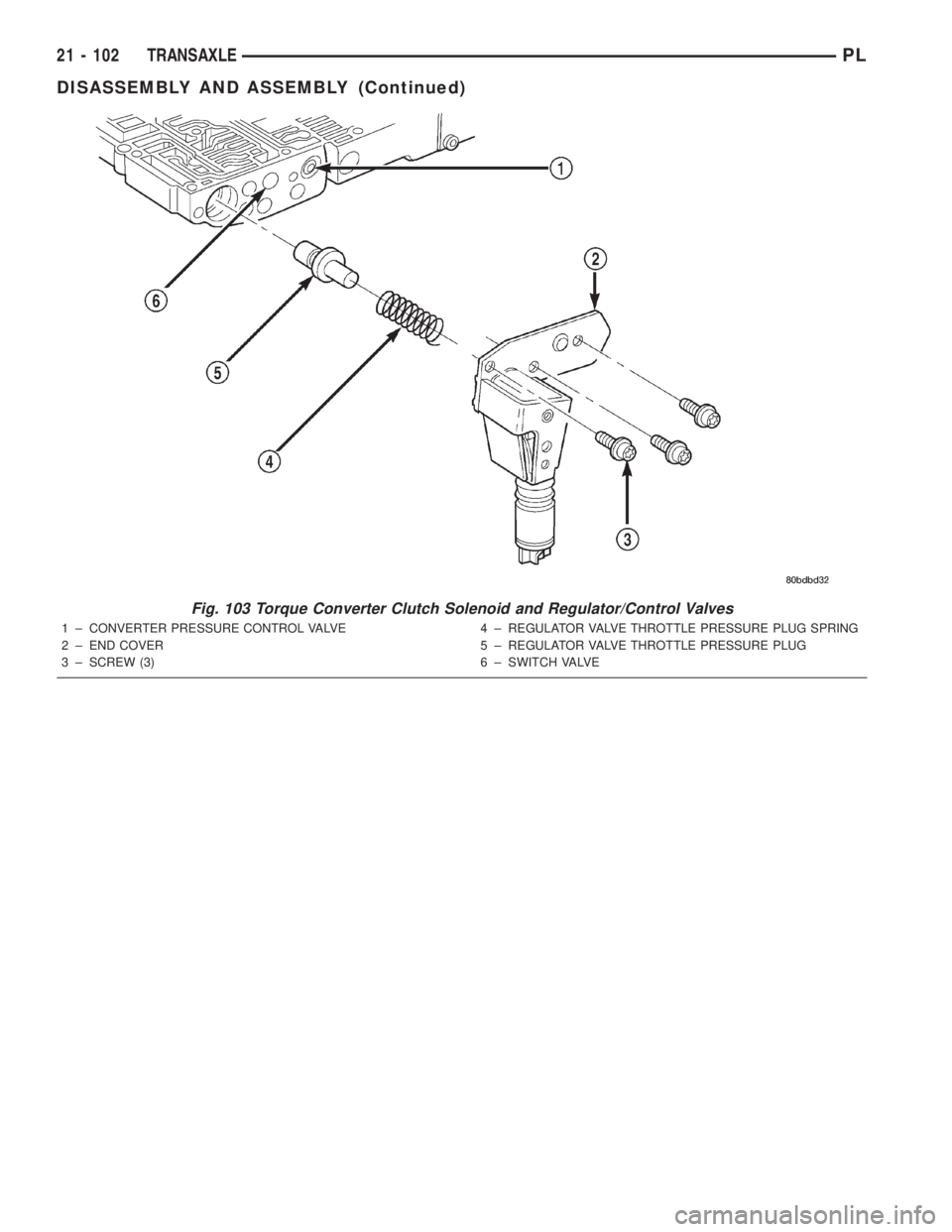

Fig. 103 Torque Converter Clutch Solenoid and Regulator/Control Valves
1 ± CONVERTER PRESSURE CONTROL VALVE
2 ± END COVER
3 ± SCREW (3)4 ± REGULATOR VALVE THROTTLE PRESSURE PLUG SPRING
5 ± REGULATOR VALVE THROTTLE PRESSURE PLUG
6 ± SWITCH VALVE
21 - 102 TRANSAXLEPL
DISASSEMBLY AND ASSEMBLY (Continued)

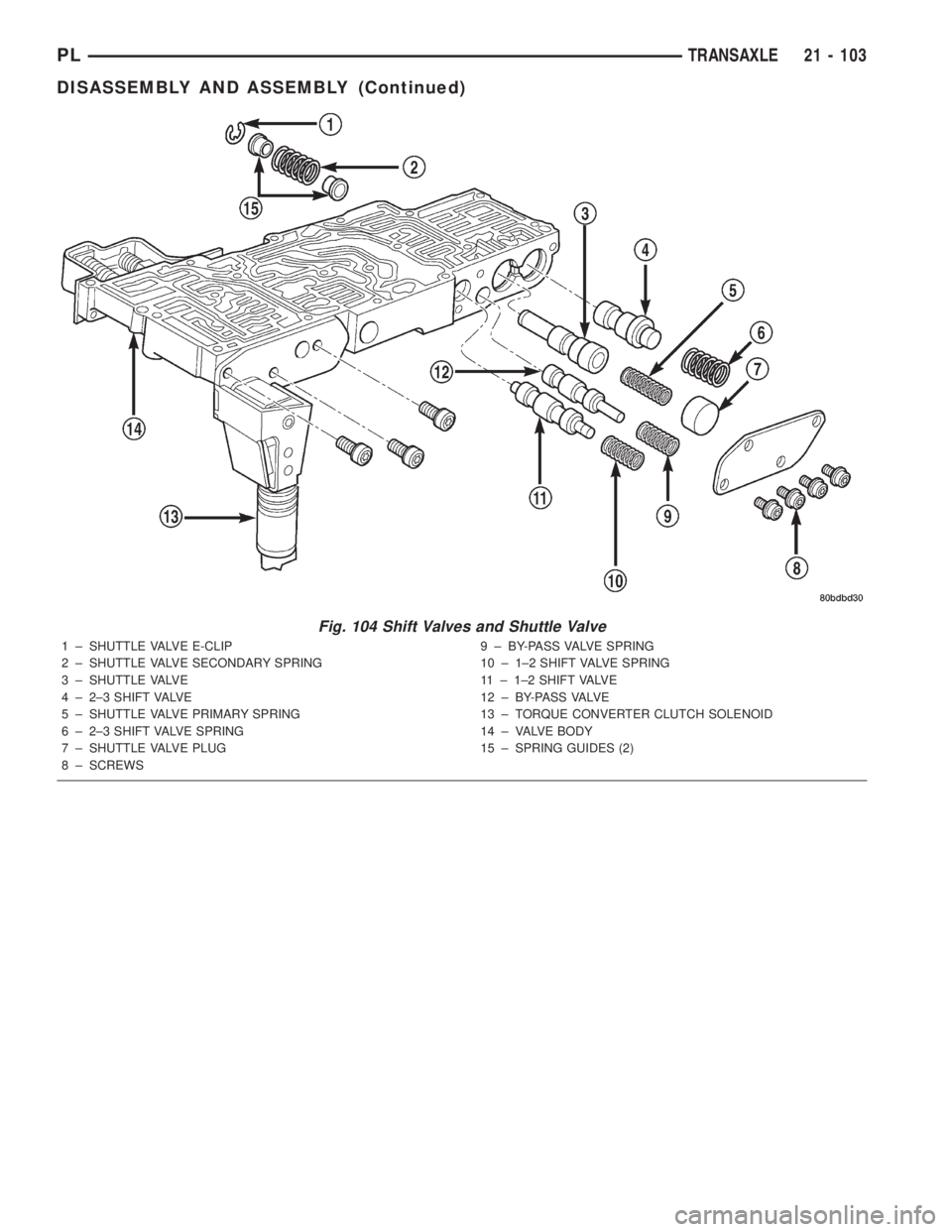

Fig. 104 Shift Valves and Shuttle Valve
1 ± SHUTTLE VALVE E-CLIP
2 ± SHUTTLE VALVE SECONDARY SPRING
3 ± SHUTTLE VALVE
4 ± 2±3 SHIFT VALVE
5 ± SHUTTLE VALVE PRIMARY SPRING
6 ± 2±3 SHIFT VALVE SPRING
7 ± SHUTTLE VALVE PLUG
8 ± SCREWS9 ± BY-PASS VALVE SPRING
10 ± 1±2 SHIFT VALVE SPRING
11 ± 1±2 SHIFT VALVE
1 2 ± B Y- PA S S VA LV E
13 ± TORQUE CONVERTER CLUTCH SOLENOID
14 ± VALVE BODY
15 ± SPRING GUIDES (2)
PLTRANSAXLE 21 - 103
DISASSEMBLY AND ASSEMBLY (Continued)
