1999 NISSAN PRIMERA Control

Items
(CONSULT-II screen terms)DTC*5
Reference page
CONSULT-II
GST*2ECM*1
NO SELF DIAGNOSTIC FAILURE INDICATED No DTC Flashing*4 EC-QG-46
P-N POS SW/CIRCUIT*6 P1706 1706 EC-QG-313
PURG VOLUME CONT/V*6 P0443 0443 EC-QG-262
THRTL POS SEN/CIRC*3 P0120 0120 EC-QG-125
TW CATALYST SYS-B1*6 P0420 0420 EC-QG-258
VEH SPEED SEN/CIRC P0500 0500 EC-QG-267
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO15031-6.
*3: When the fail-safe operation occurs, the MI illuminates.
*4: While engine is running.
*5: 1st trip DTC No. is the same as DTC No.
*6: Not available for ªEastern Europe modelº.
*7: If so equipped

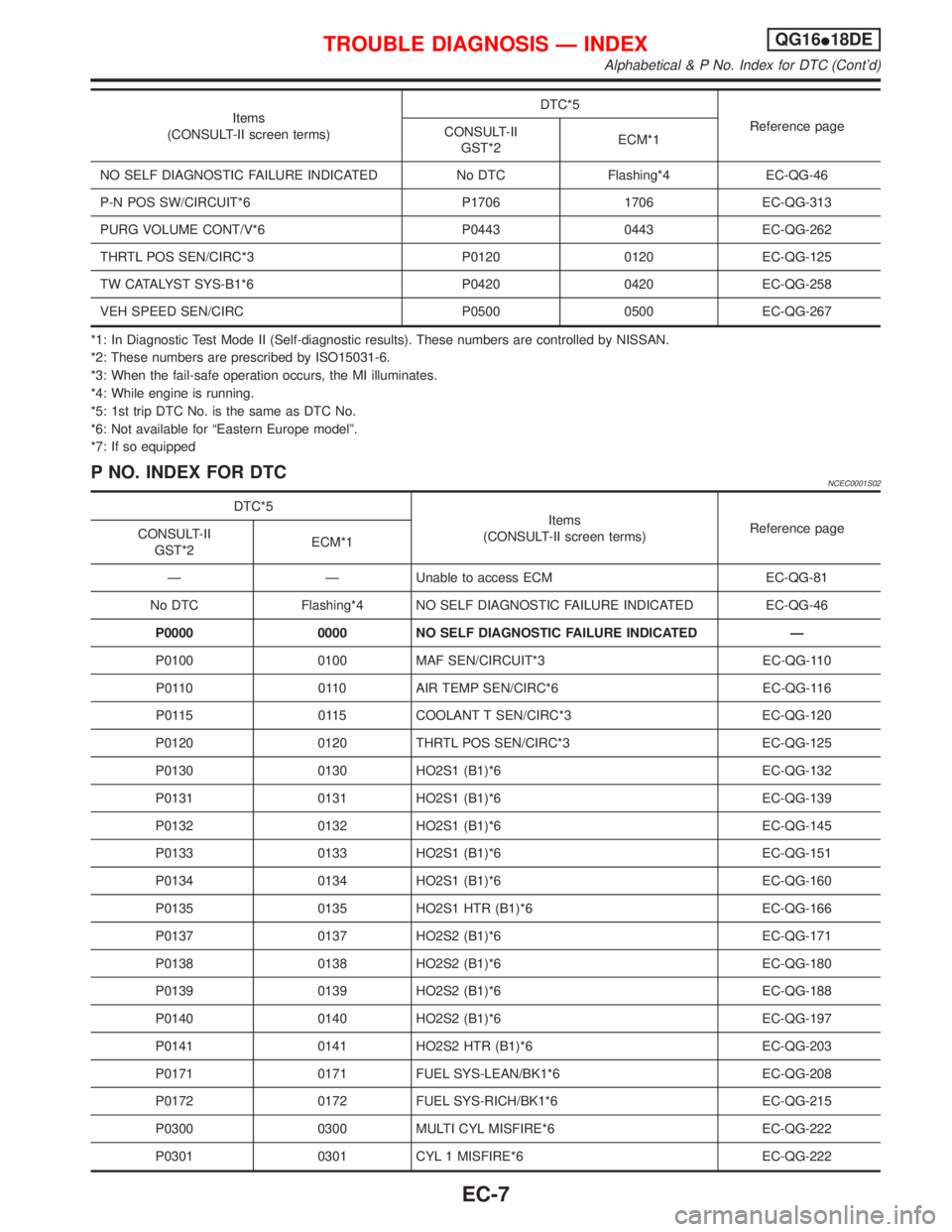

P NO. INDEX FOR DTCNCEC0001S02
DTC*5
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1
Ð Ð Unable to access ECM EC-QG-81
No DTC Flashing*4 NO SELF DIAGNOSTIC FAILURE INDICATED EC-QG-46
P0000 0000 NO SELF DIAGNOSTIC FAILURE INDICATED Ð
P0100 0100 MAF SEN/CIRCUIT*3 EC-QG-110
P0110 0110 AIR TEMP SEN/CIRC*6 EC-QG-116
P0115 0115 COOLANT T SEN/CIRC*3 EC-QG-120
P0120 0120 THRTL POS SEN/CIRC*3 EC-QG-125
P0130 0130 HO2S1 (B1)*6 EC-QG-132
P0131 0131 HO2S1 (B1)*6 EC-QG-139
P0132 0132 HO2S1 (B1)*6 EC-QG-145
P0133 0133 HO2S1 (B1)*6 EC-QG-151
P0134 0134 HO2S1 (B1)*6 EC-QG-160
P0135 0135 HO2S1 HTR (B1)*6 EC-QG-166
P0137 0137 HO2S2 (B1)*6 EC-QG-171
P0138 0138 HO2S2 (B1)*6 EC-QG-180
P0139 0139 HO2S2 (B1)*6 EC-QG-188
P0140 0140 HO2S2 (B1)*6 EC-QG-197
P0141 0141 HO2S2 HTR (B1)*6 EC-QG-203
P0171 0171 FUEL SYS-LEAN/BK1*6 EC-QG-208
P0172 0172 FUEL SYS-RICH/BK1*6 EC-QG-215
P0300 0300 MULTI CYL MISFIRE*6 EC-QG-222
P0301 0301 CYL 1 MISFIRE*6 EC-QG-222
TROUBLE DIAGNOSIS Ð INDEXQG16I18DE
Alphabetical & P No. Index for DTC (Cont'd)
EC-7

DTC*5
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1
P0302 0302 CYL 2 MISFIRE*6 EC-QG-222
P0303 0303 CYL 3 MISFIRE*6 EC-QG-222
P0304 0304 CYL 4 MISFIRE*6 EC-QG-222
P0325 0325 KNOCK SEN/CIRC-B1 EC-QG-228
P0335 0335 CKP SEN/CIRCUIT *6 EC-QG-232
P0340 0340 CMP SEN/CIRCUIT EC-QG-238
P0400 0400 EGR SYSTEM*6*7 EC-QG-244
P0403 0403 EGR VOL CON/V CIR*6*7 EC-QG-252
P0420 0420 TW CATALYST SYS-B1*6 EC-QG-258
P0443 0443 PURG VOLUME CONT/V*6 EC-QG-262
P0500 0500 VEH SPEED SEN/CIRC EC-QG-267
P0505 0505 IACV/AAC VLV/CIRC*6 EC-QG-274
P0605 0605 ECM EC-QG-282
P 1111 1111INT/V TIM V/CIR-B1*6 EC-QG-284
P1217 1217 ENG OVER TEMP EC-QG-289
P1401 1401 EGR TEMP SEN/CIRC*6*7 EC-QG-300
P1402 1402 EGR SYSTEM*6*7 EC-QG-305
P1610 - 1615 1610 - 1615 NATS MALFUNCTION Refer to EL section.
P1706 1706 P-N POS SW/CIRCUIT*6 EC-QG-313
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO15031-6.
*3: When the fail-safe operation occurs, the MI illuminates.
*4: While engine is running.
*5: 1st trip DTC No. is the same as DTC No.
*6: Not available for ªEastern Europe modelº.
*7: If so equipped
TROUBLE DIAGNOSIS Ð INDEXQG16I18DE
Alphabetical & P No. Index for DTC (Cont'd)
EC-8

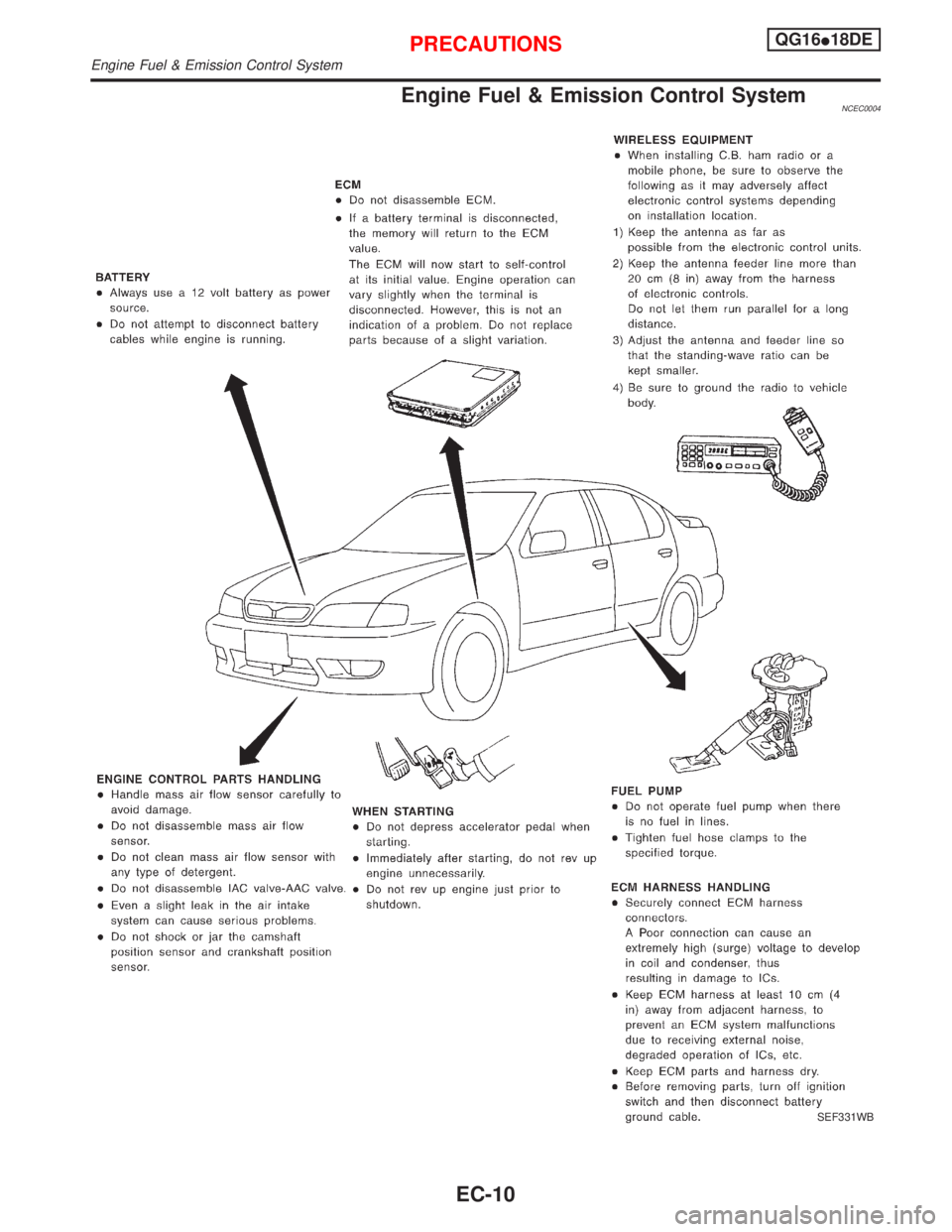

Engine Fuel & Emission Control SystemNCEC0004
SEF331WB
PRECAUTIONSQG16I18DE
Engine Fuel & Emission Control System
EC-10

Engine Control Component Parts LocationNCEC0009
YEC128A
ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG16I18DE
Engine Control Component Parts Location
EC-14

YEC129A
ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG16I18DE

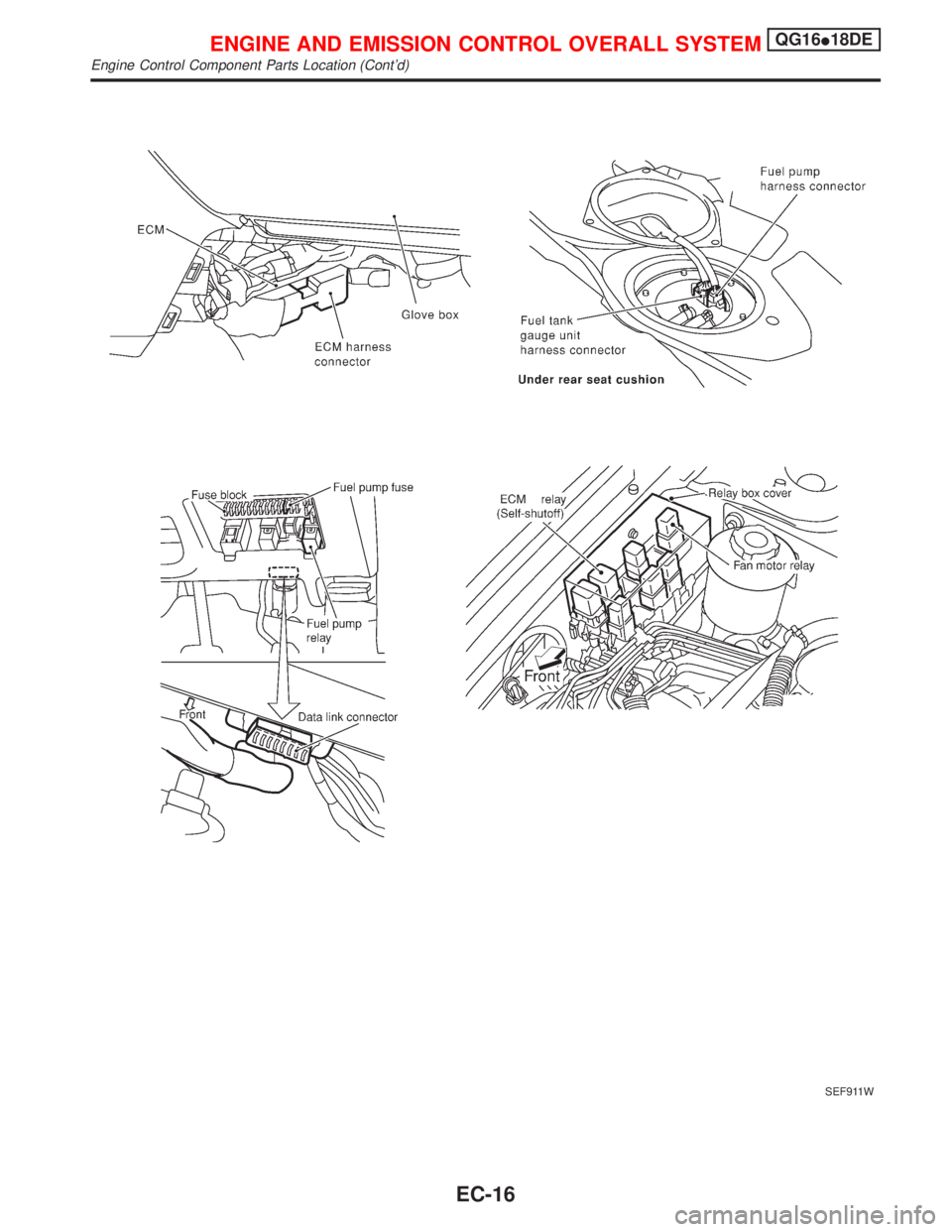

Engine Control Component Parts Location (Cont'd)
EC-15

SEF911W
ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG16I18DE
Engine Control Component Parts Location (Cont'd)
EC-16

Circuit DiagramNCEC0010
YEC062A
ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG16I18DE
Circuit Diagram
EC-17

System DiagramNCEC0011
YEC116A
ENGINE AND EMISSION CONTROL OVERALL SYSTEMQG16I18DE
System Diagram
EC-18
