1996 FORD EXPLORER Owners Manual

Safety Restraints
23
[SR10035(ALL)06/95]
33-1/2 pica
art:0021286-B

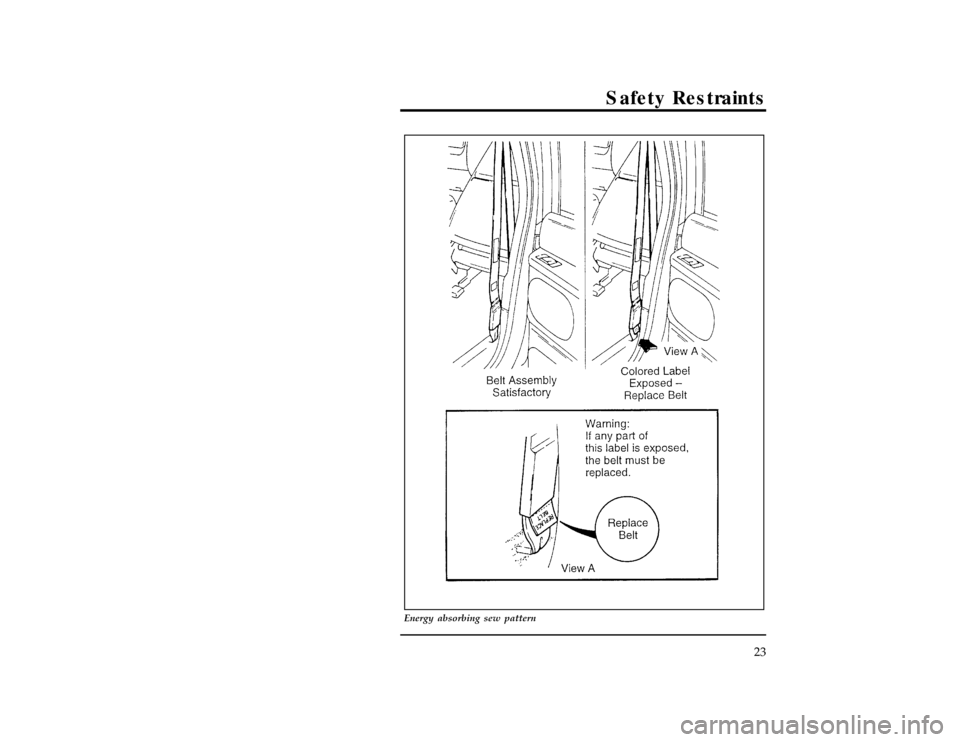

Energy absorbing sew pattern
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996

24
[SR10040(ALL)06/95]
RWARNING
FAILURE TO REPLACE THE SAFETY BELT ASSEMBLY
UNDER THE ABOVE CONDITIONS COULD RESULT
IN SEVERE PERSONAL INJURIES IN THE EVENT OF
A COLLISION.
%*
[SR10200(ALL)10/95]
All safety belt assemblies, including retractors, buckles, front
seat belt buckle support assemblies (slide bar) (if equipped),
child safety seat tether bracket assemblies (if equipped), and
attaching hardware, should be inspected after any collision. Ford
recommends that all safety belt assemblies used in vehicles
involved in a collision be replaced. However, if the collision was
minor and a qualified technician finds that the belts do not
show damage and continue to operate properly, they do not
need to be replaced. Safety belt assemblies not in use during a
collision should also be inspected and replaced if either damage
or improper operation is noted.
%*
[SR10250(ALL)06/95]
Cleaning the Safety Belts
*
[SR10275(ALL)06/95]
Clean the safety belts with any mild soap solution that is
recommended for cleaning upholstery or carpets. Do not bleach
or dye the belt webbing because this may weaken it.
%*
[SR10300(ALL)06/95]
Air Bag Supplemental Restraint System
(SRS)
*
[SR10800(ALL)05/95]
The driver and right front passenger air bags are Supplemental
Restraint Systems (SRS), provided at these seating positions in
addition to the lap/shoulder belt, and are designed to
supplement the protection provided to properly belted
occupants in moderate to severe frontal collisions. The
supplemental air bag system does not provide restraint to the
lower body.
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996

Safety Restraints
25
%*
[SR10900(ALL)05/95]
The Importance of Wearing Safety Belts
*
[SR11000(ALL)06/95]
RWARNING
Safety belts must be worn by all vehicle occupants to be
properly restrained and help reduce the risk of injury in
a collision.
*
[SR11050(ALL)05/95]
RWARNING
All occupants of the vehicle, including the driver, should
always wear their safety belts, even when an air bag
Supplemental Restraint System is provided.
*
[SR11100(ALL)01/95]
There are four very important reasons to use safety belts even
with an air bag system. Use your safety belts to:
*
[SR11200(ALL)01/95]
n
help keep you in the proper position (away from the air bag)
when it inflates
*
[SR11300(ALL)01/95]
n
reduce the risk of harm in rollover, side or rear impact
collisions, because an air bag is not designed to inflate in
such situations
*
[SR11350(ALL)01/95]
n
reduce the risk of harm in frontal collisions that are not
severe enough to activate the supplemental air bag
*
[SR11400(ALL)01/95]
n
reduce the risk of being thrown from your vehicle
[SR11500(ALL)06/95]
RWARNING
The right front passenger air bag is not designed to
restrain occupants in the center front seating position.
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996

26
%*
[SR11600(ALL)01/95]
The Importance of Being Properly Seated
*
[SR11700(ALL)05/95]
In a collision, the air bag must inflate extremely fast to help
provide additional protection for you. In order to do this, the
air bag must inflate with considerable force. If you are not
seated in a normal riding position with your back against the
seatback, the air bag may not protect you properly and could
possibly hurt you as it inflates.
% [SR11800( X)05/95]
Important Information About the Right Front Passenger
Air Bag
[SR11900(ALL)05/95]
It is important for the front seat passengers' safety that they
remain properly seated whenever the vehicle is moving. This
means that small children should be secured in appropriate
child safety seats or infant seats, and all other occupants should
sit upright, with their backs against the seatback, and restrained
by lap and shoulder belts. No passenger should sit toward the
front edge of the seat, or stand or lean near the air bag cover
(which is near the glove box).
*
[SR12000( X)08/95]
RWARNING
If a passenger is not properly seated and restrained, an
inflating air bag could cause serious injury.
*
[SR12100( X)07/95]
In rear-facing infant seats, the infant's head is closer to the air
bag. The force of the rapidly inflating air bag could push the
top of the rear-facing seat against the vehicle seatback or center
armrests (if so equipped), or center console (if so equipped).
REAR-FACING INFANT CARRIERS MUST ALWAYS BE
SECURED IN THE REAR SEAT, and other child safety seats
and infant seats should be secured in the rear seat whenever
possible.
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996

Safety Restraints
27
*
[SR12290( X)07/95]
Your vehicle is equipped with a right front passenger air bag.
Air bags deploy with great force, faster than the blink of an eye.
Front passengers, especially children and small adults, must
never sit on the front edge of the seat, stand near the glove
compartment of the instrument panel, or lean over near the air
bag cover when the vehicle is moving. All occupants should sit
with their backs against the seatback, move the seat to the most
rearward position if possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should use child or
infant seats.
%*
[SR12300( X)07/95]
RWARNING
When using forward-facing child seats move the
passenger seat as far back from the instrument panel as
possible. NEVER SECURE REAR-FACING INFANT
SEATS IN THE FRONT SEAT.
*
[SR12310( X)11/95]
The force of the rapidly inflating passenger air bag could push
the top of the rear-facing seat against the vehicle seatback,
armrests or console. Rear-facing infant seats must always be
secured in the rear seat.
*
[SR12400( X)07/95]
RWARNING
Do not place objects or mount equipment on or near the
air bag cover on the steering wheel or in front seat areas
that may come in contact with a deploying air bag.
Failure to follow this instruction may increase the risk of
personal injury in the event of a collision.
*
[SR12500( X)08/95]
For additional important safety information on the proper use of
seat belts, child seats, and infant seats, please read the other
sections of this chapter of the Owner Guide, especially sections
entitledSafety Belts for ChildrenandSafety Seats for Children.
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996

28
*
[SR12600( X)07/95]
For further information about the proper mounting of
equipment in the front seat of this vehicle, please refer to Ford's
brochure entitledSome Important Information About Air Bag
Supplemental Restraint Systemwhich can be obtained by calling
Helm Inc. at 1-800-782-4356. Ask for brochure FPS-8602.
%*
[SR12700(ALL)01/95]
How the Air Bag Supplemental Restraint System
Operates
*
[SR12800( X)06/95]
The Air Bag Supplemental Restraint System consists of the
driver and passenger air bags, impact sensors, a system
diagnostic module, a readiness light and tone, and the electrical
wiring which connects the components.
[SR12900(ALL)06/95]
The driver air bag is in the center of the steering wheel. The
right front passenger seat air bag (if equipped) is in the upper
right hand section of the instrument panel ledge above the
glove compartment.
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996

Safety Restraints
29
[SR13000( X)08/94]
17-1/2 pica
art:0021130-B

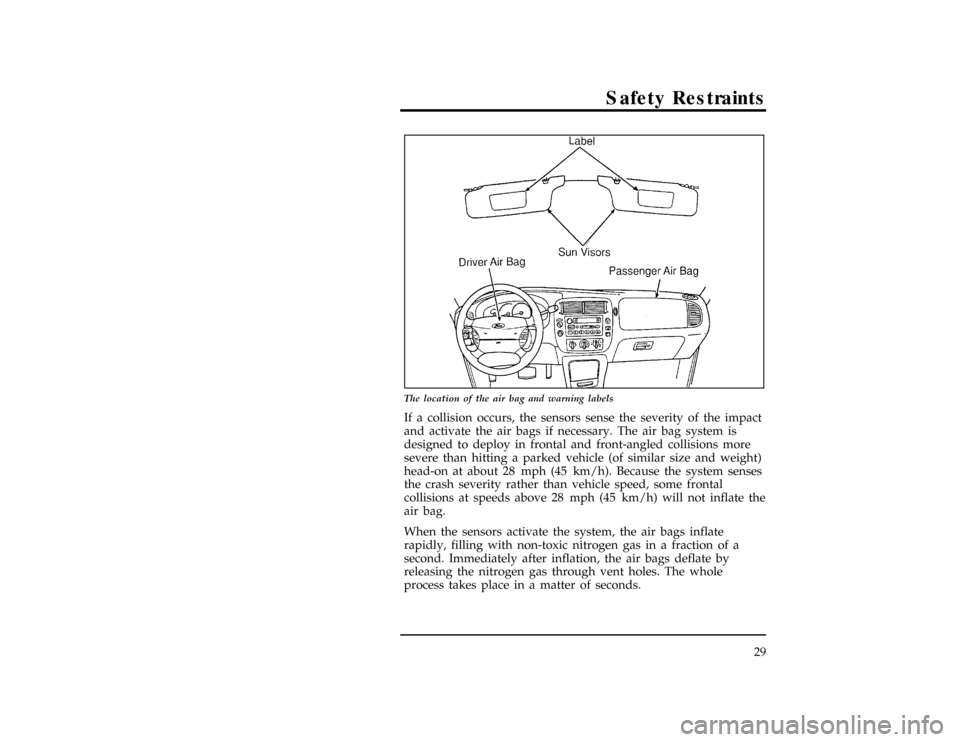

The location of the air bag and warning labels
*
[SR13010(ALL)07/95]
If a collision occurs, the sensors sense the severity of the impact
and activate the air bags if necessary. The air bag system is
designed to deploy in frontal and front-angled collisions more
severe than hitting a parked vehicle (of similar size and weight)
head-on at about 28 mph (45 km/h). Because the system senses
the crash severity rather than vehicle speed, some frontal
collisions at speeds above 28 mph (45 km/h) will not inflate the
air bag.
*
[SR13020(ALL)12/95]
When the sensors activate the system, the air bags inflate
rapidly, filling with non-toxic nitrogen gas in a fraction of a
second. Immediately after inflation, the air bags deflate by
releasing the nitrogen gas through vent holes. The whole
process takes place in a matter of seconds.
File:03unsrx.ex
Update:Thu Feb 29 09:02:31 1996

30
*
[SR13030(ALL)07/95]
RWARNING
Air bag system components get hot after inflation. Do
not touch them after inflation.
%*
[SR13050(ALL)05/95]
The air bag system uses a readiness light on the instrument
cluster and a tone to indicate the condition of the system. When
you turn the ignition key to the ON position, this light will
illuminate for approximately six (6) seconds and then turn off.
This indicates that the system is operating normally. NOTE:
Maintenance of the air bag system is not required.
*
[SR13060(ALL)05/95]
17-1/2 pica
art:0050087-A

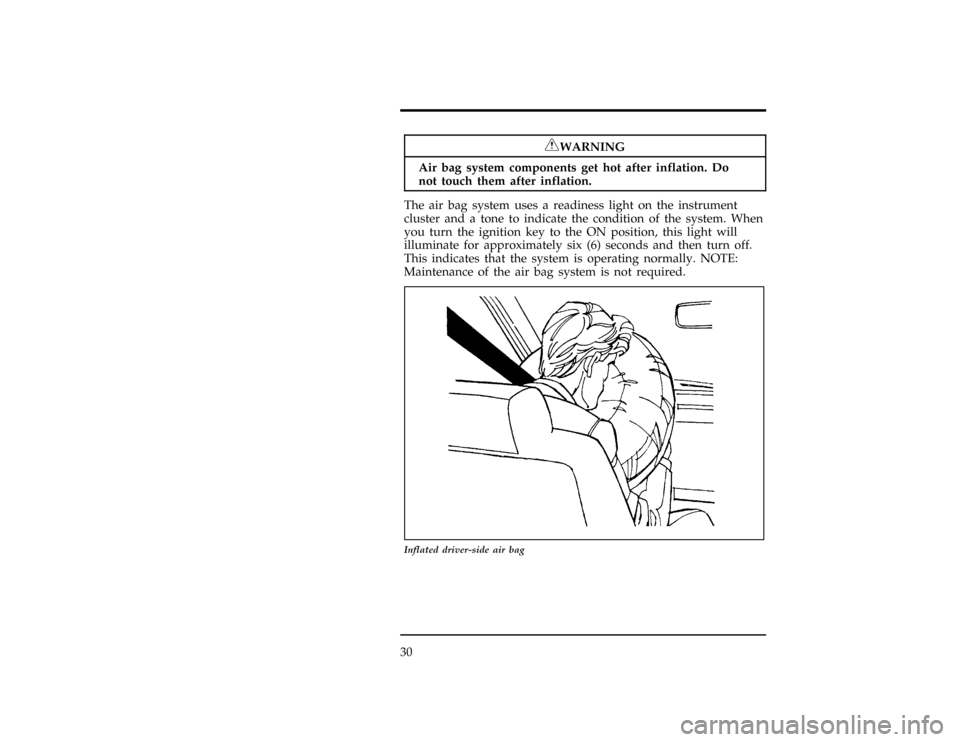

Inflated driver-side air bag
