1996 FORD EXPLORER Owners Manual

Steering Column Controls
145
*
[SC10250(ALL)10/94]
n
TAP-UP Ð This allows you to increase your current speed in
increments of 1 mph (1.6 km/h) by a momentary tap of the
SET-ACCEL switch. Multiple taps of the SET-ACCEL switch
will increase your vehicle speed 1 mph (1.6 km/h) for each
tap. For example, if you are currently set at 60 mph
(96 km/h) and tap the SET-ACCEL switch 5 times your
vehicle speed will increase and set at 65 mph (104 km/h).
*
[SC10300(ALL)06/95]
Turning the Speed Control Off
*
[SC10400(ALL)06/95]
You can cancel the speed control while you are driving.
[SC10550(ALL)08/94]
n
Press the OFF switch. The speed control is off. If you want
to resume speed control, press the ON switch and reset the
speed control by pressing the SET ACCEL switch.
[SC10600(ALL)06/94]
n
Press the brake or clutch pedal slightly. The speed control is
suspended, but you can reset it by pressing SET ACCEL or
return to the previous set speed with the RSM switch.
*
[SC10800(ALL)10/95]
In addition, the speed control is turned off each time you turn
the vehicle ignition off.
*
[SC11100(ALL)11/89]
Driving uphill or on a steep grade
*
[SC11200(ALL)05/95]
When the speed control is on, your vehicle may significantly
drop speed when driving uphill, especially with a heavy load. If
the speed drops more than 8 to 14 mph (15 - 25 km/h) the
automatic speed control will, by design, be canceled. You may
have to temporarily resume manual speed control while driving
up a steep grade in order to maintain the speed you desire.
[SC11300(ALL)05/95]
If the speed control ªdropped outº after your climb is
completed, the speed of your light truck can be reset with the
SET ACCEL switch, or returned to the previous set speed with
the RSM switch, as long as you are driving over 30 mph
(50 km/h).
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

146
%*
[SC11500(ALL)08/95]
Cancelling and Resuming a Set Speed
*
[SC11600(ALL)06/95]
If you press the brake pedal, the speed control is cancelled. You
can return to the speed you set by using the RSM switch, as
long as you did not press the OFF switch.
*
[SC11700(ALL)08/95]
To resume the speed you had before, you must be driving at
least 30 mph (50 km/h).
*
[SC11800(ALL)05/93]
Press and release the RSM switch. Your vehicle gradually
returns to the previously set speed and then maintains it.
*
[SC11850(ALL)03/95]
RWARNING
If your vehicle has speed control, do not use it on
slippery roads. You could lose control of your vehicle
and could injure someone.
[SC12000( X)06/95]
Speed Control Indicator (If equipped)
[SC12100( X)08/94]
A SPEED CONTROL light is displayed in the instrument cluster
when the speed control system is engaged. The display will turn
off when the brake pedal is pressed or if speed control is shut
off.
*
[SC12200( X)05/95]
This display does not indicate any problems with the speed
control, but is simply a convenient way of knowing when it is
active.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

147
Features
*
[FV00350(ALL)02/95]
Your vehicle has a variety of features designed for your
comfort, convenience and safety. Read this chapter to find out
about standard and optional features.
%*
[FV00601(ALL)01/95]
Doors
*
[FV00701(ALL)06/95]
Door Handles and Locks
[FV00901( X)08/94]
17-1/2 pica
art:0020548-C

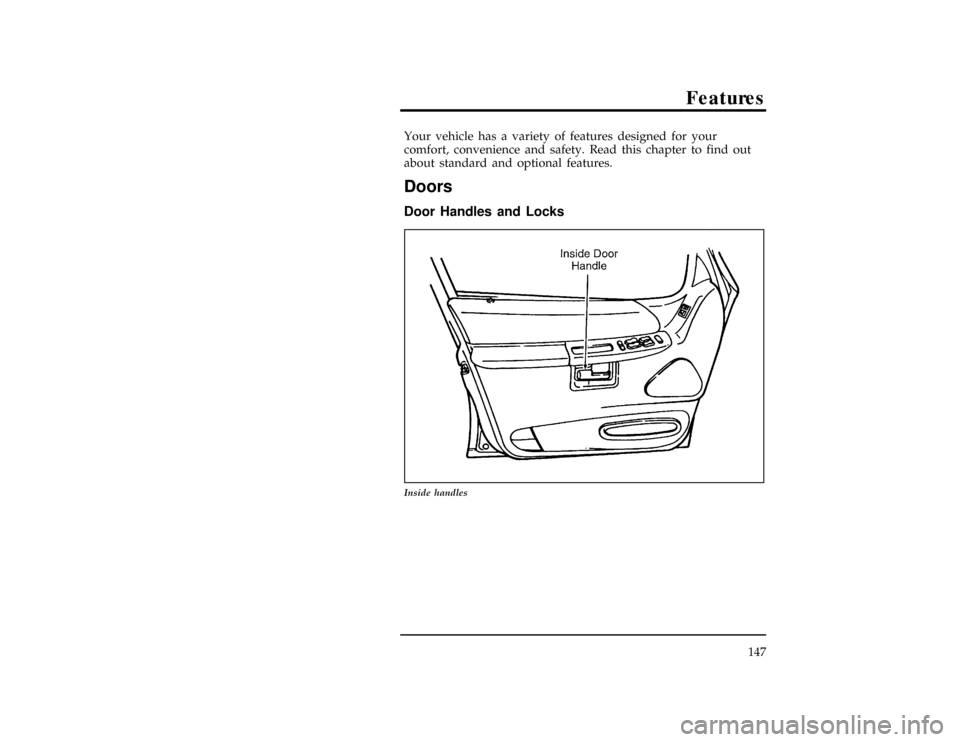

Inside handles
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

148
[FV01502( X)10/94]
10-1/2 pica
art:0021367-A

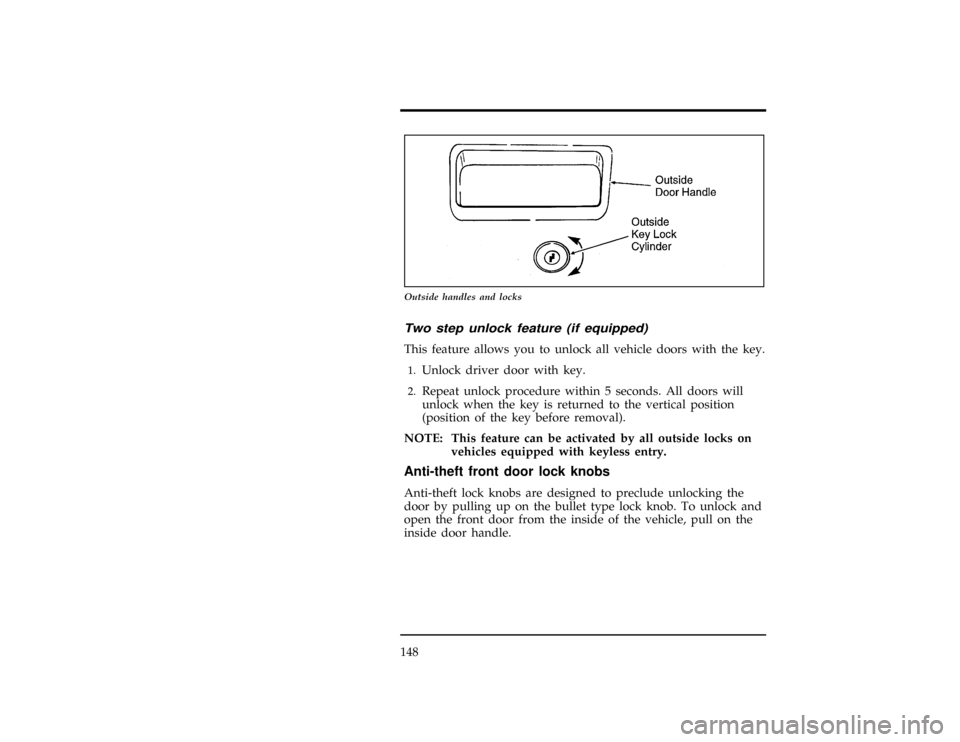

Outside handles and locks
[FV01600( X)10/95]
Two step unlock feature (if equipped)
[FV01620( X)10/95]
This feature allows you to unlock all vehicle doors with the key.
[FV01640( X)10/95]1.
Unlock driver door with key.
[FV01660( X)12/95]2.
Repeat unlock procedure within 5 seconds. All doors will
unlock when the key is returned to the vertical position
(position of the key before removal).
[FV01680( X)10/95]
NOTE: This feature can be activated by all outside locks on
vehicles equipped with keyless entry.
%*
[FV01801(ALL)03/95]
Anti-theft front door lock knobs
*
[FV01901(ALL)10/89]
Anti-theft lock knobs are designed to preclude unlocking the
door by pulling up on the bullet type lock knob. To unlock and
open the front door from the inside of the vehicle, pull on the
inside door handle.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

Features
149
[FV02001( X)01/91]
Setting the Childproof Locks for the Rear Doors
*
[FV02101( X)03/95]
In addition to standard or power locks, your vehicle has
childproof locks for the rear doors. If you set these locks, the
rear doors cannot be opened from the inside of the vehicle. The
doors can still be opened from the outside when the lock knobs
are raised.
[FV02300( X)08/94]
17-1/2 pica
art:0020545-C

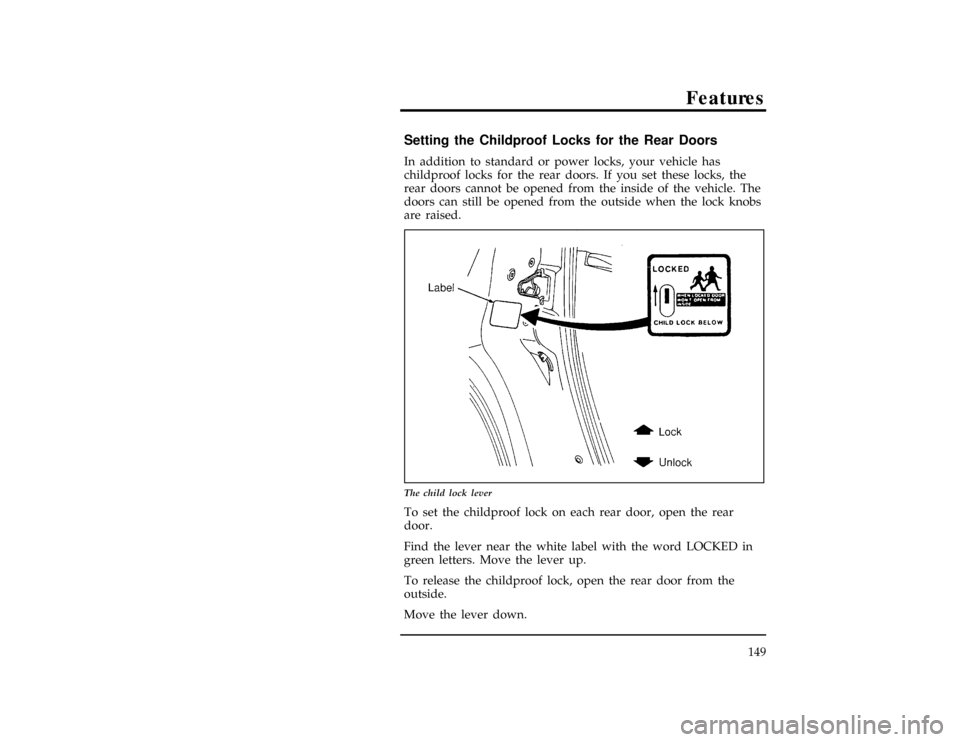

The child lock lever
*
[FV02401( X)03/95]
To set the childproof lock on each rear door, open the rear
door.
[FV02601( X)01/95]
Find the lever near the white label with the word LOCKED in
green letters. Move the lever up.
*
[FV02801( X)03/95]
To release the childproof lock, open the rear door from the
outside.
*
[FV03001( X)06/95]
Move the lever down.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

150
[FV04900( X)08/94]
Liftgate Handle and Locks
[FV05000( X)10/94]
10-1/2 pica art:0020550-F
Liftgate handle and locks
[FV05100( X)11/89]
You can unlock the liftgate by using the key. To open the
liftgate, rotate the handle clockwise and to open the liftgate
window, rotate the handle counterclockwise.
[FV05200( X)05/95]
You can lock the liftgate by using the key, pushing the lock
button down, or using the power door lock switch on the left
side of the cargo area.
*
[FV05300( X)10/89]
Make certain that you close the liftgate door and window before
driving your vehicle. If you do not, possible damage may occur
to the liftgate door lift cylinders and attaching hardware.
*
[FV05400( X)08/95]
RWARNING
When driving your vehicle make sure that the liftgate
door and window are closed to prevent exhaust fumes
from being drawn into the vehicle. This will also prevent
cargo from falling out.
*
[FV05900( X)12/93]
The liftgate area is only intended for cargo, not passengers. You
can open and close the liftgate from outside the vehicle. It
cannot be opened from inside the cargo area.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

Features
151
[FV11000( X)05/95]
Cargo Area Shade (If equipped)
[FV11201( X)03/91]
This removable shade hides cargo and also secures lightweight
objects in the cargo area of your vehicle.
*
[FV11401( X)03/91]

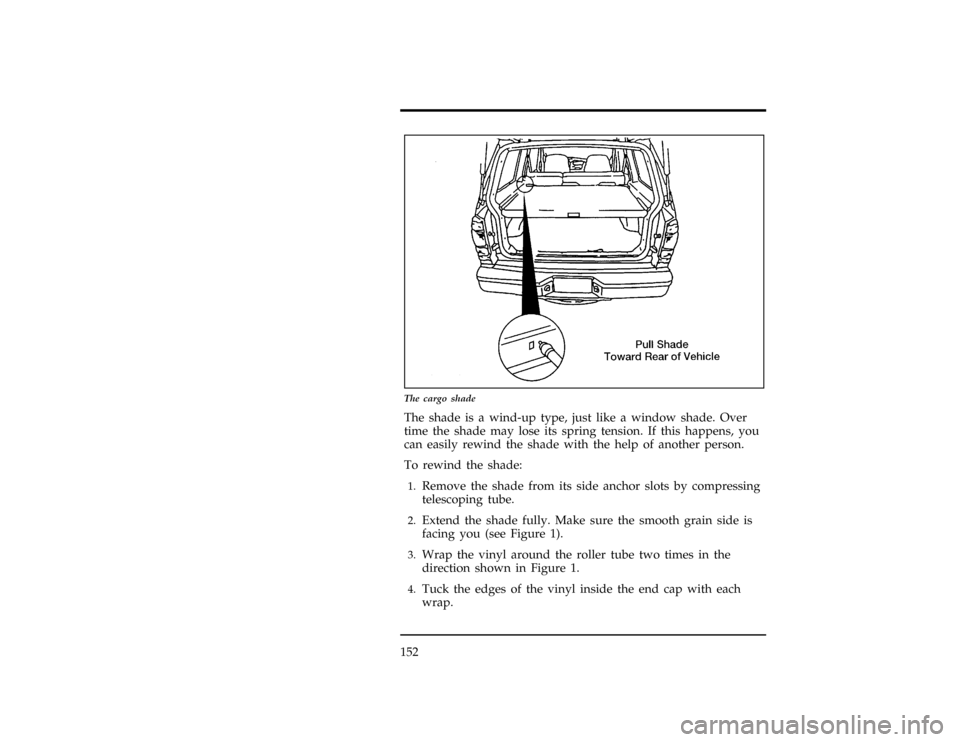

To install the shade:
*
[FV11601( X)05/90]1.
Position the shade in the mounting brackets located behind
the rear seat on each rear trim panel.
[FV11700( X)05/95]
The tongue end of the shade should face the rear of your
vehicle.
*
[FV11801( X)03/93]2.
Grasp the end of the shade and pull it toward you.
*
[FV12001( X)05/90]3.
Hook the sides of the outstretched shade to notch in the rear
trim panels near the liftgate opening.
[FV12200( X)05/95]
RWARNING
To avoid possible injury during a sudden stop or a
collision, the cover should be attached to the brackets,
when not in use.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

152
[FV12400( X)10/94]
17-1/2 pica art:0020547-F
The cargo shade
*
[FV12600( X)05/91]
The shade is a wind-up type, just like a window shade. Over
time the shade may lose its spring tension. If this happens, you
can easily rewind the shade with the help of another person.
*
[FV12700( X)05/91]
To rewind the shade:
[FV12800( X)06/94]1.
Remove the shade from its side anchor slots by compressing
telescoping tube.
*
[FV12900( X)05/91]2.
Extend the shade fully. Make sure the smooth grain side is
facing you (see Figure 1).
*
[FV13000( X)05/91]3.
Wrap the vinyl around the roller tube two times in the
direction shown in Figure 1.
*
[FV13100( X)05/91]4.
Tuck the edges of the vinyl inside the end cap with each
wrap.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996
