1996 FORD EXPLORER Owners Manual

Features
185
[FV46950( X)03/94]2.
For an alternative memory position, place seat in the second
desired position, depress the ªSETº button, then press the
ª2º button within 5 seconds or until the light goes off.
[FV46960( X)03/94]3.
For the third memory position, move the seat to the desired
position, depress the ªSETº button, then press the ª1º and
ª2º buttons at the same time within 5 seconds or until the
light goes off.
[FV46970( X)03/94]
To use your memory switch either in Park or Neutral after the
settings are complete, press either the ª1º, ª2º, or ª1 and 2
simultaneouslyº and the seat will move to that position.
[FV47000(ALL)08/94]
Using the Power Lumbar Support and Side Bolsters
(If equipped)
[FV47200(ALL)08/94]
Inflating the lumbar support and side bolsters
[FV47800(ALL)12/91]
If your vehicle is equipped with this option you can
inflate/deflate the lumbar support pad in the seat back and
inflate/deflate the side bolster pads.
[FV47900(ALL)10/94]
To inflate the bolster pads, push the ª+º end of the front rocker
switch. To deflate the bolster pads, push the ªsº end of the
switch.
[FV48000(ALL)10/94]
To inflate the lumbar support pad, push the ª+º end of the rear
rocker switch. To deflate the lumbar support pad, push the ªsº
end of the switch.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

186
[FV48300(ALL)08/94]
10-1/2 pica
art:0021169-C
Power lumbar and side bolsters switch Ð sport bucket seat
%*
[FV48310(ALL)04/95]
Cleaning the Seats
%*
[FV48315(ALL)04/95]
Fabric
*
[FV48320(ALL)05/95]
Remove dust and loose dirt with a whisk broom or a vacuum
cleaner. Remove fresh spots immediately. Follow the directions
that come with the cleaner.
*
[FV48325(ALL)09/95]
NOTE: Before using any cleaner, test it on a small, hidden
area of fabric. If the fabric's color or texture is
adversely affected by a particular cleaner, do not use
it.
[FV48340(ALL)02/96]
Cleaning your vehicle
[FV48345(ALL)02/96]
Leather
[FV48350(ALL)12/95]
For routine cleaning, wipe the surface with a soft, damp cloth.
For more thorough cleaning, wipe the surface with a leather and
vinyl cleaner or a mild soap.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

Features
187
[FV48400( X)06/94]
Positive Location Floor Mats (If equipped)
[FV48500( X)05/95]
Installation
[FV48600( X)03/93]1.
Move driver's seat to most rearward position.
[FV48700( X)12/92]2.
Locate driver's side floor mat in vehicle with rear of mat
against left (outboard) front edge of seat track mounting
bracket (see Figure 1).
[FV48800( X)04/94]
7-1/2 pica art:0020972-B[FV48900( X)12/92]3.
Use a screwdriver to screw locator post into vehicle
carpeting. Exert pressure while turning to allow locator
"auger point" to pierce floor carpet. Locator will not screw
down tightly, but will rotate freely when installed properly.
[FV49000( X)12/92]
Usage
[FV49100( X)12/92]4.
To remove mat, pull up on rear of mat to un-snap from
locator post (see Figure 2).
[FV49200( X)12/92]5.
To re-install mat, align grommet in mat over locator post
and push down to snap mat in place (see Figure 2).
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

188
[FV49300( X)04/94]
7-1/2 pica art:0020973-B%*
[FV50000(ALL)01/95]
Mirrors
%*
[FV50700( X)01/95]
Automatic Dimming Inside Rearview Mirror
(If equipped)
[FV51600( X)04/94]
10-1/2 pica
art:0020976-C
The automatic non-glare mirror
*
[FV51700( X)01/95]
The electronic day/night mirror will change from the normal
state to the non-glare state when bright lights (glare) reach the
mirror. This mirror functions at night, and has a limited
function at dusk or dawn. From the non-glare state, the mirror
will return to the normal state after a short delay. The delay
starts when the glare goes away. The delay prevents excessive
changing of the mirror as traffic moves behind and around the
vehicle, or on rolling hills and curves.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

Features
189
*
[FV51800( X)01/95]
The electronic mirror measures the brightness of the light
coming in from the rear of the vehicle. It automatically makes a
correction in the glare state. The mirror may be turned off in
either the normal or non-glare position.
*
[FV51900( X)06/94]
There are two light sensors (photocells) in this mirror. The
sensor that detects rear glare is located inside a window in the
upper RH corner of the mirror. The second light sensor which
determines outside light level is located on the backside of the
mirror case.
*
[FV52000( X)01/95]
One important safety feature is that the mirror automatically
returns to the normal position whenever the vehicle is placed in
R (Reverse) (when the mirror is in the ON position). This
feature ensures a bright clear view in the mirror when backing
up.
*
[FV52200( X)03/95]
To turn on the automatic mirror, have the key in the ON
position and push the ON button once. The light in the center
of the button will light indicating the mirror is on. To turn the
mirror off push the ON button again.
*
[FV52300( X)05/93]
The mirror can be temporarily darkened, if wanted, by pushing
the Dim button. After releasing the button, the mirror will
return to the previous operation mode after a short delay.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

190
%*
[FV52400( X)06/95]
Illuminated Vanity Mirror (If equipped)
%*
[FV52500( X)06/95]
Your vehicle may feature illuminated vanity mirrors on the sun
visors. You can turn on the lighted mirror by lifting the mirror
door cover.
[FV52600( X)10/94]
7-1/2 pica art:0021171-B
Visor vanity mirror
*
[FV52700( X)05/93]
Visors that are equipped with the lighted vanity mirror also
have an auxiliary visor. The auxiliary visor slides right and left
to cover the windshield when the primary visor is pivoted to
the door window.
[FV52800( X)03/95]
10-1/2 pica
art:0090129-A
Auxiliary sun visor (right side shown)
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

Features
191
%*
[FV54500(ALL)08/91]
Dual Electric Remote Control Mirrors (If equipped)
*
[FV54600(ALL)08/91]
To adjust the remote controlled side mirrors:
*
[FV54800(ALL)01/95]1.
Find the control switch in the driver's door panel.
[FV55000(ALL)10/94]2.
Select the right or left mirror by moving the selector switch
to the right or left.
*
[FV55200(ALL)01/89]3.
Move the control knob in the direction you want to move
the mirror.
*
[FV55400(ALL)06/94]4.
Return the selector switch to the middle position to keep the
mirror in place.
[FV55500(ALL)04/95]
7-1/2 pica art:0090159-A
Power mirror control
*
[FV55900(ALL)12/91]
Do not clean the plastic housing of any electric mirror with
gasoline or other petroleum-based cleaning products.
*
[FV55950(ALL)05/95]
RWARNING
The side view mirror on the right makes objects appear
smaller and farther away than they actually are.
[FV56000( X)03/93]
Heated Mirror Feature (Limited)
*
[FV56100( X)03/95]
Both mirrors are heated whenever the Electric Rear Window
Defroster is turned on. Do not remove ice from the mirrors with
a scraper or you could damage them. If the outside mirror glass
is frozen in place, do not attempt to readjust or move the
mirror glass or damage may result.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996

192
[FV56200( X)10/94]
Rear Storage Compartment with Net
(If equipped)
[FV56300( X)12/91]
Your vehicle may have a small storage compartment which is
located on the inside rear passenger quarter panel. This
compartment has a net which will secure small objects.
[FV56400( X)10/94]
7-1/2 pica art:0020564-B

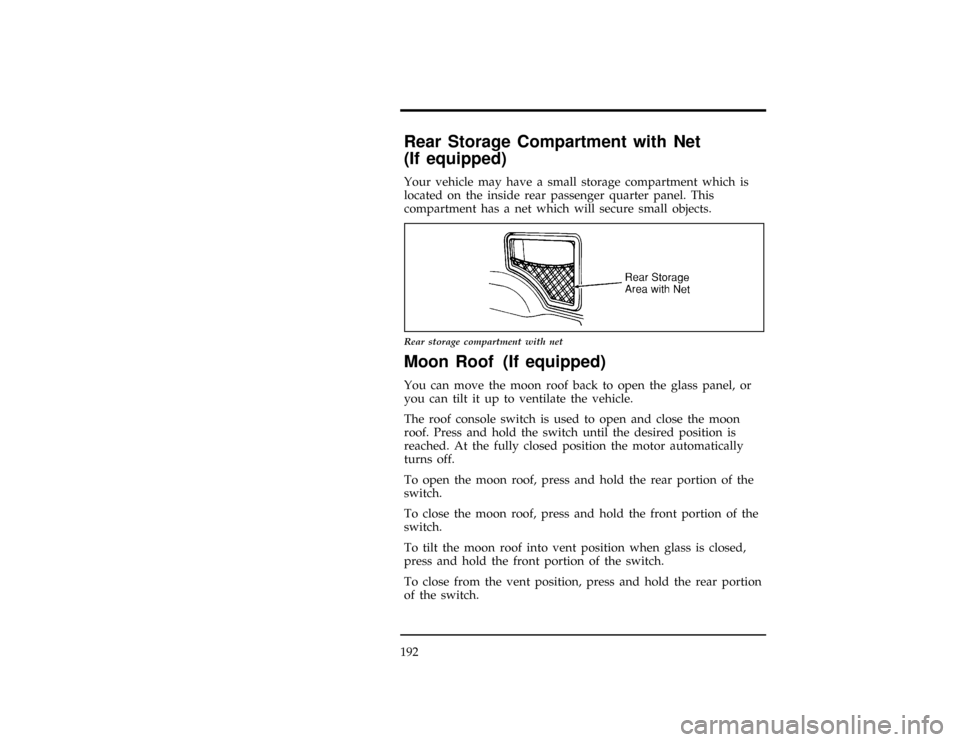

Rear storage compartment with net
%*
[FV56550( X)02/95]
Moon Roof (If equipped)
*
[FV56650( X)03/95]
You can move the moon roof back to open the glass panel, or
you can tilt it up to ventilate the vehicle.
[FV56750( X)06/94]
The roof console switch is used to open and close the moon
roof. Press and hold the switch until the desired position is
reached. At the fully closed position the motor automatically
turns off.
*
[FV56850( X)01/95]
To open the moon roof, press and hold the rear portion of the
switch.
*
[FV56950( X)01/95]
To close the moon roof, press and hold the front portion of the
switch.
[FV57050( X)06/94]
To tilt the moon roof into vent position when glass is closed,
press and hold the front portion of the switch.
[FV57150( X)06/94]
To close from the vent position, press and hold the rear portion
of the switch.
File:08unfvx.ex
Update:Thu Feb 29 13:56:40 1996
