1996 FORD EXPLORER Owners Manual

Instrument Panel Controls
129
[IP17390( X)12/95]
Your vehicle may have one of the following autolamp systems
depending on when it was built:
[IP17400( X)1/96]
10-1/2 pica
art:0020974-C[IP17405( X)12/95]
OR
[IP17410( X)12/95]
10-1/2 pica
art:0090216-A[IP17415( X)12/95]
If your vehicle is equipped with the first autolamp (with the
ON/OFF button) use the following directions:
*
[IP17420( X)01/95]
To set the autolamp:
[IP17440( X)05/95]1.
Make sure the headlamp switch is in the OFF position. If the
switch for the headlamps is ON, you cancel the autolamp.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

130
*
[IP17460( X)01/95]2.
Turn the ignition key to ON or start your vehicle.
[IP17490( X)12/92]3.
Find the autolamp delay slide knob on the right hand side of
the mirror.
[IP17510( X)12/92]4.
Slide the knob all the way to the left.
[IP17528( X)03/93]5.
Press the autolamp ªOn/Offº button. An indicator light will
glow when the autolamp is on.
[IP17530( X)06/93]6.
The autolamp automatically turns the lamps on and off.
*
[IP17570( X)03/93]
To turn the autolamp off, press the On/Off button. The
indicator light will turn off.
[IP17572( X)12/95]
If your vehicle is equipped with the second autolamp (without
the ON/OFF button) use the following directions:
[IP17574( X)12/95]1.
Make sure the headlamp is in the OFF position. If the switch
for the headlamps is ON, you will override the autolamp.
[IP17576( X)12/95]2.
Turn the ignition key to ON or start your vehicle.
[IP17578( X)12/95]3.
Find the autolamp delay slide knob in the center of the
mirror.
[IP17580( X)12/95]4.
Slide the knob to the center of travel.
[IP17582( X)12/95]5.
The autolamp automatically turns the lamps ON and OFF.
[IP17584( X)12/95]
To turn the autolamp OFF, slide the knob all the way to the
left.
*
[IP17600( X)12/92]
You can set the autolamp so the lamps stay on for up to three
minutes after you turn your vehicle off.
*
[IP17601( X)01/95]
To keep the lamps on after you leave your vehicle:
*
[IP17630( X)10/94]
n
Move the slider knob to the right. Once the slider knob is to
the right, it controls how long the lamps stay on.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

Instrument Panel Controls
131
*
[IP17660( X)12/93]
n
The further you move the slide knob toward the right, the
longer the headlamps stay on after you leave your vehicle.
Similarly, if you move the slide knob only slightly toward
the left, the headlamps stay on for only a moment after you
turn your vehicle off.
%*
[IP17715(ALL)04/95]
Fog Lamps (If equipped)
[IP17725(ALL)03/95]
The fog lamps switch is located on the instrument panel to the
right of the radio and climate control.
[IP17730(ALL)05/95]
n
To turn the fog lamps on, turn on the low-beam headlamps,
then push the fog lamp switch. An indicator light will glow
when the lamps are on.
*
[IP17735(ALL)10/94]
n
To turn off, push the switch again.
[IP17750(ALL)05/95]
7-1/2 pica art:0090191-A

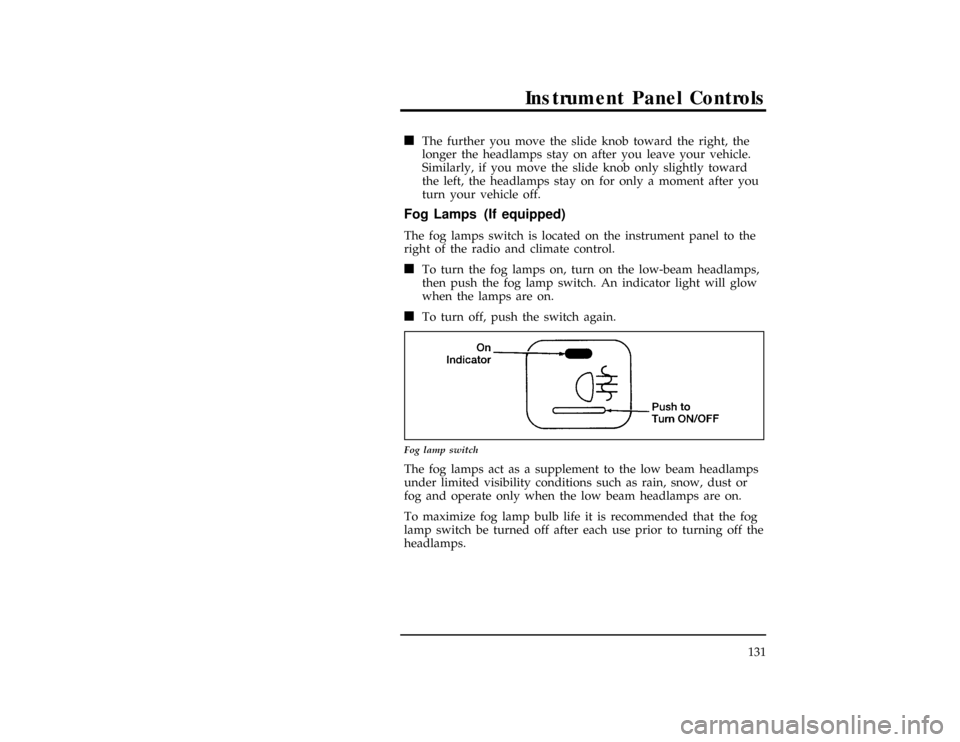

Fog lamp switch
*
[IP17760(ALL)02/93]
The fog lamps act as a supplement to the low beam headlamps
under limited visibility conditions such as rain, snow, dust or
fog and operate only when the low beam headlamps are on.
*
[IP17770(ALL)02/93]
To maximize fog lamp bulb life it is recommended that the fog
lamp switch be turned off after each use prior to turning off the
headlamps.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

132
%*
[IP17780(ALL)08/95]
Cleaning the Exterior Lamps
*
[IP17785(ALL)08/95]
Do not use dry paper towel, chemical solvents or abrasive
cleaners to clean the lamps, as these may cause scratches or
crack the lamps.
%*
[IP17815(ALL)01/95]
Daytime Running Light System
*
[IP17820(ALL)03/95]
(Canadian vehicles only)
*
[IP17830(ALL)03/95]
The Daytime Running Light (DRL) system turns the high beam
headlamps on, with a reduced light output, when:
*
[IP17840(ALL)03/95]
n
The headlamp system is in the OFF position, and
*
[IP17850(ALL)01/95]
n
The vehicle has a fully released parking brake.
*
[IP17860(ALL)05/95]
The high beam indicator light on the instrument cluster will not
be on.
*
[IP17890(ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system will not
illuminate the tail lamps and parking lamps. Turn on
your headlamps at dusk. Failure to do so may result in a
collision.
%*
[IP17900(ALL)03/95]
Lighting Up the Instrument Panel and the Interior of
Your Vehicle
[IP18000(ALL)10/94]
The instrument panel lights can be turned on by turning the
headlamp knob toward either the first or second position. You
can brighten or dim the instrument panel lights by rotating the
thumb wheel.
[IP18200(ALL)03/95]
The interior lights will shut off after 25 seconds with all the
doors closed, or immediately when the ignition switch is turned
to the ON position, or if the vehicle speed is above five MPH
(8 km/h). The interior lights will turn off after 40 minutes if
any of the doors are left open. Refer toBattery Saverin the
Featuressection for more details.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

Instrument Panel Controls
133
[IP18400( X)03/95]
Cargo and Map Lamps
[IP19100( X)08/94]
The cargo lamp is located on the roof headliner near the liftgate.
The lamp will come on whenever the driver's door or
passenger's door is open or when the headlamp switch
thumbwheel is rotated fully upward.
%*
[IP19187(ALL)04/95]
Cleaning the Interior Lamps
*
[IP19188(ALL)04/95]
Your interior dome lamps and map lamps are plastic and
should be cleaned with a mild detergent diluted in water. Rinse
them with clear water.
[IP19700(ALL)04/95]
Dome/Map Lamps (If equipped)
*
[IP19800( X)08/95]
The map lamps are located inside the dome lamp assembly, on
each side of the dome lamp. Each lamp has its own switch.
[IP19815( X)03/93]
If you have the Explorer Limited, the map lamps are located in
the overhead console. Each lamp has its own switch.
[IP19850( X)05/95]
7-1/2 pica art:0090188-A

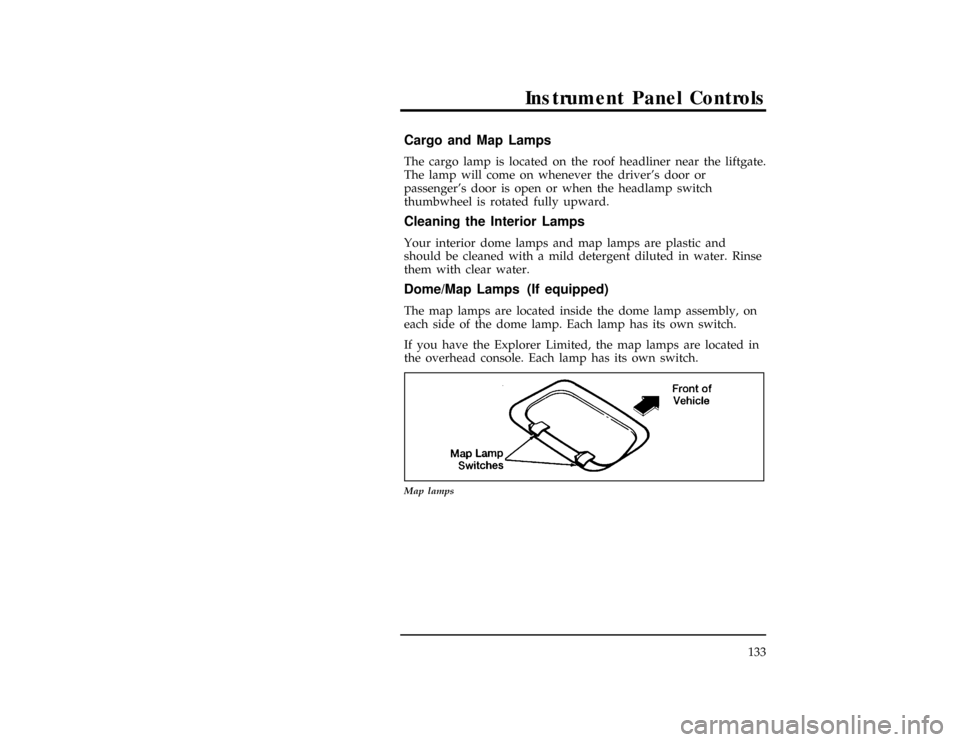

Map lamps
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

134
[IP19875( X)09/95]
10-1/2 pica
art:0020975-B

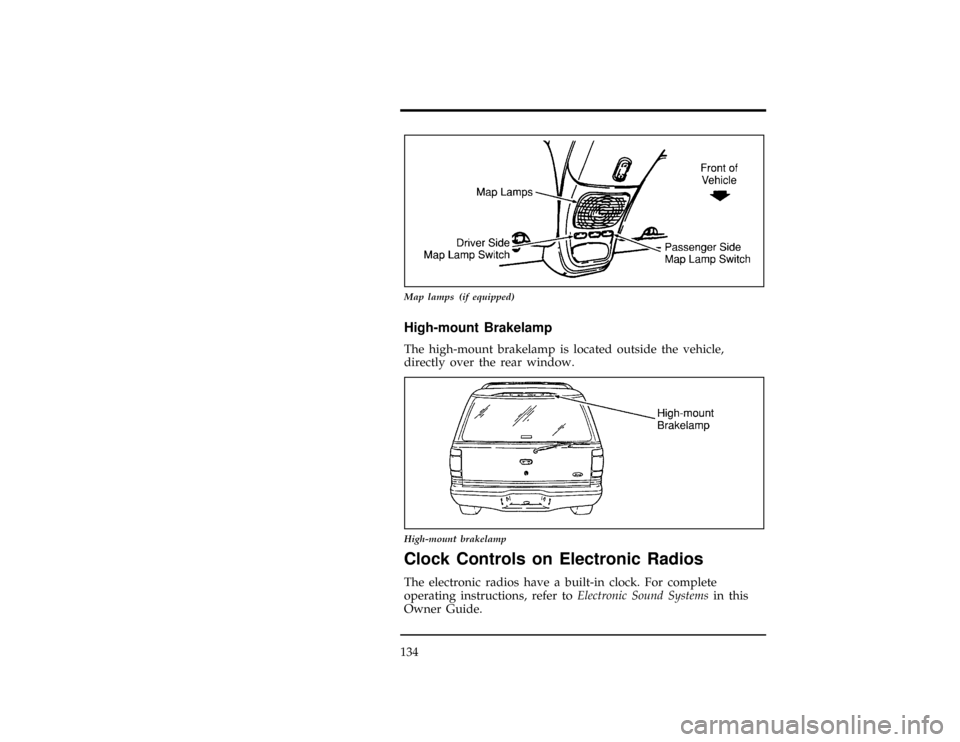

Map lamps (if equipped)
%*
[IP19900( X)10/94]
High-mount Brakelamp
[IP19910( X)10/94]
The high-mount brakelamp is located outside the vehicle,
directly over the rear window.
[IP19920( X)10/94]
10-1/2 pica art:0021015-E
High-mount brakelamp
*
[IP20300(ALL)04/95]
Clock Controls on Electronic Radios
[IP20400(ALL)10/94]
The electronic radios have a built-in clock. For complete
operating instructions, refer toElectronic Sound Systemsin this
Owner Guide.
File:06unipx.ex
Update:Thu Feb 29 09:05:45 1996

135
Steering Column Controls
*
[SC00400(ALL)01/95]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
%*
[SC00500(ALL)01/95]
The Turn Signal Lever
*
[SC00600(ALL)01/95]
You can use the turn signal lever on the left side of the steering
column to:
*
[SC00700(ALL)03/95]
n
operate the turn signals and cornering lamps
*
[SC00800(ALL)01/95]
n
turn the high beams on/off
*
[SC00900(ALL)05/95]
n
flash the lamps
*
[SC01000(ALL)01/95]
n
turn the windshield wipers and washer on/off
%*
[SC01100(ALL)01/95]
Turn Signals
[SC01600(ALL)07/95]
7-1/2 pica art:0090131-B
Turn signal lever and functions
*
[SC01800(ALL)11/89]
If the turn indicator light in the instrument panel does not
illuminate or remains on (doesn't flash) when you signal a turn,
the turn signaling system is malfunctioning. Have this condition
corrected as soon as possible, but make sure that you use the
accepted hand signals in the meantime.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

136
%*
[SC03200(ALL)08/95]
High Beams and Flashing the Lamps
[SC03500(ALL)03/95]
7-1/2 pica art:0090130-A

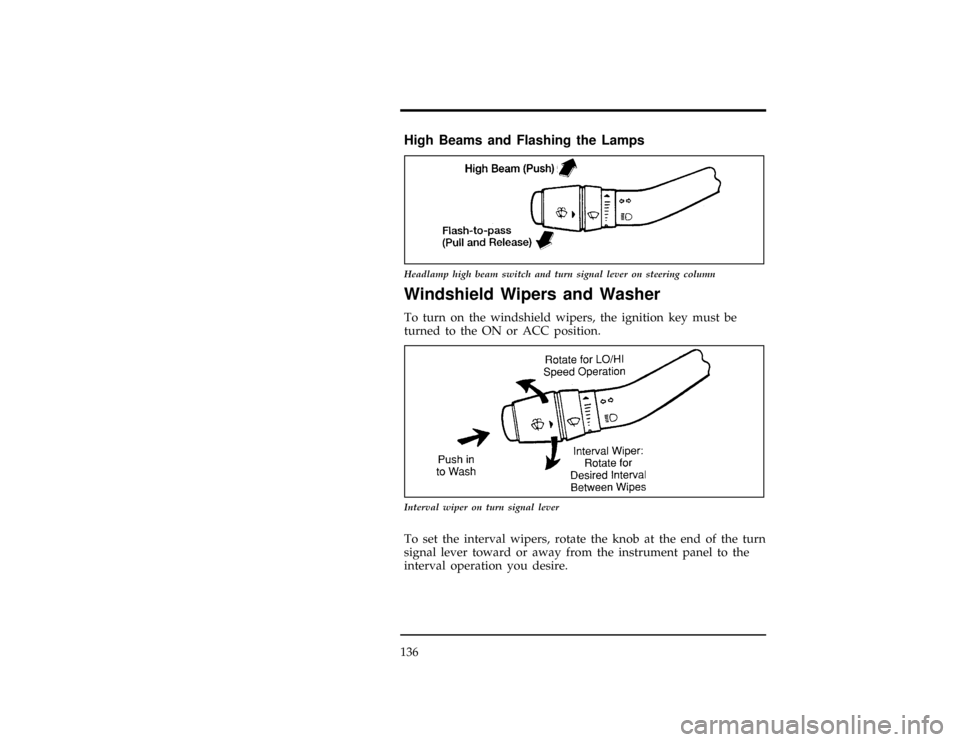

Headlamp high beam switch and turn signal lever on steering column
%*
[SC04400(ALL)08/95]
Windshield Wipers and Washer
*
[SC04500(ALL)03/95]
To turn on the windshield wipers, the ignition key must be
turned to the ON or ACC position.
[SC04900(ALL)08/94]
10-1/2 pica
art:0020084-D
Interval wiper on turn signal lever
*
[SC05000(ALL)02/95]
To set the interval wipers, rotate the knob at the end of the turn
signal lever toward or away from the instrument panel to the
interval operation you desire.
