1996 FORD EXPLORER Owners Manual

Servicing Your Explorer
385

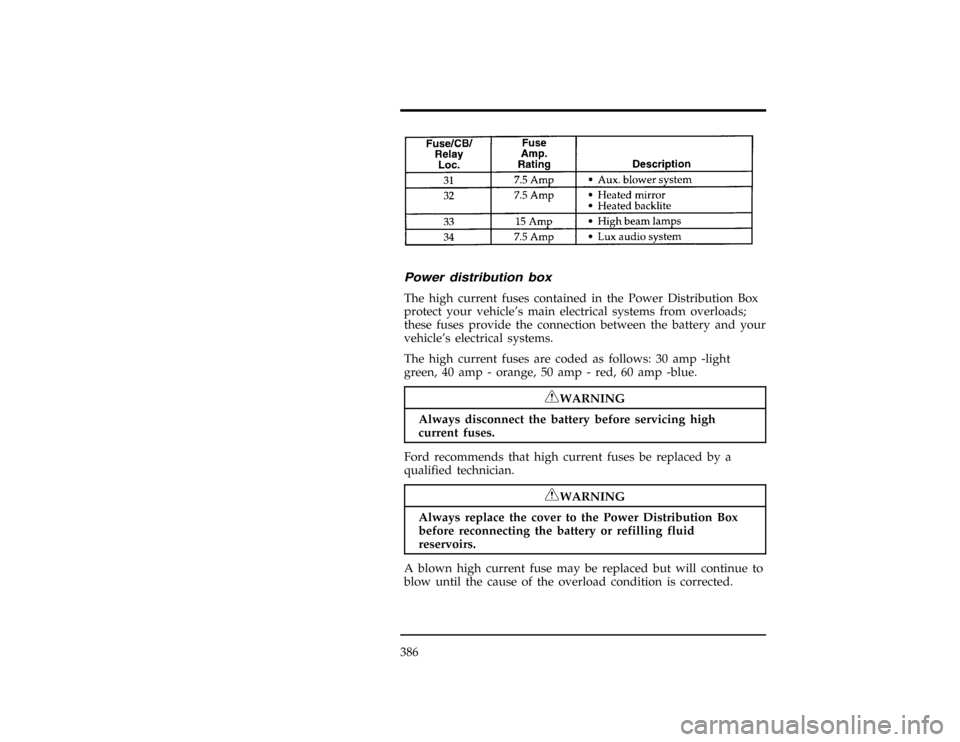

[SV40279( X)03/95]
thirty-four pica
chart:0090140-AFile:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

386
[SV41000( X)07/95]
eight pica
chart:0090158-A%*
[SV41300(ALL)06/95]
Power distribution box
*
[SV41400(ALL)10/92]
The high current fuses contained in the Power Distribution Box
protect your vehicle's main electrical systems from overloads;
these fuses provide the connection between the battery and your
vehicle's electrical systems.
*
[SV41500(ALL)10/92]
The high current fuses are coded as follows: 30 amp -light
green, 40 amp - orange, 50 amp - red, 60 amp -blue.
*
[SV41600(ALL)05/95]
RWARNING
Always disconnect the battery before servicing high
current fuses.
*
[SV41610(ALL)07/95]
Ford recommends that high current fuses be replaced by a
qualified technician.
*
[SV41700(ALL)03/93]
RWARNING
Always replace the cover to the Power Distribution Box
before reconnecting the battery or refilling fluid
reservoirs.
*
[SV41800(ALL)04/95]
A blown high current fuse may be replaced but will continue to
blow until the cause of the overload condition is corrected.
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

Servicing Your Explorer
387
*
[SV41900(ALL)08/95]
RWARNING
Always replace a fuse with one that has the specified
amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a
fire.
[SV42125( X)02/96]
17-1/2 pica
art:0090142-C

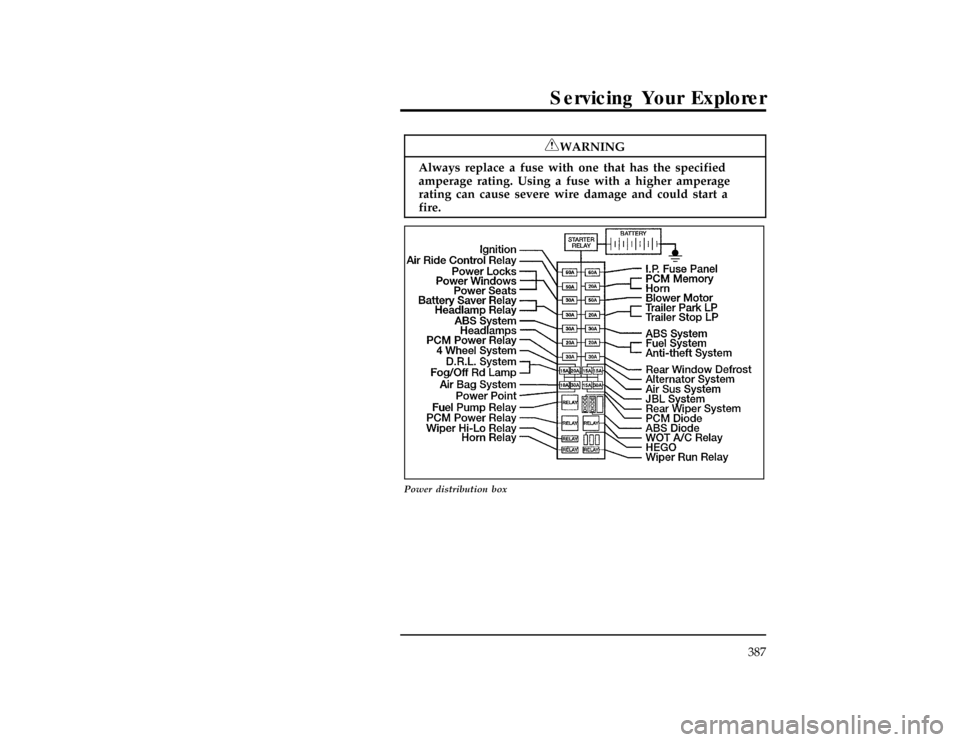

Power distribution box
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

388
%*
[SV42200(ALL)06/95]
Checking and Replacing Fuses
*
[SV42300(ALL)02/95]
If you need to check a fuse, follow these steps:
[SV43000(ALL)01/95]1.
Find the fuse panel, which is located in the left end of the
instrument panel. The power distribution box (described
earlier in this section) is found in the engine compartment,
mounted on a bracket attached to the left fender apron.
[SV43100(ALL)10/94]
To access the fuse panel, remove the fuse panel cover by
inserting your finger in the divot and pulling on the cover.
The underside of the cover contains four spare fuses. A fuse
pulling tool is located in the lower right corner of the fuse
panel in case you need to replace a blown fuse.
*
[SV43200(ALL)03/94]
The spare fuses for your vehicle are color coded as follows:
10 amp Ð red, 15 amp Ð light blue, 20 amp Ð natural, 30
amp Ð light green.
*
[SV43300(ALL)06/95]2.
On the fuse panel cover, find the number of the fuse you
want to check. The diagram on the cover tells you where to
locate the fuse on the panel.
*
[SV43400(ALL)06/95]3.
Check the fuse to see if it is blown. Look through the clear
side of the fuse to see if the metal wire inside is separated. If
it is, the fuse is blown and should be replaced.
[SV43500(ALL)04/94]
7-1/2 pica art:0021196-A
The side view of a fuse
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

Servicing Your Explorer
389
*
[SV43600(ALL)06/95]4.
Replace the fuse with one that has the right amperage rating
(see previous chart).
*
[SV43700(ALL)08/95]
RWARNING
Always replace a fuse with one that has the specified
amperage rating. Using a fuse with a higher amperage
rating can cause severe wire damage and could start a
fire.
*
[SV43800(ALL)06/95]5.
Put the fuse panel cover back on.
*
[SV44000(ALL)01/95]
Even after you replace a fuse, it will continue to blow if you do
not find what caused the overload. If the fuse continues to
blow, have your electrical system checked.
%*
[SV44050(ALL)10/94]
Relays
[SV44060(ALL)10/94]
Relays are devices which recieve signals from components or
systems. After receiving signals, relays transfer these signals to
activate or deactivate other components or systems.
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

390
[SV44130( X)10/94]
33-1/2 pica
art:0090143-C

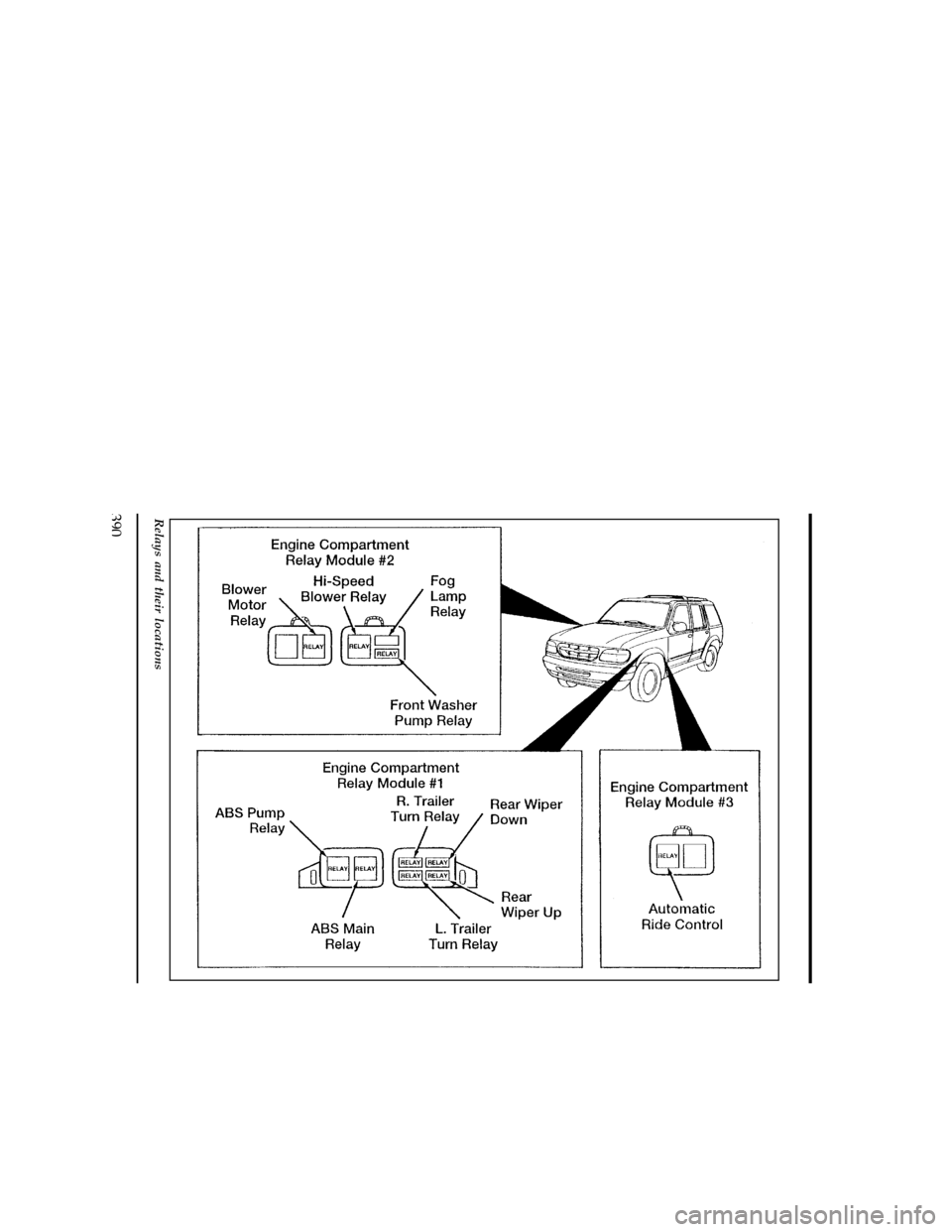

Relays and their locations
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

Servicing Your Explorer
391
[SV44140( X)10/94]
33-1/2 pica
art:0021118-C

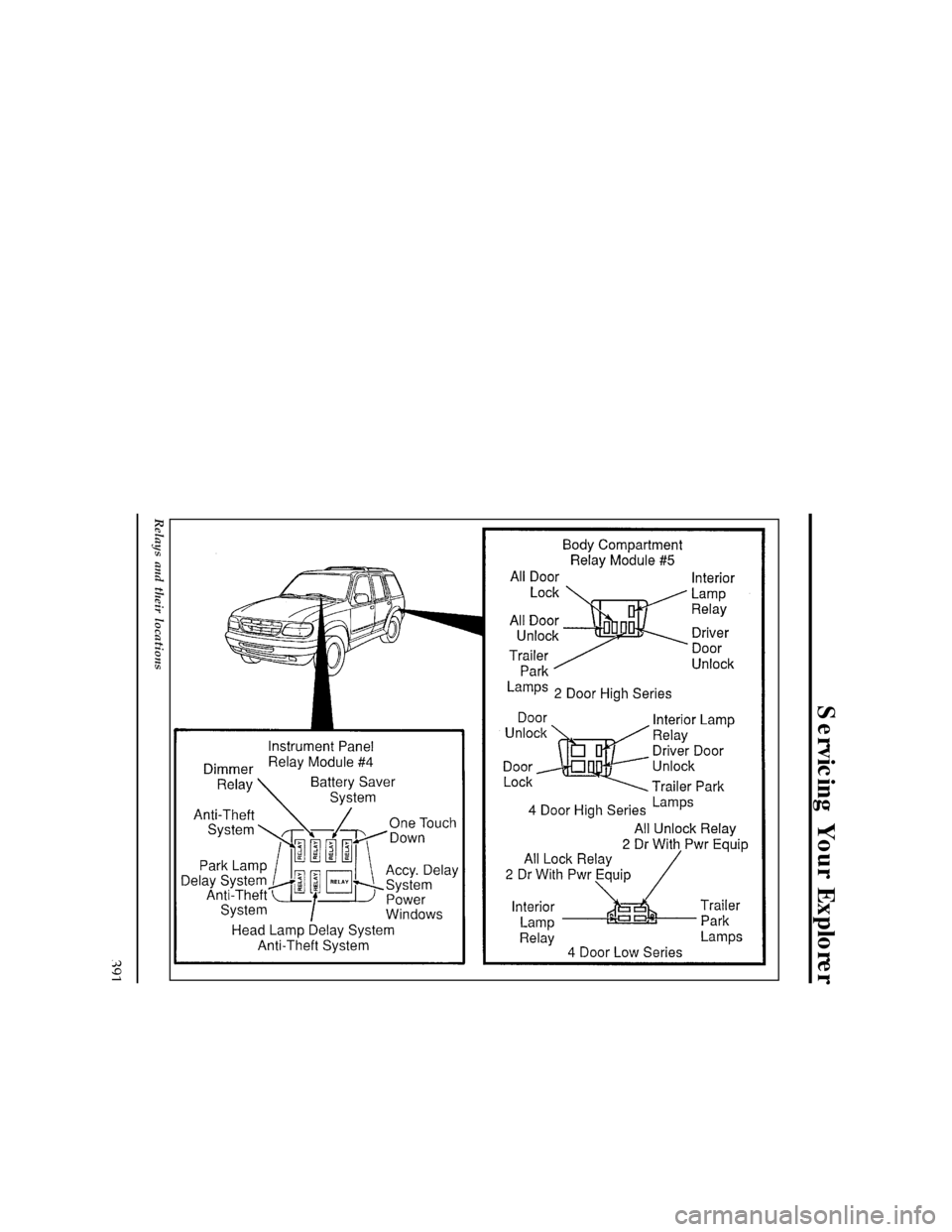

Relays and their locations
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

392
%*
[SV44600(ALL)03/95]
Lights and Bulb Replacement
*
[SV44700(ALL)01/95]
It is a good idea to check the operation of the following lights
frequently:
*
[SV44800(ALL)01/95]
n
headlamps
*
[SV44850(ALL)02/95]
n
high-mount brakelamp
*
[SV44900(ALL)01/95]
n
tail lamps
*
[SV45000(ALL)01/95]
n
brakelamps
*
[SV45100(ALL)01/95]
n
hazard flasher
*
[SV45200(ALL)01/95]
n
turn signals
*
[SV45300(ALL)01/95]
n
license plate lamp
*
[SV45350(ALL)02/95]
n
fog lamps
%*
[SV45400(ALL)01/95]
The alignment of your headlamps should be checked if:
*
[SV45500(ALL)01/95]
n
oncoming motorists frequently signal you to turn off your
vehicle's high beams when you do not have the high beams
on
*
[SV45600(ALL)01/95]
n
the headlamps do not seem to give you enough light to see
clearly at night
*
[SV45700(ALL)01/95]
n
the headlamp beams are pointed substantially away from a
position slightly down and to the right
