1996 FORD EXPLORER Owners Manual

Roadside Emergencies
297
%*
[RE01700(ALL)05/95]
Connecting the jumper cables
*
[RE01800(ALL)03/95]1.
Connect one end of the first jumper cable to the positive (+)
terminal of the discharged battery. (You can connect either
jumper cable to the positive (+) terminal, as long as you use
the same cable for both positive terminals.) Most jumper
cables have a red cable and a black cable. The red cable is
generally used for the positive terminals and the black for
the negative ones.
*
[RE01900(ALL)04/95]2.
Connect the other end of the first cable to the positive (+)
terminal of the booster battery.
*
[RE02000(ALL)07/95]3.
Connect one end of the second cable to the negative (s)
terminal of the booster battery Ð NOT to the discharged
battery.
*
[RE02100(ALL)03/95]4.
Connect the other end of that cable to a good metallic
surface on the engine or frame of the disabled vehicle. The
following illustration shows where you can find a metallic
surface.
*
[RE02200(ALL)07/95]
RWARNING
Do not connect the end of the second cable to the
negative (s) terminal of the battery to be jumped. A
spark may cause an explosion of the gases that surround
the battery.
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996

298
[RE02300(ALL)08/94]
10-1/2 pica
art:0021186-B
Attaching jumper cables
*
[RE02500(ALL)03/95]
Jump-Starting
*
[RE02600(ALL)03/95]1.
Make sure that the jumper cables are not in the way of
moving engine parts, then start the booster vehicle. Run the
engine at a moderate speed.
*
[RE02700(ALL)03/95]2.
Let the discharged battery charge for a few minutes and then
start the disabled vehicle. It may take a couple of tries before
the vehicle starts. If the vehicle does not start after several
attempts, there may be a different problem.
*
[RE02800(ALL)03/95]3.
When both vehicles are running, let them idle for a few
minutes to charge the discharged battery.
%*
[RE02900(ALL)03/95]
Removing jumper cables
*
[RE03000(ALL)03/95]1.
Always remove the jumper cables in the reverse order.
Remove the negative (s) end of the jumper cable from the
metallic surface on the engine or frame of the disabled
vehicle.
*
[RE03100(ALL)06/95]2.
Remove the negative (s) cable from the booster battery.
*
[RE03200(ALL)06/95]3.
Remove the positive (+) cable from the booster battery.
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996

Roadside Emergencies
299
*
[RE03400(ALL)05/95]4.
Remove the other end of the positive (+) cable from the
discharged battery.
*
[RE03500(ALL)1/96]
After the vehicle is started, let it idle for a while to let the
engine ªrelearnº its idle conditions. Drive it around for a while
with all electrical accessories turned off to let the battery
recharge. Driveability may be deteriorated slightly until all drive
modes are ªrelearned.ºYou may need to use a battery charger
to fully recharge the battery.
*
[RE03525( X)01/95]
If you need to replace your battery, seeBatteryin theServicing
Your Explorerchapter.
%*
[RE03600(ALL)03/95]
Changing a Tire
*
[RE03700(ALL)01/95]
If you get a flat tire while you are driving, do not apply the
brake heavily. Instead, gradually decrease the speed. Hold the
steering wheel firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off the ignition, set
the parking brake, and turn on the hazard flashers.
%*
[RE03800(ALL)03/95]
The Conventional Spare Tire
[RE03915( X)10/94]
Your vehicle may be equipped with a conventional spare tire,
which you can use as a spare or as a regular tire. This spare tire
is identical to the other tires that come with your vehicle,
although the wheel may not match.
*
[RE03930(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
%*
[RE04000(ALL)03/95]
The Temporary Spare Tire
*
[RE04100(ALL)03/95]
You may have a high pressure temporary spare tire. This spare
tire is smaller than a regular tire and is designed for emergency
use only. Use it only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with the words
ªTEMPORARY USE ONLYº so that you can easily identify it.
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996

300
[RE04150(ALL)12/95]
It is not recommended that vehicles equipped with 4WD be
operated in the 4WD modes with a temporary spare. If 4WD
operation is necessary, do not operate at speeds above 10 mph
(16 km/h) or for distances above 50 miles (80 km). Extended
operation in 4WD with a temporary spare may result in damage
to powertrain components.
*
[RE04200(ALL)01/93]
RWARNING
If you use the temporary spare tire continuously or do
not follow these precautions, the tire could fail, causing
you to lose control of the vehicle, possibly injuring
yourself or others.
*
[RE04275(ALL)05/95]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
*
[RE04280(ALL)10/94]
Extended use of other than matching size spare tires on a
Traction-Lok axle could result in a permanent reduction in
effectiveness. This loss of effectiveness does not affect normal
driving and should not be noticeable to the driver.
*
[RE04300(ALL)01/95]
When you drive with the temporary spare tire, DO NOT:
*
[RE04400(ALL)01/95]
n
exceed 50 mph (80 km/h) under any circumstances.
*
[RE04500(ALL)01/95]
n
load your vehicle so that it is heavier than the maximum
vehicle load rating listed on the tire decal.
*
[RE04600(ALL)01/95]
n
tow a trailer.
*
[RE04700(ALL)01/95]
n
use tire chains on this tire.
*
[RE04800(ALL)01/95]
n
try to repair the temporary spare tire or remove it from its
wheel.
*
[RE04900(ALL)01/95]
n
use the wheel for any other type of vehicle.
[RE04950(ALL)10/94]
n
engage four-wheel drive on dry, hard-surfaced roads.
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996

Roadside Emergencies
301
*
[RE05000(ALL)01/95]
n
drive through an automatic car wash with this tire. Because
the temporary spare tire is smaller than a conventional tire,
it reduces the ground clearance. Your vehicle may get caught
in the rails and it could be damaged.
%*
[RE05100(ALL)03/95]
Spare Tire Location
*
[RE05250(ALL)06/94]
The spare tire for your vehicle is stowed at the rear under the
frame.
*
[RE05550( X)03/91]
To remove the spare tire:
[RE05650( X)10/94]1.
Open the liftgate. Assemble the jack handle (stowed behind
the rear seats under the carpet) to the lug wrench (stowed in
driver's side rear quarter trim panel). Insert drive section of
the handle into the actuator hole and turn counterclockwise
until the cable is slack enough to allow the spare tire to be
pulled rearward from under the vehicle.
*
[RE05700( X)10/94]2.
Slide the spare tire to the rear and remove the retainer from
the wheel.
*
[RE05850( X)10/94]3.
To stow the cable/retainer with spare removed, turn jack
handle wrench clockwise until slack is removed.
[RE05875( X)10/94]
7-1/2 pica art:0021216-A
Assembling the jack handle
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996

302
[RE05950( X)02/95]
27-1/2 pica art:0020558-F

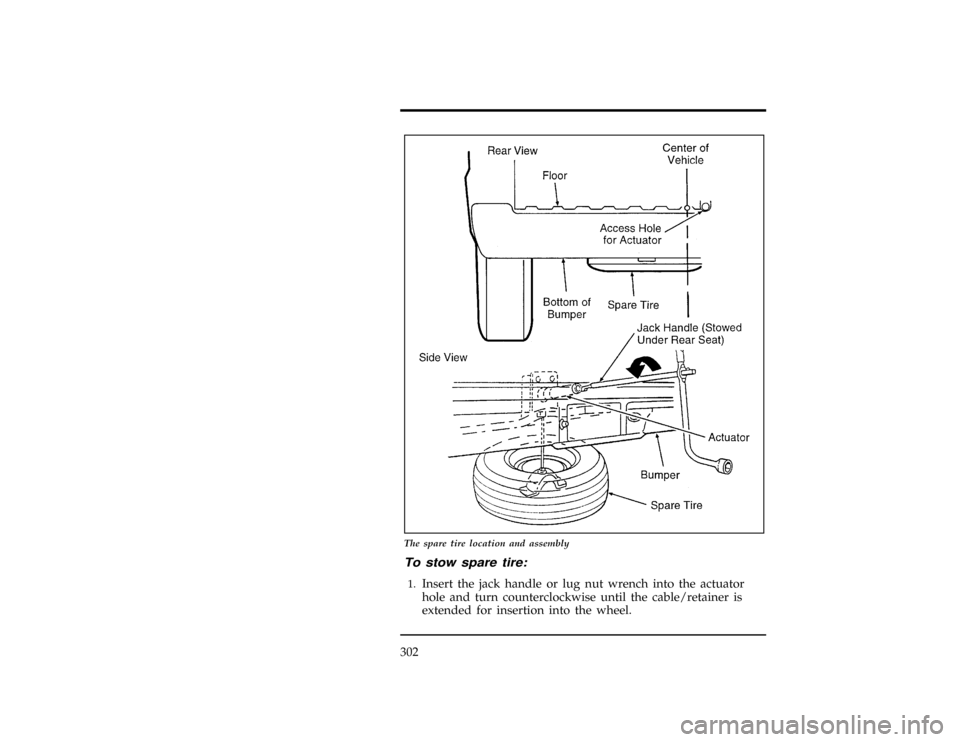

The spare tire location and assembly
*
[RE06050( X)03/91]
To stow spare tire:
*
[RE06150( X)10/94]1.
Insert the jack handle or lug nut wrench into the actuator
hole and turn counterclockwise until the cable/retainer is
extended for insertion into the wheel.
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996

Roadside Emergencies
303
*
[RE06200( X)10/94]2.
Install the retainer through wheel center with valve stem
facing up.
*
[RE06250( X)12/91]
NOTE: Stow aluminum wheel and tire with valve stem down.
*
[RE06350( X)10/94]3.
Rotate the handle clockwise to secure tire. Continue until the
lift mechanism ªslipsº.
*
[RE06400( X)03/91]4.
Check for proper seating against underbody supports and
retighten if necessary.
[RE06500( X)10/94]5.
To stow the largest flat tire (P255 tire on a 16 inch trispoked
wheel), place inside vehicle and secure with webbing
retainer. Raise spare tire cable until secure.
[RE06600( X)10/94]
17-1/2 pica
art:0021217-A

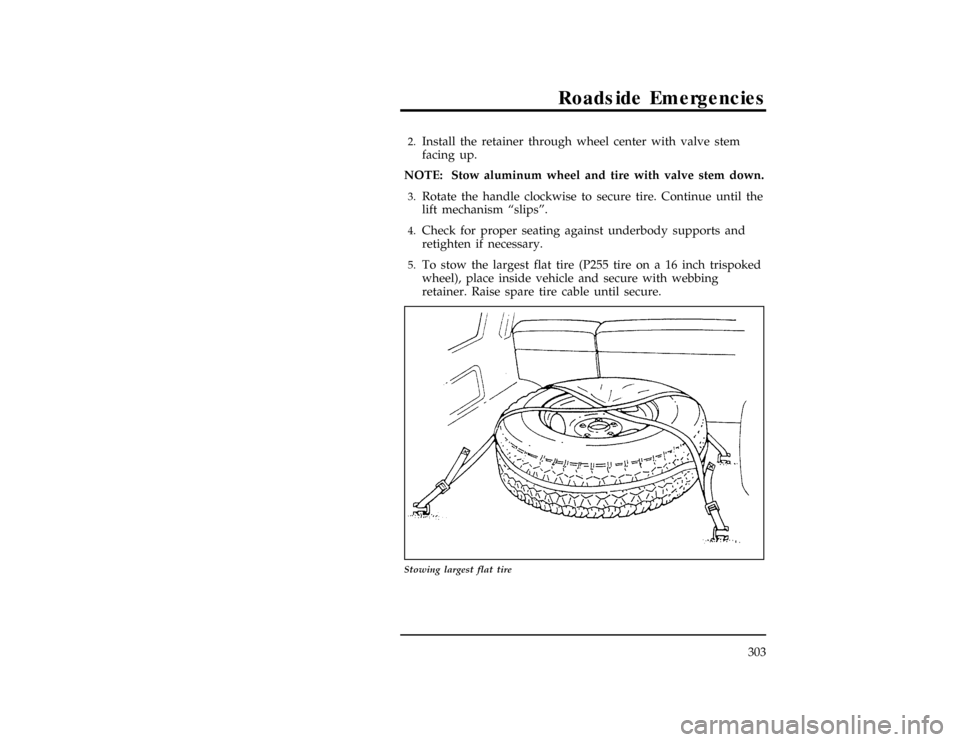

Stowing largest flat tire
File:12unrex.ex
Update:Thu Feb 29 09:14:34 1996

304
[RE14815( X)09/95]
Explorer Limited 4x2/4x4
*
[RE15100(ALL)05/95]
RWARNING
Make sure the spare tire and jacking equipment are
stowed and secured in the proper storage location.
%*
[RE15200(ALL)03/95]
Preparing to Change the Tire
*
[RE15250(ALL)12/91]
NOTE: To lift your vehicle by other than the front or rear
jacking points, be sure to use only hoist adapters with
a wide contact surface.
*
[RE15300(ALL)03/91]1.
Make sure that your vehicle will not move or roll. If you
have an automatic transmission, put the gearshift in Park. If
you have a manual transmission, put the gearshift in
Reverse. Set the parking brake and block the wheel that is
diagonally opposite the tire that you are changing.
*
[RE15335(ALL)12/91]
NOTE: Make sure the ignition is in the OFF position.
*
[RE15390(ALL)05/95]
When one of the back wheels is off the ground, the transmission
alone will not prevent the vehicle from moving or slipping off
the jack, even if the vehicle is in P (Park) or 1 (First). To
prevent the vehicle from moving when you change a tire, be
sure the parking brake is set, then block the wheel (both
directions) that is diagonally opposite (other side and end of the
vehicle) to the tire that is being changed.
[RE15400(ALL)05/95]
RWARNING
If the vehicle slips off the jack, someone could be
seriously injured.
*
[RE15550(ALL)03/95]2.
Get out the spare tire and jack.
[RE16050( X)01/95]
The jack is stowed behind the driver's side, rear quarter trim
panel. Remove the quarter trim panel cover to get to it. The lug
nut wrench is attached to the inside of the quarter trim panel
cover. Stowed along with the jack is a jacking/tire changing
