1996 FORD EXPLORER Owners Manual

Steering Column Controls
137
[SC05200(ALL)06/95]
To clean the windshield, push in the end of the wiper knob for
a single wipe. For a constant spray, keep the knob pushed in.
After you release the knob, the wipers operate for two to three
cycles before turning off (if wipers were off) or returning to the
interval setting selected.
*
[SC05300(ALL)08/95]
Do not try to clean the windshield when the washer fluid
container is empty or activate the washers at any time for more
than 15 seconds continuously. This could damage the washer
pump system.
[SC05350(ALL)05/95]
NOTE: The addition of shields to the front of the vehicle, as
used to deflect bugs, may also adversely affect the
washer system from delivering fluid to the
windshield. Devices such as bug shields are not
recommended to be added to your vehicle.
*
[SC05400(ALL)08/95]
RWARNING
In freezing weather, the washer solution may freeze on
the windshield and obscure your vision. Always warm
up the windshield with the defroster before you use the
washer fluid. If you cannot see through the windshield
clearly, it can increase the risk of being involved in a
collision.
*
[SC05500(ALL)08/95]
For information about refilling the washer fluid or replacing
your windshield wiper blades, seeWindshield washer fluid and
Wipersin the Index.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

138
[SC05502(ALL)10/94]
Gearshift Lever (Automatic transmission
only)
[SC05504( X)08/94]
The gearshift lever on your Explorer is mounted on the steering
column. On the end of the gearshift lever is the Overdrive
On/Off button. For additional information about the gearshift
lever and the Overdrive On/Off button, see theDriving Your
Explorerchapter.
[SC05508(ALL)10/94]
7-1/2 pica art:0021255-A*
[SC05510(ALL)11/93]
OVERDRIVE OFF Lamp
[SC05512(ALL)03/95]
This lamp indicates the operating range of the transmission.
This lamp illuminates when the O/D ON/OFF button is
depressed. For additional information, refer to theWarning
Lights and Gaugeschapter.
[SC05514(ALL)07/95]
6 pica art:0021226-BFile:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

Steering Column Controls
139
%*
[SC05516(ALL)03/95]
Hazard Flasher
*
[SC05520(ALL)04/95]
The hazard flasher is used to alert other drivers to hazardous
situations.
*
[SC05527(ALL)10/94]
The flashers will flash and the high-mount brakelamp will stay
on steadily (not flash) with the brake pedal depressed.
*
[SC05530(ALL)08/95]
The flashers work whether your vehicle is running or not. The
flashers work for up to two hours when the battery is fully
charged and in good condition without draining the battery
excessively. If the flashers run for longer than two hours or if
the battery is not fully charged, the battery power can be
drained.
*
[SC05540(ALL)09/93]
To use the hazard flasher:
*
[SC05550(ALL)10/92]1.
Push in the flasher button; it will pop out and the lamps will
begin to flash.
*
[SC05560(ALL)10/92]2.
To stop the flashers, push in the flasher button again.
*
[SC05562(ALL)08/95]
NOTE: The flasher button will be sticking up slightly higher
when on than when off.
[SC05590(ALL)10/94]
10-1/2 pica
art:0020079-D
Hazard flasher
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

140
%*
[SC05600(ALL)01/95]
Horn
*
[SC05700(ALL)02/95]
To sound the horn, press the center of the horn pad. Check the
horn regularly to make sure it operates properly.
[SC06000(ALL)10/94]
10-1/2 pica
art:0020890-D

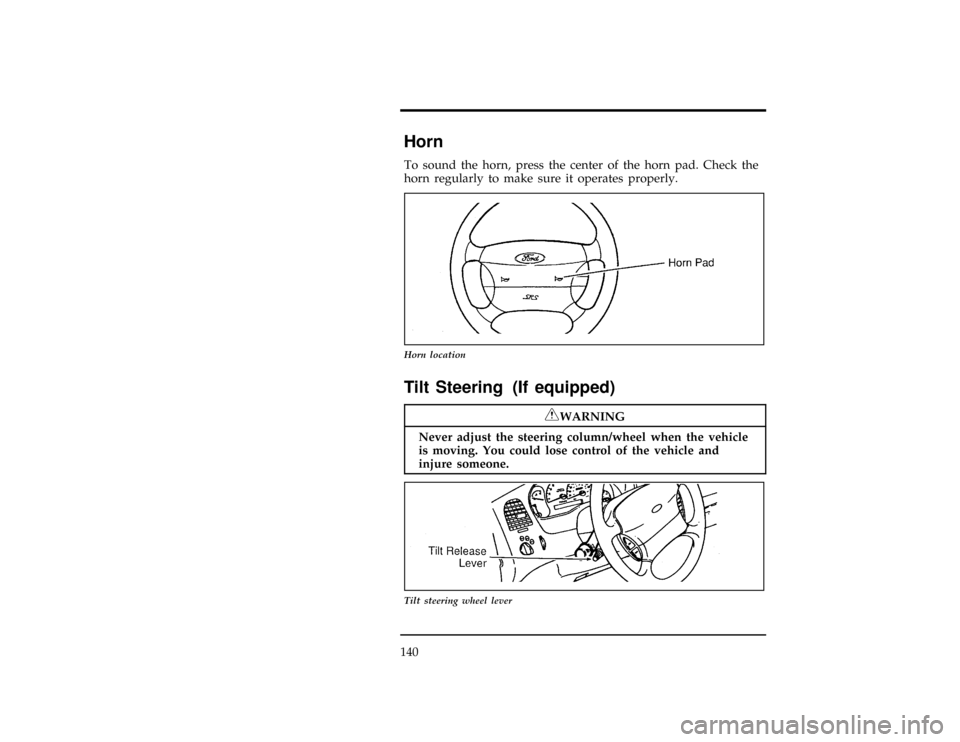

Horn location
%*
[SC06200(ALL)05/95]
Tilt Steering (If equipped)
*
[SC06250(ALL)04/95]
RWARNING
Never adjust the steering column/wheel when the vehicle
is moving. You could lose control of the vehicle and
injure someone.
[SC06400(ALL)10/94]
7-1/2 pica art:0020088-D
Tilt steering wheel lever
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

Steering Column Controls
141
*
[SC06450(ALL)09/95]
To change the position of the steering wheel, push the release
lever under the steering column away from you. Tip the
steering wheel to the desired position. Pull the lever back into
place to lock the steering wheel.
*
[SC07250(ALL)12/89]
Be sure the steering wheel locks in a notch. It is not infinitely
adjustable. Do not adjust the steering wheel while the vehicle is
in motion.
%*
[SC07300(ALL)03/91]
Speed Control (If equipped)
*
[SC07400(ALL)06/95]
If your vehicle has speed control, you can automatically
maintain a constant speed at or above 30 mph (50 km/h).
*
[SC07450(ALL)06/95]
Use of radio transmitting equipment that is not Federal
Communications Commission (FCC) or in Canada the Canadian
Radio and Telecommunications Commission (CRTC) approved
may cause the speed control to malfunction. Therefore, use only
properly installed FCC (CRTC in Canada) approved radio
transmitting equipment in your vehicle.
[SC07500(ALL)10/94]
7-1/2 pica art:0020091-F

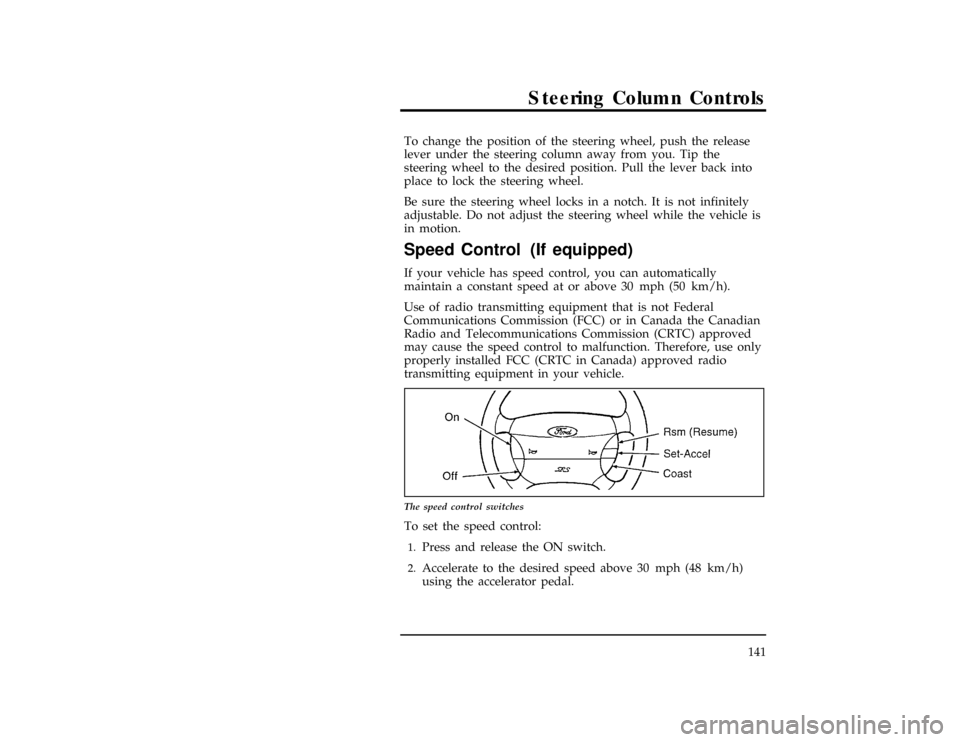

The speed control switches
*
[SC07800(ALL)08/95]
To set the speed control:
*
[SC08000(ALL)08/95]1.
Press and release the ON switch.
[SC08100(ALL)02/95]2.
Accelerate to the desired speed above 30 mph (48 km/h)
using the accelerator pedal.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

142
[SC08300(ALL)03/95]3.
Press SET ACCEL switch and release it immediately. This
will set your speed. If you keep this switch pressed, your
speed will continue to increase and will not be set until the
switch is released.
*
[SC08500(ALL)08/95]4.
Take your foot off the accelerator pedal. Your vehicle will
maintain the speed you set.
*
[SC08600(ALL)08/95]
If you drive up or down a steep hill, your vehicle may
momentarily slow down or speed up, even though the speed
control is on. This is normal.
[SC08630(ALL)09/95]
NOTE: If your vehicle is equipped with an automatic
transmission, and if your speed increases above your
set speed while driving in
j(Overdrive) on a
downhill grade, you may want to shift to D (Drive) to
reduce vehicle speed. This can be accomplished by
pushing in the Transmission Control switch which is
located on the end of the gearshift lever. The speed
control cannot reduce the vehicle speed if it goes
above your set speed on a downhill grade. For the
best fuel economy during normal driving conditions,
leave the shift select in
j(Overdrive), or resume as
soon as practical.
[SC08675(ALL)03/95]
NOTE: If your vehicle is equipped with a 5 speed manual
transmission, and if your speed increases above your
set speed while driving in 5 (Fifth) gear on a downhill
grade, you may want to shift to 4 (Fourth) gear to
reduce vehicle speed. Depressing the clutch pedal
cancels speed control, therefore speed control must be
reset by pressing the SET ACCEL or RESUME
switches. Speed control cannot reduce the vehicle
speed if it goes above your set speed on a downhill
grade.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

Steering Column Controls
143
*
[SC08700(ALL)08/95]
RWARNING
Do not use the speed control in heavy traffic or on roads
that are winding, slippery, or unpaved.
*
[SC08801(ALL)05/95]
In mountainous areas, at higher elevations, or when pulling a
trailer, the speed control may not be able to maintain the preset
speed with the transmission in
j(Overdrive).
*
[SC08850(ALL)06/92]
If your vehicle comes with a 5-speed manual transmission, you
may prefer to drive in 4 (Fourth) gear, in mountainous areas or
at high altitudes, to improve speed control performance.
*
[SC09275(ALL)12/91]
In order to downshift (with a manual transmission) with the
speed control operating, you must press either the brake or
clutch pedal long enough to disengage the speed control. Wait a
second before depressing the clutch again and making the shift
so that the speed control can fully return to the idle position.
*
[SC09325(ALL)05/95]
RWARNING
Do not shift the transmission into N (Neutral) with the
speed control on.
[SC09350(ALL)03/95]
To maintain a preset speed under the above conditions, with
electronically controlled transmissions Ð press the Transmission
Control Switch (TCS). The indicator light will turn on and
illuminate the words ªO/D OFF.º This will cancel ªOverdrive.º
You can press the Transmission Control Switch (TCS) on or off
at any speed. For the best fuel economy during normal driving
conditions, press the Transmission Control Switch (TCS) to turn
off the light. This allows overdrive operation.
File:07unscx.ex
Update:Thu Feb 29 09:06:35 1996

144
[SC09375(ALL)10/94]
quarter page
art:0021255-A

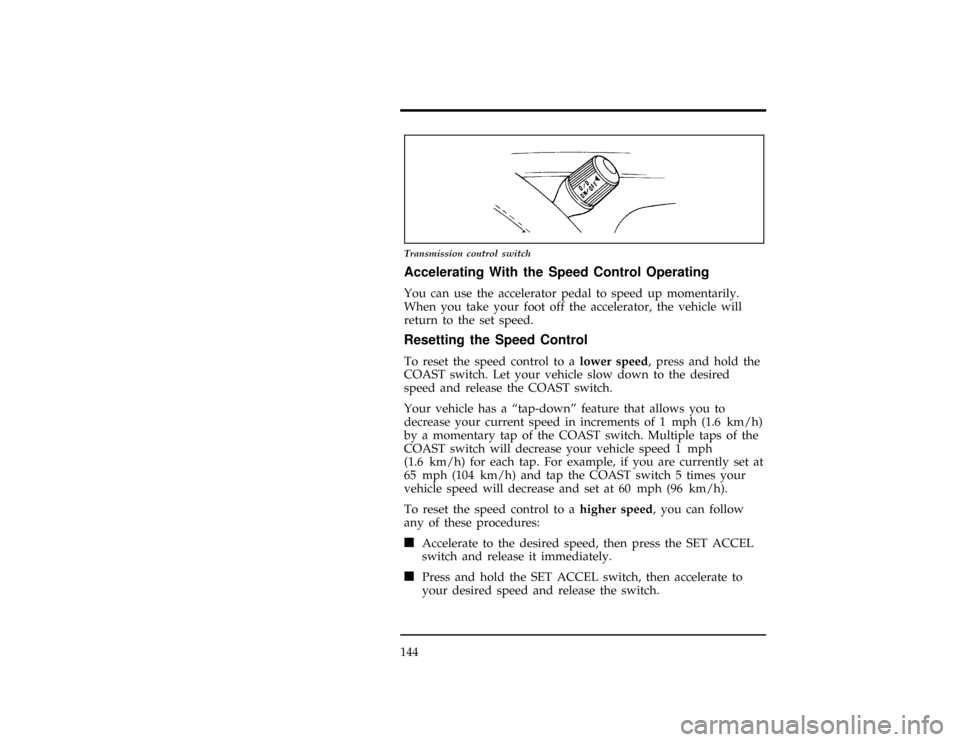

Transmission control switch
%*
[SC09400(ALL)08/95]
Accelerating With the Speed Control Operating
*
[SC09500(ALL)08/95]
You can use the accelerator pedal to speed up momentarily.
When you take your foot off the accelerator, the vehicle will
return to the set speed.
%*
[SC09600(ALL)08/95]
Resetting the Speed Control
*
[SC09700(ALL)06/95]
To reset the speed control to alower speed, press and hold the
COAST switch. Let your vehicle slow down to the desired
speed and release the COAST switch.
*
[SC09750(ALL)10/94]
Your vehicle has a ªtap-downº feature that allows you to
decrease your current speed in increments of 1 mph (1.6 km/h)
by a momentary tap of the COAST switch. Multiple taps of the
COAST switch will decrease your vehicle speed 1 mph
(1.6 km/h) for each tap. For example, if you are currently set at
65 mph (104 km/h) and tap the COAST switch 5 times your
vehicle speed will decrease and set at 60 mph (96 km/h).
*
[SC09800(ALL)06/95]
To reset the speed control to ahigher speed, you can follow
any of these procedures:
[SC09900(ALL)08/94]
n
Accelerate to the desired speed, then press the SET ACCEL
switch and release it immediately.
[SC10100(ALL)08/94]
n
Press and hold the SET ACCEL switch, then accelerate to
your desired speed and release the switch.
