1996 FORD ESCORT Owners Manual

112
*
[ST10300(ALL)05/95]
RWARNING
Extended idling at high engine speeds can
produce very high temperatures in the
engine and exhaust system, creating the
risk of fire or other damage.
*
[ST10350(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
%*
[ST10550(ALL)06/95]
Using the Engine Block Heater
(If equipped)
*
[ST10700(ALL)03/95]
Engine block heaters are strongly recommended
if you live in a region where temperatures reach
S20ÊF (S29ÊC) orbelow consistently during the
winter months. An engine block heater warms
the engine coolant, which improves starting,
warms up the engine faster, and allows the
heater-defrost system to respond quickly.
*
[ST10900(ALL)02/95]
To turn the heater on, simply plug it into a
grounded 110-volt outlet. Ford recommends that
you use a 110-volt circuit that is protected by a
ground fault circuit interrupter.
*
[ST11100(ALL)05/95]
RWARNING
To prevent electrical shock, do not use
your heater with ungrounded electrical
systems or two-pronged (cheater) adapters.
File:04ctste.ex
Update:Tue Sep 19 14:42:54 1995

113
*
[ST11105(ALL)03/95]
For best results, plug the heater in at least three
hours before you start your vehicle. Using the
heater for longer than three hours will not
damage the engine, so you can plug it in at
night to start your vehicle the following
morning.
%
*
[ST11110(ALL)03/95]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
*
[ST11120(ALL)07/95]
The Fuel Pump Shut-off Switch
*
[ST11130(ALL)07/95]
If the engine cranks but does not start or does
not start after a collision, the fuel pump shut-off
switch may have been triggered. The shut-off
switch is a device intended to stop the fuel
pump when your vehicle has been involved in a
substantial jolt.
[ST11140(ALL)03/95]
Once the shut-off switch is triggered, you must
reset the switch by hand before you can start
your vehicle. The fuel pump shut-off switch is
located behind the right rear trim panel in the
trunk. You can reach the switch to reset it
through the access hole.
File:04ctste.ex
Update:Tue Sep 19 14:42:54 1995

114 [ST11150(E )08/95]

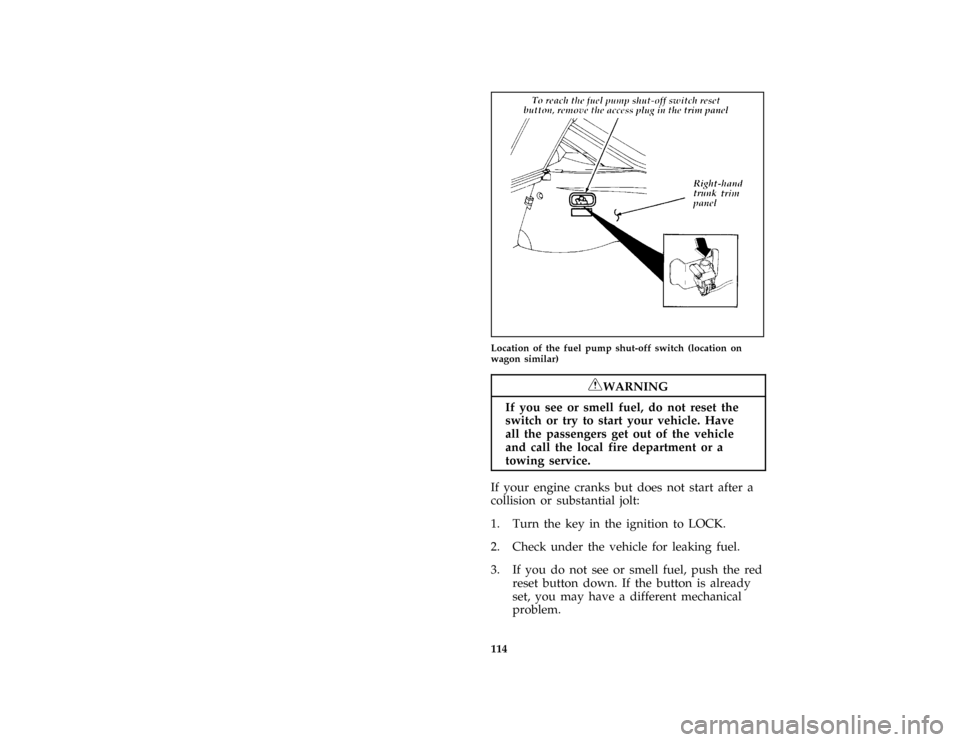

half page art:0070153-BLocation of the fuel pump shut-off switch (location on
wagon similar)
*
[ST11170(ALL)05/95]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
*
[ST11180(ALL)03/95]
If your engine cranks but does not start after a
collision or substantial jolt:
[ST11190(ALL)03/95]
1. Turn the key in the ignition to LOCK.
*
[ST11200(ALL)03/95]
2. Check under the vehicle for leaking fuel.
*
[ST11210(ALL)03/95]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
File:04ctste.ex
Update:Tue Sep 19 14:42:54 1995

115 [ST11220(ALL)03/95]
4. Turn the ignition key ON for a few seconds,
then turn it to LOCK.
*
[ST11230(ALL)03/95]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
%*
[ST12300(ALL)05/95]
Guarding Against Exhaust Fumes
*
[ST12400(ALL)02/95]
Carbon monoxide, although colorless and
odorless, is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
*
[ST12500(ALL)07/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
*
[ST12600(ALL)05/95]
RWARNING
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes.
File:04ctste.ex
Update:Tue Sep 19 14:42:54 1995

116
*
[ST12700(ALL)01/95]
Have the exhaust and body ventilation systems
checked whenever:
*
[ST12800(ALL)02/95]
q
your vehicle is raised for service
*
[ST12900(ALL)02/95]
q
the sound of the exhaust system changes
*
[ST13000(ALL)01/95]
q
your vehicle has been damaged in a collision
*
[ST13200(ALL)01/95]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
[ST13250(ALL)06/94]
one third page art:0070170-B*
[ST13300(ALL)08/95]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, adjust
the heating or air conditioning system to bring
in outside air.
File:04ctste.ex
Update:Tue Sep 19 14:42:54 1995

117
Warning Lights and
Gauges
*
[LG00500(E )02/95]
Your vehicle has one of the following clusters:
*
[LG00600(E )05/91]
q
Standard Cluster
*
[LG00700(E )12/89]
q
Sport Cluster
*
[LG01100(E )05/94]
If you are not sure which cluster your vehicle
has, check the diagrams on the following pages.
*
[LG01700(E )12/89]
Standard Cluster
*
[LG01800(E )12/89]
The following warning lights and gauges are on
the standard cluster. All of the warning lights
and gauges alert you to possible problems with
your vehicle. The following sections detail what
each of these indicators means.
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995

118 [LG01850(E )09/95]

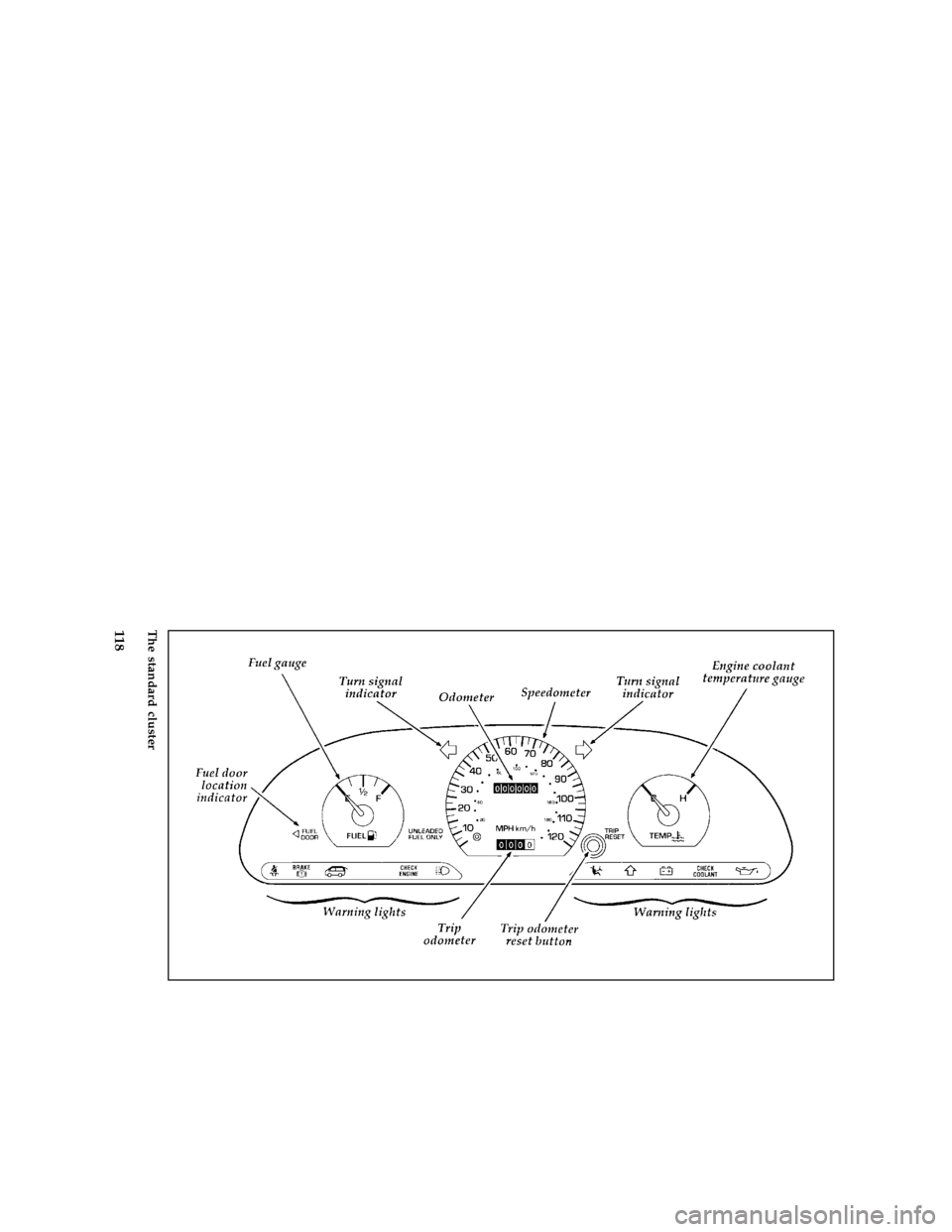

full page art:0070059-GThe standard cluster
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995

119
*
[LG01875(ALL)01/95]
Indicator Lights and Chimes
[LG02500(ALL)04/94]
Safety Belt Warning Light/Chime (U.S.
vehicles equipped with motorized passive
restraint)
*
[LG02510(ALL)08/95]
The safety belt warning light/chime reminds you
to fasten your safety belt. One of the following
will take place:
[LG02520(ALL)03/95]
q
If the lap belt is not buckled when the key is
turned to the ON position, the light will
come on for one to two minutes and the
chime will sound for four to eight seconds.
[LG02530(ALL)03/95]
q
If the lap belt is buckled while the light is on
and the chime is sounding, both the light and
chime will turn off.
[LG02540(ALL)03/95]
q
If the lap belt is buckled before the key is
turned to the ON position, neither the light
nor chime will activate.
[LG02545(ALL)05/94]
If the warning light remains illuminated for
more than one minute, check to be sure that
both shoulder belts are latched to the emergency
release buckle. If the warning light remains
illuminated with both front seat shoulder belts
latched to the emergency release buckles, refer to
the section titledWhat to Do If Your Shoulder Belt
Does Not Engage Properlybefore driving the
vehicle.
File:05ctlge.ex
Update:Tue Sep 19 14:44:43 1995
