1996 FORD ESCORT Owners Manual

23 [SR07400(ALL)11/92]
half page art:0070093-A
The lap belt fastened
[SR07500(ALL)04/94]
half page art:0070002-B
The lap and shoulder belts in place
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

24 [SR07605(ALL)01/95]Front Passenger Lap Belt Retractor (U.S.
vehicles equipped with motorized passive
restraint)
[SR07606(ALL)08/95]
Your vehicle is equipped with a dual locking
mode retractor for the front seat passenger, and
the lap belt has the following label:
[SR07607(ALL)08/95]
half page art:0070267-B
Seat belt label
[SR07610(E )09/95]
The retractor modes function as follows:
*
[SR07615(ALL)08/95]
Vehicle sensitive (emergency) locking mode
[SR07620(ALL)06/95]
In this operating mode, the lap belt retractor will
allow the occupant freedom of movement,
locking tight only on hard braking, hard
cornering or impacts of approximately 5 mph
(8 km/h) or more. The retractor can be made to
lock by jerking on the belt.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

25 %
*
[SR07625(ALL)08/95]
Automatic locking mode
*
[SR07630(ALL)06/95]
In this operating mode, the lap belt retractor will
remain locked and does not allow the occupant
freedom of movement. This mode provides the
following:
[SR07635(ALL)03/95]
q
A tight lap belt on the hips.
[SR07640(ALL)06/95]
q
Forward-facing child seat installation.
*
[SR07641(ALL)09/95]
RWARNING
Rear-facing infant seats should never be
placed in the front seat.
[SR07645(ALL)01/95]
This modemust be usedwhen installing a
forward-facing child seat on the front passenger
seat. To switch the retractor from the emergency
locking mode, perform the following steps:
[SR07650(ALL)01/95]
1. Buckle the lap belt.
[SR07655(ALL)01/95]
2. Grasp the lap belt below the child seat label.
Pull upward until all of the belt is extracted
and a click is heard. At this time, the lap
belt retractor is in the automatic locking
mode (child restraint mode).
*
[SR07660(ALL)07/95]
3. A clicking sound will contnue to be heard as
the belt is allowed to retract.
*
[SR07665(ALL)03/95]
4. Pull down on the belt to remove slack in the
belt.
[SR07670(ALL)01/95]
NOTE: When the lap belt is unbuckled and
allowed to retract completely, the
retractor will switch to the vehicle
sensitive (emergency) locking mode.
See the detailed instructions under
Safety Seats for Childrenin this
chapter.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

26 [SR07700(ALL)04/90]Shoulder Belt Emergency Release Buttons
[SR07800(ALL)02/94]
If the shoulder belt locks up in a collision, it
may stay locked. To unlock the belt, press the
emergency release button on the shoulder belt
buckle. This allows the tongue to unlatch from
the buckle. If the shoulder belt is unlatched and
partially retracted, a warning light in the
instrument panel lights up and remains on; the
warning chime sounds for about five (5) seconds.
[SR07900(ALL)02/95]
To insert the tongue back into the shoulder belt
buckle, push it in until you hear a click.
[SR07950(ALL)03/93]
If the belt does not lie flat against you, or the
belt has a twist in it at the retractor, unlatch the
belt at the buckle, remove twist, and relatch the
belt into the buckle.
[SR08000(ALL)10/89]
half page art:0000807-A

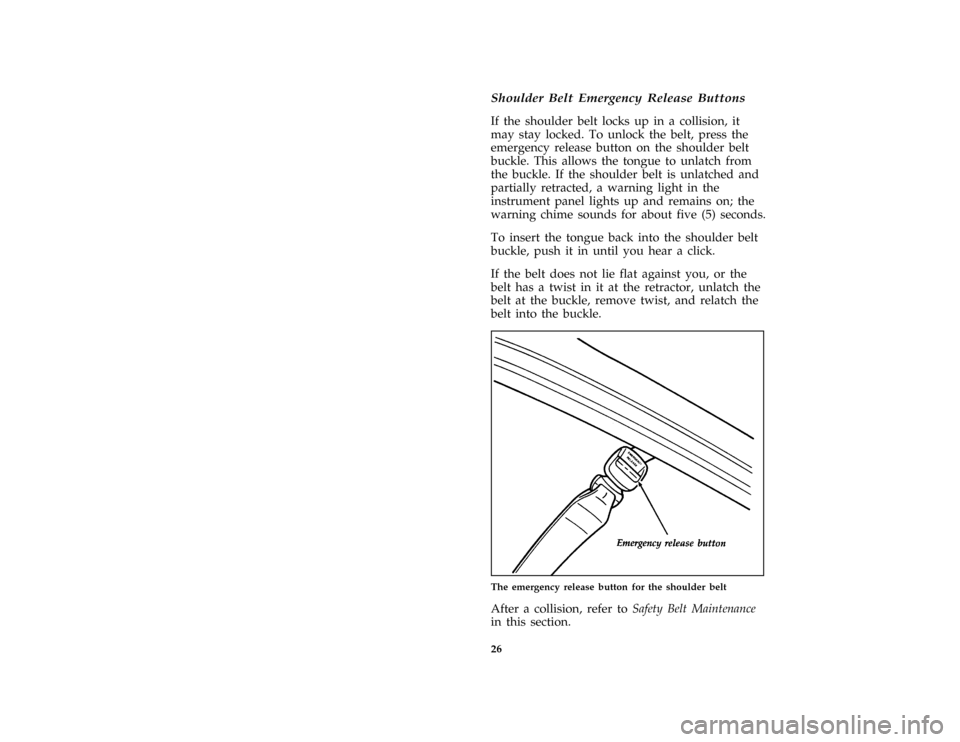

The emergency release button for the shoulder belt
[SR08100(ALL)04/93]
After a collision, refer toSafety Belt Maintenance
in this section.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

27 [SR08200(ALL)06/94]
If your shoulder belts stop working after a
collision, the fuel pump shut-off switch may
have been triggered. Minor parking lot bumping
and severe road impacts (such as potholes) may
trigger the switch even when there is no
apparent body damage. In many instances, you
might not even know that the switch has been
triggered. The shut-off switch cuts power to the
motors that move the shoulder belts in addition
to stopping the flow of fuel to the engine. To
reset the switch, seeEngine, starting after a
collisionin the Index.
[SR08300(ALL)04/93]
If your shoulder belts are not working properly,
get your vehicle serviced as soon as possible.
[SR08400(ALL)04/93]
If the fuel pump shut-off switch is not the cause
for the shoulder belt not moving, have the
system serviced by a qualified technician as soon
as possible.
[SR08450(ALL)04/91]
RWARNING
If the shoulder belt is released from the
emergency release buckle, store the tongue
end away from the seat tracks. Failure to
do this may result in the seat belt being
cut or torn when the seat is adjusted
forward or back. Any damaged shoulder
belt must be replaced.
[SR08500(E )07/93]
Manual Front Lap and Shoulder Belt
(Available only on Canadian vehicles)
[SR08580(E )08/95]
While in motion, the combination lap and
shoulder belt adjusts to your movement.
However, if you brake hard, turn hard, or if
your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap and shoulder belt
locks and helps reduce your forward movement.
The retractor can be made to lock by jerking on
the belt.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

28 [SR08590(E )08/95]Front passenger safety belts with dual locking
mode retractors can also be locked to tightly
secure a child safety seat.
*
[SR08700(E )05/94]
After you get into your vehicle, close the door
and lock it. Then adjust the driver or passenger
seat to the position that suits you best.
[SR08800(E )07/95]
To fasten the belt, find the long strap of the belt,
pull it across your shoulder and chest, and insert
the tongue into the proper buckle on your seat
until you hear a snap and feel it lock. Be sure to
use the correct buckle and check to make sure
the tongue is securely fastened to the buckle.
[SR08807(E )01/95]
quarter page art:0070003-A
Fastening the front seat lap and shoulder belt
*
[SR08808(E )07/95]
RWARNING
The lap belts should fit snugly and as low
as possible around the hips, not around
the waist.
[SR08810(E )03/95]
RWARNING
Front and rear seat occupants, including
pregnant women, should wear both lap
and shoulder belts for optimum protection
in a collision.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

29
*
[SR08811(E )05/95]
RWARNING
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never swing it around
the neck over the inside shoulder. Never
use a single belt for more than one
person. Failure to follow these precautions
could increase the risk and/or severity of
injury in a collision.
[SR08812(E )01/95]
Front Passenger Lap/Shoulder Belt
Retractor (Canadian 2-door vehicles only)
[SR08825(E )08/95]
Your vehicle is equipped with one of two front
passenger lap belts depending upon when your
vehicle was built.
[SR08830(E )08/95]
If your vehicle is equipped with a dual locking
mode retractor for the front seat passenger, the
lap belt will have the following label:
[SR08835(E )08/95]
17-1/2 pica art:0070267-B
Seat belt label
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

30 [SR08840(E )08/95]For vehicles equipped with a dual locking mode
retractor for the front seat passenger, the
retractor modes function as follows:
[SR08845(E )08/95]
Vehicle sensitive (emergency) locking mode
retractors
[SR08850(E )08/95]
The lap/shoulder belt retractor will allow the
occupant freedom of movement, locking tight
only on hard braking, hard cornering or impacts
of approximately 5 mph (8 km/h) or more. The
retractor can be made to lock by jerking on the
belt.
[SR08855(E )08/95]
Adjust the lap part of the belt by pulling up on
the shoulder belt until the lap belt fits snugly
and as low as possible around your hips.
%*
[SR08860(E )08/95]
Automatic locking mode
[SR08865(E )08/95]
In this operating mode, the shoulder belt
retractor will be automatically locked and remain
locked when the combination lap/shoulder
safety belt is buckled, and does not allow the
occupant freedom of movement. This mode
provides the following:
*
[SR08870(E )08/95]
q
A tight lap/shoulder belt fit on the occupant.
*
[SR08875(E )08/95]
q
Child seat or infant carrier installation
restraint.
*
[SR08880(E )08/95]
RWARNING
Rear-facing infant seats should never be
placed in the front seats.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995
