1996 FORD ESCORT Owners Manual

55
*
[SR13041(ALL)07/95]
RWARNING
Air bag system components get hot after
inflation. Do not touch them after
inflation.
[SR13043(ALL)09/95]

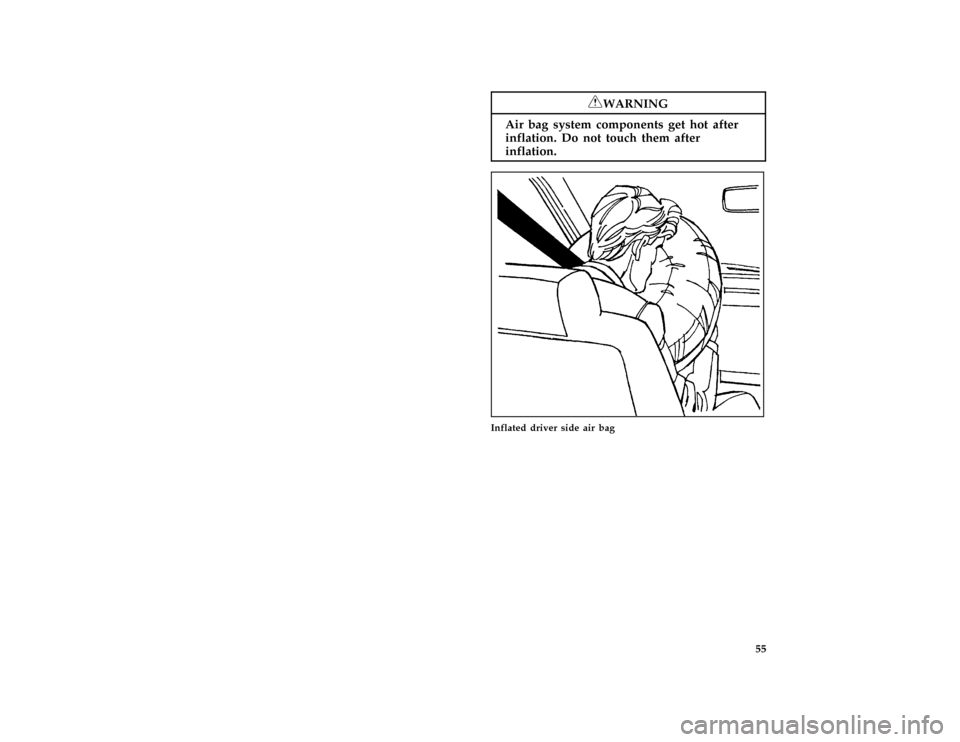

half page art:0011063-A
Inflated driver side air bag
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

56 [SR13045(ALL)09/95]

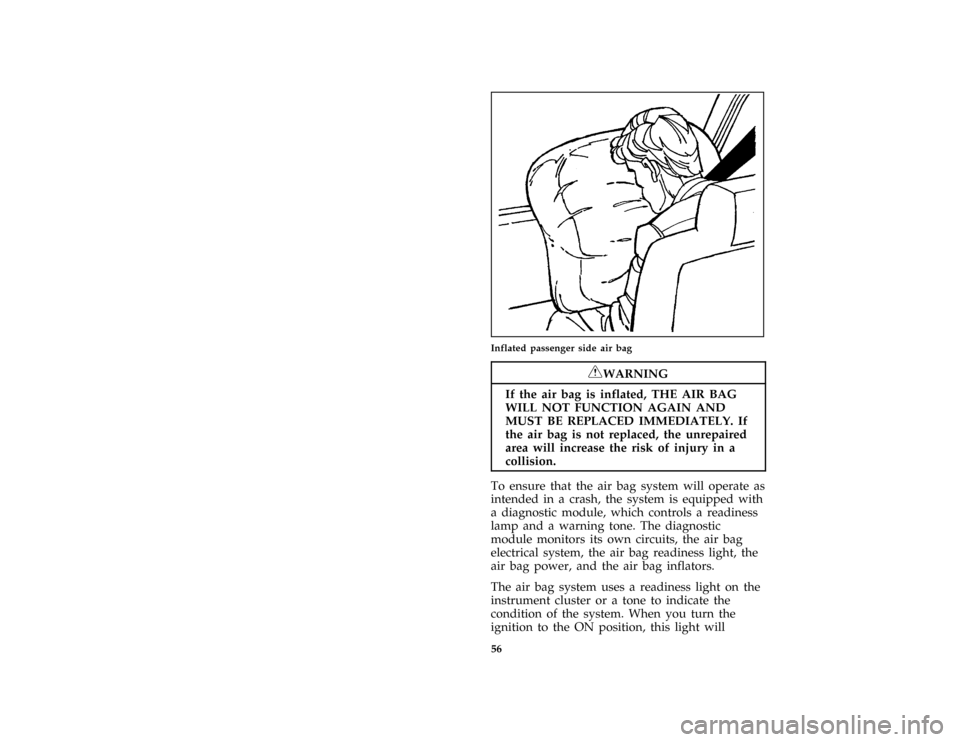

half page art:0011064-AInflated passenger side air bag
*
[SR13047(ALL)07/95]
RWARNING
If the air bag is inflated, THE AIR BAG
WILL NOT FUNCTION AGAIN AND
MUST BE REPLACED IMMEDIATELY. If
the air bag is not replaced, the unrepaired
area will increase the risk of injury in a
collision.
*
[SR13048(ALL)07/95]
To ensure that the air bag system will operate as
intended in a crash, the system is equipped with
a diagnostic module, which controls a readiness
lamp and a warning tone. The diagnostic
module monitors its own circuits, the air bag
electrical system, the air bag readiness light, the
air bag power, and the air bag inflators.
*
[SR13049(ALL)06/95]
The air bag system uses a readiness light on the
instrument cluster or a tone to indicate the
condition of the system. When you turn the
ignition to the ON position, this light will
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

57
illuminate for approximately six (6) seconds and
then turn off. This indicates that the system is
operating normally.NOTE:Maintenance of the
air bag system is not required.
%*
[SR13050(ALL)06/95]
A problem with the system is indicated by one
or more of the following:
*
[SR13055(ALL)06/95]
q
the readiness light will either flash or stay lit,
*
[SR13060(ALL)06/95]
q
or it will not light immediately after ignition
is turned on,
*
[SR13065(ALL)06/95]
q
or a group of five beeps will be heard. The
tone pattern will repeat periodically until the
problem and light are repaired.
*
[SR13090(ALL)08/95]
If any of these things happen, have the air bag
system serviced at your Ford or Lincoln-Mercury
dealer immediately. Unless serviced, the air bag
Supplemental Restraint System may not function
properly in the event of a collision.
*
[SR13120(ALL)07/95]
RWARNING
Do not attempt to service, repair, or
modify the Air Bag Supplemental
Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
%*
[SR13260(ALL)05/95]
Disposal of air bags or air bag equipped
vehicles
*
[SR13270(ALL)06/95]
For disposal of air bags or air bag equipped
vehicles, see your local Ford or Lincoln-Mercury
dealer. Air bagsMUSTbe disposed of by
qualified personnel.
[SR13273(ALL)08/95]
Service and information labels
[SR13275(ALL)08/95]
Service and information labels are attached to
the sun visor, on the headliner above the
driver's sun visor (Canadian vehicles), and near
the radiator support in the engine compartment.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

58
%*
[SR14800(ALL)05/95]
Safety Restraints for Children
*
[SR14810(ALL)02/95]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
*
[SR14820(ALL)08/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR14825(ALL)07/95]
RWARNING
To prevent the risk of injury, make sure
children sit where they can be properly
restrained.
*
[SR14830(ALL)09/95]
RWARNING
Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and safety belts.
*
[SR14832(ALL)09/95]
RWARNING
Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

59
*
[SR14834(ALL)09/95]
RWARNING
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed.
*
[SR14835(ALL)06/95]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SR14840(ALL)08/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR14850(ALL)08/95]
RWARNING
Never leave a child unattended in your
vehicle.
*
[SR14860(ALL)08/95]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

60 %
*
[SR15650(ALL)01/95]
Safety Seats for Children
*
[SR15700(ALL)05/95]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
*
[SR15710(ALL)08/95]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps seeAttaching
Safety Seats With Tether Strapsin this chapter.
[SR15720(ALL)08/95]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position, and make sure the tongue is securely
fastened in the buckle.
*
[SR15735(ALL)07/95]
Your vehicle is equipped with a right front
passenger air bag. Air bags deploy with great
force, faster than the blink of an eye. Front
passengers, especially children and small adults,
must never sit on the front edge of the seat,
stand near the glove compartment of the
instrument panel, or lean over near the air bag
cover when the vehicle is moving. All occupants
should sit with their backs against the seatback,
move the seat to the most rearward position if
possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should
use child or infant seats.
%*
[SR15740(ALL)07/95]
RWARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. NEVER
SECURE REAR-FACING INFANT SEATS
IN THE FRONT SEAT.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

61
*
[SR15745(ALL)08/95]
The force of the rapidly inflating passenger air
bag could push the top of the rear-facing seat
against the vehicle seatback, armrests or console.
Rear-facing infant seats must always be secured
in the rear seat.
*
[SR15748(ALL)07/95]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SR15750(ALL)06/95]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SR15775(ALL)08/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

62 [SR15790(ALL)09/93]
RWARNING
Always keep the buckle release button
pointing upward and away from the child
seat, with the tongue between the child
seat and the release button as shown in
the following illustration. Failure to
follow these instructions could result in
accidental unbuckling of the safety belt if
the child safety seat hits the release
button. Release of the safety belt could
result in serious injuries.
[SR15795(ALL)03/95]

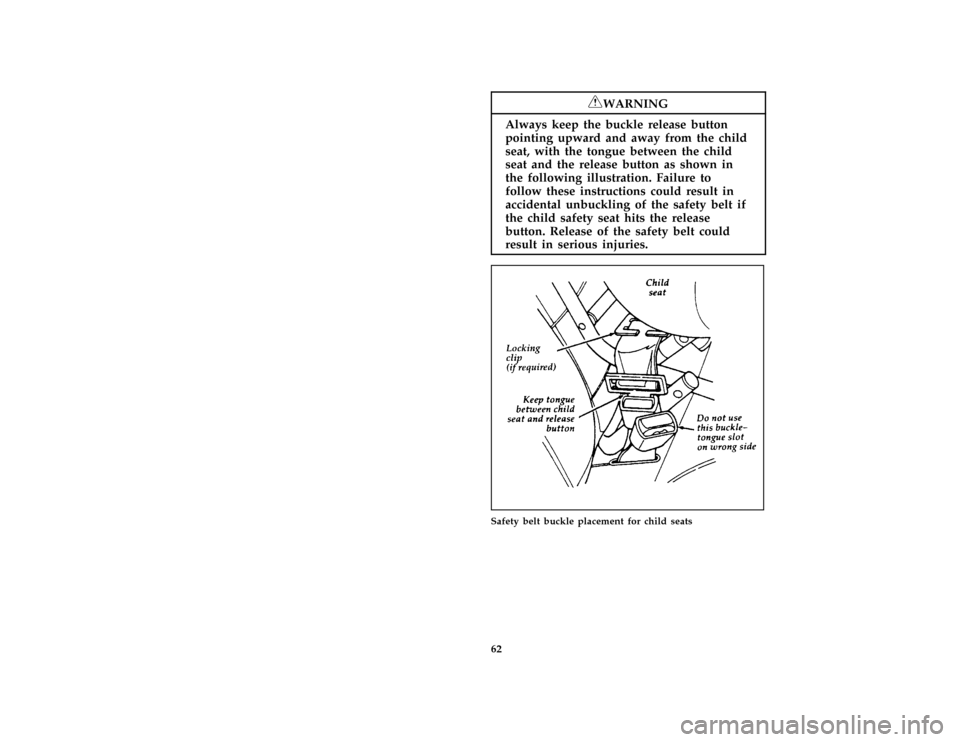

half page art:0070239-C
Safety belt buckle placement for child seats
