1996 FORD ESCORT Owners Manual

87 [SR18600(ALL)01/95]
Attaching Child Safety Seats with Tether
Straps (For all vehicles)
*
[SR18700(ALL)06/95]
Some manufacturers make safety seats that
include a tether strap that goes over the back of
the vehicle seat and attaches to an anchoring
point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of
your child safety seat for information about
ordering a tether strap.
*
[SR19100(E )07/95]
If you use a tethered safety seat on one of the
rear seats, you can anchor the strap to the
appropriate tether anchor directly behind that
seat position.
*
[SR19110(ALL)08/95]
Front Seats
*
[SR19120(ALL)08/95]
To install a tether from a child safety seat in the
front seat:
*
[SR19130(ALL)08/95]
1. Buckle the lap/shoulder belt (in the seat
directly behind the front passenger seat in
which the child safety seat will be installed).
[SR19140(ALL)08/95]
2. Pull at the stored belt out of the rear seat
retractor to switch the retractor to automatic
locking mode.
*
[SR19150(ALL)08/95]
3. Let the retractor wind up the slack from the
lap/shoulder belt.
*
[SR19160(ALL)08/95]
4. Install the child safety seat in the front seat.
Refer to the previous section onInstalling
Safety Seats. Hook the tether strap hook
around the webbing near the center of the
shoulder portion of the locked lap/shoulder
belt.
*
[SR19170(ALL)08/95]
5. Tighten the tether strap.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

88 [SR19180(ALL)08/95]Rear Seats
[SR19190(ALL)08/95]
If you use a tethered safety seat on one of the
rear seats, you can anchor the strap to the
appropriate tether anchor directly behind that
seat position.
*
[SR19200(ALL)08/95]
Tether anchorage hardware (Canadian
vehicles only)
[SR19300(ALL)10/89]
All vehicles built for sale in Canada include a
tether anchor hardware kit for use with
Canadian child safety seats. Attachment holes (at
each rear seating position) have been provided
in your vehicle to attach the anchor hardware, if
required. Additional kits can be obtained at no
charge from any Ford or Lincoln-Mercury dealer.
*
[SR19400(ALL)08/95]
Tether anchorage hardware (U.S. vehicles
only)
[SR19500(ALL)10/91]
Vehicles built for sale in the USA do not include
a tether anchor hardware kit for use with child
safety seats. However, attachment holes (at each
rear seating position) have been provided in
your vehicle to attach the tether anchor
hardware. Tether anchor hardware kits can be
obtained at no charge from any Ford or
Lincoln-Mercury dealer.
[SR19550(ALL)08/95]
Be sure to follow the child safety seat
manufacturer's instructions.
[SR19600(ALL)06/95]
RWARNING
Tighten the anchor according to
specifications. Otherwise the safety seat
may not be properly secured and the child
may be injured in a sudden stop or
collision.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

89
*
[SR19650(ALL)06/95]
Tether anchorage hardware
[SR19700(ALL)06/95]
The 2-door hatchback, 4-door hatchback, and
wagon models have tether anchors at the
locations shown.
[SR19750(E )06/95]

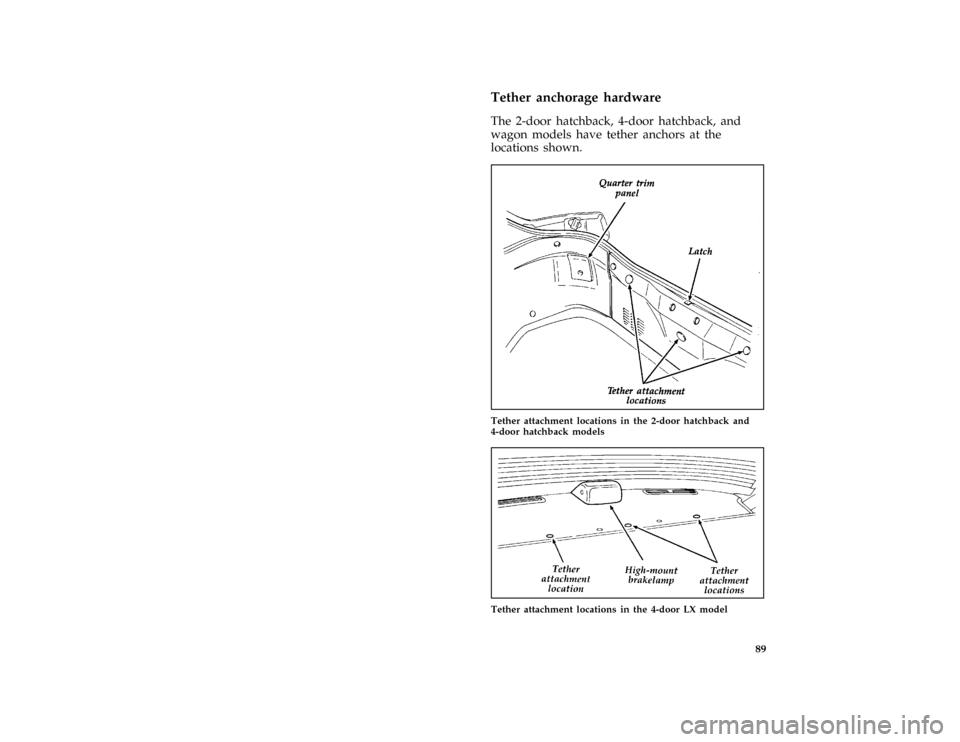

half page art:0000908-A
Tether attachment locations in the 2-door hatchback and
4-door hatchback models
[SR19800(E )08/95]
one third page art:0070195-A
Tether attachment locations in the 4-door LX model
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

90 [SR19900(ALL)06/95]

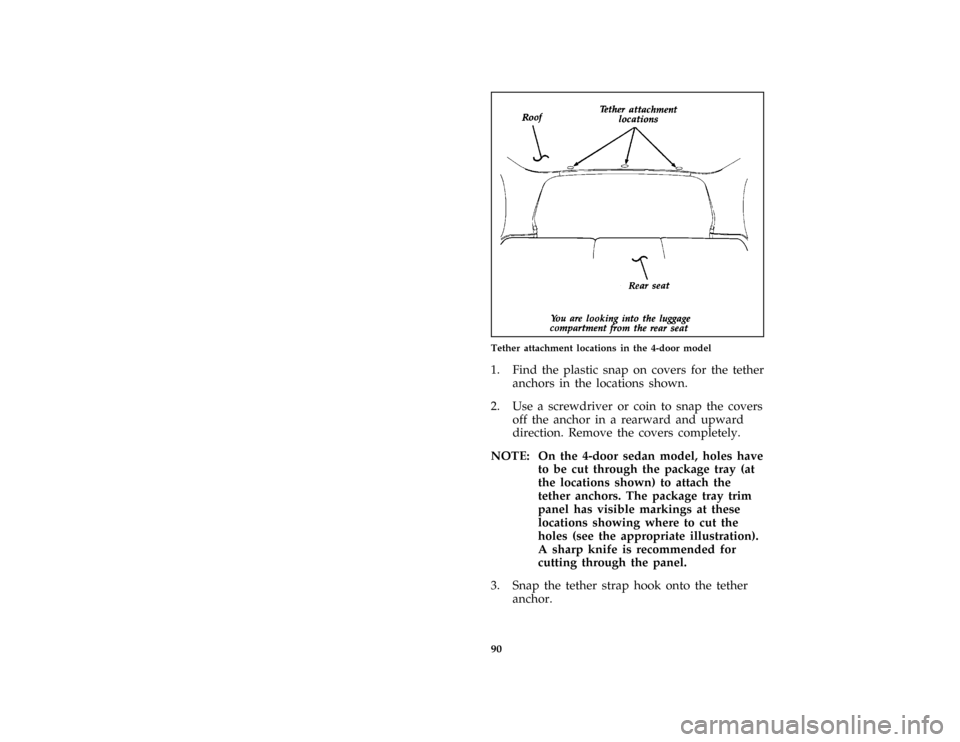

half page art:0070087-ATether attachment locations in the 4-door model
[SR20000(ALL)06/95]
1. Find the plastic snap on covers for the tether
anchors in the locations shown.
*
[SR20050(ALL)04/95]
2. Use a screwdriver or coin to snap the covers
off the anchor in a rearward and upward
direction. Remove the covers completely.
[SR20100(ALL)06/95]
NOTE: On the 4-door sedan model, holes have
to be cut through the package tray (at
the locations shown) to attach the
tether anchors. The package tray trim
panel has visible markings at these
locations showing where to cut the
holes (see the appropriate illustration).
A sharp knife is recommended for
cutting through the panel.
[SR20150(ALL)06/95]
3. Snap the tether strap hook onto the tether
anchor.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

91 [SR20160(ALL)08/95]
Built-In Child Seat (If Equipped)
[SR20170(ALL)08/95]
The optional rear seat may include a built-in
child seat. This child restraint is to be usedonly
by children who are at least one year old, weigh
between 20 and 60 pounds (9 and 27 kilograms)
and whose shoulders (top) are below the
shoulder harness slots. See Figure 1.
[SR20180(ALL)08/95]
quarter page art:0070112-D
Figure 1: Proper child shoulder height
[SR20190(ALL)08/95]
If your child is less than one year old or weighs
less than 20 pounds (9 kilograms),alwaysuse a
rear facing infant or convertible seat because a
child of that size is not sufficiently developed to
withstand crash forces in a front facing position.
Follow the specific manufacturer's instructions
for weight and height restrictions.
[SR20200(ALL)08/95]
Children must be properly buckled before riding
in the vehicle. It is the law in every state and
province. This child seat conforms to all
Federal/Canadian motor vehicle safety
standards.
[SR20210(ALL)08/95]
RWARNING
The rear seatback must be fully locked
before operating the child restraint system.
[SR20220(ALL)08/95]
Ensure that the latch release buttons are in the
full up (locked) positions on both sides of the
seat.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

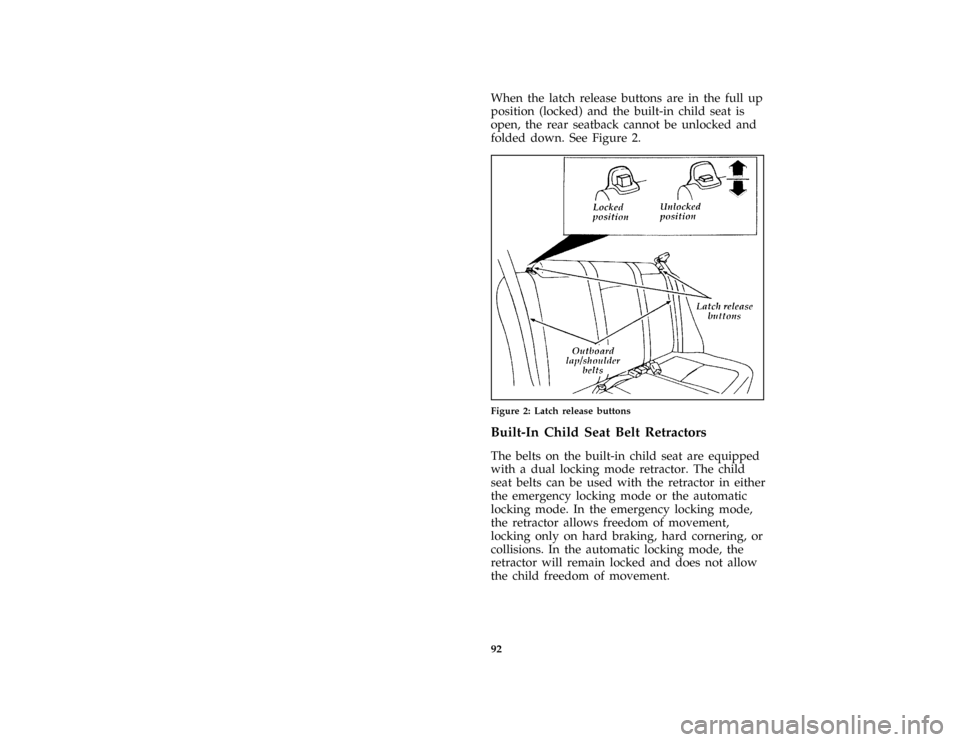

92 [SR20230(ALL)08/95]When the latch release buttons are in the full up
position (locked) and the built-in child seat is
open, the rear seatback cannot be unlocked and
folded down. See Figure 2.
[SR20240(ALL)08/95]
half page art:0070113-G
Figure 2: Latch release buttons
[SR20250(ALL)08/95]
Built-In Child Seat Belt Retractors
[SR20260(ALL)08/95]
The belts on the built-in child seat are equipped
with a dual locking mode retractor. The child
seat belts can be used with the retractor in either
the emergency locking mode or the automatic
locking mode. In the emergency locking mode,
the retractor allows freedom of movement,
locking only on hard braking, hard cornering, or
collisions. In the automatic locking mode, the
retractor will remain locked and does not allow
the child freedom of movement.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

93 [SR20270(ALL)08/95]
The retractor will switch from the emergency
locking mode to the automatic locking mode
when the shoulder belts are pulled all the way
out. The retractor will switch back to emergency
locking mode when the belts are unbuckled and
the shoulder belts retract completely.
[SR20280(ALL)08/95]
The automatic locking mode must be used to
hold small children in position, particularly
sleeping children and those who may try to
squirm out of the belts.
[SR20290(ALL)08/95]
RWARNING
Never leave a child unattended in your
vehicle.
[SR20300(ALL)08/95]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
[SR20310(ALL)08/95]
RWARNING
Failure to follow all of the instructions on
the use of this child restraint system can
result in your child striking the vehicle's
interior during a sudden stop or crash.
File:03ctsre.ex
Update:Tue Sep 19 15:05:35 1995

94 [SR20320(ALL)08/95]How to use the Built-In Child Seat
[SR20330(ALL)08/95]
Read the following procedures and all of the
labels on the built-in child seat before using the
seat.
[SR20340(ALL)08/95]
RWARNING
Never use the Built-In Child Seat as a
booster cushion with the adult safety
belts. A child using the adult belts could
slide forward and out from under the
safety belts.
[SR20350(ALL)08/95]
1. Slide hand under the flap and pull down the
top portion of the child seat. See Figure 3.
[SR20360(ALL)08/95]
NOTE: The child seat cannot be opened unless
the seatback is latched in the upright
position.
[SR20370(ALL)08/95]
half page art:0070114-E
Figure 3: Unfolding built-in child seat
