1996 FORD ESCORT Owners Manual

338 [SV40820(ALL)03/95]Replacing a brakelamp mounted on the
package tray in the rear window
[SV40825(ALL)08/93]
half page art:0070201-A
Location of the high-mount brakelamp in rear window
[SV40830(ALL)08/93]
1. Remove the two fastener clips and the
brakelamp assembly cover.
[SV40840(ALL)03/91]
2. Detach the socket from the housing and
remove the bulb.
[SV40850(ALL)03/91]
3. Replace the bulb and ease the socket back
into the housing.
[SV40860(ALL)08/93]
4. Replace the brake assembly cover and secure
with the two fastener clips.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

339
*
[SV40918(ALL)03/95]

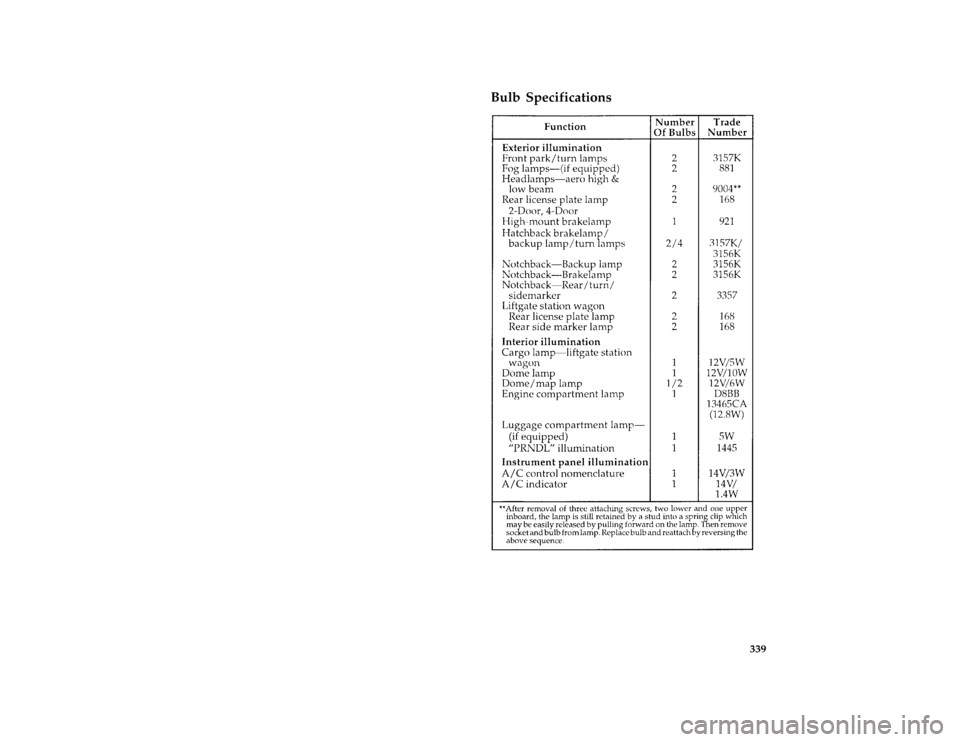

Bulb Specifications
[SV40920(E )08/95]
thirty-two pica chart:0070152-CFile:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

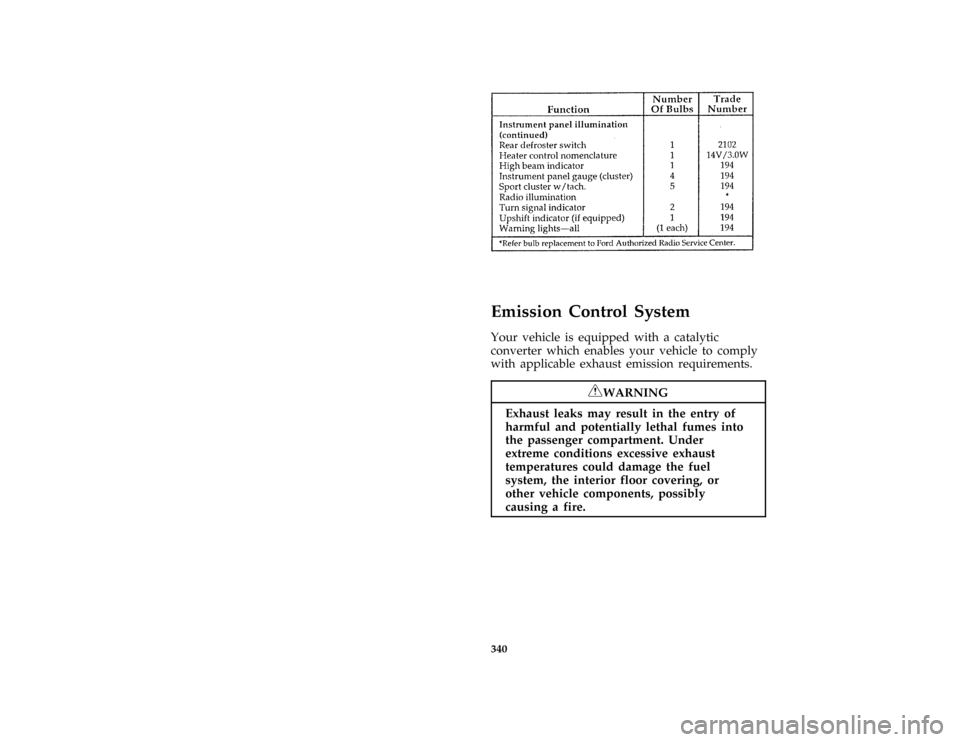

340 [SV40930(E )08/95]
fourteen pica chart:0070027-C
%*
[SV41000(ALL)03/95]
Emission Control System
*
[SV41100(ALL)05/95]
Your vehicle is equipped with a catalytic
converter which enables your vehicle to comply
with applicable exhaust emission requirements.
*
[SV41200(ALL)06/95]
RWARNING
Exhaust leaks may result in the entry of
harmful and potentially lethal fumes into
the passenger compartment. Under
extreme conditions excessive exhaust
temperatures could damage the fuel
system, the interior floor covering, or
other vehicle components, possibly
causing a fire.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

341
*
[SV41300(ALL)05/95]
To make sure that the catalytic converter and the
other emission control parts continue to work
properly:
*
[SV41400(ALL)01/95]
q
Use only unleaded fuel.
*
[SV41500(ALL)01/95]
q
Avoid running out of fuel.
*
[SV41600(ALL)01/95]
q
Do not turn off the ignition while your
vehicle is moving, especially at high speeds.
*
[SV41700(ALL)03/95]
q
Have the services listed in theMaintenance
Schedule and Recordbooklet performed
according to the specified schedule. The
scheduled maintenance services are required
because they are considered essential to the
life and performance of your vehicle and to
its emissions system.
*
[SV41720(ALL)03/95]
In general, maintenance, replacement, or service
of the emissions control devices or systems in
your new Ford Motor Company vehicle or
engine may be performed at your expense by
any automotive repair establishment or
individual using automotive parts equivalent to
those which your vehicle or engine was
originally equipped.
*
[SV41750(ALL)05/95]
If other than Ford or Motorcraft or Ford
authorized remanufactured parts are used for
maintenance, replacement, or for the service of
components affecting emissions control, the
owner should be assured that such parts are
warranted by their manufacturer to be
equivalent to genuine Ford Motor Company
parts in performance and durability. Please
consult your warranty information booklet for
complete warranty information.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

342
*
[SV41800(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
*
[SV42000(ALL)01/95]
Do not make any unauthorized changes to your
vehicle or engine. Changes that cause more
unburned fuel to reach the exhaust system can
increase the temperature of the engine or
exhaust system.
*
[SV42100(ALL)01/95]
By law, anyone who manufactures, repairs,
services, sells, leases, trades vehicles, or
supervises a fleet of vehicles is not permitted to
intentionally remove an emission control device
or prevent it from working. In some of the
United States and in Canada, vehicle owners
may be liable if their emission control device is
removed or is prevented from working.
[SV42200(ALL)08/95]
Never use a metal exhaust collector when you
service your vehicle. If the metal collector
contacts any of your vehicle's plastic trim or
bumper parts they could melt or deform.
*
[SV42300(ALL)01/95]
Do not drive your vehicle if it does not operate
properly. See your dealer if the engine runs on
for more than five seconds after you shut it off
or if it misfires, surges, stalls, or backfires.
%*
[SV42400(ALL)05/95]
Information about your vehicle's emission
control system is on the Vehicle Emission
Control Information decal located on or near the
engine. This decal identifies engine displacement
and gives some tune-up specifications.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

343 %
*
[SV42405(ALL)07/95]
Readiness for Inspection/Maintenance
Testing
*
[SV42410(ALL)07/95]
In some localities it may become a legal
requirement to pass an
Inspection/Maintenance (I/M) test of the
On-Board Diagnostic (OBD) II system. If the
vehicle's powertrain system or its battery has
just been serviced, the OBD II system is reset to
a not ready for I/M testing condition. To
prepare for I/M testing, the law specifies a
ªneed for additional mixed city and highway
driving to complete the checkº of the OBD II
system. As soon as all of the OBD II system
checks are successfully completed, the OBD II
system is set to the ready condition. The amount
of driving required to reach the ready condition
varies with individual driving patterns. To
complete this requirement in the minimum
amount of time, refer to the OBD II Drive Cycle
defined below. If the vehicle owner cannot or
does not want to do the additional driving
required by law, a service center can perform
this drive cycle as it would any other type of
repair work.
[SV42415(ALL)09/95]
OBD II Drive Cycle (1.9L Engine only)
[SV42416(ALL)08/95]
The following steps must be run in the order
shown. If any steps are interrupted, repeat the
preceding step. Any safe driving mode is
acceptable between steps.
[SV42417(ALL)09/95]
NOTE: Always drive vehicle in a safe manner
according to traffic conditions and obey
all traffic laws.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

344
*
[SV42420(ALL)07/95]
The engine must be warmed up and at
operating temperature before proceeding with
the drive modes of the following OBD II Drive
Cycle.
[SV42425(ALL)08/95]
1. Start the engine. Drive the vehicle or idle in
neutral for 4 minutes.
[SV42430(ALL)08/95]
2. Idle the vehicle in D (drive) (neutral for
manual transaxles) for 40 seconds.
[SV42435(ALL)08/95]
3. Accelerate the vehicle to 35 mph (55 km/h)
(manual transaxles upshift from 1st to 3rd
gear) at 1/2 to 3/4 throttle for 10 seconds.
[SV42440(ALL)08/95]
4. Drive the vehicle with a steady throttle at
35 mph (55 km/h) (manual transaxles use
3rd gear) for 30 seconds.
[SV42445(ALL)08/95]
5. Idle the vehicle in D (drive) (neutral for
manual transaxles) for 40 seconds.
[SV42450(ALL)08/95]
6. Continue to drive the vehicle in city traffic at
speeds between 25 and 40 mph
(40-64 km/h) (manual transaxles primarily
use 3rd and 4th gear when possible) for 15
minutes. During the 15 minute drive cycle
the following modes must be achieved:
*
[SV42455(ALL)07/95]
a. at least 5 stop and idle modes at 10
seconds each
[SV42460(ALL)06/95]
b. acceleration from idles at 1/2 to 3/4
throttle position, and
*
[SV42465(ALL)07/95]
c. choose 3 different speeds to do 1.5
minute steady state throttle drives.
[SV42470(ALL)08/95]
7. Accelerate the vehicle up to between 45 and
60 mph (72-97 km/h) (manual transaxles
upshift to 5th gear). This should take
approximately 5 minutes.
File:15ctsve.ex
Update:Tue Sep 19 14:37:50 1995

345 [SV42475(ALL)06/95]
8. Drive vehicle and hold the throttle steady at
the selected speed between 45 and 60 mph
(72-97 km/h) for approximately 5 minutes.
[SV42480(ALL)06/95]
9. Drive the vehicle for 5 minutes at varying
speeds between 45 and 60 mph
(72-97 km/h).
[SV42485(ALL)06/95]
10. Bring the vehicle back to idle. Idle in drive
for 40 seconds.
*
[SV42490(ALL)07/95]
11. OBD II drive cycle has been completed.
Vehicle can be turned off when convenient.
*
[SV42500(ALL)07/95]
Refill Capacities, Motorcraft Parts,
and Lubricant Specifications
%*
[SV42600(ALL)07/95]

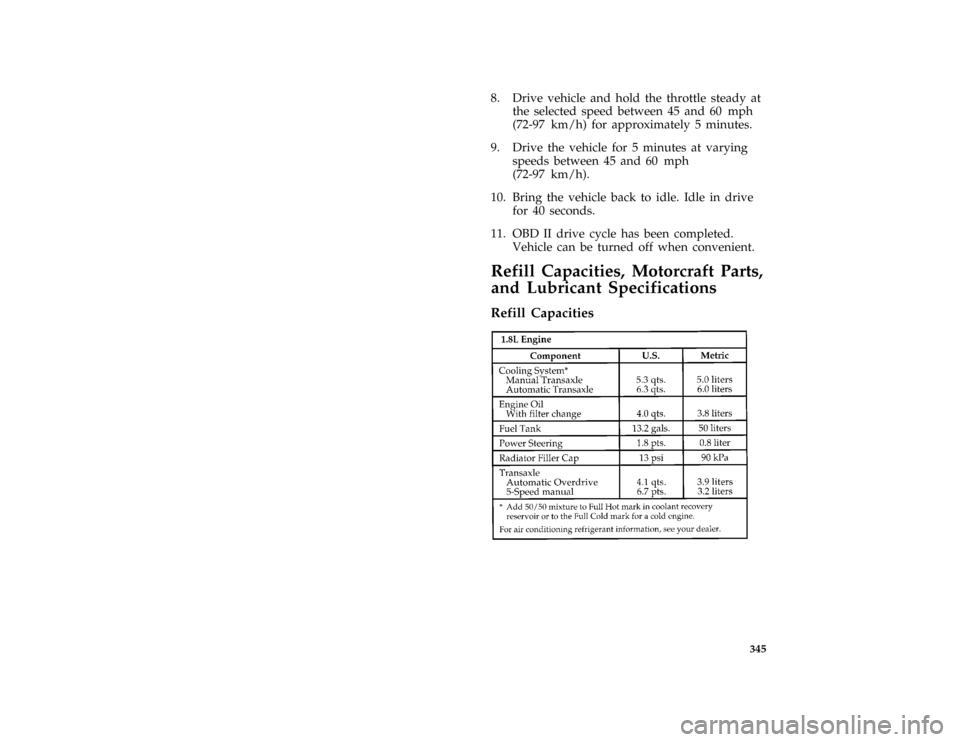

Refill Capacities
[SV42650(ALL)06/94]
sixteen pica chart:0070029-IFile:15ctsve.ex
