1996 FORD AEROSTAR Owners Manual

311
%*
[SV37600(ALL)03/95]
Power Steering Fluid
*
[SV37700(ALL)01/95]
Check the level of the power steering fluid at
least twice a year (i.e., every Spring and Fall).
%*
[SV37800(ALL)03/95]
Checking and Adding Power Steering
Fluid
*
[SV37900(ALL)02/95]
1. Start the engine and let it run until the
power steering fluid reaches normal
operating temperature. The power steering
fluid will be at the right temperature when
the engine coolant temperature gauge in the
instrument cluster is near the center of the
NORMAL operating temperature range.
*
[SV38000(ALL)01/95]
2. While the engine idles, turn the steering
wheel back and forth several times. Make
sure that the cap assembly is installed at this
time.
*
[SV38100(ALL)05/95]
3. Turn the engine off.
%*
[SV38200(ALL)03/94]
4. Check the fluid level on the dipstick (which
is highlighted in yellow in your vehicle). The
fluid level should be between the arrows in
the FULL HOT range, which is marked on
the side of the dipstick, opposite the side
marked FULL COLD. Do not add fluid if the
level is within the FULL HOT range.
File:15cpsva.ex
Update:Tue Aug 29 17:51:51 1995

312
*
[SV38250(ALL)03/94]

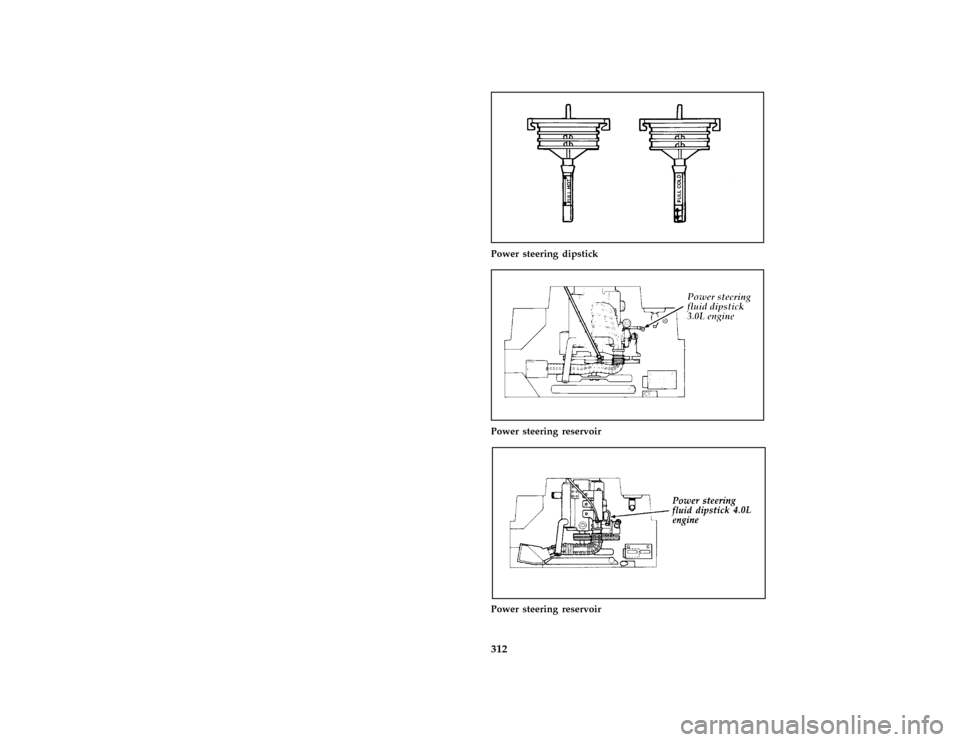

one third page art:0021016-B
Power steering dipstick
[SV38525(ALL)05/94]
one third page art:0095061-A
Power steering reservoir
[SV38550(ALL)05/94]
one third page art:0020531-B
Power steering reservoir
File:15cpsva.ex
Update:Tue Aug 29 17:51:51 1995

313
*
[SV38800(ALL)07/94]
5. If the power steering fluid is low, add fluid
in small amounts, continuously checking the
level, until you reach the FULL HOT range.
Do not overfill.
*
[SV38850(ALL)03/95]
6. When you are finished, put the dipstick back
in and make sure that it fits snugly.
[SV38900(ALL)06/95]
Use only a power steering fluid such as Ford
Power Steering Fluid Motorcraft MERCONH
ATF.
*
[SV39200(ALL)01/95]
If the power steering fluid is low, do not drive
your vehicle for a long period of time before
adding fluid. This can damage the power
steering pump.
*
[SV39400(ALL)02/95]
If you check the power steering fluid when it is
cold, make sure that the fluid reaches the FULL
COLD range on the dipstick. The reading will
only be accurate if the fluid temperature is
approximately 50 to85ÊF (10 to 30ÊC).
*
[SV39405(ALL)06/93]
NOTE: Do not turn the steering wheel of your
vehicle with the engine off. It could
force power steering fluid out from the
reservoir cap or in extreme cases, it
could unseat the cap.
%
*
[SV39500(ALL)03/95]
Fuses
*
[SV39600(ALL)12/91]
Fuses and circuit breakers protect your vehicle's
electrical system from overloading. If electrical
parts in your vehicle are not working, the
system may have been overloaded and blown a
fuse or tripped a circuit breaker. Before you
replace or repair any electrical parts, check the
appropriate fuses or circuit breakers.
*
[SV39700(ALL)10/89]

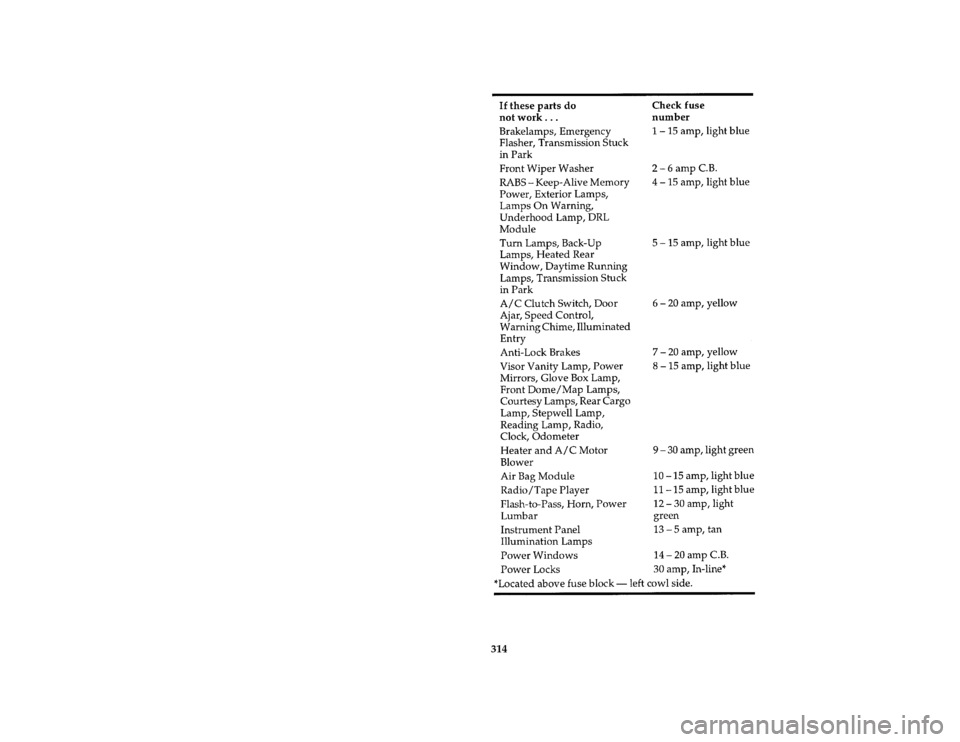

The following charts tell you which fuses or
circuit breakers protect each electrical part of
your vehicle. If a fuse blows or a circuit breaker
opens a circuit, all the parts of your vehicle that
use that circuit will not work.
File:15cpsva.ex
Update:Tue Aug 29 17:51:51 1995

314 [SV39900(ALL)06/95]
thirty-six pica chart:0020388-L
File:15cpsva.ex
Update:Tue Aug 29 17:51:51 1995

315 [SV40000(ALL)08/95]
fourteen pica chart:0095064-A
File:15cpsva.ex
Update:Tue Aug 29 17:51:51 1995

316 [SV40050(ALL)06/95]
full page art:0020516-IFuses and their location (under instrument panel on
driver's side)
File:15cpsva.ex
Update:Tue Aug 29 17:51:51 1995

317 [SV40060(ALL)08/95]

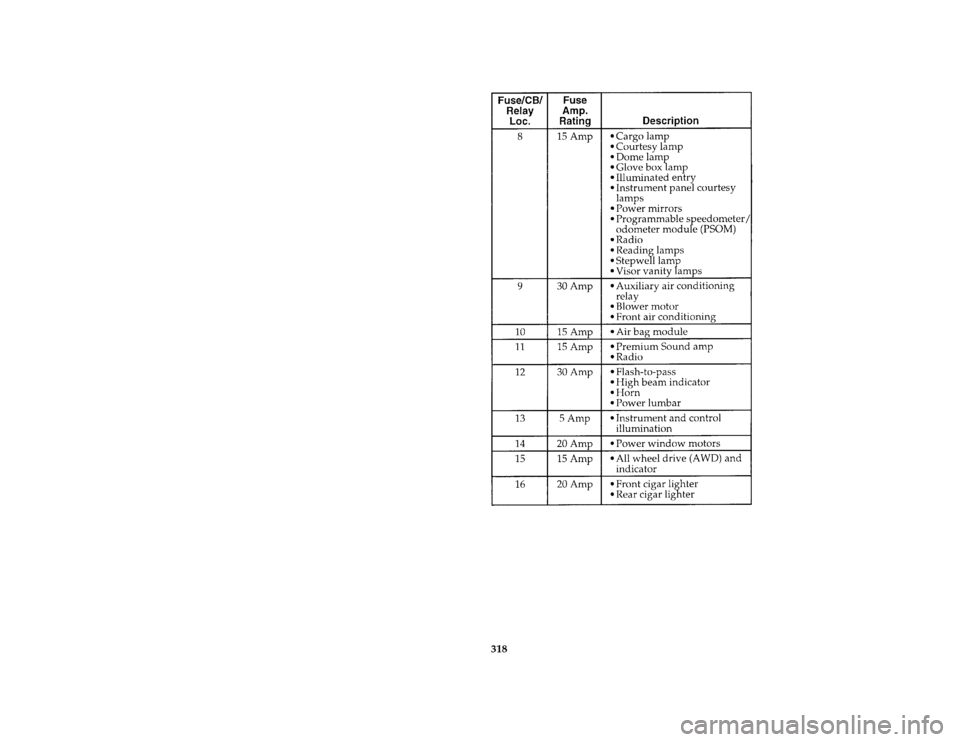

thirty-two pica chart:0095066-A
File:15cpsva.ex
Update:Tue Aug 29 17:51:51 1995

318 [SV40070(ALL)08/95]
thirty-six pica chart:0095067-A
