1996 FORD AEROSTAR Owners Manual

31
*
[SR12070(ALL)07/95]
To ensure that the air bag system will operate as
intended in a crash, the system is equipped with
a diagnostic module, which controls a readiness
lamp and a warning tone. The diagnostic
module monitors its own circuits, the air bag
electrical system, the air bag readiness light, the
air bag power, and the air bag inflators.
%*
[SR12200(ALL)05/95]
The air bag system uses a readiness light on the
instrument cluster and a tone to indicate the
condition of the system. When you turn the
ignition key to the ON position, this light will
illuminate for approximately six (6) seconds and
then turn off. This indicates that the system is
operating normally. NOTE: Maintenance of the
air bag system is not required.
%*
[SR12300(ALL)06/95]
A problem with the system is indicated by one
or more of the following:
*
[SR12310(ALL)06/95]
q
the readiness light will either flash or stay lit,
*
[SR12320(ALL)06/95]
q
or it will not light immediately after ignition
is turned on,
*
[SR12330(ALL)06/95]
q
or a group of five beeps will be heard. The
tone pattern will repeat periodically until the
problem and light are repaired.
*
[SR12360(ALL)08/95]
If any of these things happen, have the air bag
system serviced at your Ford or Lincoln-Mercury
dealer immediately. Unless serviced, the air bag
Supplemental Restraint System may not function
properly in the event of a collision.
*
[SR12600(ALL)07/95]
RWARNING
Do not attempt to service, repair, or
modify the Air Bag Supplemental
Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
File:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995

32 %
*
[SR12650(ALL)05/95]
Disposal of air bags or air bag equipped
vehicles
*
[SR12675(ALL)06/95]
For disposal of air bags or air bag equipped
vehicles, see your local Ford or Lincoln-Mercury
dealer. Air bagsMUSTbe disposed of by
qualified personnel.
%
*
[SR14300(ALL)05/95]
Safety Restraints for Children
*
[SR14400(ALL)02/95]
In the U.S. and Canada, you are required by law
to use safety restraints for children. If small
children ride in your vehicle Ð this generally
includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or
less Ð you must put them in safety seats that
are made specially for children. Safety belts
alone do not provide maximum protection for
these children. Check your local and state laws
for specific requirements.
*
[SR14500(ALL)08/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR14550(ALL)07/95]
RWARNING
To prevent the risk of injury, make sure
children sit where they can be properly
restrained.
File:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995

33 [SR14625(ALL)08/95]
RWARNING
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed.
[SR14630(ALL)08/95]
RWARNING
Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and safety belts.
[SR14635(ALL)08/95]
RWARNING
Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
*
[SR14650(ALL)06/95]
When possible, put children in the rear seat of
your vehicle. Accident statistics suggest that
children are safer when properly restrained in
the rear seating positions than in the front
seating positions.
*
[SR14700(ALL)08/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR15000(ALL)05/95]
RWARNING
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child.
Check seat covers and buckles before you
place a child anywhere near them.
File:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995

34
*
[SR15025(ALL)05/95]
RWARNING
Never leave a child unattended in your
vehicle.
%*
[SR15900(ALL)01/95]
Safety Seats for Children
*
[SR16000(ALL)05/95]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
[SR16005(ALL)08/95]
Most child safety seats can be used in this
vehicle only in vehicle seating positions with
lap/shoulder belts. Any booster-type seat that
places the vehicle's lap belt or shoulder belt
around a shield above and ahead of the child's
hips should not be used in this vehicle. This
type of safety seat could cause injury by tipping
over the front edge of the vehicle seat during a
collision.
*
[SR16010(ALL)08/95]
RWARNING
The following instructions MUST BE
FOLLOWED to reduce risk of injury from
a safety seat tipping too far forward in a
severe crash.
[SR16012(ALL)08/95]
Install forward-facing child safety seats only in
vehicle seating positions equipped with
lap/shoulder belts. Forward-facing convertible
safety seats can be used in the center of the
three-passenger second row bench seat only if a
top tether strap is used. Ford recommends
placing forward-facing safety seats in the second
row and using safety seats with top tether straps
for added protection.
[SR16015(ALL)08/95]
For more information on top tether straps see
Attaching Safety Seats With Tether Strapsin this
chapter.
File:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995

35
*
[SR16025(ALL)08/95]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position, and make sure the tongue is securely
fastened in the buckle. For a shoulder/lap belt
combination with a sliding tongue, make sure
the retractor is in the automatic locking mode.
*
[SR16090(ALL)07/95]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SR16100(ALL)06/95]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SR16125(ALL)08/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995

36
*
[SR16150(ALL)07/95]
RWARNING
Always keep the buckle release button
pointing upward and away from the child
seat, with the tongue between the child
seat and the release button as shown in
the following illustration.
[SR16280(ALL)05/95]
half page art:0032369-A
Safety belt buckle placement for child seats
File:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995

37
[SR25601(ALL)08/95]
Installing Child Safety Seats in
the Front Seat and Rear Outboard
Seating Positions
[SR25650(ALL)08/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for the
right front seat passenger and rear outboard
passengers.
[SR25701(ALL)03/95]
If you choose to install a child safety seat or
infant carrier in these seating positions:
[SR25750(ALL)08/95]
1. Position the child seat on the seat of the
vehicle. In the front seat, adjust the vehicle
seat as far rearward as possible.
[SR25801(ALL)08/95]
2. Pull down on the shoulder belt, then grasp
the shoulder belt and lap belt together. See
Figure 1.
[SR25900(ALL)08/95]
half page art:0095072-AFile:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995

38
*
[SR26000(ALL)08/95]

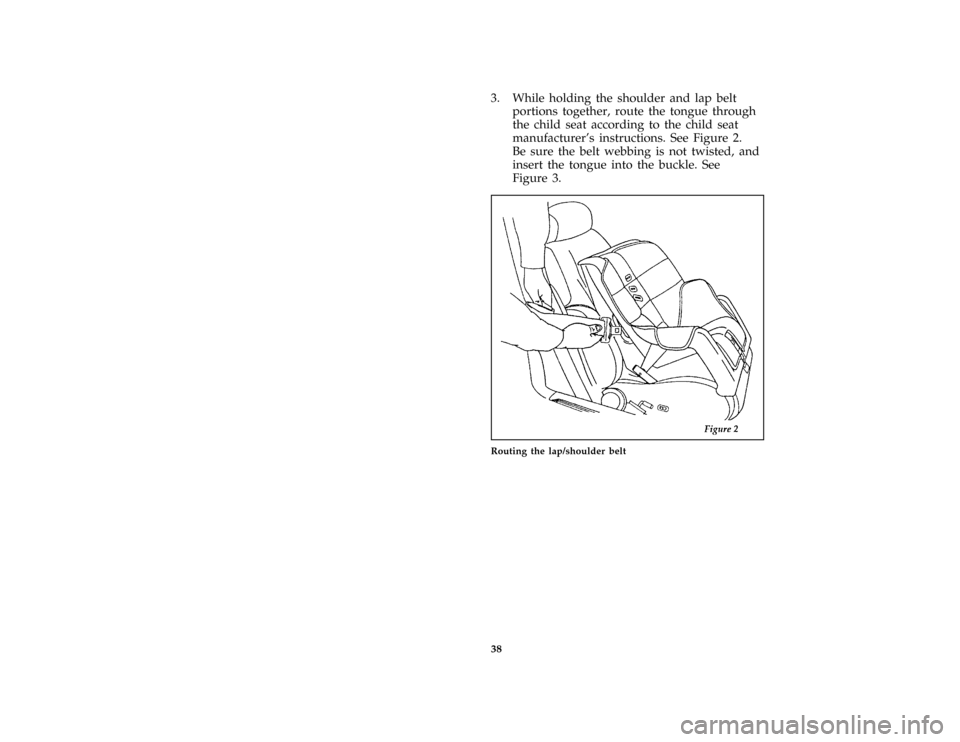

3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2.
Be sure the belt webbing is not twisted, and
insert the tongue into the buckle. See
Figure 3.
[SR26100(ALL)08/95]
half page art:0095073-A
Routing the lap/shoulder belt
File:03cpsra.ex
Update:Tue Aug 29 17:35:04 1995
