1996 FORD AEROSTAR Owners Manual

132
*
[FV32200(ALL)12/91]
To install the rear bucket seat:
[FV32300(ALL)12/91]
1. Lift the seat assembly into the vehicle and
drop the front and rear floor hooks into the
floor wells at a point just behind the floor
attachment pins.
[FV32500(ALL)05/89]
2. Rotate the seat latch handle forward, causing
the J hook to engage over the front of the
foremost well retainer.
[FV32801(ALL)02/92]
3. For right hand seats, continue rotating the
seat latch handle until it comes to a
complete stop on the top of the tube. This
will cause the seat assembly to slide forward,
engaging the front and rear floor hooks with
the floor well retainers.
[FV32901(ALL)02/92]
For left hand seats, push the seat latch
handle downward to a full stop. This locks
the seat in position. Before you engage the
safety belt, be sure it is not twisted. Remove
any twist, then insert the tongue end of the
detachable anchor into the detachable anchor
until you hear a ªsnapº and feel the latch
engage.
*
[FV33300(ALL)05/95]
RWARNING
Check to see that the seat is latched
securely in position. Keep floor area free
of objects that would prevent proper seat
engagement. Never attempt to adjust the
seat latch while the vehicle is in motion.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

133 [FV33601(ALL)05/89]
Two and Three Passenger Bench Seats and
Seat Bed Assemblies
[FV33700(ALL)07/92]
NOTE: If your vehicle is equipped with a
Built-In Child Seat, make sure the
child seat is properly stowed before
operating the seat bed.
*
[FV33801(ALL)03/91]
To remove seat assembly:
*
[FV33901(ALL)06/92]
1. Disengage the lap/shoulder safety belt from
the seat by inserting a key or screwdriver
into the slot in the detachable anchor and
lifting upward. Stow the tongue end of the
detachable anchor as shown in the
illustration.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

134 [FV34001(ALL)08/95]

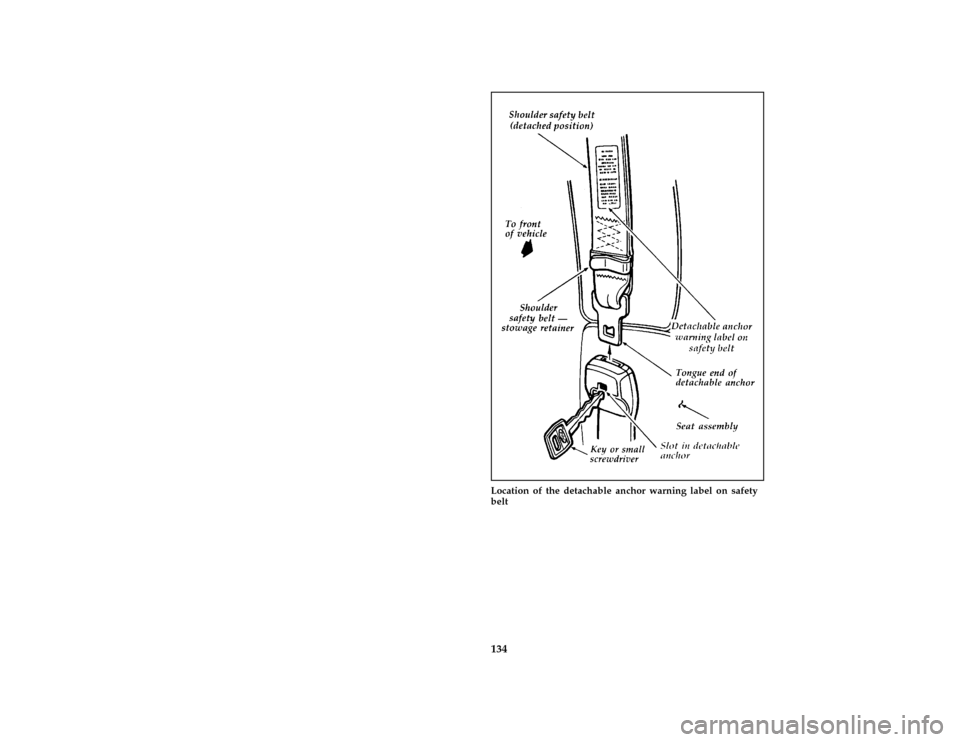

three fourths page art:0095047-ALocation of the detachable anchor warning label on safety
belt
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

135 [FV34101(ALL)03/93]

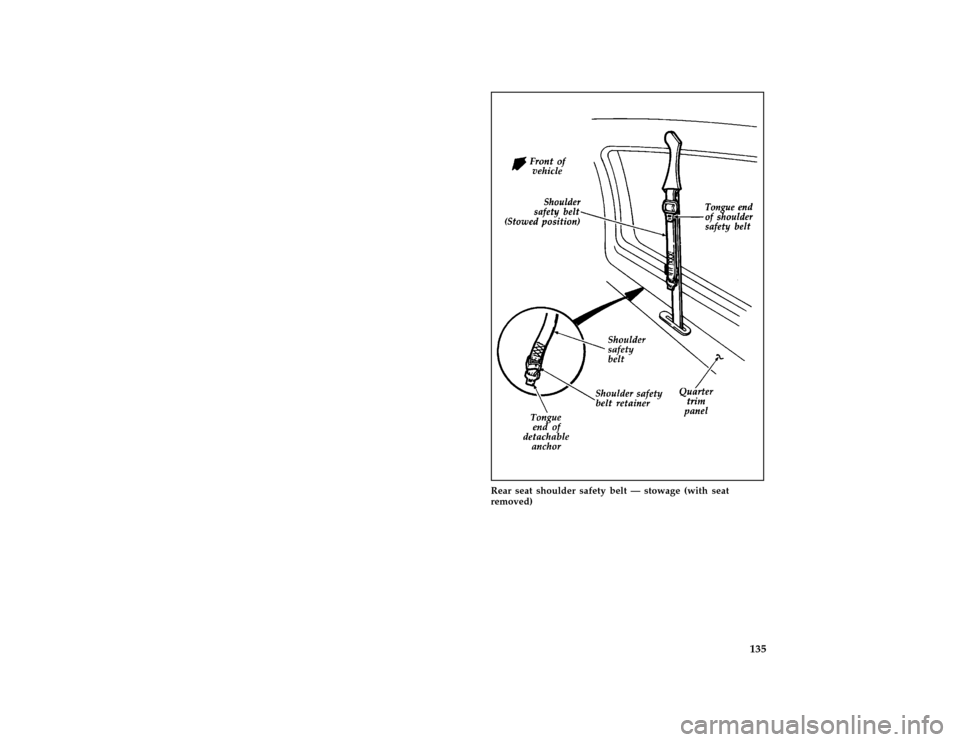

three fourths page art:0020786-A
Rear seat shoulder safety belt Ð stowage (with seat
removed)
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

136 [FV34201(ALL)08/95]

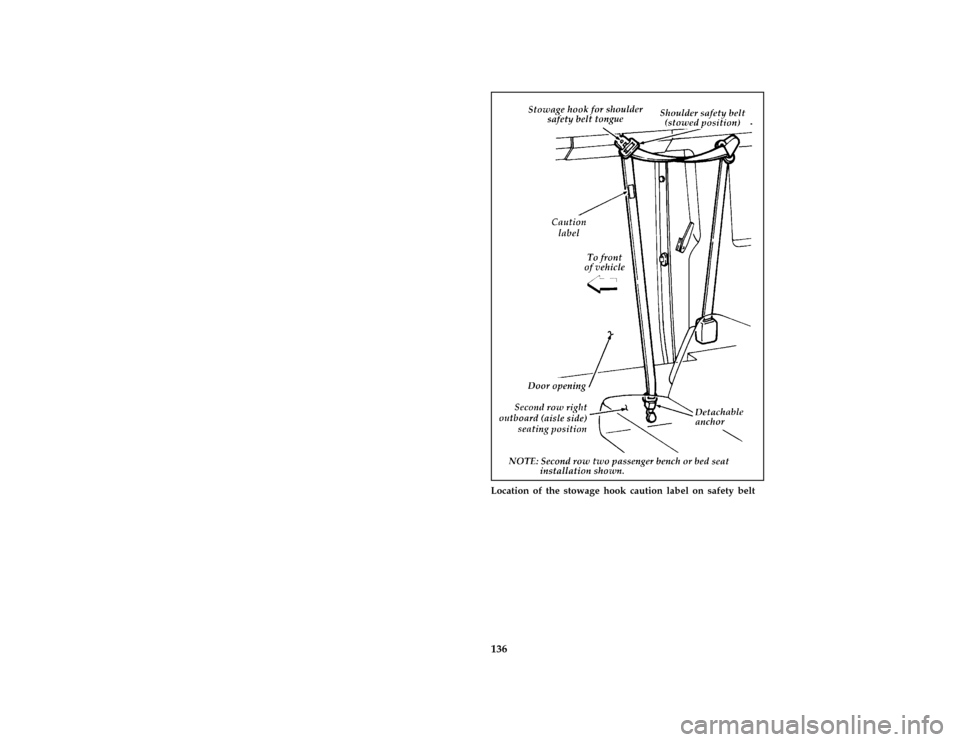

three fourths page art:0095062-ALocation of the stowage hook caution label on safety belt
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

137 [FV34301(ALL)08/95]

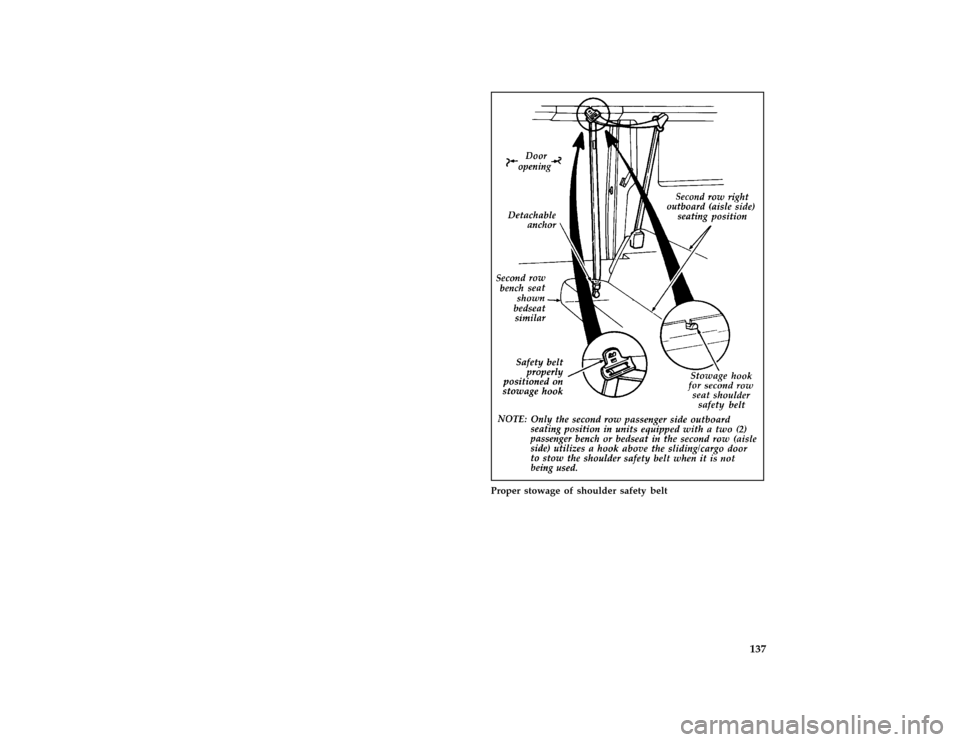

three fourths page art:0020880-C
Proper stowage of shoulder safety belt
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

138
*
[FV34401(ALL)06/95]
RWARNING
When reinstalling a rear seat in your
vehicle it must be placed in its original
position. Improper installation of the seat
will prevent correct use of the safety belts
and could increase the risk of injury.
Refer to the warning label on the seat
belt.
[FV34501(ALL)08/95]
2. Fold the seatback forward and latch it in the
down position (bench seat only).
[FV34601(ALL)03/91]
3. Rotate the seat latch handles (located under
the seat near the floor) upward, causing the
latch hooks to disengage from the floor
attachment.
[FV34701(ALL)03/91]
4. Lift seat at rear and rotate about the forward
attachment. When seat latches are clear of
floor attachments, release the latch handles.
[FV34801(ALL)03/91]
5. Pull the seat rearward to disengage it from
the front floor pins.
*
[FV34901(ALL)05/89]
Be careful that the latches are not damaged
when the seats are stored.
*
[FV35001(ALL)05/89]
To install the seat assembly:
*
[FV35100(ALL)10/90]
1. Clear the area of debris around the seat floor
attachments.
[FV35200(ALL)07/92]
2. With the seatback in a folded and latched
position (bench seat only), place the seat
assembly in your vehicle and engage the
front seat hooks onto the forward attachment
pin in the floor wells.
*
[FV35300(ALL)10/90]
3. Rotate the seat downward and engage the
latch into the rear floor attachment. Lifting
of the latch handles is not required for
installation.
File:08cpfva.ex
Update:Tue Aug 29 17:41:55 1995

139
*
[FV35400(ALL)10/90]
4. Ensure that the latch handles are fully seated
in the down position.
[FV35500(ALL)06/95]
5. Before you engage the safety belt, be sure it
is not twisted. A twisted safety belt may
cause the retractor to work improperly.
Remove any twist, then insert the tongue
end of the detachable anchor into the
detachable anchor until you hear a ªsnapº
and feel the latch engage. Refer to the
previous illustration.
[FV35600(ALL)12/91]
The two passenger bench or bed seat must be
installed in the first row behind the front seats
on wagons with seven passenger seating.
*
[FV35701(ALL)01/92]
To fold down the rear seatback:
[FV35801(ALL)07/92]
To lower the rear seatback down to its cargo or
bed position, release the seatback latch by
moving the release lever forward for the bench
seat or upward for the seat bed. Then fold the
seatback down. The latch will re-engage in the
cargo position.
[FV35901(ALL)08/95]
To raise the seatback, release the seatback latch
and rotate the seatback upwards until the latch
re-engages. (A slight downward pressure on the
bench seat seatback will reduce effort on the
latch.)
