1996 FORD AEROSTAR Owners Manual

88
*
[LG12756(ALL)05/95]
If you are experiencing an ªengine cut-outº
condition at high speeds, it may be the result of
this limiting device. It is a normal condition and
can be avoided by reducing vehicle/engine
speed.
[LG12760(ALL)05/95]
one third page art:0095036-A
Speedometer
%*
[LG13130(ALL)10/92]
Odometer/Trip Odometer
*
[LG13160(ALL)07/95]
The Liquid Crystal Display (LCD) odometer is a
combination trip odometer and total odometer.
The total odometer is normally displayed. To see
the trip odometer, press and release the SELECT
button on the upper right side of the
speedometer. To zero out the trip odometer,
press and release the RESET button on the
upper left side of the speedometer while the trip
odometer is displayed. If the trip odometer is
displayed, press and release the SELECT button
to return the display to the total odometer value.
File:05cplga.ex
Update:Tue Aug 29 17:36:50 1995

109
Steering Column Controls
*
[SC00400(ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
%
*
[SC00500(ALL)01/95]
The Turn Signal Lever
*
[SC00600(ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00700(ALL)03/95]
q
operate the turn signals and cornering lamps
*
[SC00800(ALL)01/95]
q
turn the high beams on/off
*
[SC00900(ALL)05/95]
q
flash the lamps
*
[SC01000(ALL)01/95]
q
turn the windshield wipers and washer
on/off
%*
[SC01100(ALL)01/95]
Turn Signals
[SC01700(ALL)05/95]
one third page art:0095013-A
Turn signal operation
File:07cpsca.ex
Update:Tue Aug 29 17:38:34 1995

110
*
[SC01800(ALL)11/89]
If the turn indicator light in the instrument
panel does not illuminate or remains on (doesn't
flash) when you signal a turn, the turn signaling
system is malfunctioning. Have this condition
corrected as soon as possible, but make sure that
you use the accepted hand signals in the
meantime.
%*
[SC03200(ALL)03/95]
High Beams and Flashing the Lamps
[SC03800(ALL)05/95]
one third page art:0095014-A
Headlamp high beam and flash-to-pass operation
%*
[SC04400(ALL)03/95]
Windshield Wipers and Washer
*
[SC04500(ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
[SC04950(ALL)05/95]
one third page art:0095015-A
Interval wiper on turn signal lever Ð wiper and washer
operation
File:07cpsca.ex
Update:Tue Aug 29 17:38:34 1995

111
*
[SC05000(ALL)02/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
*
[SC05200(ALL)08/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if wipers were off) or returning to
the selected setting.
[SC05250(ALL)06/95]
NOTE: The addition of shields to the front of
the vehicle (e.g., bug shields) may
adversely affect the windshield washer
system from delivering fluid to the
windshield. Devices such as bug
shields are not recommended for your
Ford vehicle.
*
[SC05300(ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
*
[SC05400(ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC005450(ALL)07/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
File:07cpsca.ex
Update:Tue Aug 29 17:38:34 1995

112
%*
[SC05475(ALL)07/95]
Gearshift Lever
[SC05495(ALL)08/95]
The gearshift lever on your Aerostar is mounted
on the steering column. On the end of the
gearshift lever is the OVERDRIVE OFF button.
For additional information about the gearshift
lever and the OVERDRIVE OFF button, see the
Driving Your Aerostarchapter.
[SC05500(ALL)07/95]
one third page art:0095028-A
Overdrive off button
[SC05504(ALL)07/95]
OVERDRIVE OFF Light on Gearshift
Lever
[SC05508(ALL)07/95]
This light indicates the operating range of the
transmission. The word OFF illuminates on the
lever when the OVERDRIVE OFF button is
depressed.
File:07cpsca.ex
Update:Tue Aug 29 17:38:34 1995

113
%*
[SC05510(ALL)03/95]
Hazard Flasher
*
[SC05520(ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05525(ALL)10/92]
The flashers will continue to flash with the brake
pedal depressed.
*
[SC05530(ALL)08/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery power can be drained.
*
[SC05540(ALL)09/93]
To use the hazard flasher:
*
[SC05550(ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560(ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
*
[SC05562(ALL)08/95]
NOTE: The flasher button will be sticking up
slightly higher when on than when off.
[SC05575(ALL)08/95]
one quarter page art:0095077-A
Hazard flasher
File:07cpsca.ex
Update:Tue Aug 29 17:38:34 1995

114
%*
[SC05600(ALL)01/95]
Horn
*
[SC05800(ALL)05/95]
To sound the horn, press either horn pad.
*
[SC06150(ALL)06/93]
one third page art:0020086-B
Horn location (with speed control option)
%*
[SC06200(ALL)05/95]
Tilt Steering (If equipped)
*
[SC06350(ALL)02/95]
RWARNING
Never adjust the steering wheel when the
vehicle is moving. You could lose control
of the vehicle and injure someone.
[SC06500(ALL)07/95]
one third page art:0020089-C
Turn signal and tilt steering release lever
File:07cpsca.ex
Update:Tue Aug 29 17:38:34 1995

115
*
[SC06750(ALL)04/95]
To change the position of the steering wheel,
pull the release lever on the column toward you.
Tip the steering wheel to the desired position.
Release the lever to lock the steering wheel in
place.
*
[SC07250(ALL)12/89]
Be sure the steering wheel locks in a notch. It is
not infinitely adjustable. Do not adjust the
steering wheel while the vehicle is in motion.
%
*
[SC07300(ALL)03/91]

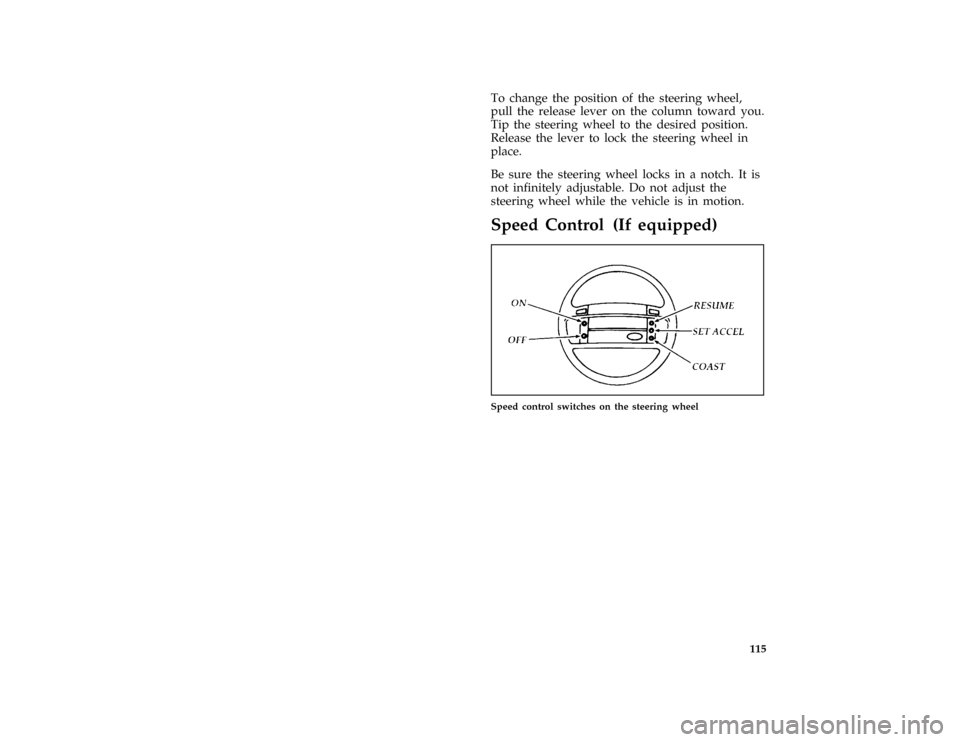

Speed Control (If equipped)
[SC07700(ALL)06/95]
one third page art:0095006-A
Speed control switches on the steering wheel
