1996 FORD AEROSTAR Owners Manual

212
*
[DR31702(ALL)03/91]
If you suspect that your payload is excessive,
have your vehicle weighed at a highway weigh
station or appropriate commercial facility. Weigh
the total vehicle and trailer (if applicable), then
separately weigh the vehicle at the front and
rear wheels. And finally, weigh the trailer
separately if applicable.
*
[DR31751(ALL)03/91]
Use this chart to perform your calculations.
[DR31805(ALL)03/95]
twenty-six pica chart:0021098-BFile:10cpdra.ex
Update:Tue Aug 29 17:45:28 1995

213
*
[DR31851(ALL)03/91]
NOTE: The Truck Safety Compliance
Certification Label has two weight
related entries that sometimes cause
confusion.
*
[DR31901(ALL)08/95]
Front Axle Reserve Capacity in Pounds (kgs): If
this value is given as 83 pounds (38 kgs) on the
label, does this mean that you are limited to
adding only 83 pounds (38 kgs) of accessories to
the front end capacity? Not exactly. This says
that you can load 83 pounds (38 kgs) of options
on the front axle, add 150 pound (68 kgs)
passengers to all seating positions, and add
evenly distributed cargo in the box without
exceeding the GAWR F.
*
[DR31950(ALL)06/92]
It is possible to hang heavier equipment on the
front as long as the vehicle owner/operator
compensates. This can be accomplished, if
necessary, by carrying fewer passengers, less
cargo or positioning cargo more toward the rear,
which has the effect of reducing the load on the
front. Keep in mind that the GAWR F, GAWR
R, nor the GVWR should ever be exceeded.
*
[DR32001(ALL)08/95]
Total Accessory Reserve Capacity in Pounds
(kgs): If, for example, this value is given as 112
pounds (51 kgs), does this mean that you are
limited to adding 112 pounds (51 kgs) of
accessories to your vehicle? Not exactly. This is a
number that is related to government crash test
standards, and only indirectly reflects on the
amount of accessory weight that can be carried.
*
[DR32050(ALL)06/94]
In the case of both these numbers (83 and 112
pounds) (38 and 51 kgs), the important thing to
remember is that for safe operation, an
owner/operator should calculate the amount and
the distribution of all weights (passengers,
accessory equipment and cargo). These combined
weights should fall below the vehicle's GVWR
and GAWR.
File:10cpdra.ex
Update:Tue Aug 29 17:45:28 1995

214
*
[DR32201(ALL)01/93]
Trailers
*
[DR32251(ALL)10/94]
Towing a trailer safely means having the proper
weight on the tongue (usually 10% of the trailer
weight). Load-equalizing hitches on large rigs
may transfer weight to each of the vehicle's
axles. This weight must be included in capacity
calculations when determining if the vehicle is
loaded within safe limits.
*
[DR32301(ALL)01/95]
If your vehicle exceeds the GVWR, remove cargo
from your vehicle accordingly. If your vehicle
exceeds the GAWR for either axle, shift the load
or remove cargo accordingly.
*
[DR32350(ALL)02/95]
RWARNING
If the GVWR or the GAWR specified on
the Safety Compliance Certification Label
is exceeded, your vehicle may be damaged
or you may lose control and injure
someone.
*
[DR32401(ALL)05/95]
RWARNING
Towing trailers beyond the maximum
recommended gross trailer weight could
result in engine damage, transmission/axle
damage, structural damage, loss of control,
and personal injury.
*
[DR32450(ALL)05/95]

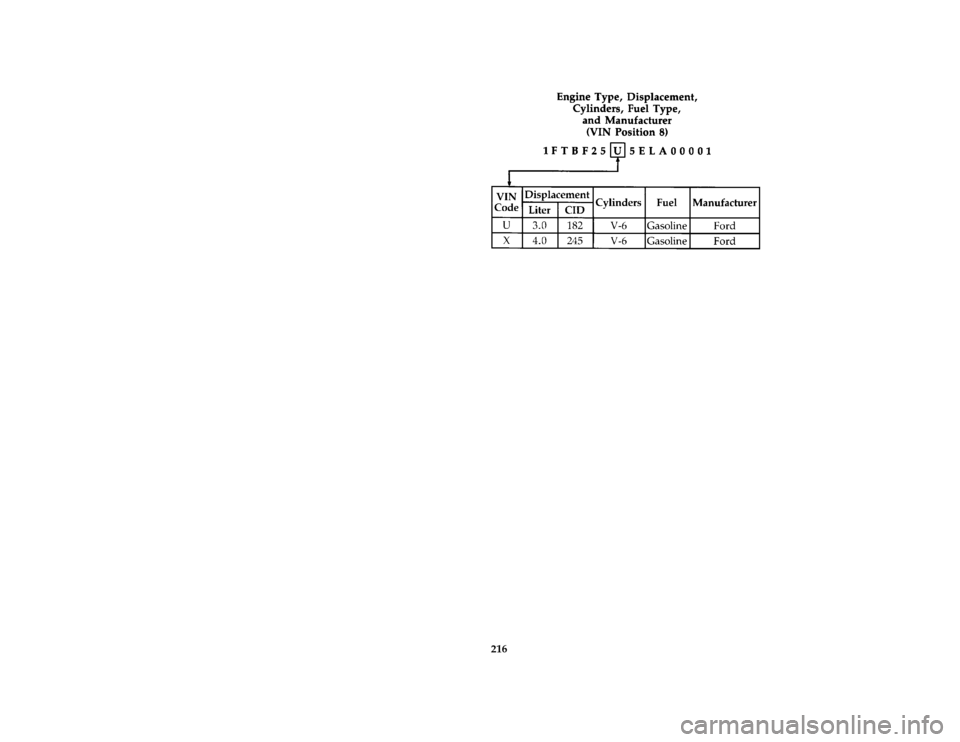

Use the Safety Compliance Certification Label to
find the axle code number and the engine type
for your vehicle.
*
[DR32500(ALL)03/91]

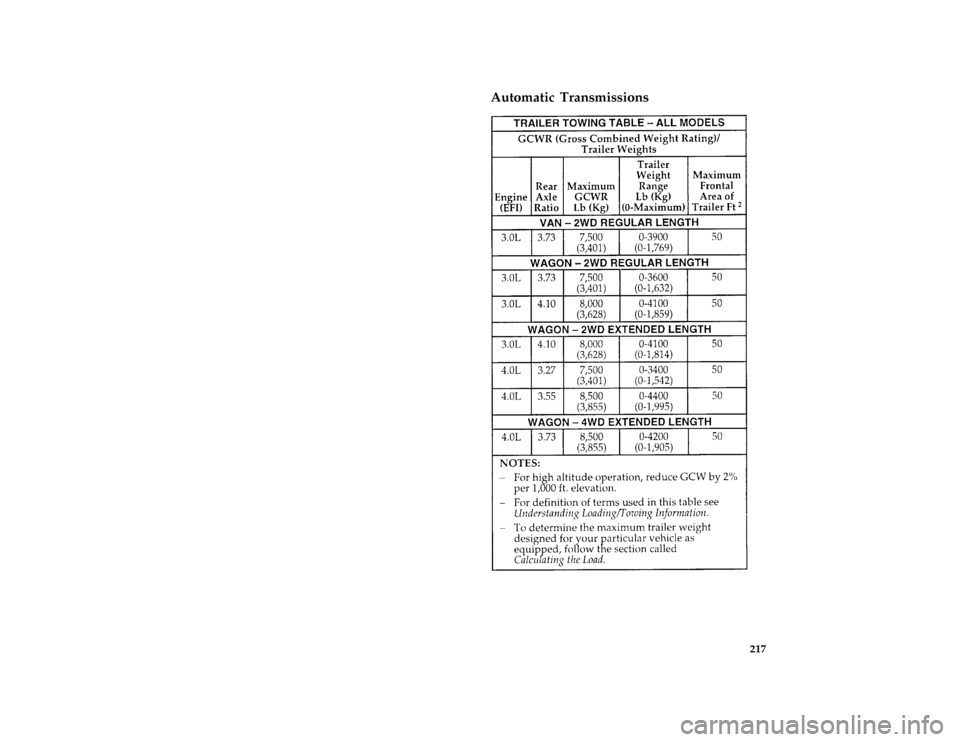

Use the appropriate Maximum Gross Combined
Weight Rating (GCWR) chart to find the
Maximum GCWR for your type engine and rear
axle ratio.
*
[DR32551(ALL)03/91]
Subtract your Loaded Vehicle Weight from the
Maximum GCWR found in the chart. This is the
maximum trailer weight your vehicle can tow
and must fall below the maximum shown under
Trailer Weight on the chart.
File:10cpdra.ex
Update:Tue Aug 29 17:45:28 1995

215 [DR33400(ALL)08/95]
thirty-six pica chart:0095089-A
File:10cpdra.ex
Update:Tue Aug 29 17:45:28 1995

216 [DR33500(ALL)12/91]
twelve pica chart:0020157-D
File:10cpdra.ex
Update:Tue Aug 29 17:45:28 1995

217
*
[DR33645(ALL)06/94]
Automatic Transmissions
[DR33650(ALL)08/95]
thirty-four pica chart:0095069-AFile:10cpdra.ex
Update:Tue Aug 29 17:45:28 1995

218
*
[DR36500(ALL)01/95]
Preparing to Tow
*
[DR36550(ALL)01/95]
For your safety and for the good of your
vehicle, use the right equipment for the type of
trailer you tow. Also, make sure that all towing
equipment is properly attached to your vehicle.
If you are not certain that you are using the
right equipment in the proper manner, see your
Ford or Lincoln-Mercury dealer.
[DR36560(ALL)03/91]
Under certain circumstances, the trailer frontal
area is not to exceed the base vehicle frontal
area, no matter what size engine your vehicle
has:
[DR36570(ALL)03/91]
q
If you drive on roads with steep grades or on
roads with moderate grades that are 5 miles
(8 km) or longer.
[DR36580(ALL)03/91]
q
If outside temperature in which you travel is
above100ÊF (38ÊC).
%*
[DR36600(ALL)01/93]
Hitches
*
[DR36650(ALL)01/95]
For towing trailers up to 2,000 lb (907 kg), use a
weight carrying hitch and ball which uniformly
distributes the trailer tongue loads through the
underbody structure. Use a frame-mounted
weight distributing hitch for trailers over 2,000
lb (907 kg).
*
[DR36800(ALL)12/91]
Do not install a single or multi-clamp type
bumper hitch, or a hitch which attaches to the
axle. Underbody mounted hitches are acceptable
if installed properly. Follow towing instructions
of a reputable rental agency.
*
[DR37000(ALL)12/92]
Whenever a trailer hitch and hardware are
removed, make sure all mounting holes in the
underbody are properly sealed to prevent
noxious gases or water from entering.
File:10cpdra.ex
Update:Tue Aug 29 17:45:28 1995

219 %
*
[DR37800(ALL)07/95]
Safety Chains
*
[DR37900(ALL)12/92]
Always use safety chains between your vehicle
and trailer. Cross chains under the trailer tongue
and allow slack for turning corners. Connect
safety chains to the vehicle frame or hook
retainers. Never attach chains to the bumper.
%*
[DR38000(ALL)08/95]
Trailer Brakes
*
[DR38100(ALL)03/95]
Separate trailer brakes are required on most
towed vehicles weighing over 1,500 lb (680 kg).
*
[DR38200(ALL)05/95]
RWARNING
Do not connect a trailer's hydraulic brake
system directly to your vehicle's brake
system. Your vehicle may not have
enough braking power and your chances
of having a collision greatly increase.
%*
[DR38300(ALL)06/95]
Trailer Lamps
*
[DR38400(ALL)11/89]
Make sure your trailer lamps conform to Federal
and local regulations.
*
[DR38425(ALL)03/91]
Class I and Class II Trailer Tow electrical wiring
provides two circuits (right hand and left hand)
to operate trailer stop/turn tail lamps. Each
stop/turn circuit will operate one combination
stop/turn light bulb (# 1157, 3157, 2357, or 3357)
on the trailer. Never add more than one trailer
light bulb to one circuit.
*
[DR38450(ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
