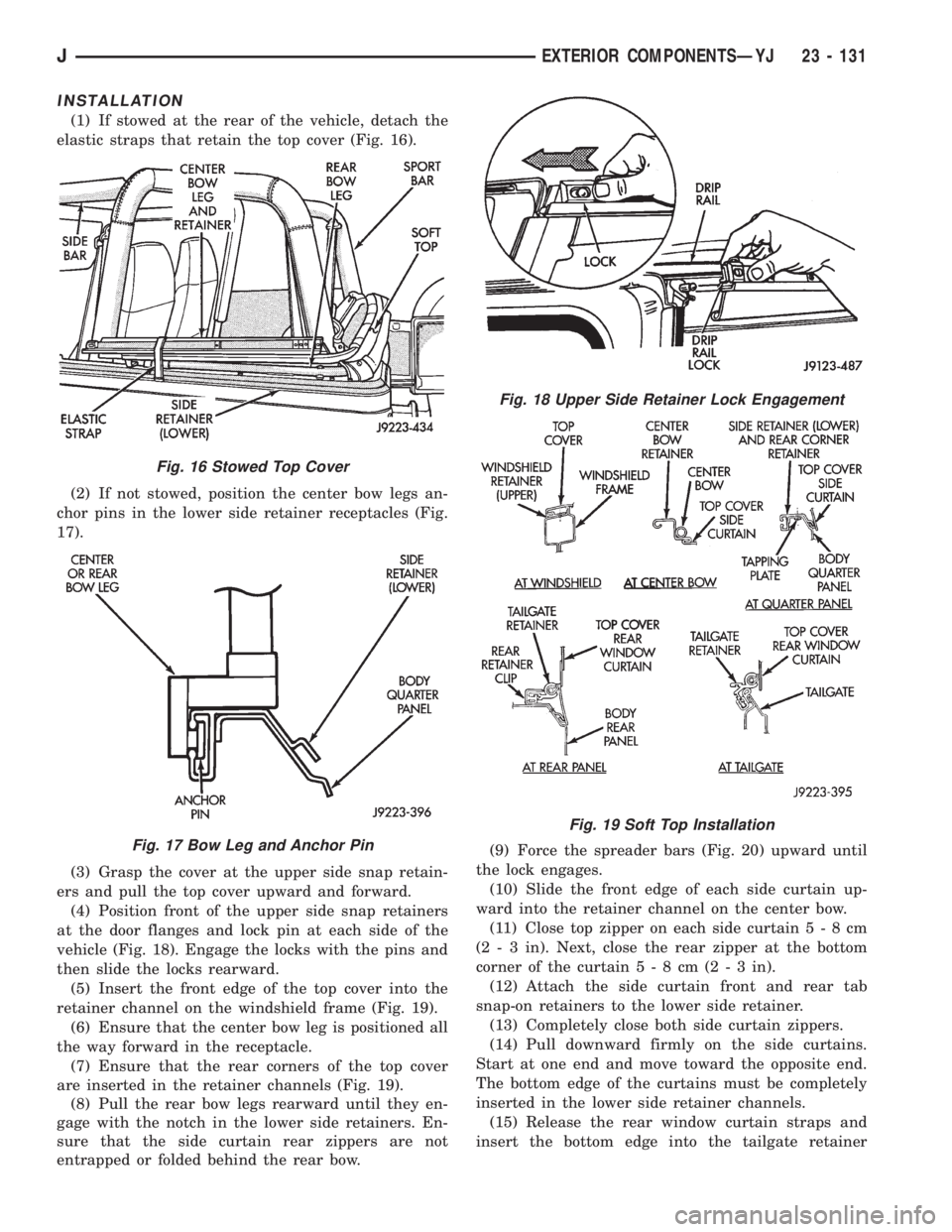

Page 2049 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 17 Bow Leg and Anchor Pin Fig. 18 Upper Side Retainer Lock Engagement Fig. 19 Soft Top Installation JEXTERIOR COMPONENTSÐYJ 23 - 131

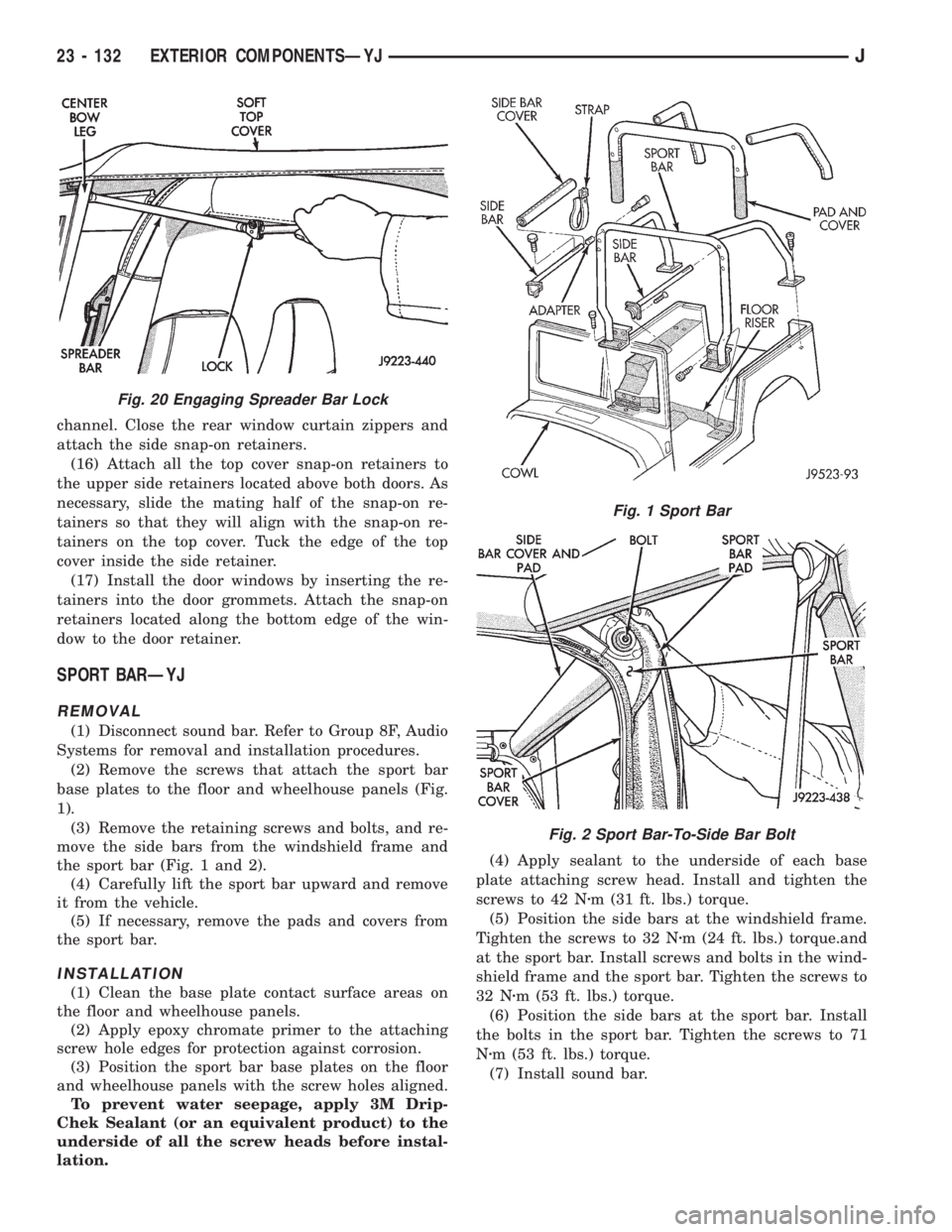

Page 2050 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 1 Sport Bar Fig. 2 Sport Bar-To-Side Bar Bolt 23 - 132 EXTERIOR COMPONENTSÐYJJ

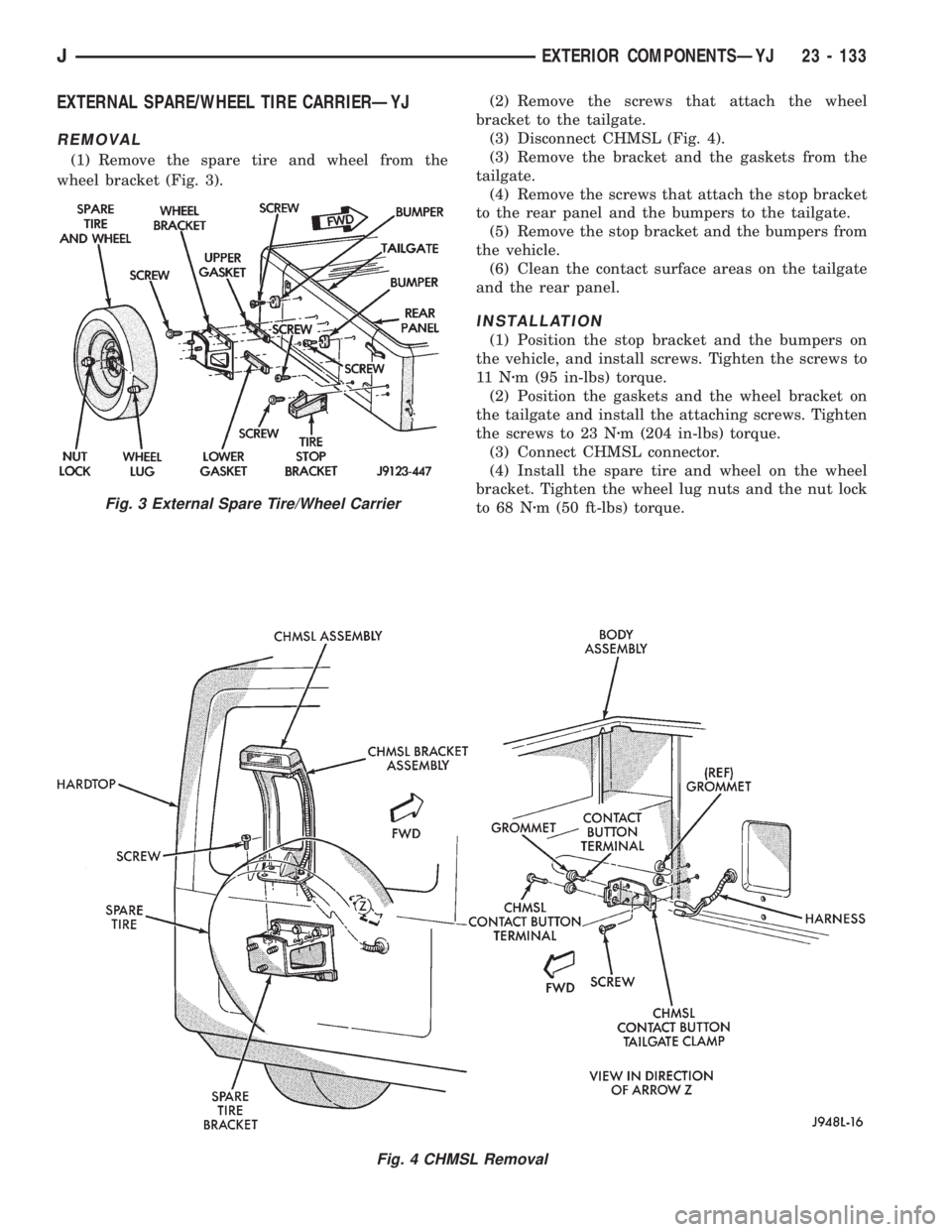

Page 2051 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 3 External Spare Tire/Wheel Carrier JEXTERIOR COMPONENTSÐYJ 23 - 133

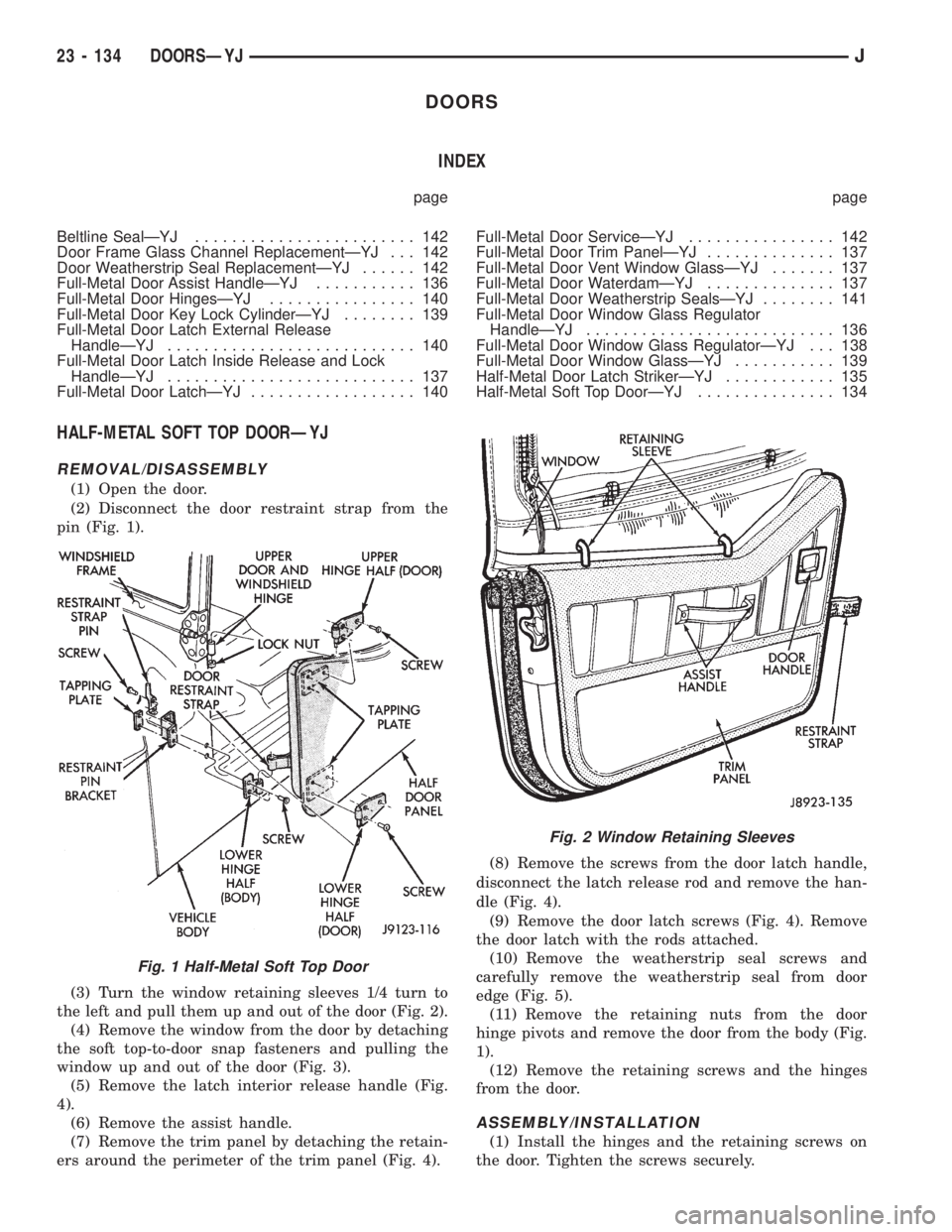

Page 2052 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 2 Window Retaining Sleeves 23 - 134 DOORSÐYJJ

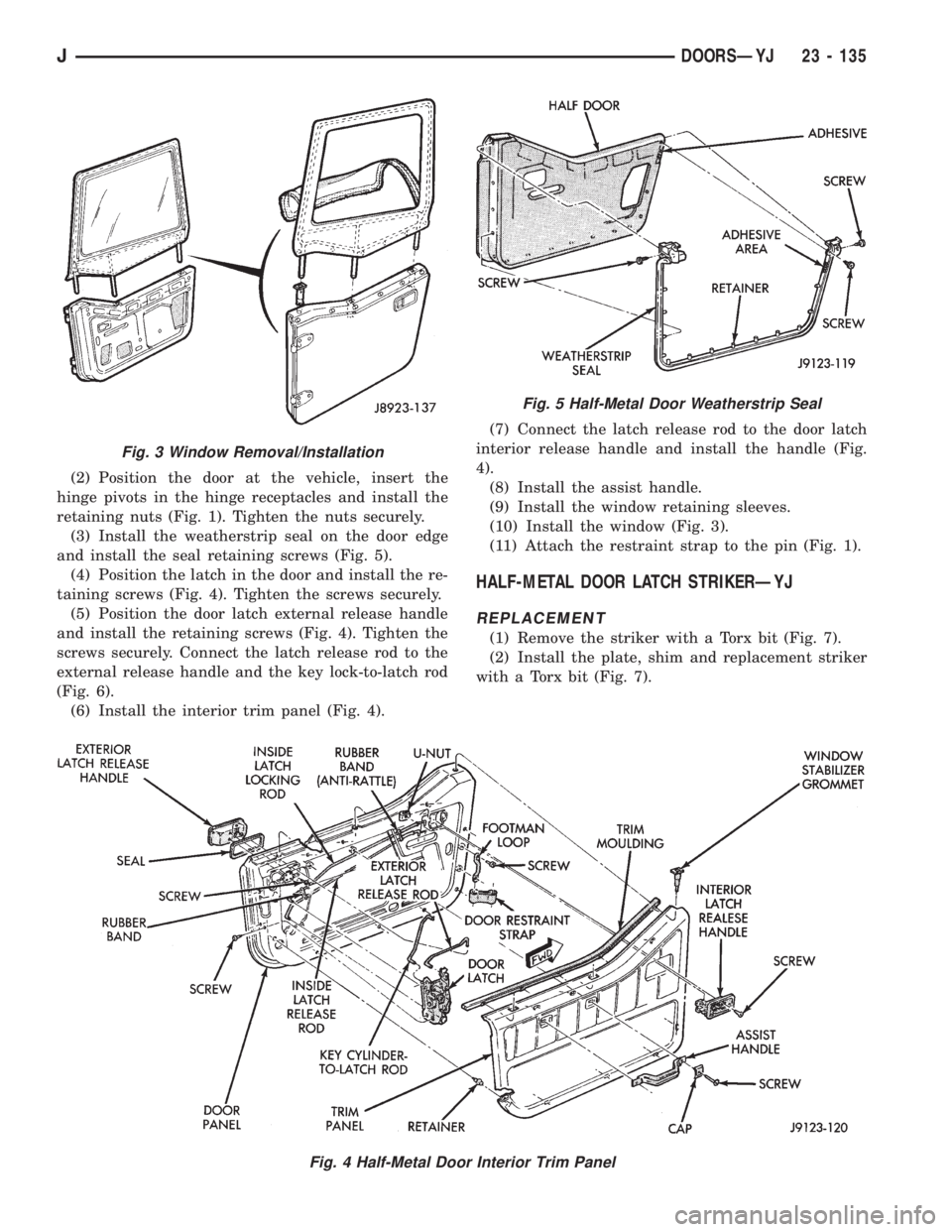

Page 2053 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 3 Window Removal/Installation Fig. 5 Half-Metal Door Weatherstrip Seal JDOORSÐYJ 23 - 135

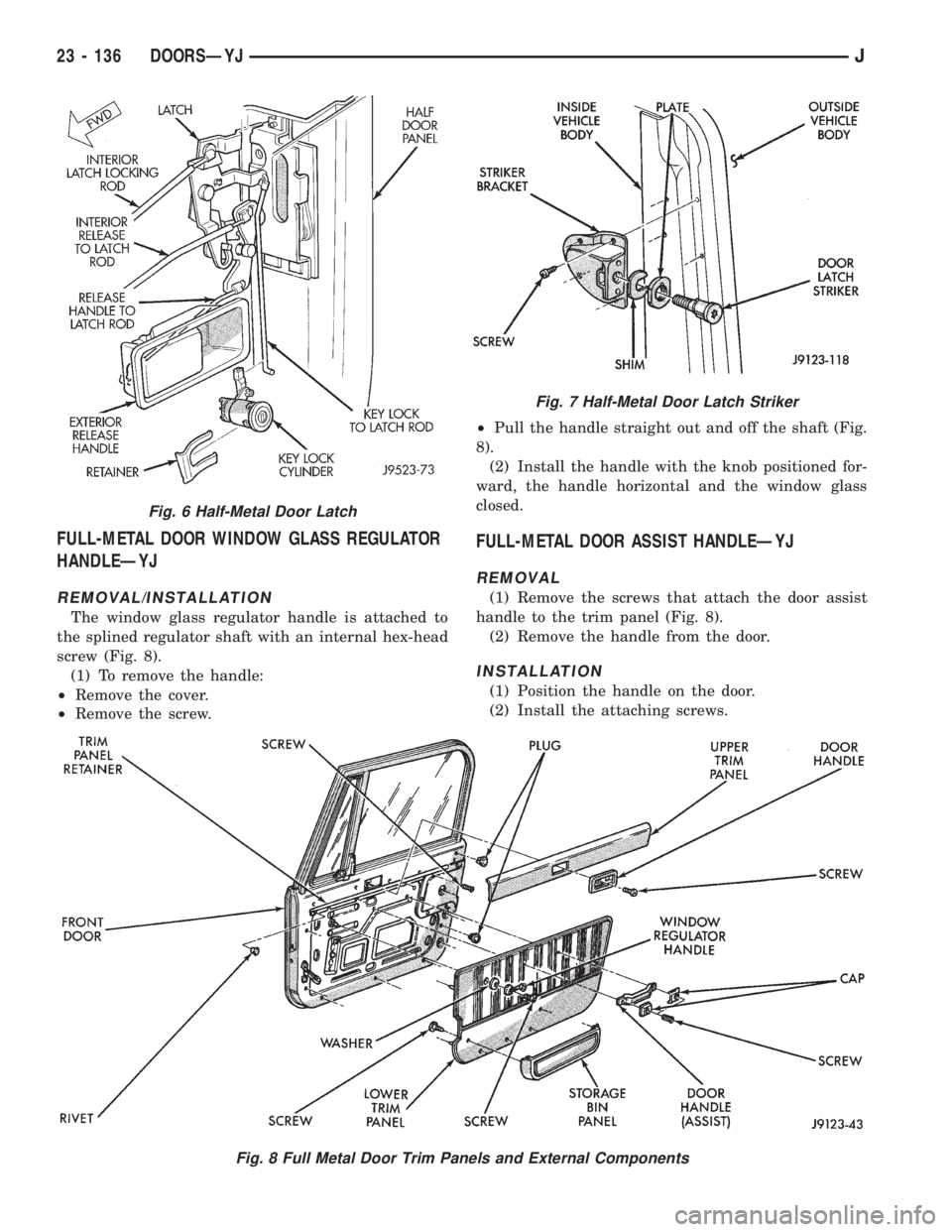

Page 2054 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 8 Full Metal Door Trim Panels and External Components Fig. 6 Half-Metal Door Latch 23 - 136 DOORSÐYJJ

Page 2055 of 2158

JEEP WRANGLER 1995 Owners Manual

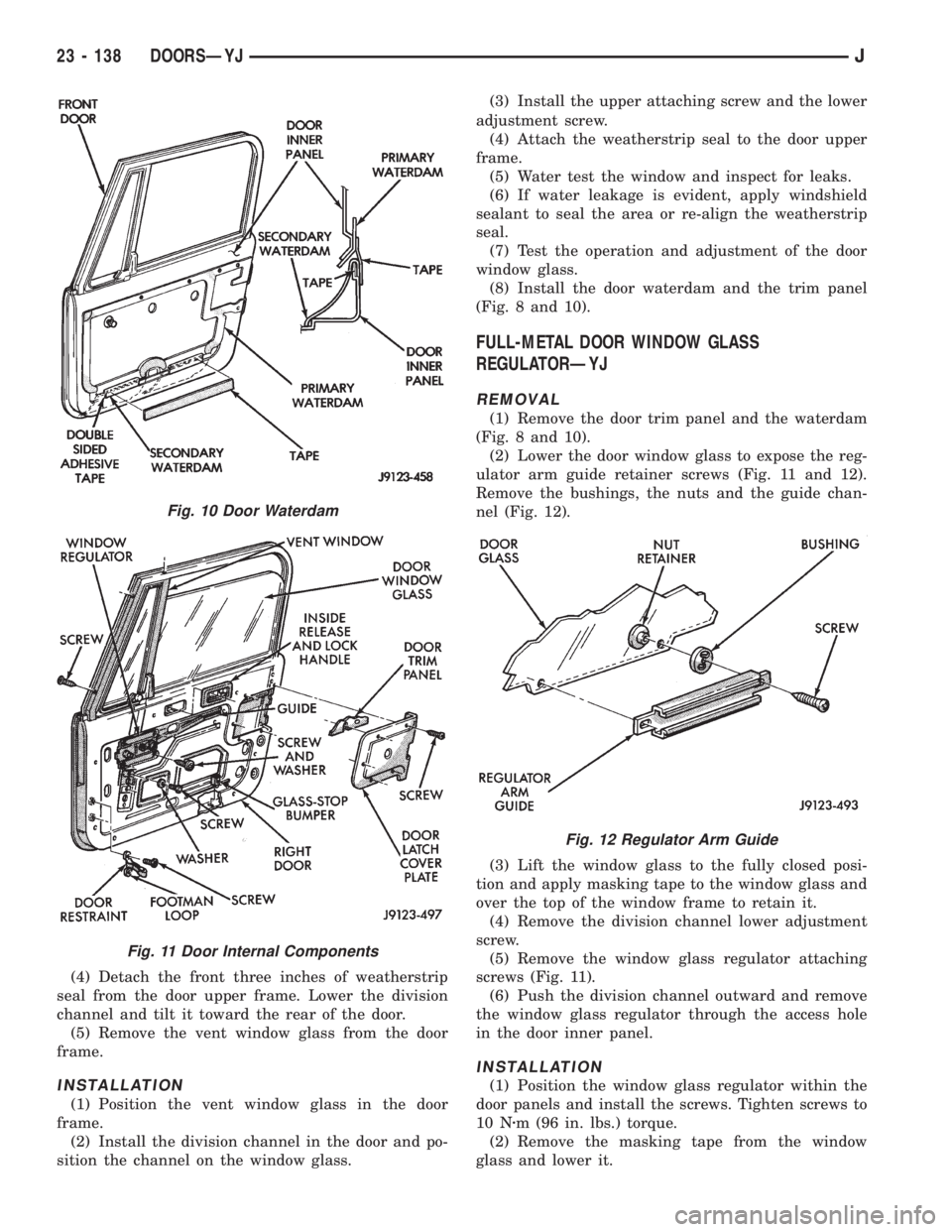

Page 2056 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 11 Door Internal Components Fig. 12 Regulator Arm Guide 23 - 138 DOORSÐYJJ
