Page 1817 of 2158

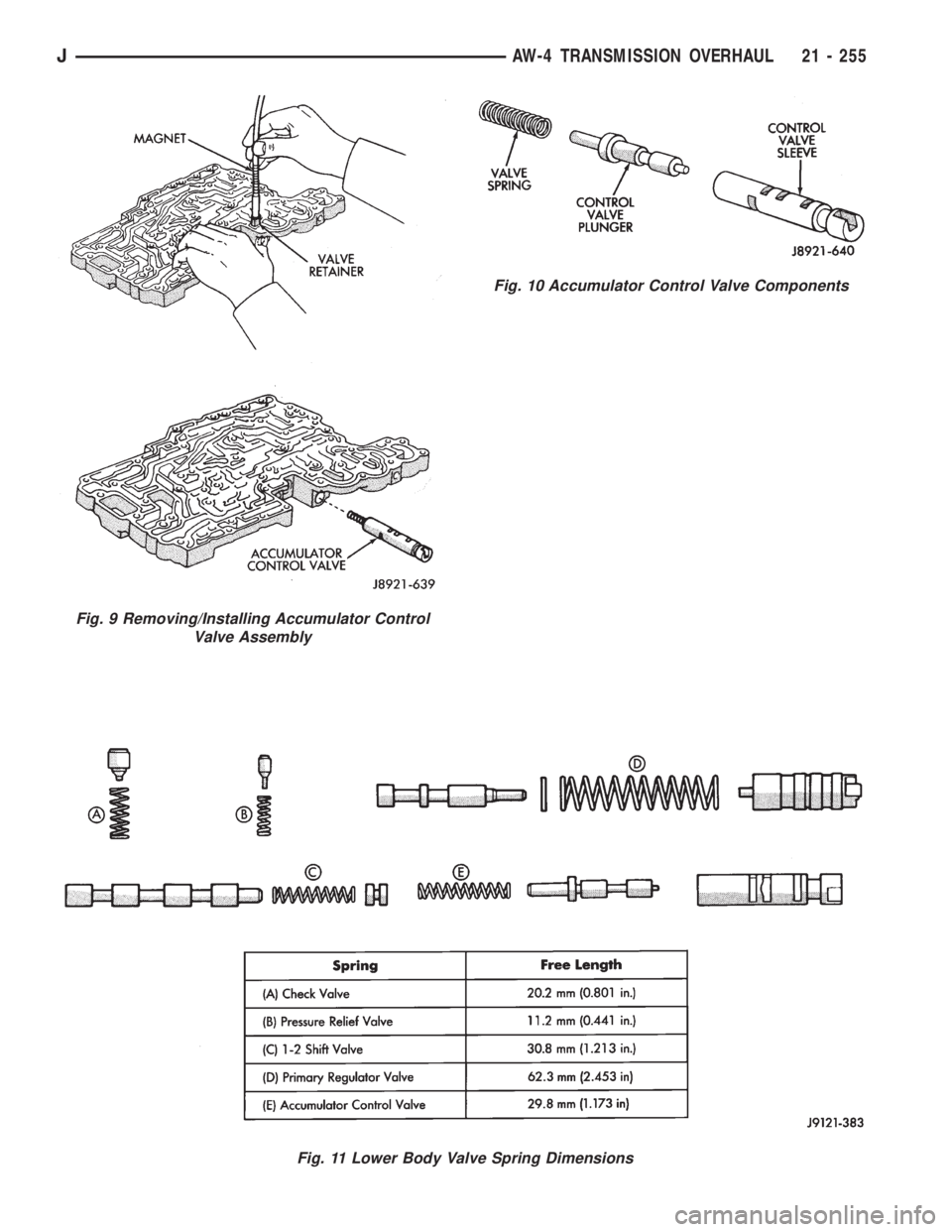

JEEP WRANGLER 1995 Owners Manual Fig. 11 Lower Body Valve Spring Dimensions Fig. 9 Removing/Installing Accumulator Control Valve Assembly JAW-4 TRANSMISSION OVERHAUL 21 - 255

Page 1818 of 2158

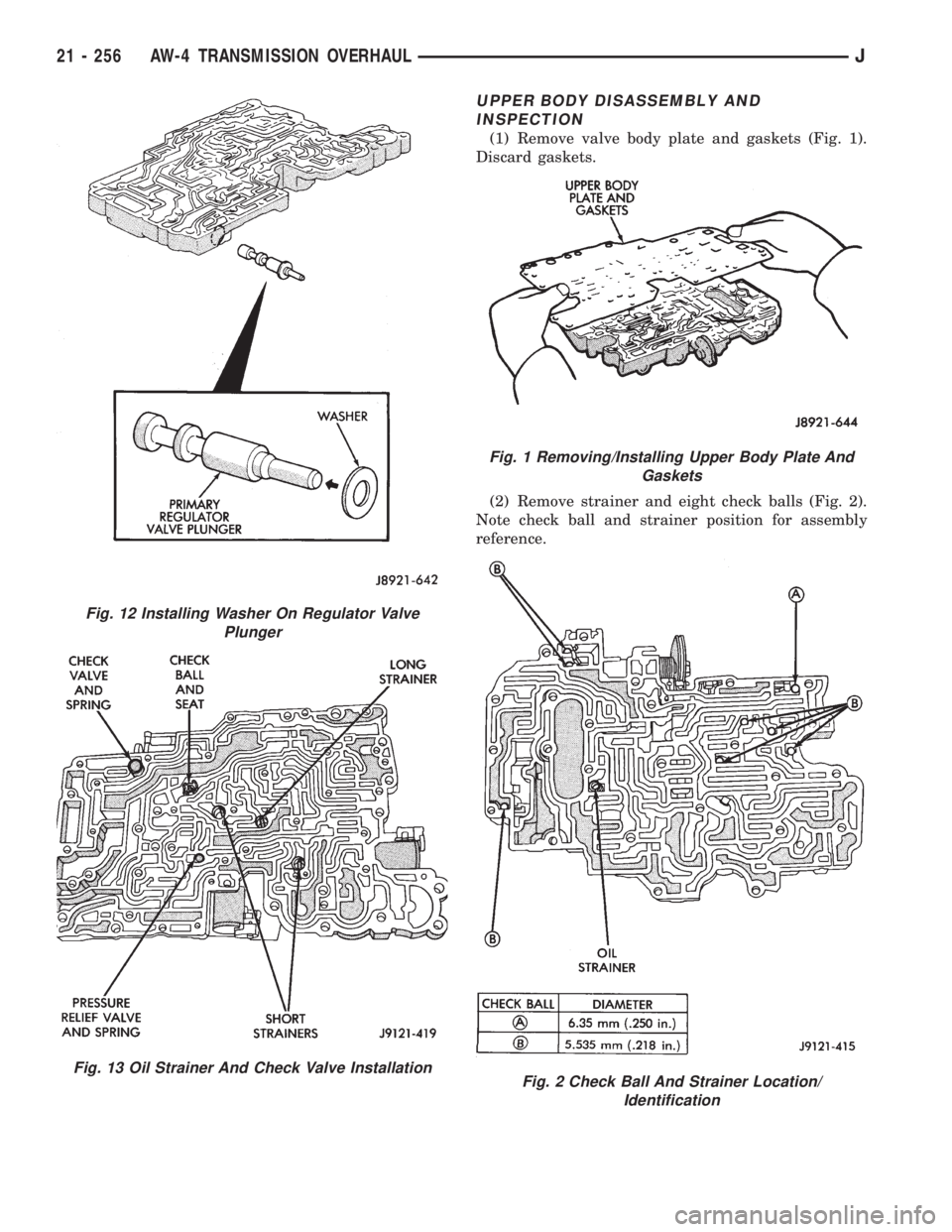

JEEP WRANGLER 1995 Owners Manual Fig. 13 Oil Strainer And Check Valve Installation Fig. 1 Removing/Installing Upper Body Plate And Gaskets Fig. 2 Check Ball And Strainer Location/ Identification 21 - 256 AW-4 TRANSMISSION OVERHAULJ

Page 1819 of 2158

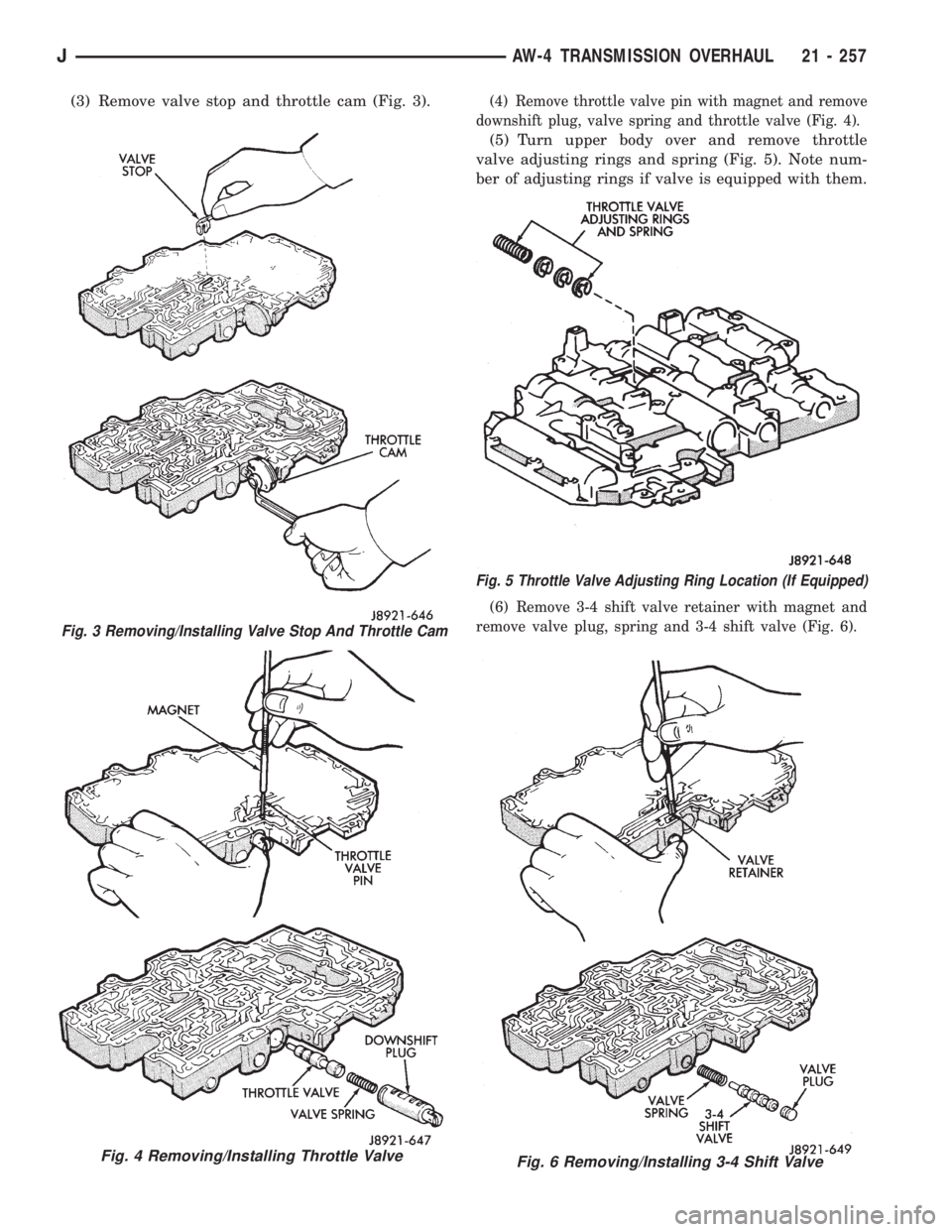

JEEP WRANGLER 1995 Owners Manual Fig. 4 Removing/Installing Throttle ValveFig. 6 Removing/Installing 3-4 Shift Valve Fig. 5 Throttle Valve Adjusting Ring Location (If Equipped) JAW-4 TRANSMISSION OVERHAUL 21 - 257

Page 1820 of 2158

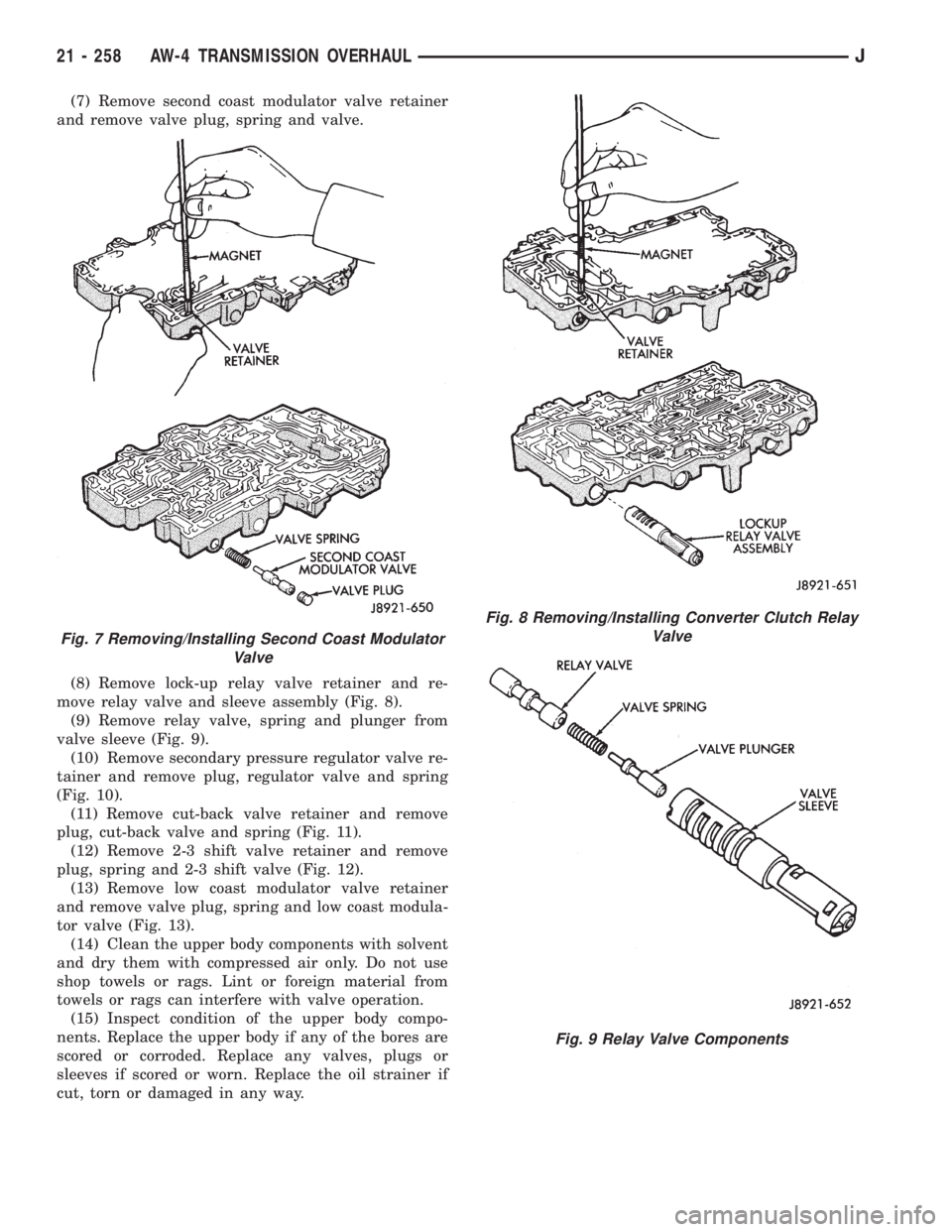

JEEP WRANGLER 1995 Owners Manual Fig. 8 Removing/Installing Converter Clutch Relay Valve Fig. 9 Relay Valve Components 21 - 258 AW-4 TRANSMISSION OVERHAULJ

Page 1821 of 2158

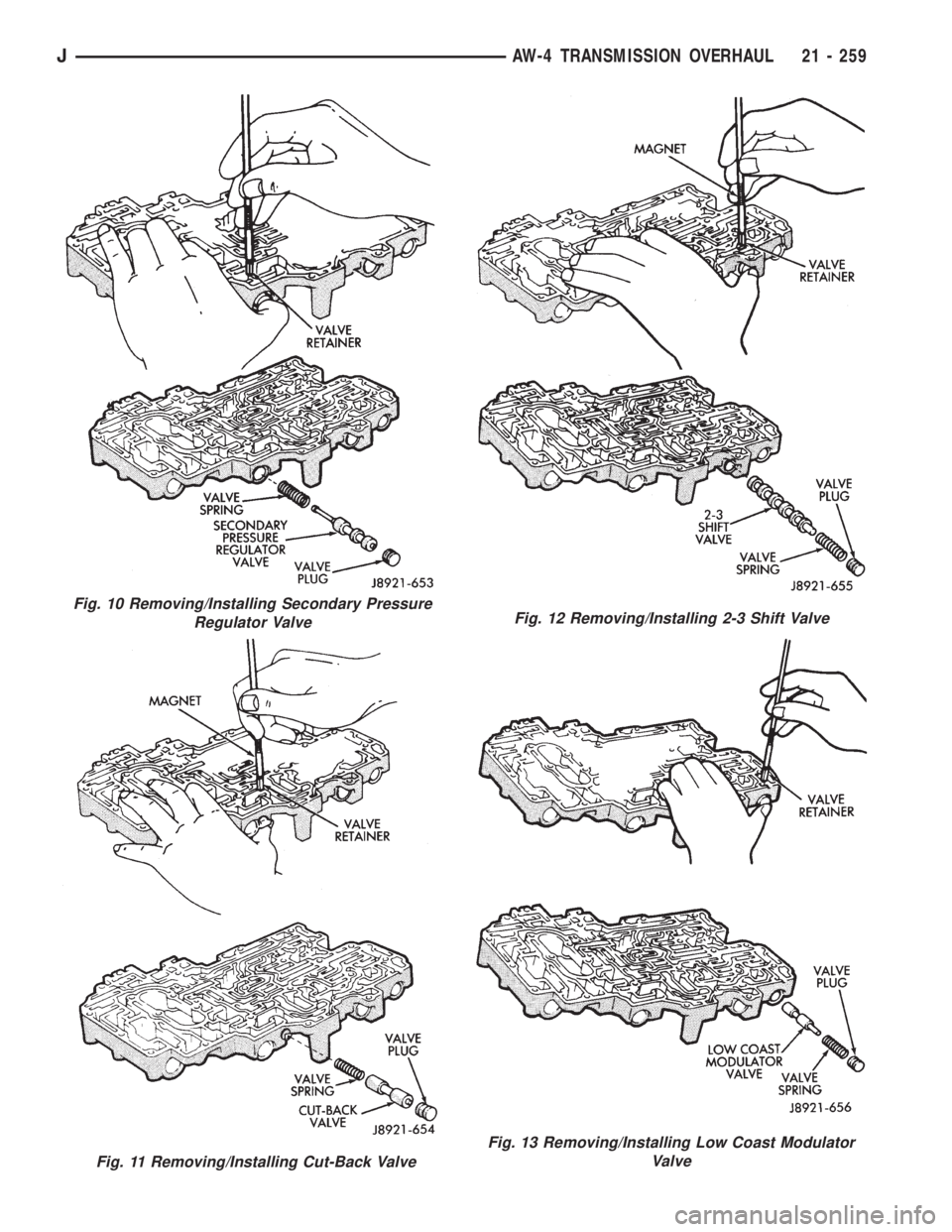

JEEP WRANGLER 1995 Owners Manual Fig. 11 Removing/Installing Cut-Back Valve Fig. 12 Removing/Installing 2-3 Shift Valve Fig. 13 Removing/Installing Low Coast Modulator Valve JAW-4 TRANSMISSION OVERHAUL 21 - 259

Page 1822 of 2158

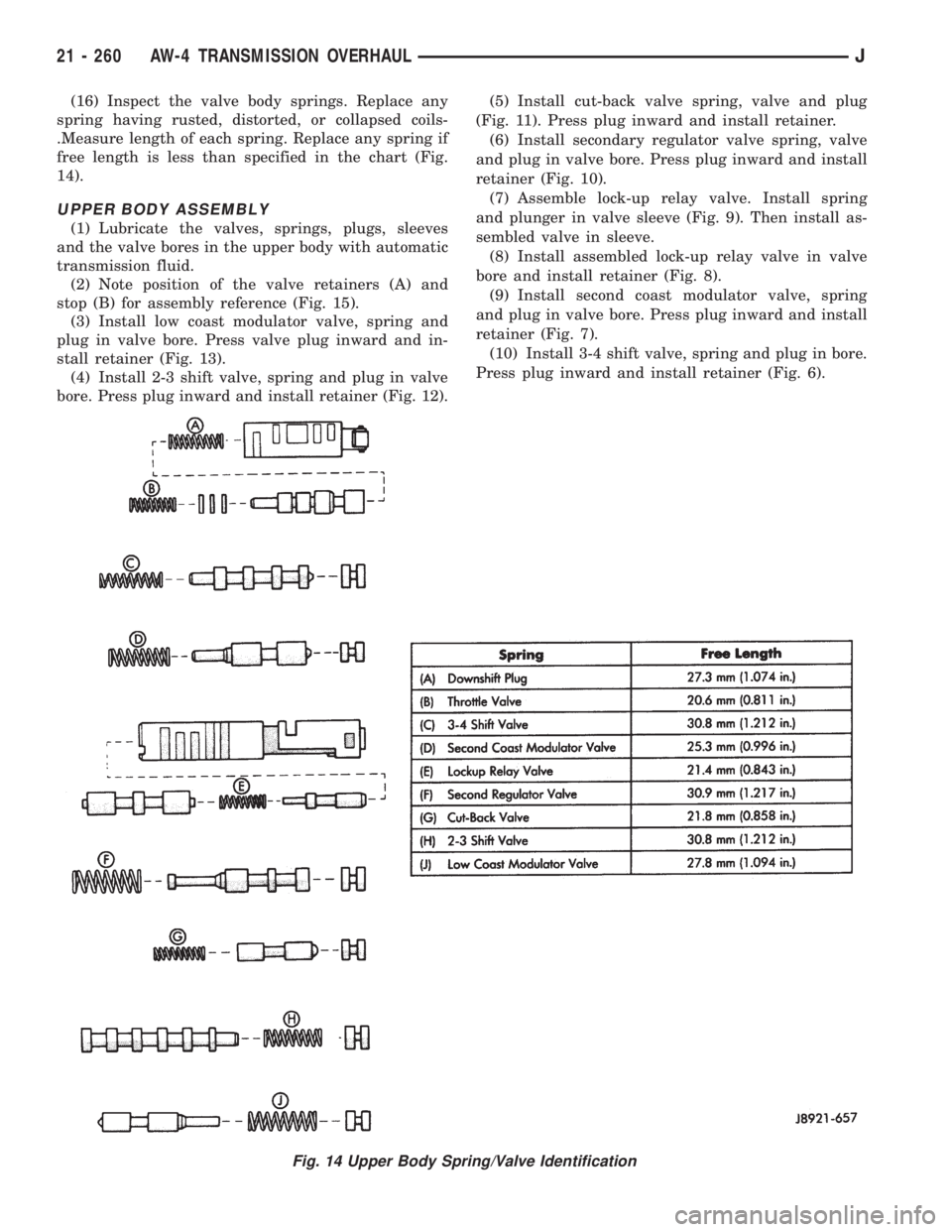

JEEP WRANGLER 1995 Owners Manual

Page 1823 of 2158

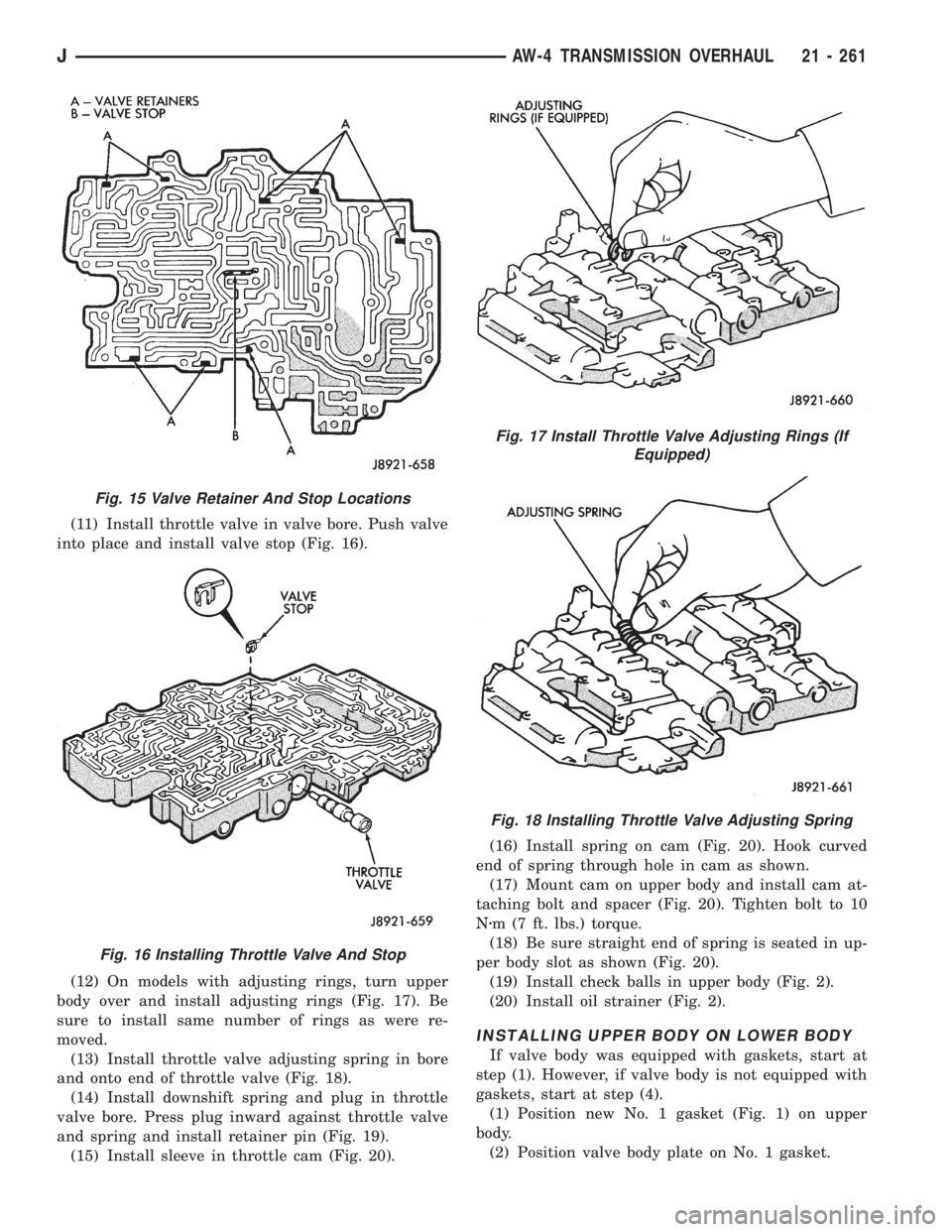

JEEP WRANGLER 1995 Owners Manual Fig. 16 Installing Throttle Valve And Stop Fig. 17 Install Throttle Valve Adjusting Rings (If Equipped) Fig. 18 Installing Throttle Valve Adjusting Spring JAW-4 TRANSMISSION OVERHAUL 21 - 261

Page 1824 of 2158

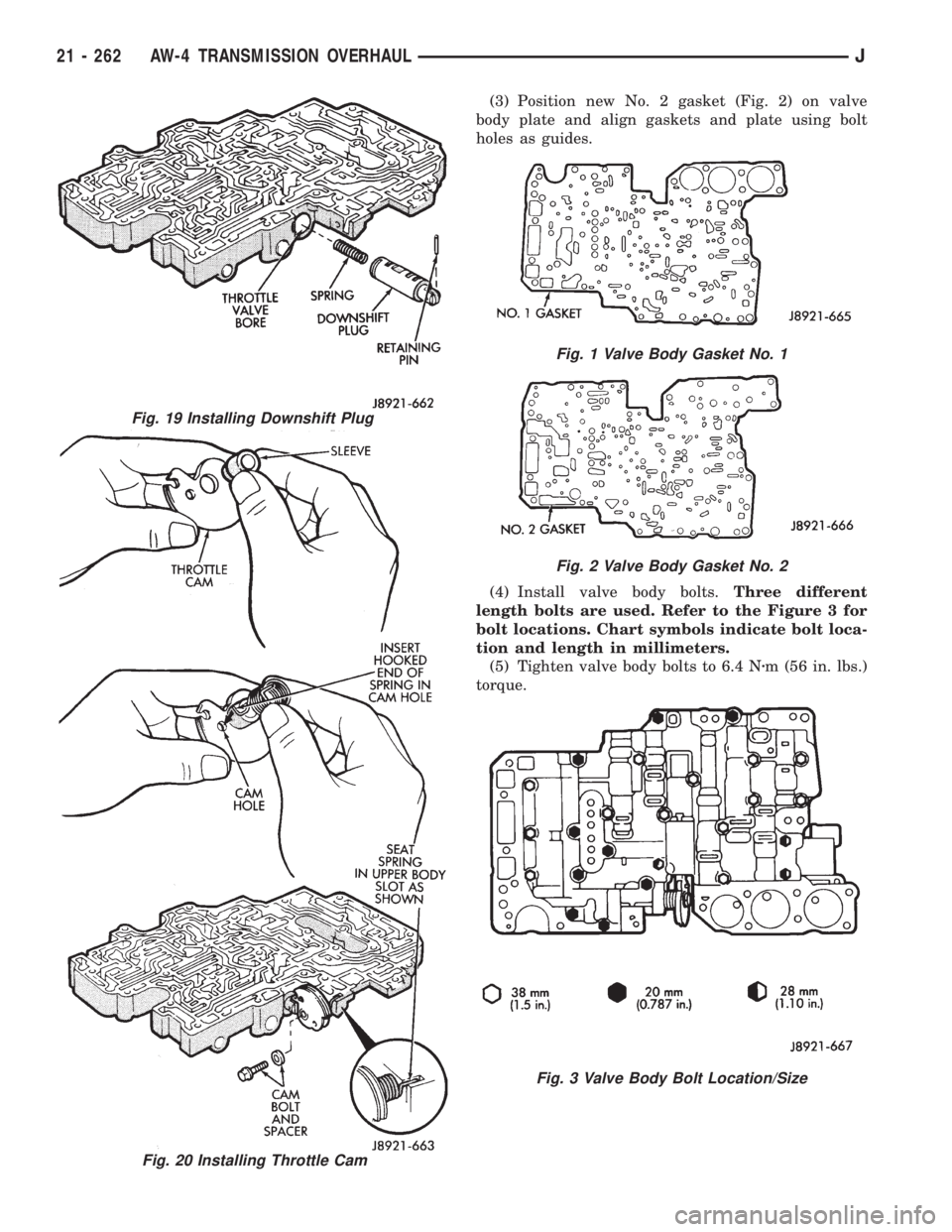

JEEP WRANGLER 1995 Owners Manual Fig. 20 Installing Throttle Cam Fig. 1 Valve Body Gasket No. 1 Fig. 2 Valve Body Gasket No. 2 Fig. 3 Valve Body Bolt Location/Size 21 - 262 AW-4 TRANSMISSION OVERHAULJ
