Page 1617 of 2158

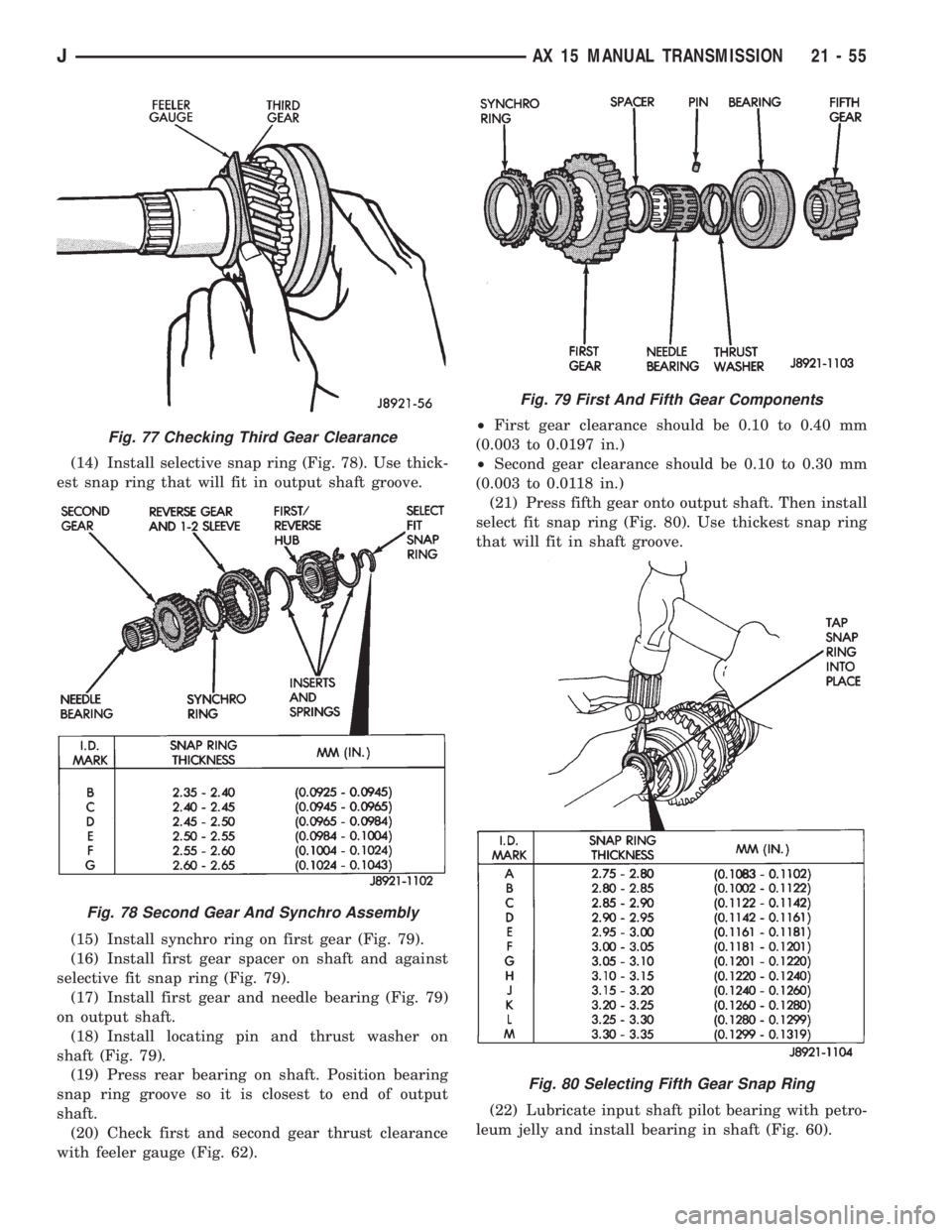

JEEP WRANGLER 1995 Owners Manual Fig. 78 Second Gear And Synchro Assembly Fig. 79 First And Fifth Gear Components Fig. 80 Selecting Fifth Gear Snap Ring JAX 15 MANUAL TRANSMISSION 21 - 55

Page 1618 of 2158

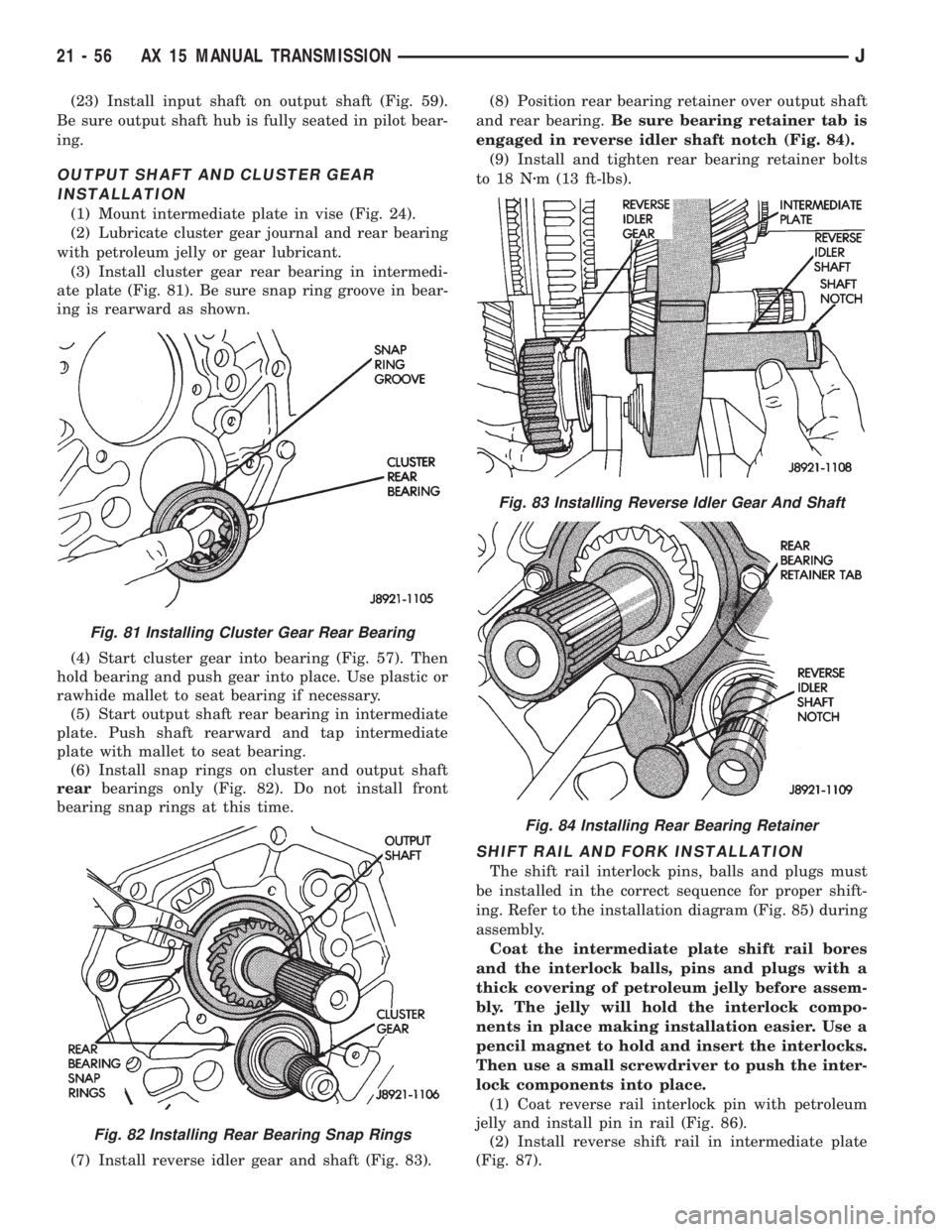

JEEP WRANGLER 1995 Owners Manual Fig. 82 Installing Rear Bearing Snap Rings Fig. 83 Installing Reverse Idler Gear And Shaft Fig. 84 Installing Rear Bearing Retainer 21 - 56 AX 15 MANUAL TRANSMISSIONJ

Page 1619 of 2158

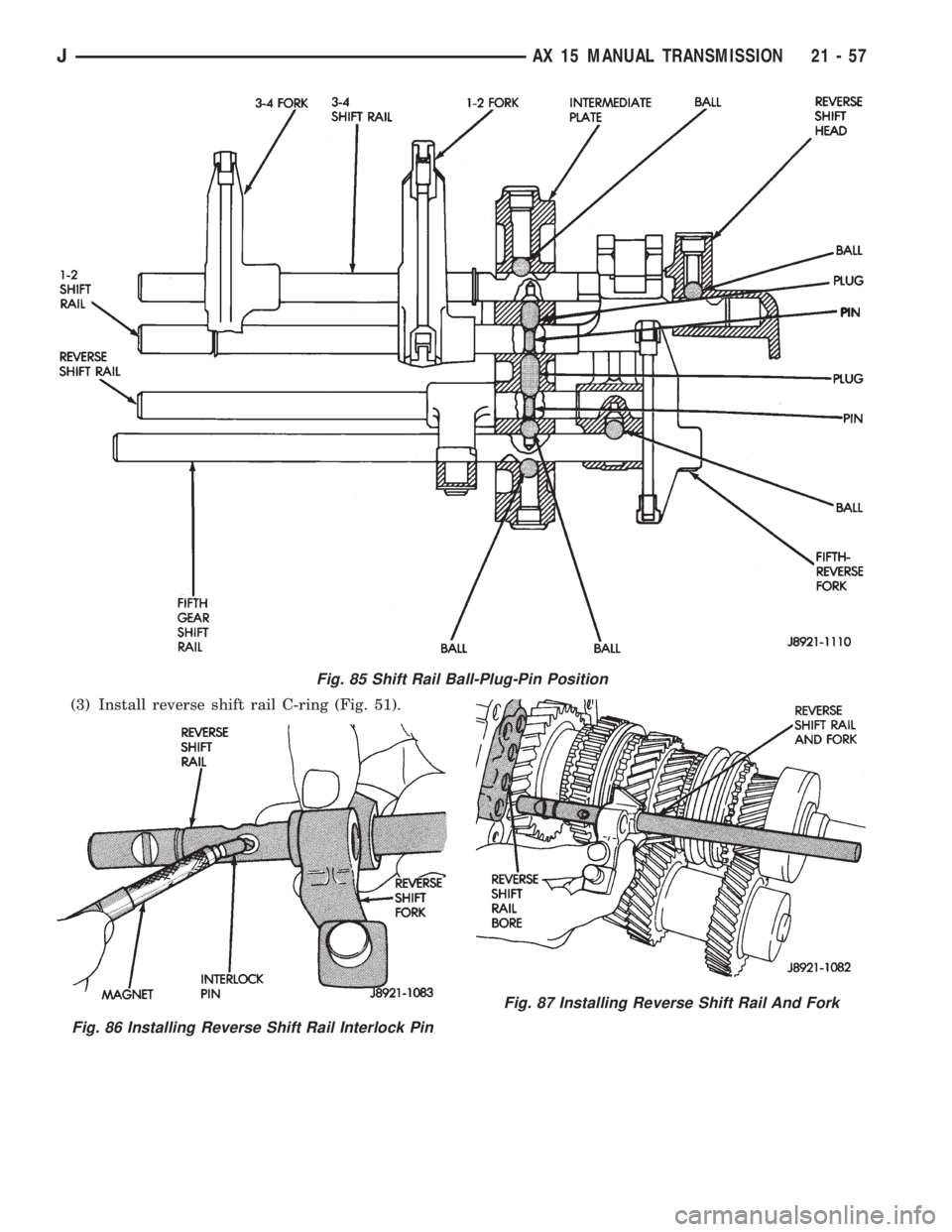

JEEP WRANGLER 1995 Owners Manual Fig. 86 Installing Reverse Shift Rail Interlock Pin Fig. 87 Installing Reverse Shift Rail And Fork JAX 15 MANUAL TRANSMISSION 21 - 57

Page 1620 of 2158

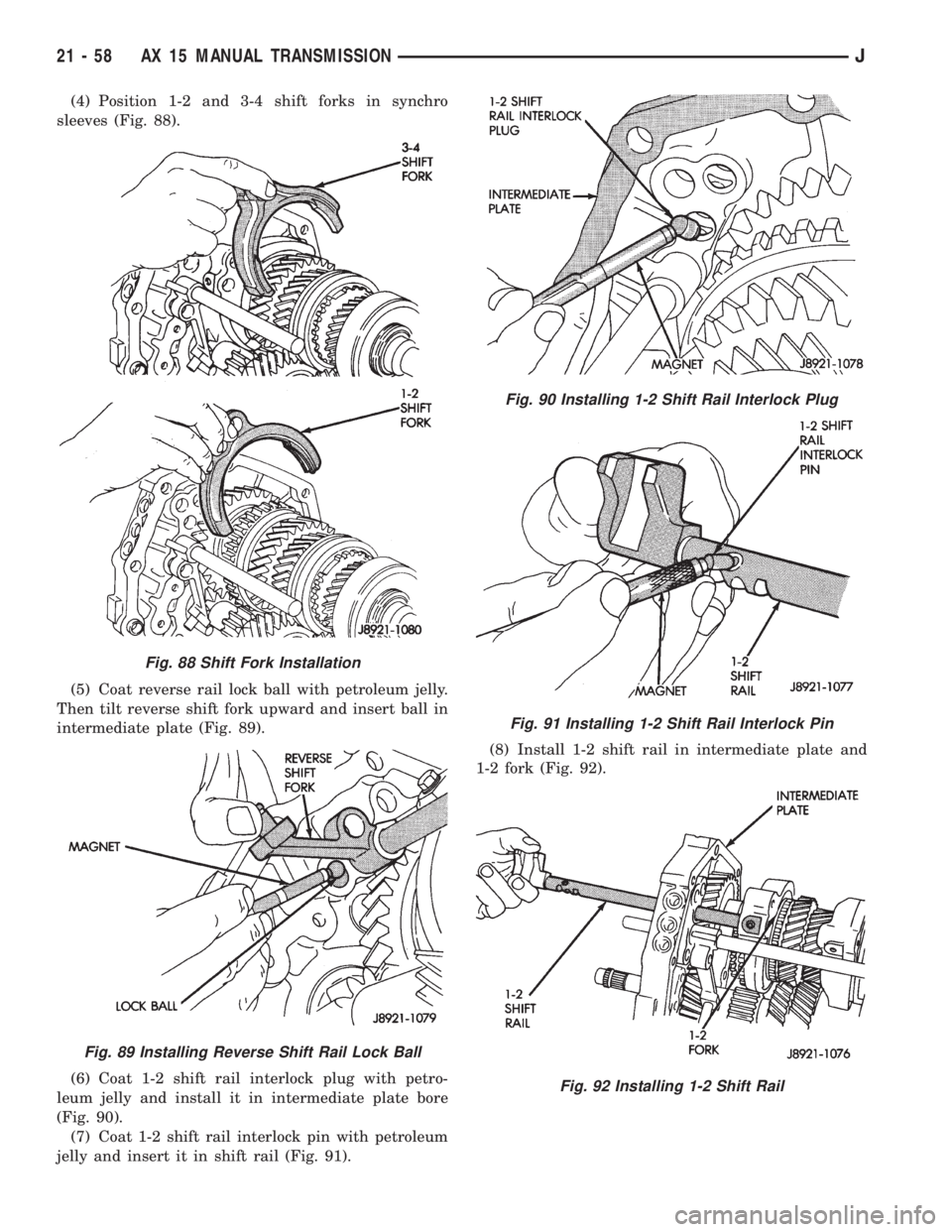

JEEP WRANGLER 1995 Owners Manual Fig. 89 Installing Reverse Shift Rail Lock Ball Fig. 90 Installing 1-2 Shift Rail Interlock Plug Fig. 91 Installing 1-2 Shift Rail Interlock Pin Fig. 92 Installing 1-2 Shift Rail 21 - 58 AX 15 MANUAL

Page 1621 of 2158

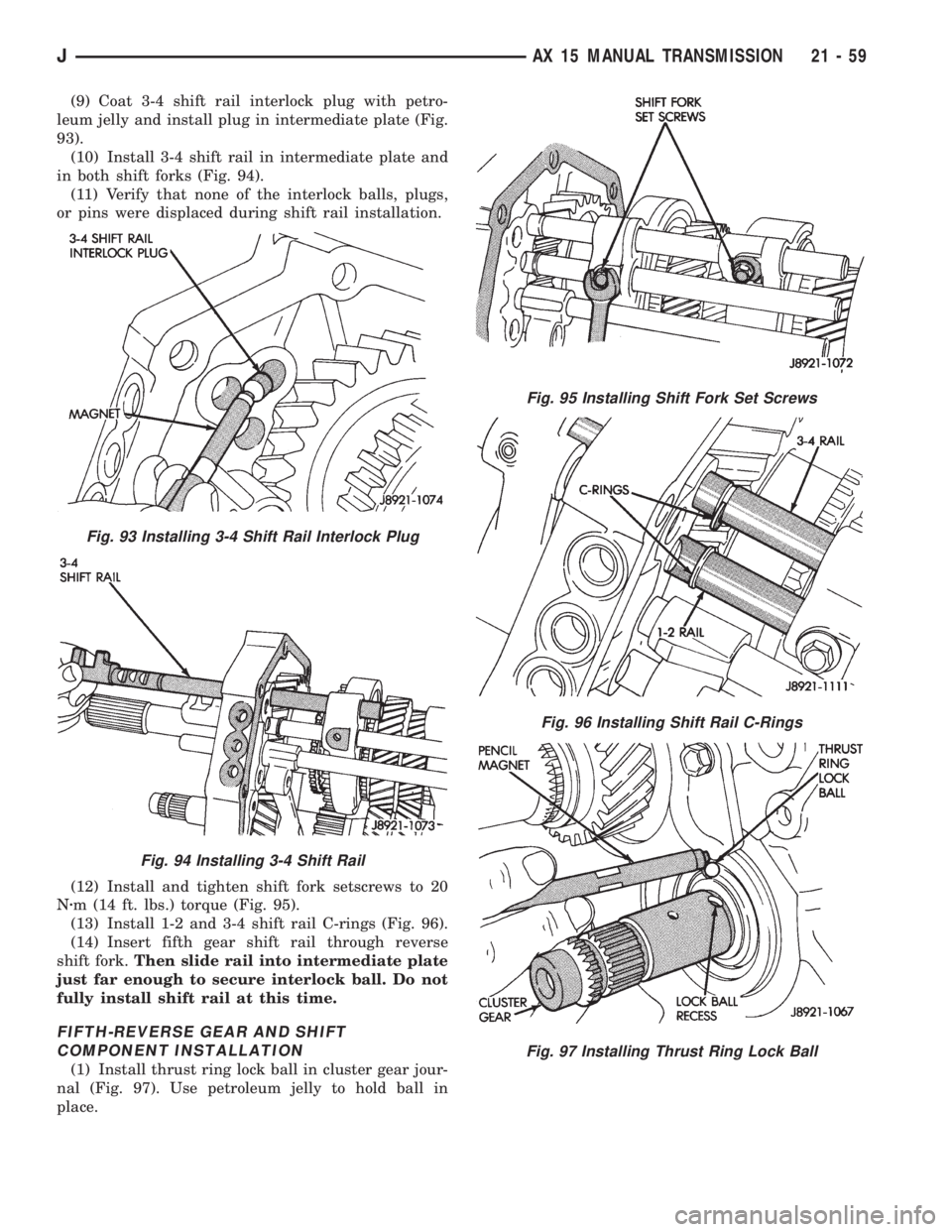

JEEP WRANGLER 1995 Owners Manual Fig. 94 Installing 3-4 Shift Rail Fig. 95 Installing Shift Fork Set Screws Fig. 96 Installing Shift Rail C-Rings Fig. 97 Installing Thrust Ring Lock Ball JAX 15 MANUAL TRANSMISSION 21 - 59

Page 1622 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 99 Assembling Fifth Gear And Synchro Assembly Fig. 100 Installing Counter Fifth Gear Bearing Fig. 101 Installing Counter Fifth Gear And Sleeve Fig. 102 Installing Fifth Gear Synchro Ring 21 - 60

Page 1623 of 2158

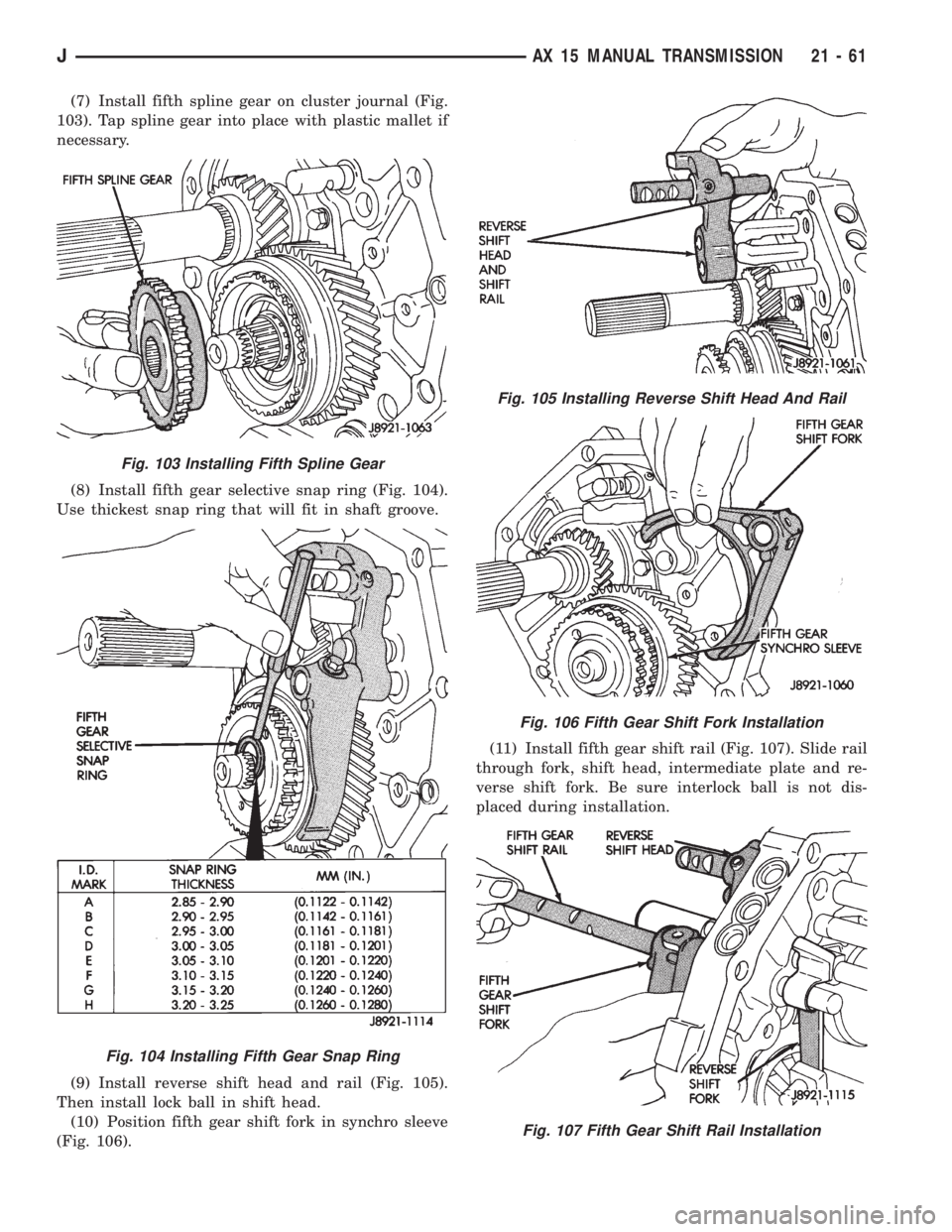

JEEP WRANGLER 1995 Owners Manual Fig. 104 Installing Fifth Gear Snap Ring Fig. 105 Installing Reverse Shift Head And Rail Fig. 106 Fifth Gear Shift Fork Installation Fig. 107 Fifth Gear Shift Rail Installation JAX 15 MANUAL TRANSMISS

Page 1624 of 2158

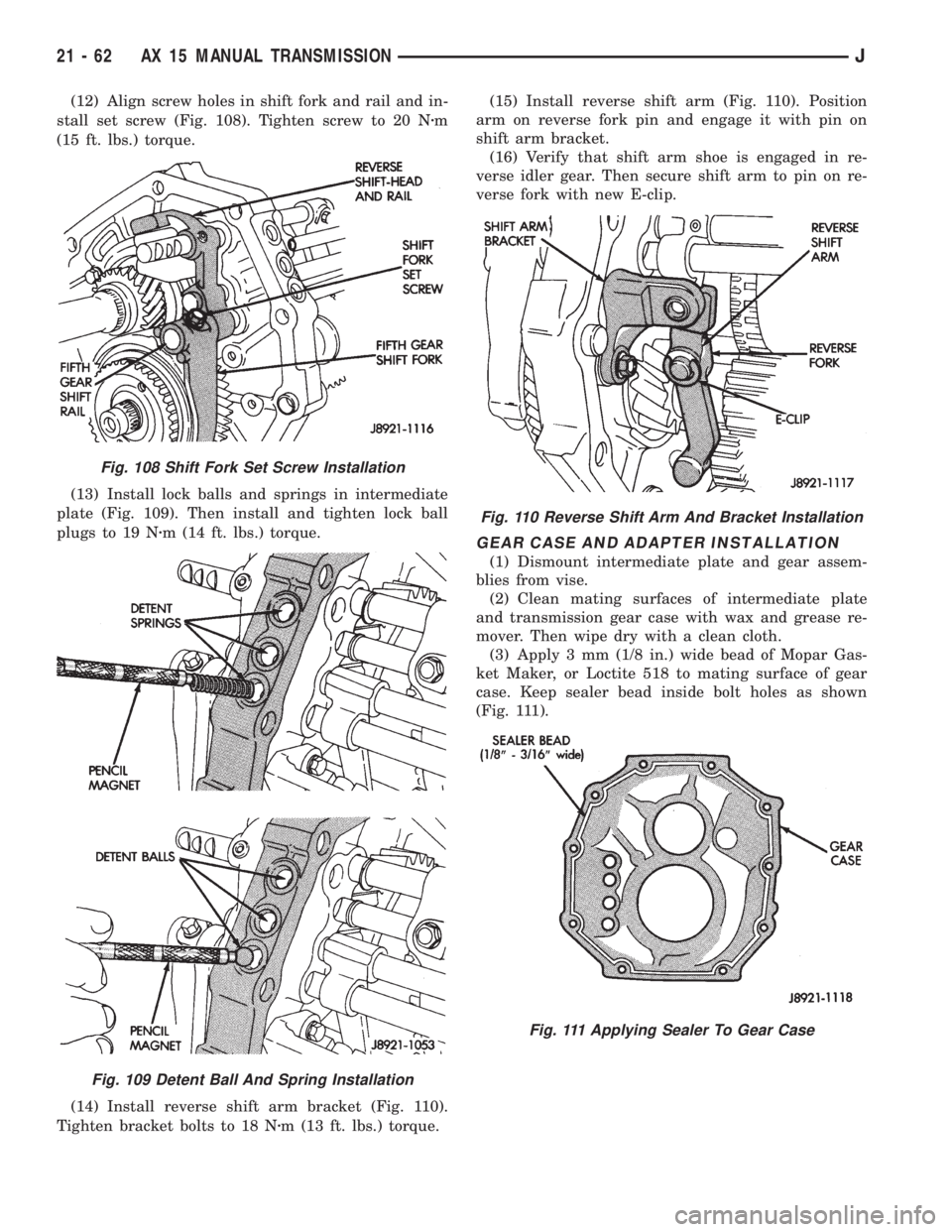

JEEP WRANGLER 1995 Owners Manual Fig. 109 Detent Ball And Spring Installation Fig. 110 Reverse Shift Arm And Bracket Installation Fig. 111 Applying Sealer To Gear Case 21 - 62 AX 15 MANUAL TRANSMISSIONJ
