Page 1425 of 2158

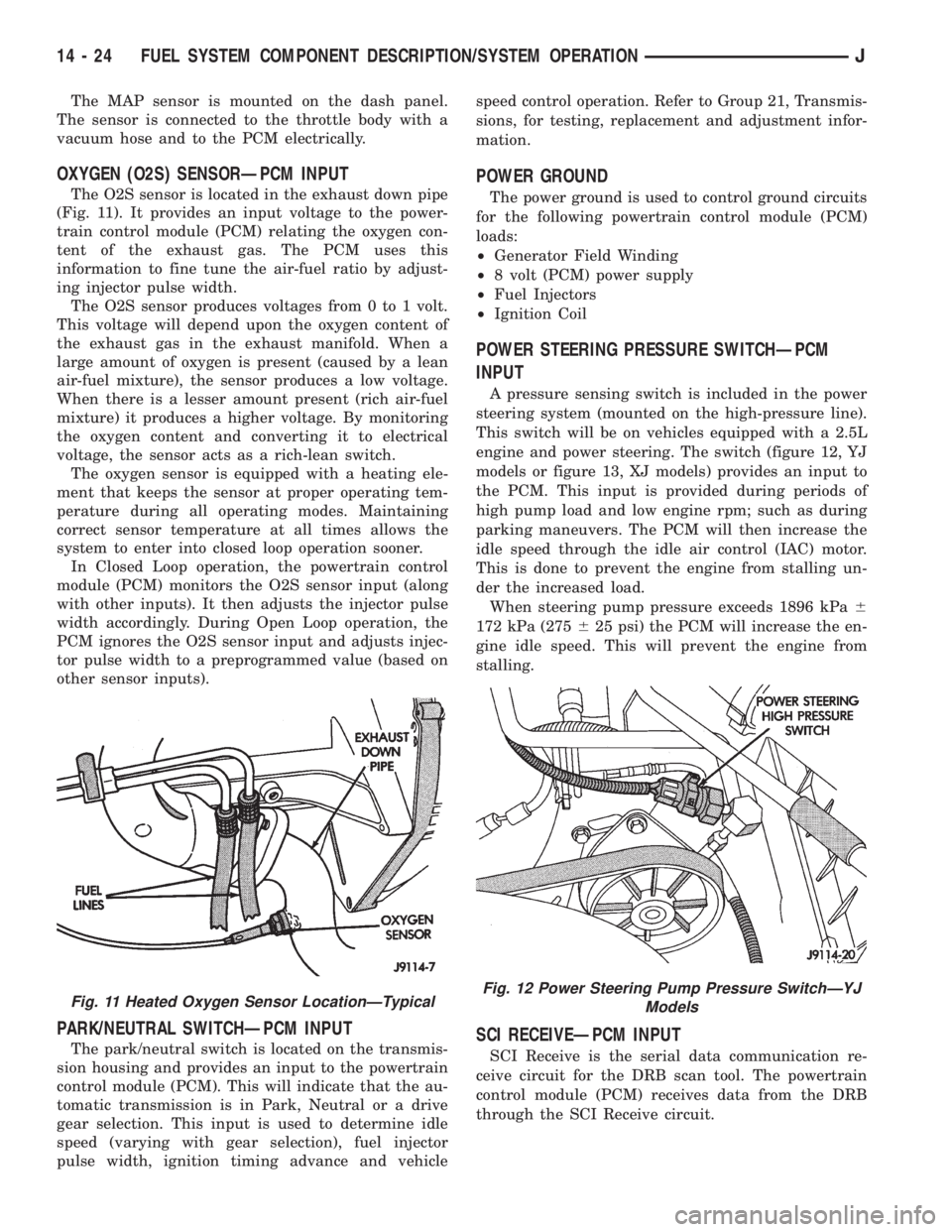

JEEP WRANGLER 1995 Owners Manual Fig. 9 Sensor LocationÐ2.5L Engine Fig. 10 Engine Coolant Temperature SensorÐ Typical JFUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATION 14 - 23

Page 1426 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 12 Power Steering Pump Pressure SwitchÐYJ Models 14 - 24 FUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATIONJ

Page 1427 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 14 Throttle Position SensorÐ2.5L Engine Fig. 15 Throttle Position SensorÐ4.0L Engine JFUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATION 14 - 25

Page 1428 of 2158

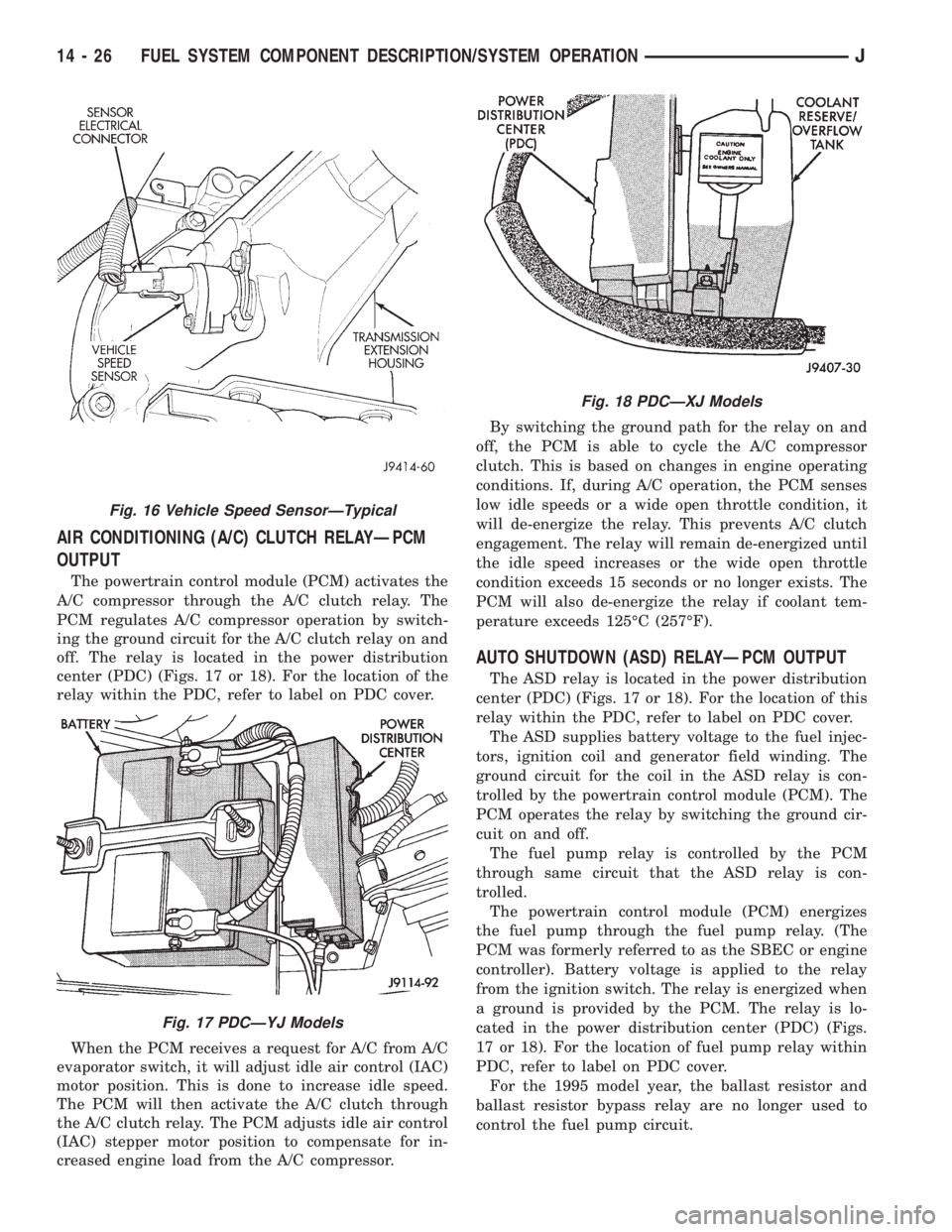

JEEP WRANGLER 1995 Owners Manual Fig. 17 PDCÐYJ Models Fig. 18 PDCÐXJ Models 14 - 26 FUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATIONJ

Page 1429 of 2158

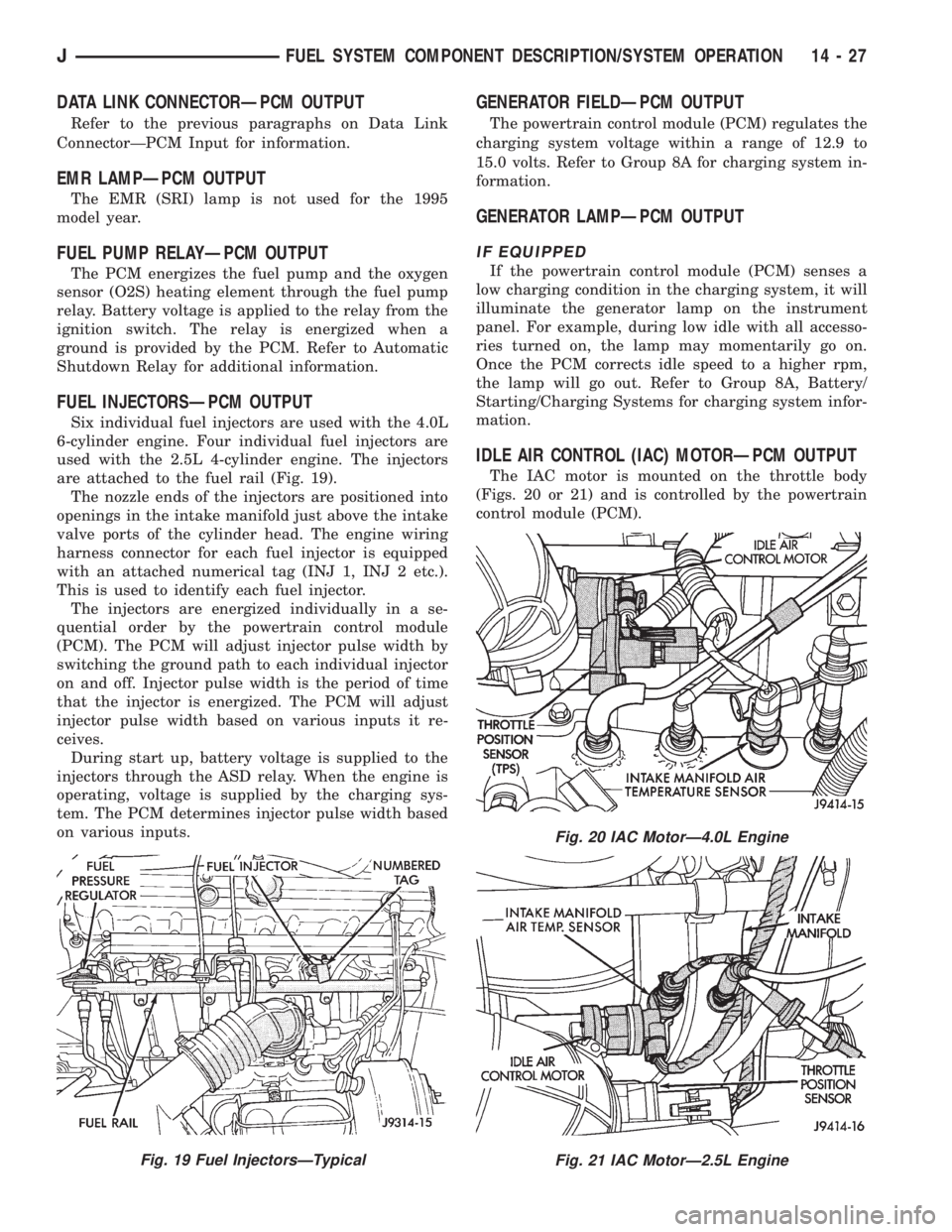

JEEP WRANGLER 1995 Owners Manual Fig. 20 IAC MotorÐ4.0L Engine Fig. 21 IAC MotorÐ2.5L Engine JFUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATION 14 - 27

Page 1430 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 23 Check Engine LampÐXJ ModelsÐTypical Fig. 24 Check Engine LampÐYJ ModelsÐTypical 14 - 28 FUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATIONJ

Page 1431 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 26 TCC Relay LocationÐYJ Models JFUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATION 14 - 29

Page 1432 of 2158

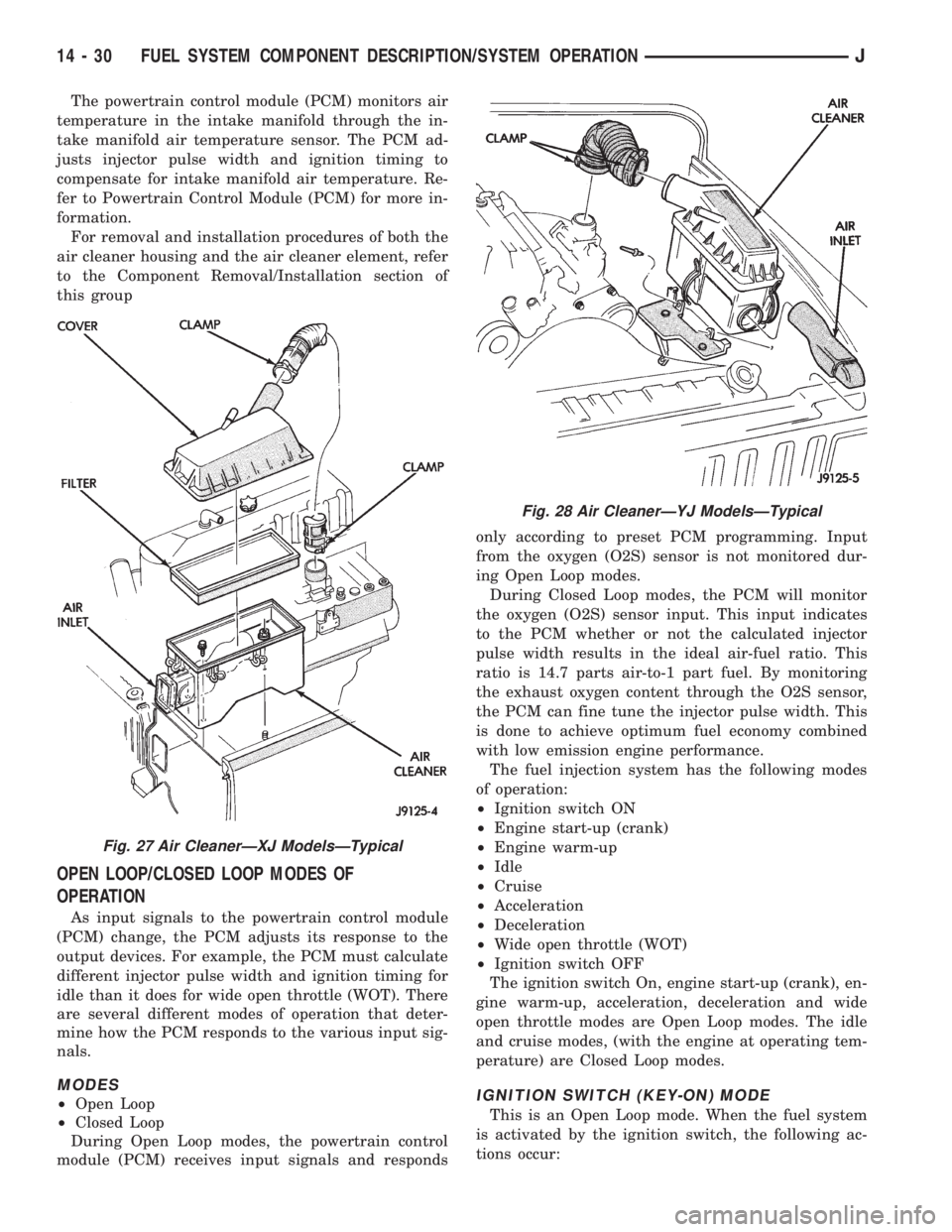

JEEP WRANGLER 1995 Owners Manual Fig. 28 Air CleanerÐYJ ModelsÐTypical 14 - 30 FUEL SYSTEM COMPONENT DESCRIPTION/SYSTEM OPERATIONJ
