Page 1777 of 2158

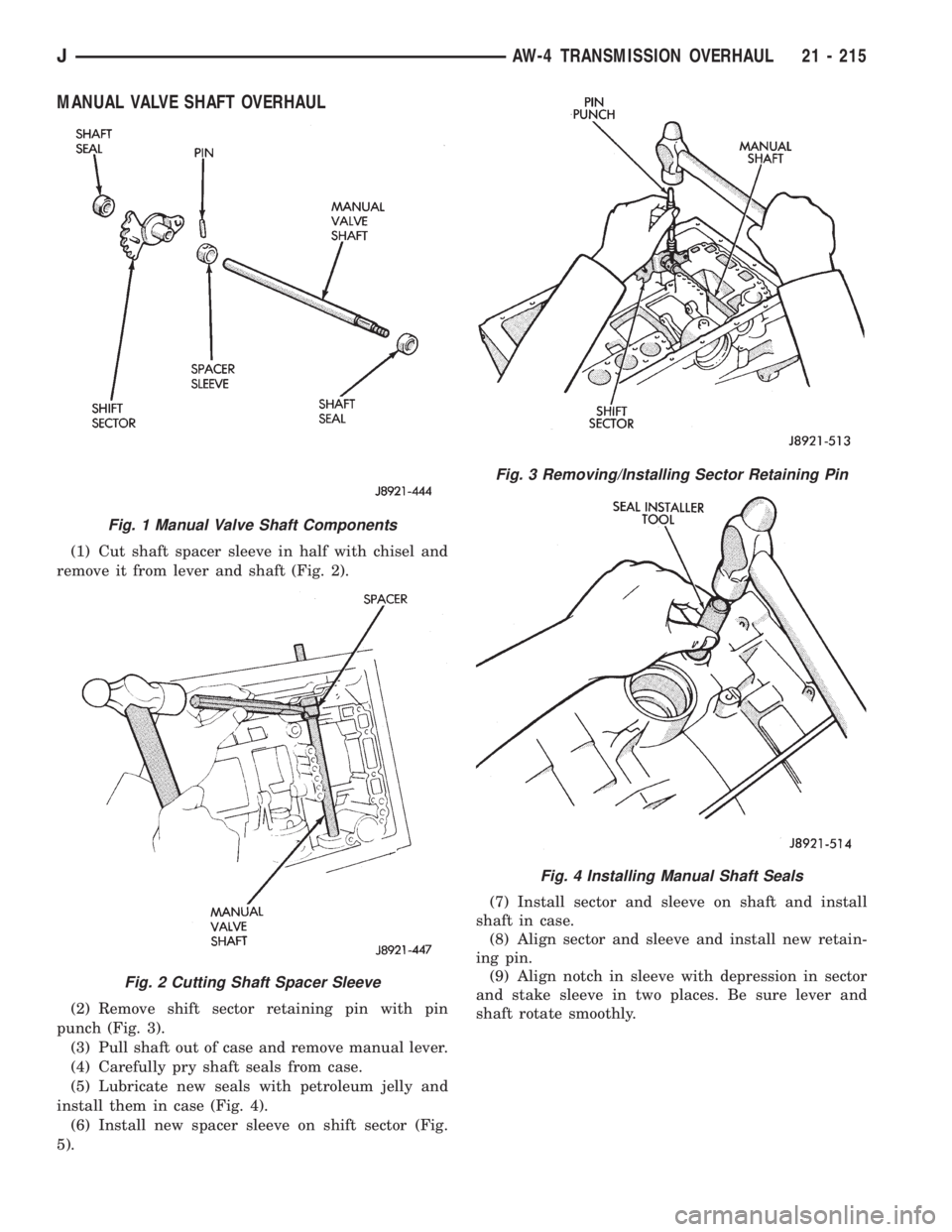

JEEP WRANGLER 1995 Owners Manual Fig. 2 Cutting Shaft Spacer Sleeve Fig. 3 Removing/Installing Sector Retaining Pin Fig. 4 Installing Manual Shaft Seals JAW-4 TRANSMISSION OVERHAUL 21 - 215

Page 1778 of 2158

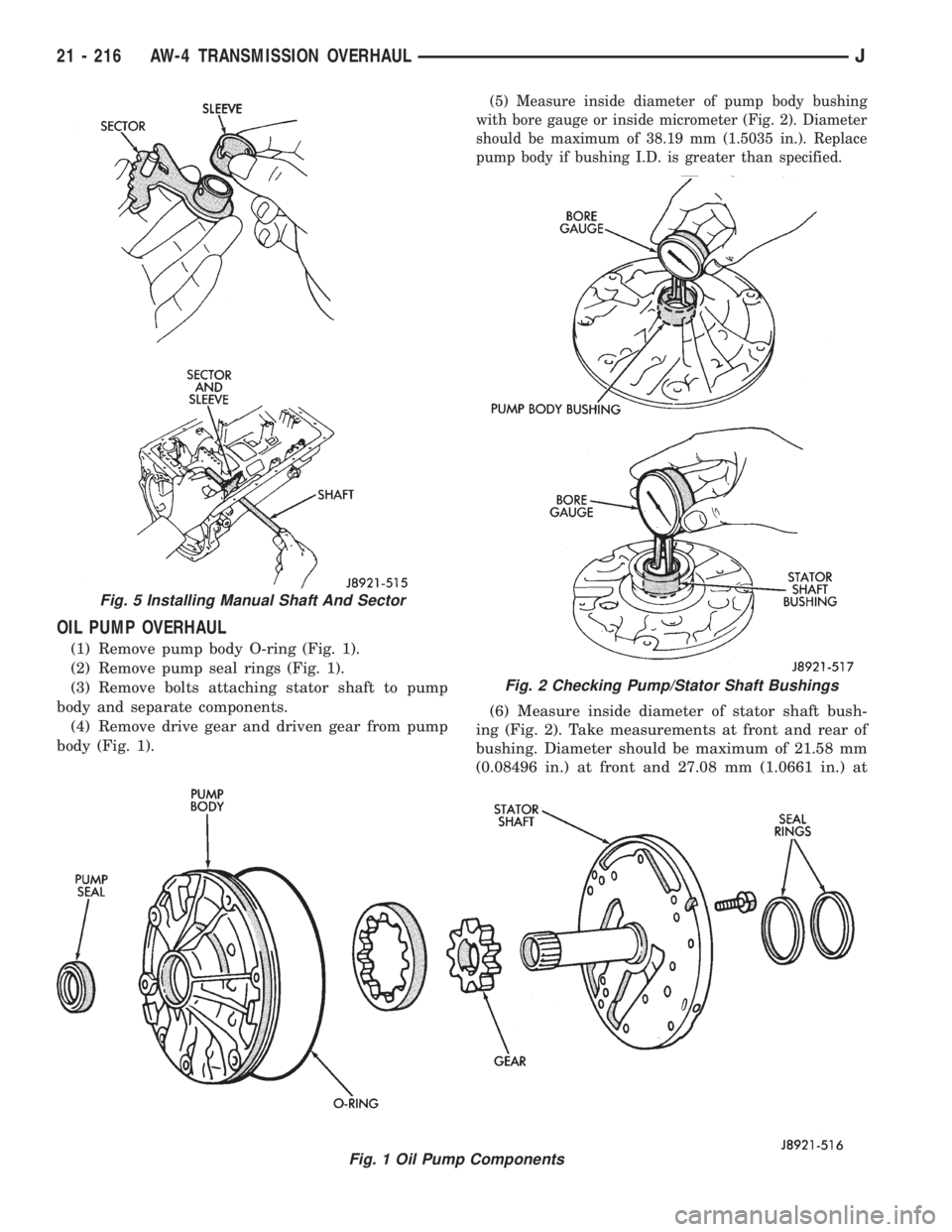

JEEP WRANGLER 1995 Owners Manual Fig. 5 Installing Manual Shaft And Sector Fig. 2 Checking Pump/Stator Shaft Bushings 21 - 216 AW-4 TRANSMISSION OVERHAULJ

Page 1779 of 2158

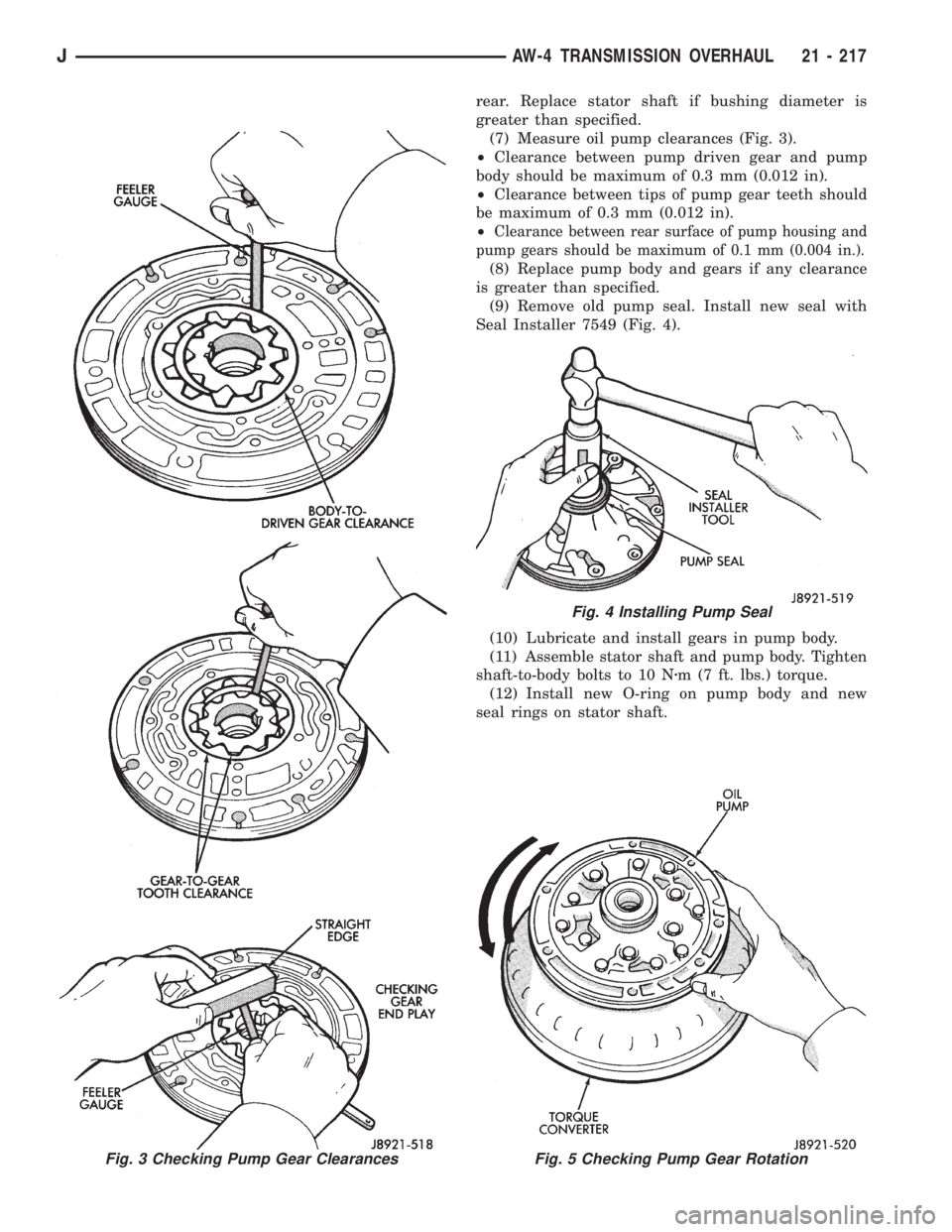

JEEP WRANGLER 1995 Owners Manual Fig. 5 Checking Pump Gear Rotation Fig. 4 Installing Pump Seal JAW-4 TRANSMISSION OVERHAUL 21 - 217

Page 1780 of 2158

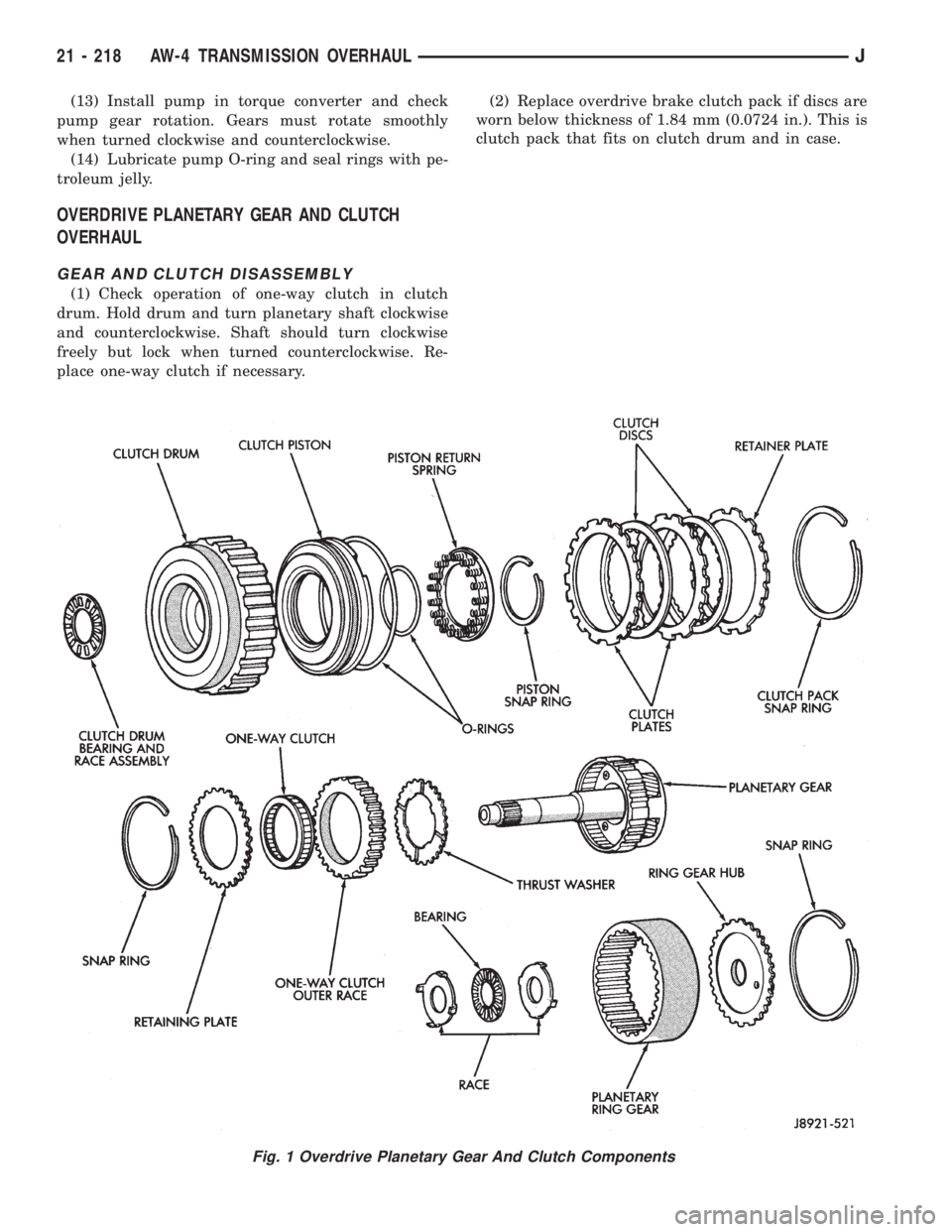

JEEP WRANGLER 1995 Owners Manual

Page 1781 of 2158

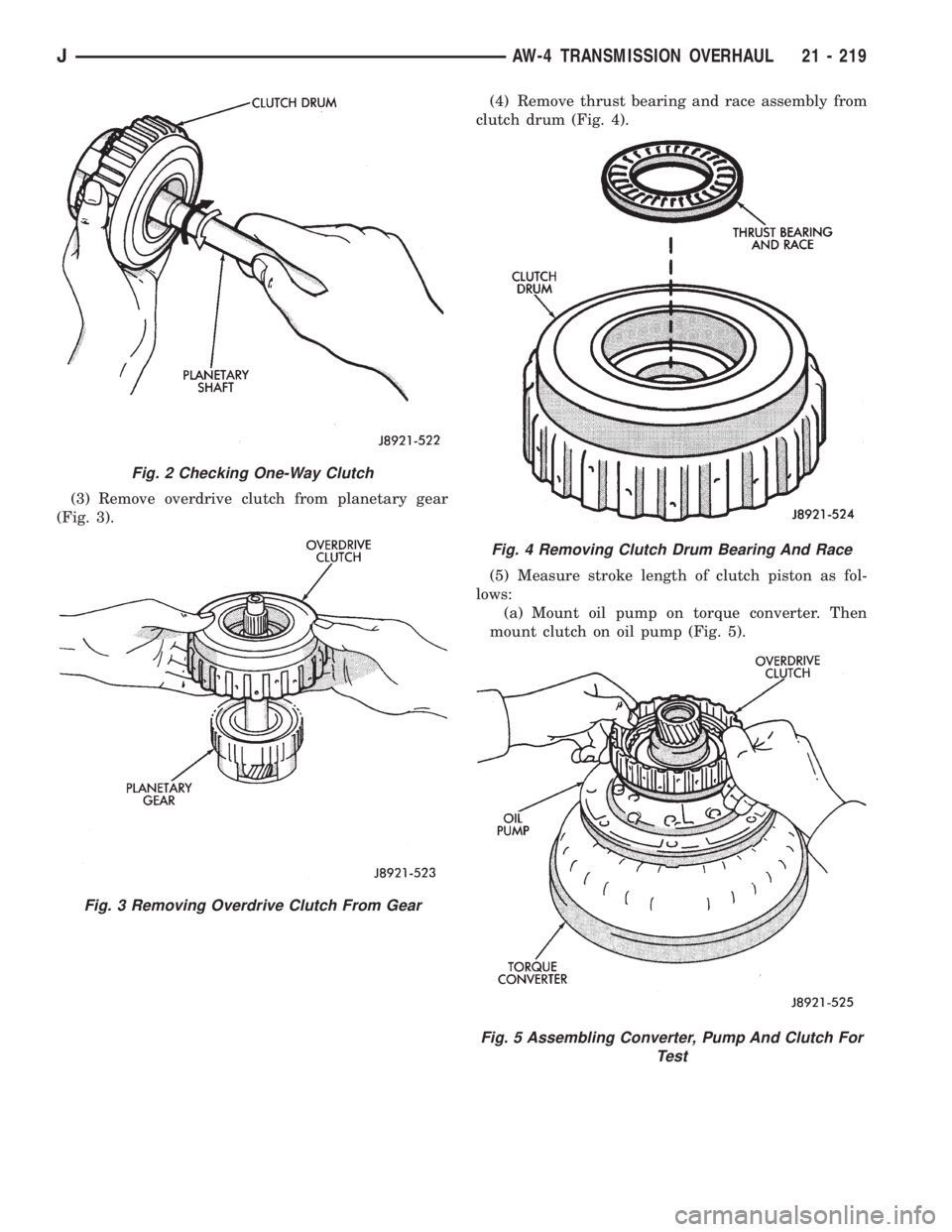

JEEP WRANGLER 1995 Owners Manual Fig. 3 Removing Overdrive Clutch From Gear Fig. 4 Removing Clutch Drum Bearing And Race Fig. 5 Assembling Converter, Pump And Clutch For Test JAW-4 TRANSMISSION OVERHAUL 21 - 219

Page 1782 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 7 Removing Clutch Pack Snap Ring Fig. 8 Removing Clutch Piston Snap Ring Fig. 9 Removing Overdrive Clutch Piston 21 - 220 AW-4 TRANSMISSION OVERHAULJ

Page 1783 of 2158

JEEP WRANGLER 1995 Owners Manual Fig. 11 Removing Ring Gear Hub Fig. 12 Remove Planetary Gear Race Fig. 13 Removing Snap Ring And Retaining Plate JAW-4 TRANSMISSION OVERHAUL 21 - 221

Page 1784 of 2158

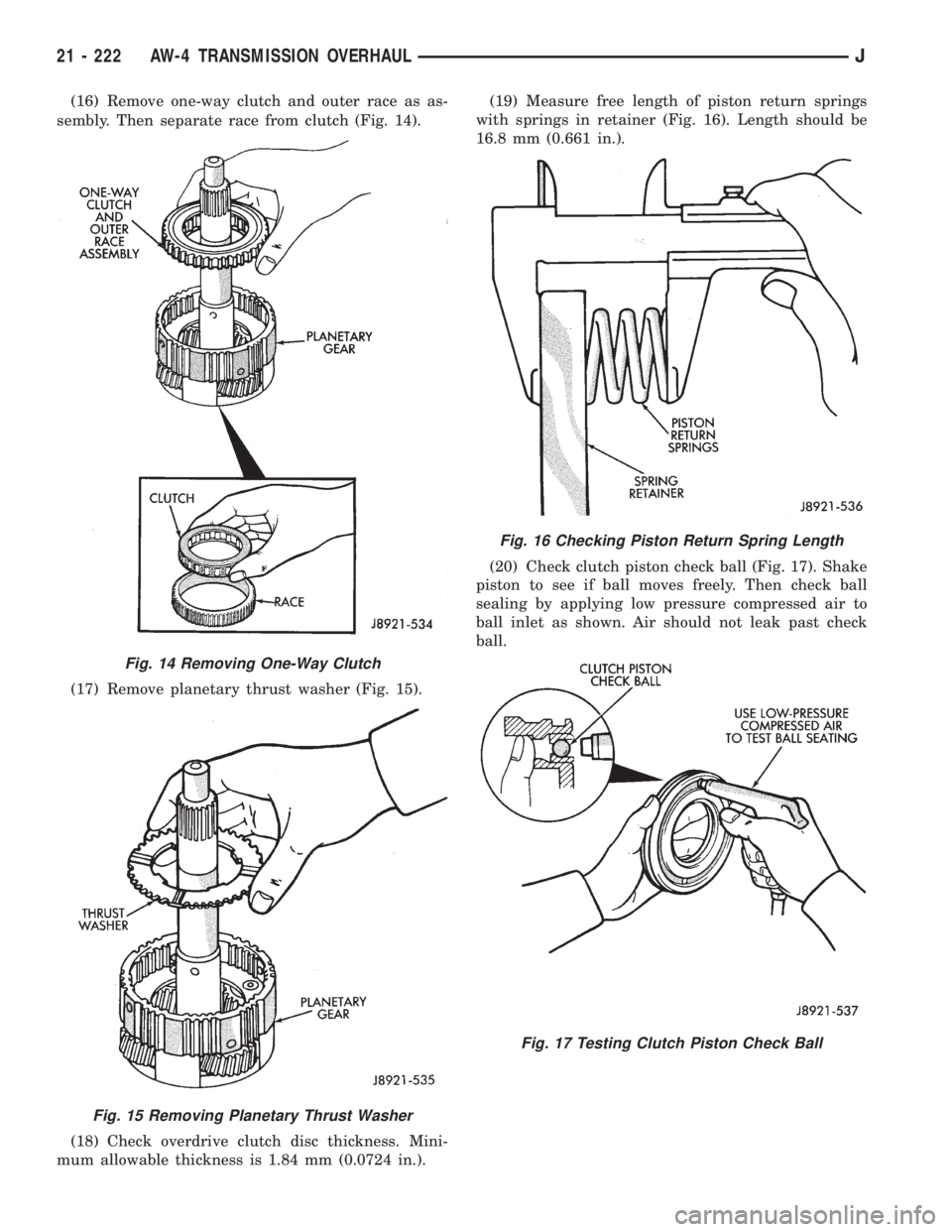

JEEP WRANGLER 1995 Owners Manual Fig. 15 Removing Planetary Thrust Washer Fig. 16 Checking Piston Return Spring Length Fig. 17 Testing Clutch Piston Check Ball 21 - 222 AW-4 TRANSMISSION OVERHAULJ
